RAB WFRX-4BD-K 4 in. Open Baffle Downlight 12W 1000 Lumens Selectable CCT, Black
Available in stock (100)
About this item
About this item
- Selectable CCT: 2700K to 5000K for versatile lighting
- High Efficacy: Delivers up to 1000 lumens
- Energy Efficient: 12W replaces 60W CFL
- Wet Rated: Suitable for indoor and outdoor use
- Dimmable: Compatible with TRIAC/ELV dimmers
We process payments securely and do not store credit card information.
Description
Description

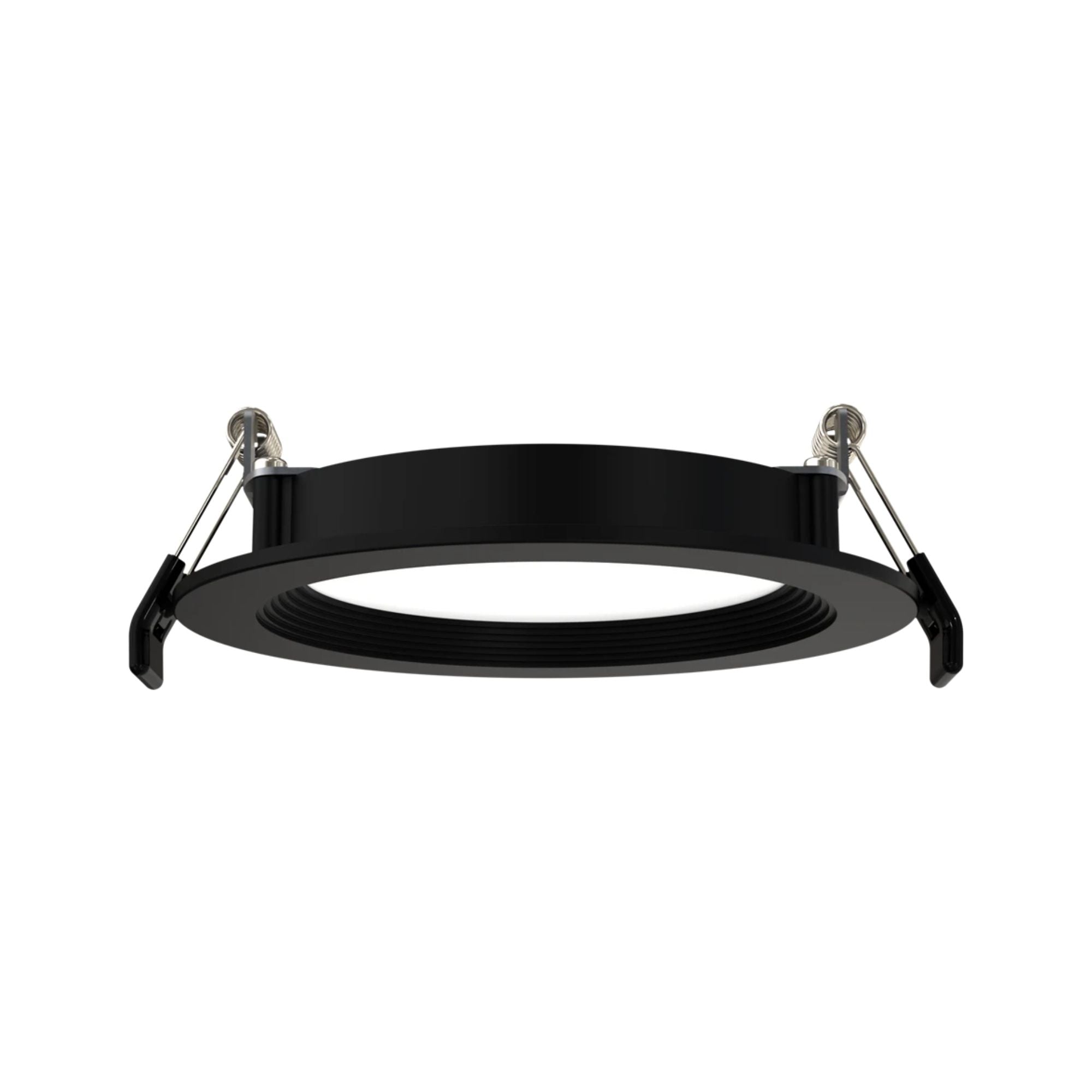

RAB WFRX-4BD-K 4 in. Open Trim Downlight — 12W / Selectable CCT
The RAB WFRX-4BD-K is a 4-inch open baffle downlight delivering up to 1000 lumens using 12W. It features selectable color temperatures ranging from 2700K to 5000K, making it ideal for various lighting needs. This model is wet rated, ensuring suitability for both indoor and outdoor applications.

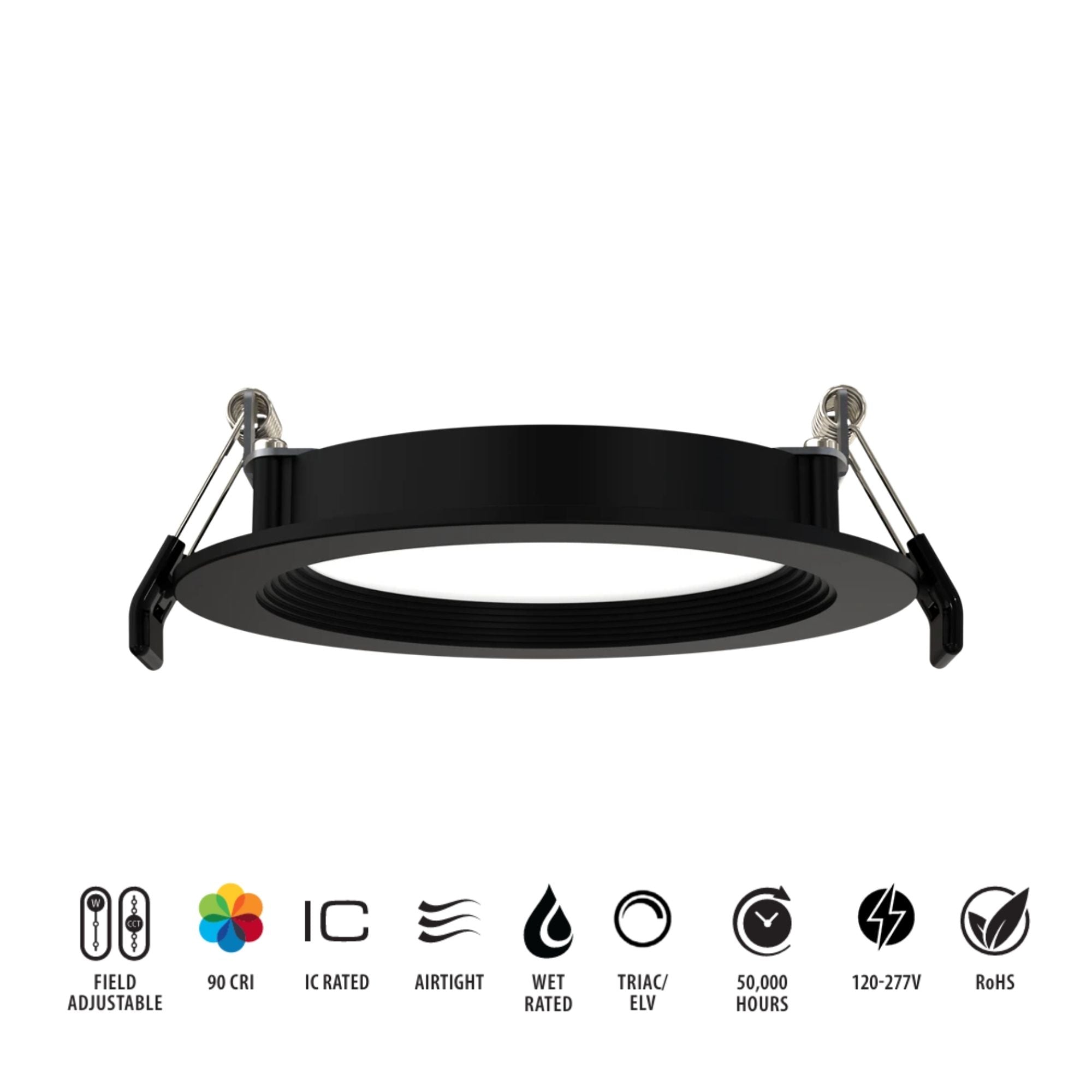

Key Features
- Wattage Options: 12/10/8W selectable
- Voltage: 120-277V
- Beam Angle: 110°±10°
- CRI: 90 for accurate color rendering
- Dimming: TRIAC/ELV compatible
- Lifespan: 50,000 hours
- Compliance: Title 24, Energy Star, RoHS
- Environment: Suitable for wet locations
- Construction: Aluminum back plate, polycarbonate diffuser
- Mounting: No housing required, spring clips included
Construction & Aesthetics
This downlight features a black finish with a baffle trim style, providing a sleek look. The polycarbonate light diffuser ensures even light distribution. Optional new construction frames are available for enhanced installation flexibility.
Electrical & Installation

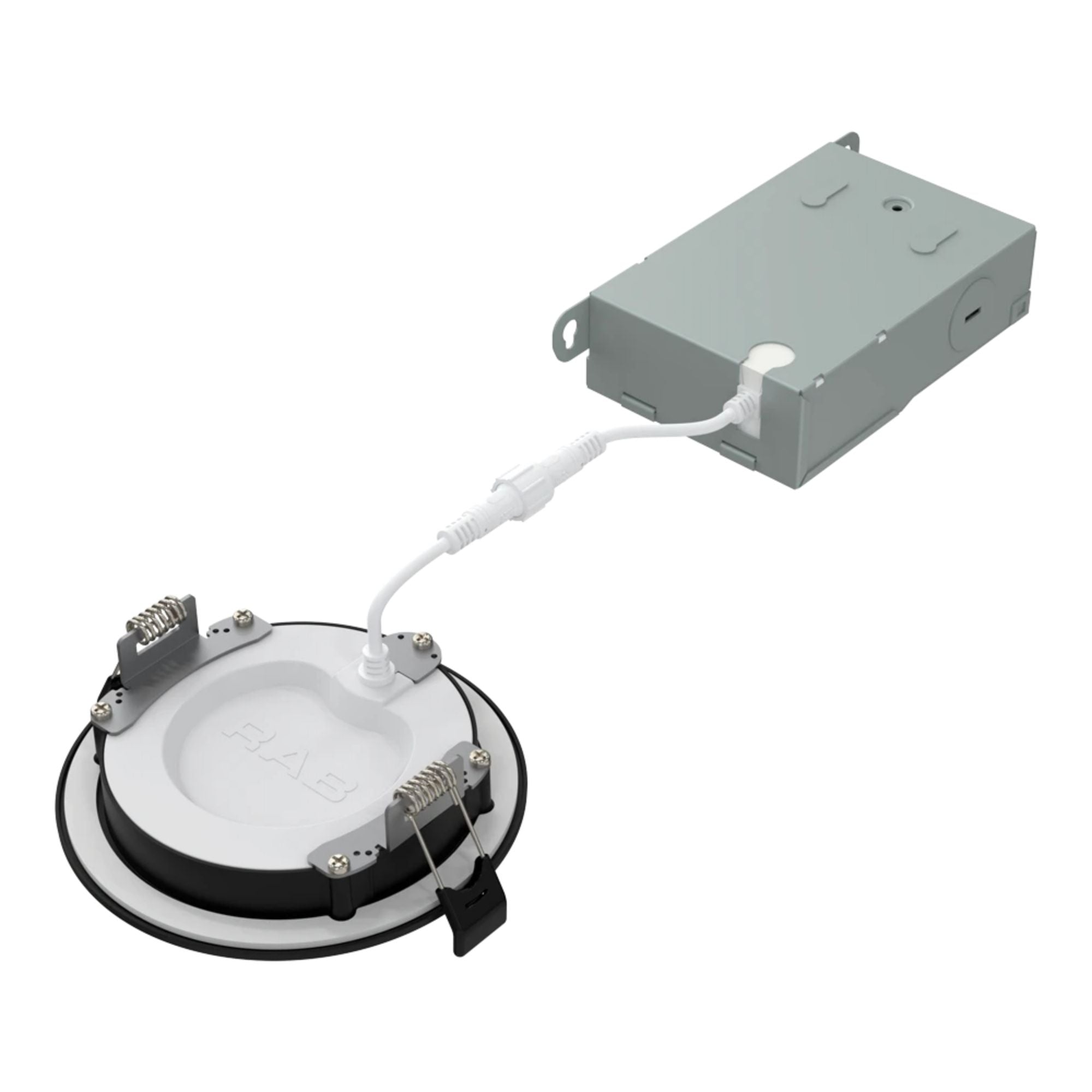

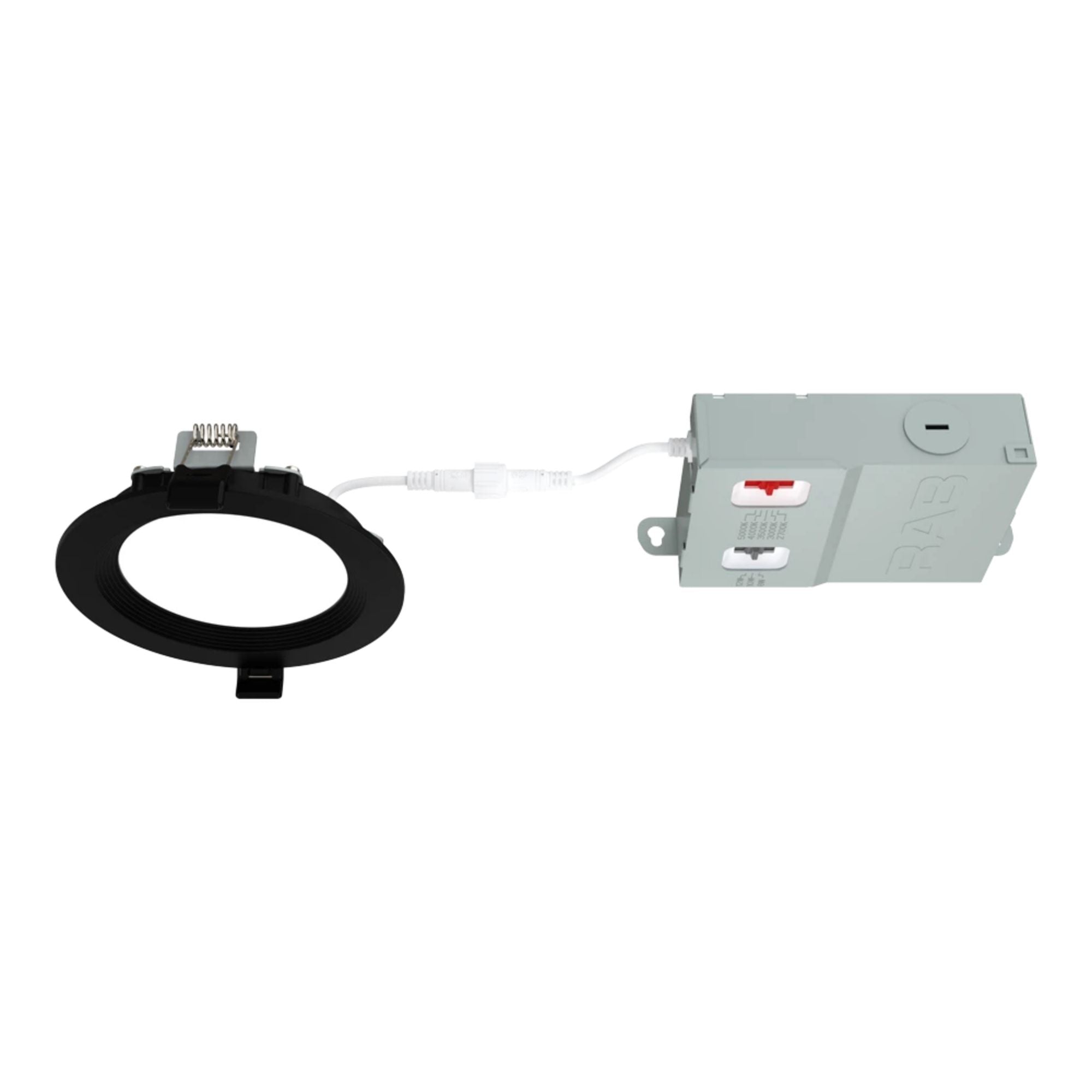

Designed for 120-277V input with a constant current driver, this fixture supports TRIAC/ELV dimming. It includes a die-formed metal driver/junction box for easy installation without the need for additional housing.
Light Output & Performance
With a high efficacy of up to 83 lm/W, this downlight provides a bright output of 1000 lumens. It maintains color consistency with a CRI of 90 and a beam angle of 110°±10°.
Typical Applications
- Residential lighting
- Commercial spaces
- Outdoor areas
- Bathrooms
- Kitchens
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Can the RAB WFRX-4BD-K be used outdoors?
Can the RAB WFRX-4BD-K be used outdoors?
What is the wattage equivalency of the RAB WFRX-4BD-K?
What is the wattage equivalency of the RAB WFRX-4BD-K?
Is additional housing required for installation?
Is additional housing required for installation?
What dimming systems are compatible with this downlight?
What dimming systems are compatible with this downlight?
What is the lifespan of the RAB WFRX-4BD-K?
What is the lifespan of the RAB WFRX-4BD-K?
