RAB WFRX-4BD 4 in. Baffle Round Downlight 12W 1100 Lumens Selectable CCT Wet Rated
Available in stock (200)
About this item
About this item
- Selectable CCT: Adjust between 2700K, 3000K, 3500K, 4000K, and 5000K
- High Lumens: Delivers up to 1100 lumens
- Energy Efficient: Consumes only 12 watts
- Wet Rated: Suitable for wet environments
- Long Lifespan: 50,000-hour LED lifespan
We process payments securely and do not store credit card information.
Description
Description

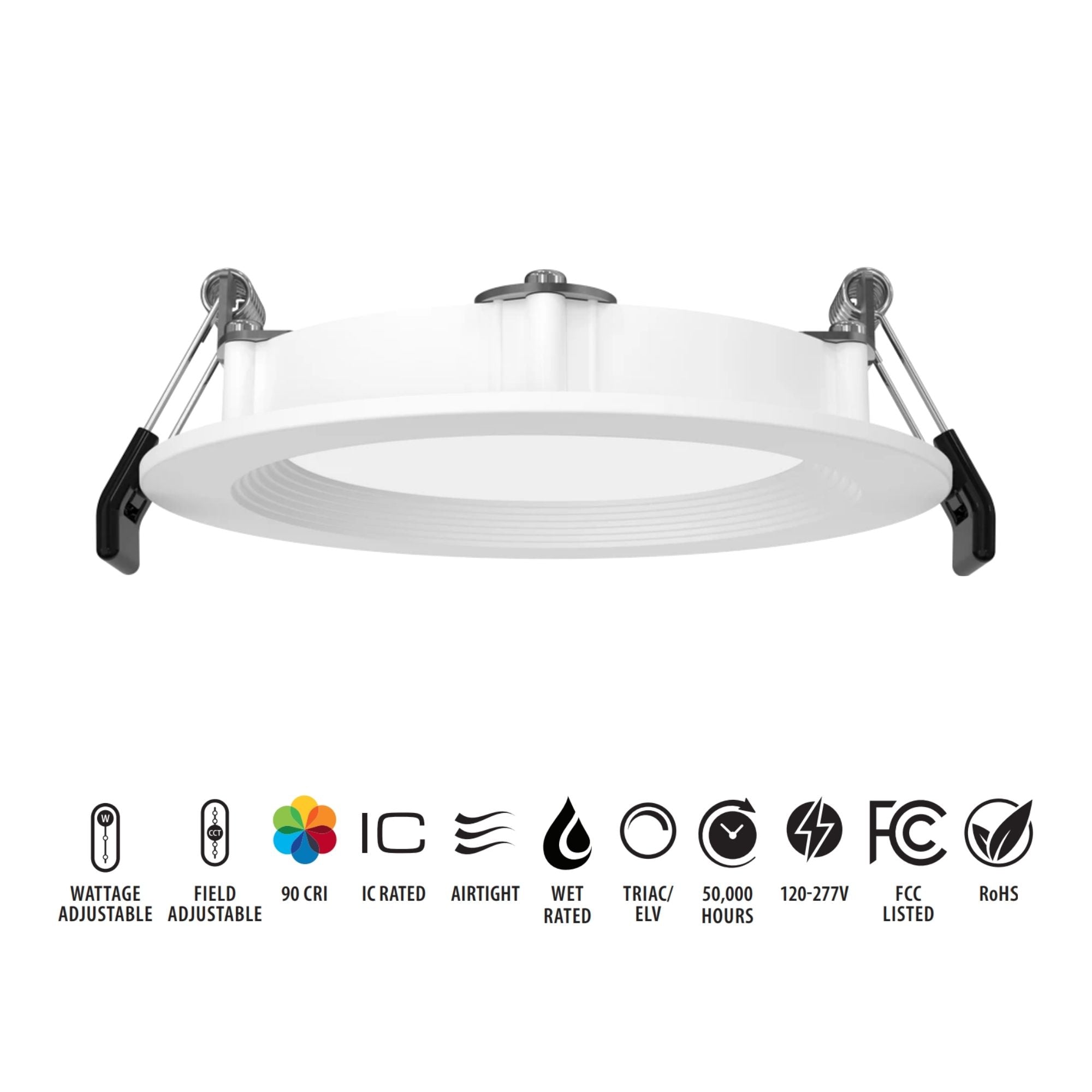

RAB WFRX-4BD 4 in. Baffle Downlight — 12W / Selectable CCT
The RAB WFRX-4BD is a versatile 4-inch baffle downlight delivering up to 1100 lumens using 12W. This high-output edge-lit wafer is designed for 120-277V use and features selectable color temperatures ranging from 2700K to 5000K, making it ideal for various lighting needs.

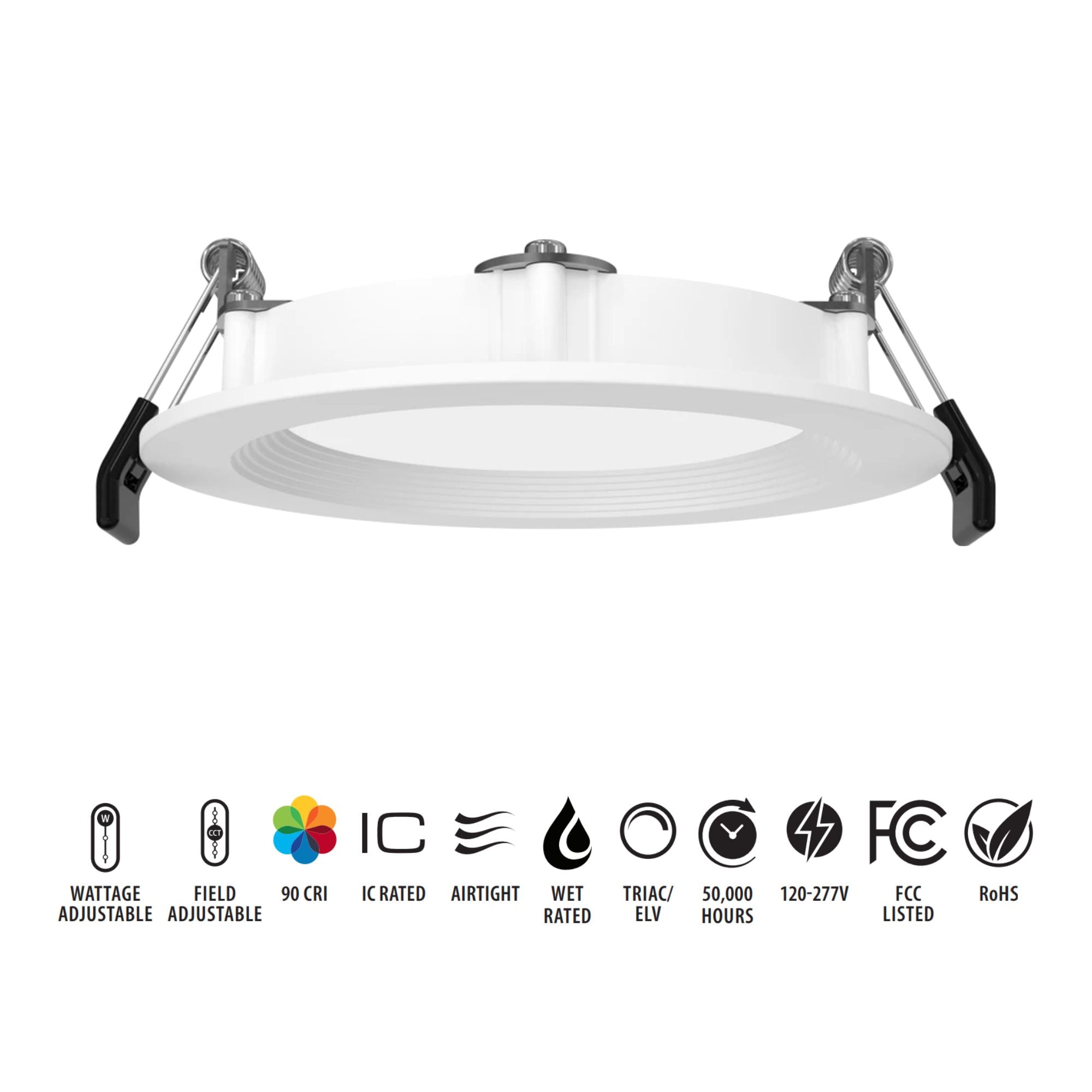

Key Features

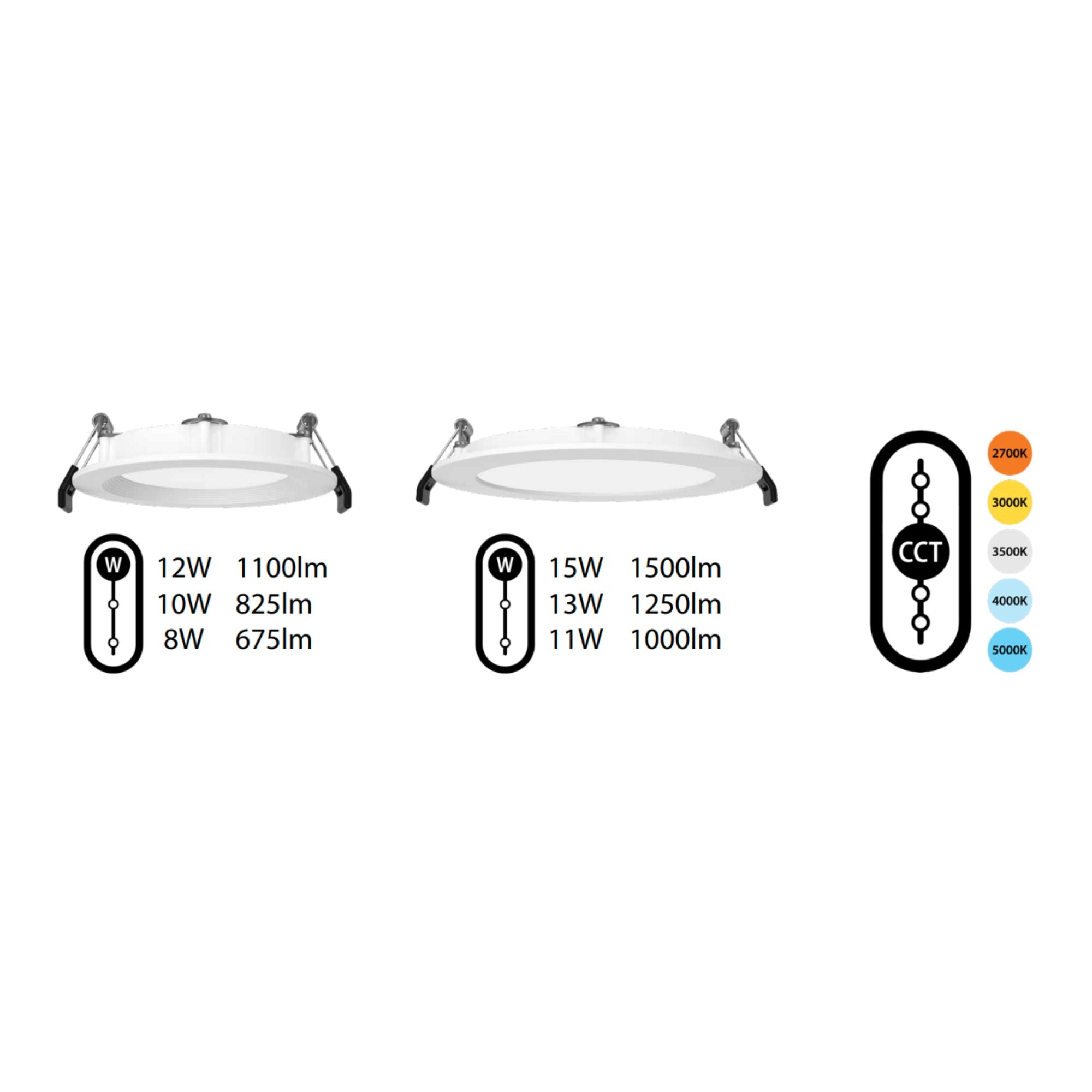

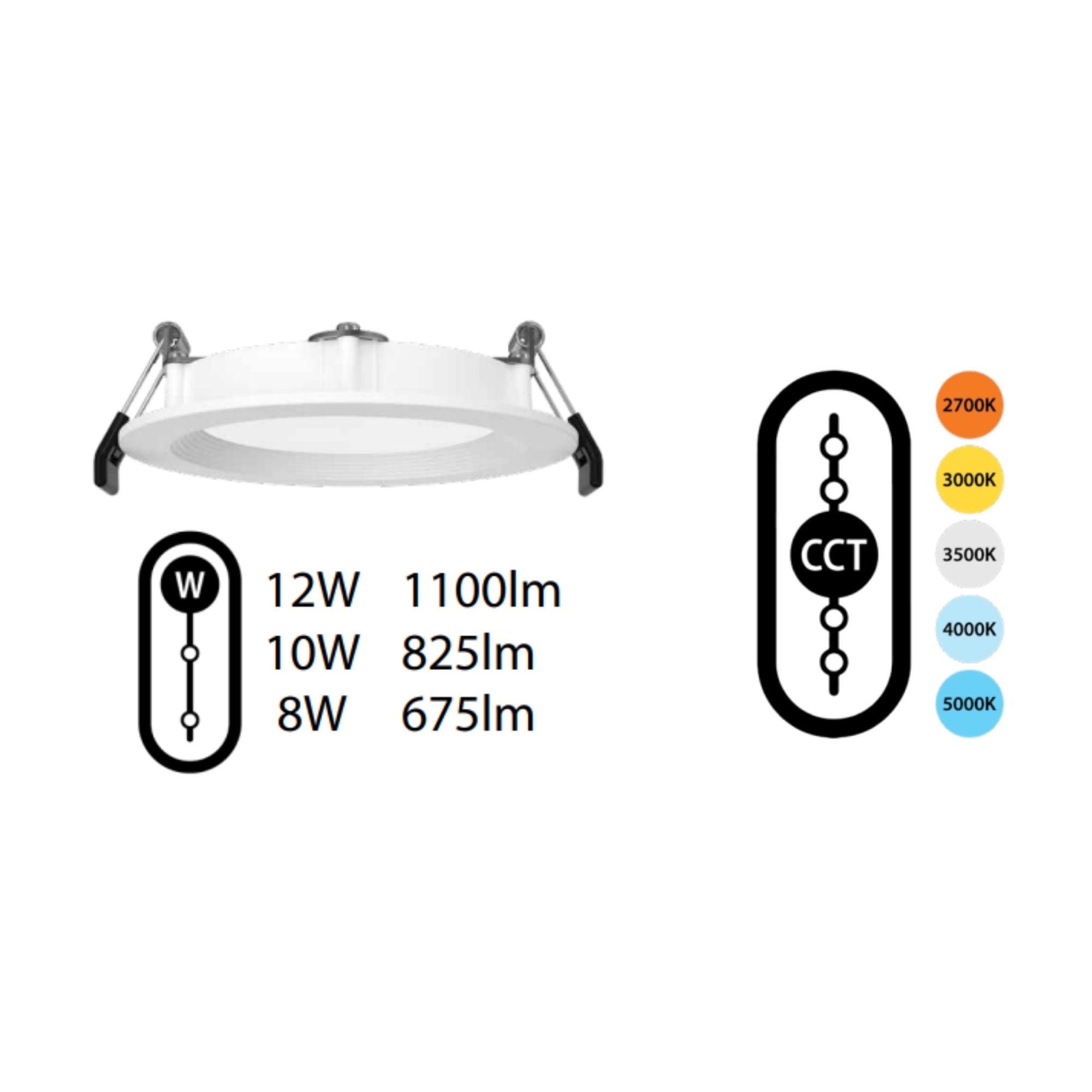

- Wattage Options: 12/10/8W selectable
- Voltage: 120-277V
- Dimming: TRIAC/ELV dimmable down to 10%
- Beam Angle: 110°±10°
- Color Accuracy: 90 CRI
- IC Rated: Suitable for direct contact with insulation
- Energy Star Certified: Yes
- Title 24 Compliant: Meets California Title 24 Part 6 requirements
- RoHS Compliant: Mercury and UV free
- Warranty: 5-year warranty

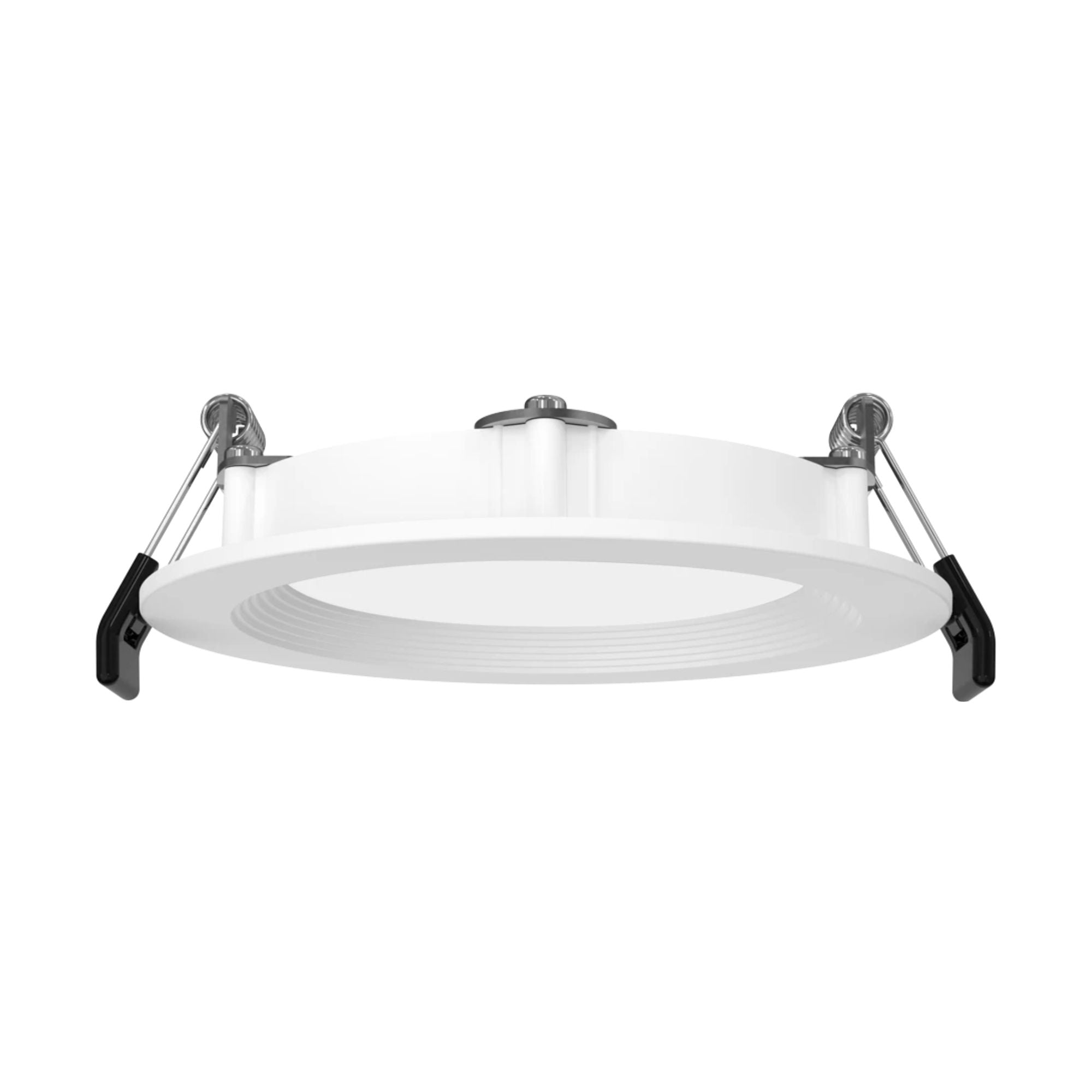

Construction & Aesthetics
This downlight features a durable metal and plastic construction with a white finish and a baffle trim style. The polycarbonate light diffuser ensures even and smooth light distribution. It is air-tight certified per ASTM E283.
Electrical & Installation

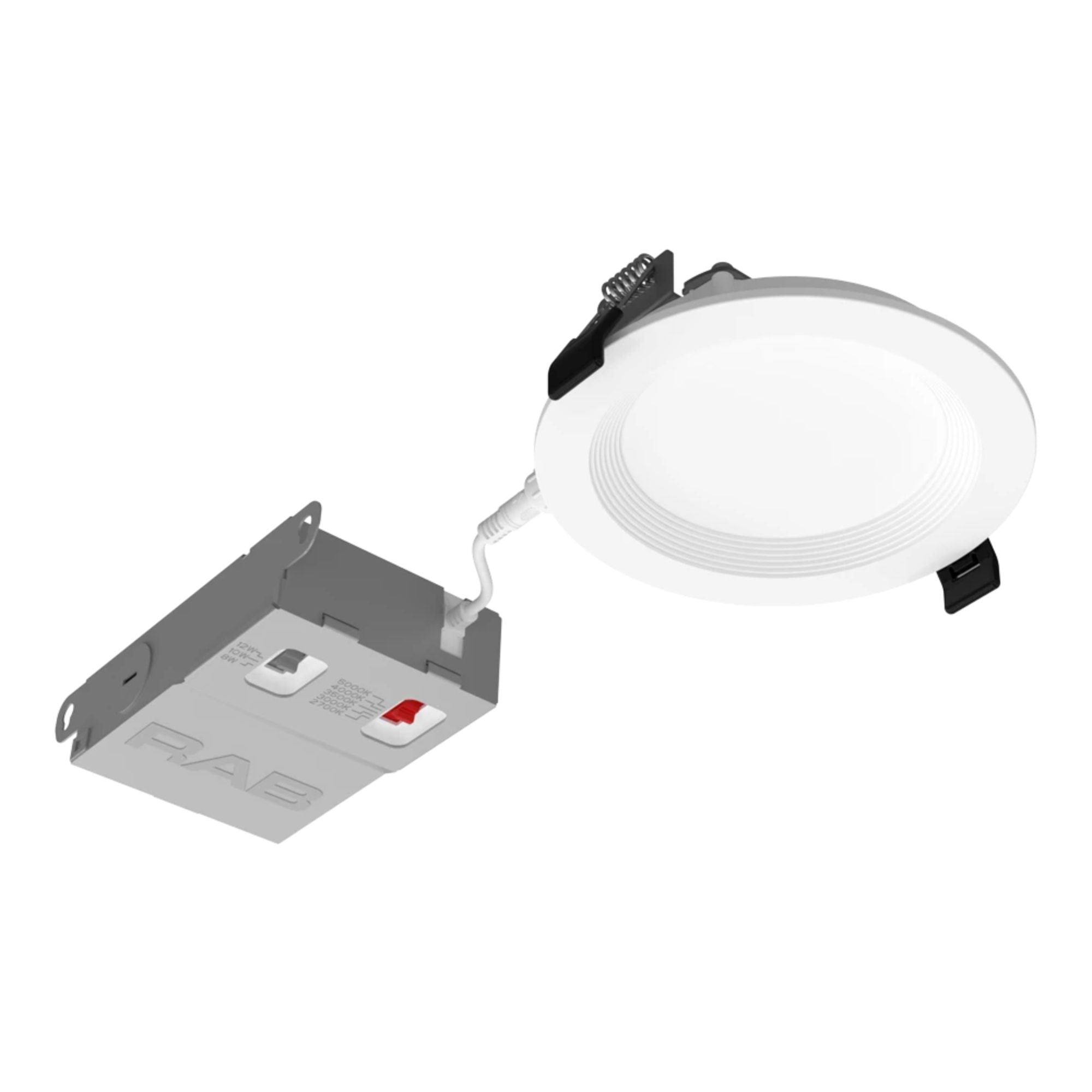

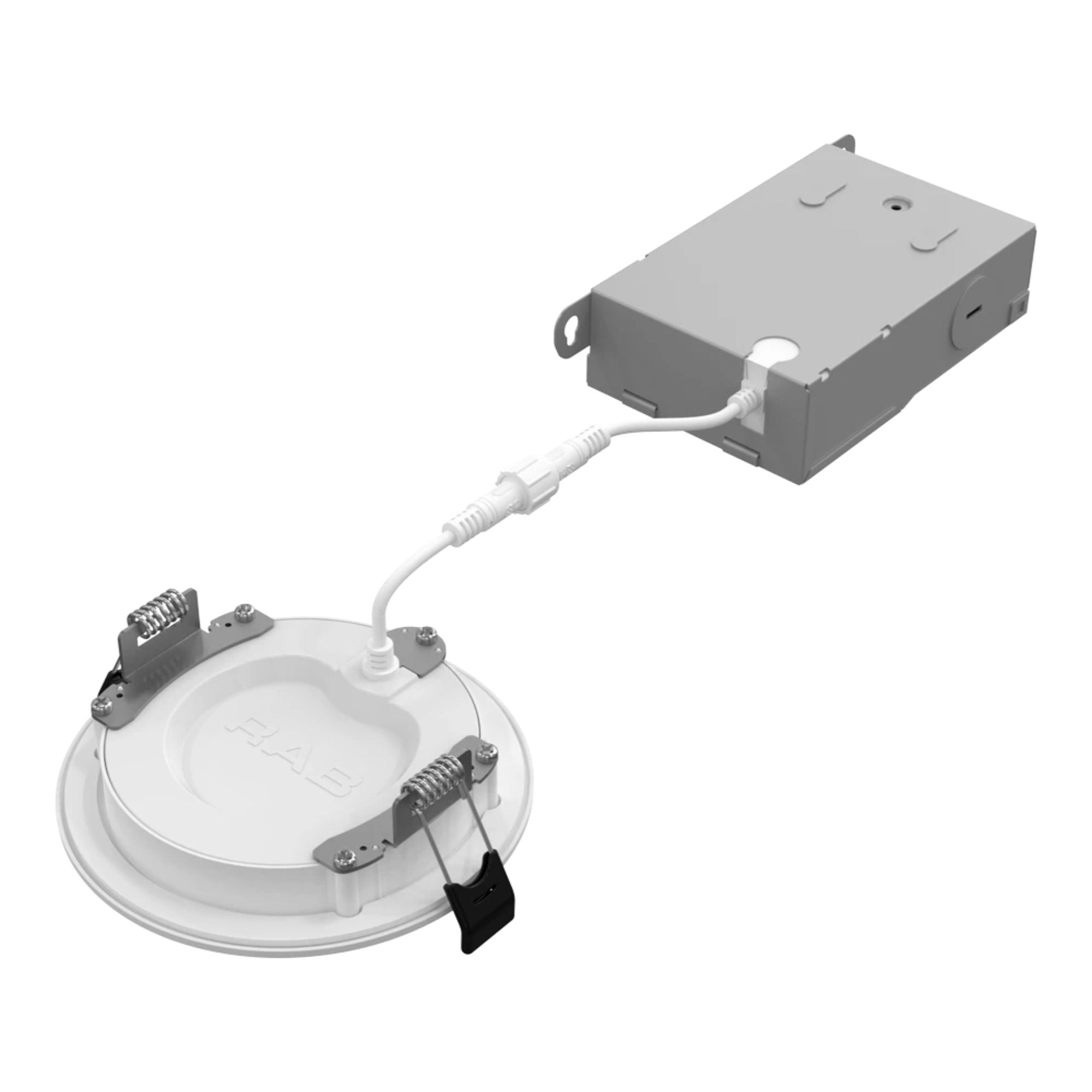

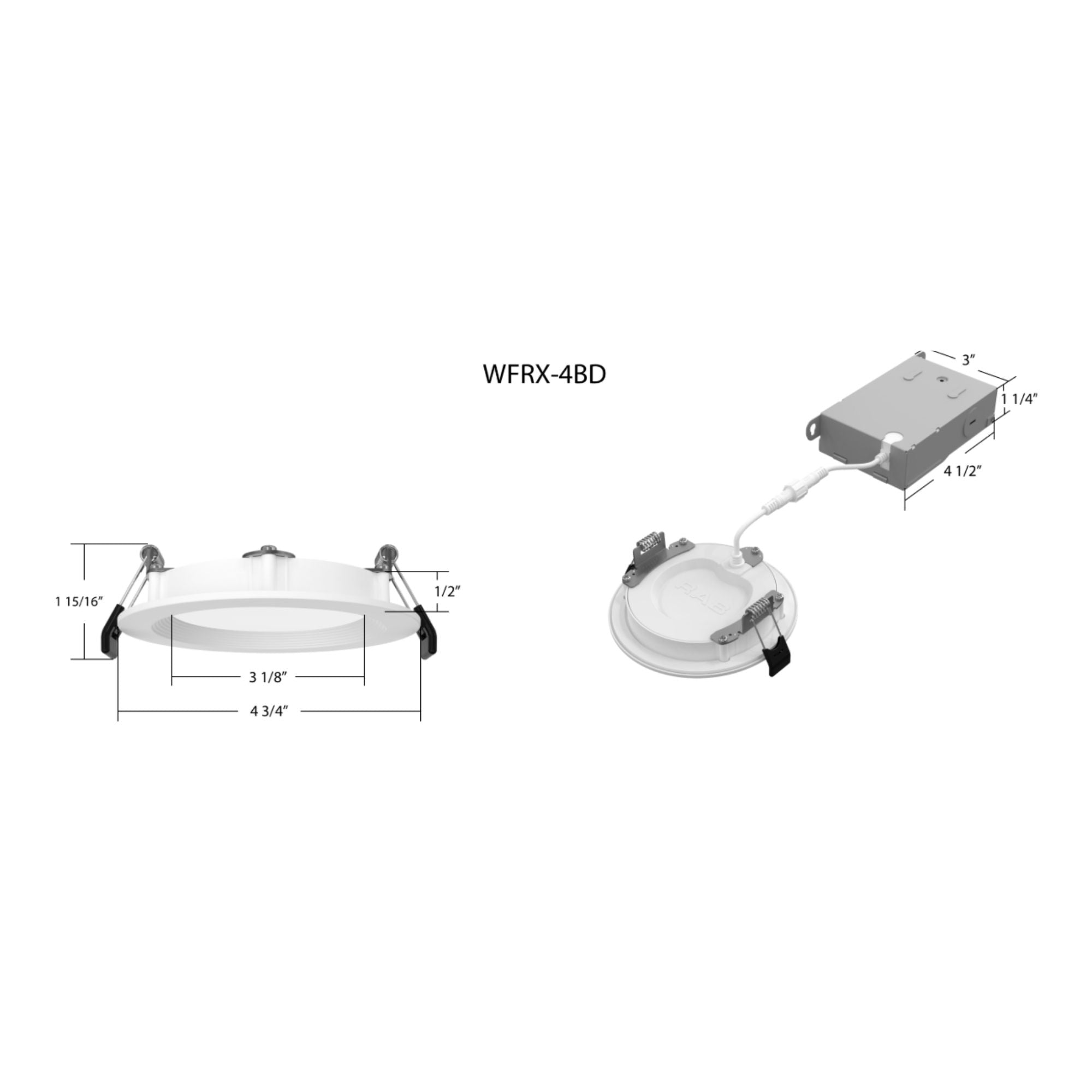

Designed for easy installation, this fixture requires no recessed housing or junction box. It includes a die-formed metal driver/junction box with quick snap-in connectors for reliable line voltage connections.
Light Output & Performance
With a high efficacy of up to 92 lm/W, this downlight provides consistent color performance with a CRI of 90 and a beam angle of 110°±10°. The LED lifespan is rated at 50,000 hours.

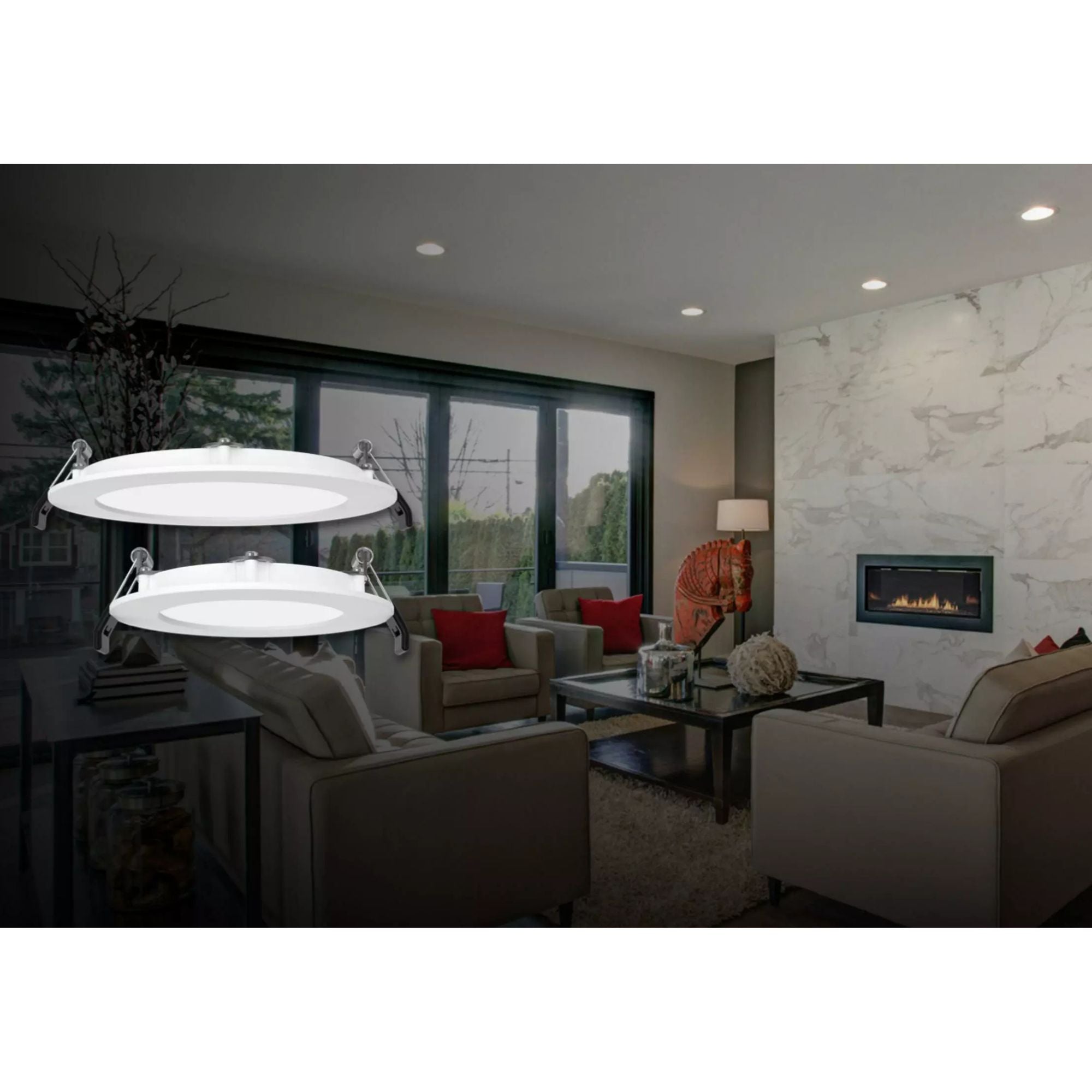

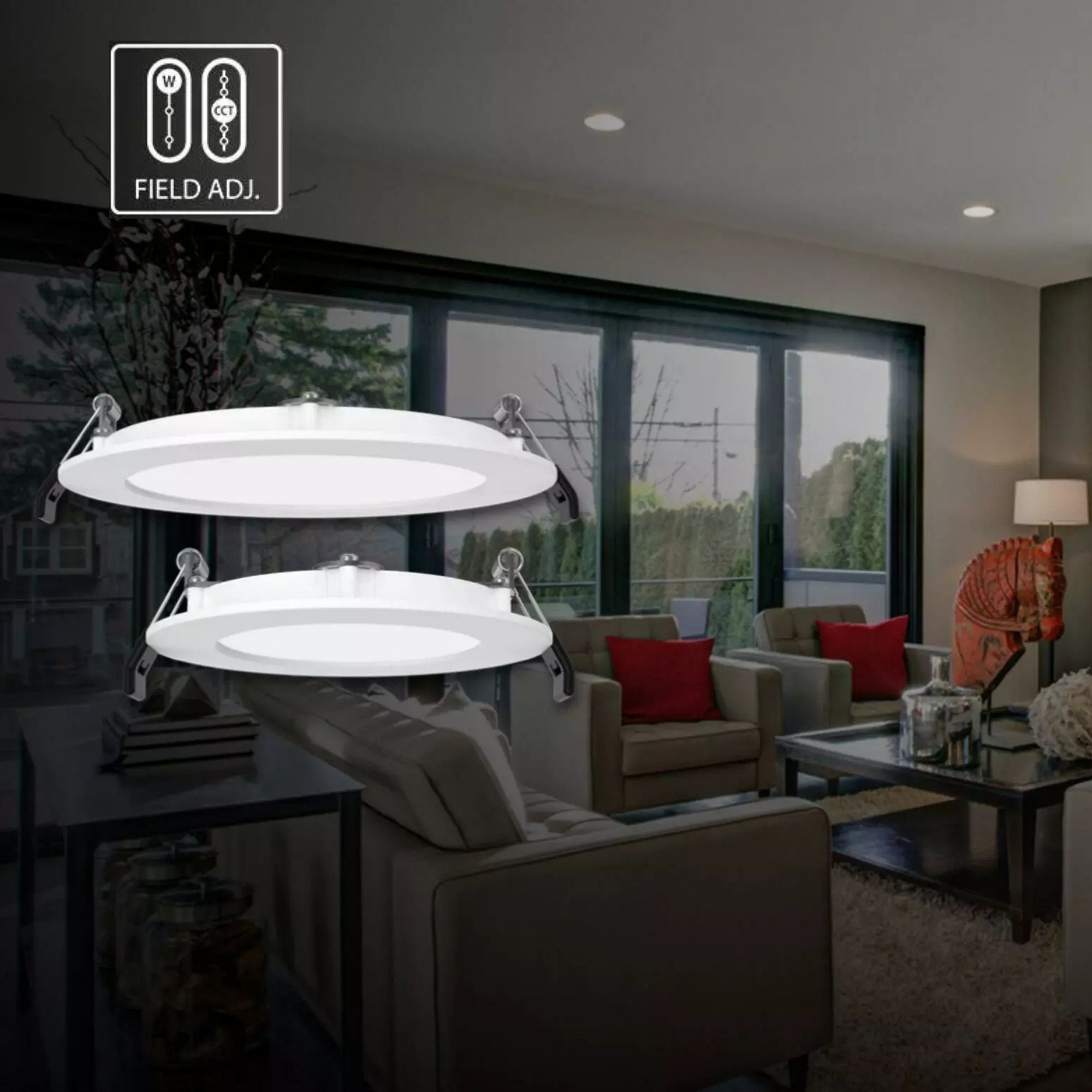

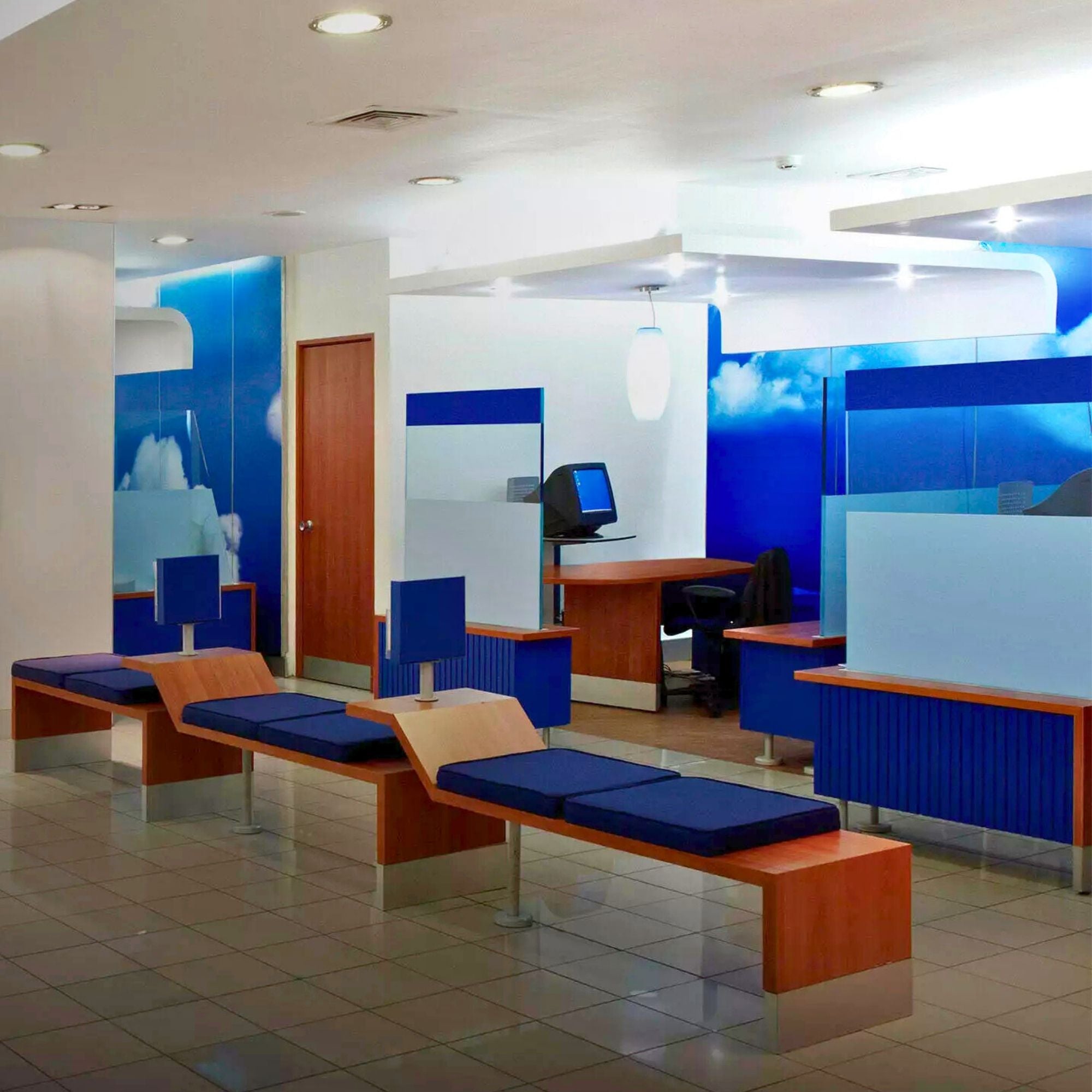

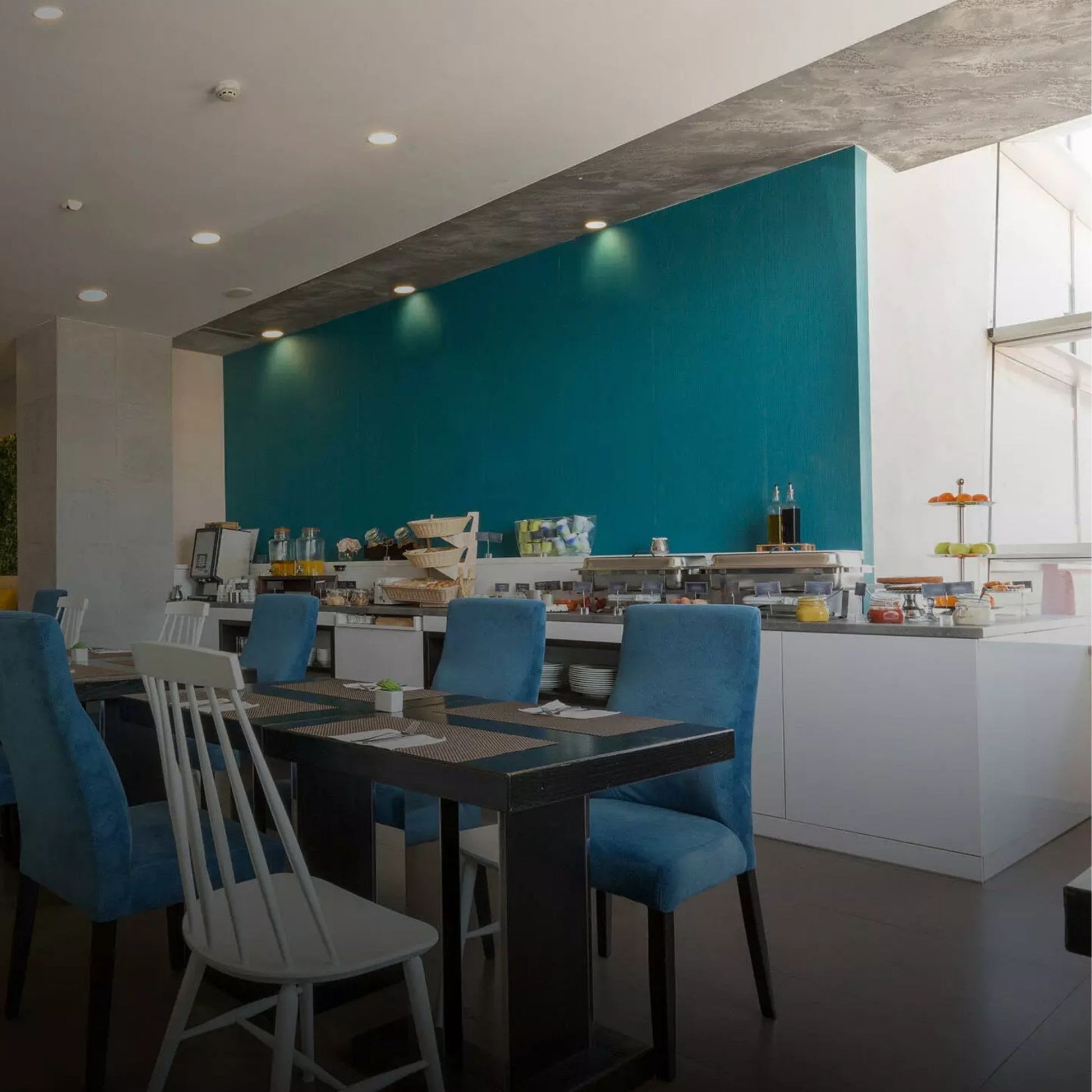

Typical Applications

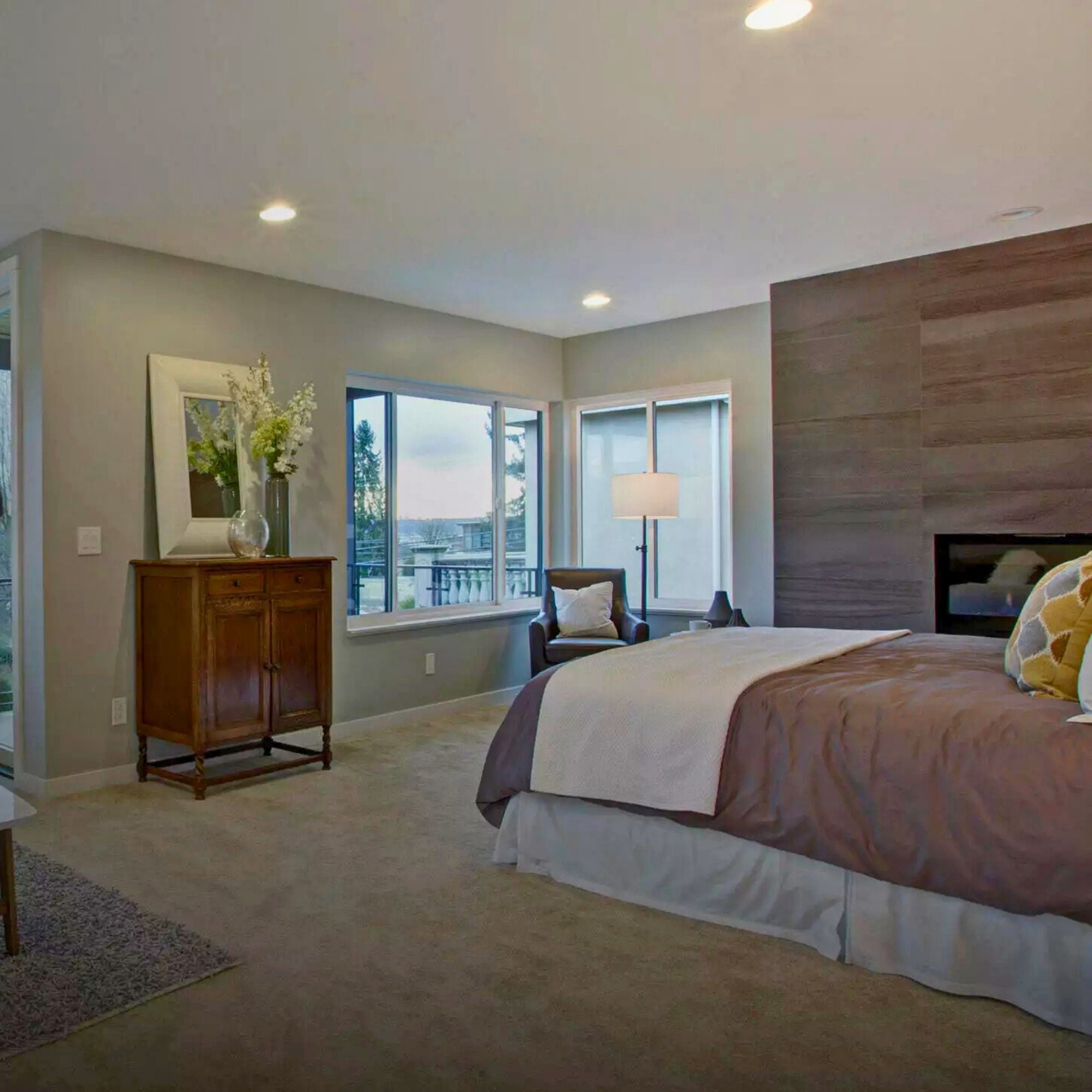

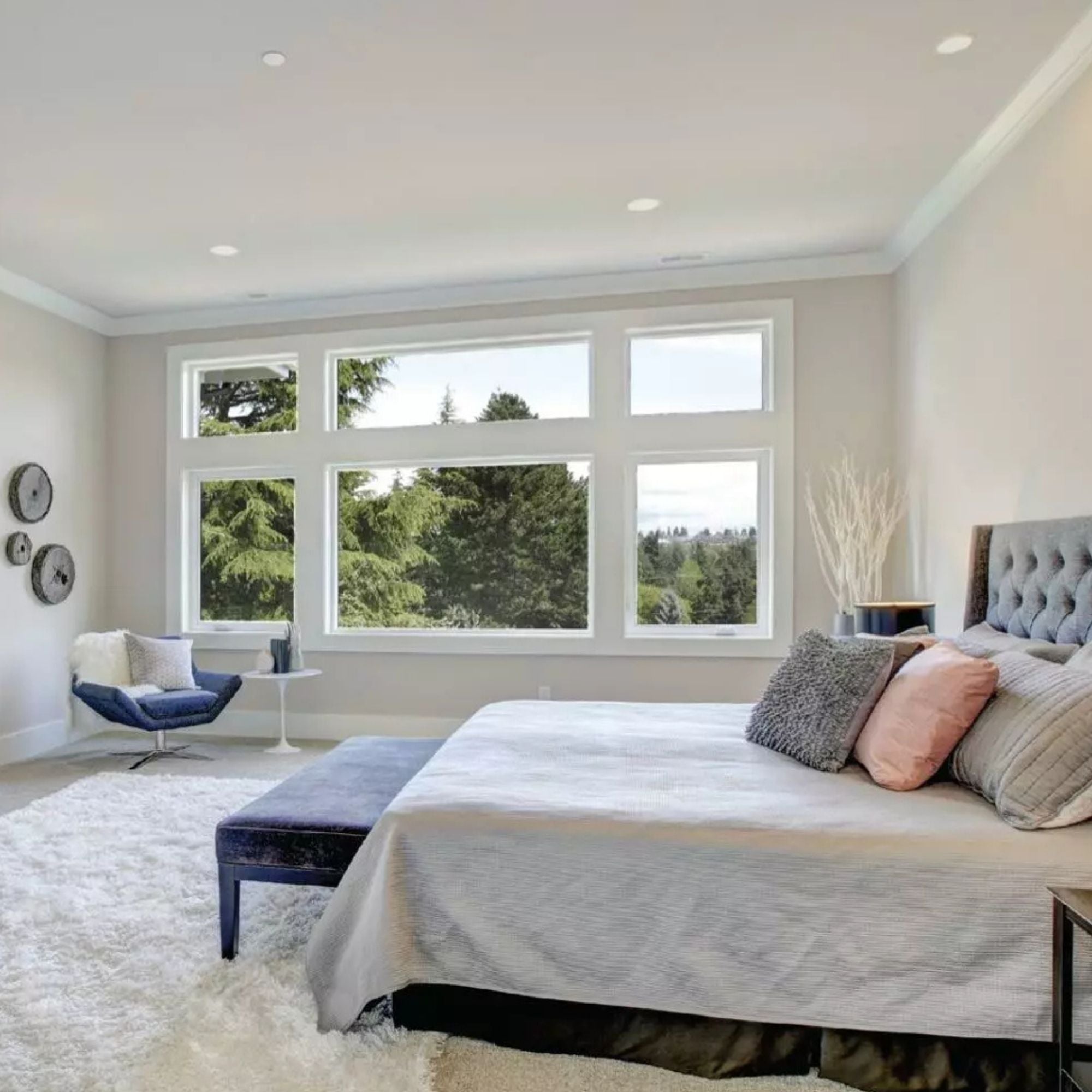

- Residential lighting
- Commercial spaces

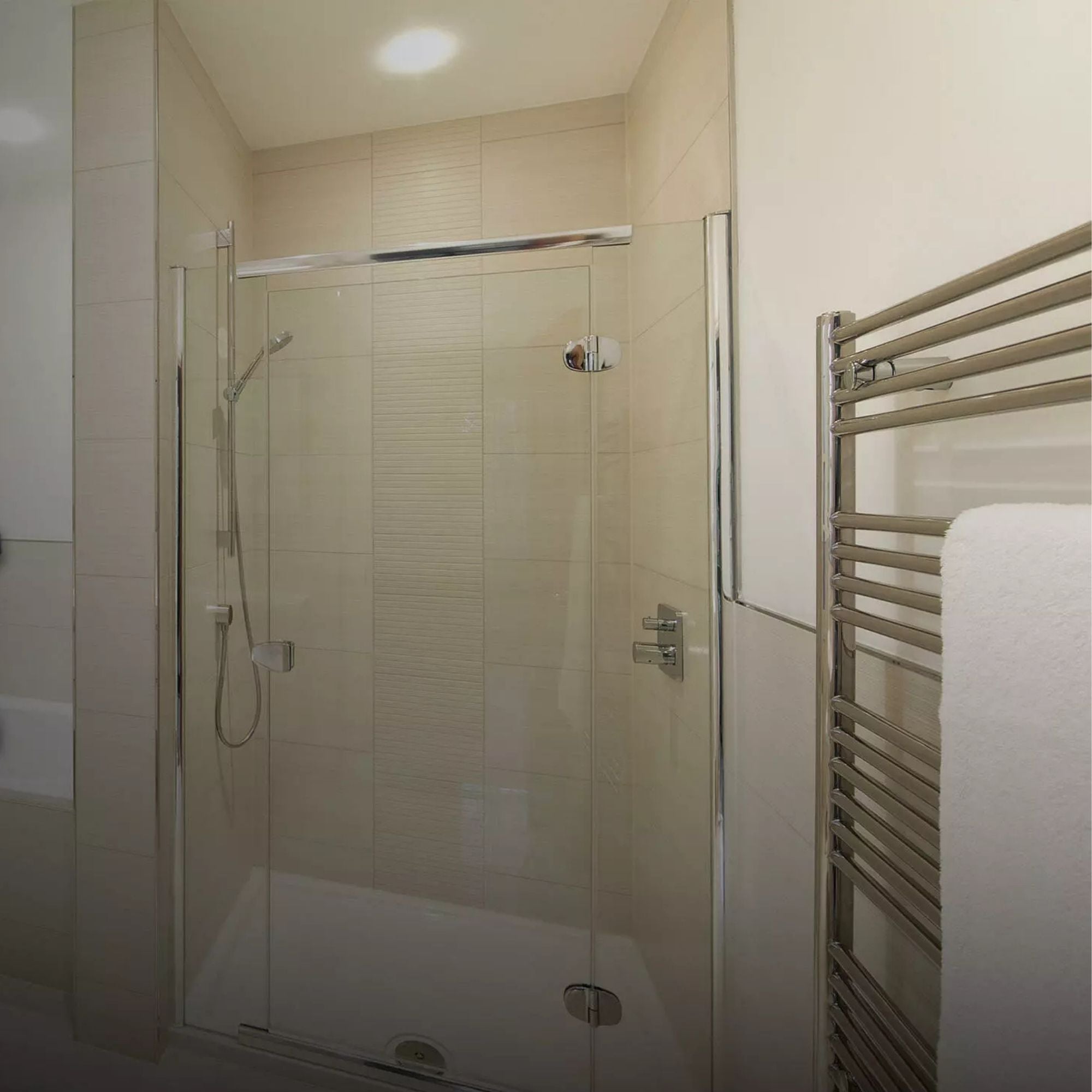

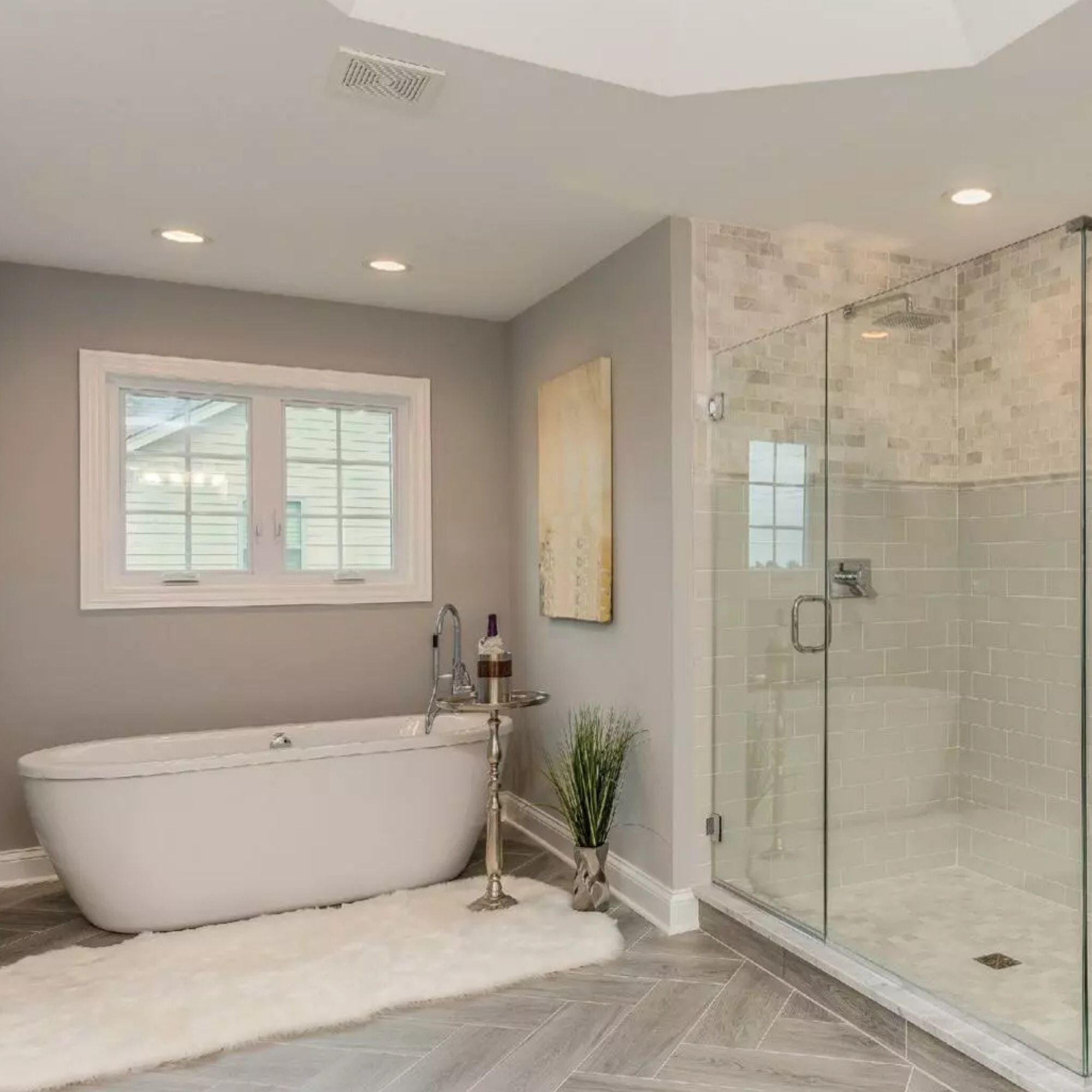

- Wet locations
- Offices
- Retail environments
