RAB WFRX-2 2 in Smooth Canless Wafer Downlight 10W Selectable CCT White
Available in stock (100)
About this item
About this item

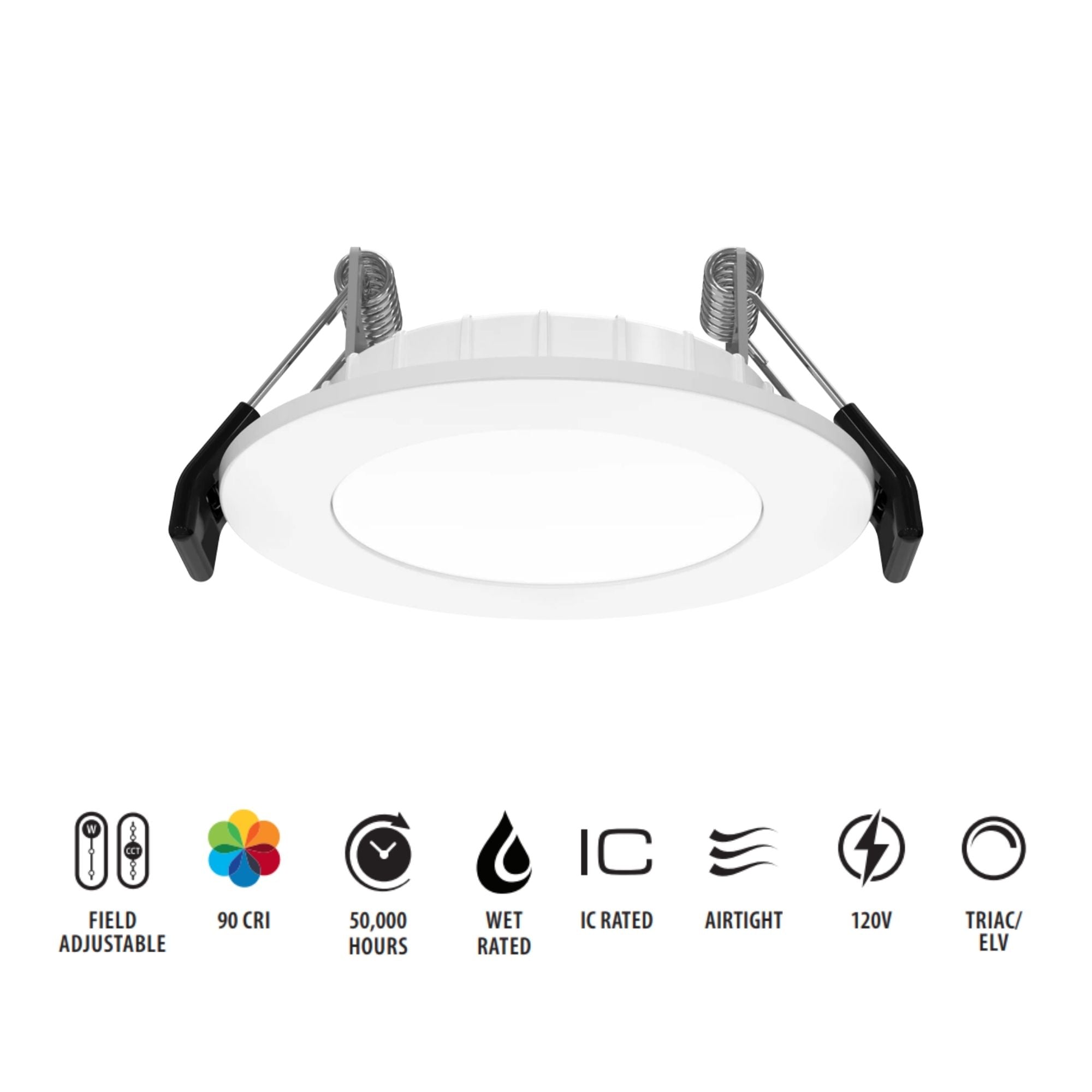

- No Housing Required: Canless wafer mounts directly to ceiling via tension steel spring clips — no recessed can or j-box needed

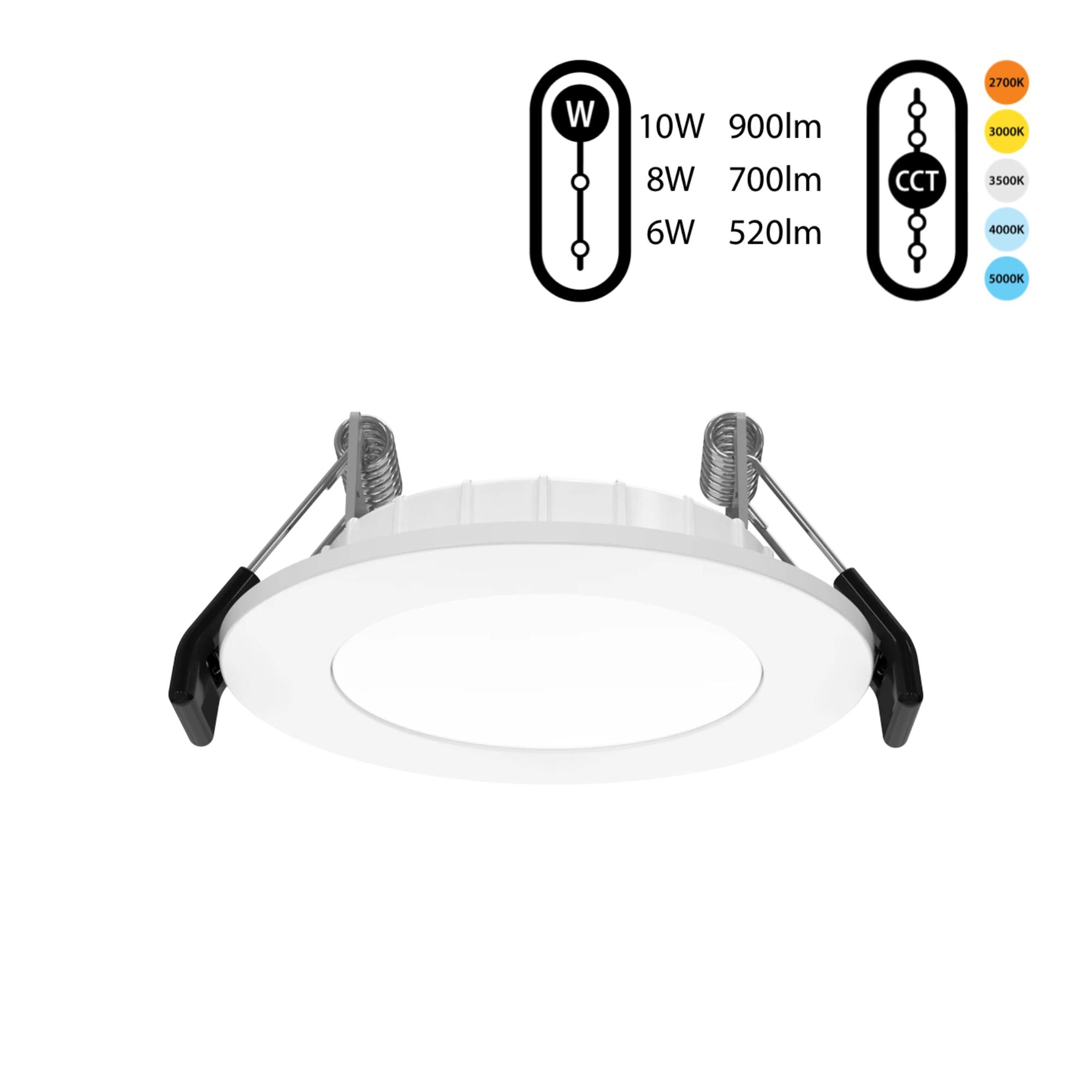

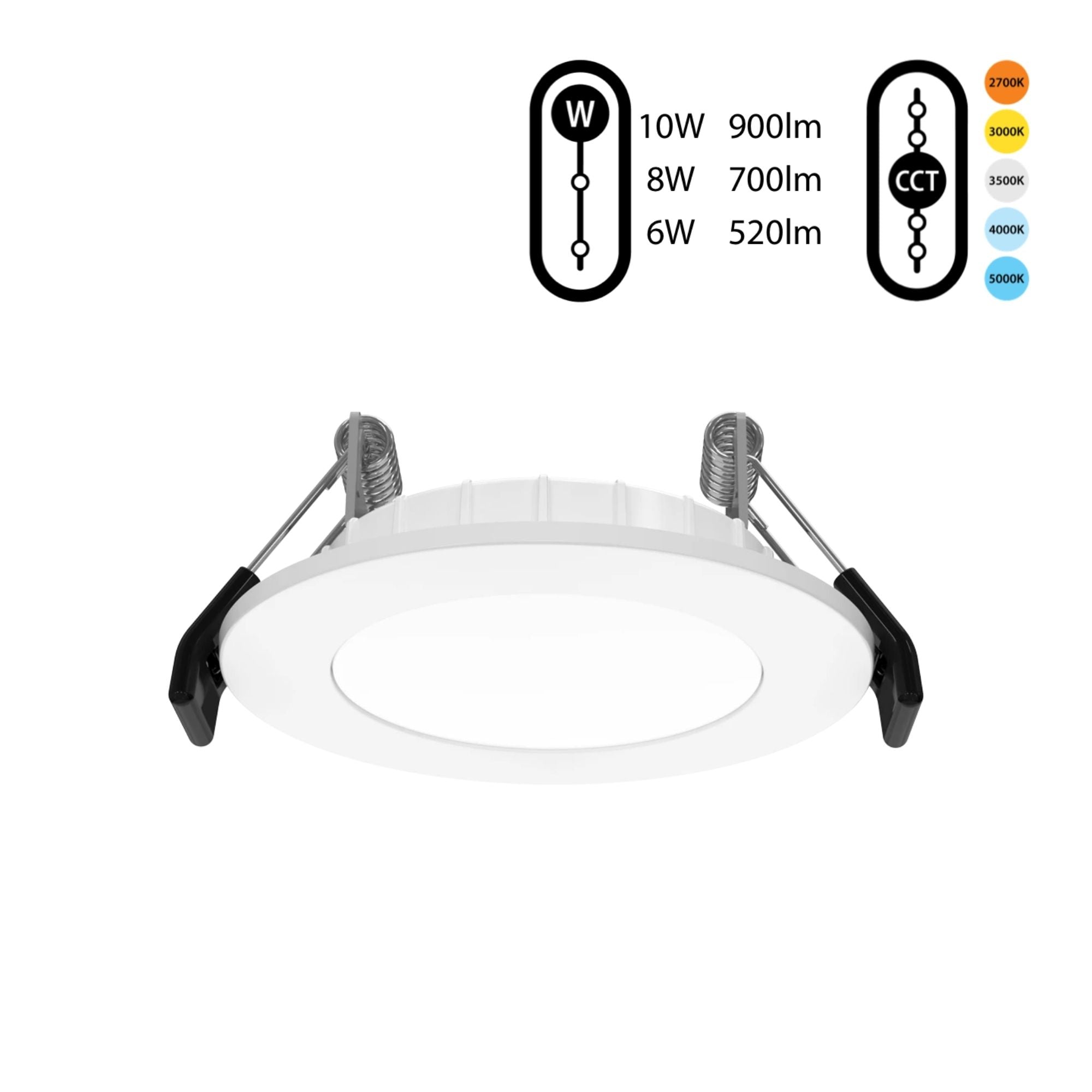

- Field-Selectable CCT: Dip-switch adjustable between 2700K, 3000K, 3500K, 4000K, and 5000K from a single fixture
- Field-Selectable Wattage: Choose 10W (850lm), 8W (650lm), or 6W (500lm) to match the application
- 90 CRI: High color accuracy for true, vibrant color rendering across all CCT settings
- Certified Performance: Energy Star certified, California Title 24 JA8 compliant, RoHS compliant, 50,000-hour L70 lifespan
We process payments securely and do not store credit card information.
Description
Description
RAB WFRX-2 2 in Smooth Canless Wafer Downlight — 10/8/6W / 2700K-5000K Selectable CCT

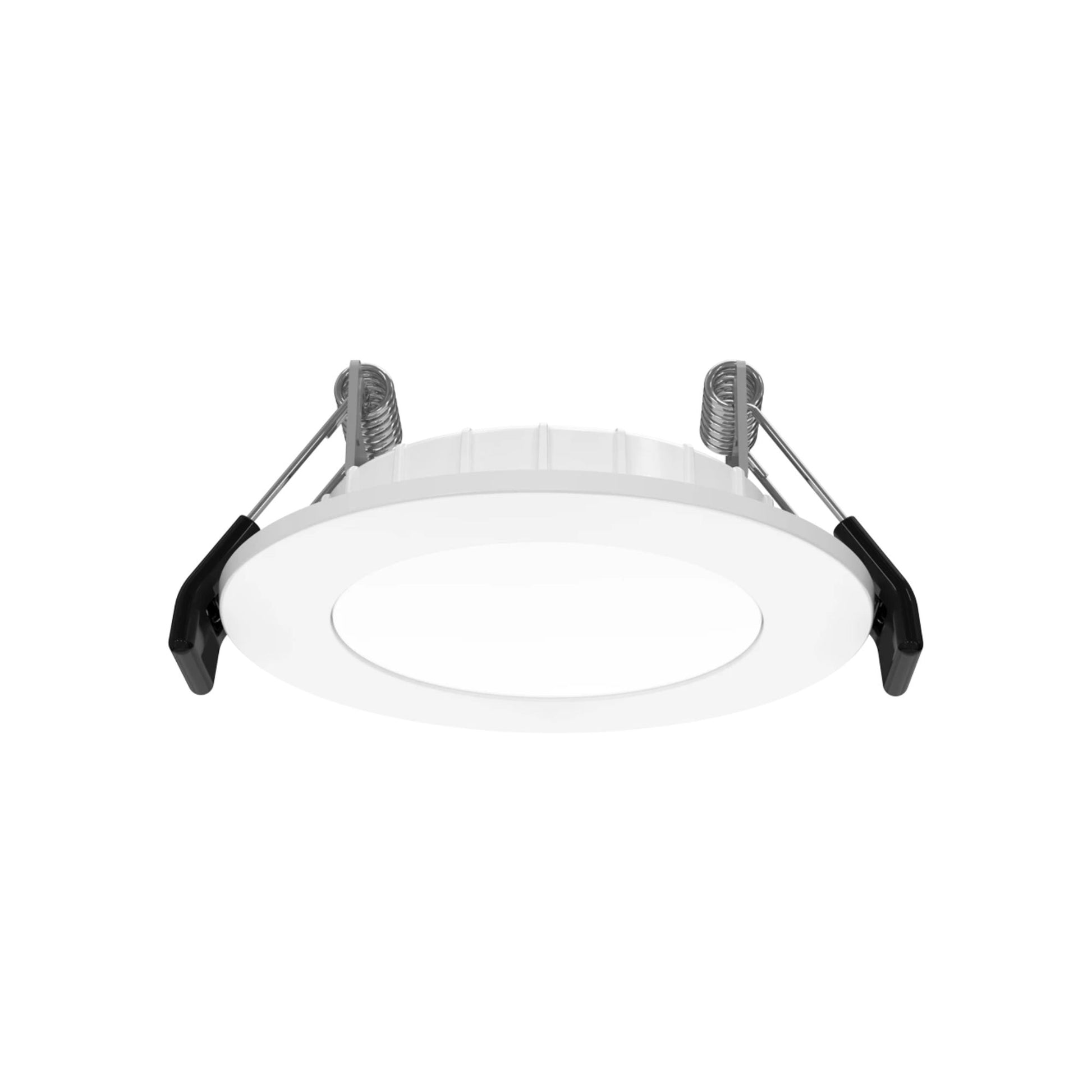

The RAB WFRX-2 is a 2 in edge-lit slim canless wafer downlight delivering up to 850 lumens at 10W with field-selectable wattage (10/8/6W) and field-adjustable CCT (2700K-5000K via dip switch). No recessed housing or junction box is required — the fixture mounts directly to the ceiling using two tension steel spring clips, accommodating ceiling thickness up to 15/16 in. IC rated and air-tight rated for direct insulation contact.
Key Features
- Input Wattage: 10W / 8W / 6W (field selectable)
- Lumen Output: 850 / 650 / 500 lm (nominal)
- Wattage Equivalency: 40W CFL
- CCT: 2700K, 3000K, 3500K, 4000K, 5000K — field adjustable via dip switch; default 5000K
- CRI: 90 CRI, R9 greater than 50
- Beam Angle: 110 degrees plus or minus 10 degrees
- Trim Style: Smooth, Round
- Lens: Frosted polycarbonate light diffuser
- Dimmable: Yes — TRIAC/ELV compatible, dimmable to 10%; see Dimmer Compatibility List
- Input Voltage: 120V, 60 Hz
- Driver: Constant Current, Class 2, 120V 60 Hz, 90mA
- L70 Lifespan: 50,000 hours (IES LM-70)
- Energy Star: Certified
- California Title 24 JA8: Compliant
- RoHS: Compliant
- Warranty: 5-year no-compromise
Construction & Aesthetics
The WFRX-2 features a smooth round trim with a frosted polycarbonate lens for uniform, glare-free light distribution. The metal enclosure is finished in White and is wet rated for use in dry, damp, and wet environments indoors and outdoors.
Electrical & Installation

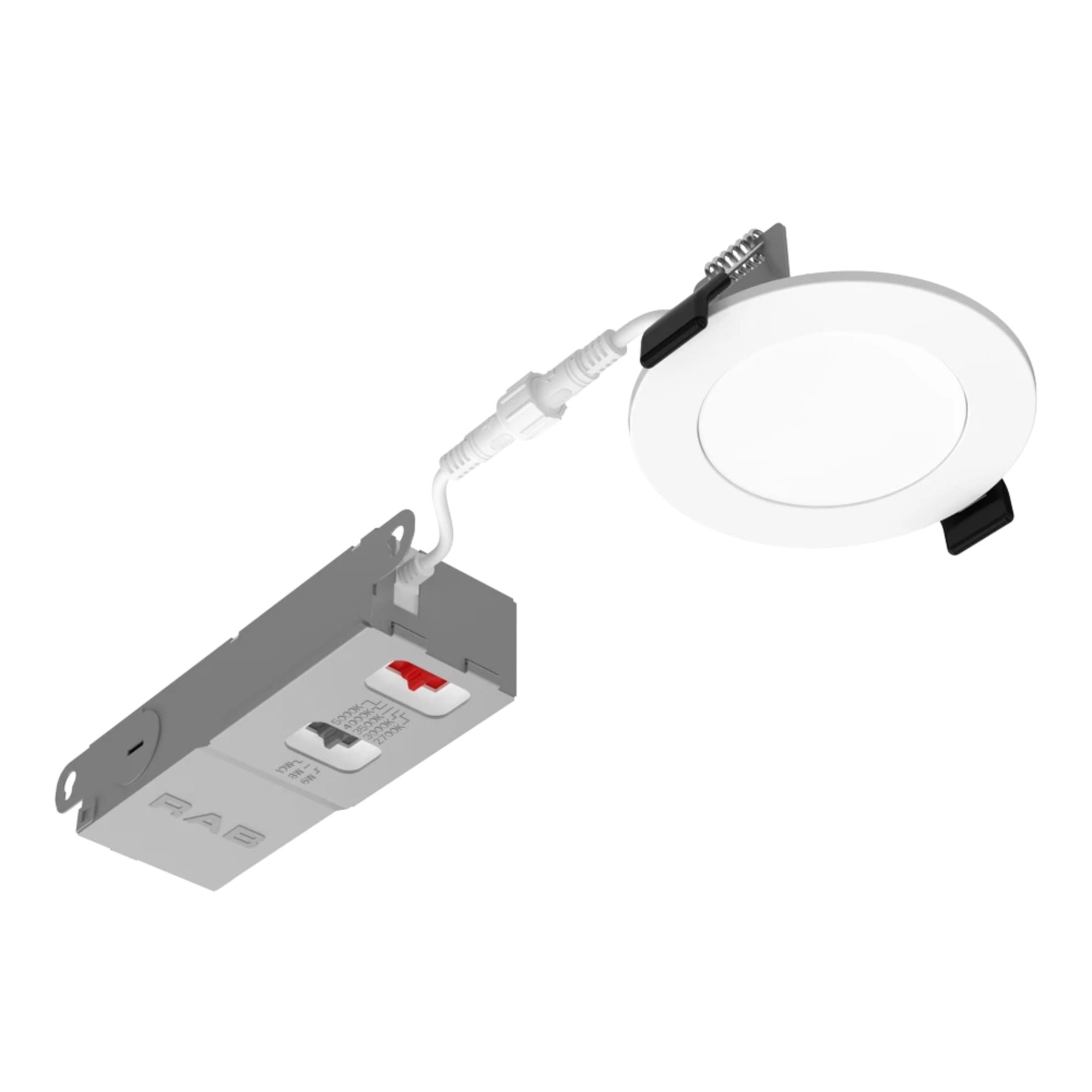

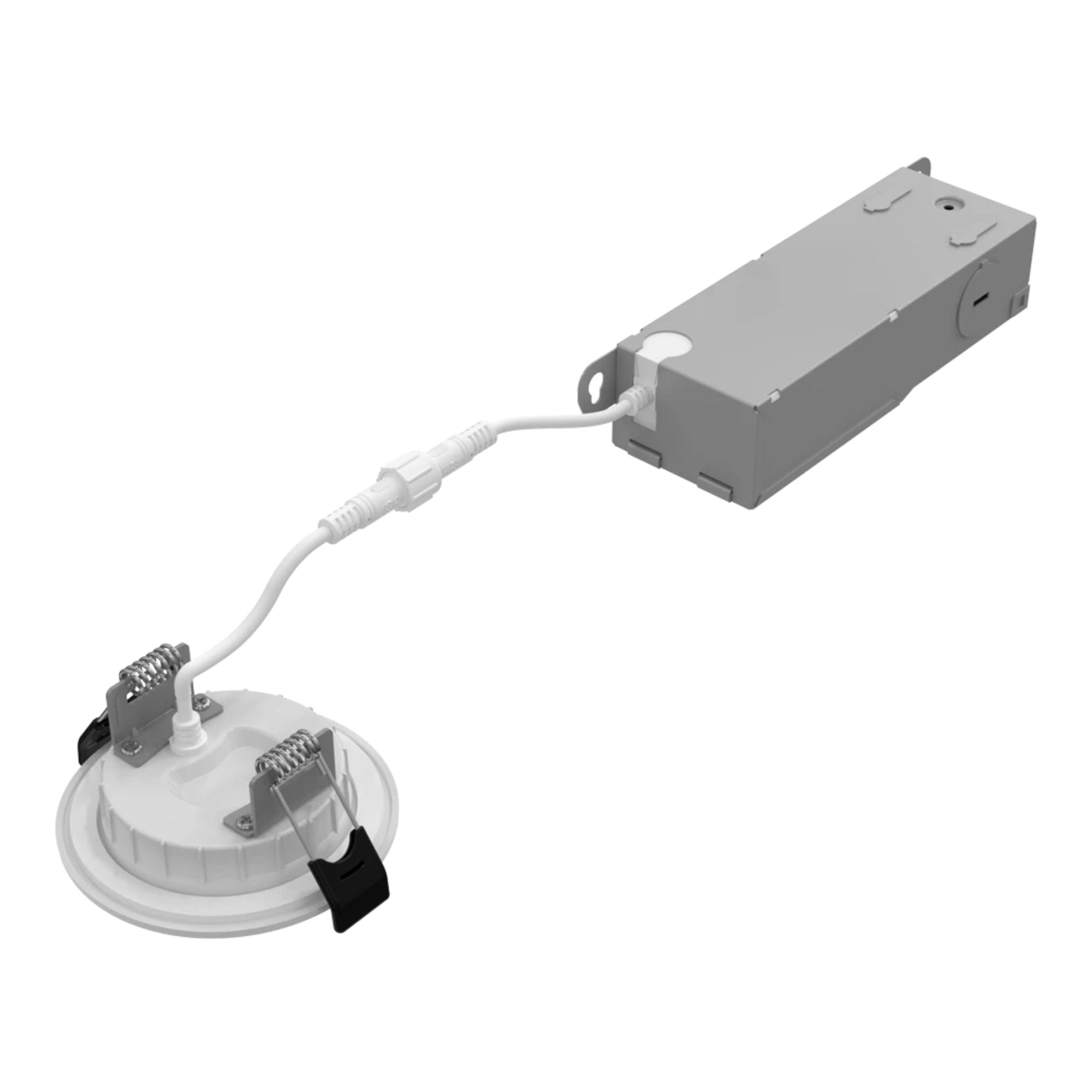

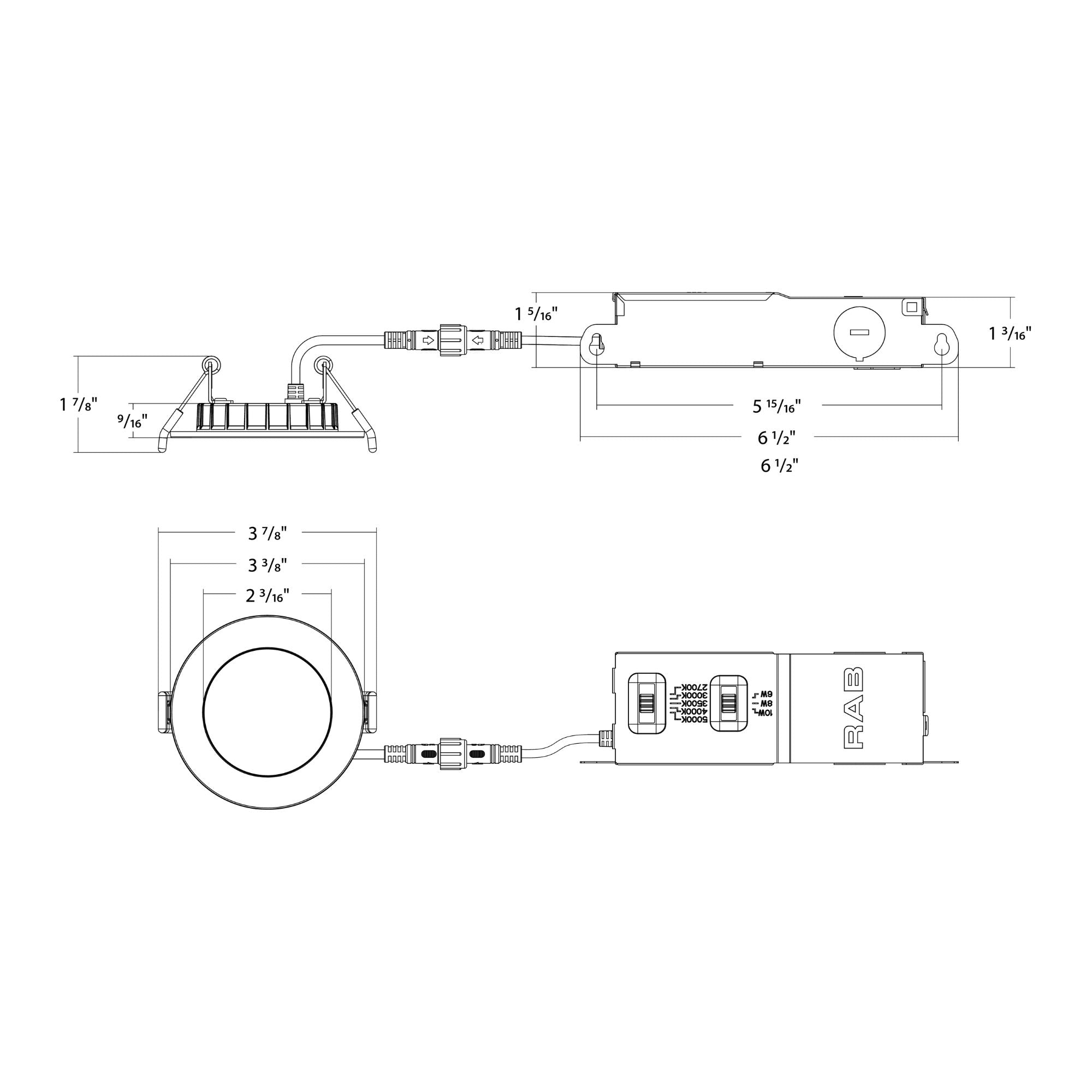

No recessed housing or j-box required. The fixture includes an integrated remote driver/junction box and mounts directly to the ceiling via two tension steel spring clips, accommodating ceiling thickness up to 15/16 in. Operates at 120V with TRIAC/ELV dimming down to 10%. New construction frames are available for new-build applications.
Light Output & Performance
At 10W, the WFRX-2 delivers 850 lumens with a 110-degree beam angle and 90 CRI for accurate color rendering. Rated LED lifespan is 50,000 hours L70. Wattage steps down to 8W (650lm) or 6W (500lm) via field selection.
Typical Applications
- Residential remodels and retrofits — no housing required
- Low-clearance ceilings and shallow plenum spaces
- Retrofit-free new construction builds

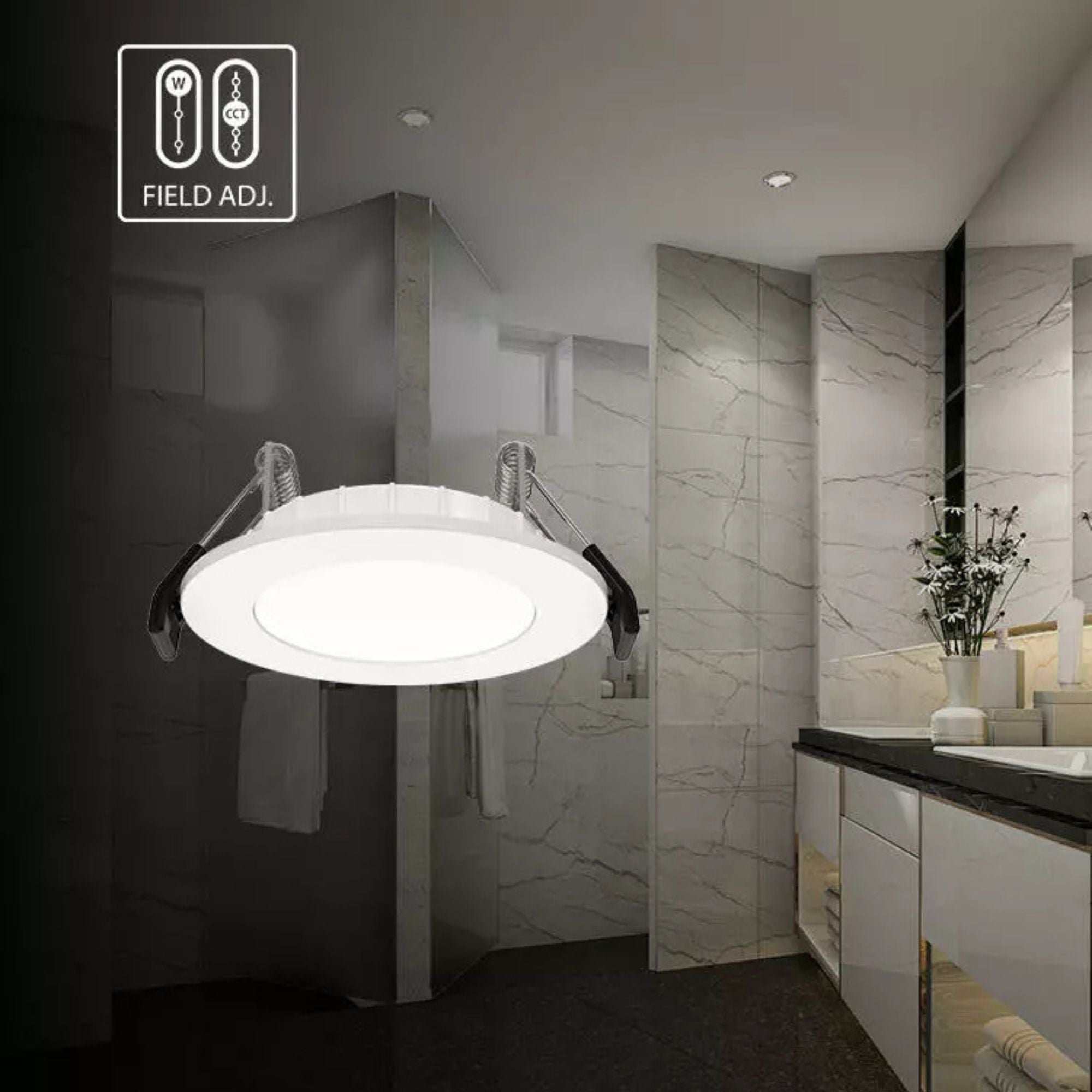

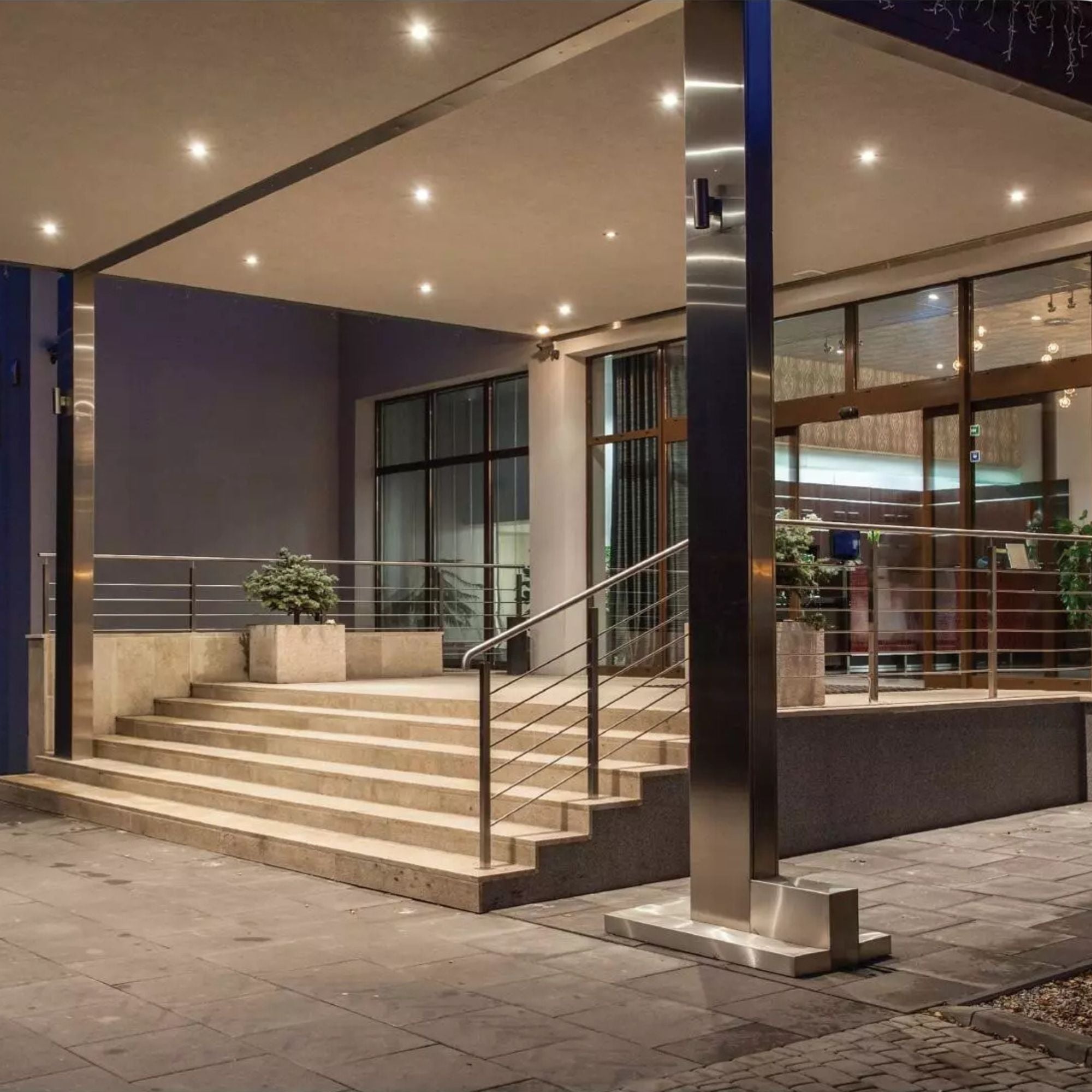

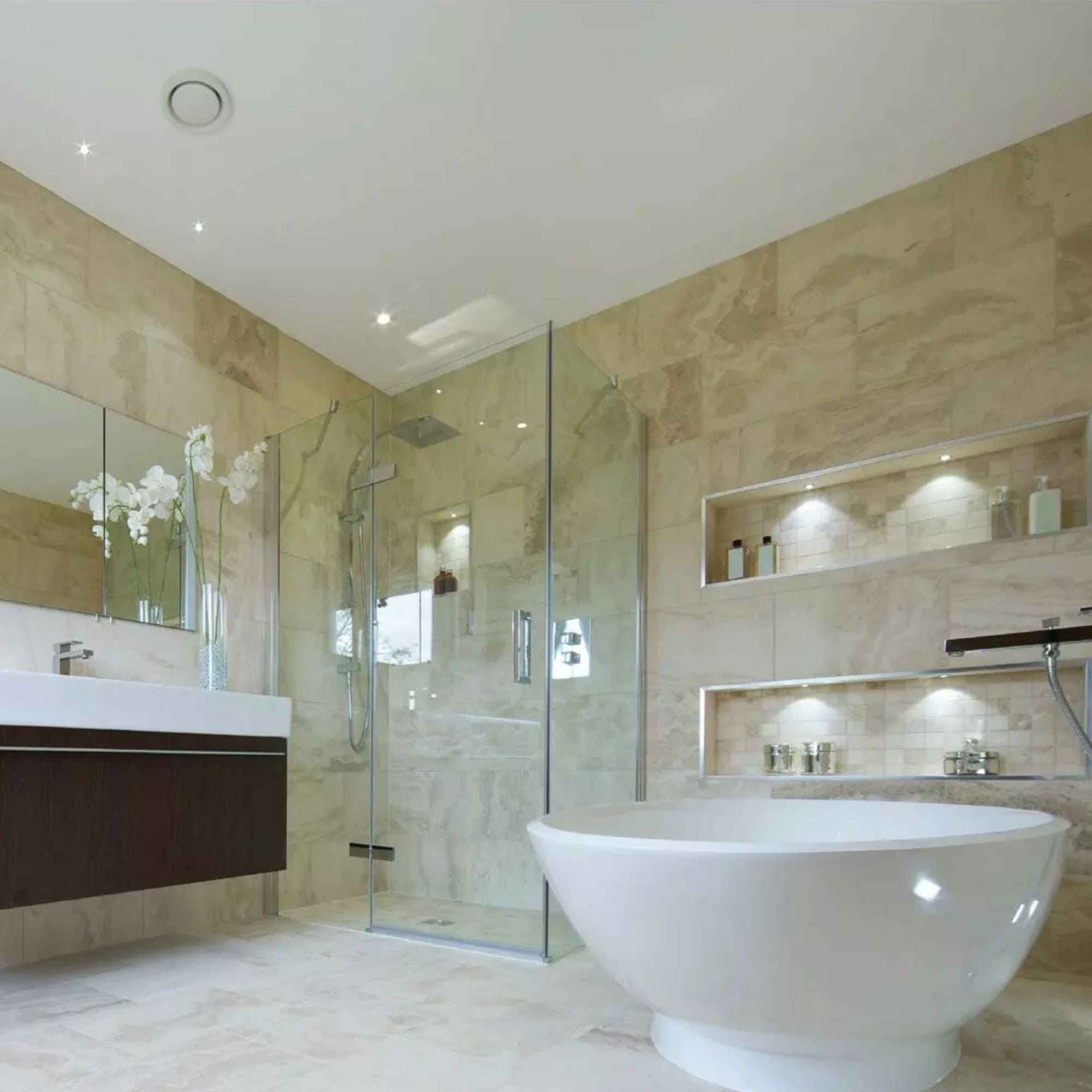

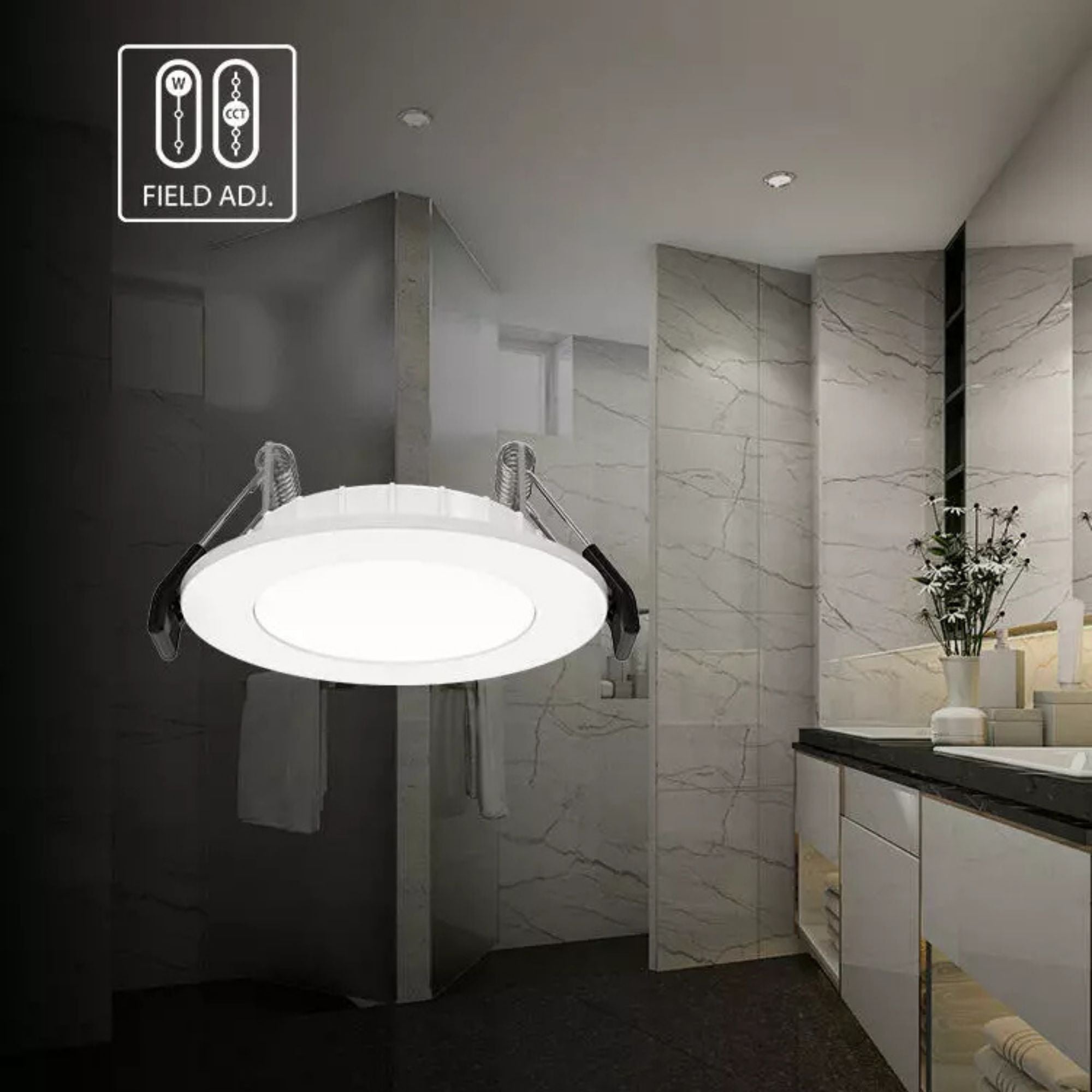

- Wet locations: bathrooms, covered outdoor canopies, soffits
- Accent and general downlighting in kitchens, hallways, and living areas
Specifications
Specifications

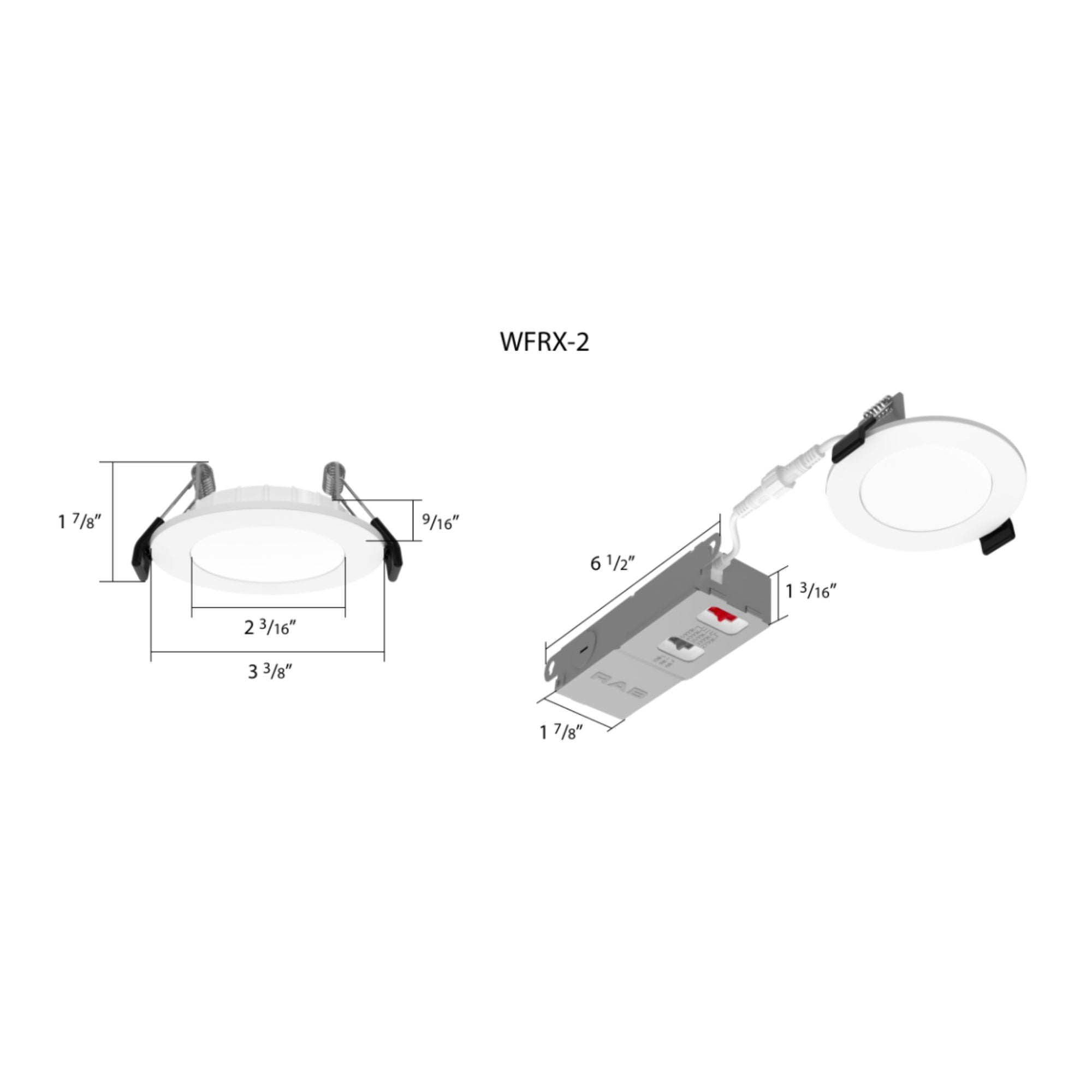

Dimensions
