RAB WFRL8R239FADWB 8 in. Baffle Trim Downlight 23W 2100 Lumens Selectable CCT
Available in stock (200)
About this item
About this item
- Selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K
- Lumens: 2100 lm
- Wattage: 23W
- Dimmable: Yes, down to 10%
- Voltage: 120-277V
We process payments securely and do not store credit card information.
Description
Description

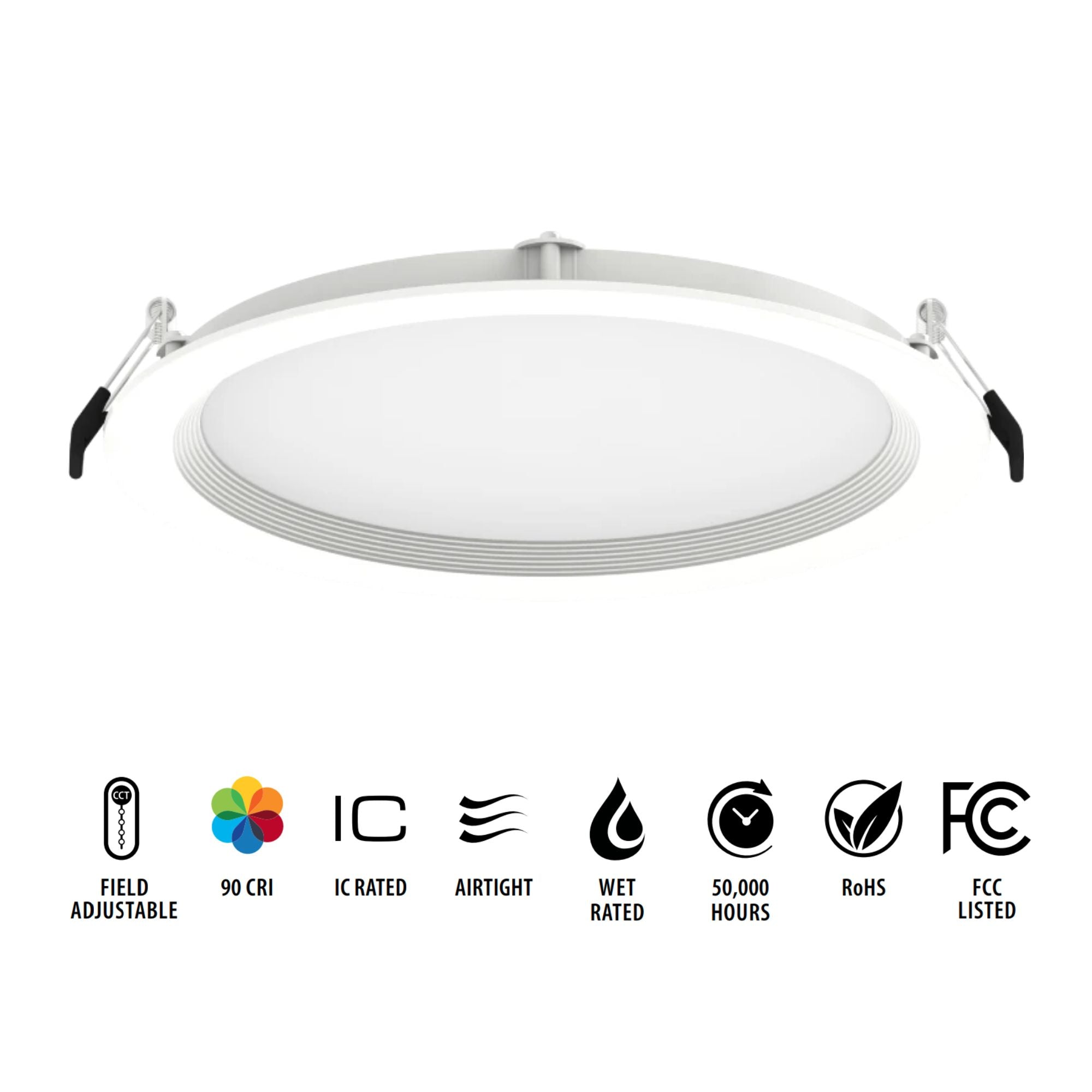

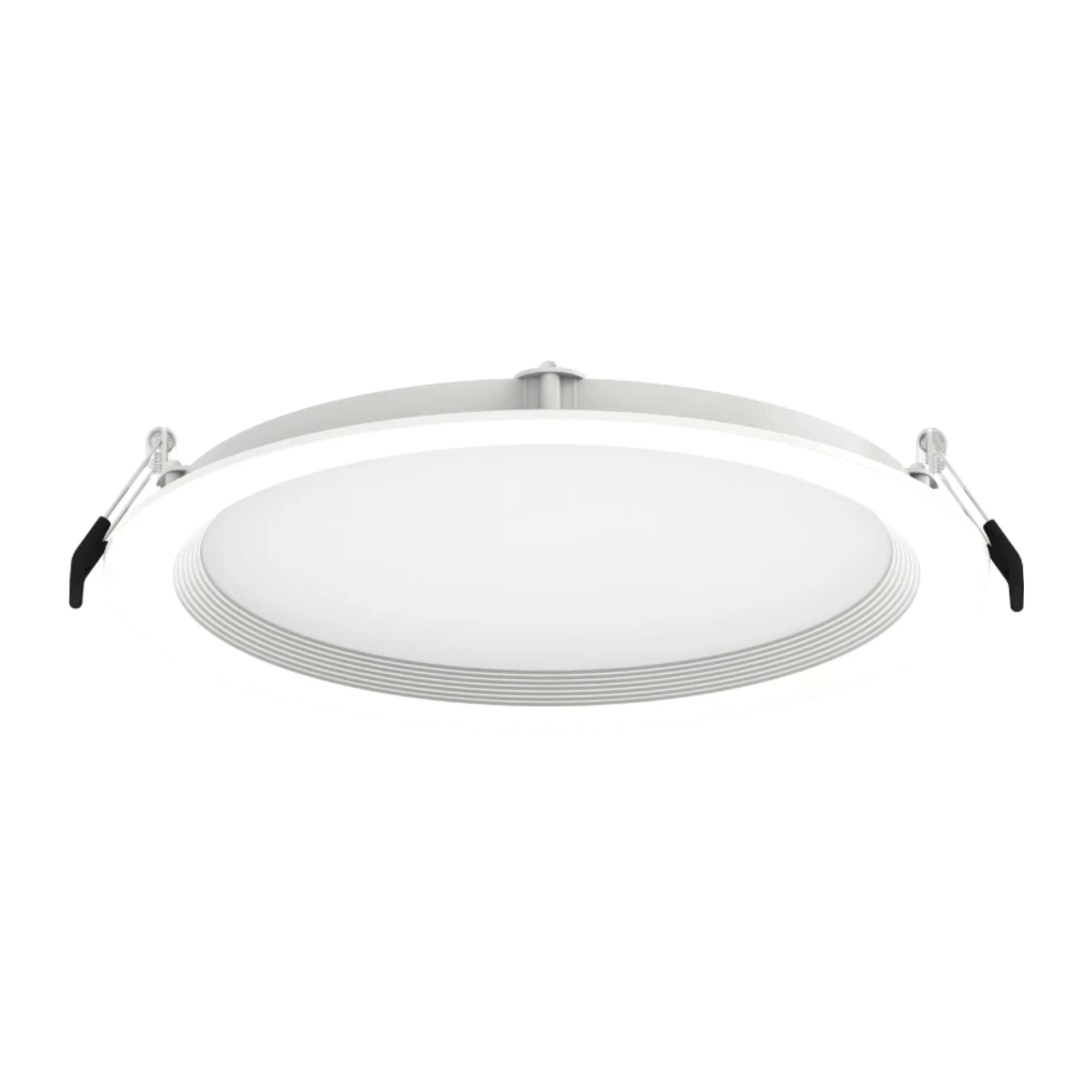

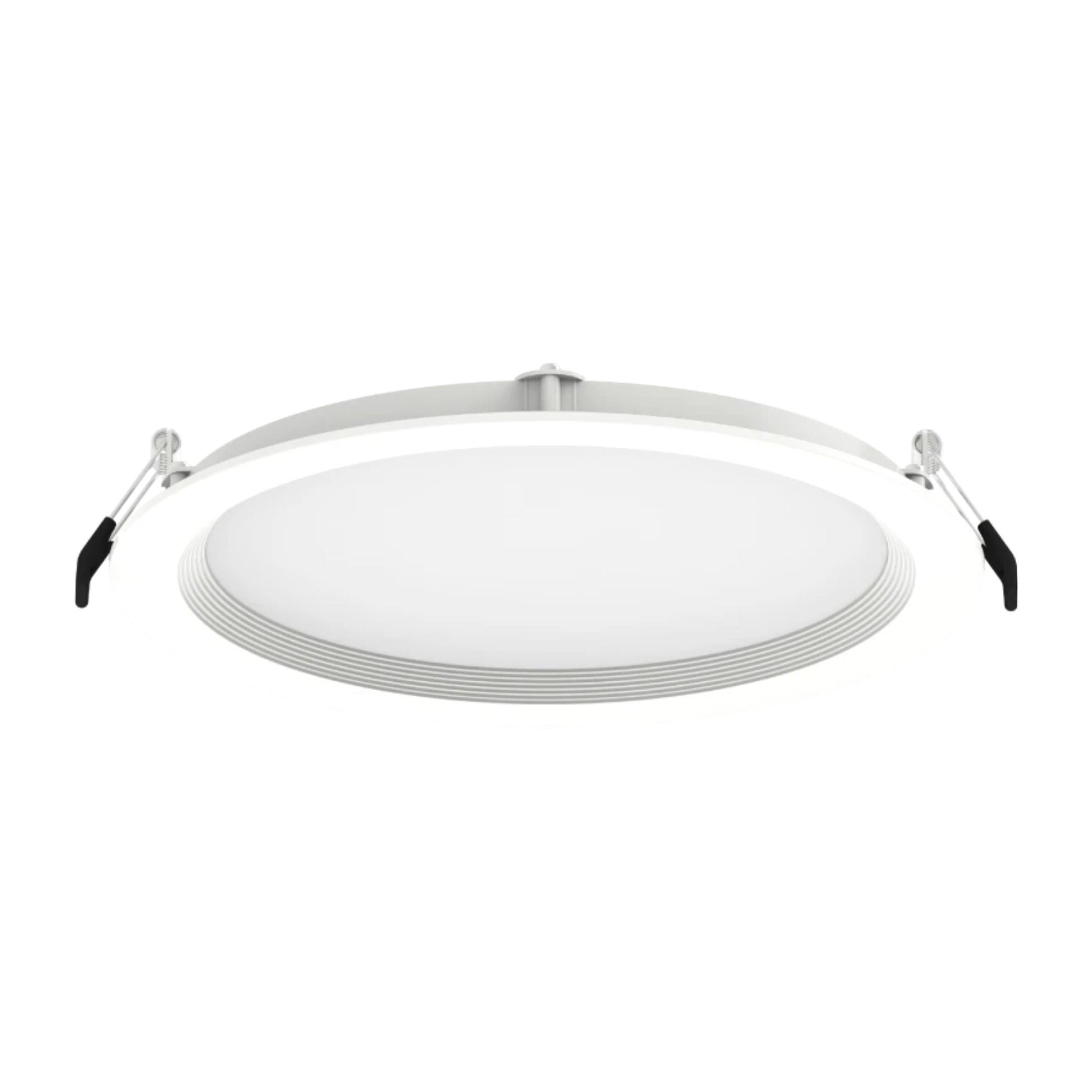

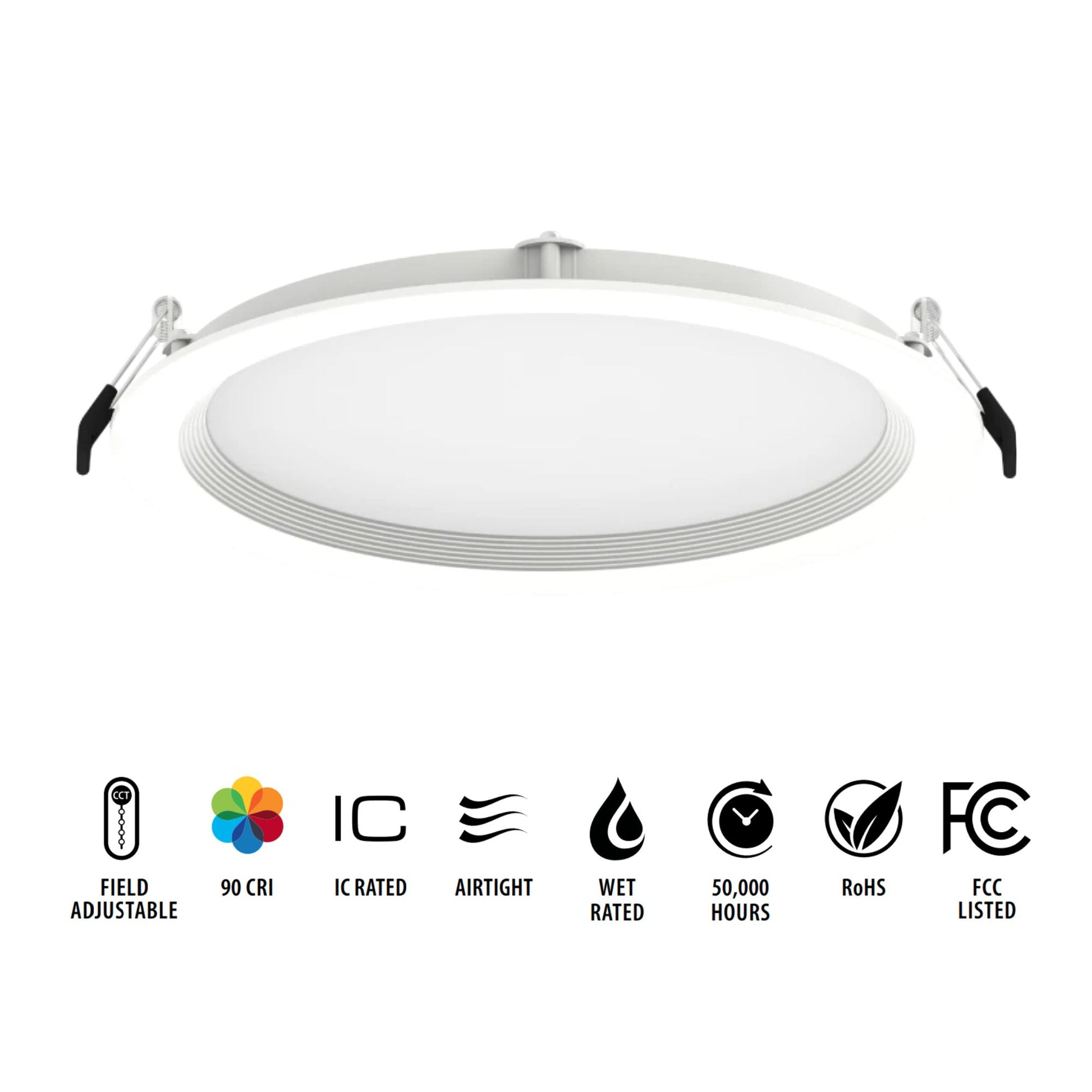

RAB WFRL8R239FADWB 8 in. Baffle Trim Downlight — 23W / Selectable CCT
The RAB WFRL8R239FADWB is an 8-inch baffle trim downlight delivering 2100 lumens using 23W. This commercial edge-lit wafer offers selectable color temperatures ranging from 2700K to 5000K, making it versatile for various lighting needs.
Key Features
- Wattage Equivalency: 150W Incandescent
- Beam Angle: 110°±10°
- Color Accuracy: >90 CRI
- Lifespan: 50,000 hours
- Driver: Constant Current, Class 2
- Operating Temperature: -4°F to 104°F
- Compliance: UL Listed, Energy Star, Title 24 JA8
- Construction: Die-cast aluminum, plastic enclosure
- Mounting: Recessed, no housing required
- Accessories: Compatible with mounting plates and extension cables
Construction & Aesthetics
This downlight features a robust die-cast aluminum construction with a white finish and a baffle trim style. The frosted polycarbonate lens ensures smooth light distribution. Optional accessories include color trim rings and goof rings for aesthetic customization.

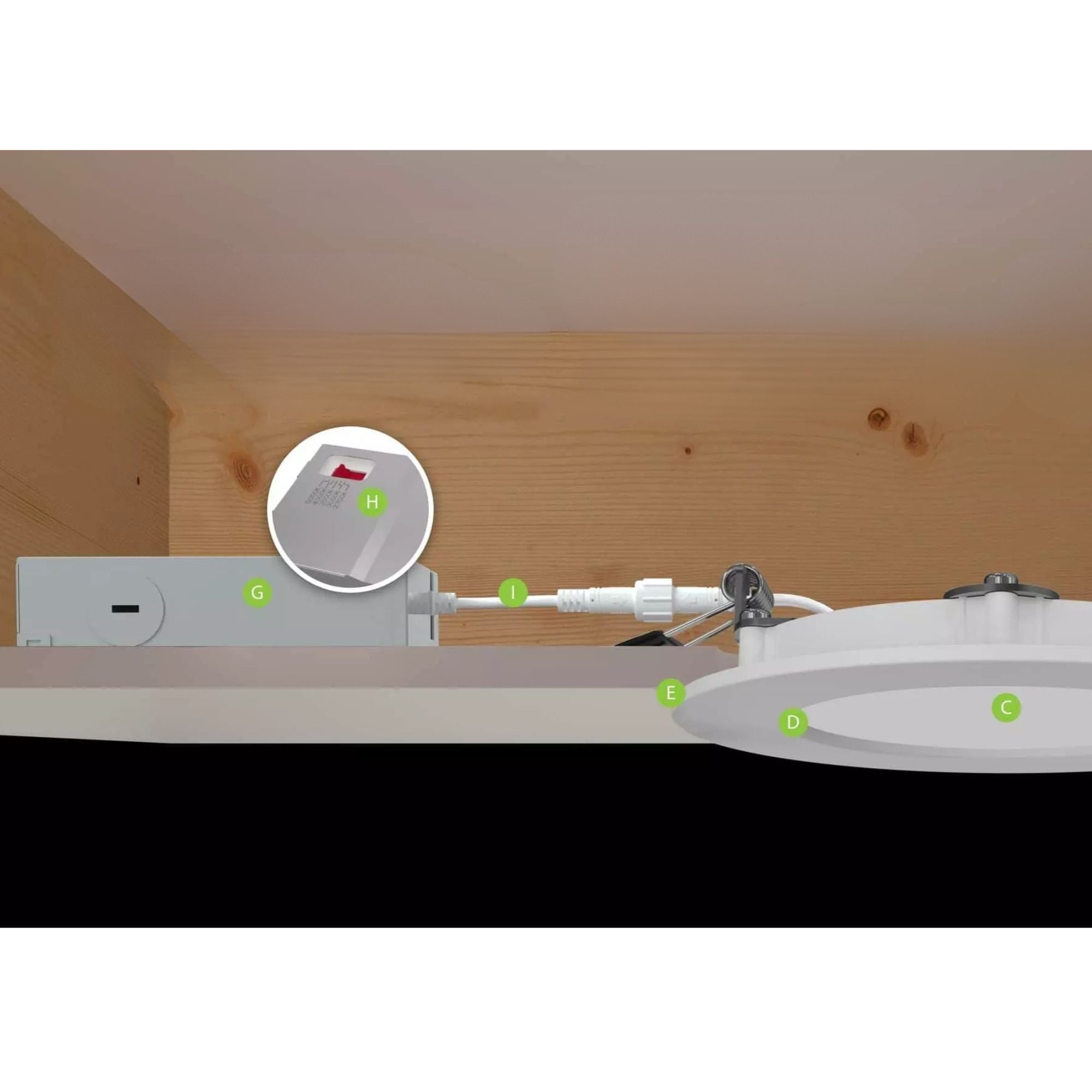

Electrical & Installation
Operating on 120-277V, this fixture is dimmable down to 10% on compatible TRIAC/ELV or 0-10V systems. It includes a die-formed metal driver/junction box for easy installation. Functional accessories such as mounting plates and emergency drivers are available.
Light Output & Performance
With a lumen output of 2100 lm and a CRI of over 90, this downlight offers excellent color rendering and performance. The LED lifespan is rated at 50,000 hours, ensuring long-term reliability.

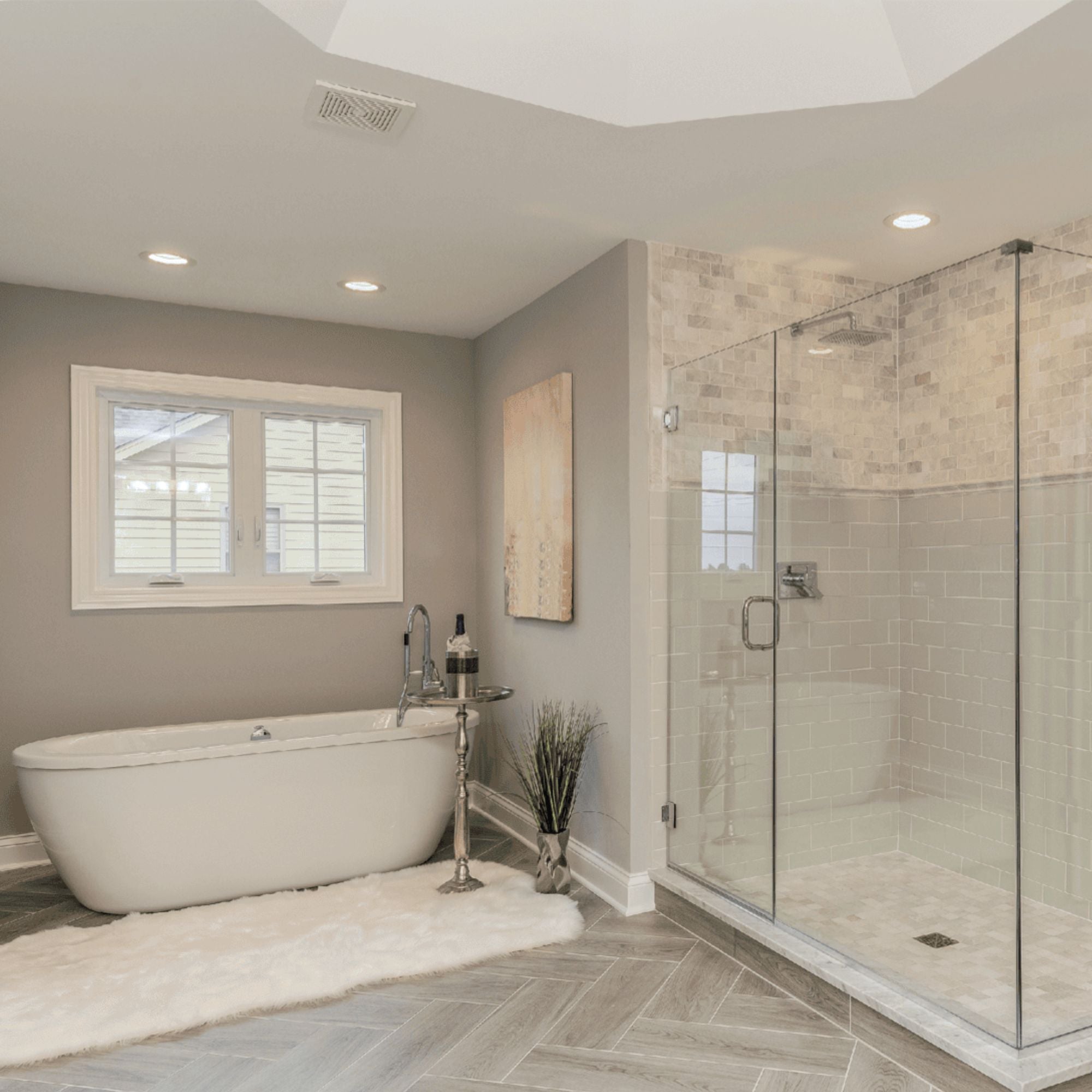

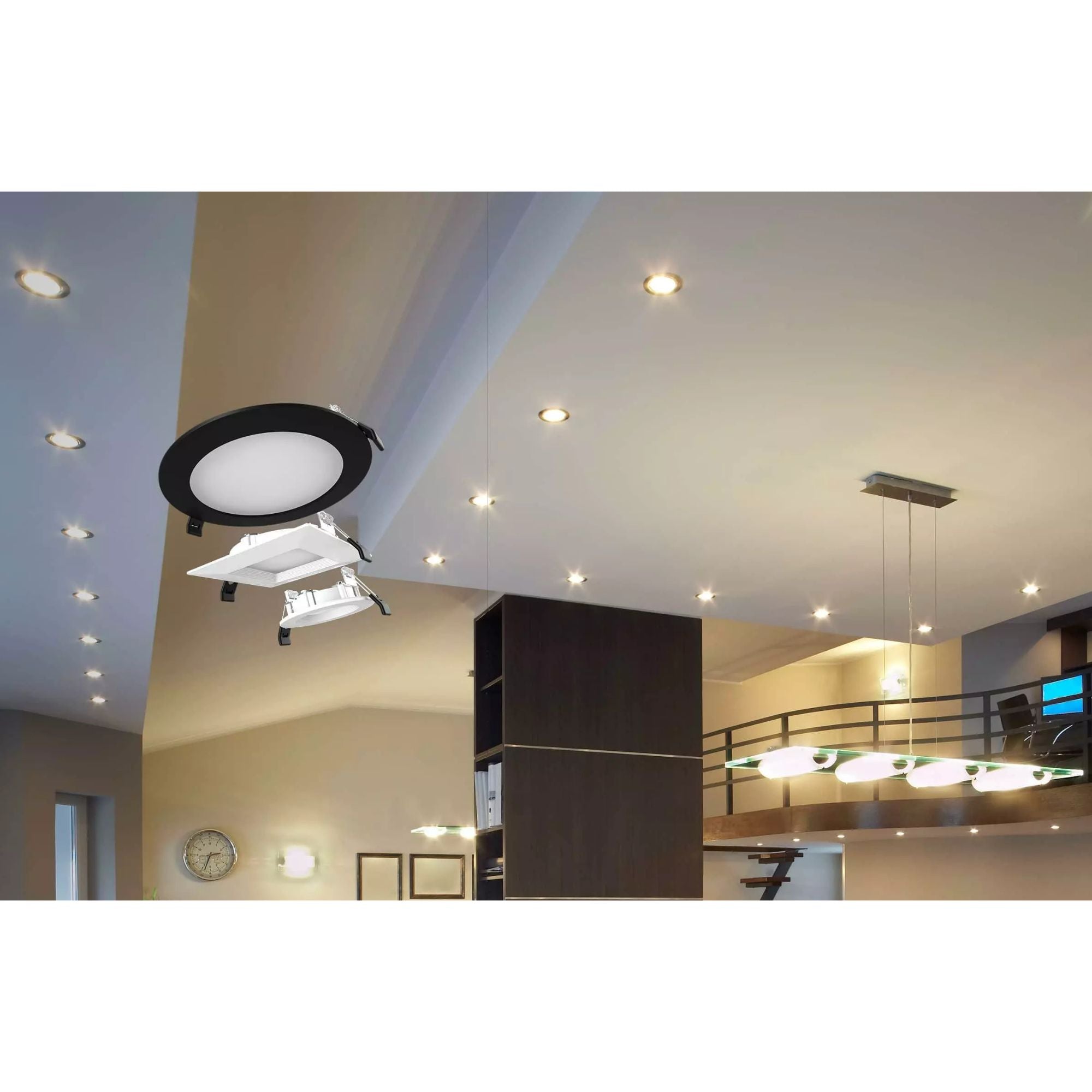

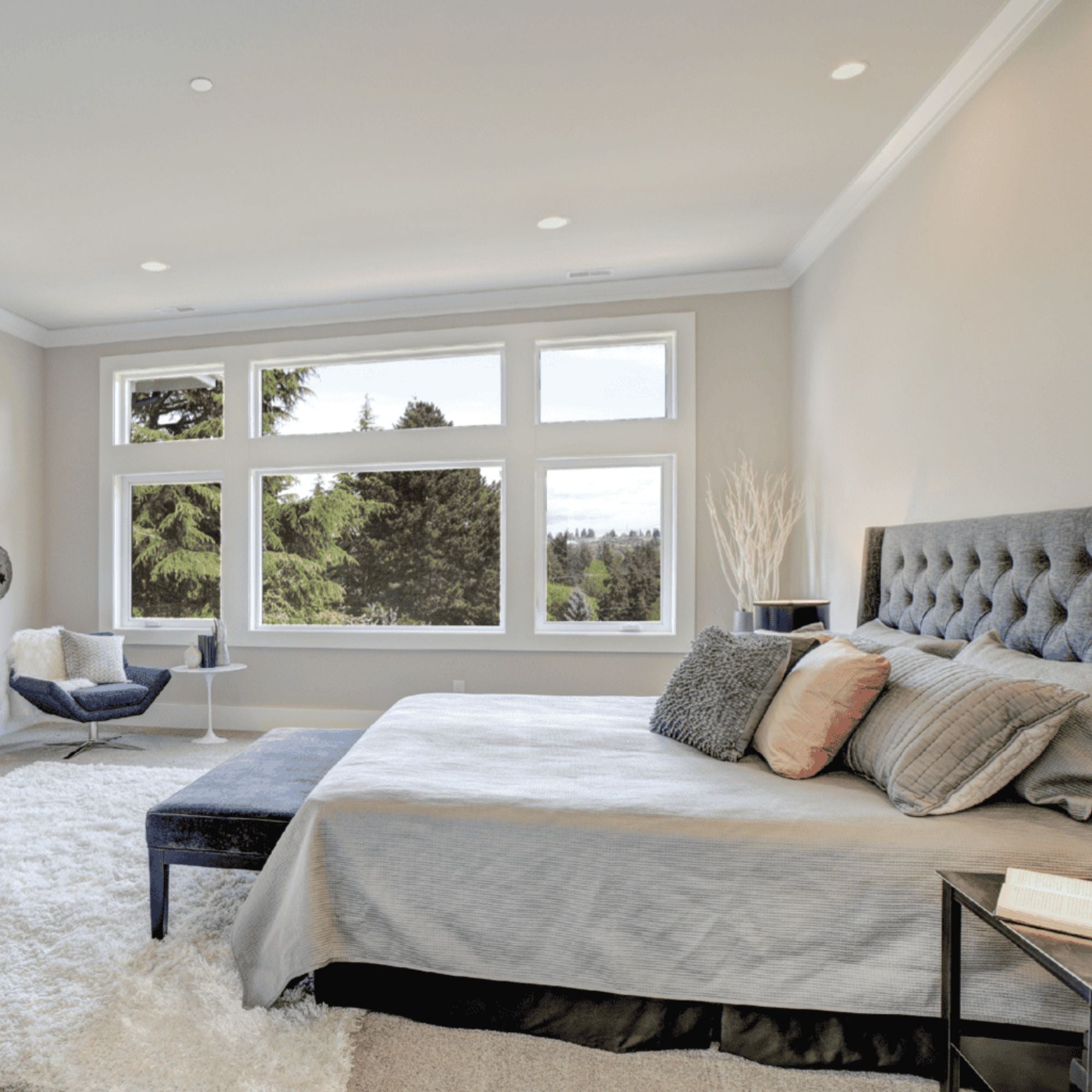

Typical Applications
- Commercial spaces
- Retail environments
- Offices
- Hospitality venues
- Residential areas
Specifications
Specifications

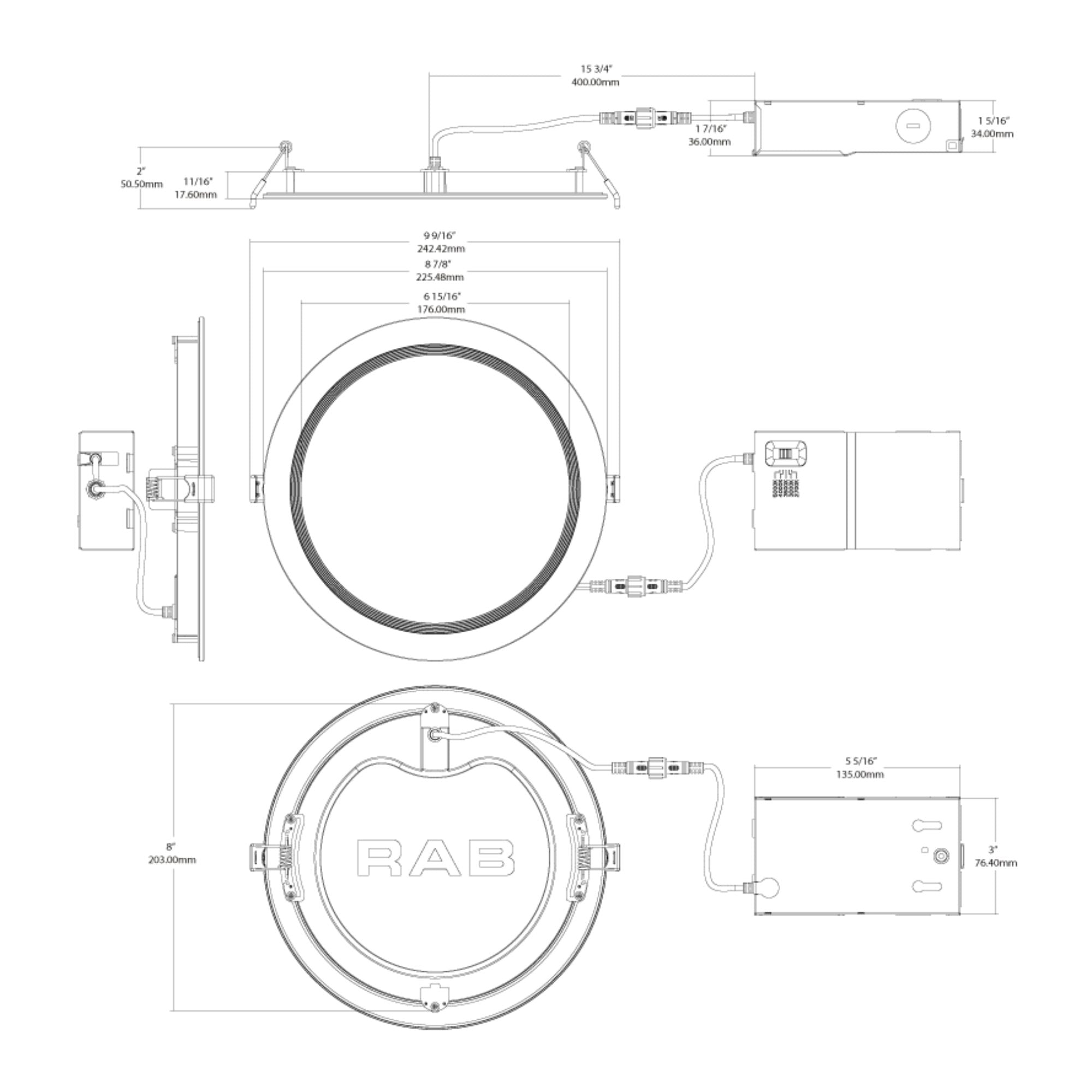

Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
