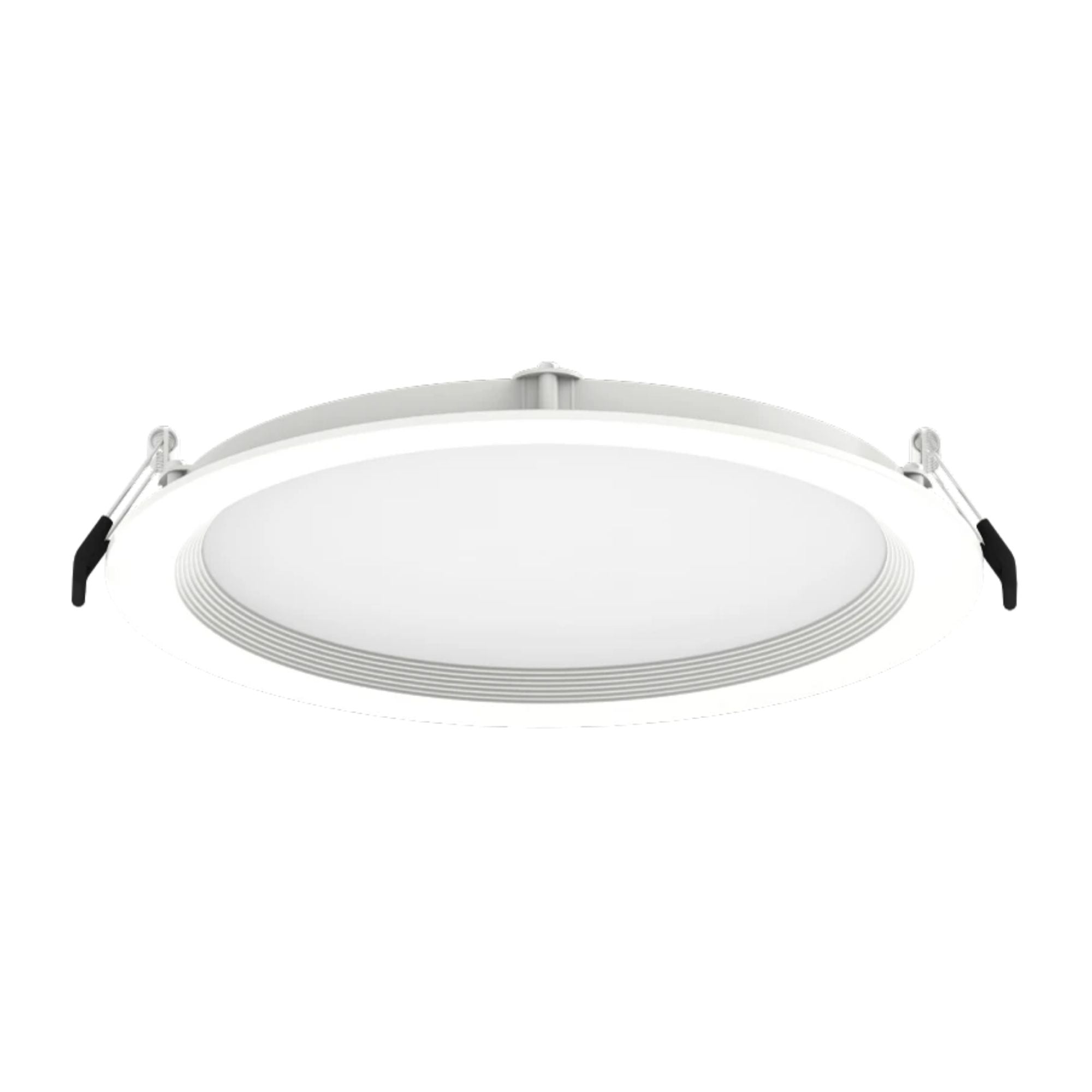

RAB WFRL8R239FA120WB 8 in. Baffle Trim Downlight — 23W / Selectable CCT

The RAB WFRL8R239FA120WB is an 8-inch round downlight featuring a baffle trim design. This fixture delivers 2,100 lumens using 23W and offers selectable color temperatures of 2700K, 3000K, 3500K, 4000K, and 5000K. It is ideal for both new construction and retrofit applications.

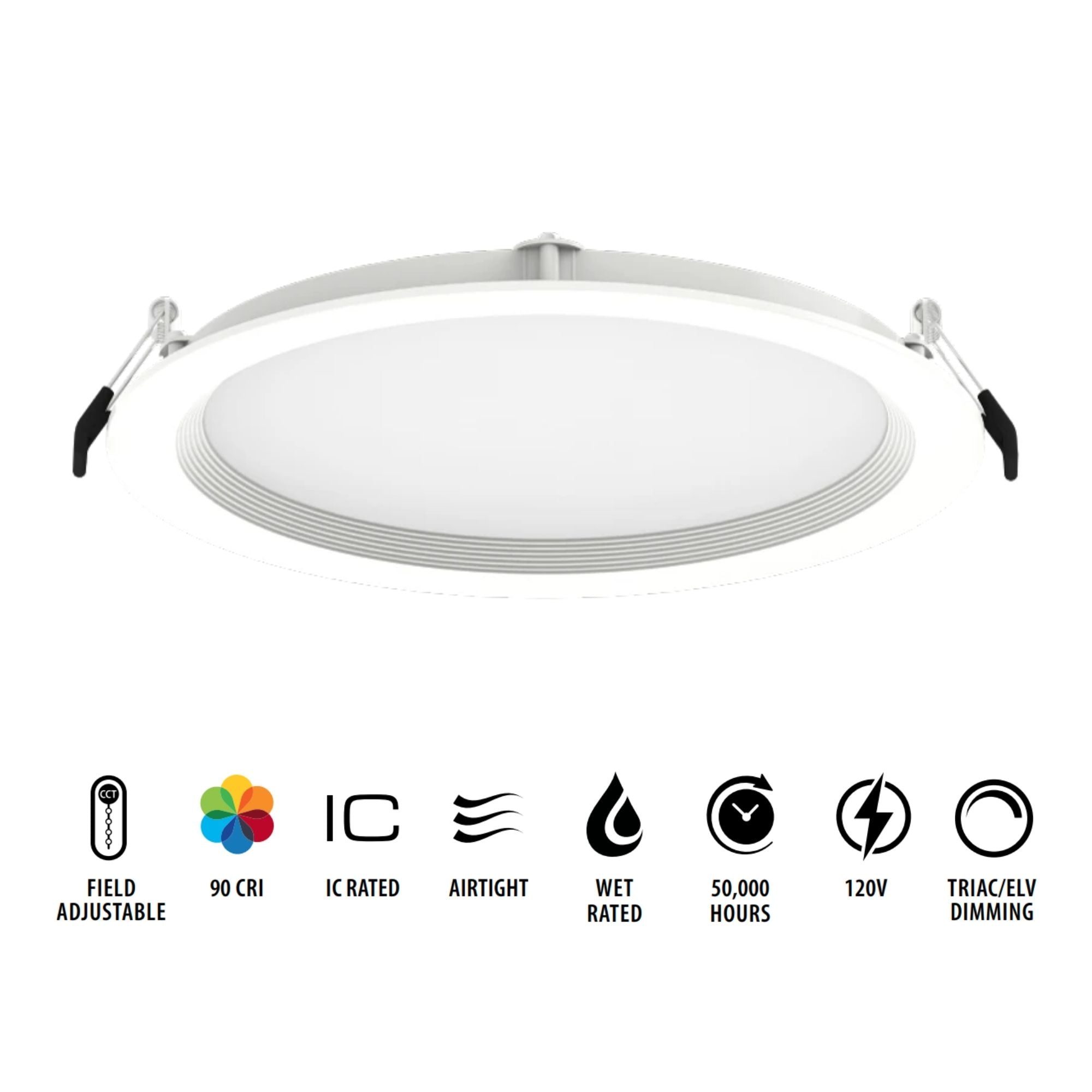

Key Features

• Selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K
• High CRI: >90 for excellent color rendering
• Beam Angle: 110°±10° for wide light distribution
• Energy Star Certified: Meets energy efficiency standards
• IC Rated: Suitable for direct contact with insulation
• Air Tight: Certified per ASTM E283
• UL Listed: Approved for wet locations
• Dimmable: Down to 10% with compatible dimmers
• Long Lifespan: 50,000-hour LED lifespan
• Construction: Robust die-cast aluminum
• Warranty: 5-year, no-compromise warranty
• Compliance: Title 24 JA8, RoHS, TAA Compliant

Construction & Aesthetics

This downlight features a white finish with a frosted polycarbonate lens for smooth light diffusion. The baffle trim design enhances its aesthetic appeal, making it suitable for various interior styles.

Electrical & Installation

Operating at 120V with a constant current driver, this fixture is easy to install with no housing required. It includes a die-formed metal driver/junction box and is compatible with mounting plates and extension cables for flexible installation.

Light Output & Performance

With a high efficacy of up to 95 lm/W, this downlight provides consistent and uniform lighting. It maintains color stability within 200K over five years, ensuring reliable performance.

Typical Applications

• Residential living areas
• Commercial offices
• Retail spaces
• Hospitality environments
• Outdoor covered areas
