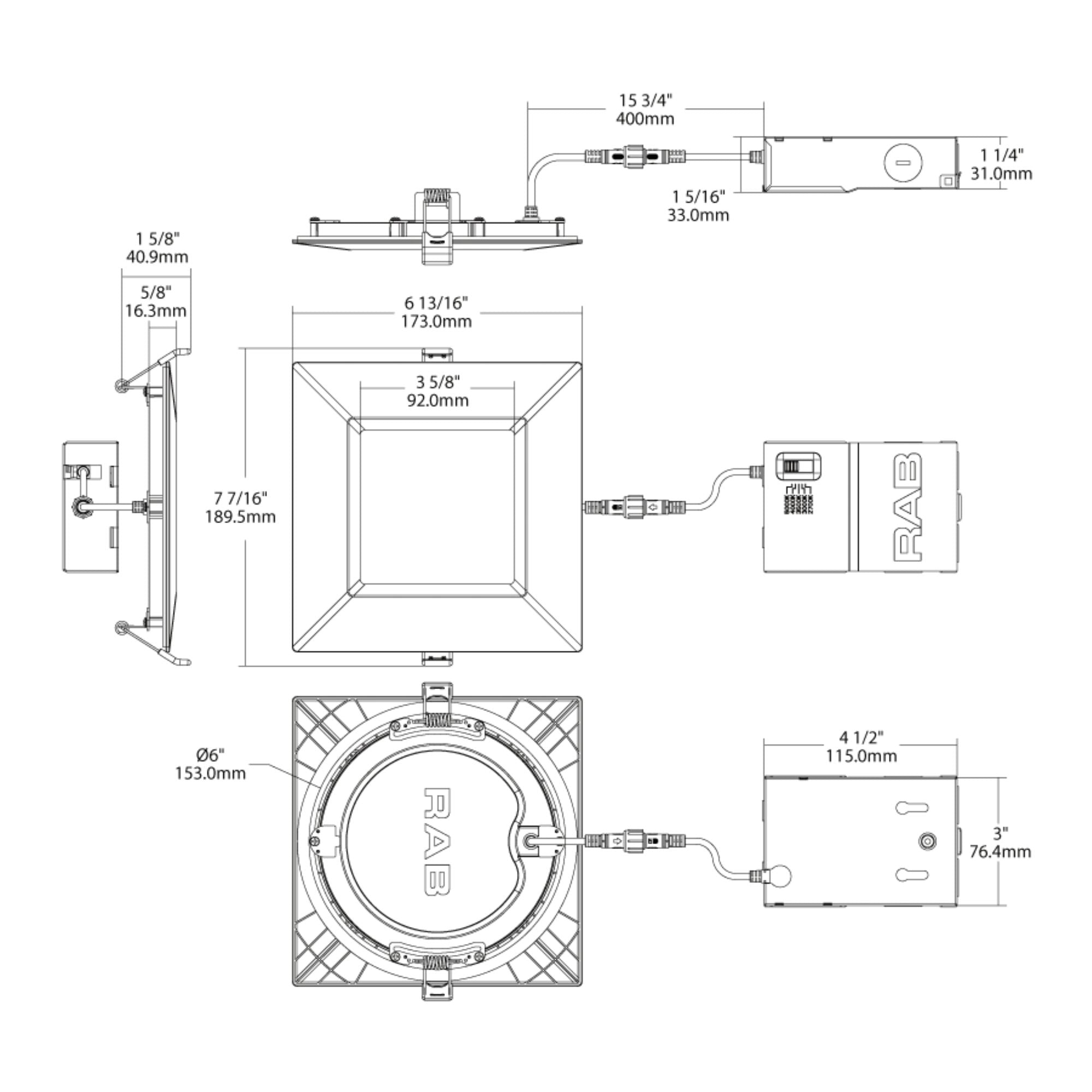

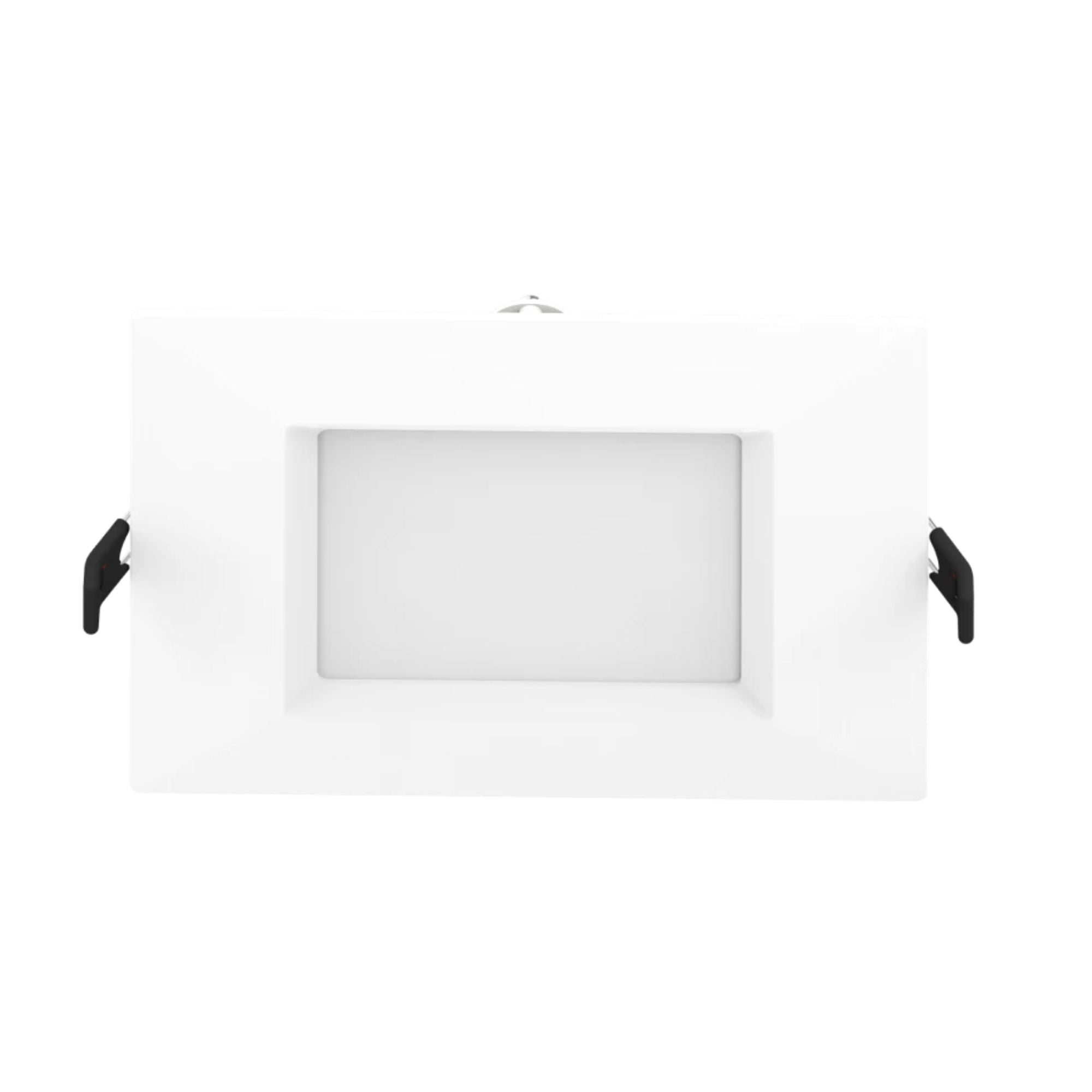

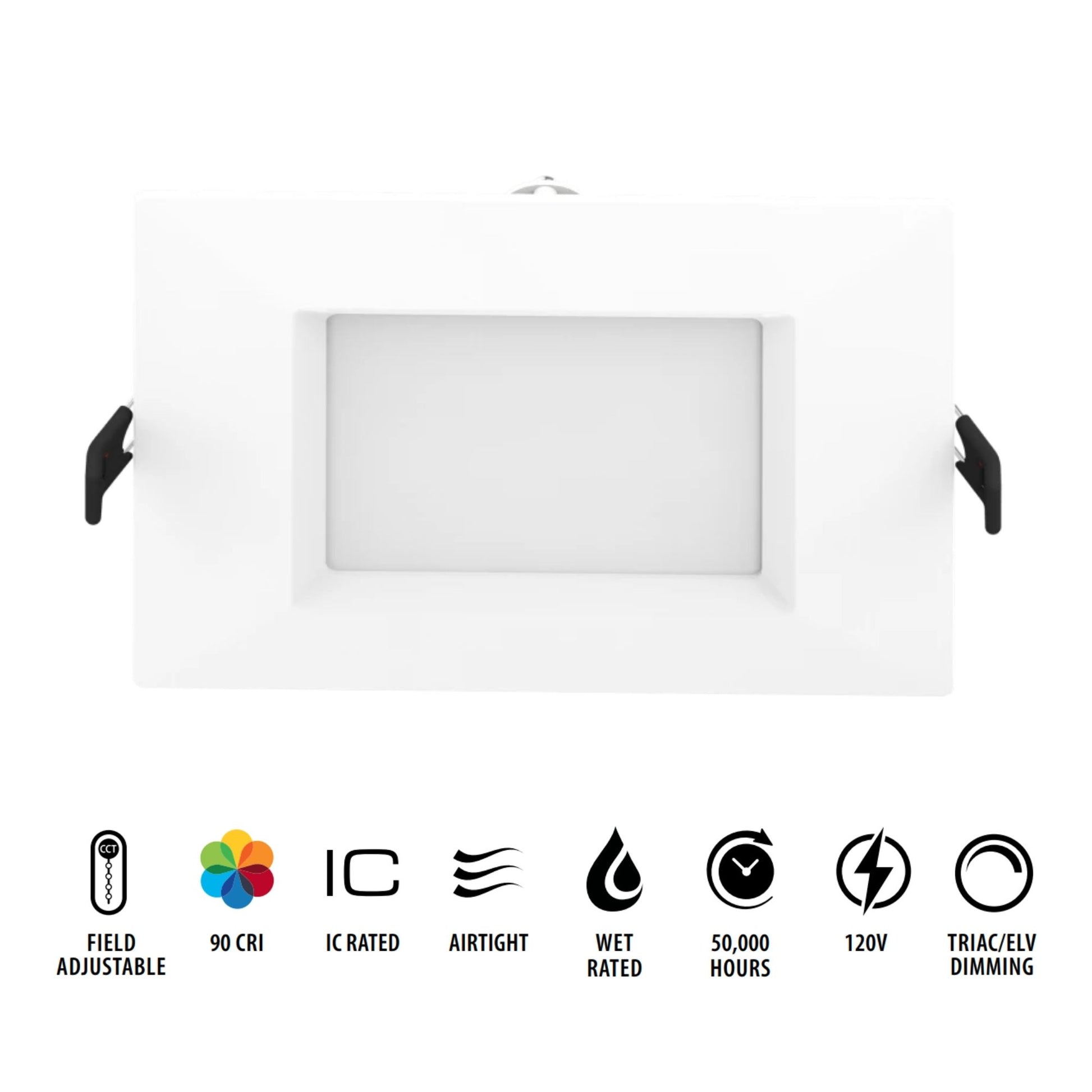

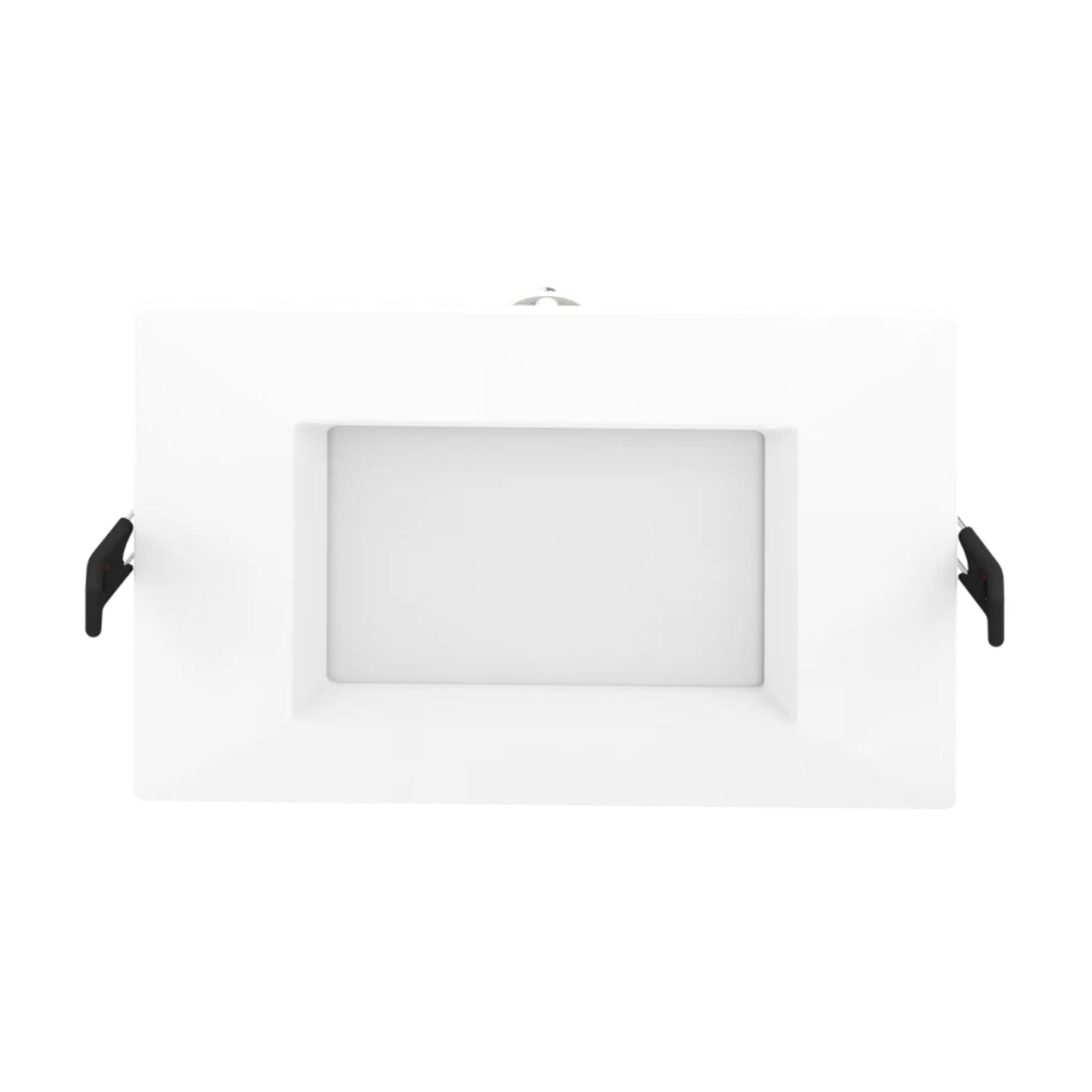

RAB Ultra Thin WFRL6S139FA120WS 6 in. Smooth Trim Downlight — 13W / Selectable CCT

The RAB WFRL6S139FA120WS is a 6-inch square smooth trim downlight delivering up to 1,334 lumens using 13W. This ultra-thin edge-lit fixture features selectable color temperatures (2700K, 3000K, 3500K, 4000K, 5000K) for versatile lighting applications.

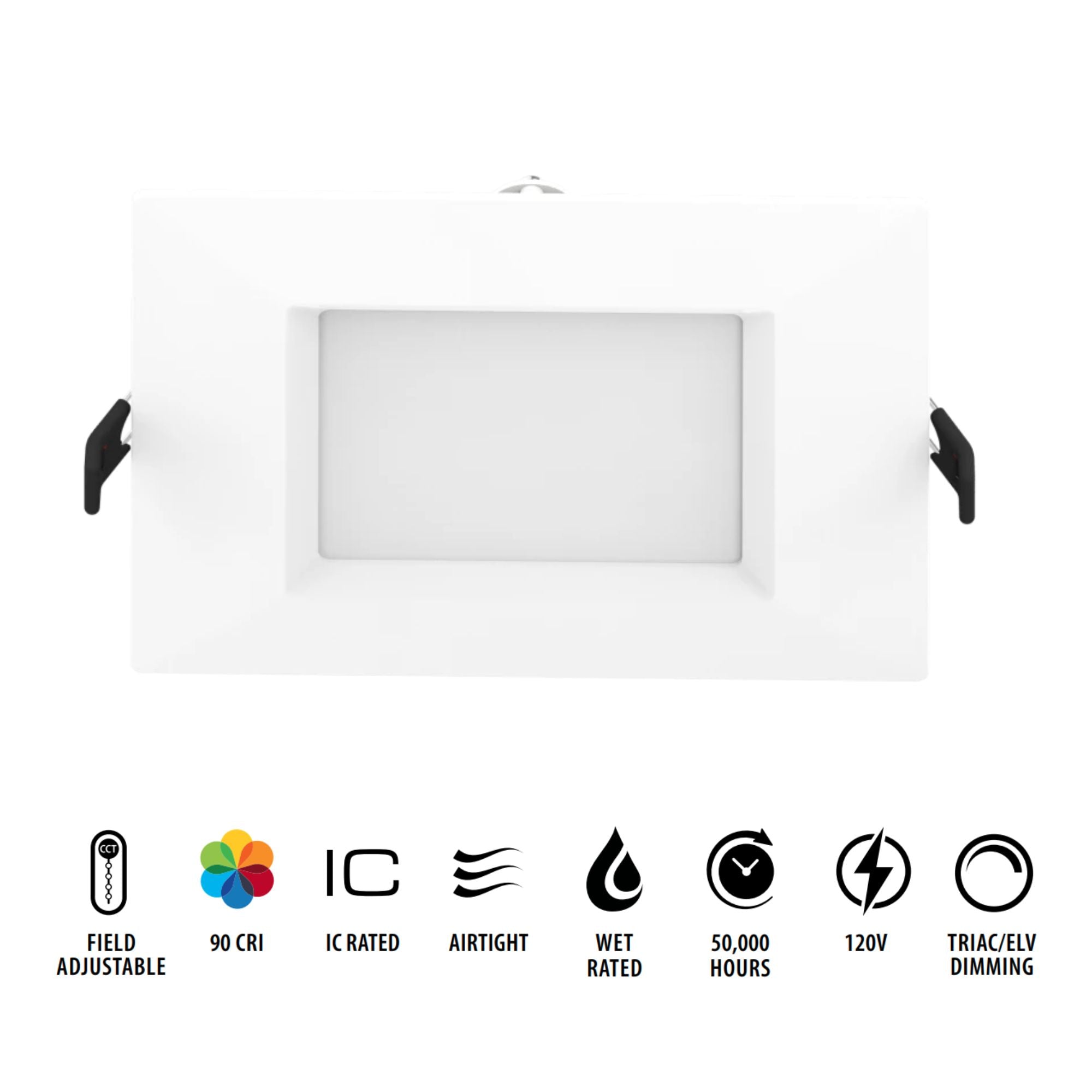

Key Features

• Selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K
• High CRI: >90 for excellent color rendering
• Beam Angle: 110°±10° for wide light distribution
• Energy Star Certified: Meets energy efficiency standards
• IC Rated: Suitable for direct contact with insulation
• Air Tight: Certified as per ASTM E283
• Power Factor: ≥0.9 for efficient power usage
• Operating Temperature: -4°F to 104°F (-20°C to 40°C)
• Warranty: 5-year no-compromise warranty
• Compliance: Title 24 JA8, RoHS, FCC, NEC compliant

Construction & Aesthetics

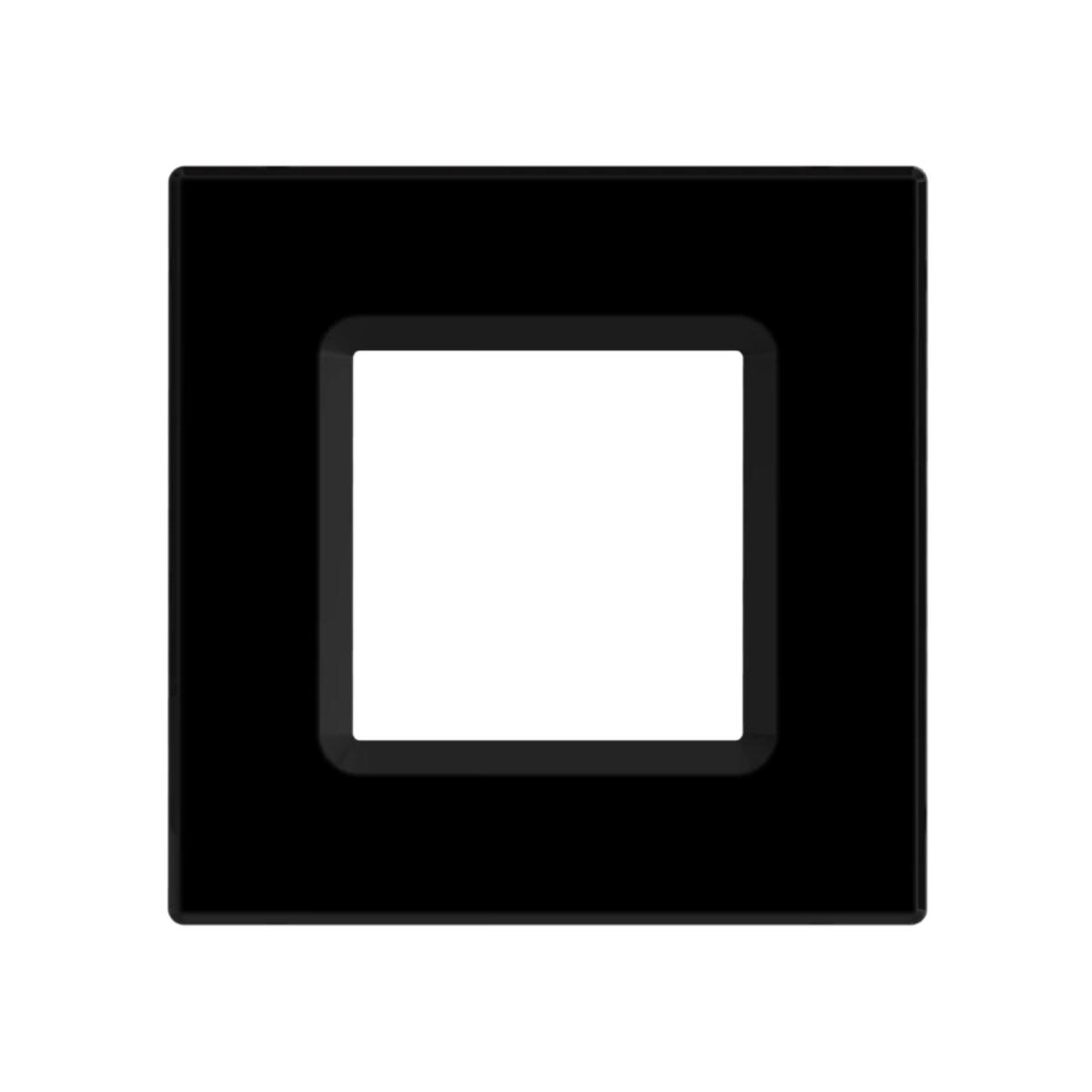

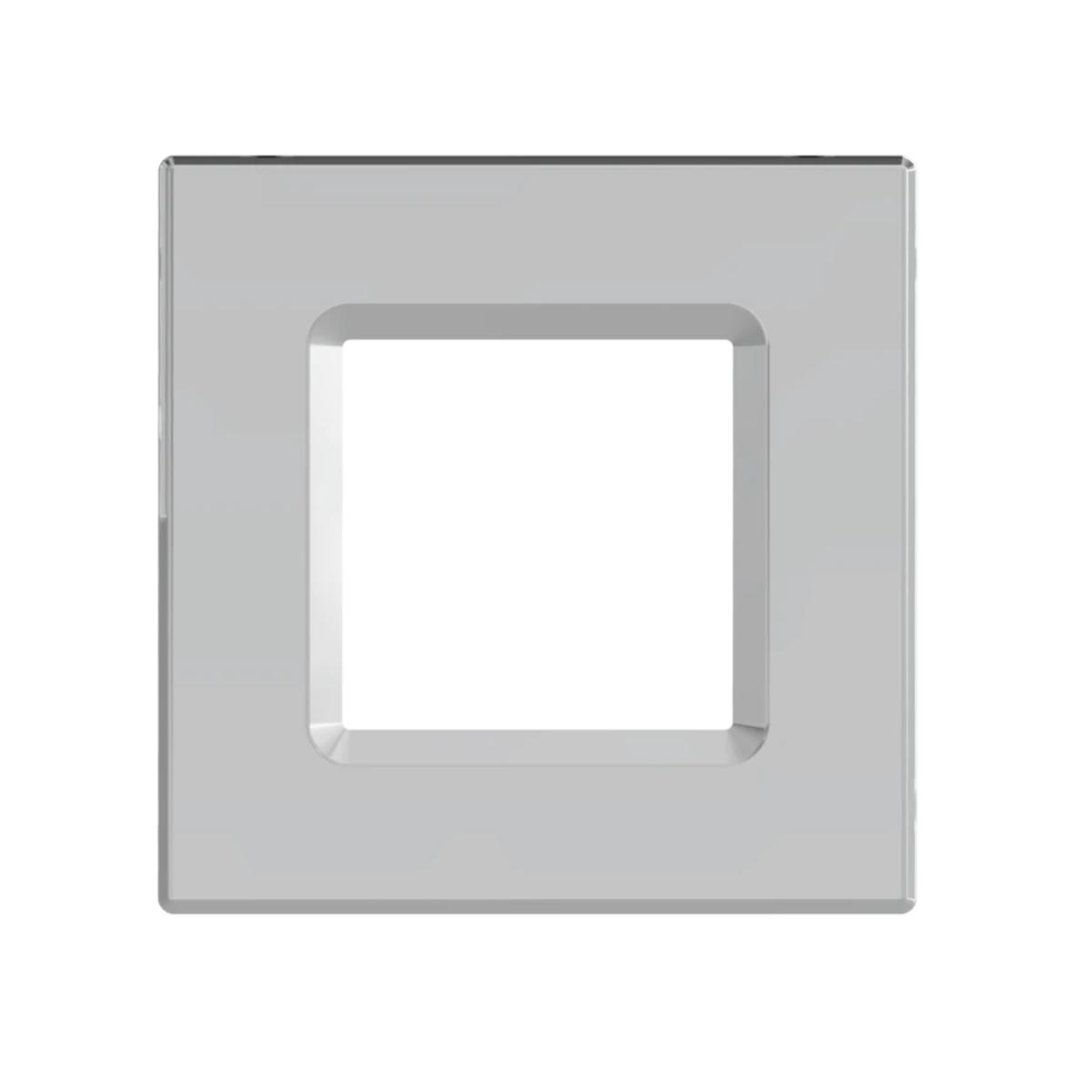

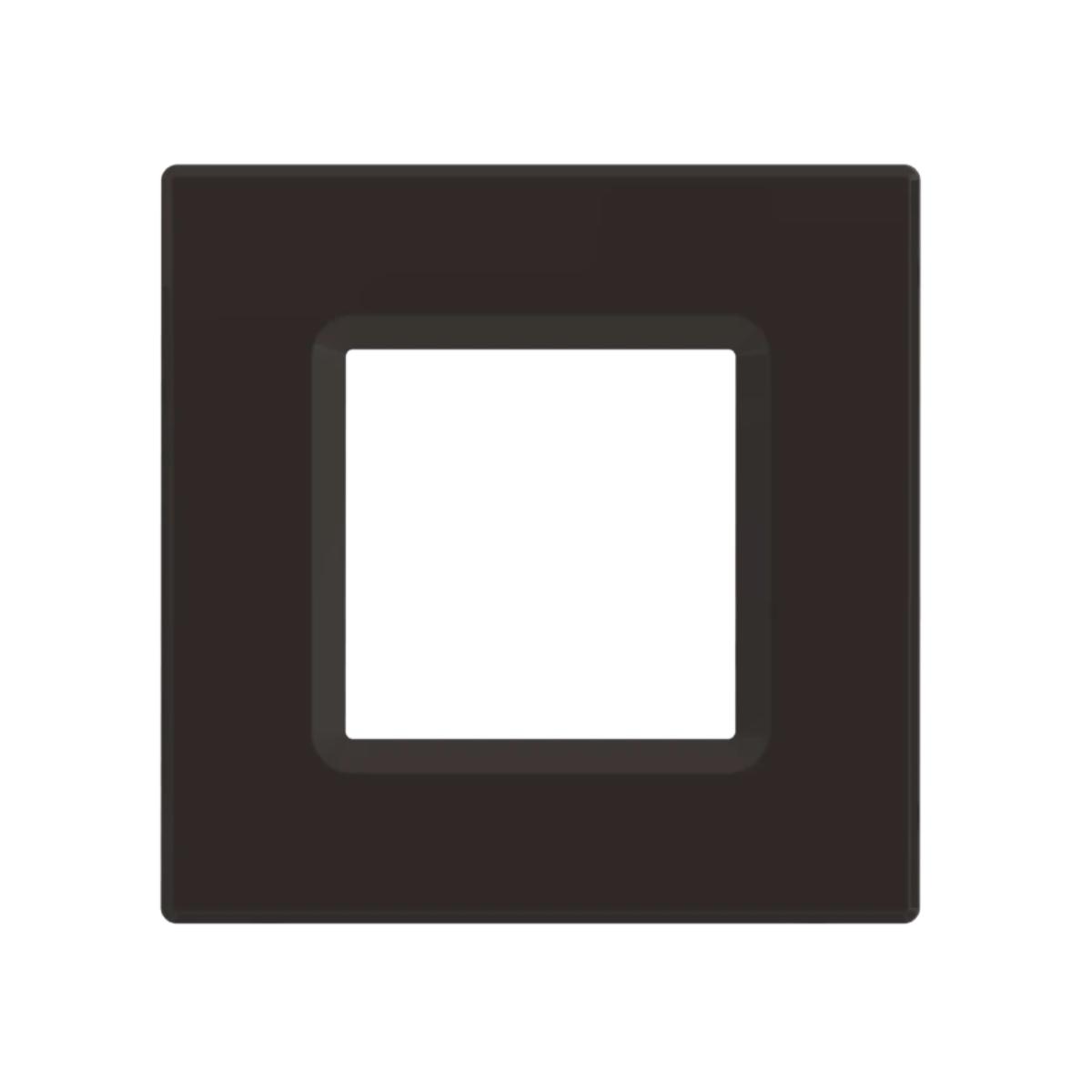

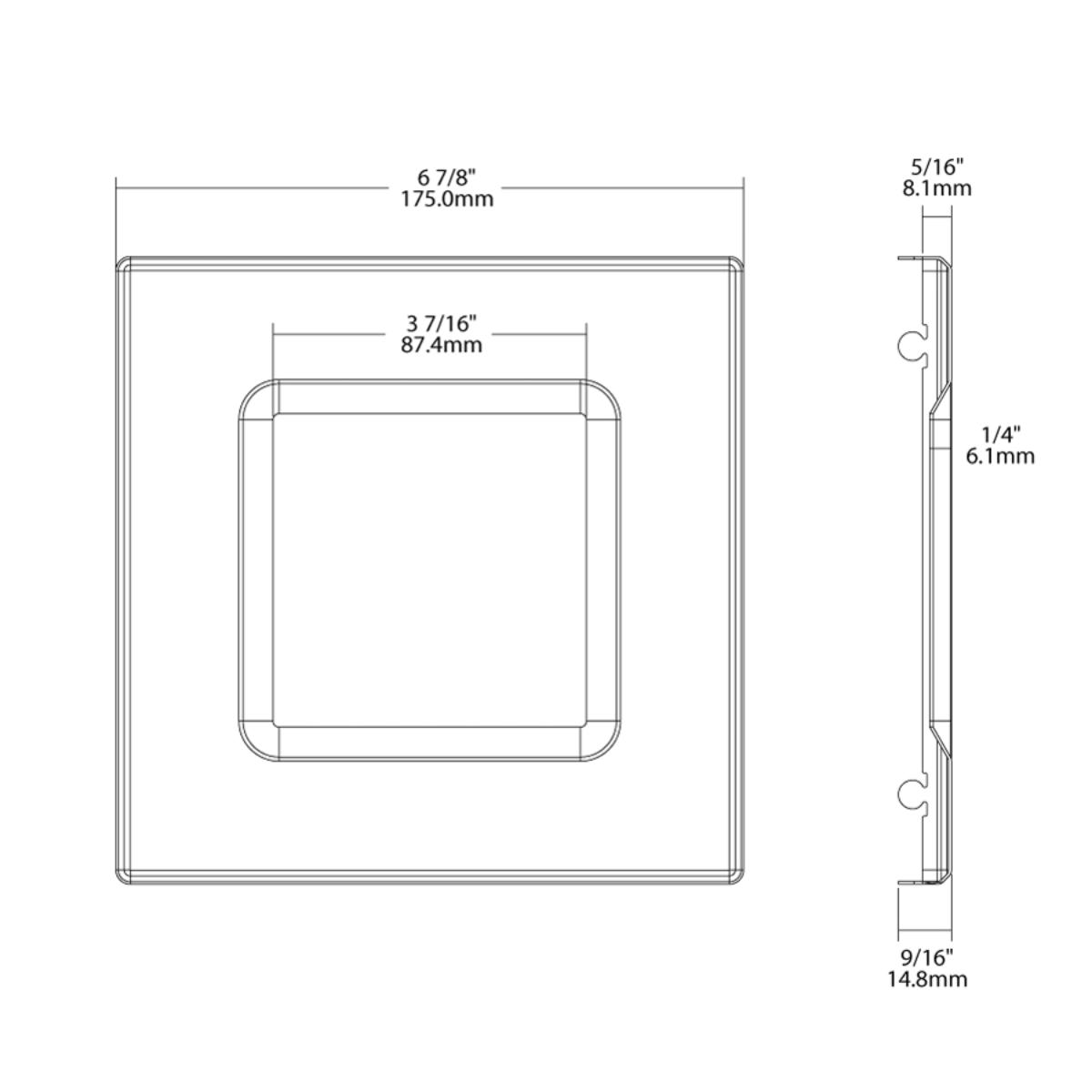

This downlight features a robust die-cast aluminum construction with a smooth white finish. The frosted polycarbonate lens ensures even light distribution. Optional color trim rings in black, brushed nickel, and bronze are available for aesthetic customization.

Electrical & Installation

Designed for 120V input with a constant current driver, this fixture is dimmable down to 10% with compatible TRIAC/ELV dimmers. It requires no housing, making it ideal for both new construction and retrofit applications. Compatible accessories include mounting plates and extension cables.

Light Output & Performance

With a lumen output of up to 1,334 and a CRI of over 90, this downlight provides bright and accurate lighting. The LED has a lifespan of 50,000 hours, ensuring long-term performance.

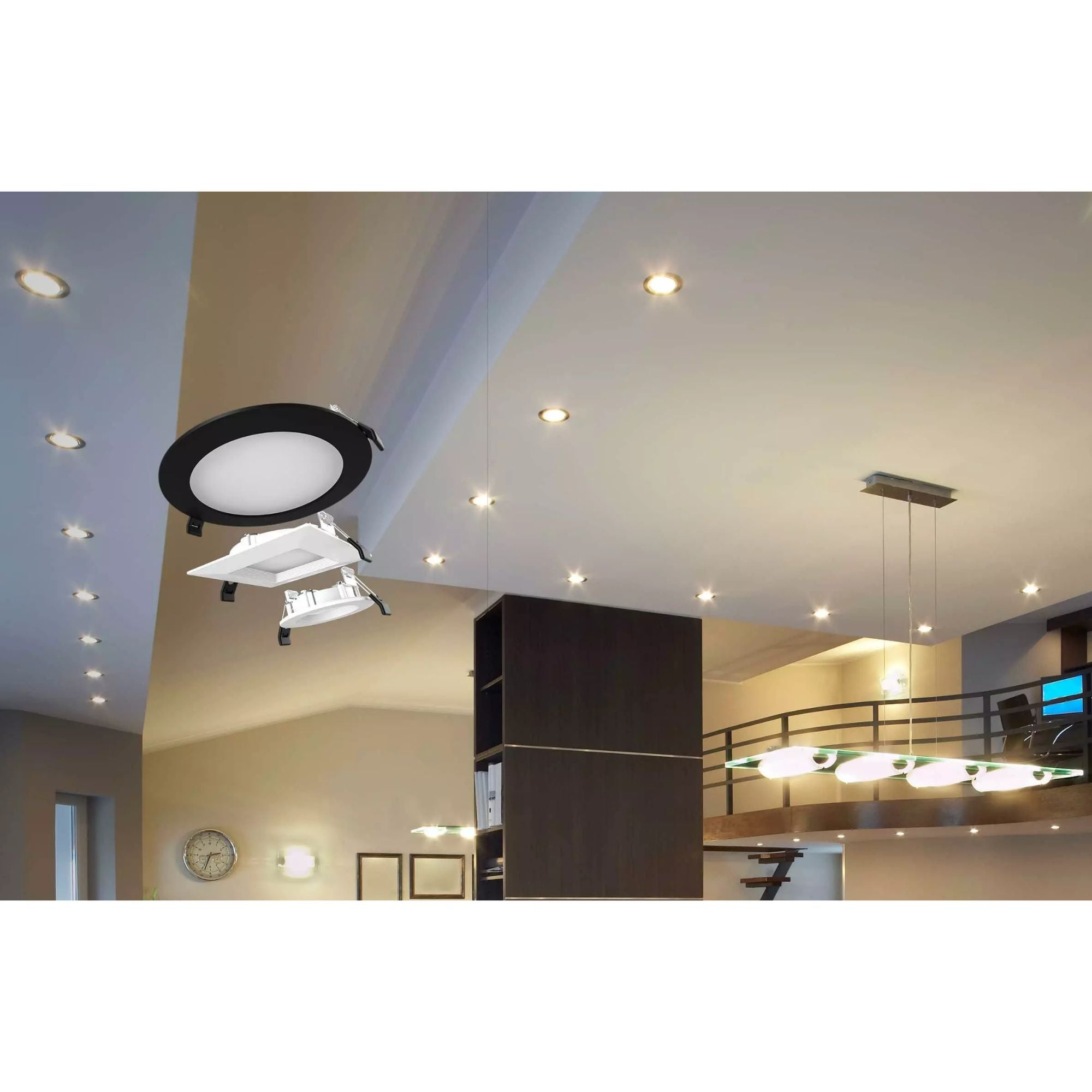

Typical Applications

• Residential kitchens and bathrooms
• Commercial offices
• Retail spaces
• Hospitality environments
• Outdoor covered areas
