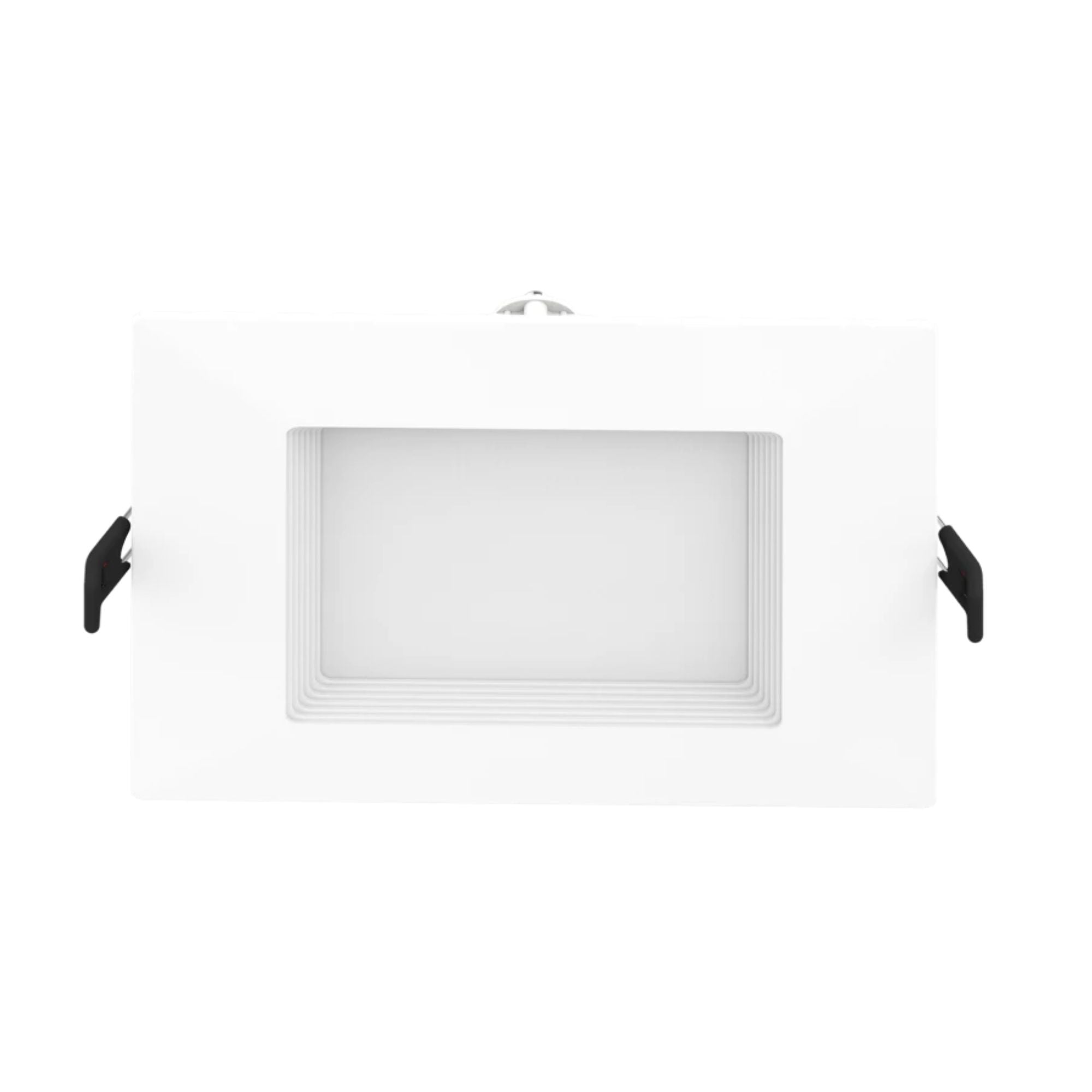

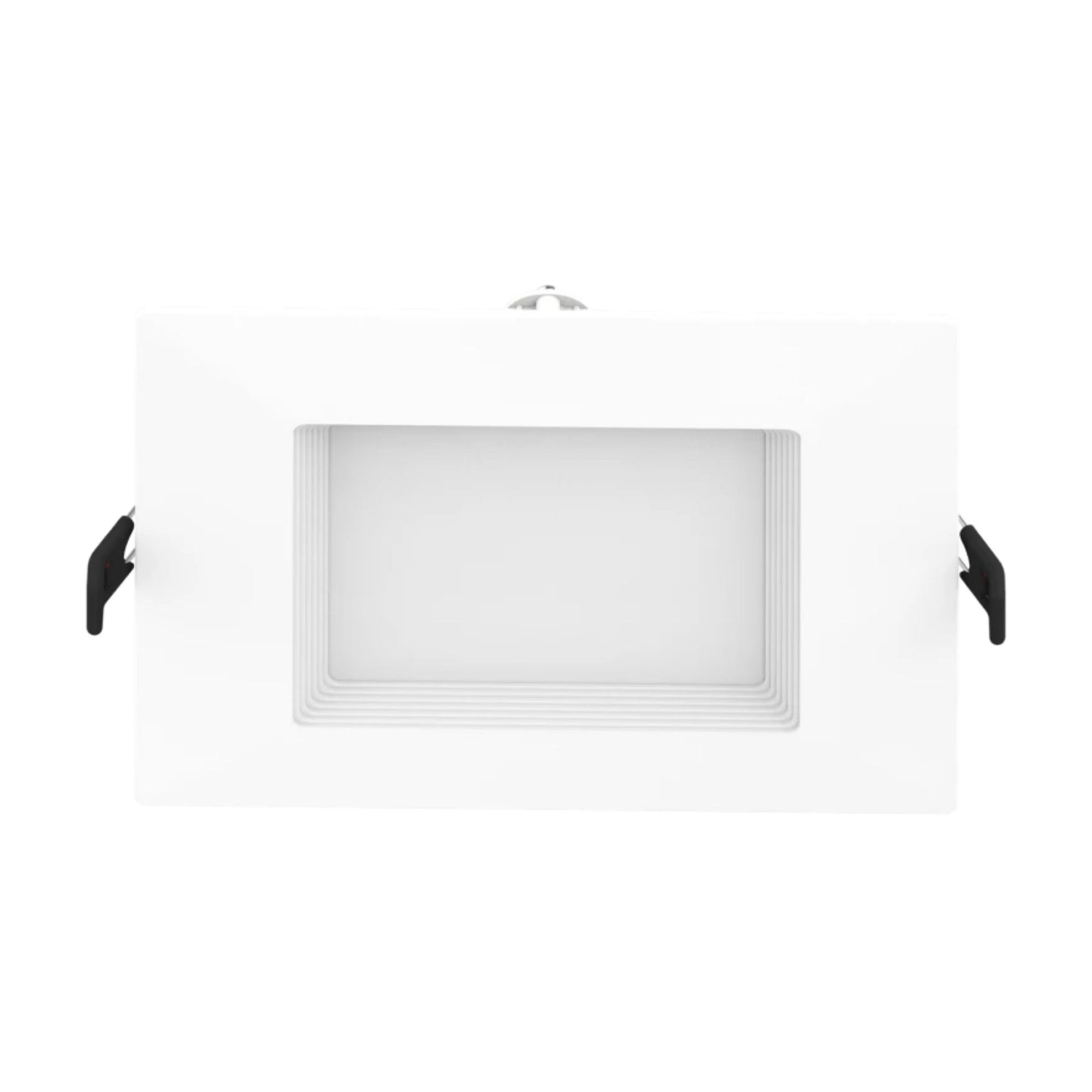

RAB WFRL6S139FA120WB 6 in. Baffle Downlight — 13W / Selectable CCT

The RAB WFRL6S139FA120WB is a 6-inch square baffle downlight delivering 1,200 lumens using 13W. This edge-lit wafer features selectable color temperatures ranging from 2700K to 5000K, making it versatile for various lighting needs.

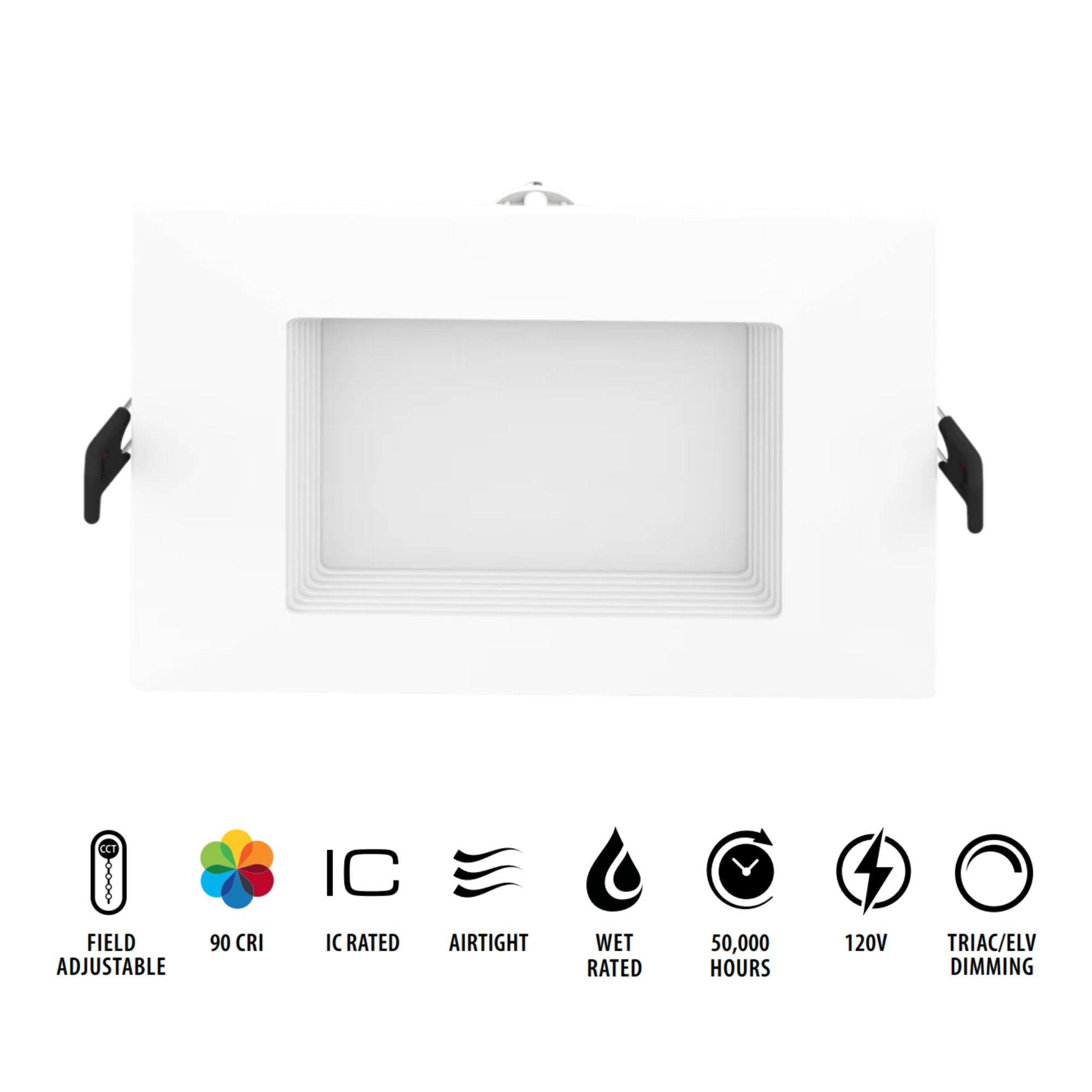

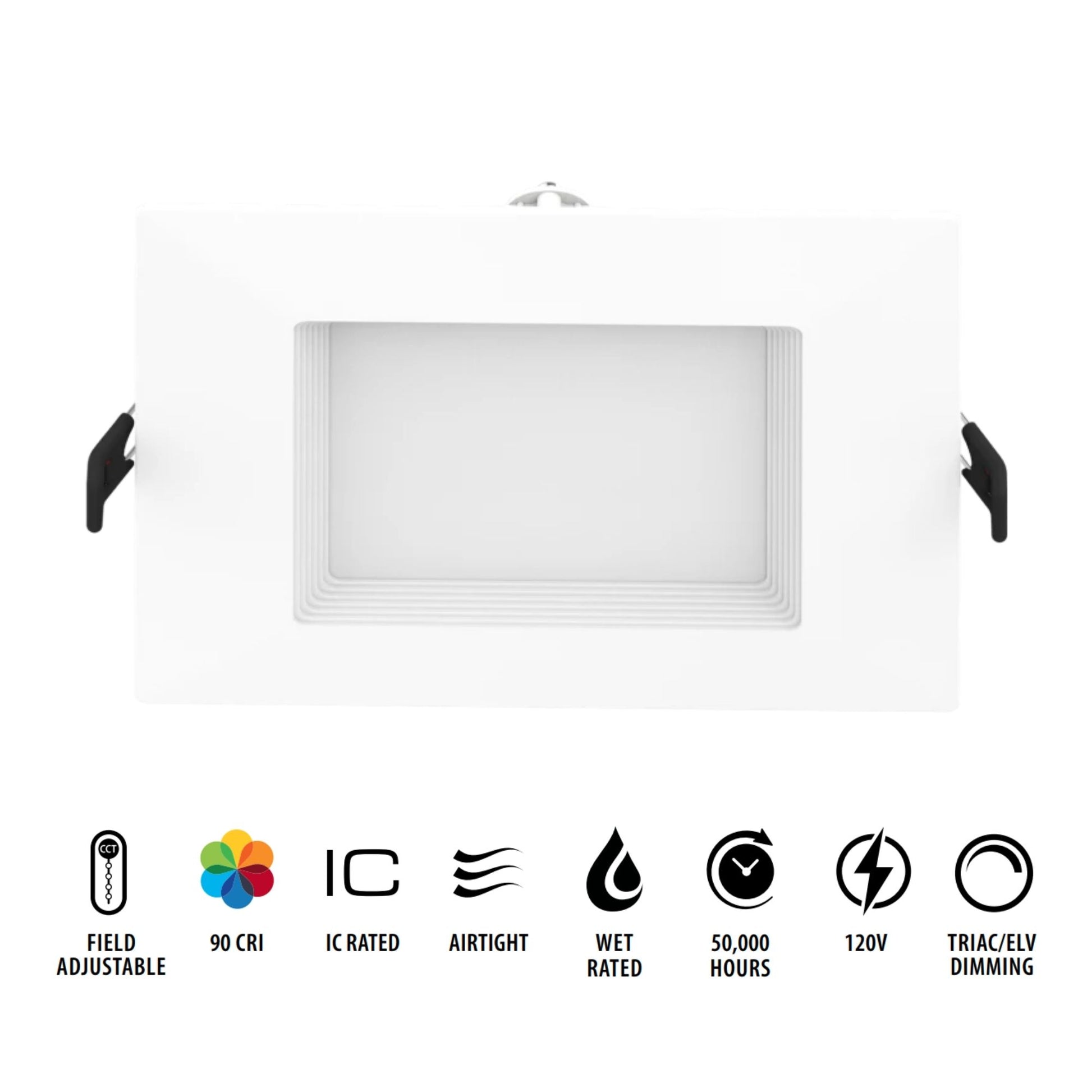

Key Features

• Wattage Equivalency: 75W incandescent
• Voltage: 120V
• CRI: >90 for high color accuracy
• Beam Angle: 110°±10°
• Dimming: TRIAC/ELV dimmable down to 10%
• Lifespan: 50,000 hours
• IC Rated: Suitable for direct contact with insulation
• Energy Star Certified: Yes
• Title 24 Compliant: Meets California Title 24 Part 6 requirements
• RoHS Compliant: Mercury and UV free
• Operating Temperature: -4°F to 104°F
• Warranty: 5-Year, No-Compromise Warranty

Construction & Aesthetics

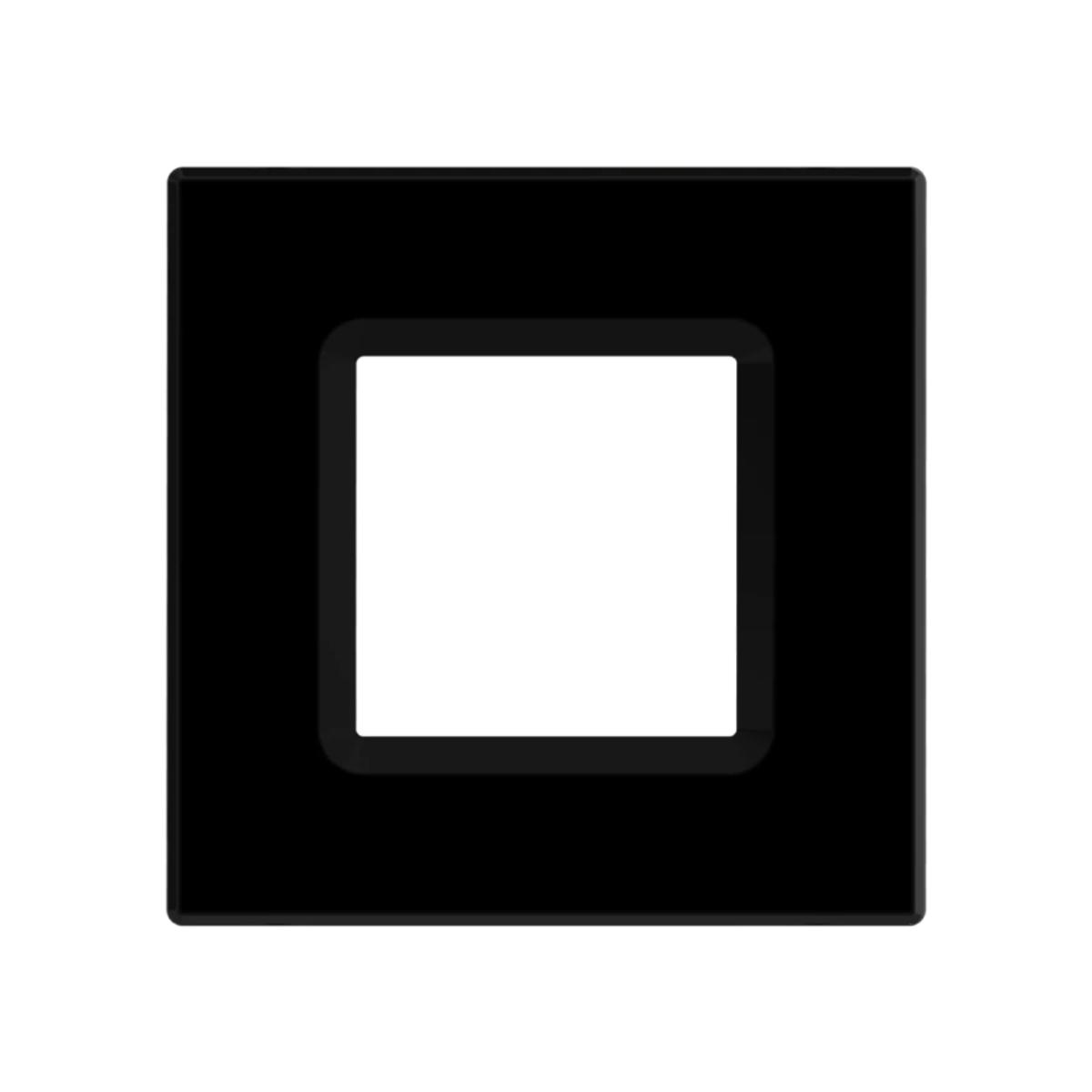

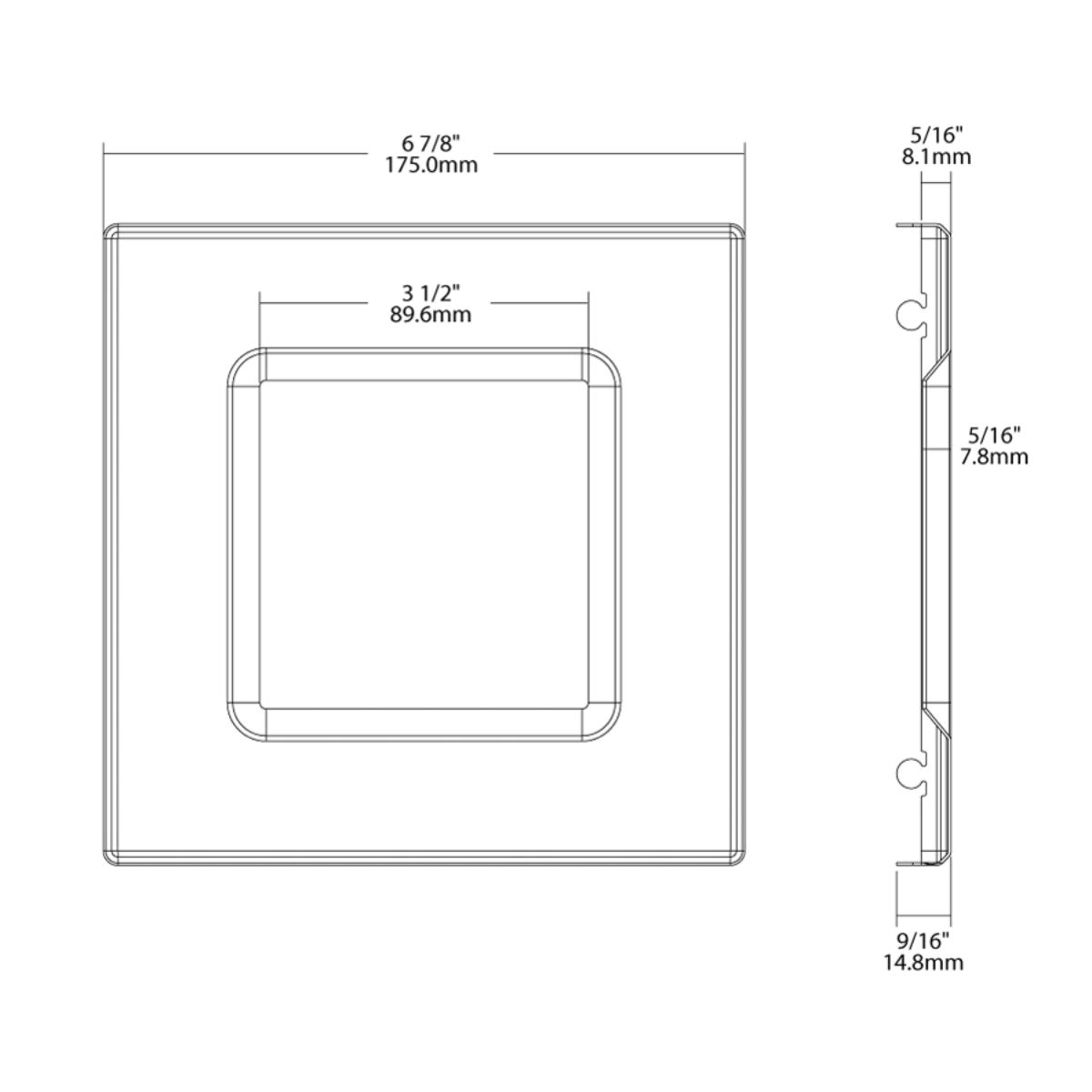

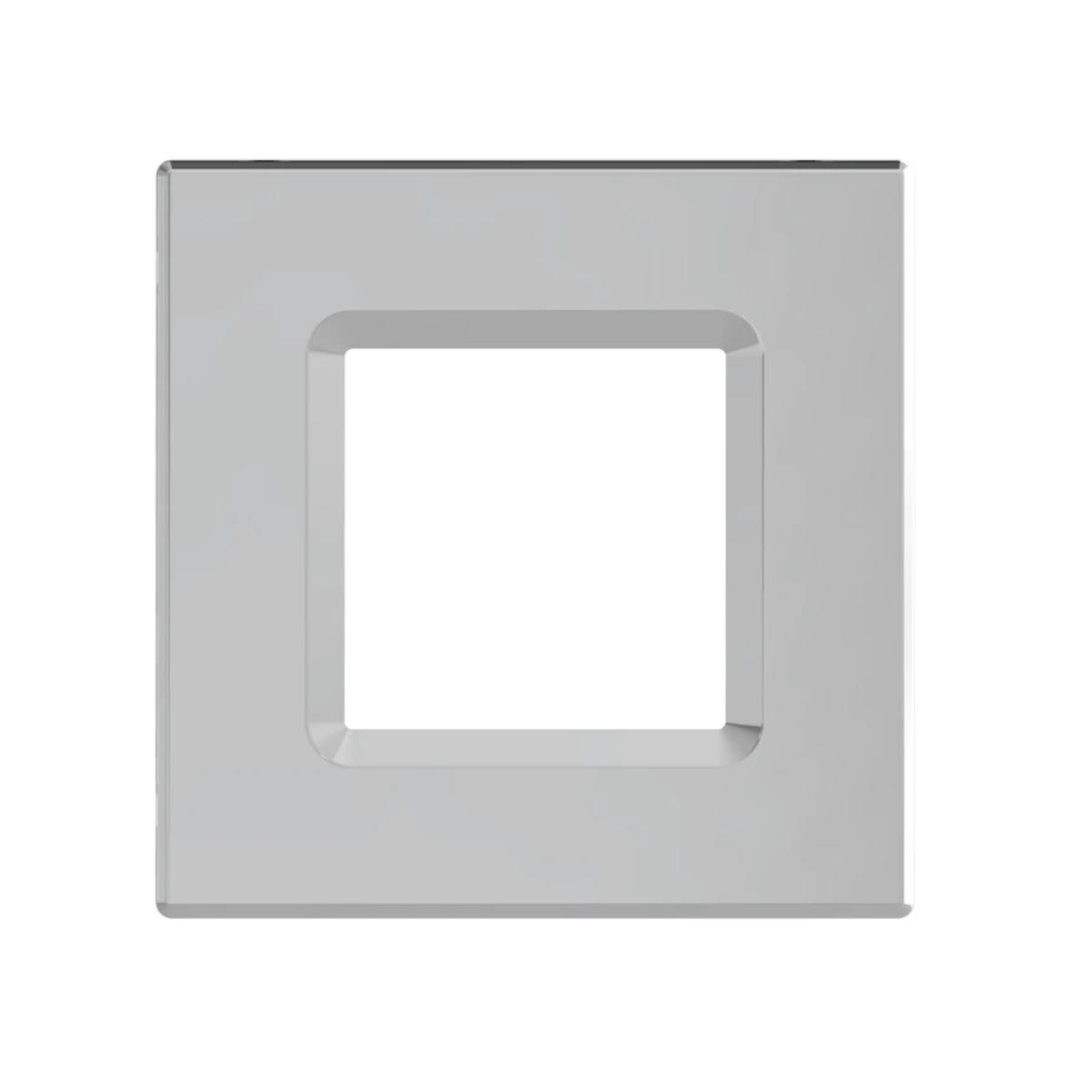

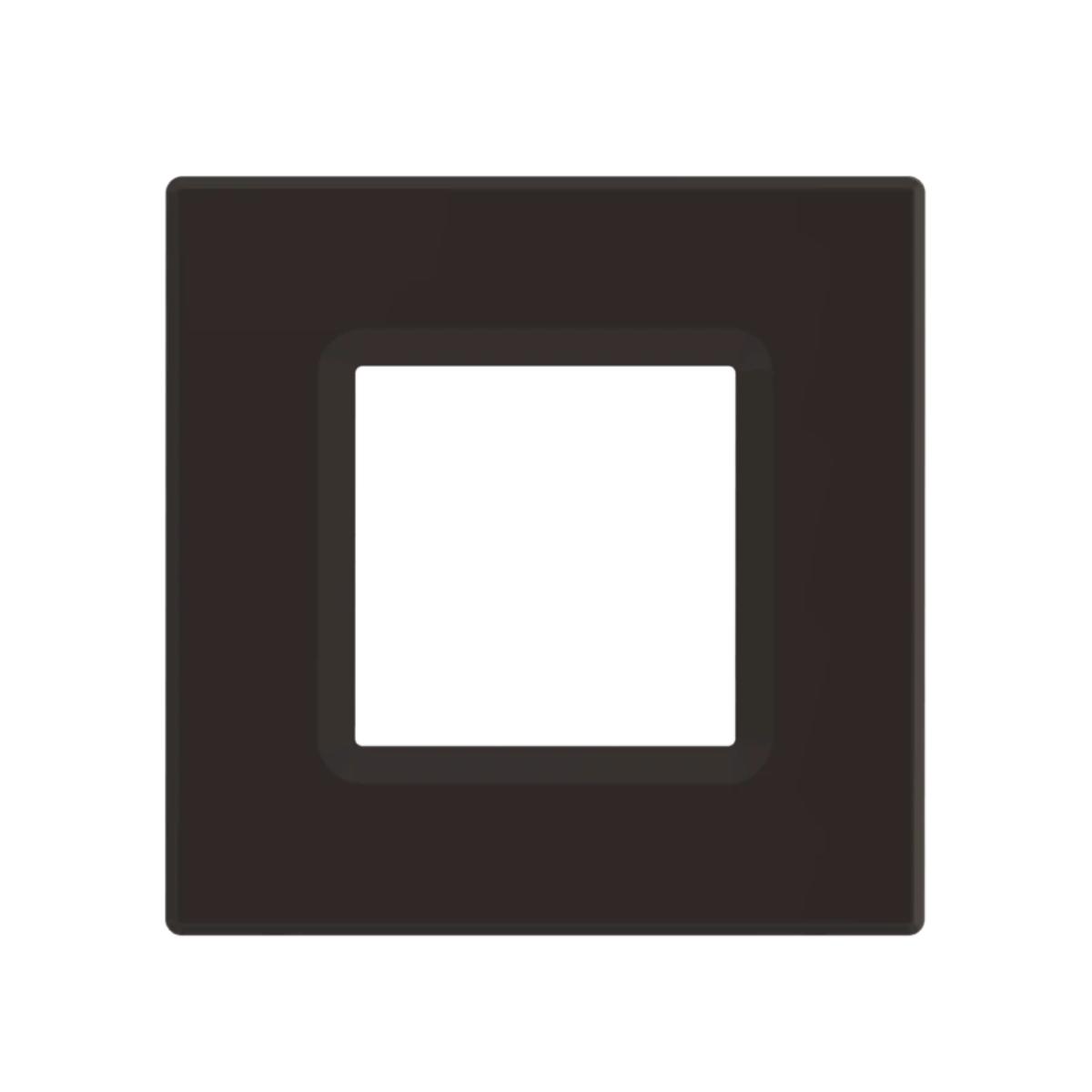

This downlight features a robust die-cast aluminum construction with a white finish. The baffle trim style and frosted polycarbonate lens provide smooth, uniform light distribution. Optional color trim rings are available in black, brushed nickel, and bronze.

Electrical & Installation

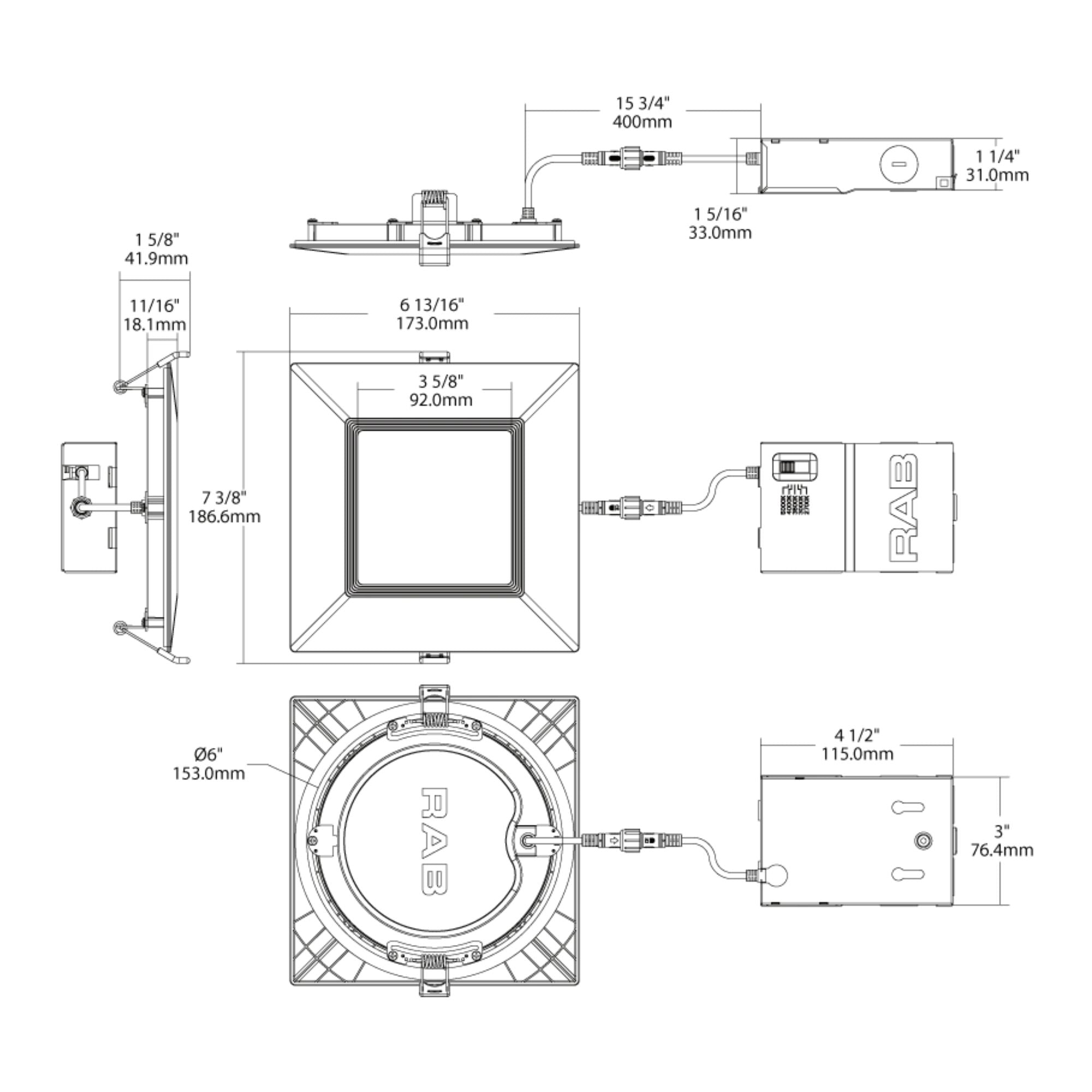

Designed for recessed installation without the need for a housing, this fixture includes a die-formed metal driver/junction box. It is compatible with mounting plates and extension cables for flexible installation options.

Light Output & Performance

With a high efficacy of up to 99 lm/W and a CRI of over 90, this downlight ensures excellent light quality and performance. The selectable CCT feature allows for easy adjustment to suit different environments.

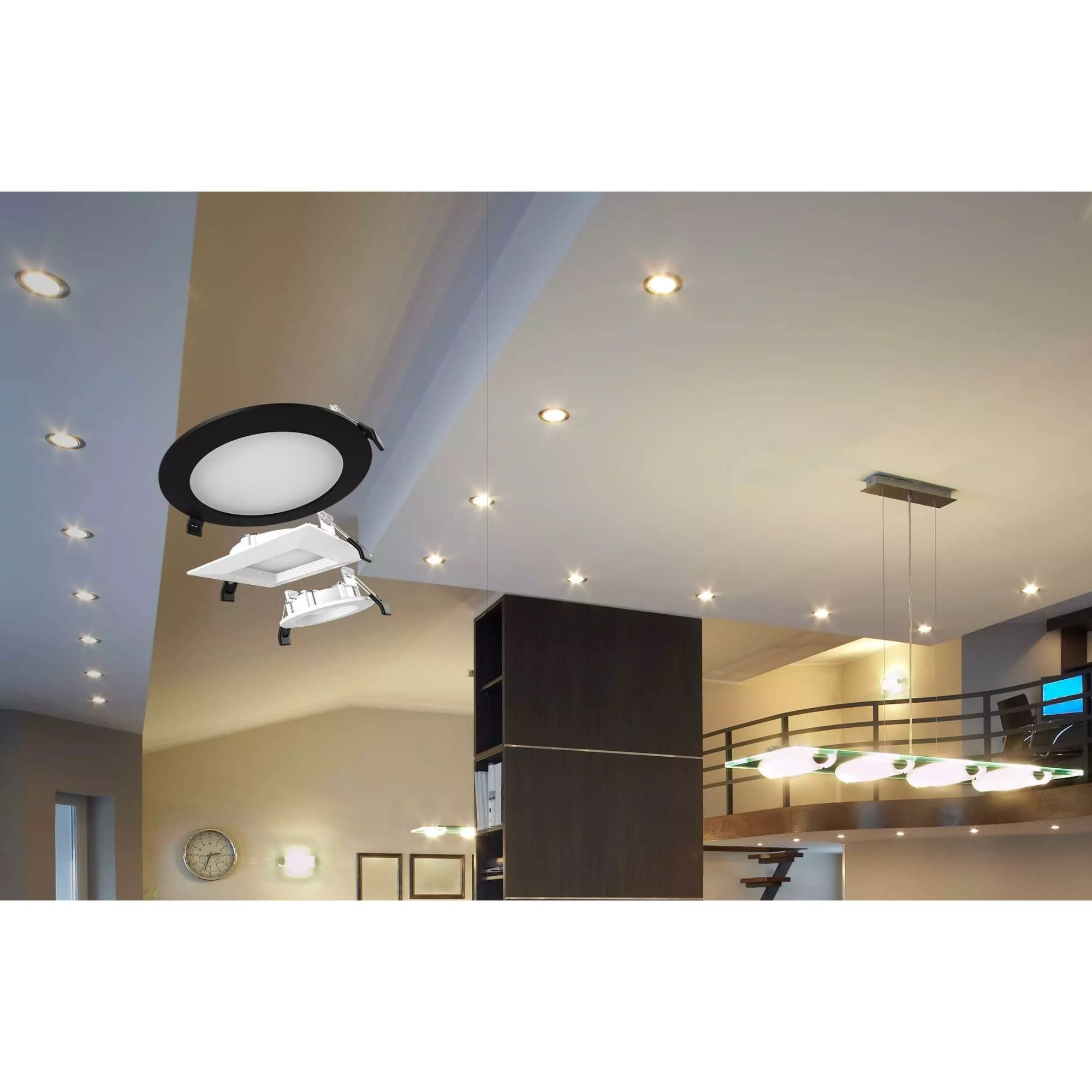

Typical Applications

• Residential lighting
• Commercial spaces
• Hospitality environments
• Retail settings
• Outdoor covered areas
