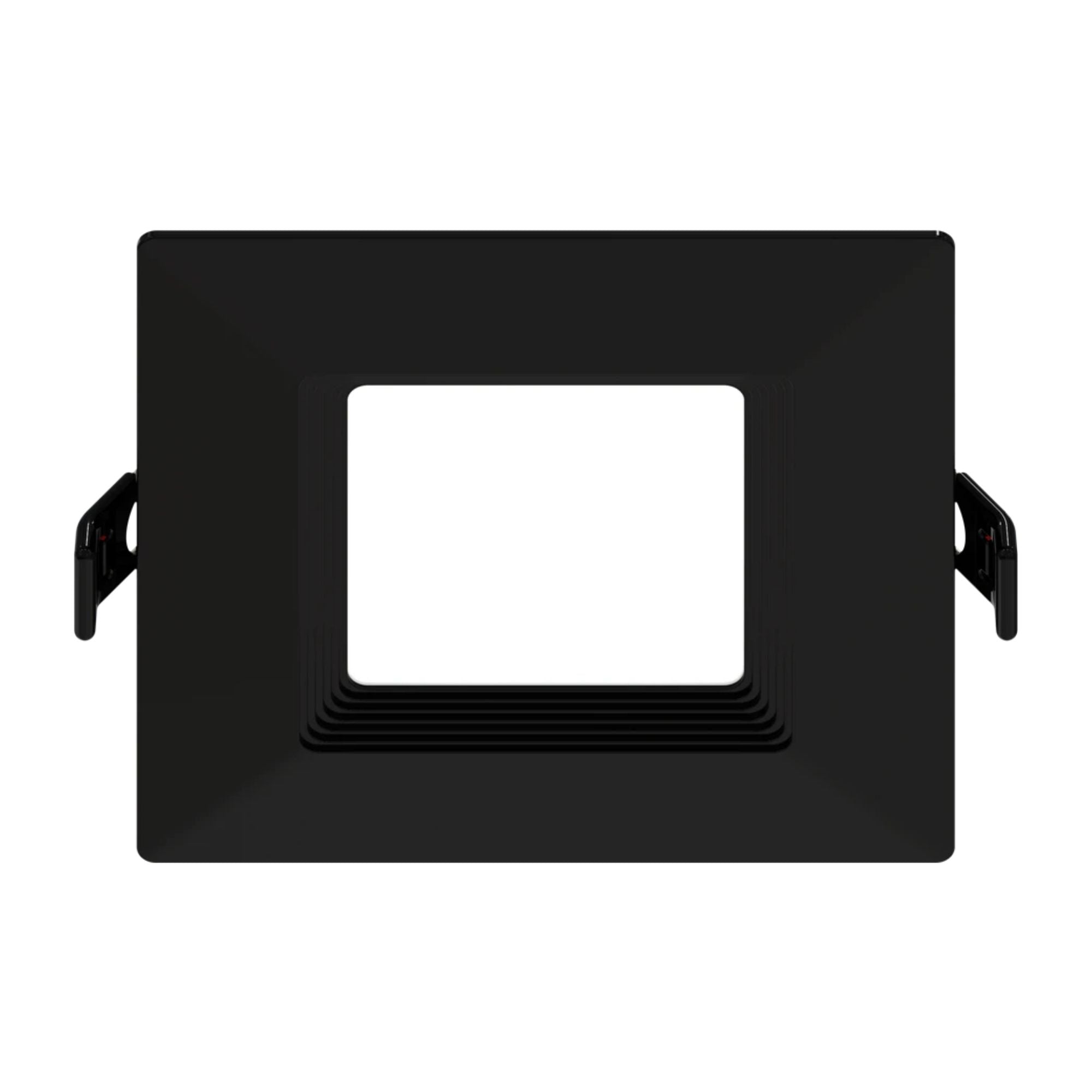

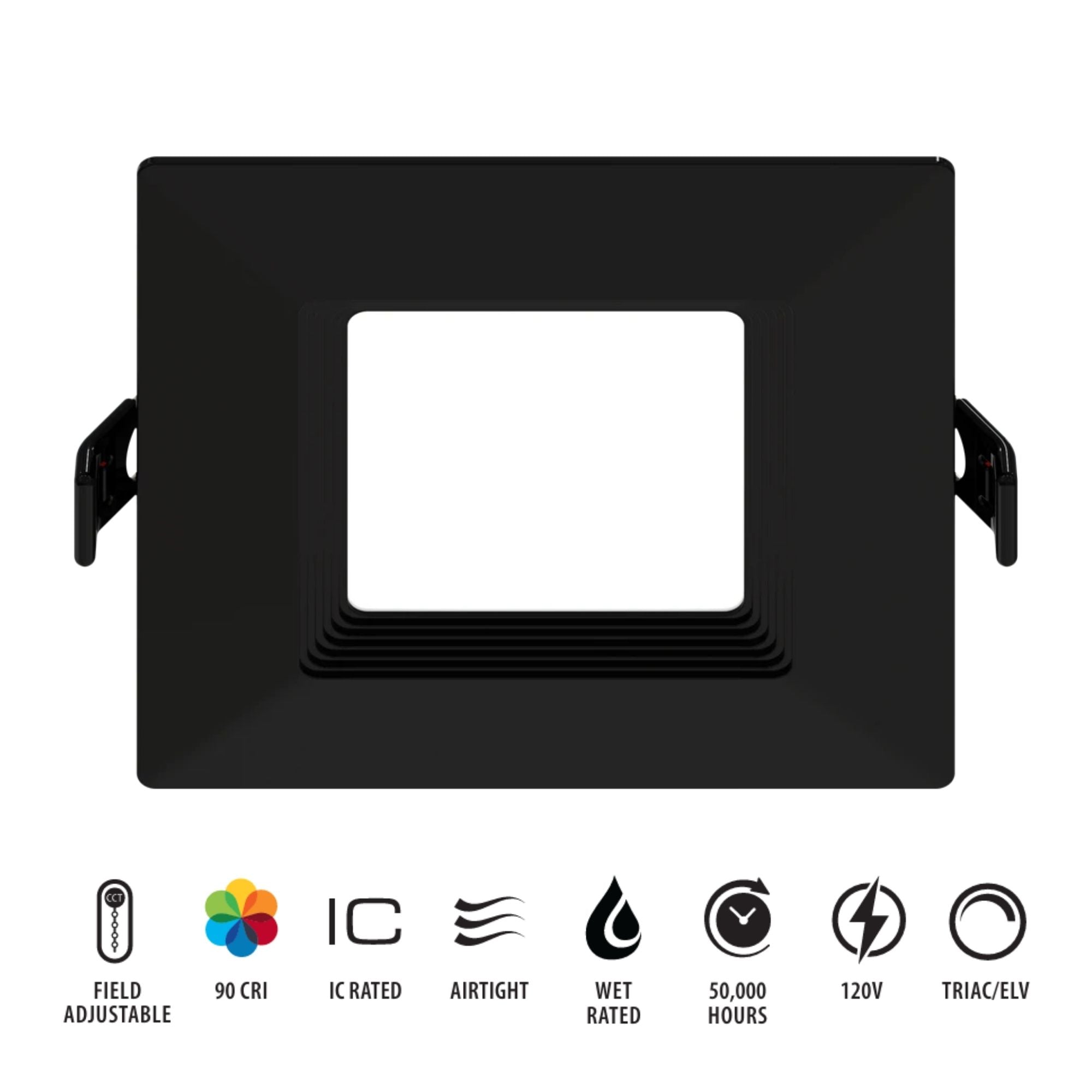

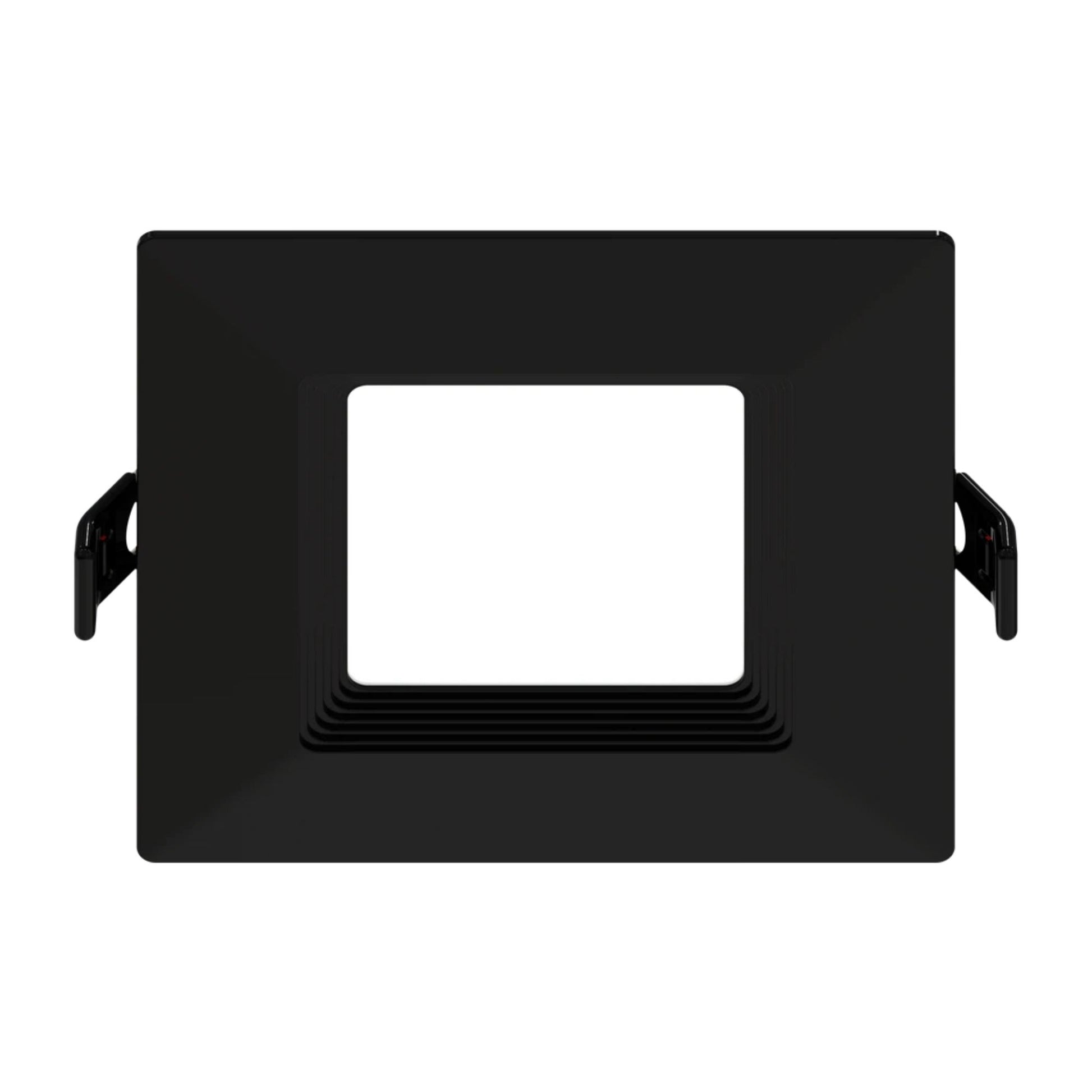

RAB WFRL6S139FA120BB 6 in. Baffle Downlight — 13W / Selectable CCT

The RAB WFRL6S139FA120BB is a 6-inch square baffle trim downlight delivering 1100 lumens using 13W. It features selectable color temperatures ranging from 2700K to 5000K, making it versatile for various lighting needs. This fixture is wet rated, making it suitable for both indoor and outdoor applications.

Key Features

• Wattage Equivalency: 75W CFL
• Voltage: 120V
• CRI: 90
• Beam Angle: 110°
• Driver Type: Constant Current, Class 2
• IC Rated: Suitable for direct contact with insulation
• Energy Star Approved: Yes
• Title 24 JA8 Compliant: Yes
• RoHS Compliant: Yes
• Operating Temperature: -4°F to 104°F
• Power Factor: ≥0.9
• THD: ≤20%

Construction & Aesthetics

Constructed from robust UV resistant polycarbonate, the fixture features a frosted polycarbonate light diffuser for smooth light distribution. The black finish complements various decor styles. Accessories such as new construction frames are available for enhanced installation flexibility.

Electrical & Installation

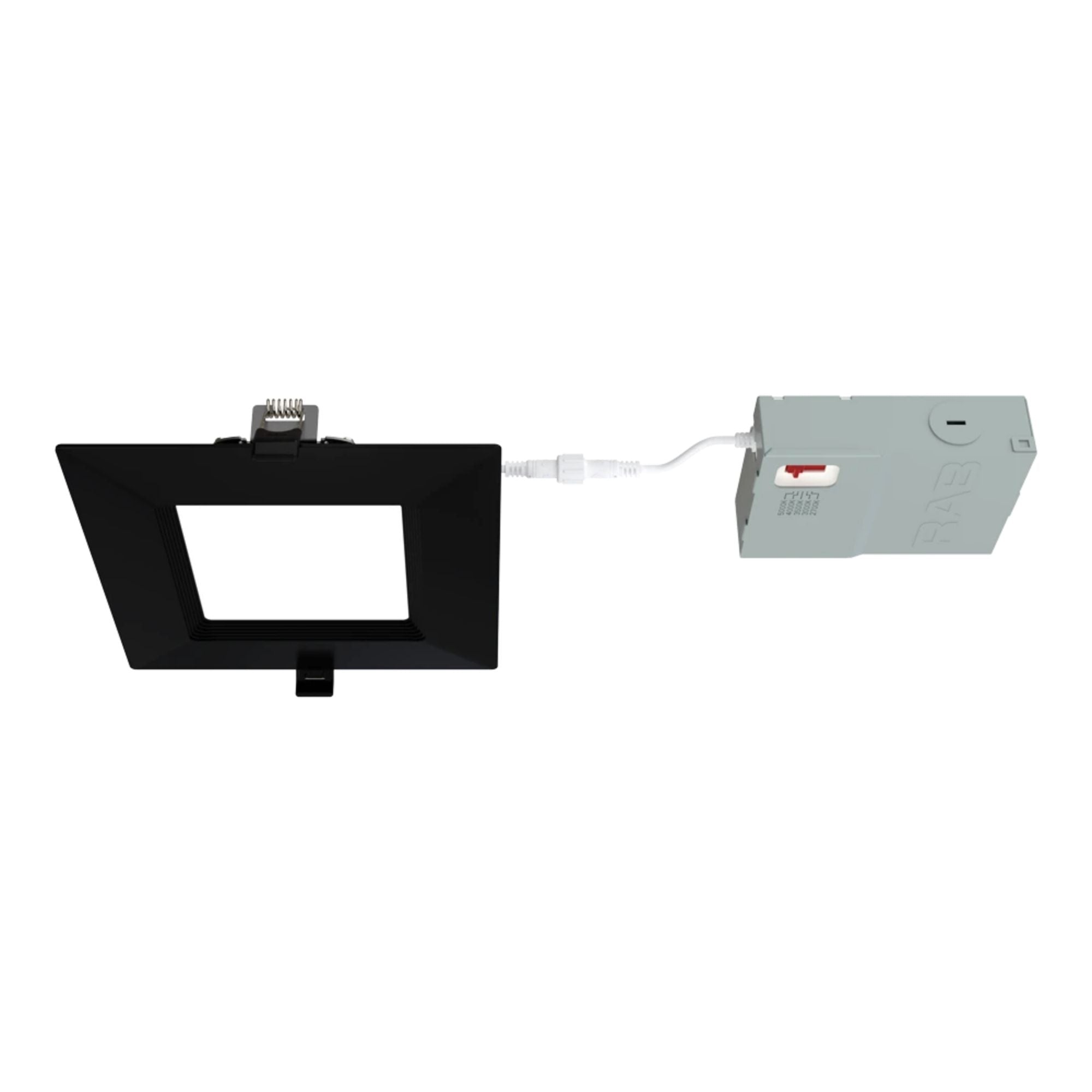

This downlight operates at 120V and is dimmable down to 10% on compatible TRIAC/ELV dimmers. It features a die-formed metal driver/junction box with easy wiring capabilities and requires no additional housing, making installation straightforward with spring-loaded retention clips.

Light Output & Performance

With a light output of 1100 lumens and a high color rendering index of 90, this fixture ensures vibrant and accurate color representation. The LED lifespan is rated at 50,000 hours, ensuring long-term performance.

Typical Applications

• Residential Lighting
• Commercial Spaces
• Outdoor Patios
• Bathrooms
• Kitchens
