RAB WFRL6R149FA120WB 6 in Round Baffle Edge-Lit Wafer Downlight — 14W / Selectable CCT / 120V / White

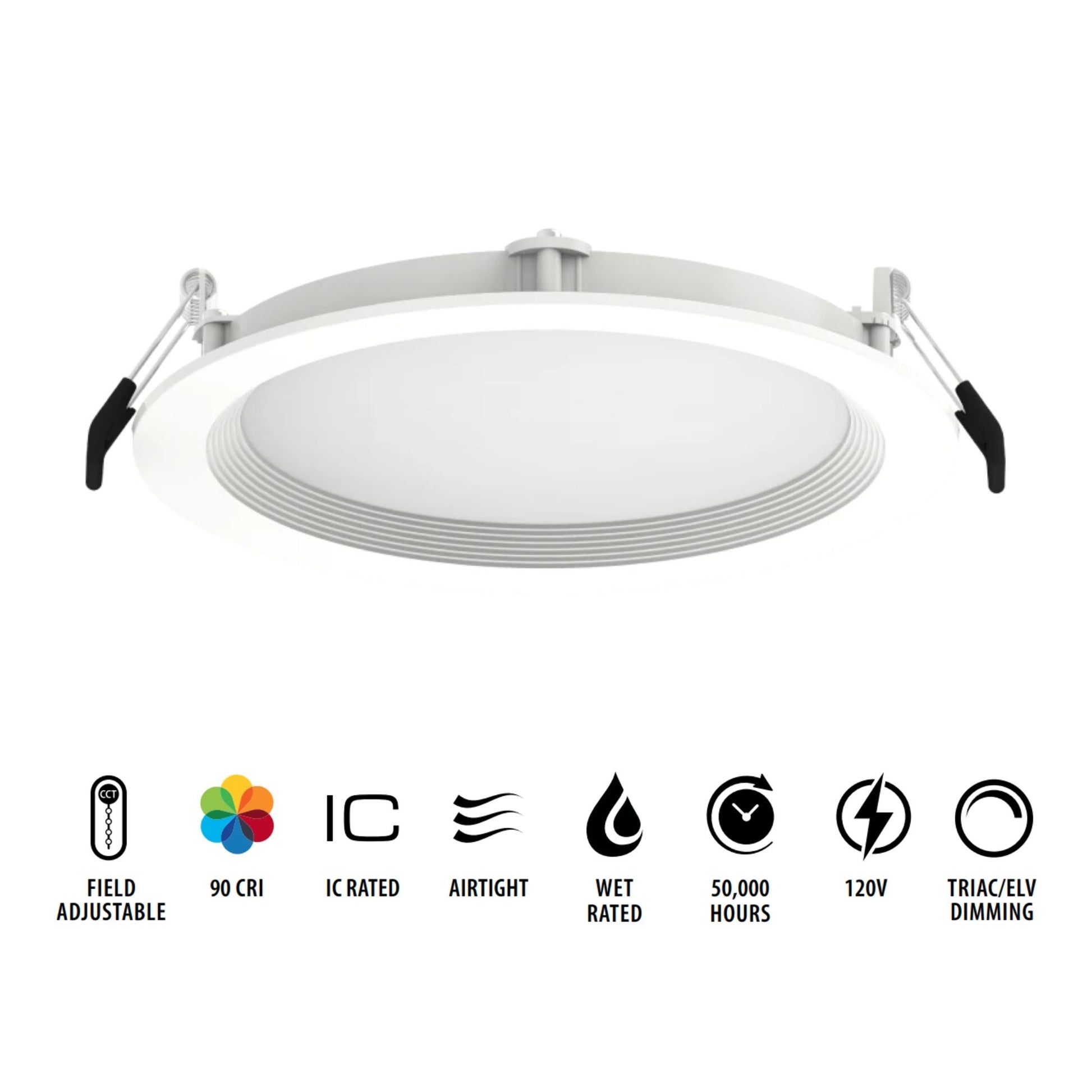

The RAB WFRL6R149FA120WB is a 6 in round edge-lit wafer downlight in white finish with a baffle trim, delivering up to 1,233 lumens at 14W with a 110° beam angle and 90 CRI. The edge-lit design produces smooth, uniform light distribution with a super slim profile — no recessed housing or junction box required. Metal and plastic construction with spring-loaded retention clips ensures fast, secure installation in new construction or retrofit applications. CCT is field-selectable between five color temperatures via integrated dipswitch, with TRIAC/ELV dimming at 120V.

Key Features

• Edge-Lit Slim Profile: Metal + plastic construction; spring-loaded retention clips for fast installation
• No Housing or J-Box Required: Mounts directly to ceiling; new construction or retrofit
• Field-Selectable CCT: Dip-switch adjustable between 2700K, 3000K, 3500K, 4000K, and 5000K; 5 CCTs in 1 SKU
• Lumen Output: 1,233 lm (4000K); 1,221 lm (3500K); 1,206 lm (5000K); 1,169 lm (3000K); 1,153 lm (2700K)
• Per-CCT Efficacy: 88 lm/W (4000K); 87 lm/W (3500K); 86 lm/W (5000K); 84 lm/W (3000K); 82 lm/W (2700K)
• Wattage: 14W | 100W incandescent equivalent
• CRI & Beam: >90 CRI, R9 > 50 | 110° (±10°) beam angle
• Dimming: TRIAC/ELV dimmable to 10% at 120V
• Voltage: 120V
• Not IC Rated: Not suitable for direct insulation contact
• Airtight: ASTM E283 certified
• Certifications: UL Listed, ENERGY STAR, Title 24 JA8, Title 20, RoHS, FCC Part 15 | NEC closet compliant Sec. 410.16 (A)(1) & (C3)
• Lifespan: 50,000 hours L70 per IES LM-70
• Warranty: 5-year no-compromise warranty

Construction, Installation & Electrical

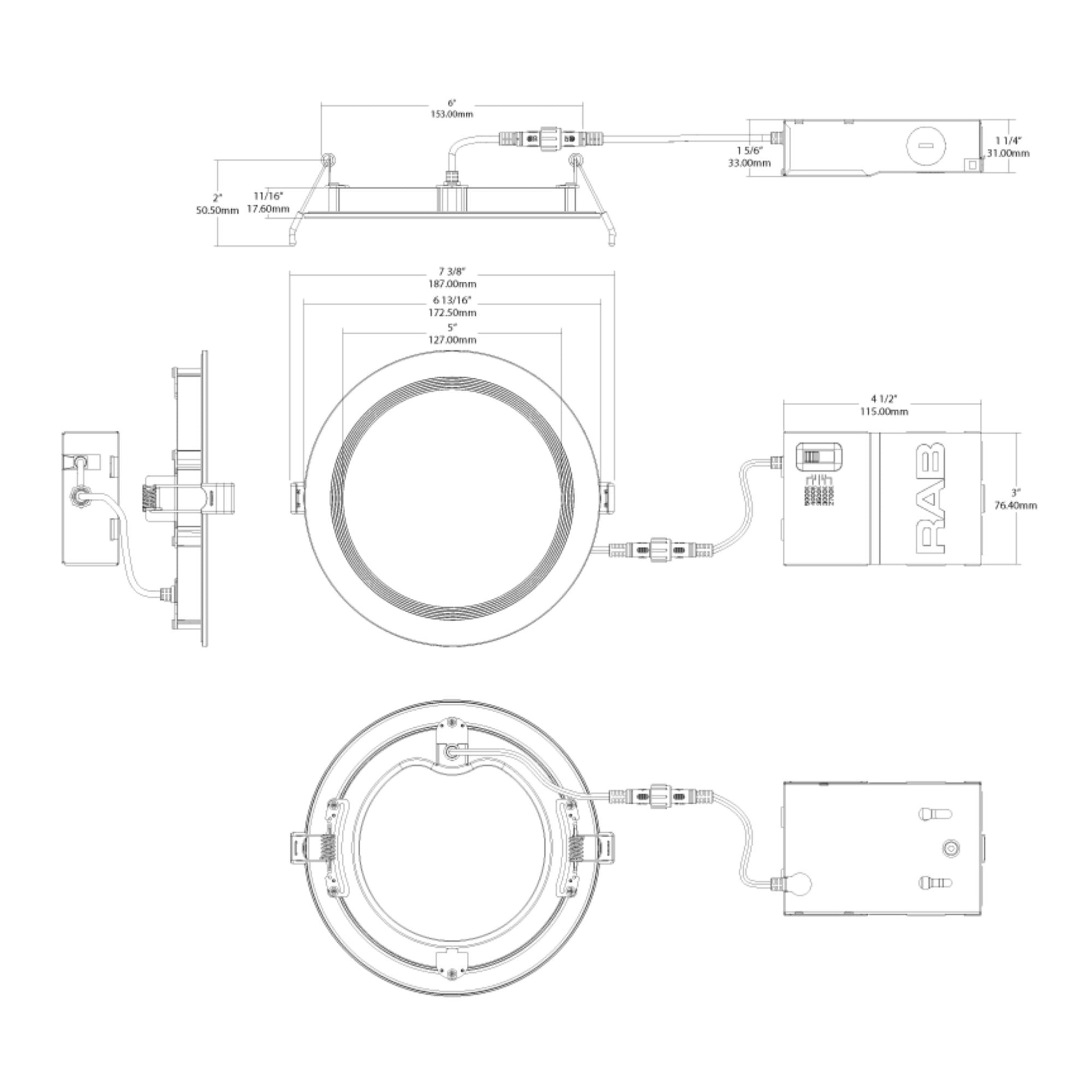

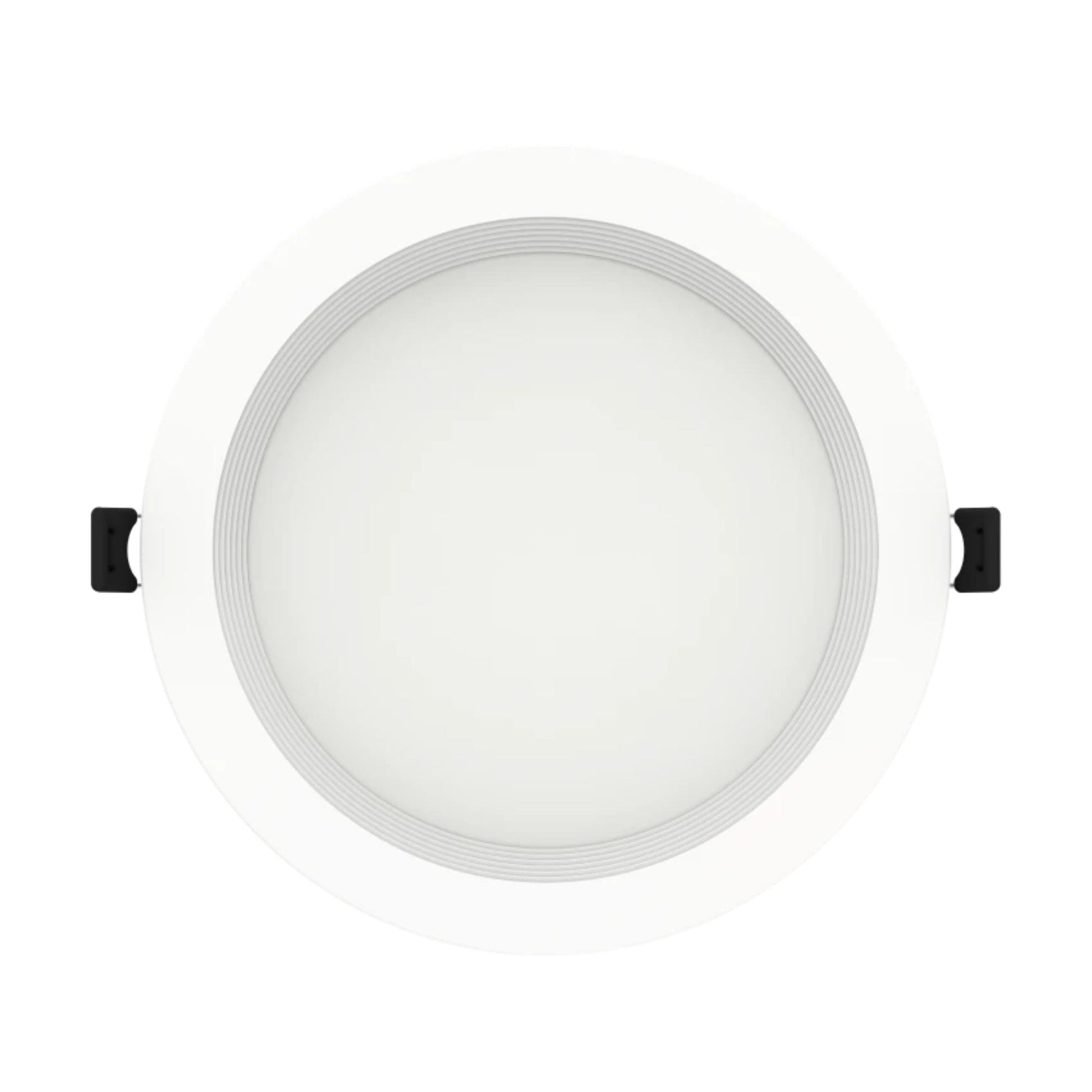

Metal and plastic body with baffle white trim and frosted polycarbonate lens for reduced glare and even illumination. Spring-loaded retention clips mount directly to the ceiling — no housing or J-box required; suitable for new construction and retrofit. Die-formed metal driver/J-box with quick snap-in connectors. Not IC rated — do not install in direct contact with insulation. Airtight (ASTM E283). Operates on 120V, Constant Current Class 2 driver (209mA); TRIAC/ELV dimmable to 10%. THD ≤20%; Power Factor ≥0.9; Operating Temperature: -4°F to 104°F (-20°C to 40°C).

Performance

Up to 1,233 lm at 88 lm/W (4000K) | 90 CRI, R9 > 50 | 110° beam angle | 50,000 hrs L70. Color consistency: <4-step MacAdam Ellipse (2700K/5000K); CCT warranted to shift no more than 200K over five years.

Compatible Accessories (sold separately)

• WFRL-GOOF-6R-8-W — 6–8 in goof ring round, white
• DLPLATE/WFR3468/NB — Mounting plate with nailer bar (3, 4, 6, 8 in)
• DLPLATE/WFR3456 — Mounting plate for 3, 4, 5, 6 in
• DLPLATE/WFR6/NB/CL — 6 in mounting plate with nailer bar and drywall collar
• DLPLATE/WFR6 — 6 in mounting plate
• EXTCBL-FA-6 — 6 ft extension cable
• EXTCBL-FA-12 — 12 ft extension cable
• EXTCBL-FA-20 — 20 ft extension cable
• DRI-25-EMGR-DC — Emergency driver 100-277V 25W
• DRI-21-EMGR-DC-D10 — Emergency driver 100-277V 21W 0-10V T20

What’s Included

• RAB WFRL6R149FA120WB 6 in round baffle edge-lit wafer downlight (white)
• Die-formed metal driver/junction box
