RAB WFRL6R139FADWS 6 in Smooth Trim Commercial Edge-Lit Wafer Downlight — 13W / Selectable CCT / 120-277V / White

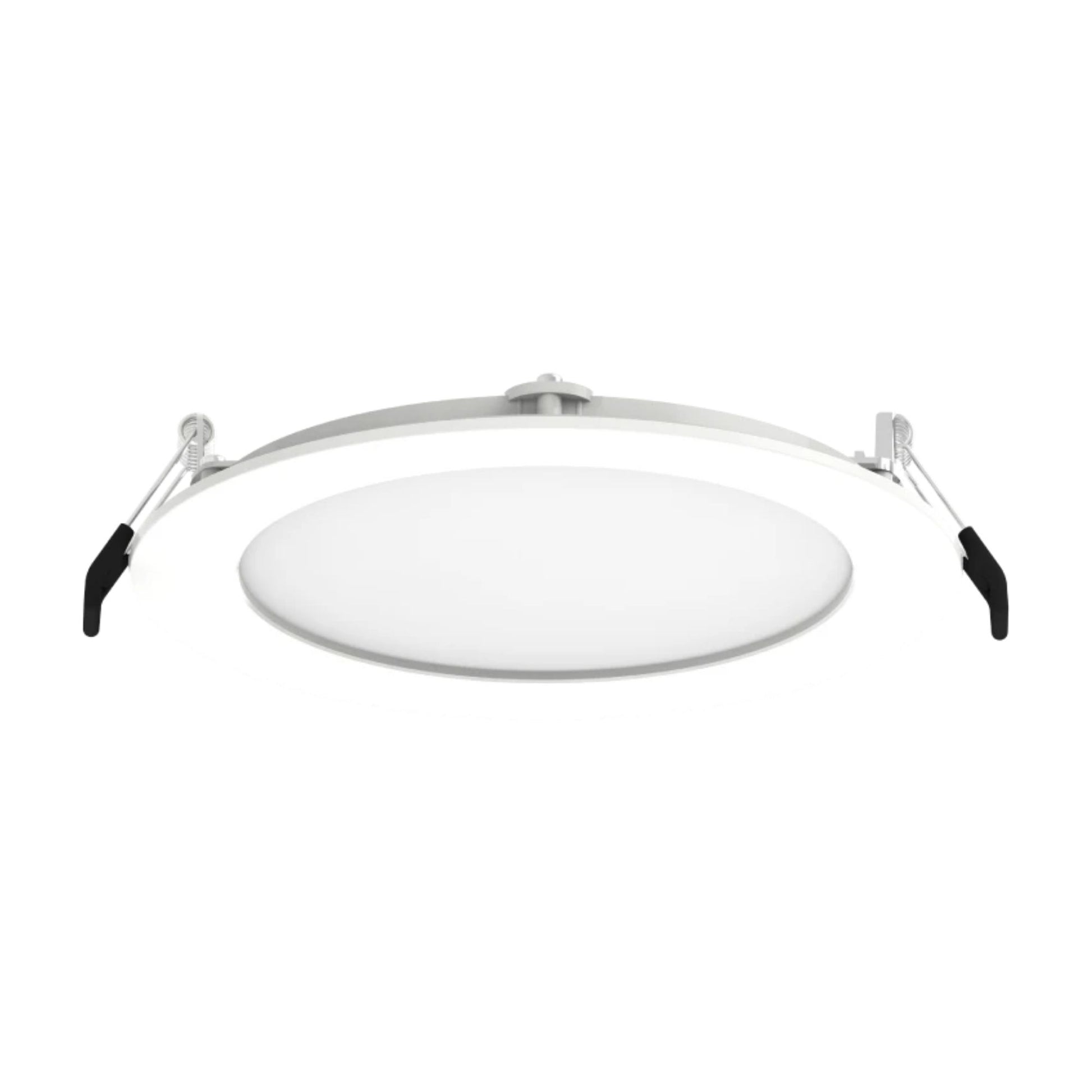

The RAB WFRL6R139FADWS is a 6 in round commercial edge-lit wafer downlight in white finish with a smooth trim, delivering up to 1,304 lumens at 13W with a wide 110° beam angle and 90 CRI. The slim canless design mounts directly to the ceiling via the included die-formed metal remote driver/junction box — no recessed housing required. CCT is field-selectable between five color temperatures via integrated dipswitch, with tri-mode dimming (TRIAC/ELV or 0-10V) and universal 120-277V input for commercial installations.

Key Features

• No Housing Required: Canless wafer mounts directly to ceiling; remote driver/J-box with FT5 plenum-rated cable included
• Field-Selectable CCT: Dip-switch adjustable between 2700K, 3000K, 3500K, 4000K, and 5000K; 5 CCTs in 1 SKU
• Lumen Output: 1,304 lm (4000K); 1,300 lm (5000K); 1,282 lm (3500K); 1,200 lm (3000K); 1,139 lm (2700K)
• Wattage Equivalency: 75W incandescent equivalent
• Input Wattage: 13W
• CRI: 90 with R9 > 50 for high color accuracy
• Efficacy: 88–100 lm/W across all CCTs
• Beam Angle: 110° ±10° for broad, even general illumination
• Tri-Mode Dimming: TRIAC/ELV or 0-10V dimmable to 10%
• Voltage: 120-277V universal
• Trim Style: Smooth white; accepts 6 in color trim overlays (sold separately)
• Lens: Frosted polycarbonate for even, smooth light distribution
• Remote Driver/J-Box: Die-formed metal; daisy-chain capable; mounts to structure or mounting frame
• IC Rated & Airtight: Direct insulation contact; certified per ASTM E283

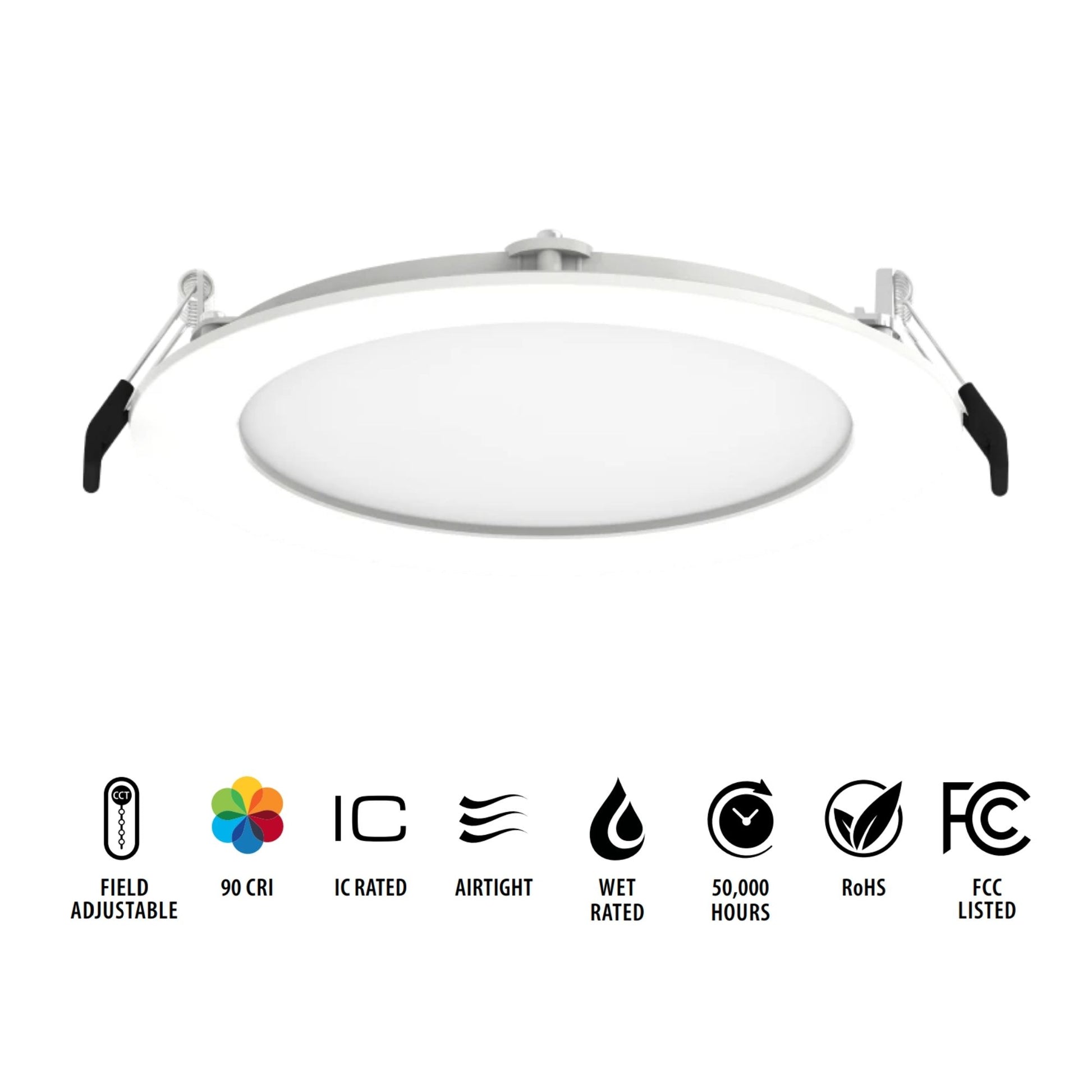

• Certifications: ENERGY STAR, Title 24 JA8, Title 20, UL Listed (wet), NEC compliant, RoHS, FCC Part 15
• Warranty: 5-year no-compromise warranty

Smart & Control Features

The WFRL6R139FADWS supports tri-mode dimming — compatible with TRIAC/ELV and 0-10V dimming systems, dimmable to 10%. CCT is field-adjustable via integrated dipswitch — select from 2700K, 3000K, 3500K, 4000K, or 5000K at installation. The remote driver/J-box also accepts a compatible emergency driver for code-compliant emergency lighting.

Construction & Design

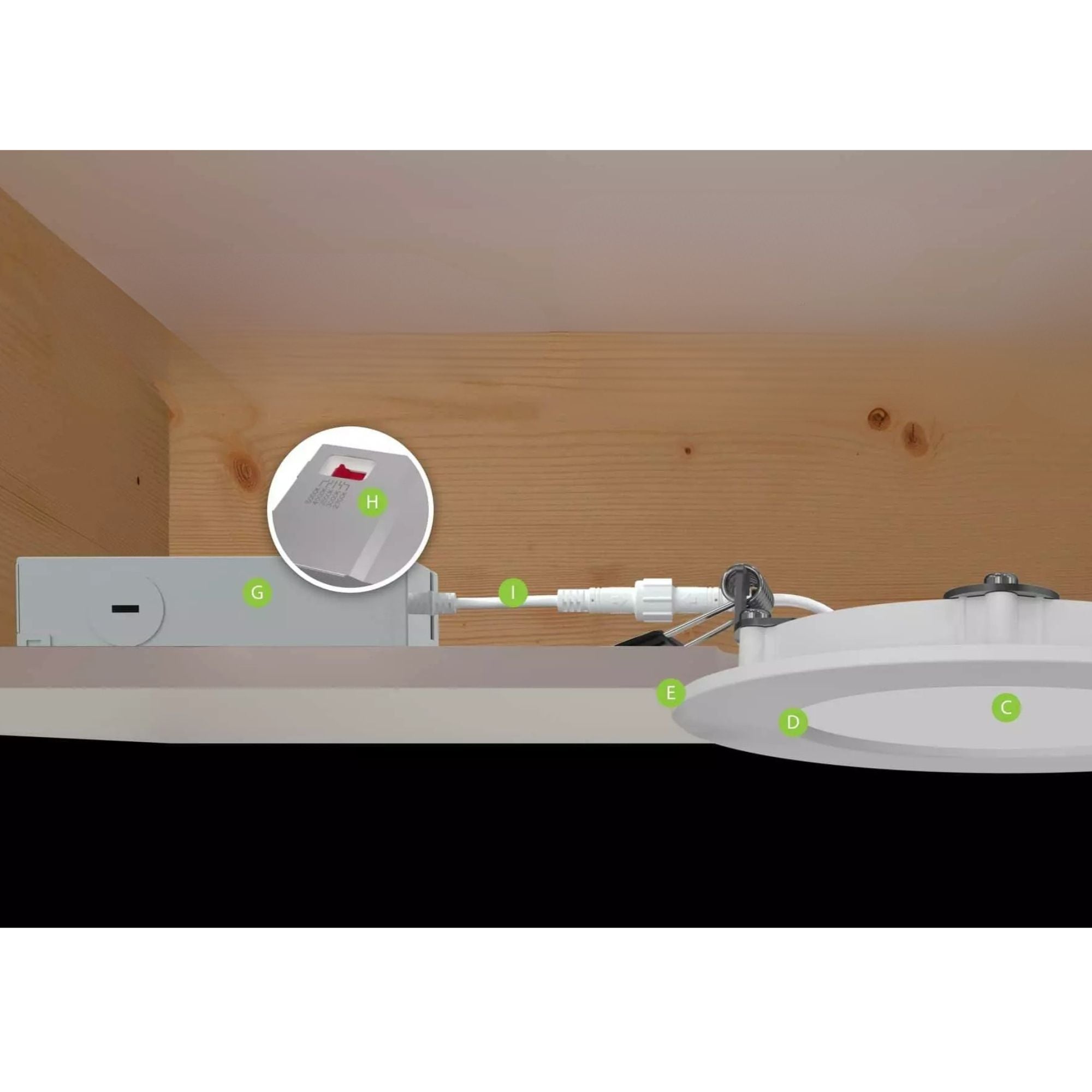

The WFRL6R139FADWS features a plastic edge-lit wafer enclosure in white finish with a smooth trim and frosted polycarbonate lens for even, smooth general illumination. The die-formed metal driver/junction box includes a captive hinged cover, 4 conduit pry-outs, 3 quick snap-in connectors, and daisy-chain wiring capability. Weight: 1.0 lbs.

Light Output & Performance

With efficacy up to 100 lm/W (4000K), a 90 CRI, R9 > 50, and a wide 110° beam angle, the WFRL6R139FADWS delivers broad, high-quality commercial illumination. Color temperature is warranted to shift no more than 200K over five years (<4-step MacAdam Ellipse binning). Rated lifespan: 50,000 hours L70 per IES LM-70.

Electrical & Installation

Operates on 120-277V with a Constant Current, Class 2 driver. Tri-mode dimmable (TRIAC/ELV or 0-10V) to 10%. Mounts directly to ceiling via die-formed metal remote driver/J-box — no recessed housing required. IC rated; airtight certified (ASTM E283). THD ≤20%; Power Factor ≥0.9; Operating Temperature: -4°F to 104°F.

Compatible Accessories (sold separately)

• 6 in-8 in goof ring
• 6 in color trim overlays: baffle black, baffle brushed nickel, baffle bronze
• Mounting plates (various sizes, with and without nailer bar and drywall collar)
• Extension cables: 6 ft, 12 ft, 20 ft
• Emergency drivers: 25W and 21W 0-10V T20

What’s Included

• RAB WFRL6R139FADWS 6 in smooth trim commercial wafer downlight (white)
• Die-formed metal remote driver/junction box
• FT5 plenum-rated cable
