RAB WFRL6R139FADWB - 6" Wafer Commercial LED Downlight, 13W, 1300 Lumens, Selectable 2700K-5000K CCT, 120-277V, White Baffle Trim
RAB WFRL6R139FADWB - 6" Wafer Commercial LED Downlight, 13W, 1300 Lumens, Selectable 2700K-5000K CCT, 120-277V, White Baffle Trim
Available in stock (100)
Highlights
Highlights
- Universal 120-277V: Flexible voltage for commercial applications
- Tri-Mode Dimmable: TRIAC, ELV & 0-10V down to 10% for maximum compatibility
- High Output: 1300 lumens with white baffle trim for glare control
- Selectable CCT: Choose 2700K, 3000K, 3500K, 4000K, or 5000K
- Commercial Grade: 100 LPW efficiency, 90+ CRI, JA8 compliant, 5-year warranty
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Overview
Overview

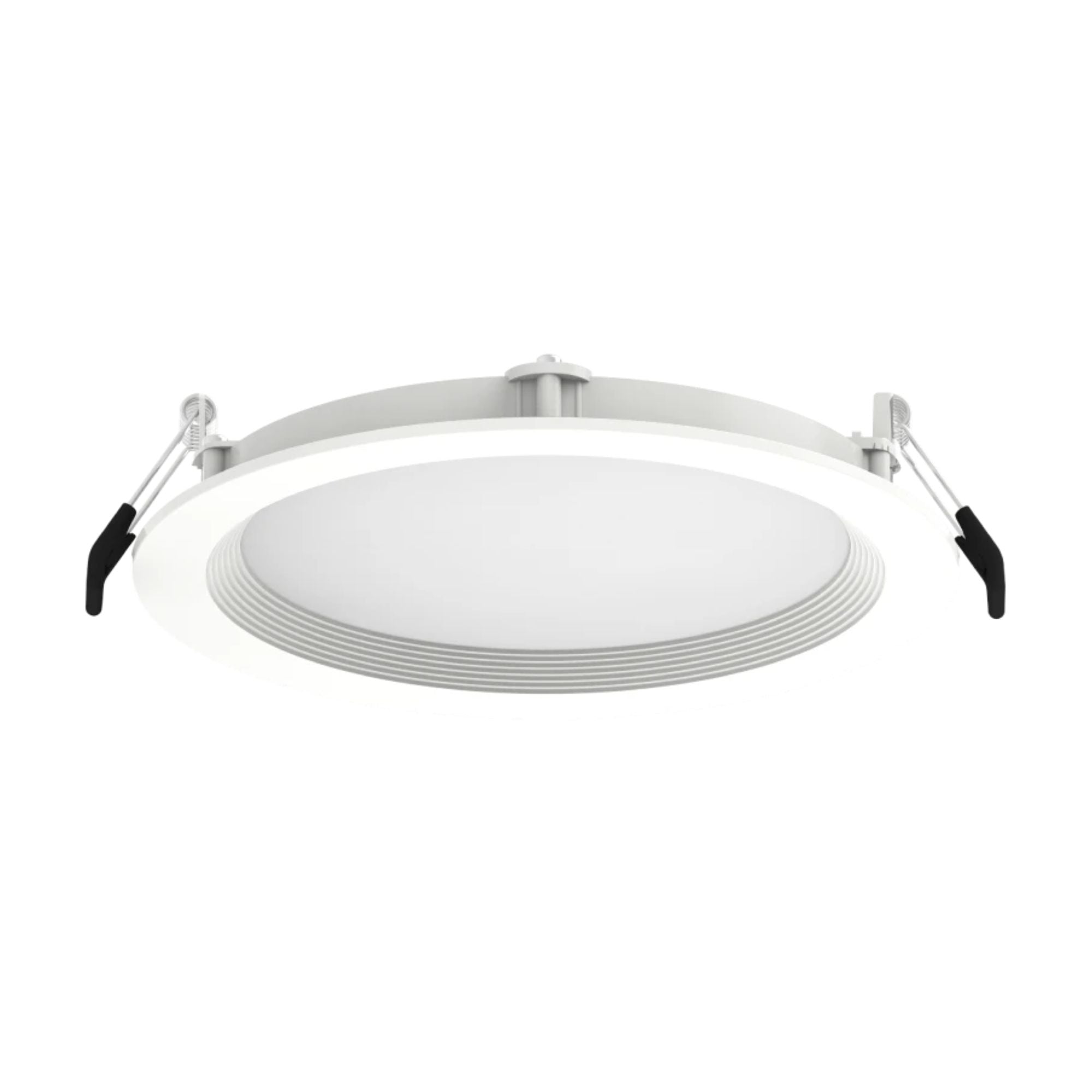

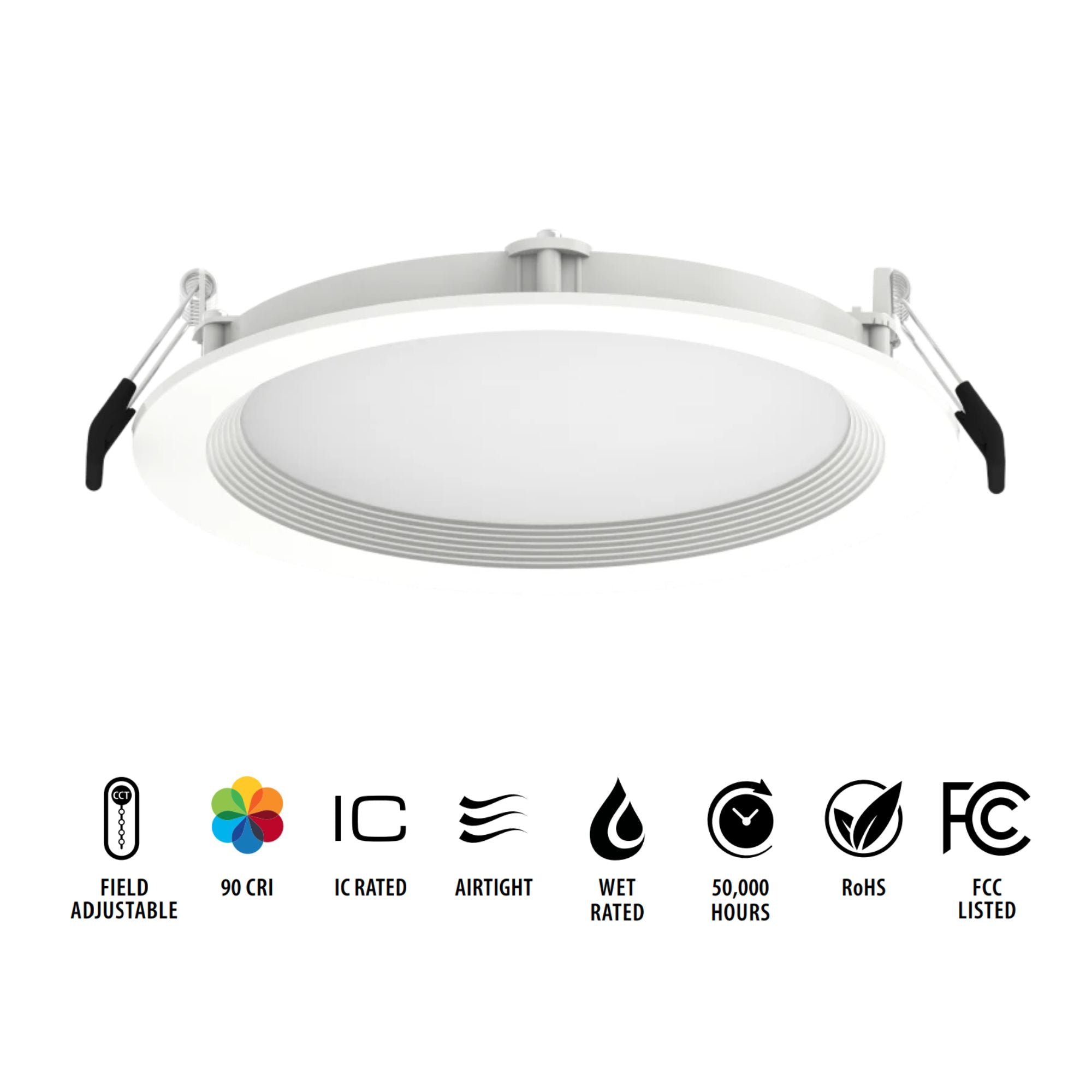

RAB WFRL6R139FADWB 6" Wafer Commercial LED Downlight
Experience professional-grade illumination with the genuine RAB WFRL6R139FADWB commercial wafer LED downlight. This 6-inch canless round edge-lit fixture features a white baffle trim that minimizes glare while delivering 1300 lumens of high-quality light with selectable color temperature from 2700K to 5000K. Designed for commercial applications with universal 120-277V voltage and tri-mode dimming capability. The ultra-thin profile installs directly into your ceiling without a recessed can.
RAB WFRL6R139FADWB Features
- Authentic RAB Quality: Genuine Wafer Commercial series with full manufacturer warranty
- Ultra-Thin Canless Design: No recessed housing required, installs directly into ceiling
- Universal Voltage: 120-277V driver for flexible commercial installation
- Tri-Mode Dimmable: TRIAC, ELV & 0-10V dimming down to 10% for maximum compatibility
- High Output: 1300 lumens for superior commercial-grade brightness
- White Baffle Trim: Reduces glare for superior visual comfort in commercial spaces
- Selectable Color Temperature: Choose 2700K, 3000K, 3500K, 4000K, or 5000K with built-in switch
- Round Edge-Lit Technology: Uniform illumination with smooth, even light distribution
- Energy Efficient: Only 13 watts for 1300 lumens output (100 LPW efficacy)
- Long-Lasting: 50,000-hour rated life for years of maintenance-free operation
- Easy Installation: Includes cut-out template and spring clips for quick installation
- IC Rated: Safe for direct contact with insulation
- Wet Location Rated: Suitable for bathrooms and covered outdoor areas
RAB WFRL6R139FADWB Specifications
- Brand: RAB Lighting
- Series: Wafer Commercial (WFRL)
- Model Number: WFRL6R139FADWB
- UPC: 192552018838
- Size: 6 inches
- Wattage: 13W
- Lumens: 1300
- Efficacy: 100 lumens per watt
- Color Temperature Options: 2700K, 3000K, 3500K, 4000K, 5000K (selectable)
- CRI: 90+
- Beam Angle: Wide flood
- Voltage: 120-277V (universal voltage)
- Dimmable: Yes - Tri-Mode (TRIAC, ELV & 0-10V down to 10%)
- Rated Life: 50,000 hours
- Design: Ultra-thin, canless, round edge-lit
- Finish: White
- Trim Style: Baffle
- Installation Type: Retrofit or new construction
- IC Rating: Yes (insulation contact approved)
- Location Rating: Wet location rated
- Certifications: UL/cUL Listed, Energy Star qualified, JA8 compliant (California Title 24)
- Warranty: 5 Years
- Weight: 1.32 lbs
RAB Wafer Commercial LED Downlight Applications
- Commercial offices and conference rooms
- Retail stores and showrooms
- Hospitality lobbies and guest rooms
- Healthcare facilities and medical offices
- Educational facilities and classrooms
- Restaurants and food service areas
- Multi-family residential buildings
- Government and municipal buildings
- Covered outdoor commercial spaces
Installation & What's Included

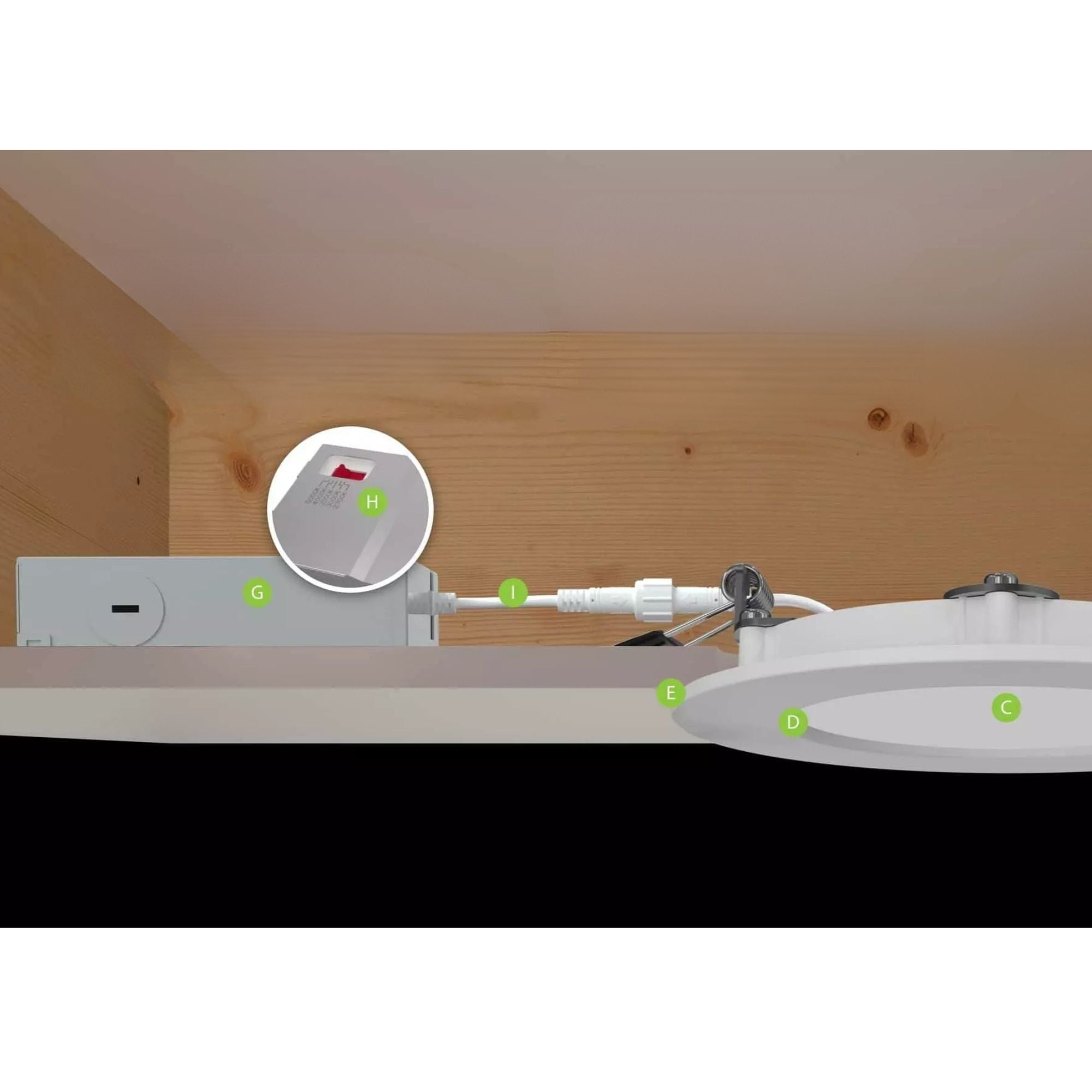

The RAB Wafer Commercial ultra-thin design eliminates the need for a traditional recessed housing, making installation quick and easy in both new construction and retrofit applications. Each fixture includes a convenient cut-out template for precise ceiling hole placement. Simply use the template to mark and cut the appropriate hole in your ceiling, select your desired color temperature using the built-in switch on the driver, connect to your electrical supply (120-277V, junction box recommended), and secure with the included spring clips. The tri-mode dimming provides maximum flexibility with TRIAC, ELV, and 0-10V compatibility. The white baffle trim provides superior glare control while the selectable CCT feature allows you to customize the light color to match your space—choose warm 2700K for hospitality areas, neutral 3500K for general commercial lighting, or bright 5000K for task-oriented spaces.
Compatible Accessories (Sold Separately)
- New Construction Mounting Plates: RAB DLPLATE mounting plates with nailer bars for pre-wiring in new construction
- Extension Cables: Available in 6ft, 12ft, and 20ft lengths for flexible driver placement and remote mounting
- Color Trim Rings: Decorative trim options in various finishes including black, bronze, and brushed nickel for customized aesthetics
- Goof Rings: Cover oversized or irregular ceiling openings for professional-looking installations
Why Choose RAB Wafer Commercial LED Downlights
RAB Lighting is a trusted leader in commercial lighting solutions with over 75 years of American manufacturing excellence. The Wafer Commercial series represents cutting-edge LED downlight technology specifically designed for demanding commercial applications. The universal 120-277V voltage and tri-mode dimming (TRIAC, ELV & 0-10V) provide maximum installation flexibility and compatibility with any dimming system. The round edge-lit design provides uniform illumination without hot spots, while the selectable color temperature feature provides unmatched flexibility. With wet location rating, IC rating, Energy Star qualification, JA8 compliance, and 50,000-hour life, RAB Wafer Commercial fixtures deliver professional-grade performance and long-term value for commercial projects.
Why Buy From Us: As an authorized RAB dealer, we guarantee 100% genuine products with full manufacturer warranty and expert customer support.
Technical Resources
Specifications
