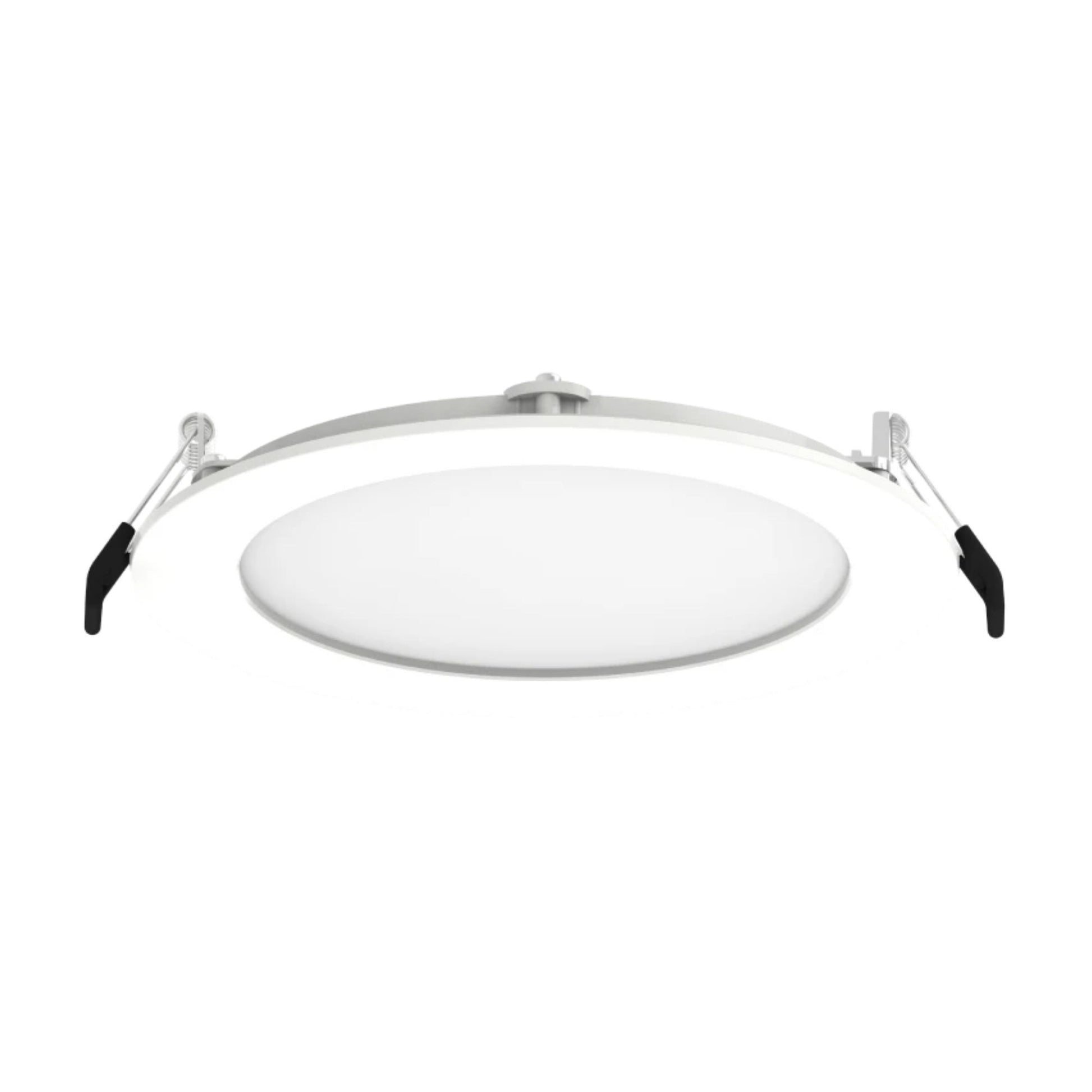

RAB WFRL6R139FA120WS 6 in Round Smooth Edge-Lit Wafer Downlight — 13W / Selectable CCT / 120V / White

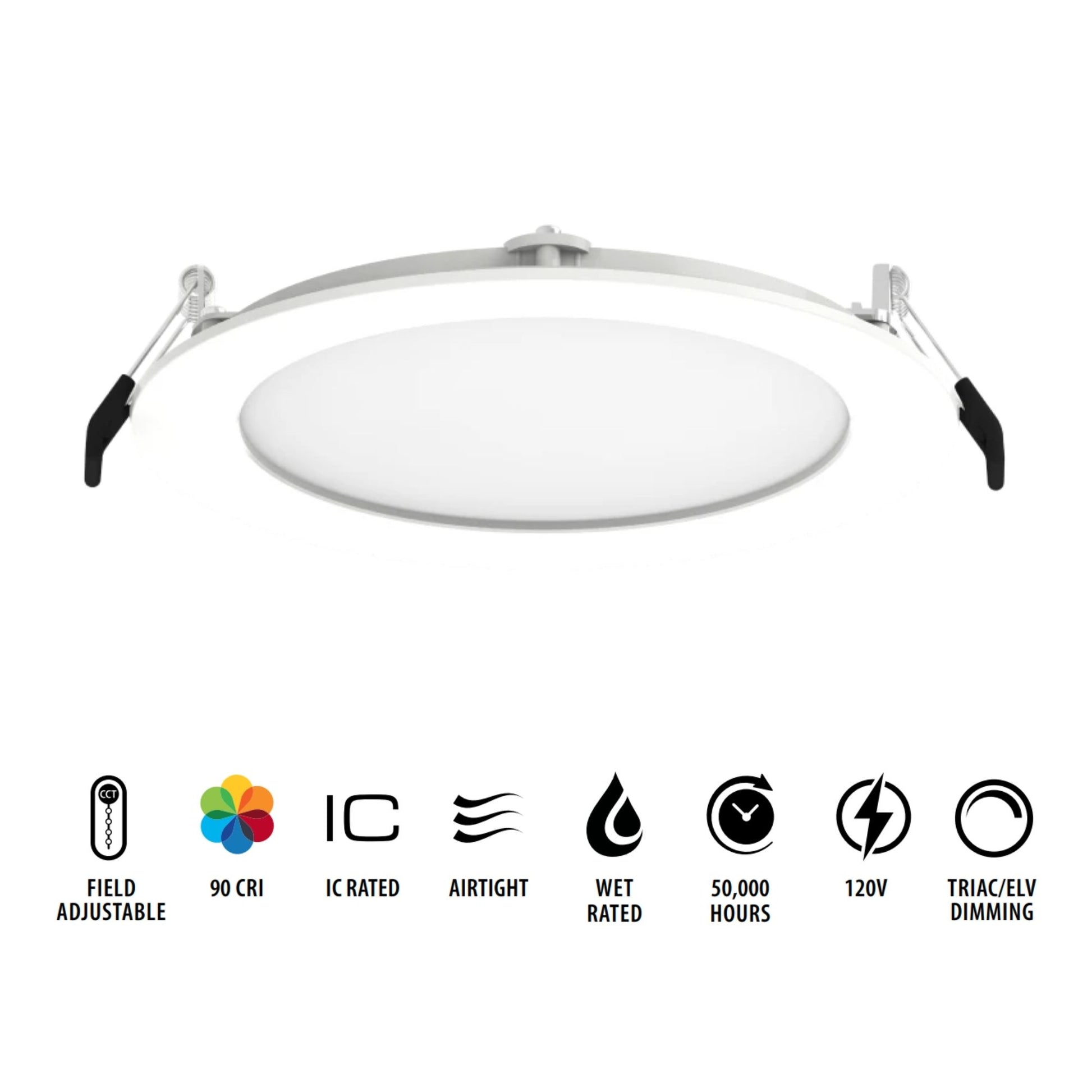

The RAB WFRL6R139FA120WS is a 6 in round edge-lit wafer downlight in white finish with a smooth trim, delivering up to 1,143 lumens at 13W with a 110° beam angle and 90 CRI. No recessed housing required. CCT is field-selectable 2700K–5000K via dipswitch with TRIAC/ELV dimming at 120V.

Key Features

• 6 in Round Edge-Lit Slim Profile — White Smooth: Metal + plastic construction; recessed direct mount, no housing required
• No Housing Required: Integral mounting for direct mounting to building structure or mounting frame
• Field-Selectable CCT: Dip-switch adjustable between 2700K, 3000K, 3500K, 4000K, and 5000K; 5 CCTs in 1 SKU
• Lumen Output: 1,143 lm (4000K); 1,134 lm (5000K); 1,115 lm (3500K); 1,041 lm (3000K); 1,005 lm (2700K)
• Per-CCT Efficacy: 88 lm/W (4000K); 87 lm/W (5000K); 86 lm/W (3500K); 80 lm/W (3000K); 77 lm/W (2700K)
• Wattage: 13W | 75W incandescent equivalent
• CRI & Beam: >90 CRI, R9 > 50 | 110° (±10°) beam angle
• Dimming: TRIAC/ELV dimmable to 10% at 120V
• Voltage: 120V
• IC Rated: Type IC inherently protected; cULus listed for damp locations; not for spray foam (NEMA LSD57-2013); ASTM E283 certified
• Plenum Rated: FT5 plenum rated cable per UL2043
• Certifications: UL Listed, ENERGY STAR, Title 24 JA8, Title 20, RoHS, FCC Part 15 | NEC closet compliant Sec. 410.16 (A)(1) & (C3)
• Lifespan: 50,000 hours L70 per IES LM-70
• Warranty: 5-year no-compromise warranty

Construction & Design

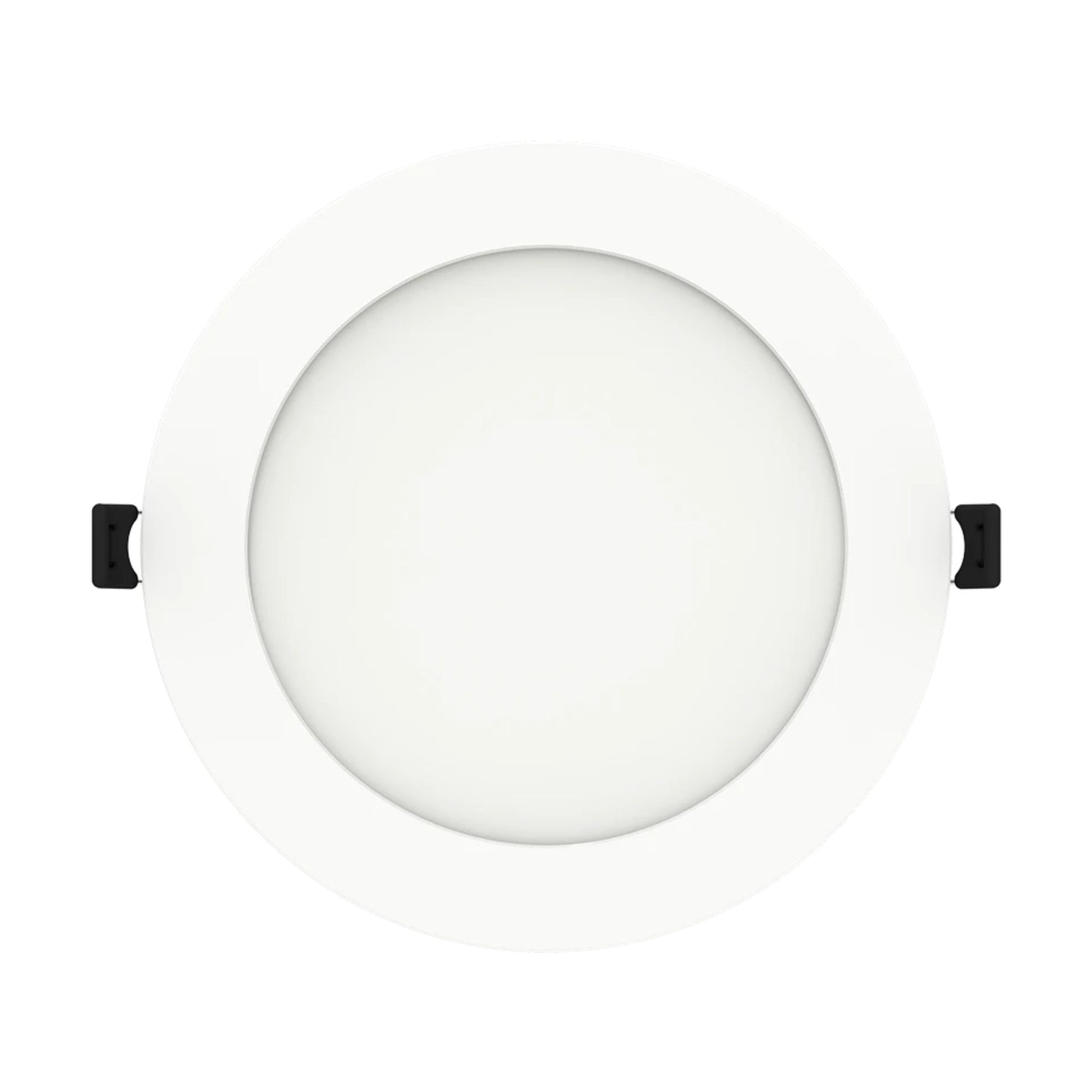

Metal and plastic body with smooth white trim and frosted polycarbonate light diffuser for even, smooth illumination. IC rated (Type IC inherently protected) and airtight (ASTM E283); not for spray foam (NEMA LSD57-2013). Plenum rated cable per UL2043.

Light Output & Performance

Up to 1,143 lm at 88 lm/W (4000K), 110° beam angle, >90 CRI, R9 > 50. Field-selectable CCT (2700K–5000K). CCT shift warranted ≤200K over 5 years; <4-step MacAdam Ellipse consistency (2700K & 5000K). 50,000 hrs L70 per IES LM-70.

Electrical & Installation

120V Constant Current Class 2 driver (130mA). TRIAC/ELV dimmable to 10%. FT5 plenum rated cable (UL2043). Recessed direct mount — no housing required; integral mounting to building structure or mounting frame. THD ≤20%, PF ≥0.9. Operating temp: -22°F to 104°F (-30°C to 40°C).

Compatible Accessories (sold separately)

• WFRL-GOOF-6R-8R-W — 6 in–8 in goof ring, round, white
• WFRL-TRIM-6R-BS — 6 in color trim round smooth, black
• WFRL-TRIM-6R-BRS — 6 in color trim round smooth, bronze
• WFRL-TRIM-6R-BNS — 6 in color trim round smooth, brushed nickel
• DLPLATE/WFR3468/NB — Mounting plate with nailer bar (3, 4, 6, 8 in)
• DLPLATE/WFR3456 — Mounting plate for 3, 4, 5, 6 in
• DLPLATE/WFR6/NB/CL — 6 in mounting plate with nailer bar and drywall collar
• DLPLATE/WFR6 — 6 in mounting plate
• EXTCBL-FA-6 — 6 ft extension cable
• EXTCBL-FA-12 — 12 ft extension cable
• EXTCBL-FA-20 — 20 ft extension cable
• DRI-25-EMGR-DC — Emergency driver 100-277V 25W
• DRI-21-EMGR-DC-D10 — Emergency driver 100-277V 21W 0-10V T20

What’s Included

• RAB WFRL6R139FA120WS 6 in round smooth edge-lit wafer downlight (white)
• Die-formed metal driver/junction box
