RAB WFRL6R139FA120BRZS 6 in Round Smooth Wafer Downlight 13W Selectable CCT Bronze
Available in stock (100)
About this item
About this item
- 6 in Round Edge-Lit Slim Profile — Bronze Smooth: Metal + plastic construction with tension steel spring clips; no housing required; accommodates ceiling thickness up to 15/16 in
- 1,100 lm at 85 lm/W: 13W, 110° beam angle; 75W CFL equivalent
- Field-Selectable CCT: Dipswitch-adjustable 2700K–5000K — 5 color temperatures in 1 SKU; 90 CRI, R9 > 50; default 5000K
- IC Rated, Airtight & Plenum Rated: ASTM E283 (Type IC inherently protected); FT5 plenum cable (UL2043); TRIAC/ELV dimmable to 10% at 120V
- ENERGY STAR Certified & Title 24 JA8: Wet location rated; NEC closet compliant; 5-year no-compromise warranty
We process payments securely and do not store credit card information.
Description
Description

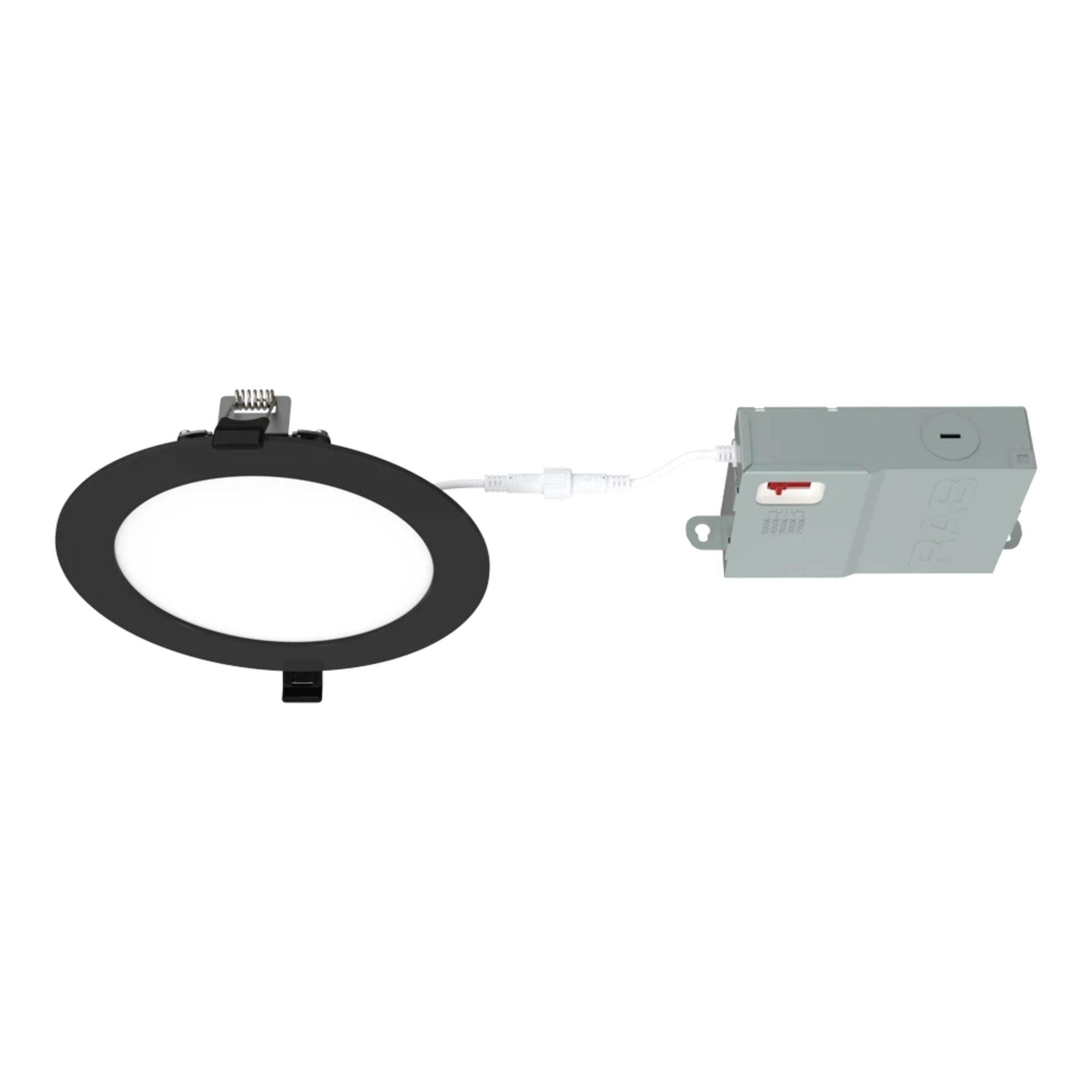

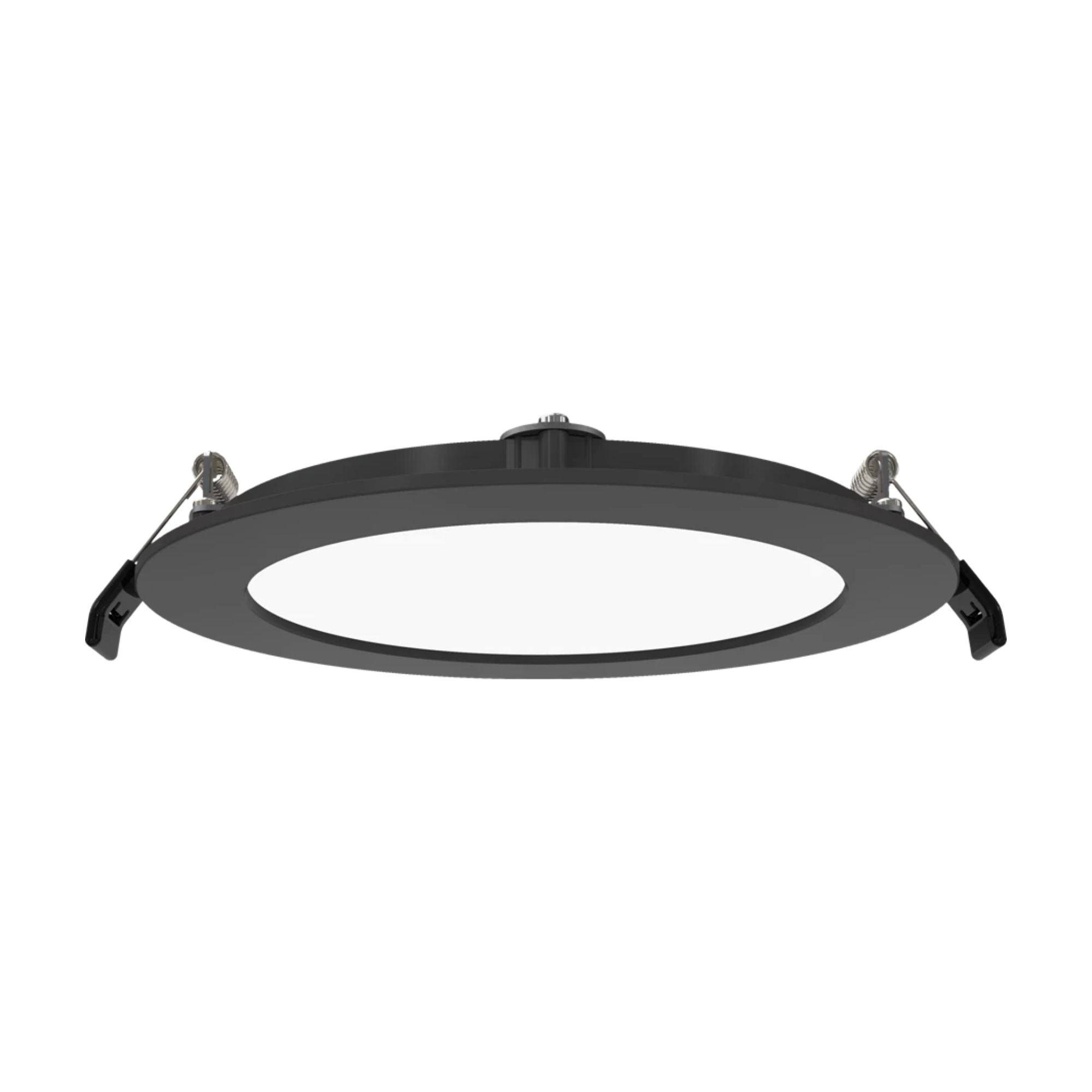

RAB WFRL6R139FA120BRZS 6 in Round Smooth Edge-Lit Wafer Downlight — 13W / Selectable CCT / 120V / Bronze
The RAB WFRL6R139FA120BRZS is a 6 in round edge-lit wafer downlight in bronze finish with a smooth trim, delivering 1,100 lumens at 13W with a 110° beam angle and 90 CRI. No housing required. CCT is field-selectable 2700K–5000K via dipswitch (default: 5000K) with TRIAC/ELV dimming at 120V.
Key Features
- 6 in Round Edge-Lit Slim Profile — Bronze Smooth: Metal + plastic construction; tension steel spring clips; no housing or J-box required
- No Housing Required: Two tension steel spring clips secure luminaire to ceiling; ceiling thickness up to 15/16 in; new construction frames available
- Field-Selectable CCT: Dip-switch adjustable between 2700K, 3000K, 3500K, 4000K, and 5000K (default: 5000K); 5 CCTs in 1 SKU
- Wattage: 13W | 75W CFL equivalent | 1,100 lm | 85 lm/W
- CRI & Beam: 90 CRI, R9 > 50 | 110° (±10°) beam angle
- Dimming: TRIAC/ELV dimmable to 10% at 120V
- Voltage: 120V
- IC Rated: Type IC inherently protected; cULus listed for damp locations; not for spray foam (NEMA LSD57-2013); ASTM E283 certified
- Plenum Rated: FT5 plenum rated cable per UL2043
- Certifications: UL Listed, ENERGY STAR, Title 24 JA8, RoHS, FCC Part 15 | NEC closet compliant Sec. 410.16 (A)(1) & (C3)
- Lifespan: 50,000 hours L70 per IES LM-70
- Warranty: 5-year no-compromise warranty

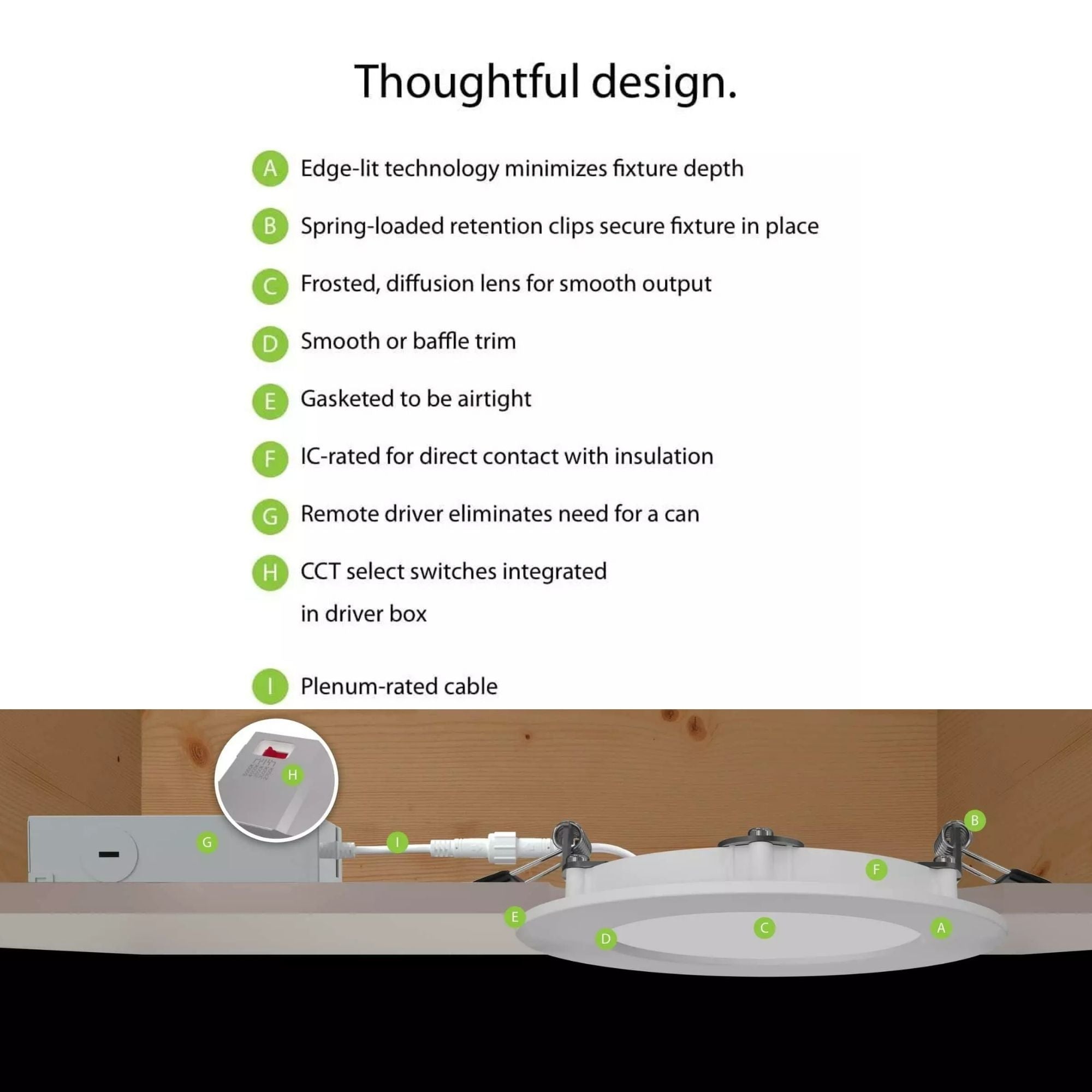

Construction & Design
Metal and plastic body with smooth bronze trim and frosted polycarbonate light diffuser for even, smooth illumination. IC rated (Type IC inherently protected) and airtight (ASTM E283); not for spray foam (NEMA LSD57-2013). Plenum rated cable per UL2043.
Light Output & Performance
1,100 lm at 85 lm/W, 110° beam angle, 90 CRI, R9 > 50. Field-selectable CCT (2700K–5000K, default 5000K). CCT shift warranted ≤200K over 5 years; <4-step MacAdam Ellipse consistency. 50,000 hrs L70 per IES LM-70.
Electrical & Installation

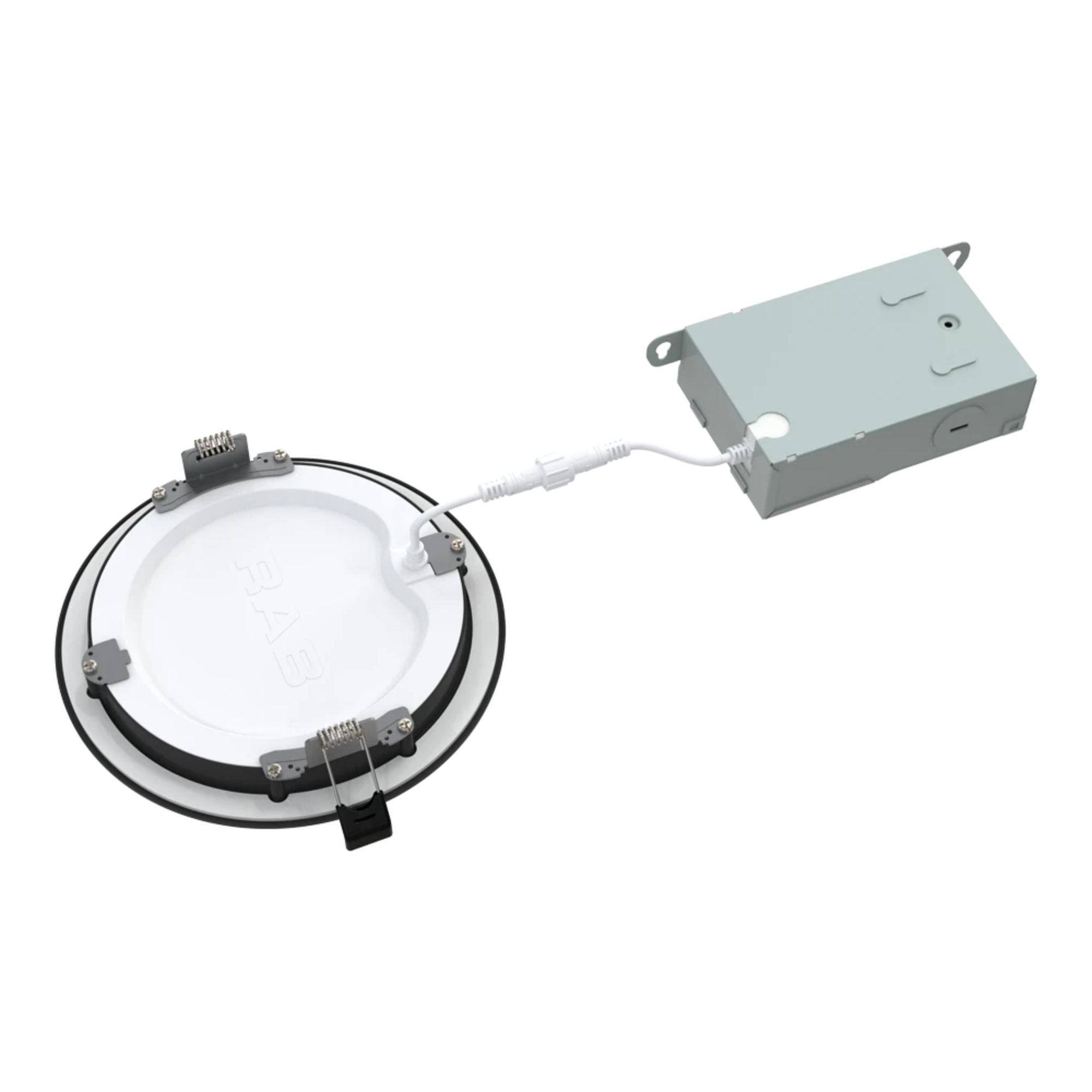

120V Constant Current Class 2 driver (130mA). TRIAC/ELV dimmable to 10%. FT5 plenum rated cable (UL2043). Two tension steel spring clips secure luminaire directly to ceiling — no housing required; accommodates ceiling thickness up to 15/16 in. THD ≤20%, PF ≥0.9, Flicker ≤30%. Operating temp: -4°F to 104°F (-20°C to 40°C).
What’s Included
- RAB WFRL6R139FA120BRZS 6 in round smooth edge-lit wafer downlight (bronze)
- Die-formed metal driver/junction box
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Is the RAB WFRL6R139FA120BRZS rated for wet locations?
Is the RAB WFRL6R139FA120BRZS rated for wet locations?
What is the beam angle of the RAB WFRL6R139FA120BRZS?
What is the beam angle of the RAB WFRL6R139FA120BRZS?
Is the RAB WFRL6R139FA120BRZS dimmable?
Is the RAB WFRL6R139FA120BRZS dimmable?
What CCT options are available on the RAB WFRL6R139FA120BRZS?
What CCT options are available on the RAB WFRL6R139FA120BRZS?
Can the RAB WFRL6R139FA120BRZS be installed in a closet?
Can the RAB WFRL6R139FA120BRZS be installed in a closet?
