RAB Ultra Thin WFRL4S99FA120WS 4 in. Square Smooth Edge-Lit Wafer 9W 750 Lumens Selectable CCT
Available in stock (200)
About this item
About this item

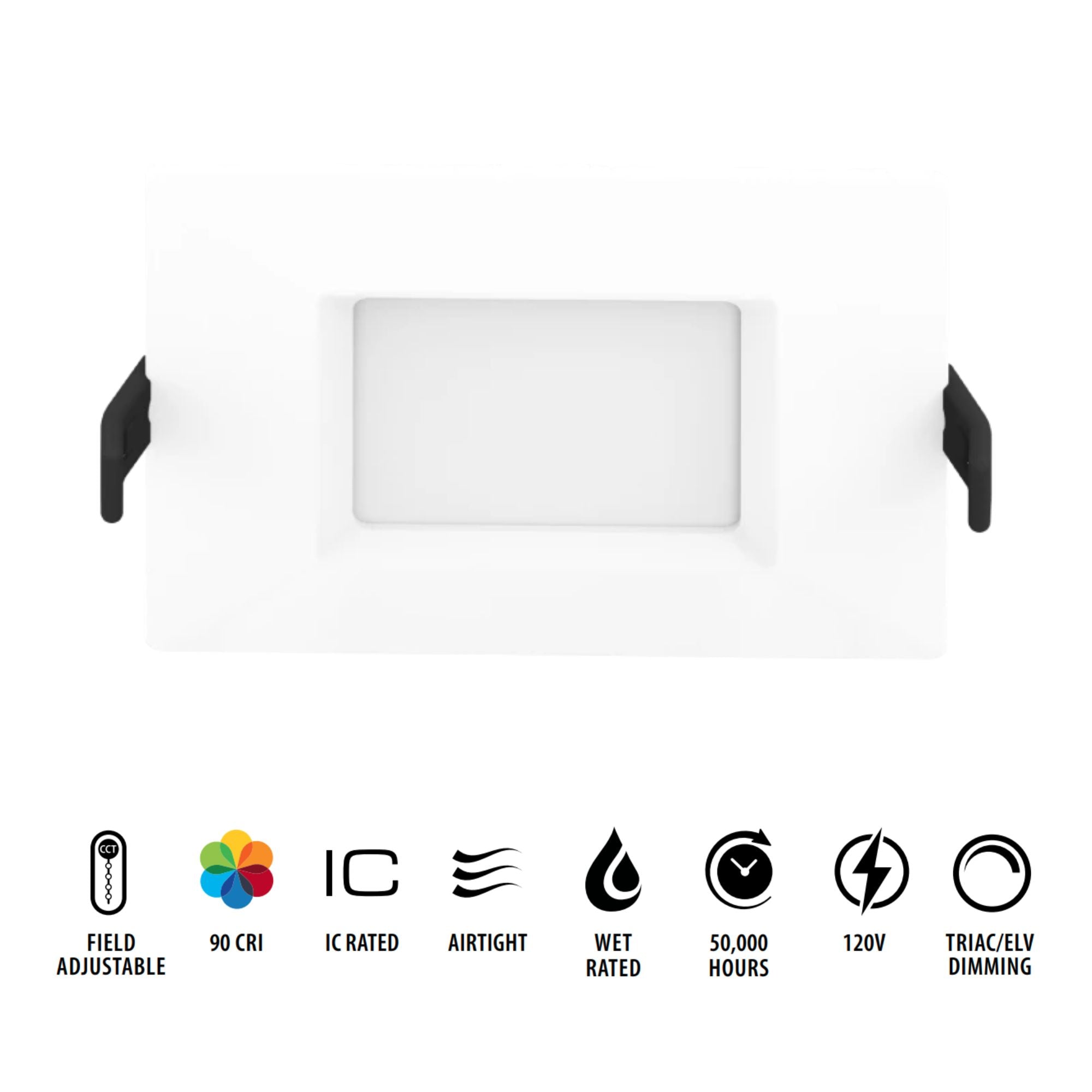

- Selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K
- High Efficacy: Up to 88 lm/W
- Wet Rated: Suitable for wet locations
- Dimmable: Down to 10% with TRIAC/ELV systems
- Long Lifespan: 50,000 hours L70
We process payments securely and do not store credit card information.
Description
Description

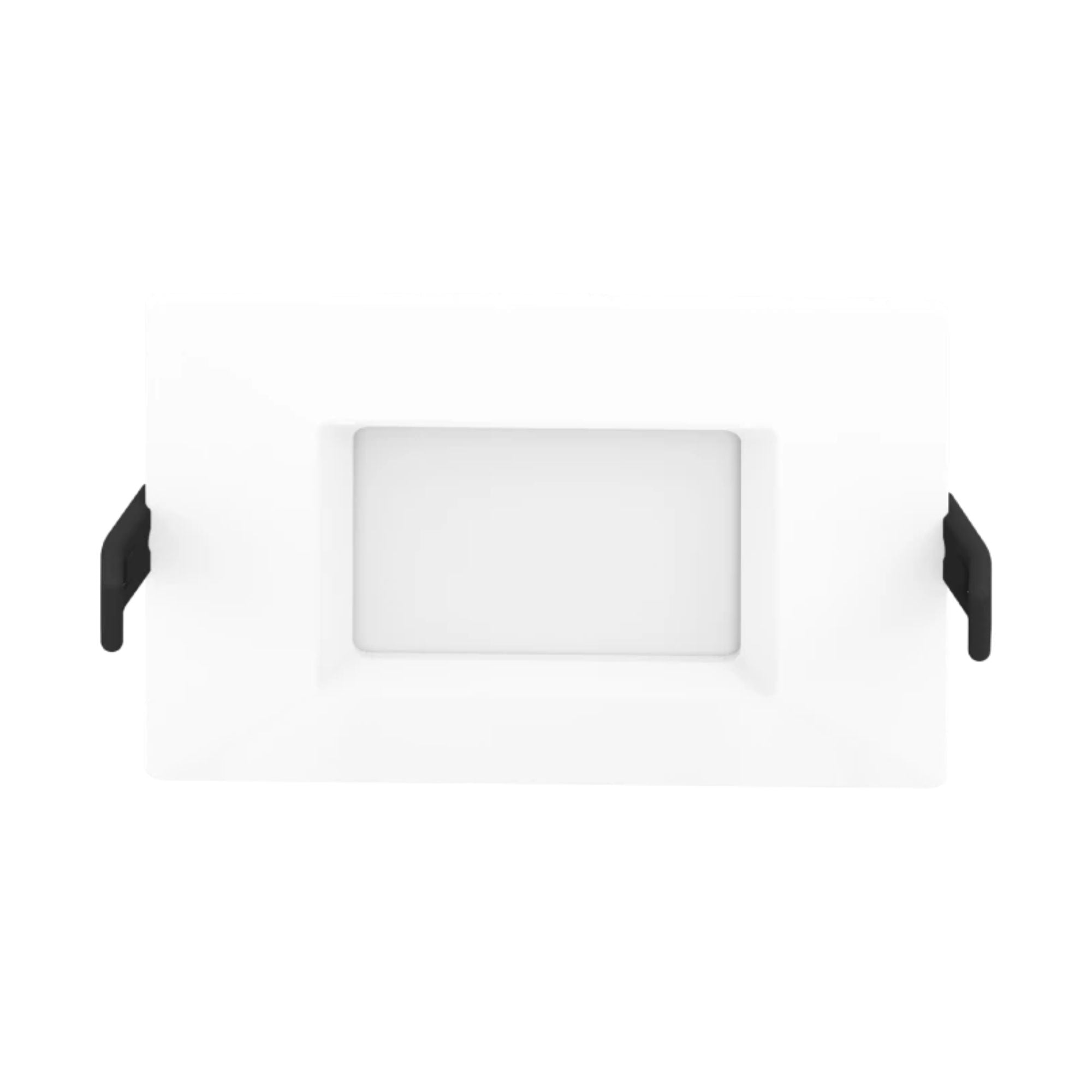

RAB Ultra Thin WFRL4S99FA120WS 4 in. Smooth Trim Downlight — 9W / Selectable CCT
The RAB WFRL4S99FA120WS is a 4-inch square edge-lit wafer downlight delivering up to 790 lumens using 9W. This fixture features selectable color temperatures ranging from 2700K to 5000K, making it versatile for various lighting needs. It is designed for both new construction and retrofit applications, with no housing required.
Key Features
- Wattage: 9W
- Lumens: 790 lm
- Voltage: 120V
- Trim Type: Smooth
- Beam Angle: 110°±10°
- CRI: >90
- Dimming: TRIAC/ELV down to 10%
- IC Rated: Suitable for direct contact with insulation
- Energy Star: Certified
- Title 24 JA8: Compliant
- RoHS: Compliant
- Warranty: 5 years
Construction & Aesthetics

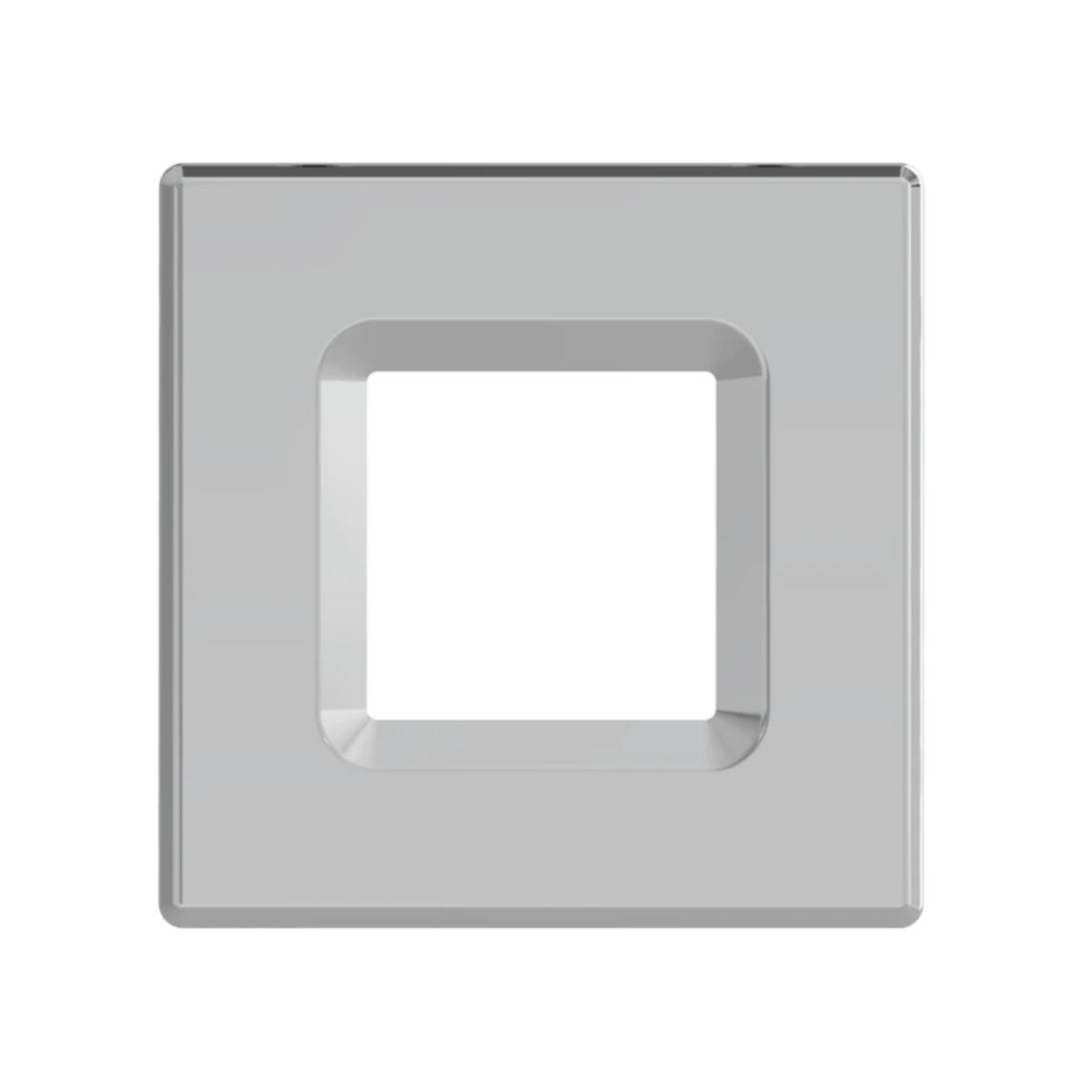

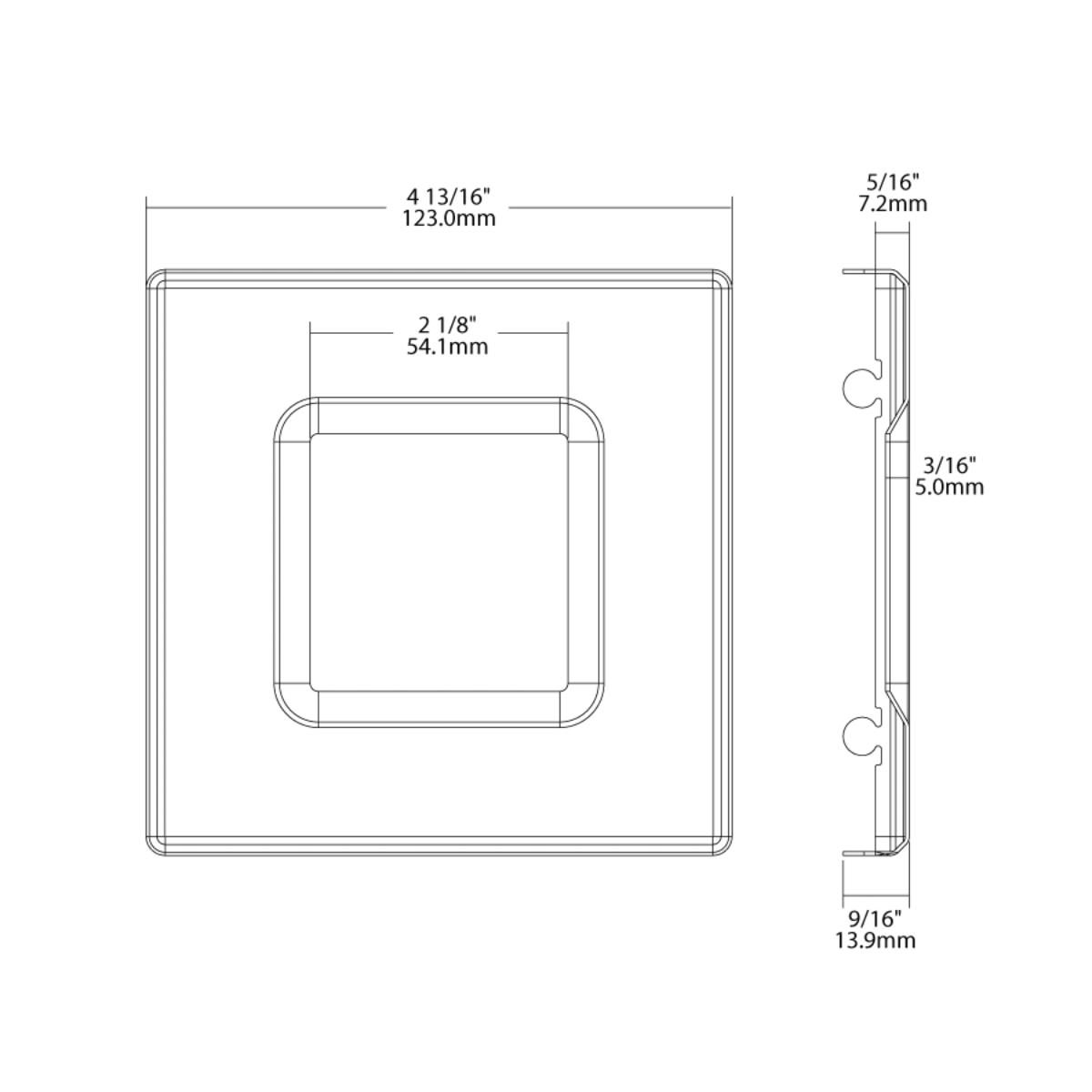

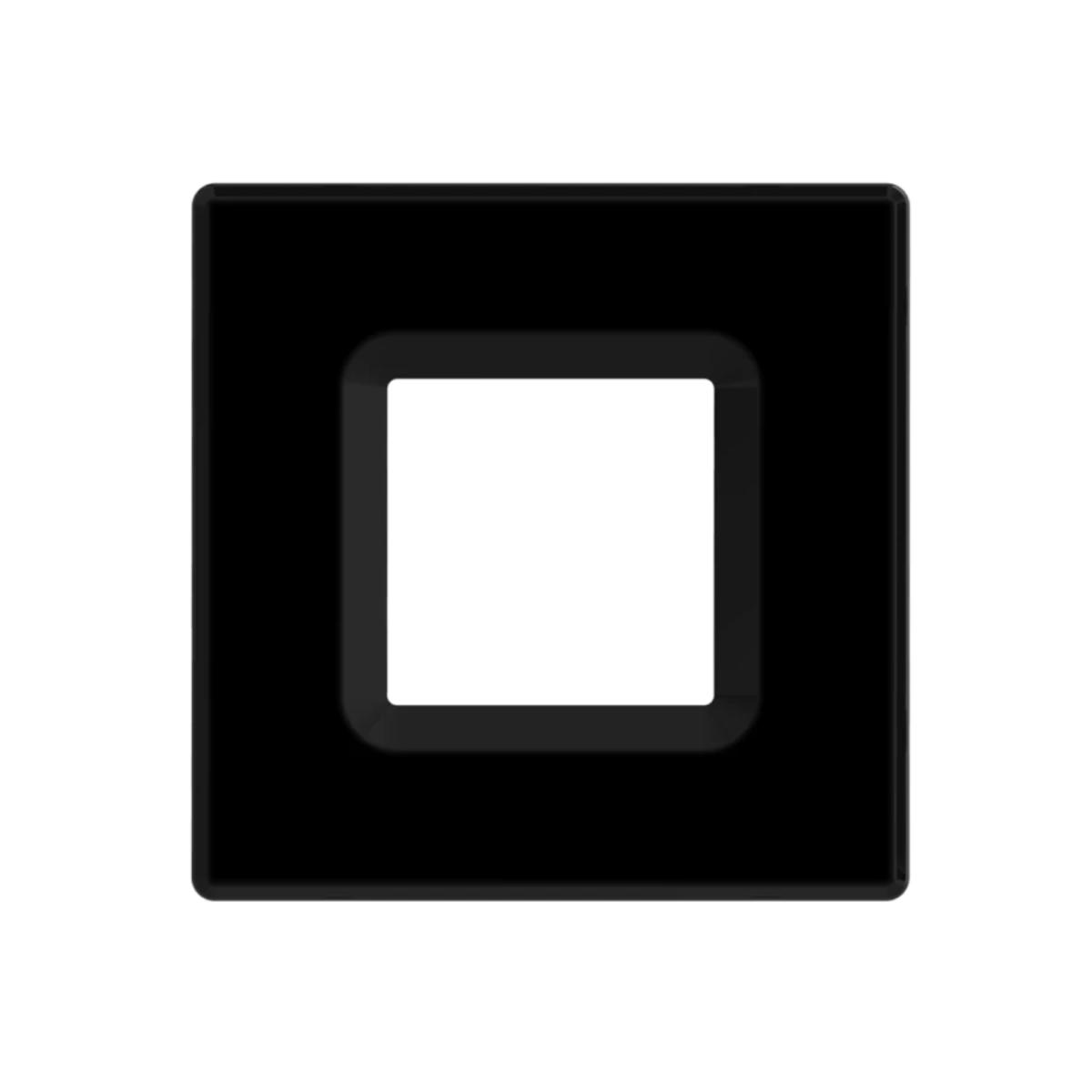

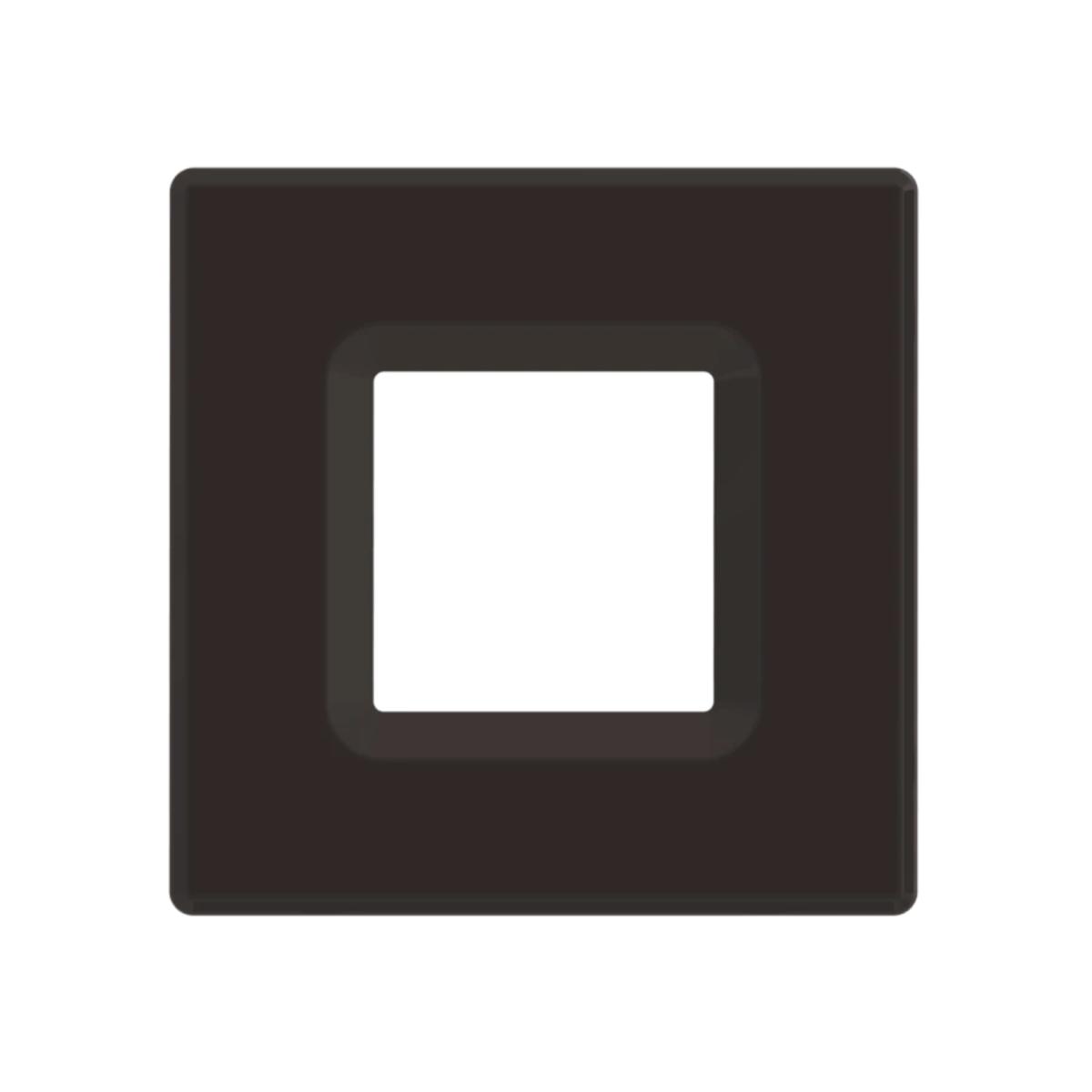

This downlight features a robust die-cast aluminum construction with a white finish. The frosted polycarbonate lens ensures smooth and even light distribution. Optional color trim rings are available in black, brushed nickel, and bronze.
Electrical & Installation

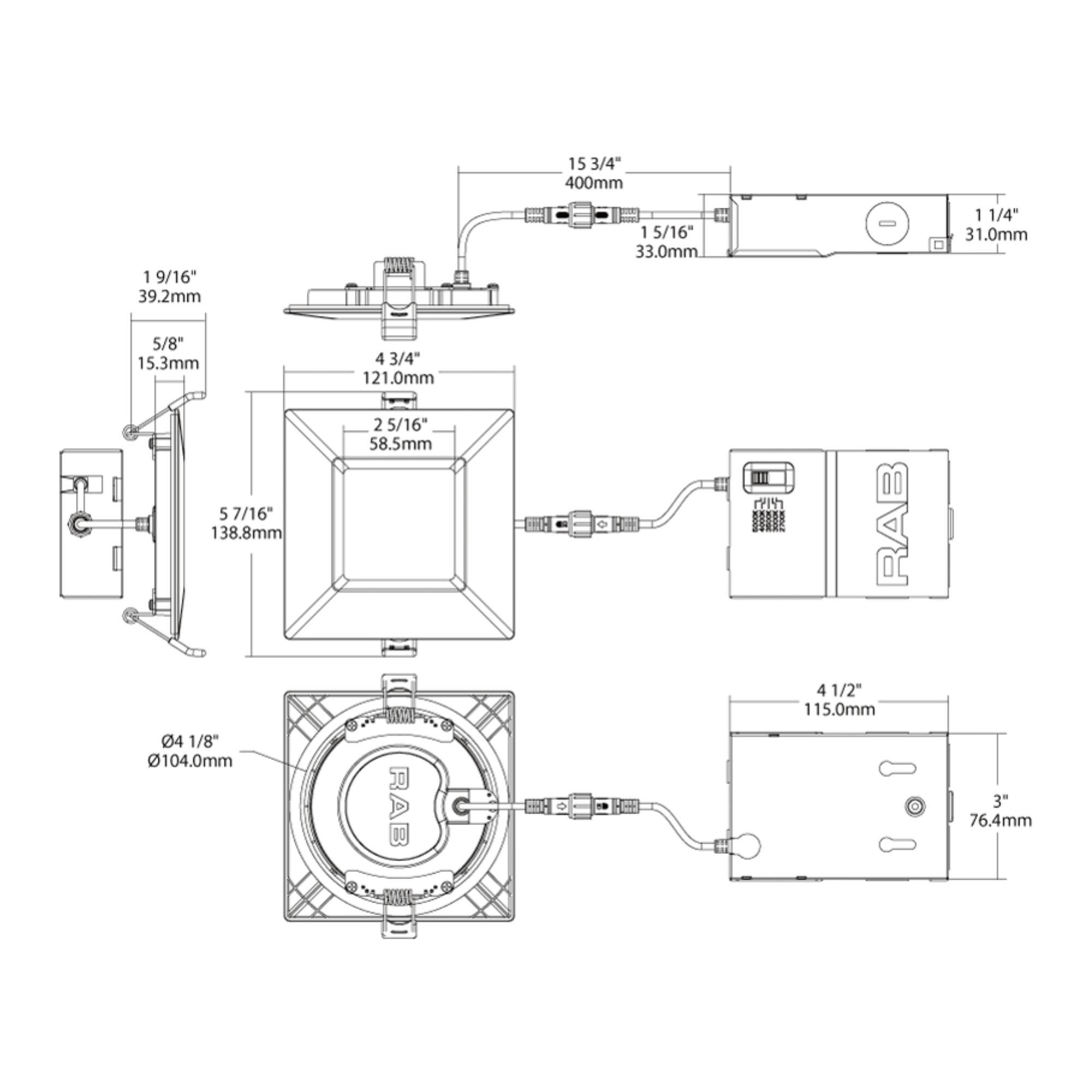

Operating at 120V with a constant current driver, this fixture is easy to install with spring-loaded retention clips. It includes a die-formed metal driver/junction box, suitable for direct mounting. Compatible mounting plates and extension cables are available for enhanced installation flexibility.
Light Output & Performance
With a high color accuracy of >90 CRI and a beam angle of 110°, this downlight provides excellent light quality. The LED lifespan is rated at 50,000 hours, ensuring long-term performance.

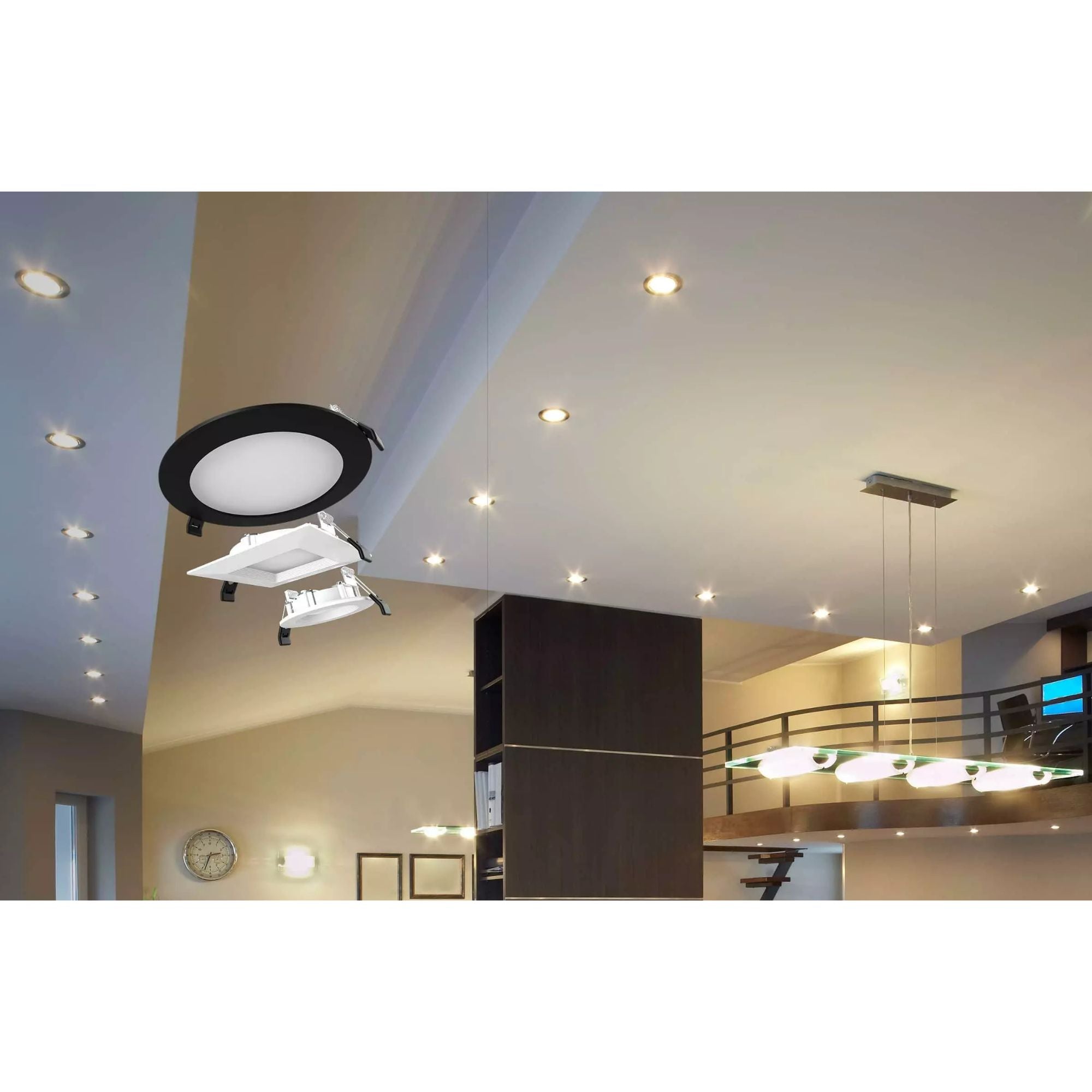

Typical Applications
- Residential lighting
- Commercial spaces
- Hospitality settings
- Retail environments
- Outdoor covered areas
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Can the WFRL4S99FA120WS be used in wet locations?
Can the WFRL4S99FA120WS be used in wet locations?
Is a housing required for installation?
Is a housing required for installation?
What dimming systems are compatible with this downlight?
What dimming systems are compatible with this downlight?
What accessories are available for this downlight?
What accessories are available for this downlight?
How is the color temperature adjusted?
How is the color temperature adjusted?
