RAB WFRL4S99FA120BS 4 in. Ultra Thin Downlight — 9W / Selectable CCT

The RAB WFRL4S99FA120BS is a 4-inch ultra-thin square downlight delivering 750 lumens using 9W. This edge-lit wafer features selectable color temperatures ranging from 2700K to 5000K, making it versatile for various lighting needs. Its smooth trim and wet rating make it suitable for both indoor and outdoor applications.

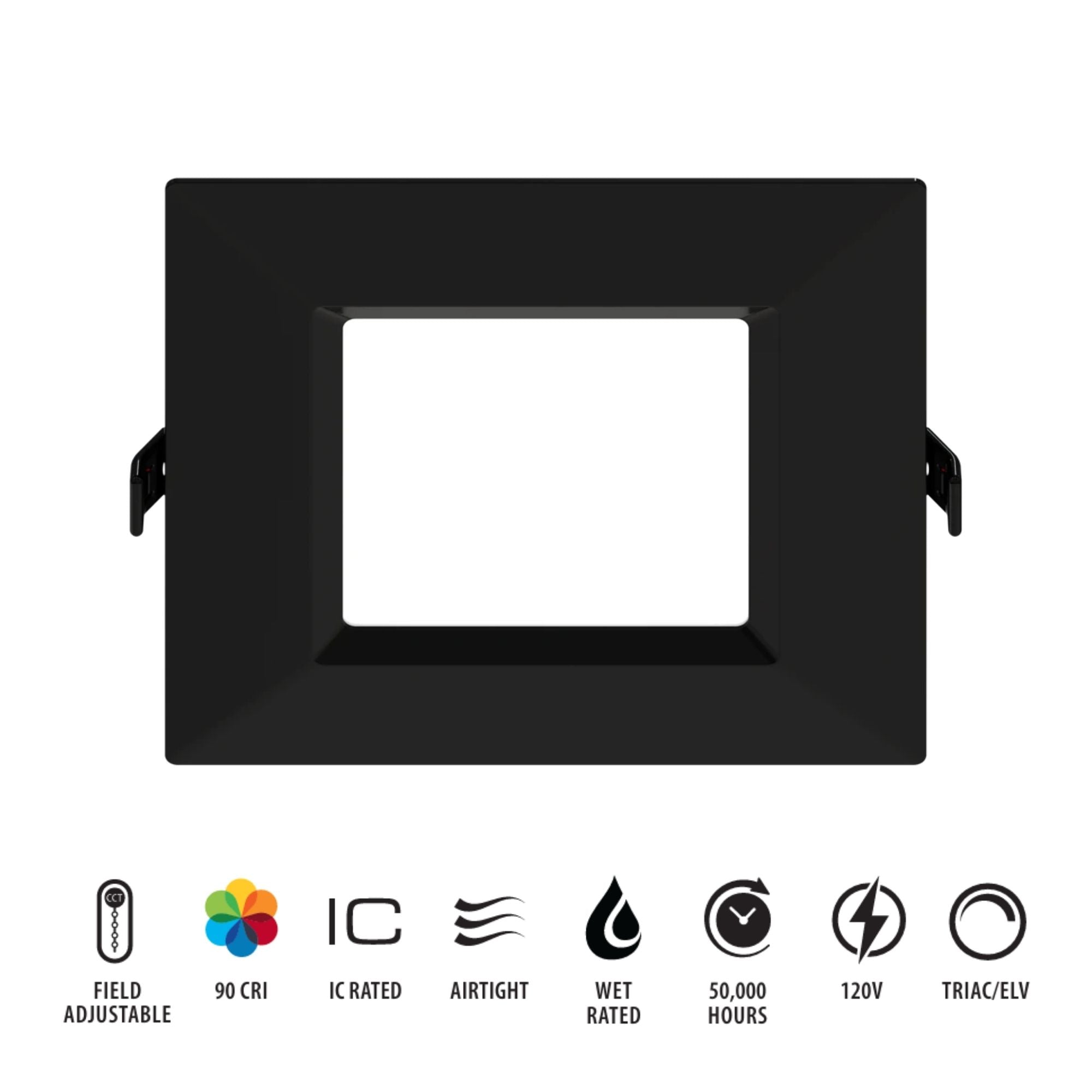

Key Features

• Selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K
• Wattage: 9W, equivalent to 40W CFL
• Lumens: 750 lm
• Dimmable: Down to 10% with TRIAC/ELV systems
• Voltage: 120V
• Beam Angle: 110°
• CRI: 90
• Lifespan: 50,000 hours
• Compliance: Energy Star, Title 24 JA8, RoHS, TAA

Construction & Aesthetics

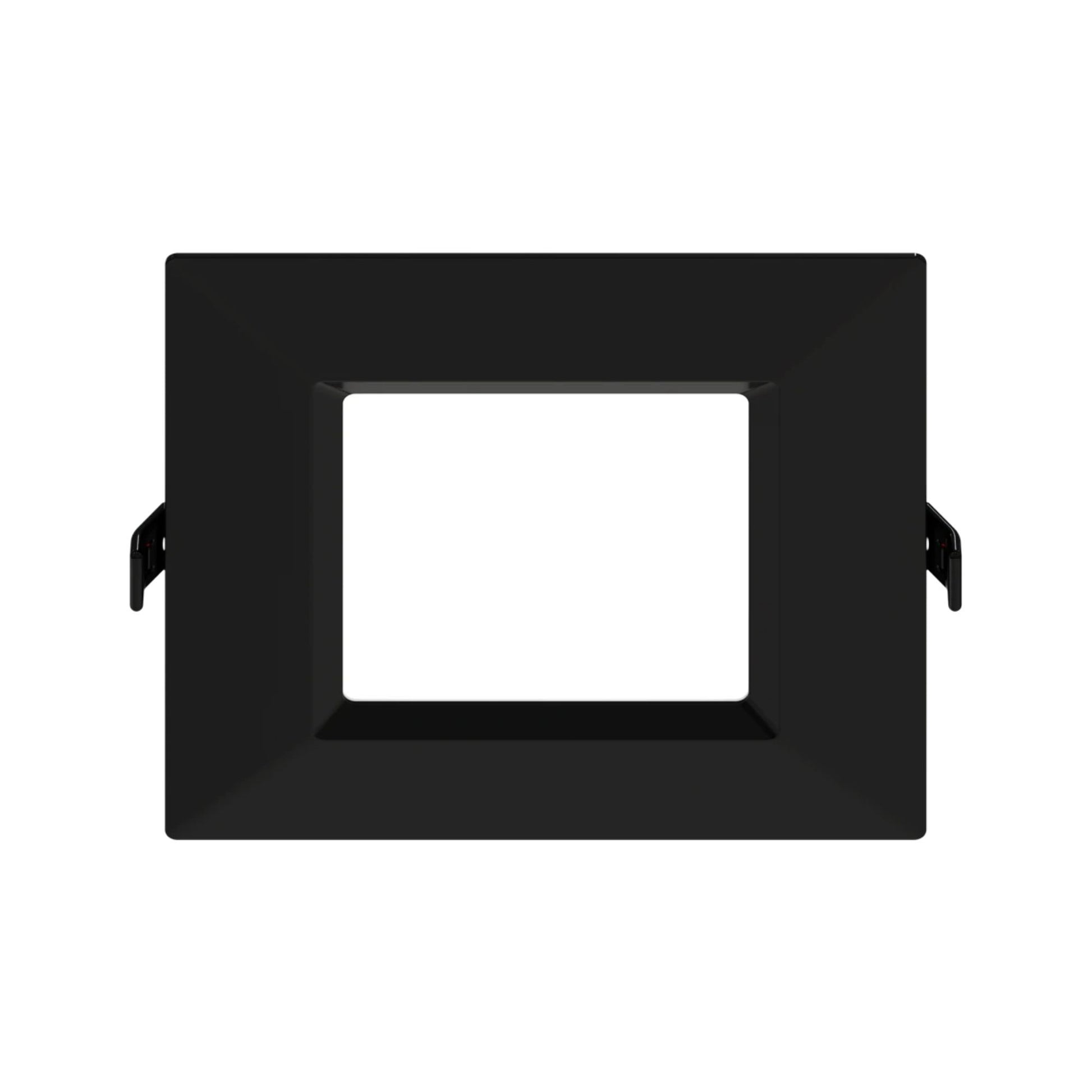

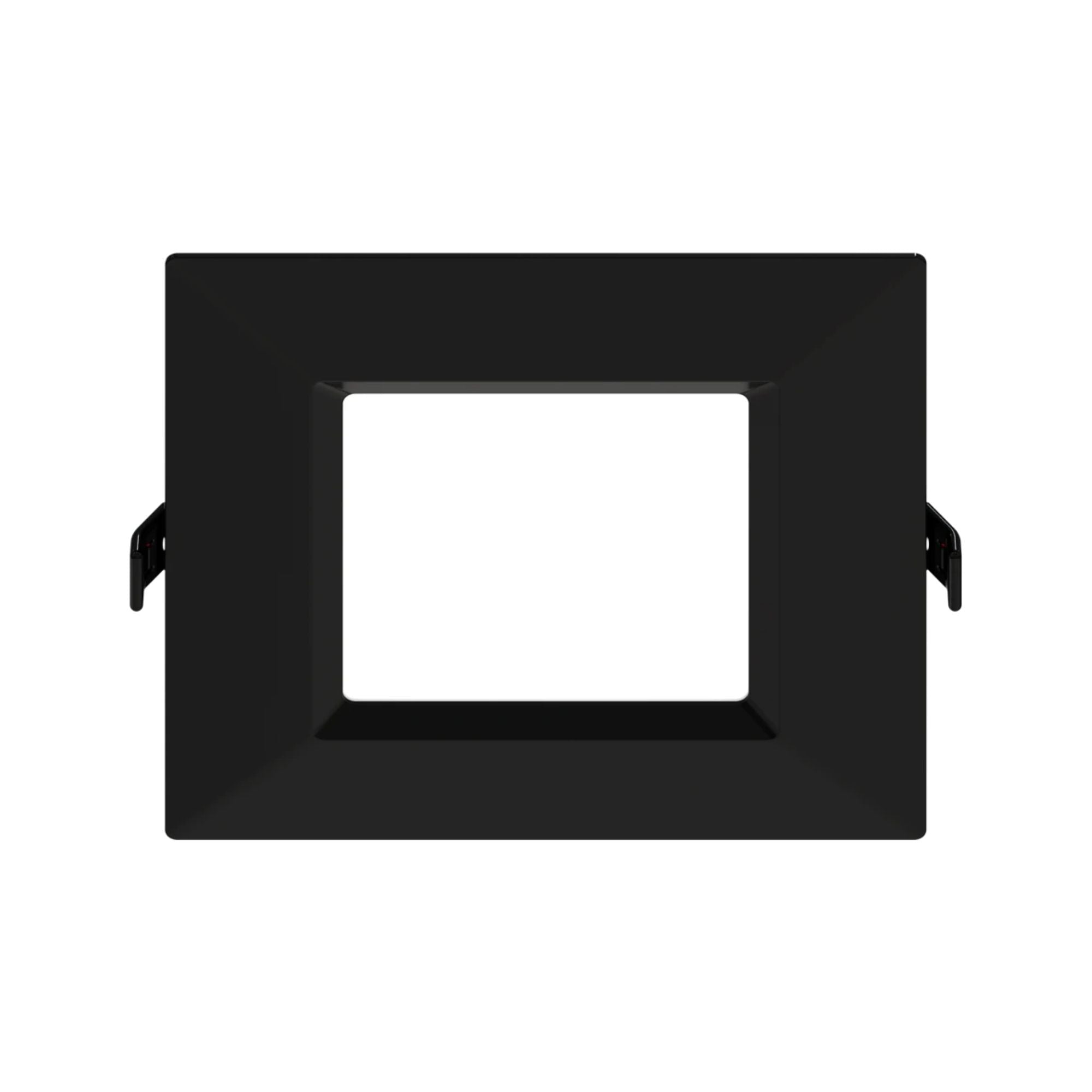

Constructed from robust UV-resistant polycarbonate, this downlight features a smooth trim and a frosted polycarbonate lens for even light distribution. Available in black finish, it includes spring-loaded retention clips for secure ceiling installation.

Electrical & Installation

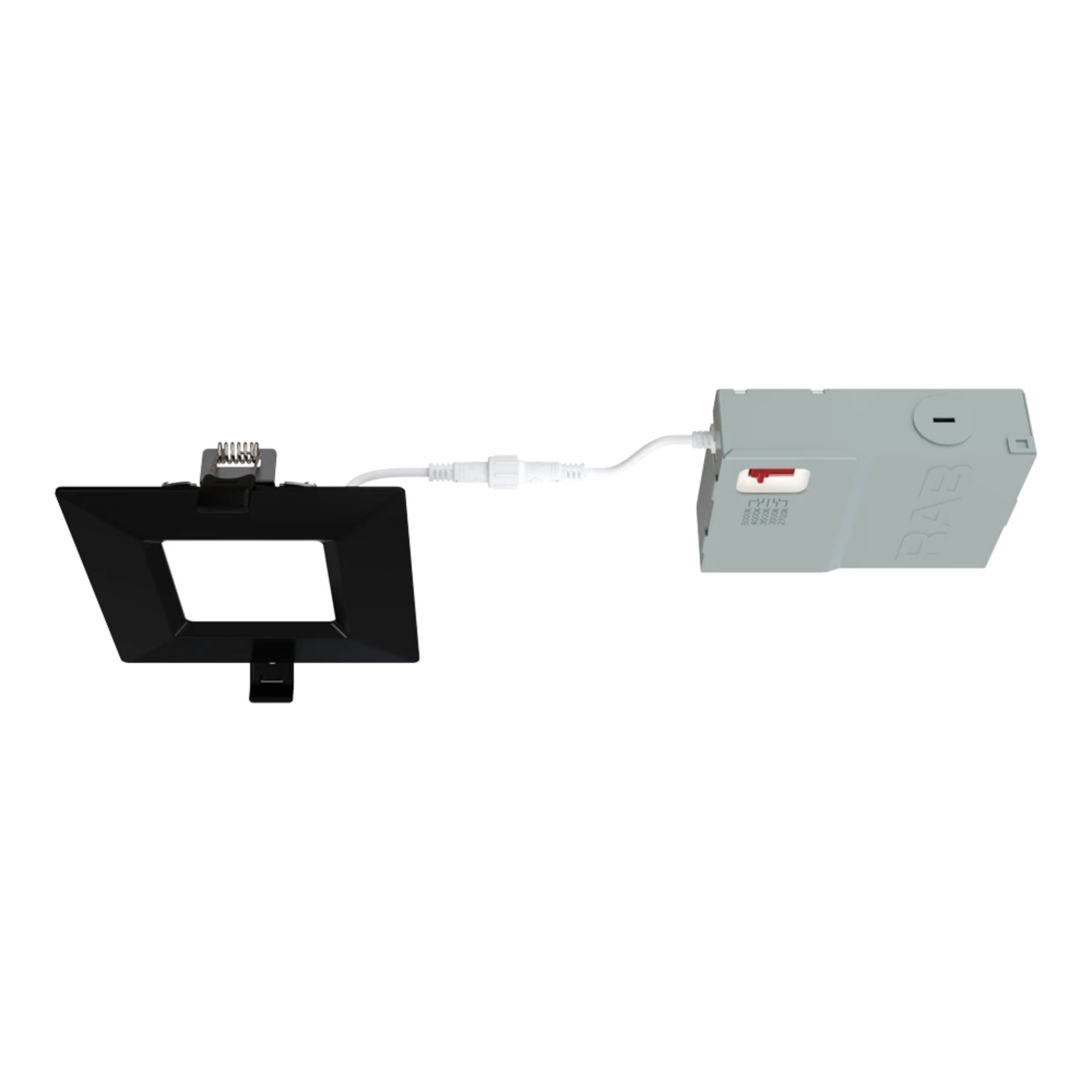

Operates at 120V with a constant current driver. The fixture is dimmable down to 10% and features a remote driver/junction box for easy installation without the need for recessed housing. New construction frames are available for additional support.

Light Output & Performance

With a light output of 750 lumens and a high CRI of 90, this downlight ensures excellent color rendering. The 110° beam angle provides wide coverage, and the LED lifespan is rated at 50,000 hours.

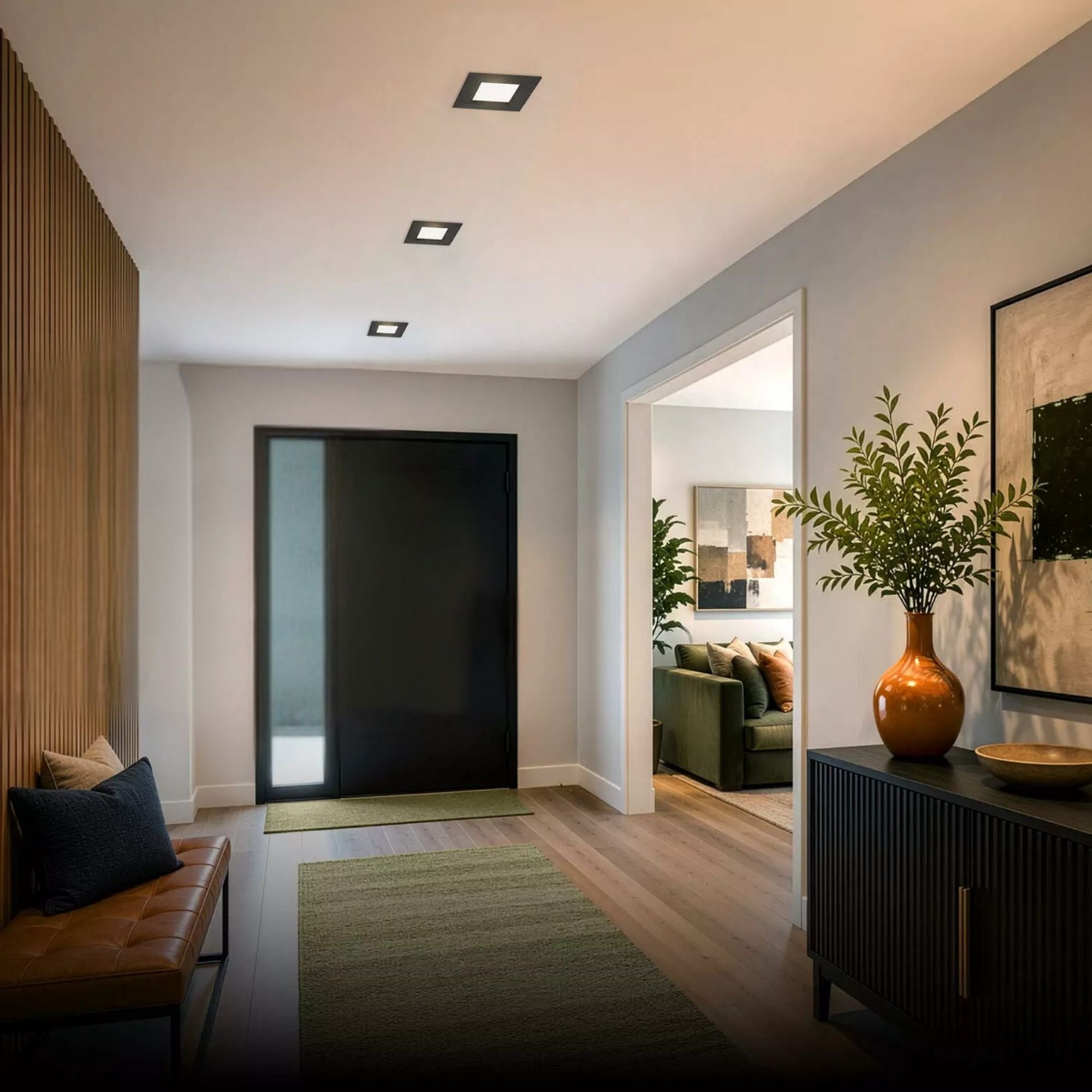

Typical Applications

• Residential lighting
• Commercial spaces
• Hospitality environments
• Outdoor patios
• Bathrooms
