RAB WFRL4S99FA120BB 4 in. Open Trim Downlight — 9W / Selectable CCT

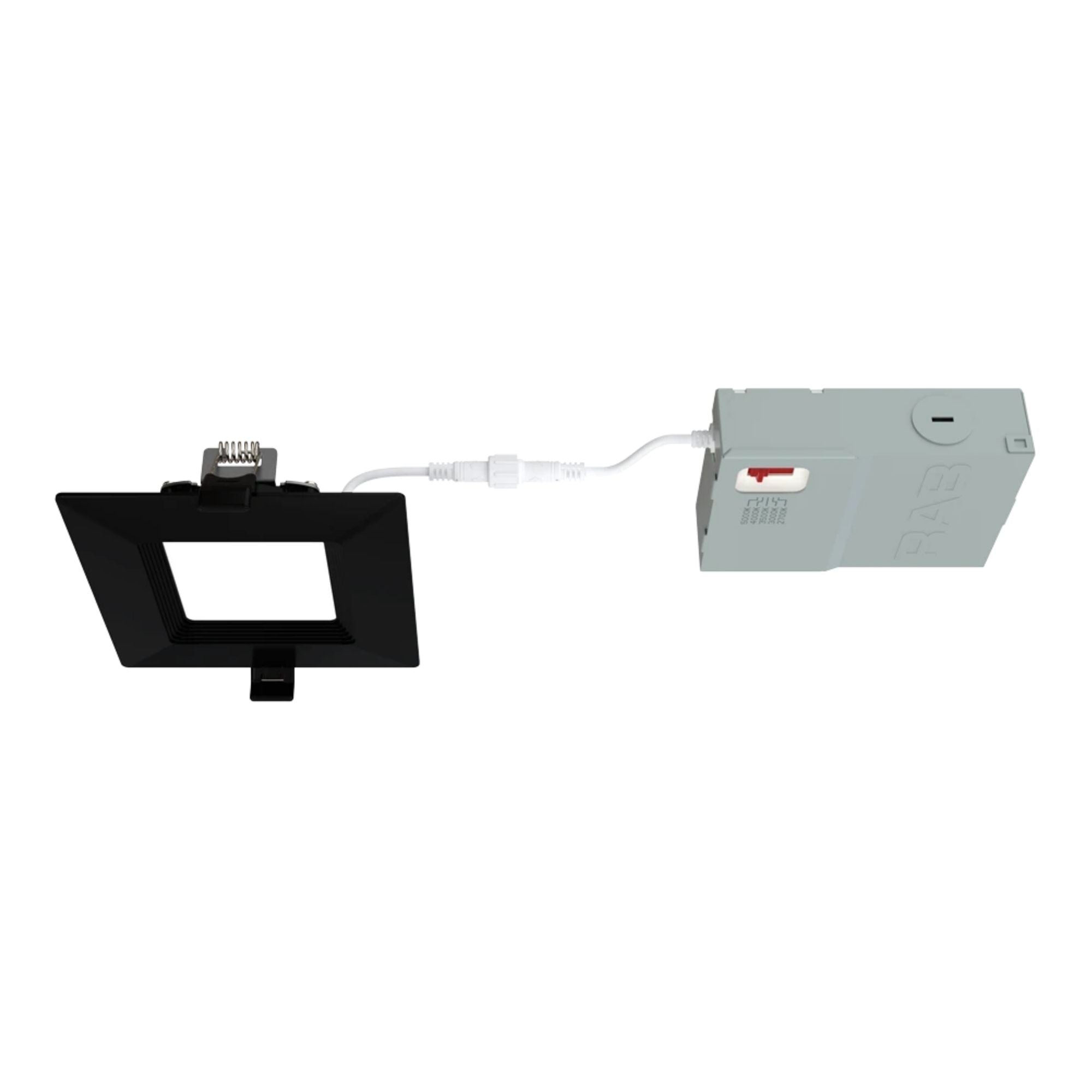

The RAB WFRL4S99FA120BB is a versatile 4-inch square downlight featuring an open baffle trim. This fixture delivers 750 lumens using only 9W of power and offers selectable color temperatures ranging from 2700K to 5000K. Designed for both new construction and retrofit applications, it is ideal for a variety of environments.

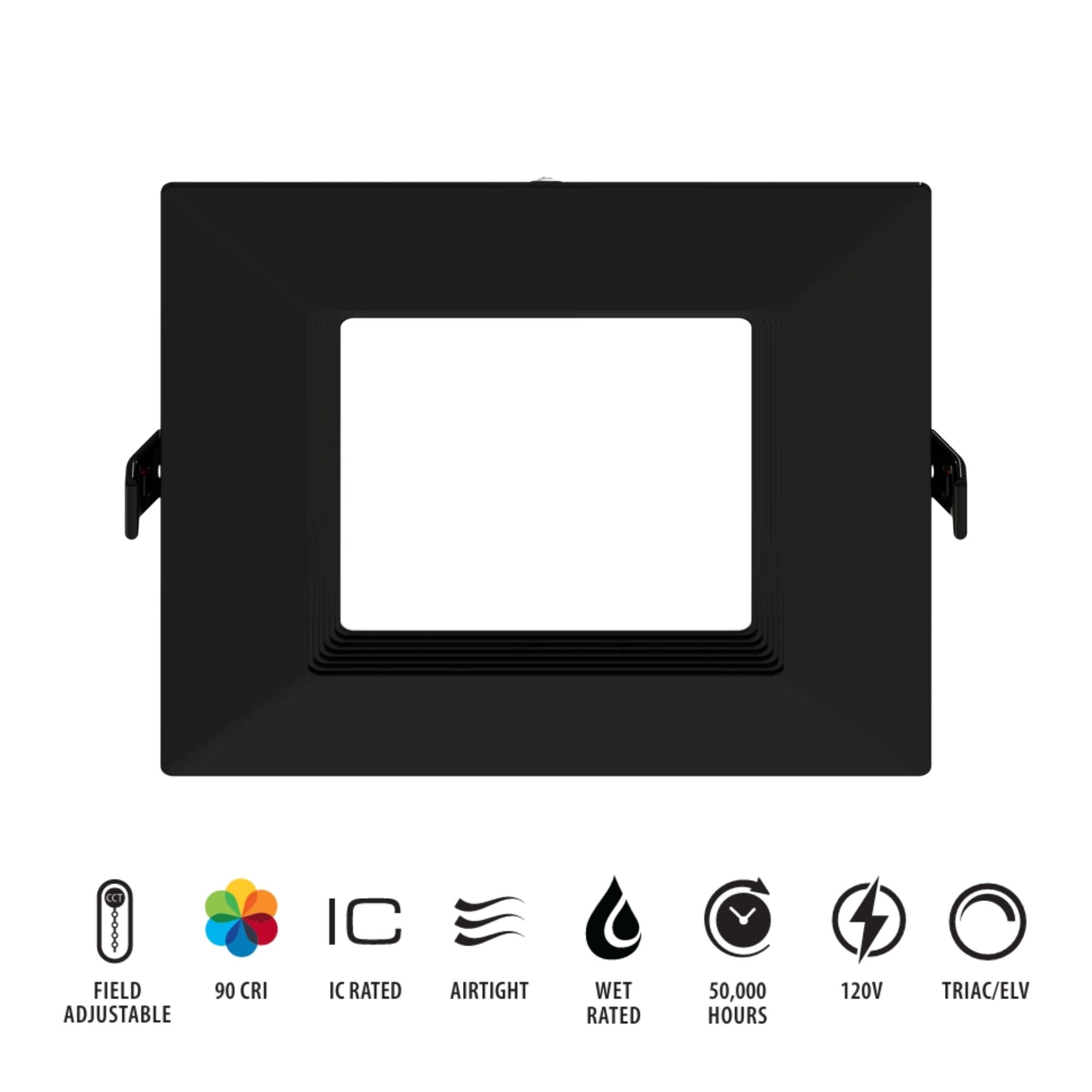

Key Features

• Selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K
• Wattage Equivalency: 40W CFL
• Voltage: 120V
• Dimming: TRIAC/ELV dimming down to 10%
• Beam Angle: 110°
• CRI: 90 CRI for high color accuracy
• IC Rated: Suitable for direct contact with insulation
• Energy Star Certified: Ensures energy efficiency
• RoHS Compliant: Mercury and UV free
• Warranty: 5-Year, No-Compromise Warranty

Construction & Aesthetics

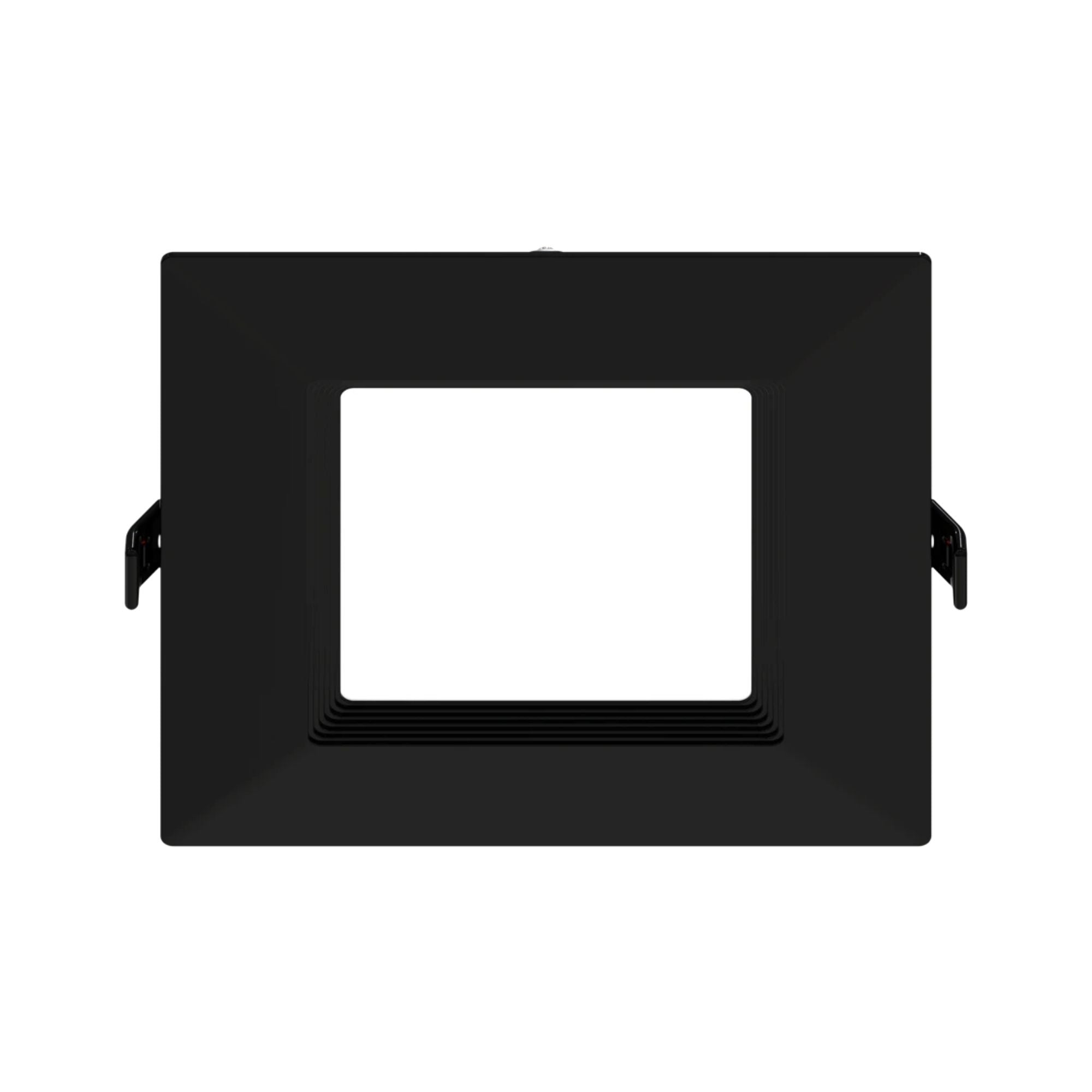

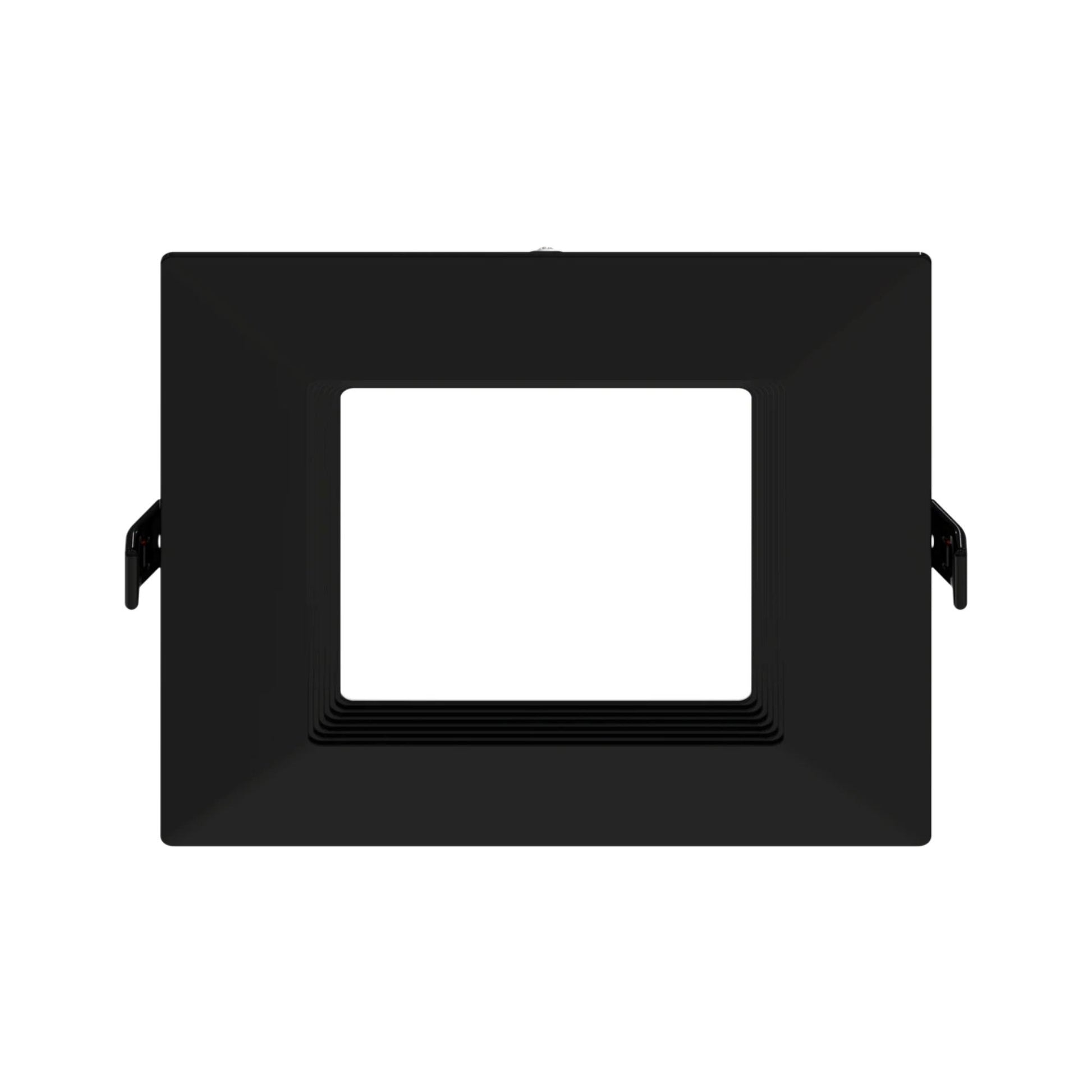

The downlight is constructed from robust UV-resistant polycarbonate with a frosted lens for smooth light distribution. It features a black finish and a baffle trim style, enhancing its aesthetic appeal. New construction frames are available for additional installation flexibility.

Electrical & Installation

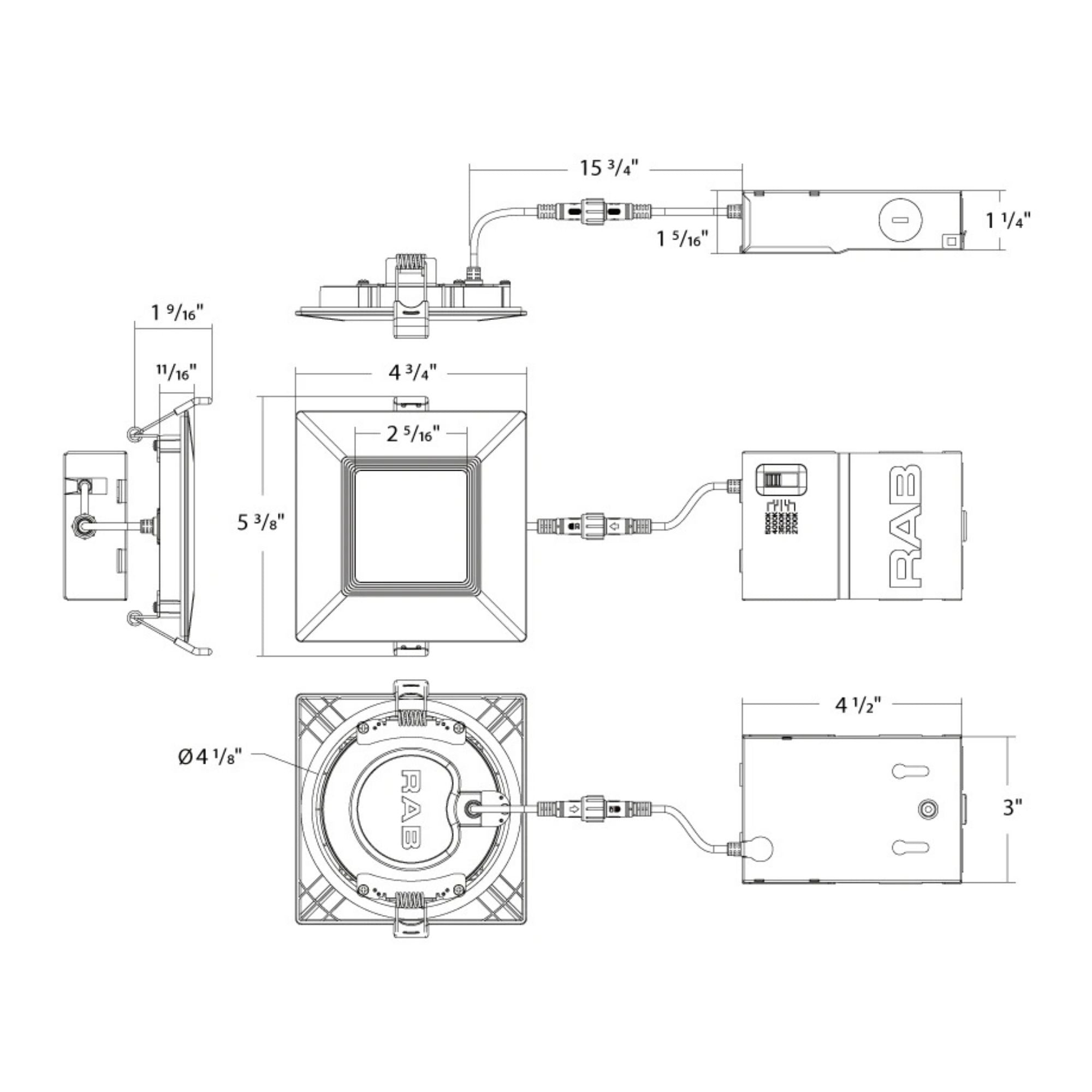

Operating at 120V, this fixture includes a constant current driver and is dimmable with TRIAC/ELV systems. It requires no recessed housing, using tension steel spring clips for secure ceiling installation. The fixture accommodates ceiling thicknesses up to 15/16''.

Light Output & Performance

With a light output of 750 lumens and a beam angle of 110°, this downlight provides ample illumination. It maintains color consistency with a 90 CRI and is designed to last with a 50,000-hour LED lifespan.

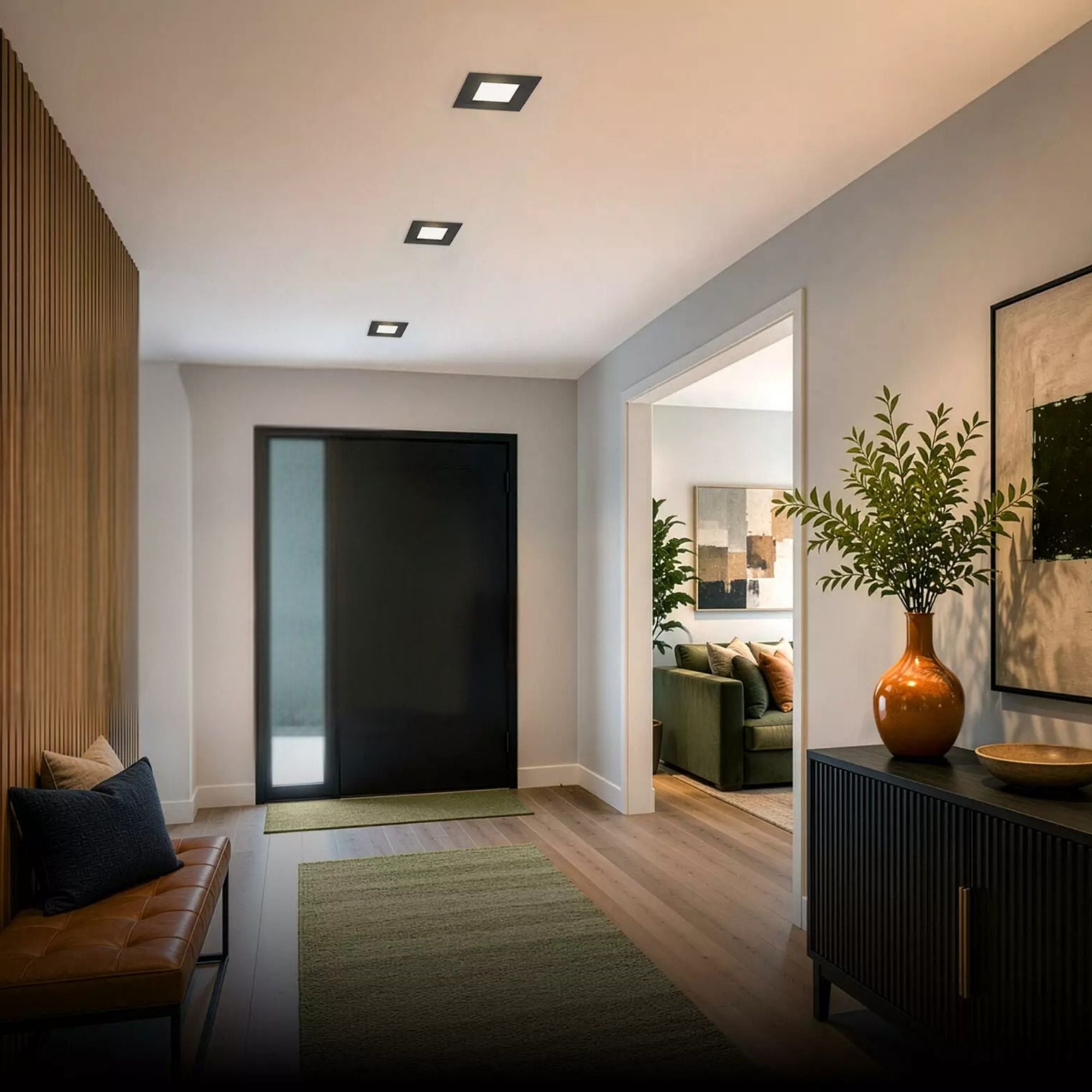

Typical Applications

• Residential Lighting
• Commercial Spaces
• Hospitality Venues
• Retail Environments
• Outdoor Patios
