RAB WFRL4R99FA120WB 4 in Round Baffle Wafer Downlight 9W Selectable CCT White
Available in stock (100)
About this item
About this item

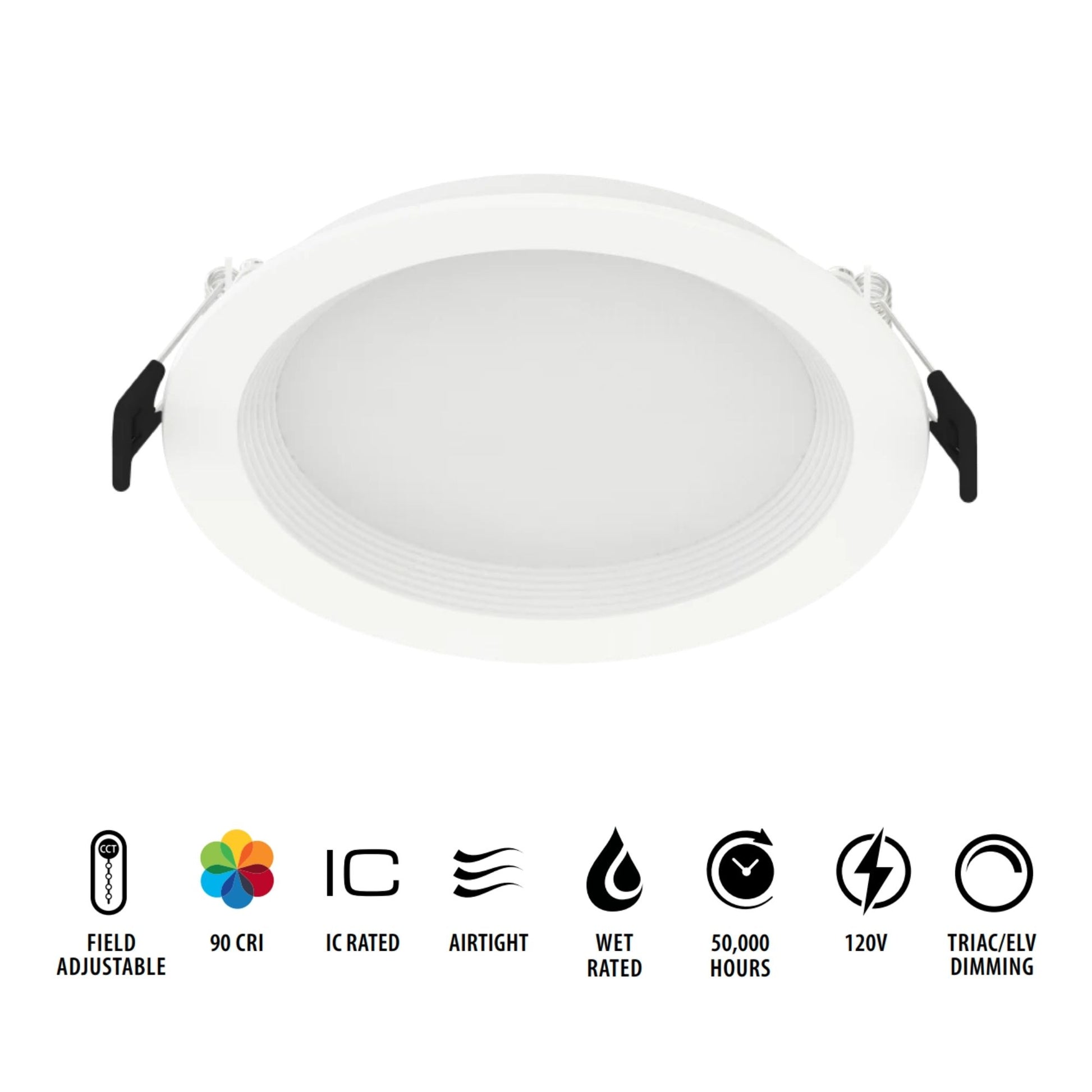

- Round Edge-Lit Slim Profile — White Baffle: Plastic construction with tall spring towers; installs in ceilings 3/8 in to 5/8 in thick; no housing or J-box required
- Up to 710 lm at 78.9 lm/W: 9W, 110° beam angle; 75W incandescent equivalent
- Field-Selectable CCT: Dipswitch-adjustable 2700K–5000K — 5 color temperatures in 1 SKU; 90 CRI
- IC Rated, Airtight & Enclosed Rated: ASTM E283; TRIAC/ELV dimmable to 10% at 120V; wet location rated
- ENERGY STAR Certified & Title 24 JA8: NEC closet compliant; 50,000 hrs L70; 5-year no-compromise warranty
We process payments securely and do not store credit card information.
Description
Description

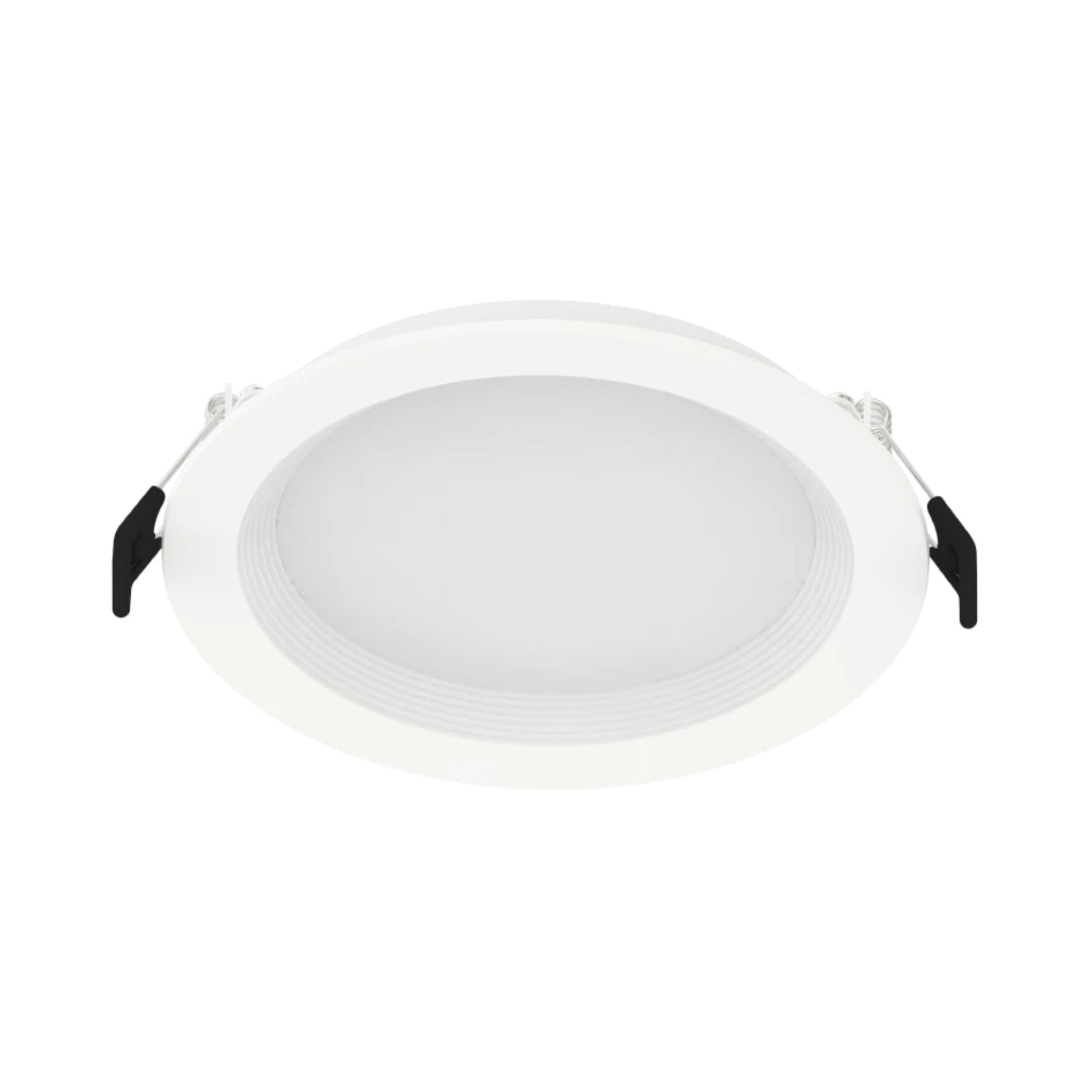

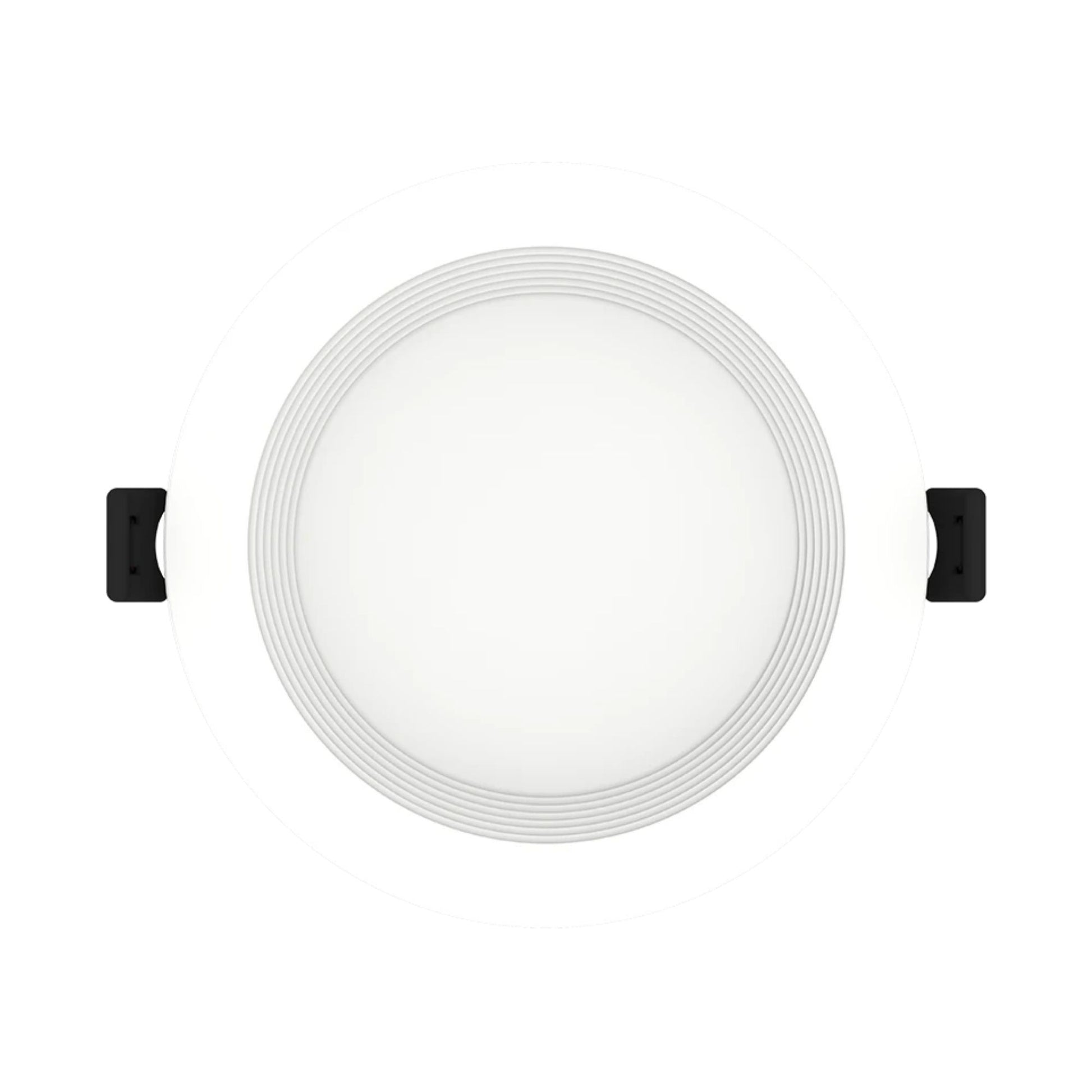

RAB WFRL4R99FA120WB 4 in Round Baffle Edge-Lit Wafer Downlight — 9W / Selectable CCT / 120V / White
The RAB WFRL4R99FA120WB is a 4 in round edge-lit wafer downlight in white finish with a baffle trim, delivering up to 710 lumens at 9W with a 110° beam angle and 90 CRI. No recessed housing or junction box required. CCT is field-selectable 2700K–5000K via dipswitch with TRIAC/ELV dimming at 120V.
Key Features
- Round Edge-Lit Slim Profile — White Baffle: Plastic construction; tall spring towers for tool-free installation
- No Housing or J-Box Required: Mounts directly to ceiling 3/8 in to 5/8 in thick; new construction or retrofit
- Field-Selectable CCT: Dip-switch adjustable between 2700K, 3000K, 3500K, 4000K, and 5000K; 5 CCTs in 1 SKU
- Lumen Output: 710 lm (4000K/5000K); 700 lm (3500K); 670 lm (3000K); 630 lm (2700K)
- Per-CCT Efficacy: 78.9 lm/W (4000K/5000K); 77.8 lm/W (3500K); 74.4 lm/W (3000K); 70 lm/W (2700K)
- Wattage: 9W | 75W incandescent equivalent
- CRI & Beam: 90 CRI | 110° beam angle
- Dimming: TRIAC/ELV dimmable to 10% at 120V
- Voltage: 120V
- IC Rated & Airtight: Suitable for direct insulation contact; ASTM E283 certified
- Fixture Rating: Enclosed; wet location rated
- Certifications: UL Listed, ENERGY STAR, Title 24 JA8, RoHS, FCC Part 15 | NEC closet compliant Sec. 410.16 (A)(1) & (C3)
- Lifespan: 50,000 hours L70 per IES LM-80 / TM-21
- Warranty: 5-year no-compromise warranty
Construction & Design
Plastic body with baffle white trim and acrylic light guide lens for even, smooth illumination. IC rated and airtight (ASTM E283); enclosed fixture rated for wet locations. Gasket included for restrictive airflow and wet location use without additional sealing. Ceiling thickness: 3/8 in to 5/8 in.
Light Output & Performance
Up to 710 lm at 78.9 lm/W (4000K/5000K), 110° beam angle, 90 CRI. Field-selectable CCT (2700K–5000K). CCT shift warranted ≤200K over 5 years; <4-step MacAdam Ellipse consistency. 50,000 hrs L70 per IES LM-80/TM-21.
Electrical & Installation
120V Constant Current Class 2 driver (100mA). TRIAC/ELV dimmable to 10%. Tall spring towers install in ceilings 3/8 in to 5/8 in thick; ceiling cutout template included. No housing or J-box required; removable from below ceiling for service. THD ≤20%, PF ≥0.9. Operating temp: -22°F to 104°F (-30°C to 40°C).
What’s Included
- RAB WFRL4R99FA120WB 4 in round baffle edge-lit wafer downlight (white)
- Die-formed metal driver/junction box
- Ceiling cutout template
Specifications
Specifications

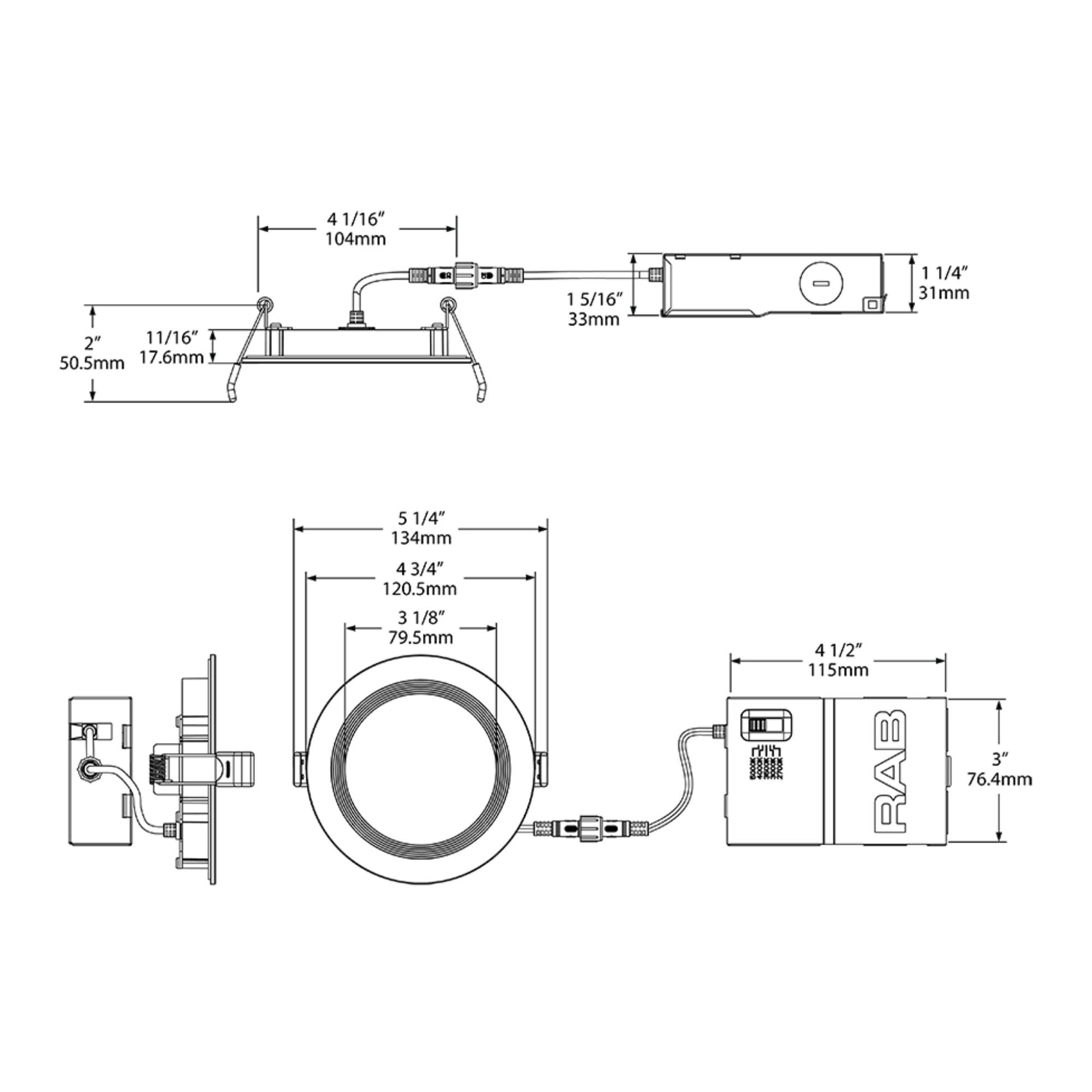

Dimensions
