RAB Ultra Thin WFRL4R99FA120BS 4 in. Smooth Trim Downlight — 9W / Selectable CCT

The RAB WFRL4R99FA120BS is a 4-inch round downlight featuring a smooth trim and selectable color temperatures ranging from 2700K to 5000K. Delivering 800 lumens with just 9 watts, this fixture is ideal for both new construction and retrofit applications.

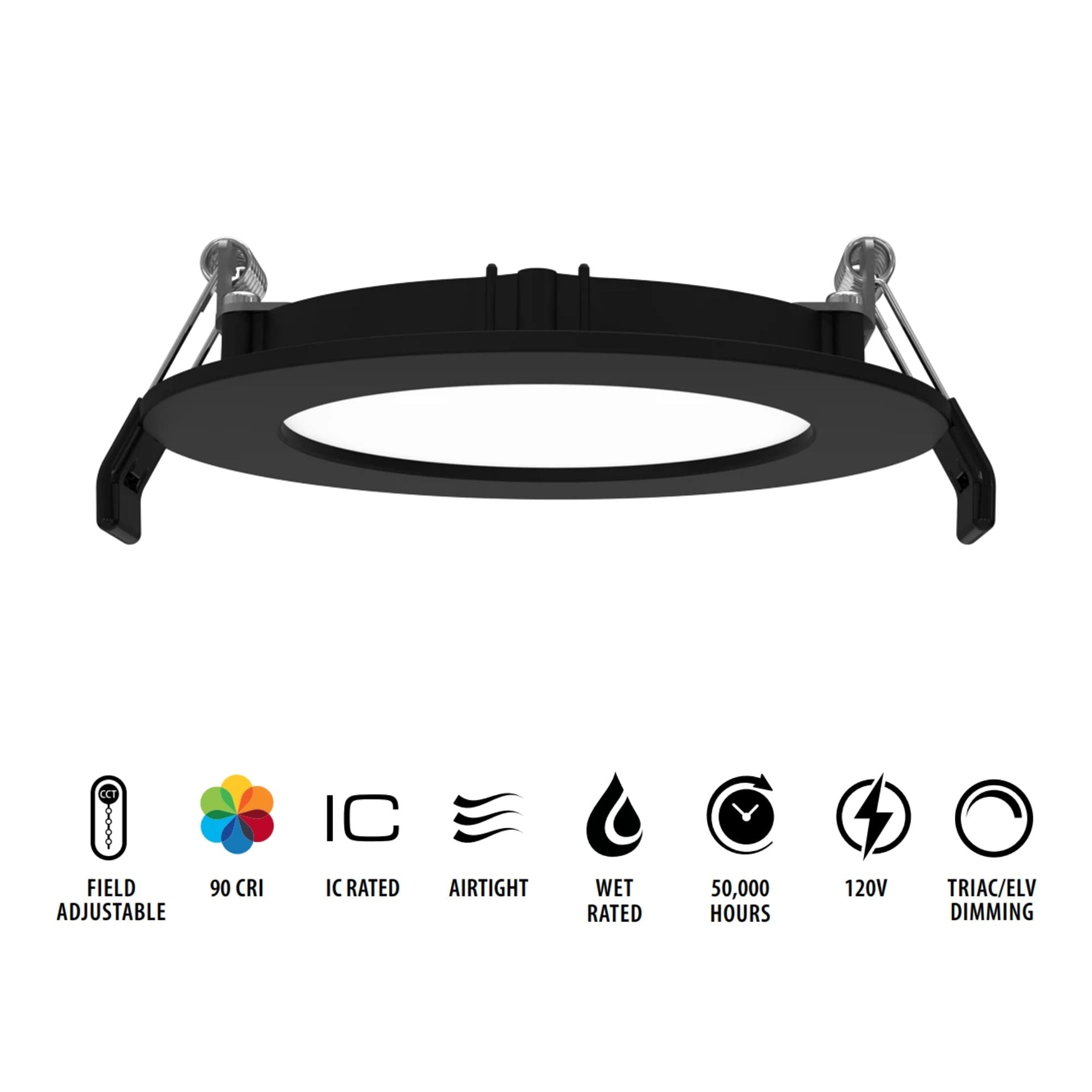

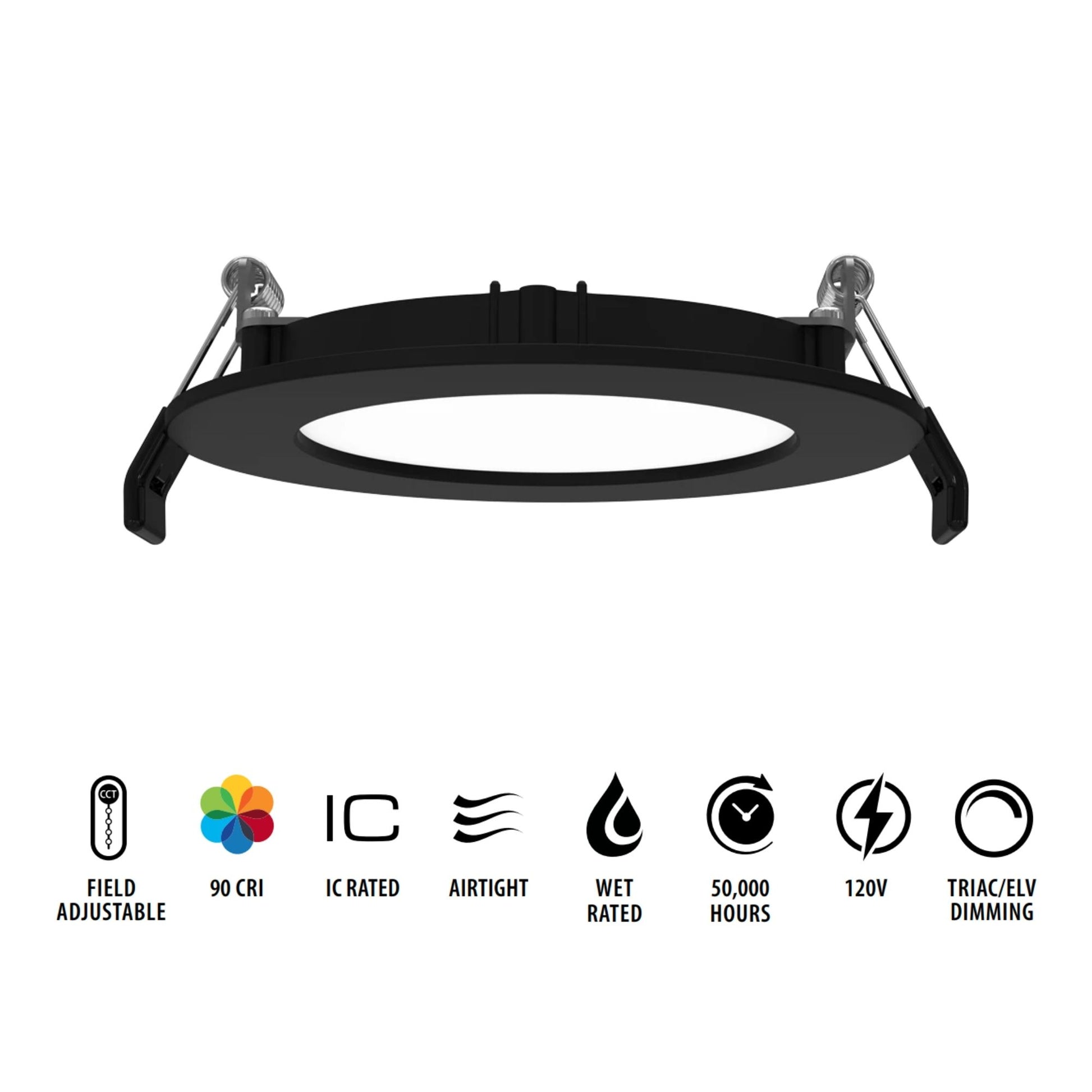

Key Features

• Wattage: 9W
• Lumens: 800 lm
• Voltage: 120V
• Beam Angle: 110°±10°
• CRI: >90
• Lifespan: 50,000 hours
• Dimming: TRIAC/ELV dimmable down to 10%
• IC Rated: Suitable for direct contact with insulation
• Energy Star: Certified
• Title 24 JA8: Compliant
• RoHS: Compliant
• Warranty: 5-Year No-Compromise

Construction & Aesthetics

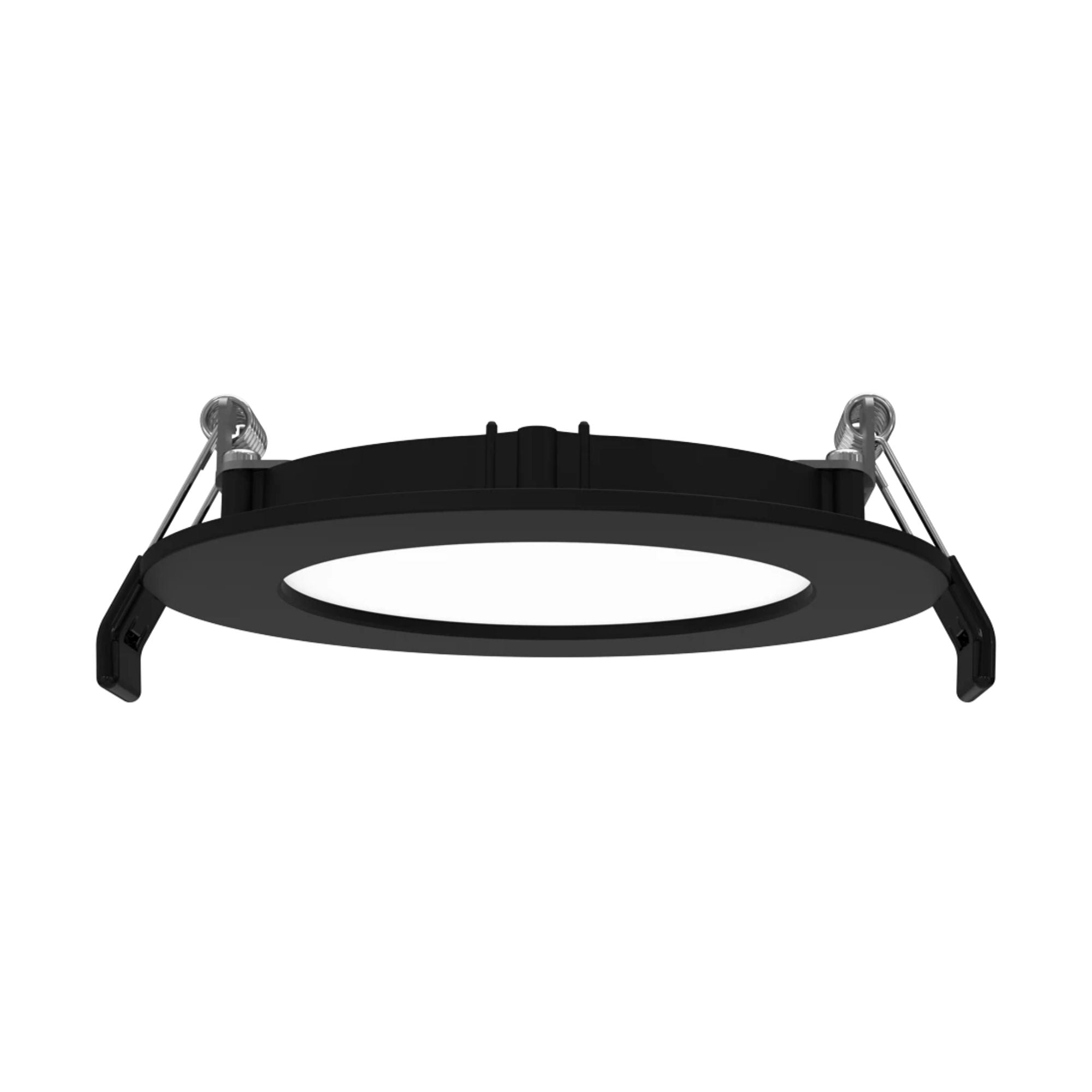

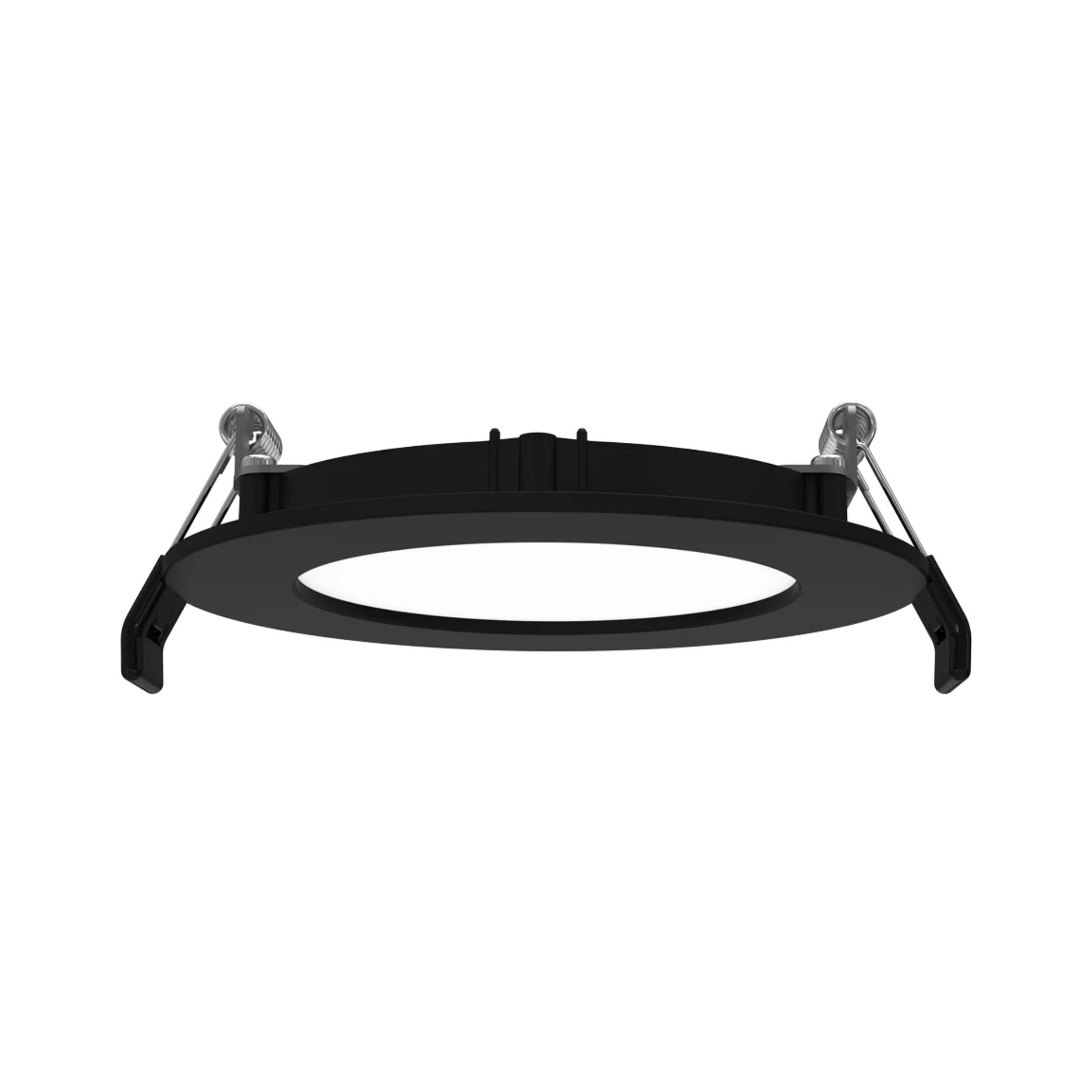

This downlight features a robust die-cast aluminum construction with a smooth black finish. The frosted polycarbonate lens ensures even light distribution. Optional trim colors include bronze, brushed nickel, and additional mounting accessories like goof rings and mounting plates.

Electrical & Installation

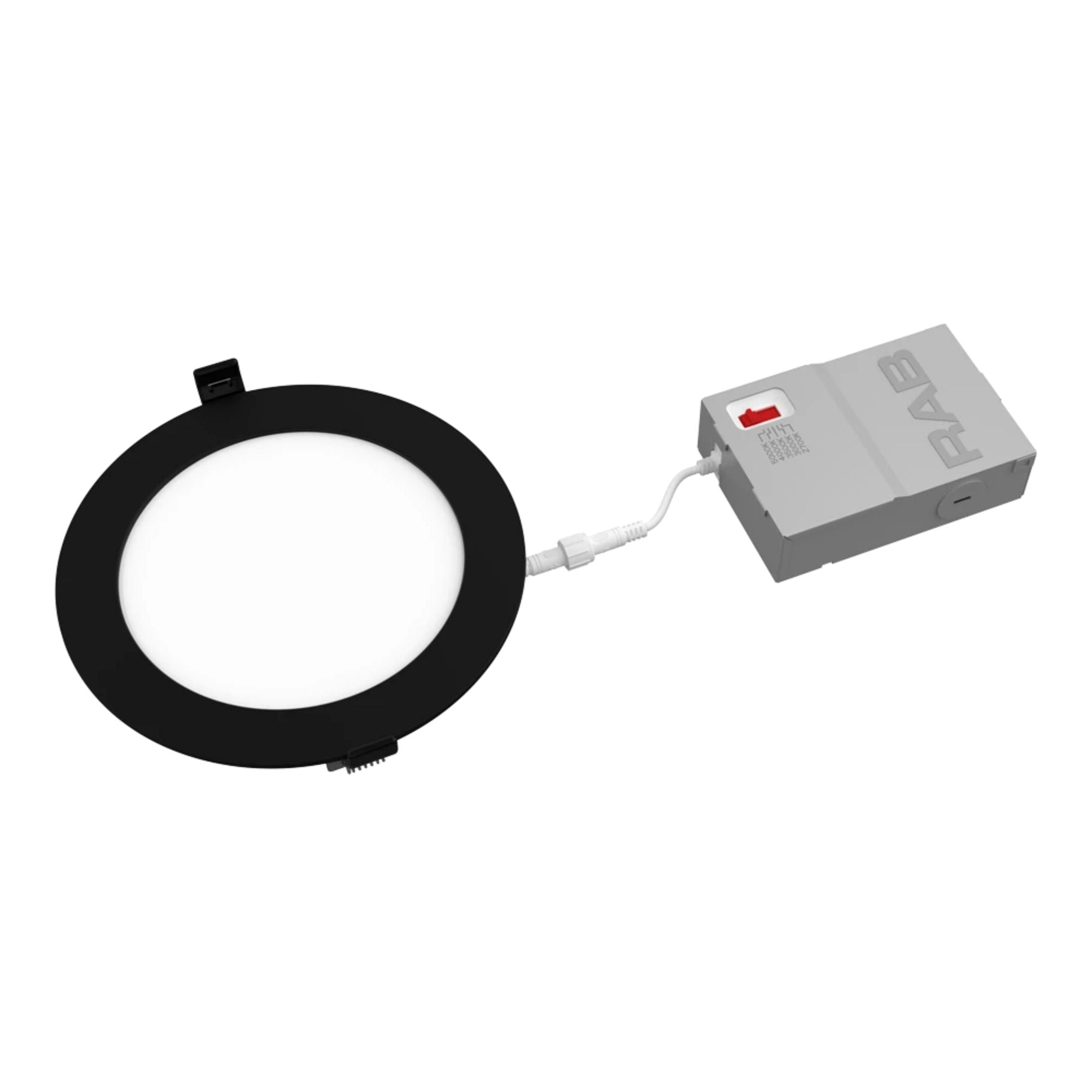

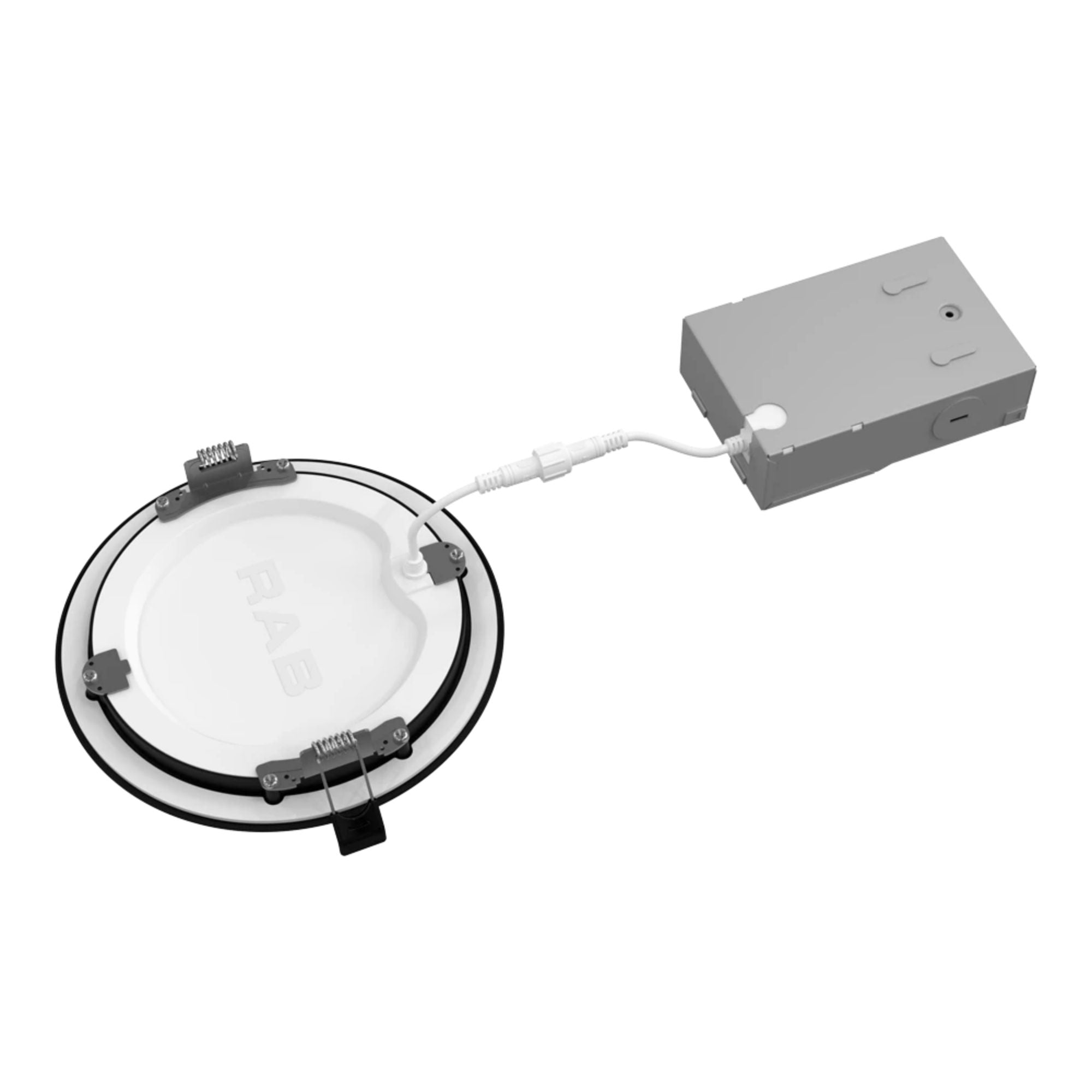

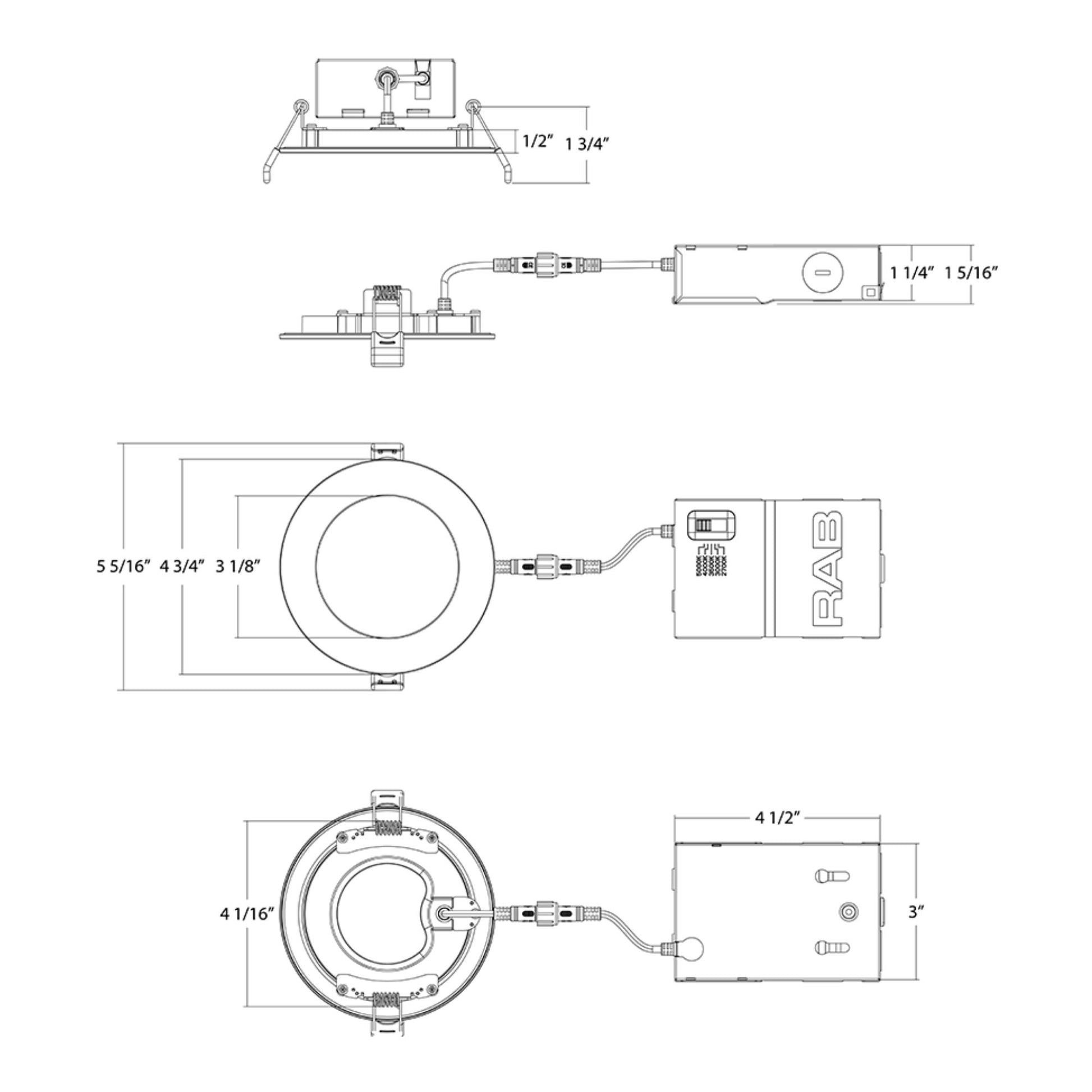

Operating at 120V with a constant current driver, this fixture is easy to install with its integrated junction box and spring-loaded retention clips. It requires no additional housing, making it perfect for tight spaces.

Light Output & Performance

With a high CRI of over 90, this downlight provides excellent color rendering. The selectable CCT feature allows for versatile lighting options, and the fixture maintains color stability over its lifespan.

Typical Applications

• Residential lighting
• Commercial spaces
• Hospitality environments
• Retail settings
• Outdoor covered areas
