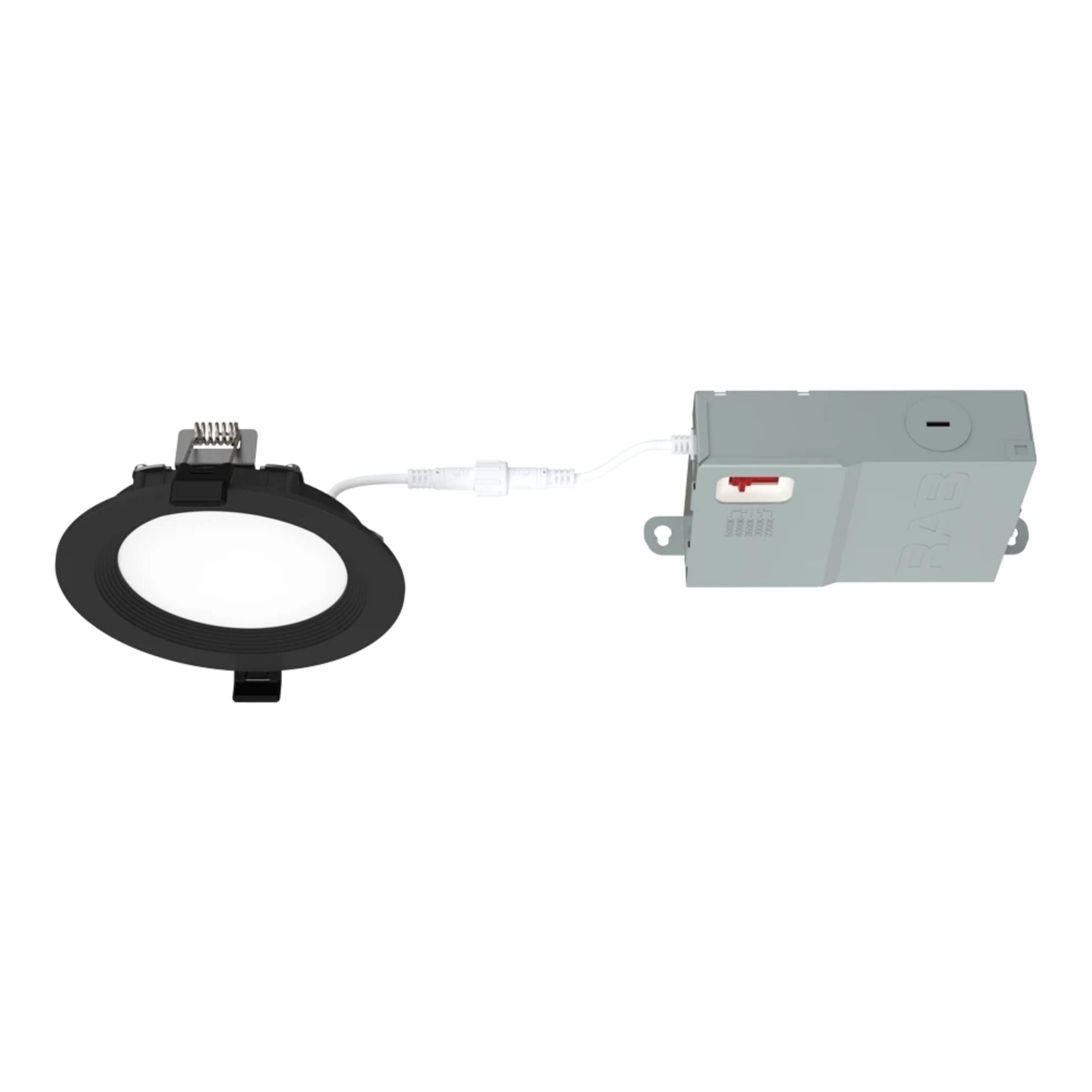

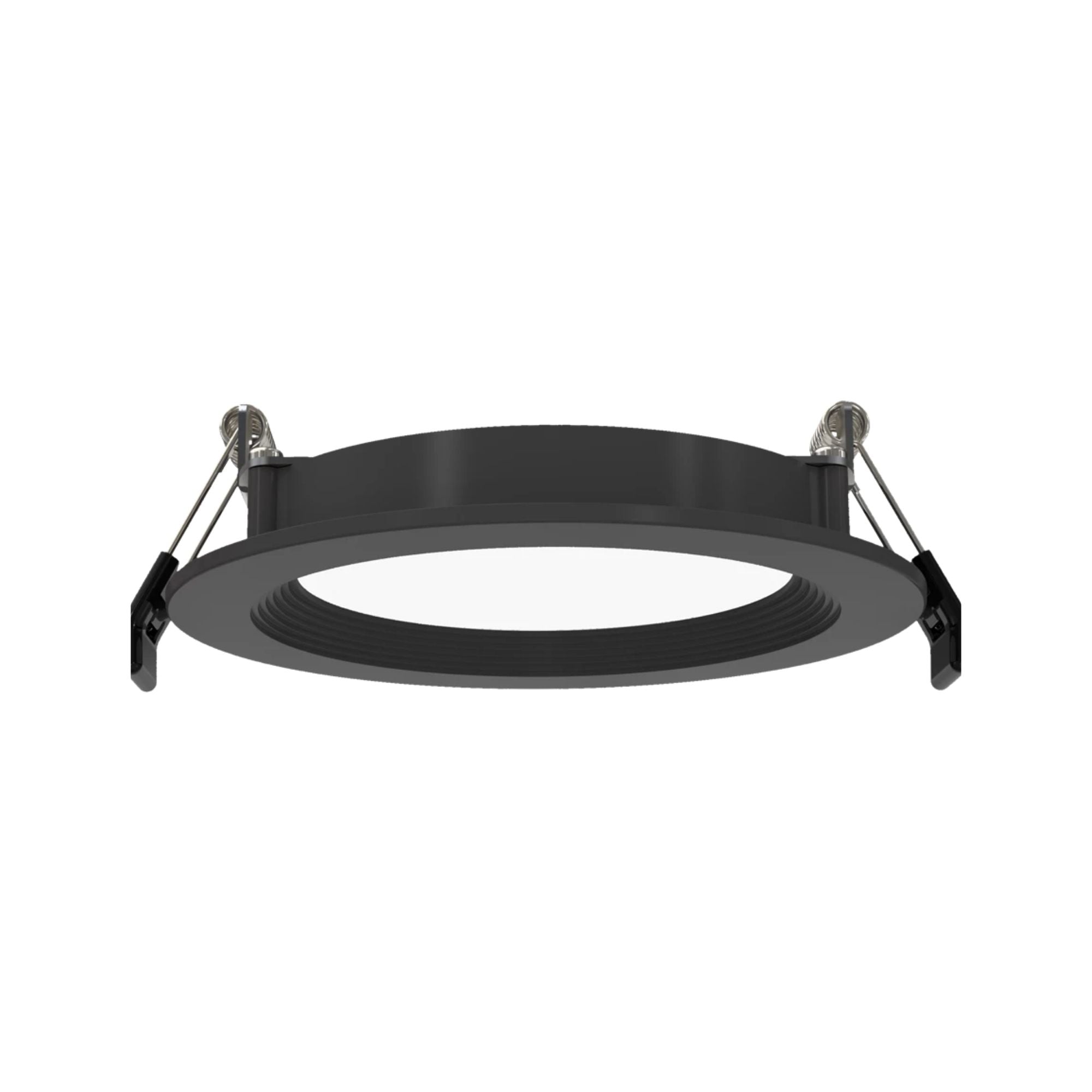

RAB WFRL4R99FA120BRZB 4 in Round Baffle Edge-Lit Wafer Downlight — 9W / Selectable CCT / 120V / Bronze

The RAB WFRL4R99FA120BRZB is a 4 in round edge-lit wafer downlight in bronze finish with a baffle trim, delivering 750 lumens at 9W with a 110° beam angle and 90 CRI. No recessed housing or junction box required. CCT is field-selectable 2700K–5000K via dipswitch (default: 5000K) with TRIAC/ELV dimming at 120V.

Key Features

• Round Edge-Lit Slim Profile — Bronze Finish: Metal + plastic construction; spring-loaded retention clips for fast installation
• No Housing or J-Box Required: Mounts directly to ceiling; new construction or retrofit
• Field-Selectable CCT: Dip-switch adjustable between 2700K, 3000K, 3500K, 4000K, and 5000K (default: 5000K); 5 CCTs in 1 SKU
• Wattage: 9W | 40W CFL equivalent | 750 lm | 83 lm/W
• CRI & Beam: >90 CRI, R9 > 50 | 110° (±10°) beam angle
• Dimming: TRIAC/ELV dimmable to 10% at 120V
• Voltage: 120V
• IC Rated & Airtight: Suitable for direct insulation contact (not for spray foam; NEMA LSD57-2013); ASTM E283 certified
• Plenum Rated: FT5 plenum rated cable per UL2043
• Certifications: UL Listed, ENERGY STAR, Title 24 JA8, RoHS, FCC Part 15 | NEC closet compliant Sec. 410.16 (A)(1) & (C3)
• Lifespan: 50,000 hours L70 per IES LM-70
• Warranty: 5-year no-compromise warranty

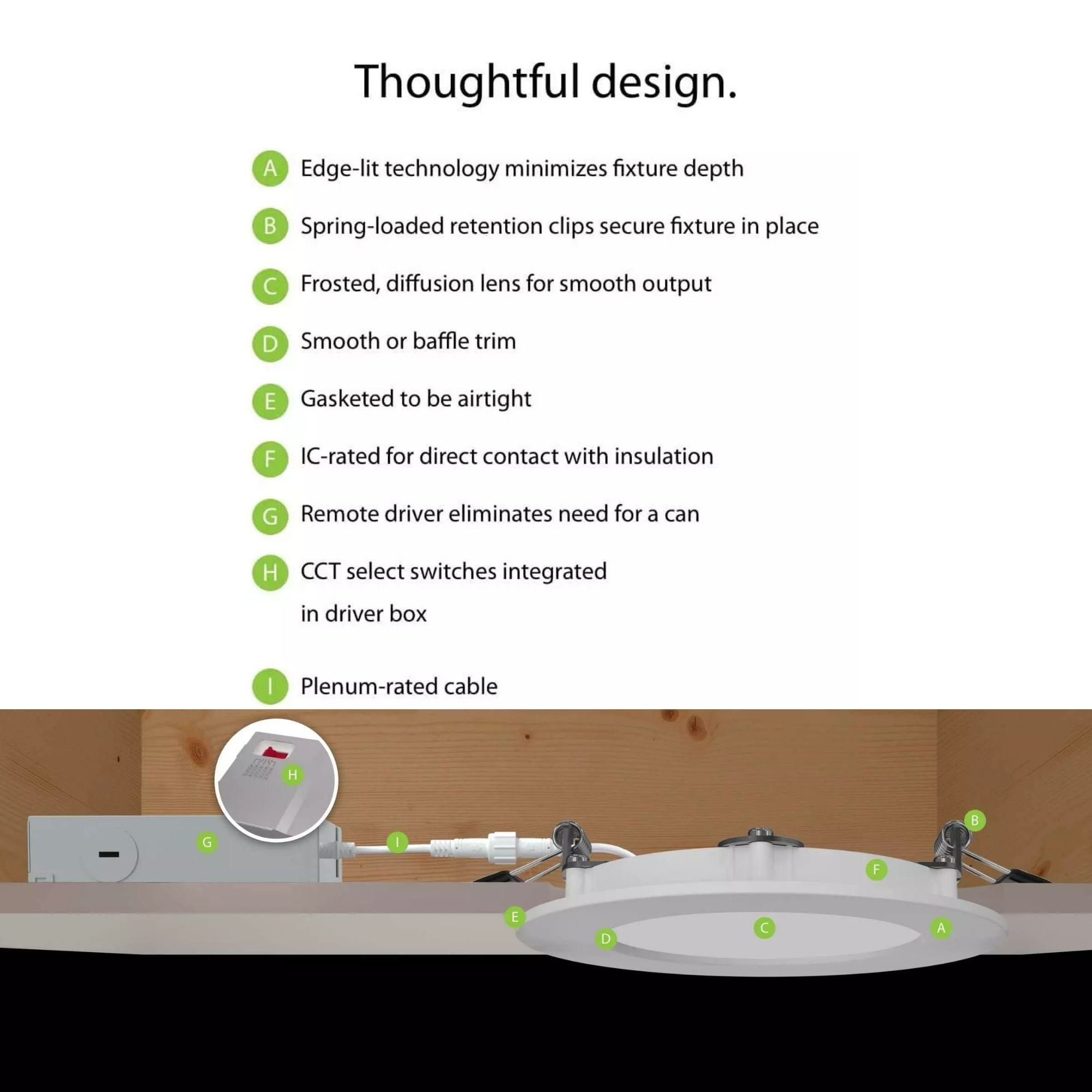

Construction & Design

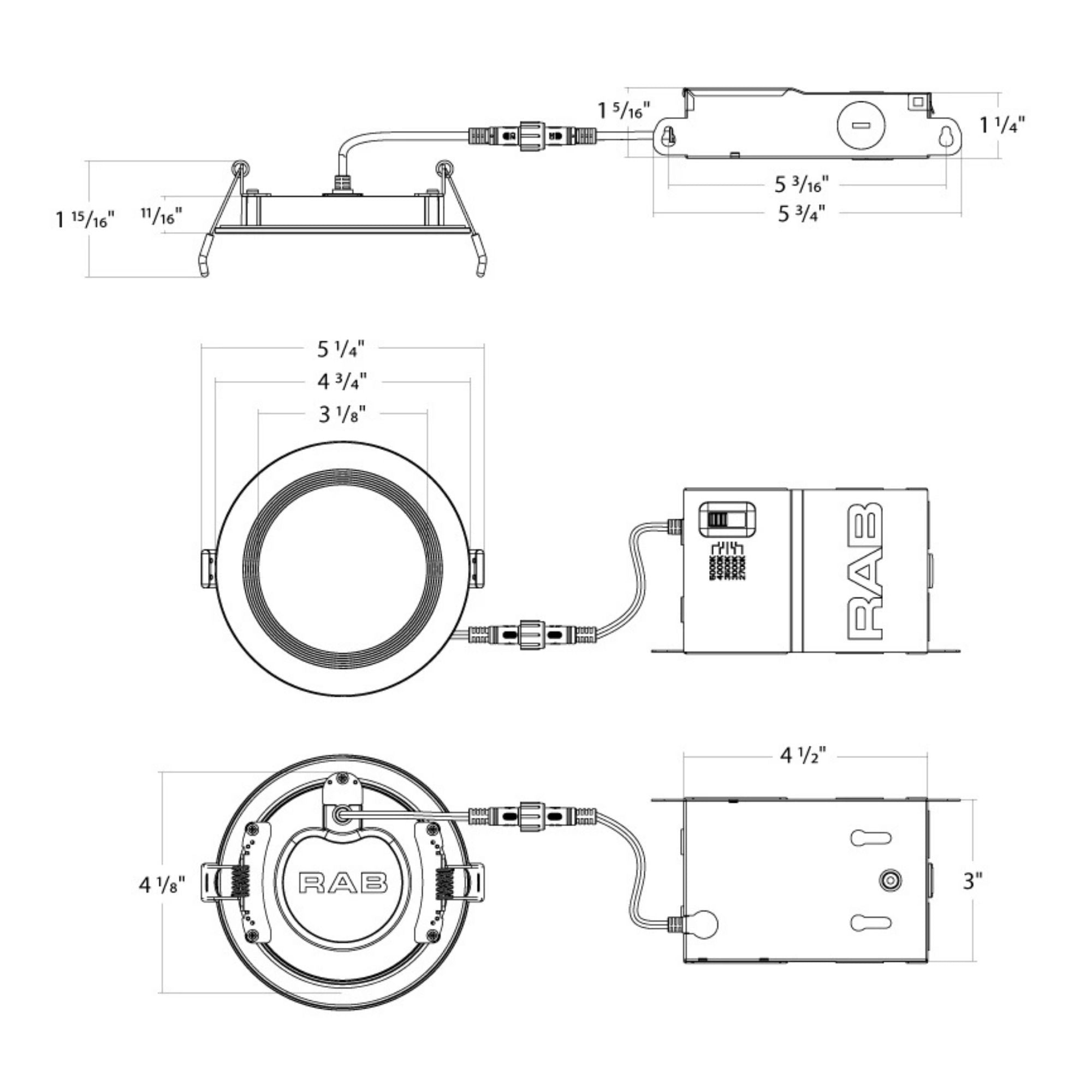

Metal and plastic body with baffle bronze trim and frosted polycarbonate lens. IC rated and airtight (ASTM E283); not for spray foam (NEMA LSD57-2013). Accommodates ceiling thickness up to 15/16 in.

Light Output & Performance

750 lm at 83 lm/W, 110° beam angle, >90 CRI, R9 > 50. Field-selectable CCT (2700K–5000K, default 5000K). CCT shift warranted ≤200K over 5 years; <4-step MacAdam Ellipse consistency. 50,000 hrs L70.

Electrical & Installation

120V Constant Current Class 2 driver (100mA). TRIAC/ELV dimmable to 10%. FT5 plenum rated cable (UL2043). No housing or J-box required; installs directly to ceiling. THD ≤20%, PF ≥0.9, Flicker ≤30%. Operating temp: -4°F to 104°F.

Compatible Accessories (sold separately)

• DLPLATE/WFR3468/NB — Mounting plate with nailer bar (3, 4, 6, 8 in)
• DLPLATE/WFR3456 — Mounting plate for 3, 4, 5, 6 in
• DLPLATE/WFR4/NB/CL — 4 in mounting plate with nailer bar and drywall collar
• DLPLATE/WFR4 — 4 in mounting plate
• EXTCBL-FA-6 — 6 ft extension cable
• EXTCBL-FA-12 — 12 ft extension cable
• EXTCBL-FA-20 — 20 ft extension cable
• DRI-25-EMGR-DC — Emergency driver 100-277V 25W
• DRI-21-EMGR-DC-D10 — Emergency driver 100-277V 21W 0-10V T20

What’s Included

• RAB WFRL4R99FA120BRZB 4 in round baffle edge-lit wafer downlight (bronze)
• Die-formed metal driver/junction box
