RAB Ultra Thin WFRL3R69CCT120WS 3 in. Round Smooth Edge-Lit Wafer Downlight 6W 500 Lumens Selectable CCT
Available in stock (200)
About this item
About this item
- Selectable CCT: Choose from 2700K, 3000K, 3500K, 4000K, or 5000K
- Energy Efficient: Delivers 500 lumens using only 6 watts
- High CRI: Greater than 90 for superior color rendering
- Dimmable: Compatible with TRIAC/ELV dimming systems down to 10%
- Wet Rated: Suitable for indoor and outdoor wet locations
We process payments securely and do not store credit card information.
Description
Description

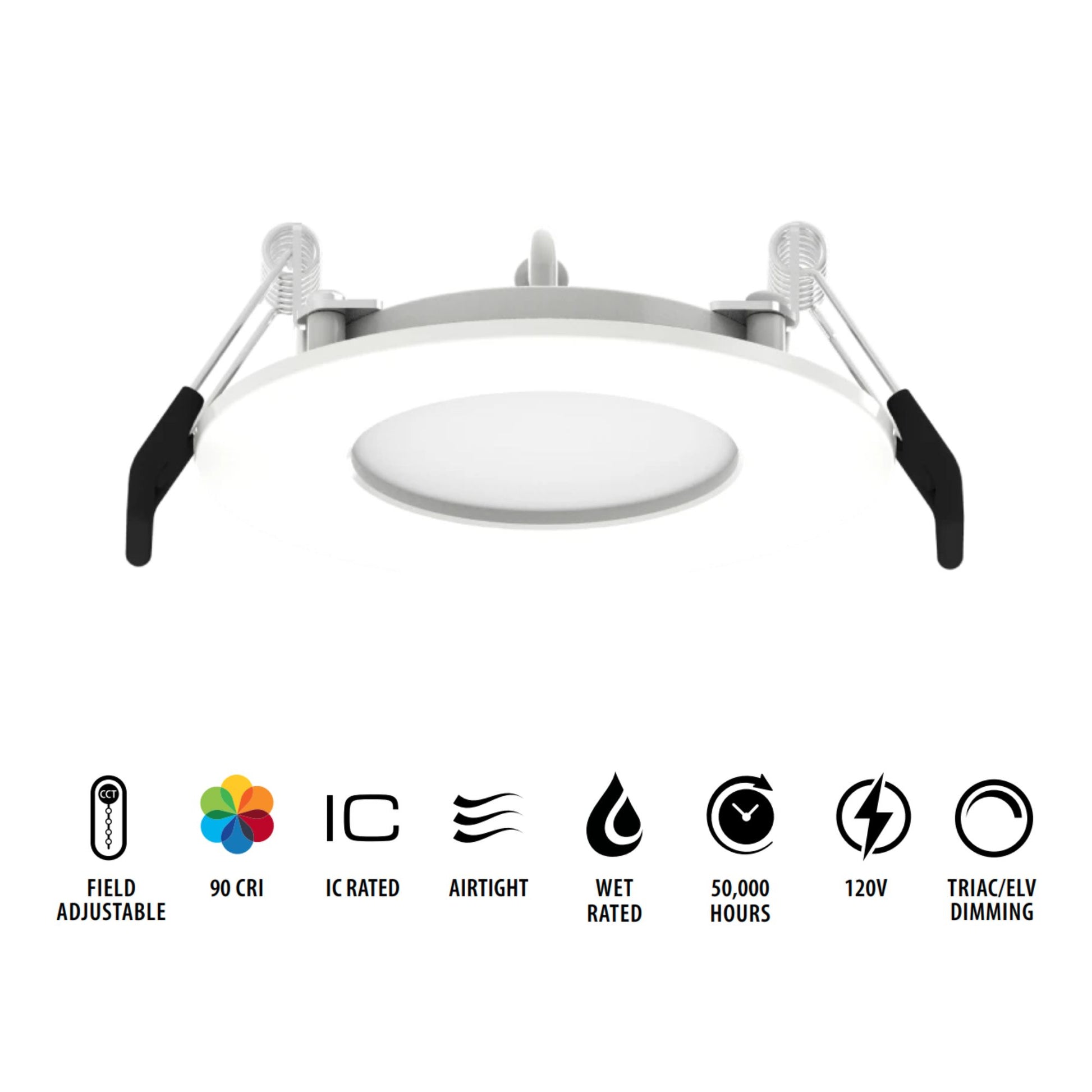

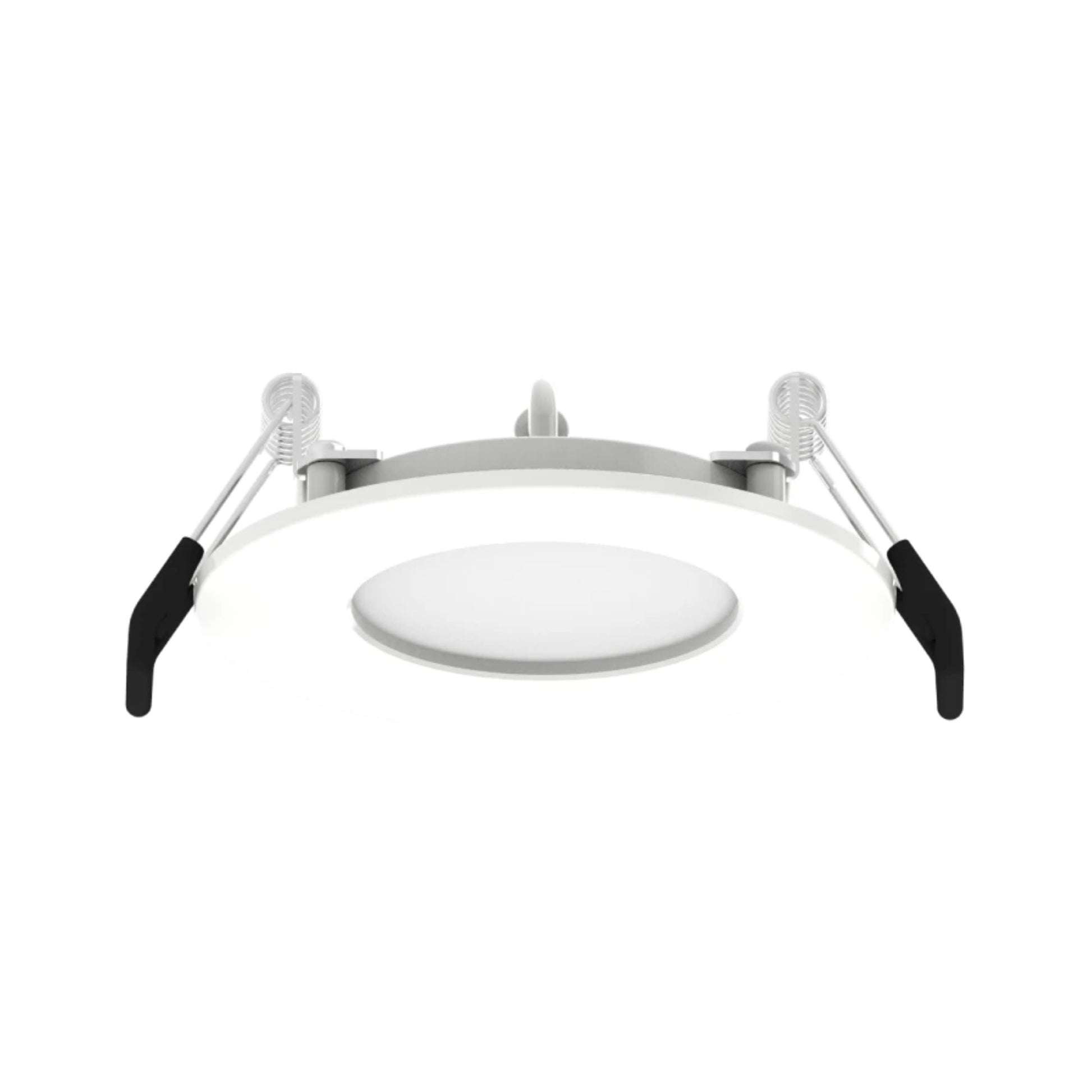

RAB Ultra Thin WFRL3R69CCT120WS 3 in. Smooth Trim Downlight — 6W / Selectable CCT
The RAB WFRL3R69CCT120WS is a 3-inch round smooth edge-lit wafer downlight delivering 500 lumens using 6W. This fixture offers selectable color temperatures ranging from 2700K to 5000K, making it versatile for various lighting needs.
Key Features
- Wattage: 6W
- Lumens: 500 lm
- Voltage: 120V
- Beam Angle: 110°±10°
- CRI: >90
- Dimming: TRIAC/ELV dimming down to 10%
- Lifespan: 50,000 hours
- Certifications: ENERGY STAR, Title 24 JA8, RoHS
- Construction: Die-cast aluminum with frosted polycarbonate lens
- Installation: Recessed, no housing required
- Environment: Suitable for wet locations
Construction & Aesthetics
This downlight features a robust die-cast aluminum construction with a frosted polycarbonate lens for even light distribution. It is available in a white finish and offers optional trim colors including black, bronze, and brushed nickel.
Electrical & Installation
Designed for easy installation, this fixture requires no recessed housing and includes a remote driver/junction box. It is compatible with various mounting plates and extension cables for flexible installation options.
Light Output & Performance
With a high CRI of over 90, this downlight ensures excellent color accuracy. It offers a wide beam angle of 110°±10° and maintains color consistency with less than 4-step MacAdam Ellipse binning.
Typical Applications
- Residential lighting
- Commercial spaces
- Hospitality environments
- Retail settings
- Outdoor covered areas
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the wattage equivalency of the RAB WFRL3R69CCT120WS?
What is the wattage equivalency of the RAB WFRL3R69CCT120WS?
Can the RAB WFRL3R69CCT120WS be used in wet locations?
Can the RAB WFRL3R69CCT120WS be used in wet locations?
Is a recessed housing required for installation?
Is a recessed housing required for installation?
What dimming systems are compatible with this downlight?
What dimming systems are compatible with this downlight?
What accessories are available for the RAB WFRL3R69CCT120WS?
What accessories are available for the RAB WFRL3R69CCT120WS?
