RAB Wafer WFRETRO6B 6 in Baffle Retrofit Downlight 15W Selectable CCT
Available in stock (100)
About this item
About this item
- Wafer Retrofit Design: Installs inside standard 5/6 in existing recessed housings — no new housing required
- Field-Adjustable Output: 3 brightness levels (15/13/11W, up to 1,421lm) and 5 CCTs (2700K-5000K) via dip switch
- Baffle Trim Lens: Frosted polycarbonate step baffle for reduced glare and smooth, even light diffusion
- Energy Star & Title 24 JA8 Certified: Meets California Title 24 Part 6 and Energy Star v2.2 requirements
- Air-Tight & Wet Rated: ASTM E283 air-tight certified; UL listed for dry, damp, and wet environments
We process payments securely and do not store credit card information.
Description
Description
RAB Wafer WFRETRO6B 6 in Baffle Retrofit Downlight — 15/13/11W / Selectable CCT
The RAB WFRETRO6B is a 6-inch baffle trim wafer retrofit downlight that installs directly into existing recessed housings using an E26 Edison socket adapter — no rewiring required. Delivering up to 1,421 lumens at 15W with field-selectable CCTs from 2700K to 5000K, it replaces a 100W incandescent lamp while offering full dimming capability down to 10%.

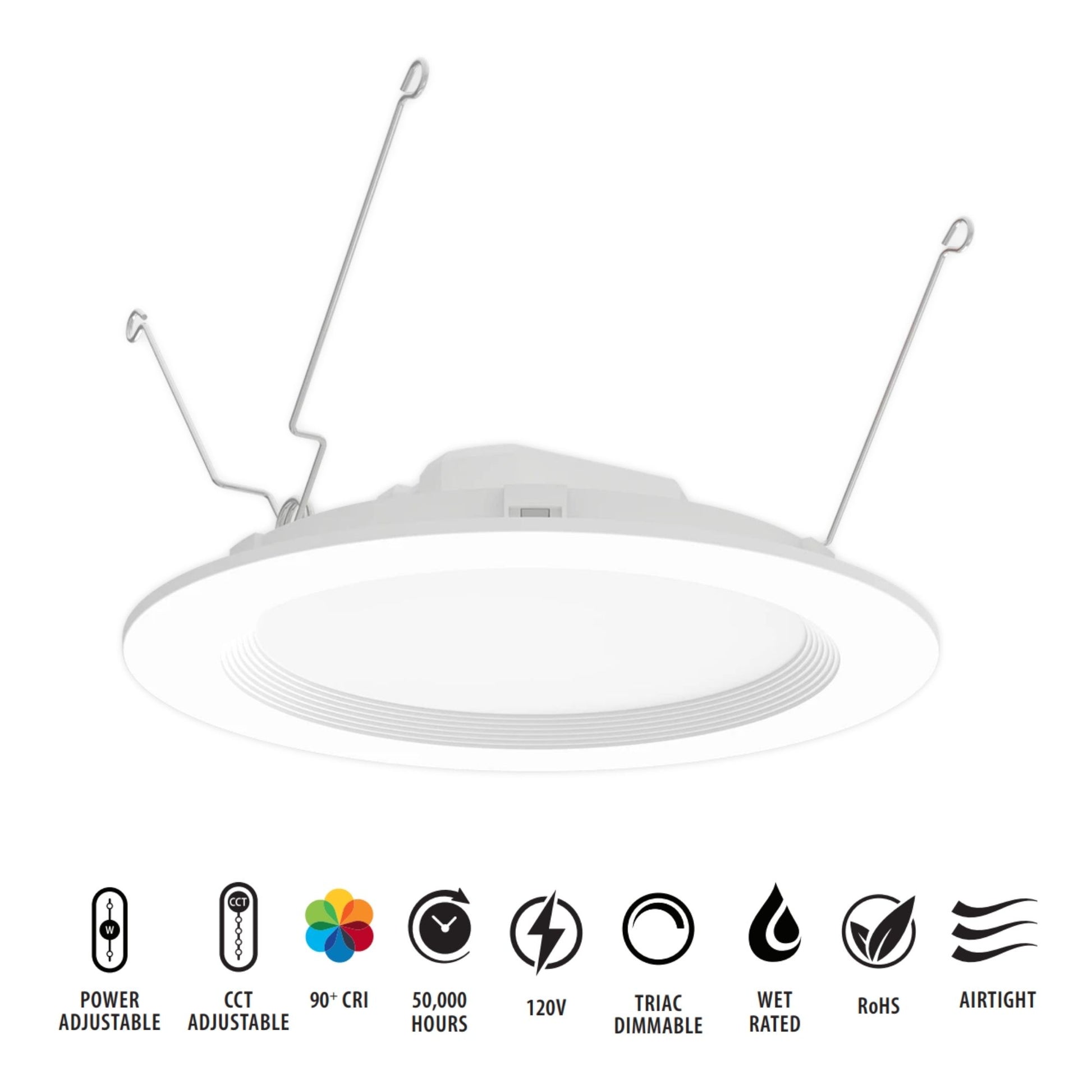

Key Features
- Input Wattage: Field-selectable 15W / 13W / 11W via dip switch
- Lumen Output: Up to 1,421lm (15W) / 1,266lm (13W) / 1,073lm (11W)
- CCT: Field-selectable 2700K / 3000K / 3500K / 4000K / 5000K
- CRI: 90+ (R9 greater than 50)
- Beam Angle: 110 in +/-10 in
- Dimming: TRIAC/ELV compatible, dims to 10%
- Lifespan: 50,000 hours (L70, IES LM-70)
- Input Voltage: 120V, Constant Current Class 2 driver
- Trim Style: Baffle with frosted polycarbonate lens
- Energy Star: Version 2.2 Certified (Energy Star ID 3398293)
- Title 24 JA8: California Title 24 Part 6 compliant
- RoHS: Mercury and UV free, RoHS-compliant components
Construction & Aesthetics

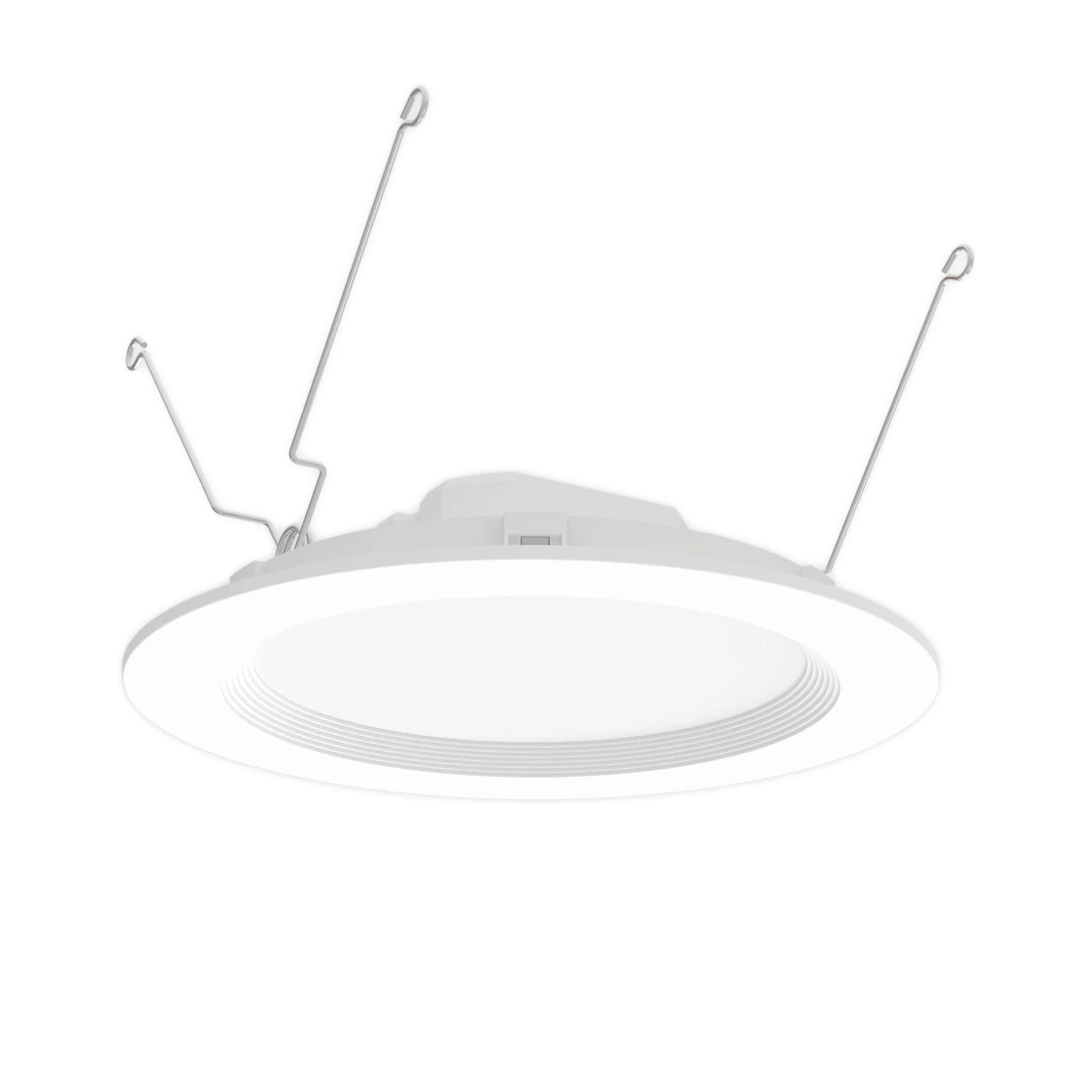

The WFRETRO6B features a white baffle trim with a frosted polycarbonate lens that distributes light evenly and smoothly for general lighting applications. The plastic and metal enclosure is air-tight certified per ASTM E283, ensuring energy efficiency and code compliance.
Electrical & Installation

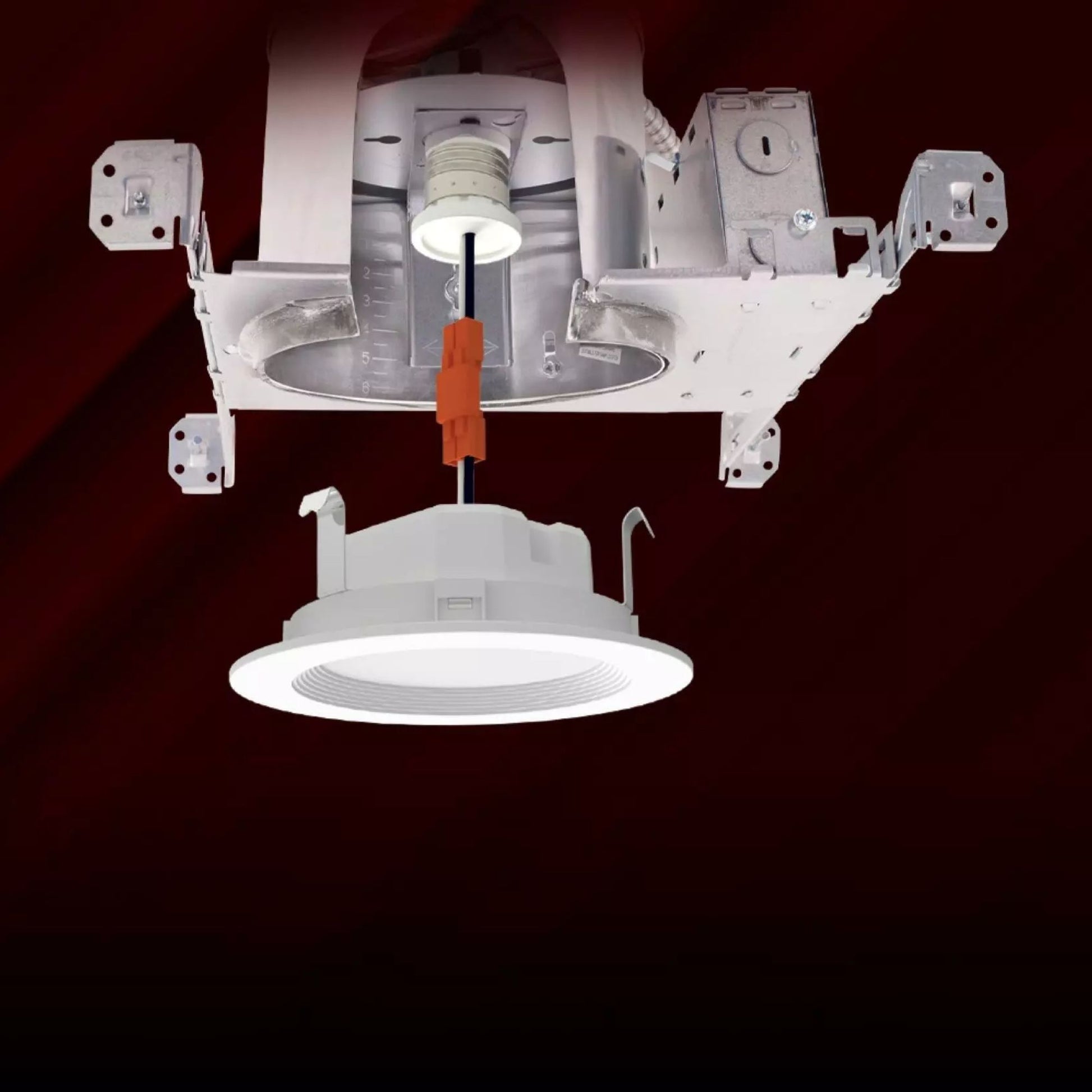

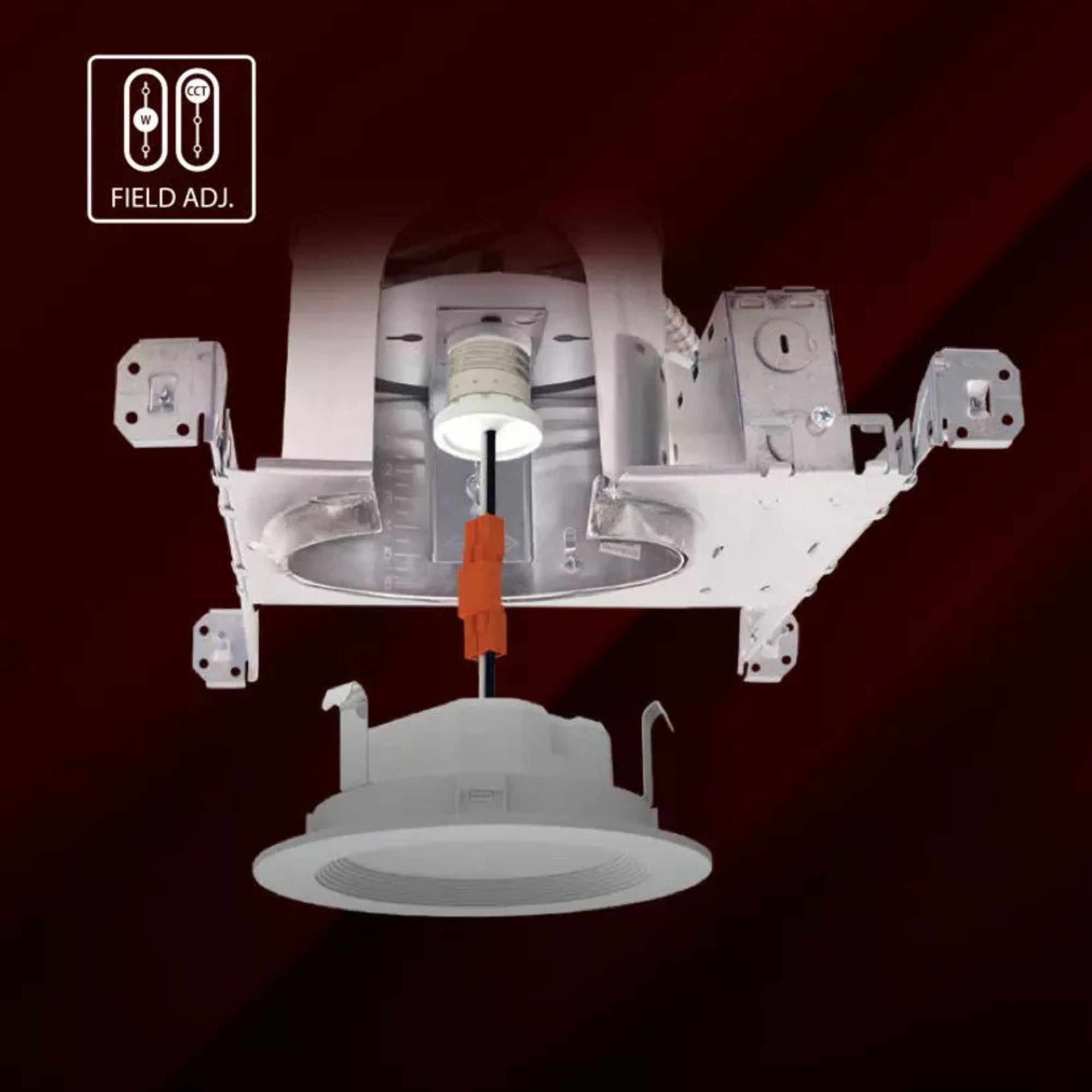

Installation is tool-free using the included E26 Edison socket adapter — simply screw into the existing recessed socket and snap into the housing. Compatible with standard 5/6 in recessed downlight housings. For new construction, pair with NDCANIC6R (6 in new construction IC-rated housing) or RDCANIC6R (6 in remodel IC-rated housing). Emergency backup power available via DRI-21-EMGR-DC-D10. Operates at 120V on compatible TRIAC/ELV dimming systems.
Light Output & Performance
The WFRETRO6B delivers up to 1,421 lumens at 15W with a 101 lm/W efficacy at peak output. The 110-degree beam angle provides wide-area illumination for general ambient lighting. Color consistency maintained within a 4-step MacAdam Ellipse with less than 200K CCT shift over 5 years. Rated for 50,000 hours per IES LM-70 testing.
Typical Applications

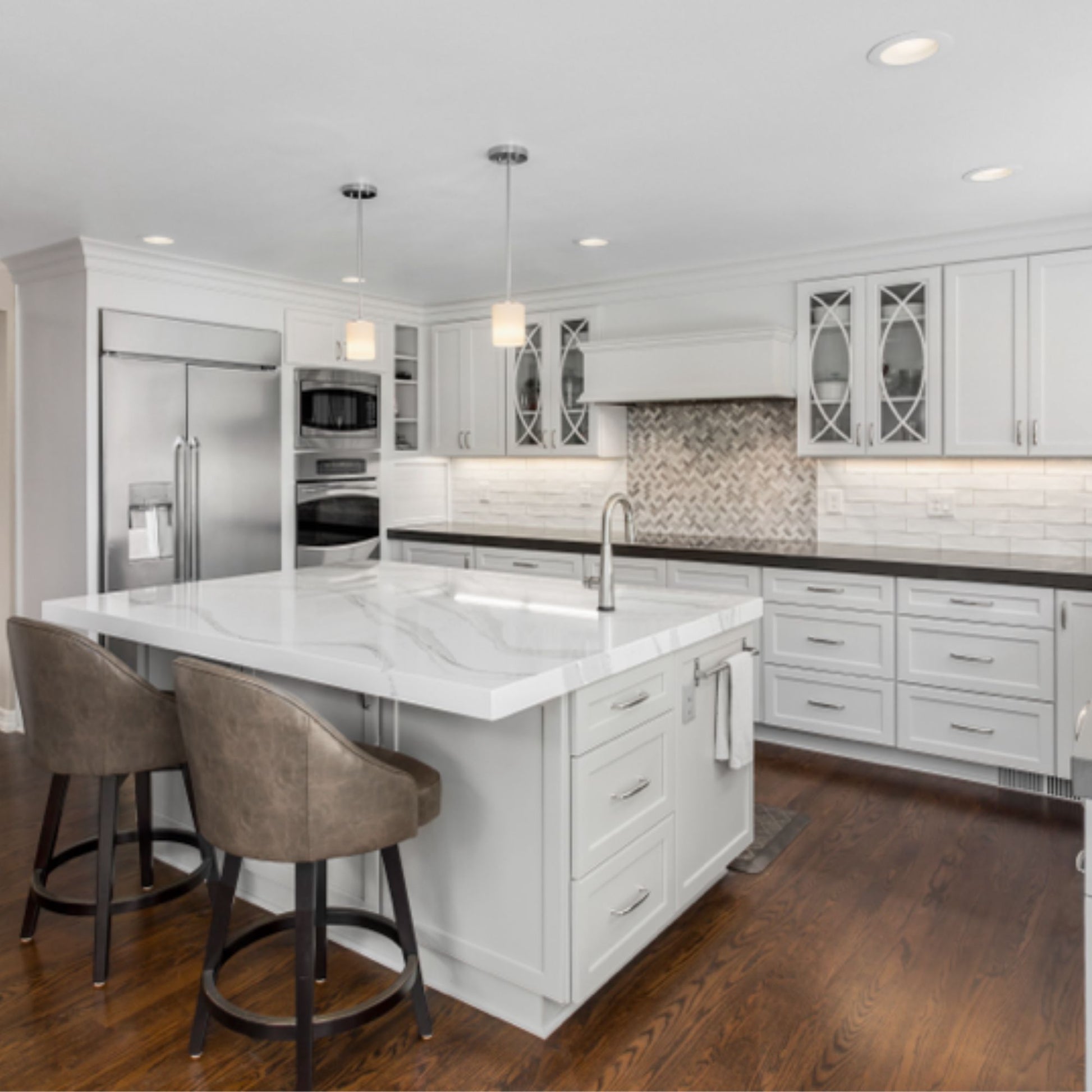

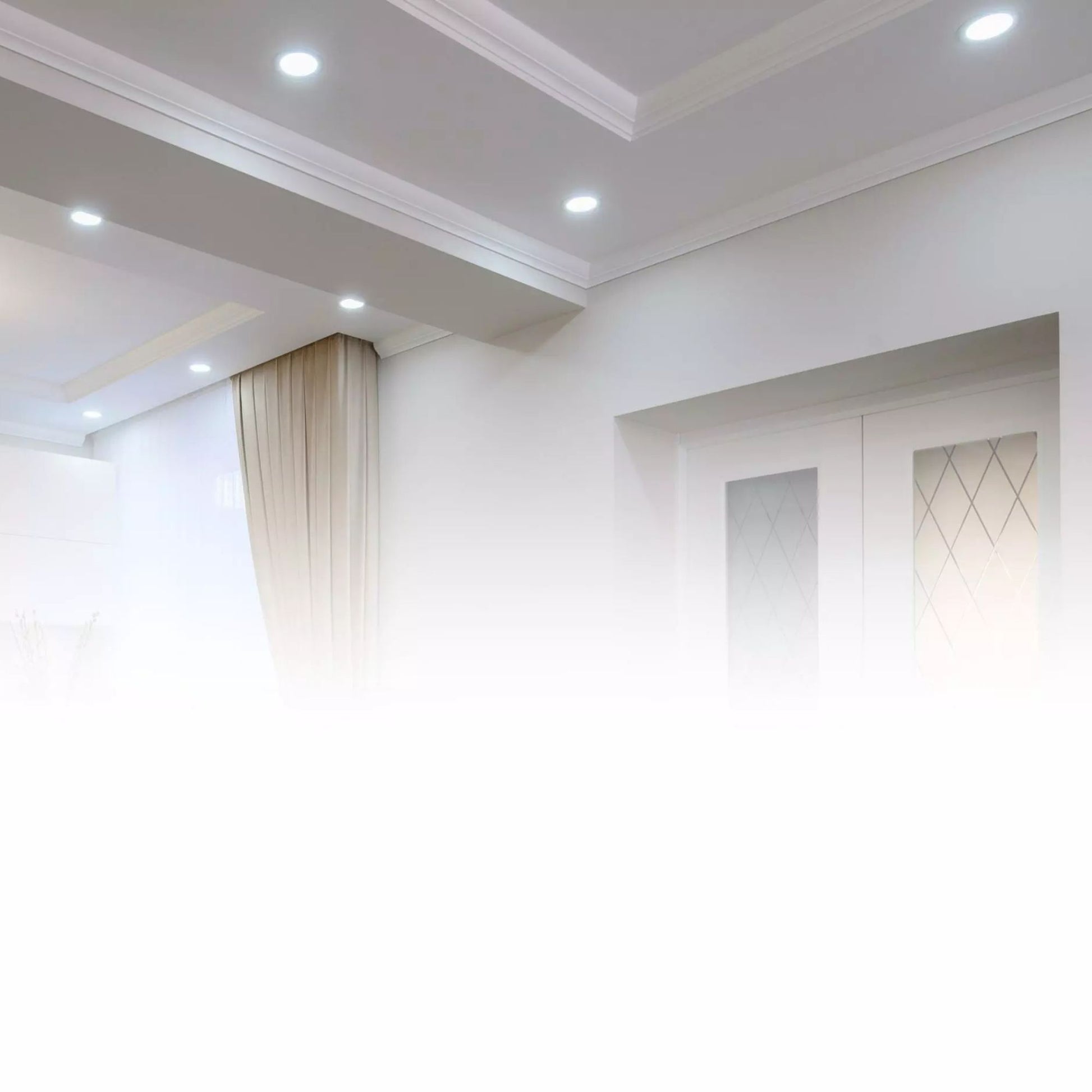

- Residential remodel lighting in kitchens, bathrooms, and living areas
- Rental property updates and energy retrofit projects
- Low-clearance ceilings where canless or wafer-style fixtures are required

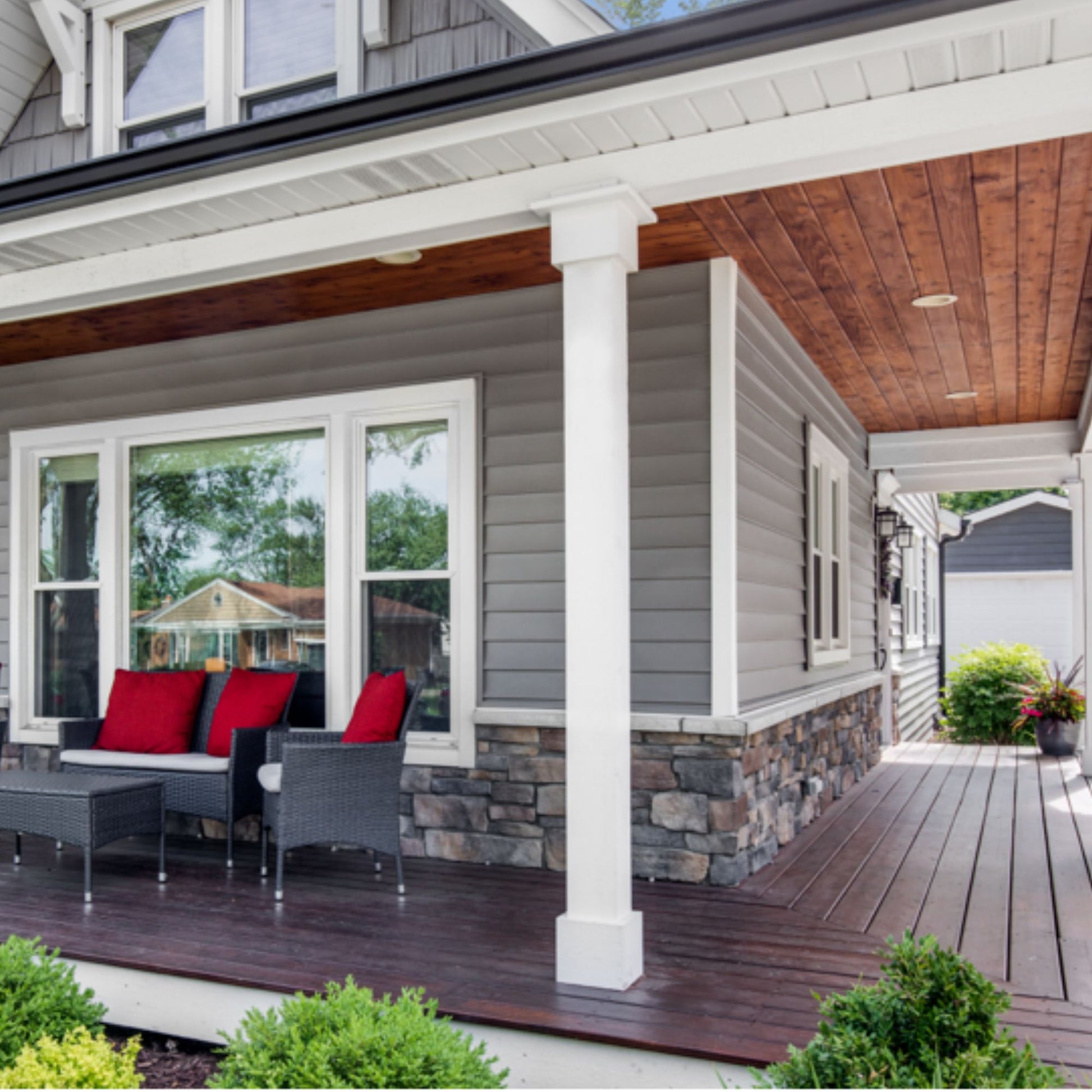

- Wet locations including bathrooms, covered patios, and canopies
Specifications
Specifications

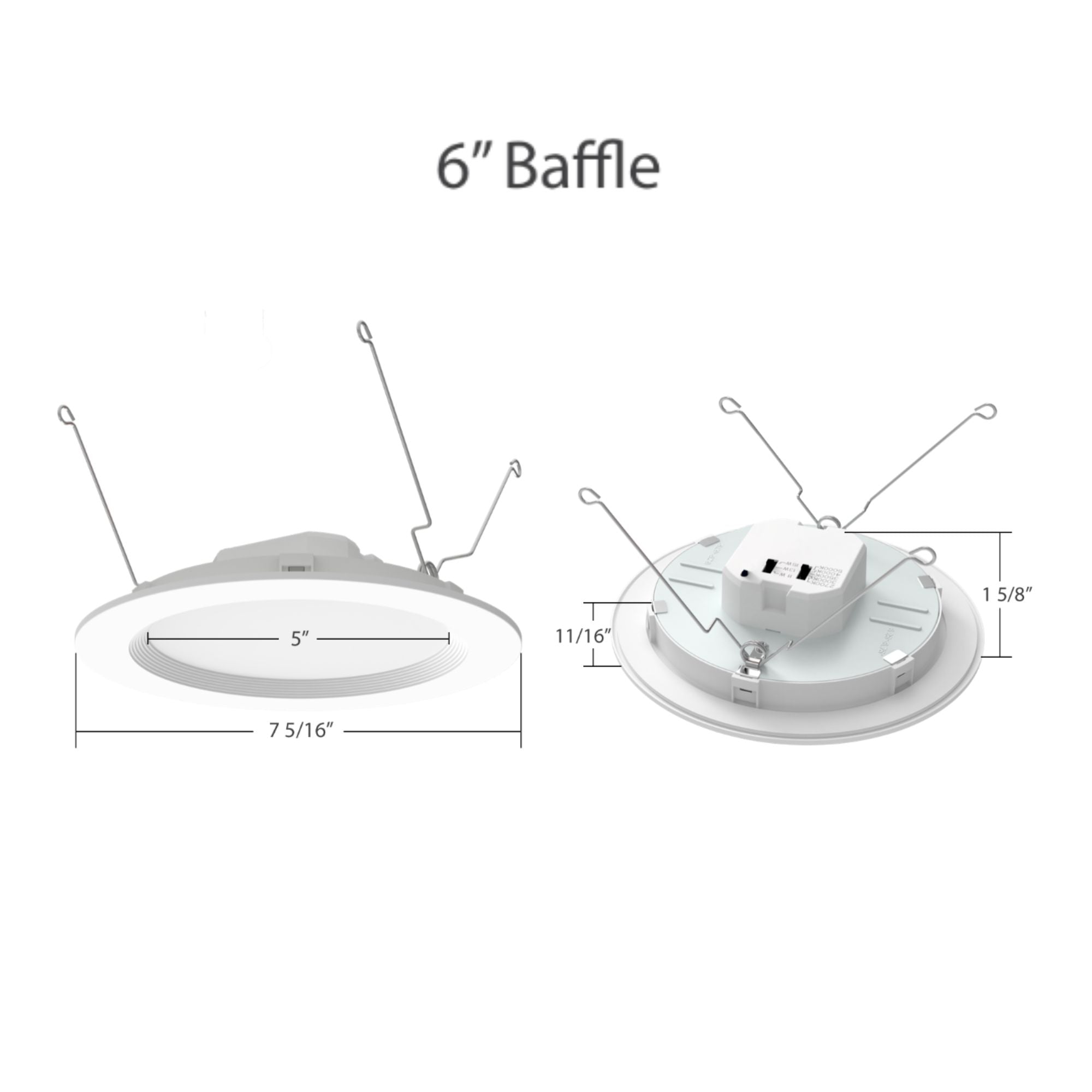

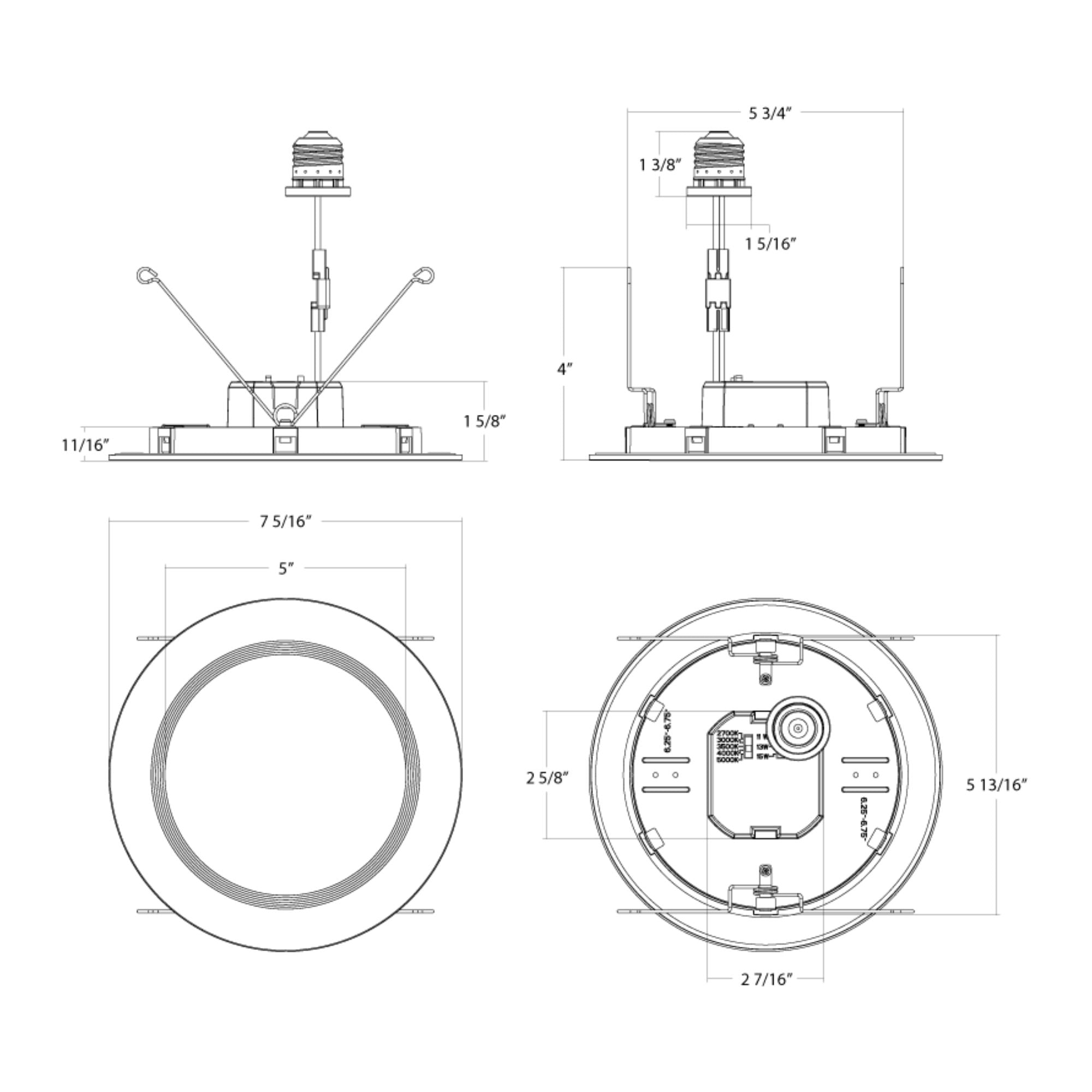

Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Does the RAB WFRETRO6B require a new recessed housing, or does it work with existing cans?
Does the RAB WFRETRO6B require a new recessed housing, or does it work with existing cans?
Is the RAB WFRETRO6B IC rated for installation in insulated ceilings?
Is the RAB WFRETRO6B IC rated for installation in insulated ceilings?
What accessories are compatible with the RAB WFRETRO6B?
What accessories are compatible with the RAB WFRETRO6B?
Is the RAB WFRETRO6B dimmable, and what dimmer switches are compatible?
Is the RAB WFRETRO6B dimmable, and what dimmer switches are compatible?
How much light does the WFRETRO6B produce, and what size room does it work for?
How much light does the WFRETRO6B produce, and what size room does it work for?
