RAB WFRETRO34-6 6 in Round Smooth Retrofit Wafer Downlight — 11W / Selectable CCT / 120V / White

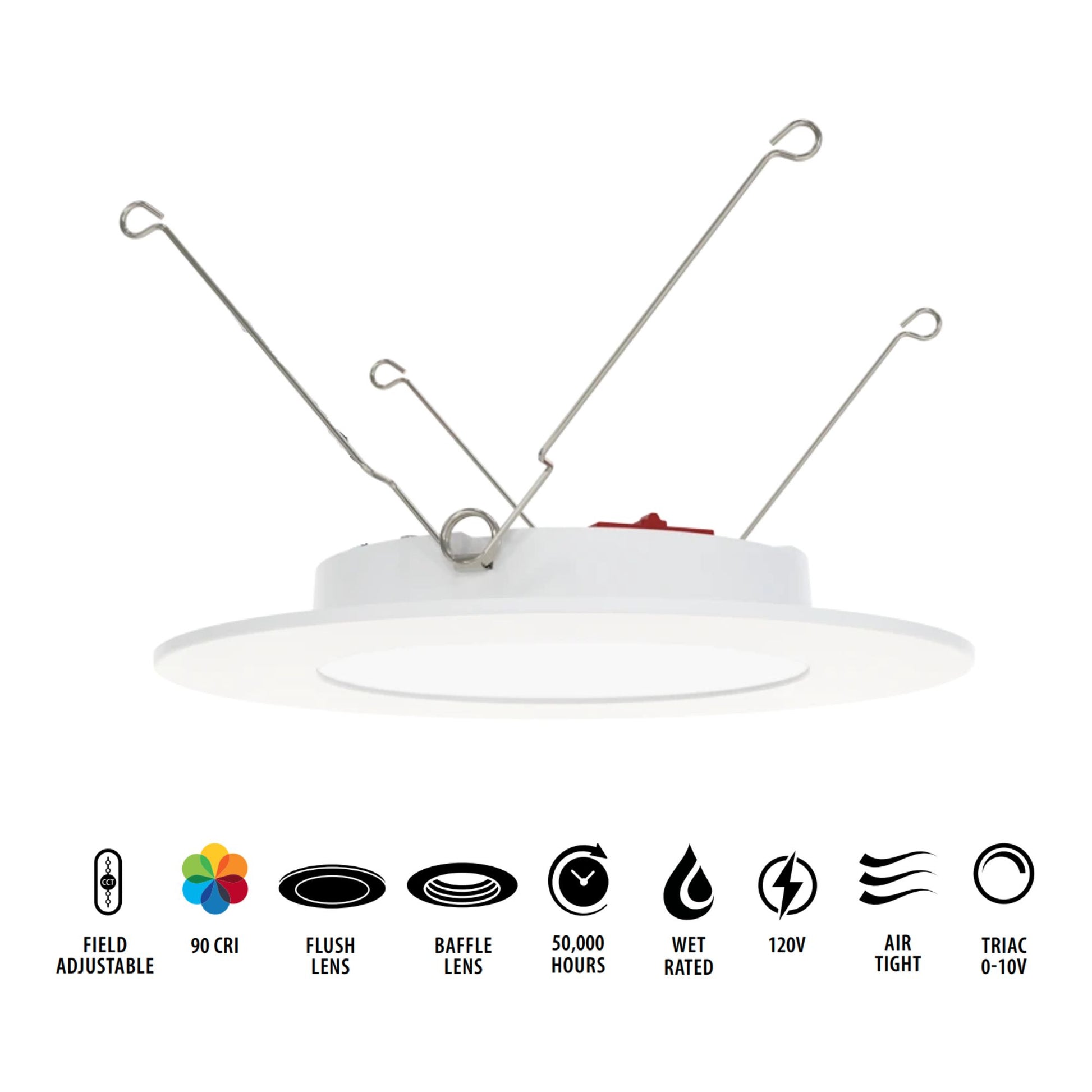

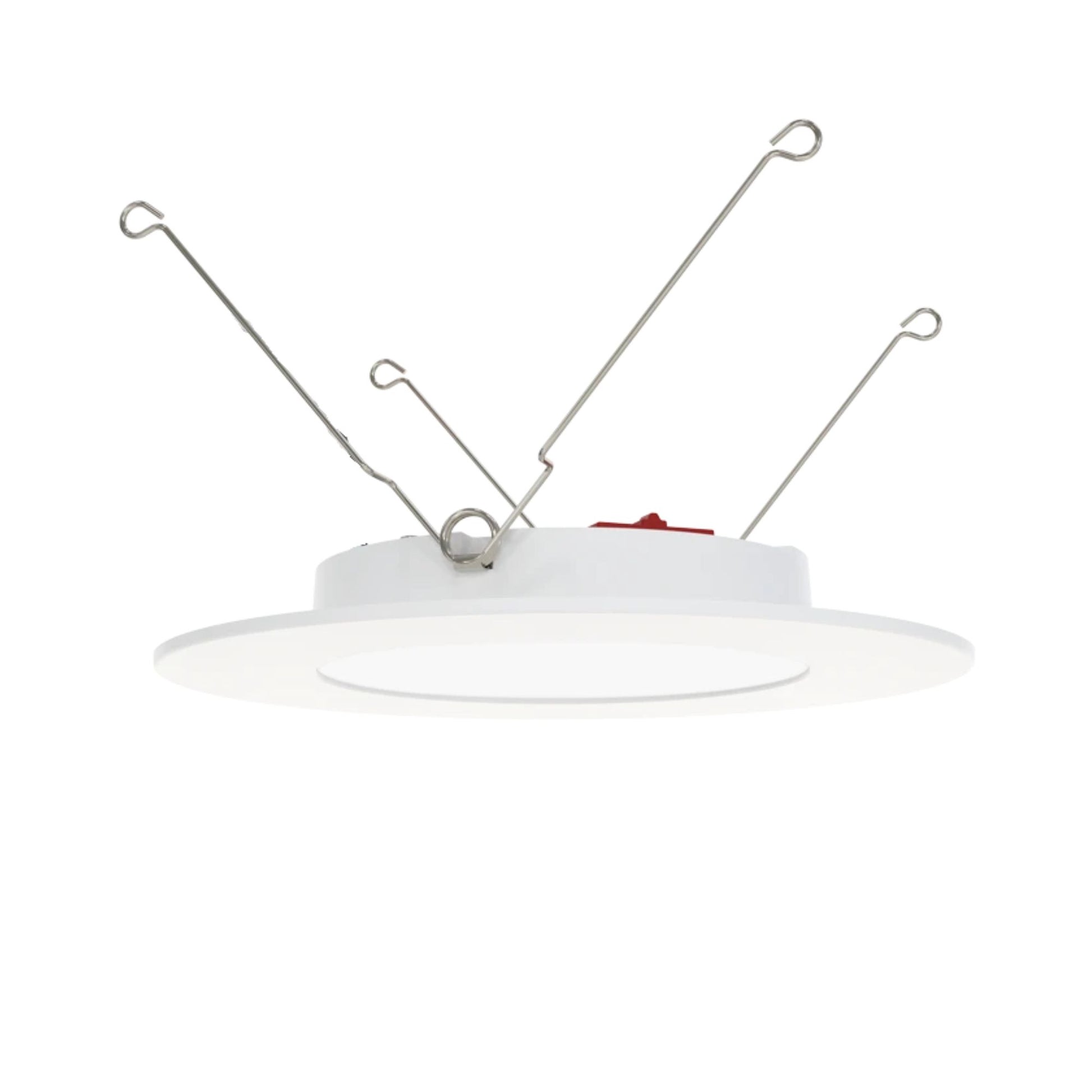

The RAB WFRETRO34-6 is a 6 in round retrofit wafer downlight in white with a smooth trim, delivering 1,100 lumens at 11W and 100 lm/W with a 110° beam angle and 90 CRI. Installs into existing standard 4 in or 6 in recessed housings via the included E26 Edison base adapter — no new wiring required. CCT is field-selectable 2700K–5000K via dipswitch (default: 3000K) with TRIAC/ELV dimming at 120V.

Key Features

• 6 in Round Retrofit Wafer — White Smooth: Plastic enclosure; E26 Edison base adapter included; fits standard 4 in or 6 in recessed housings
• No New Wiring Required: Screws directly into existing housing Edison socket; flush lens sits at ceiling plane
• Field-Selectable CCT: Dip-switch adjustable between 2700K, 3000K, 3500K, 4000K, and 5000K (default: 3000K); 5 CCTs in 1 SKU
• Wattage: 11W | 60W incandescent equivalent | 1,100 lm | 100 lm/W
• CRI & Beam: 90 CRI, R9 > 50 | 110° (±10°) beam angle
• Dimming: TRIAC/ELV dimmable to 10% at 120V
• Voltage: 120V
• Airtight: Housing certified airtight per ASTM E279; wet location rated
• Certifications: UL Listed, UL Classified, UL Recognized | ENERGY STAR, Title 20, Title 24 JA8, RoHS, FCC Part 15 | NEC closet compliant Sec. 410.16 (A)(1) & (C3)
• Color Consistency: <4-step MacAdam Ellipse
• Lifespan: 50,000 hours L70 per IES LM-70
• Warranty: 5-year warranty

Construction & Design

Plastic enclosure with white smooth trim. Polycarbonate light diffuser distributes light evenly and smoothly. Airtight per ASTM E279. Flush lens sits at ceiling plane for a clean wafer-style appearance from below.

Light Output & Performance

1,100 lm at 100 lm/W, 110° beam angle, 90 CRI, R9 > 50. Field-selectable CCT (2700K–5000K, default 3000K). <4-step MacAdam Ellipse consistency. 50,000 hrs L70 per IES LM-70. Flicker ≤30%.

Electrical & Installation

120V Constant Current Class 2 driver (105mA). TRIAC/ELV dimmable to 10%. Screws into existing E26 Edison socket in standard 4 in or 6 in recessed housing — no new wiring required. THD ≤20%, PF ≥0.9. Operating temp: -4°F to 104°F (-20°C to 40°C).

Compatible Accessories (sold separately)

• NDCANIC6R — 6 in new construction housing

• RDCANIC6R — 6 in retrofit housing


What’s Included

• RAB WFRETRO34-6 6 in round smooth retrofit wafer downlight (white)

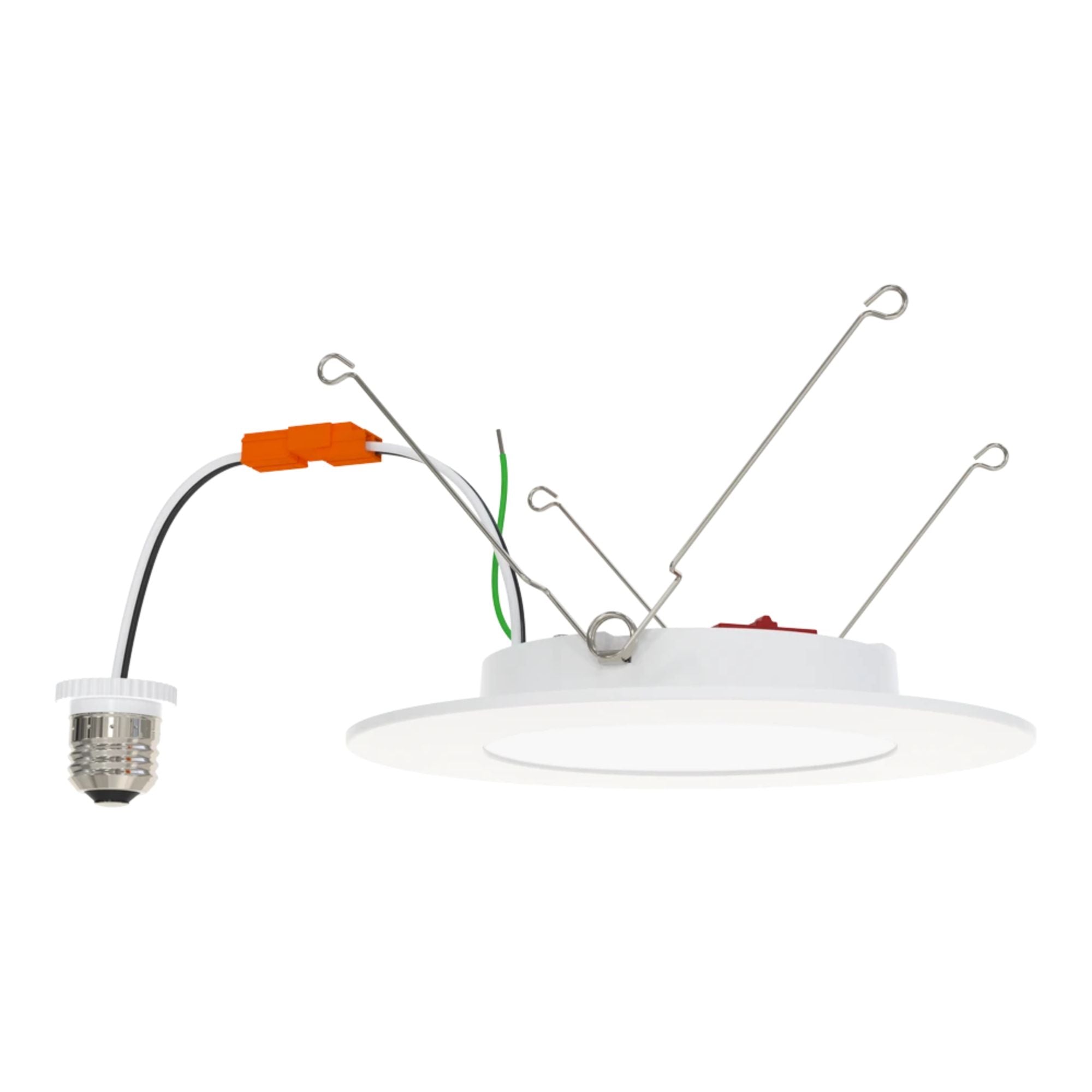

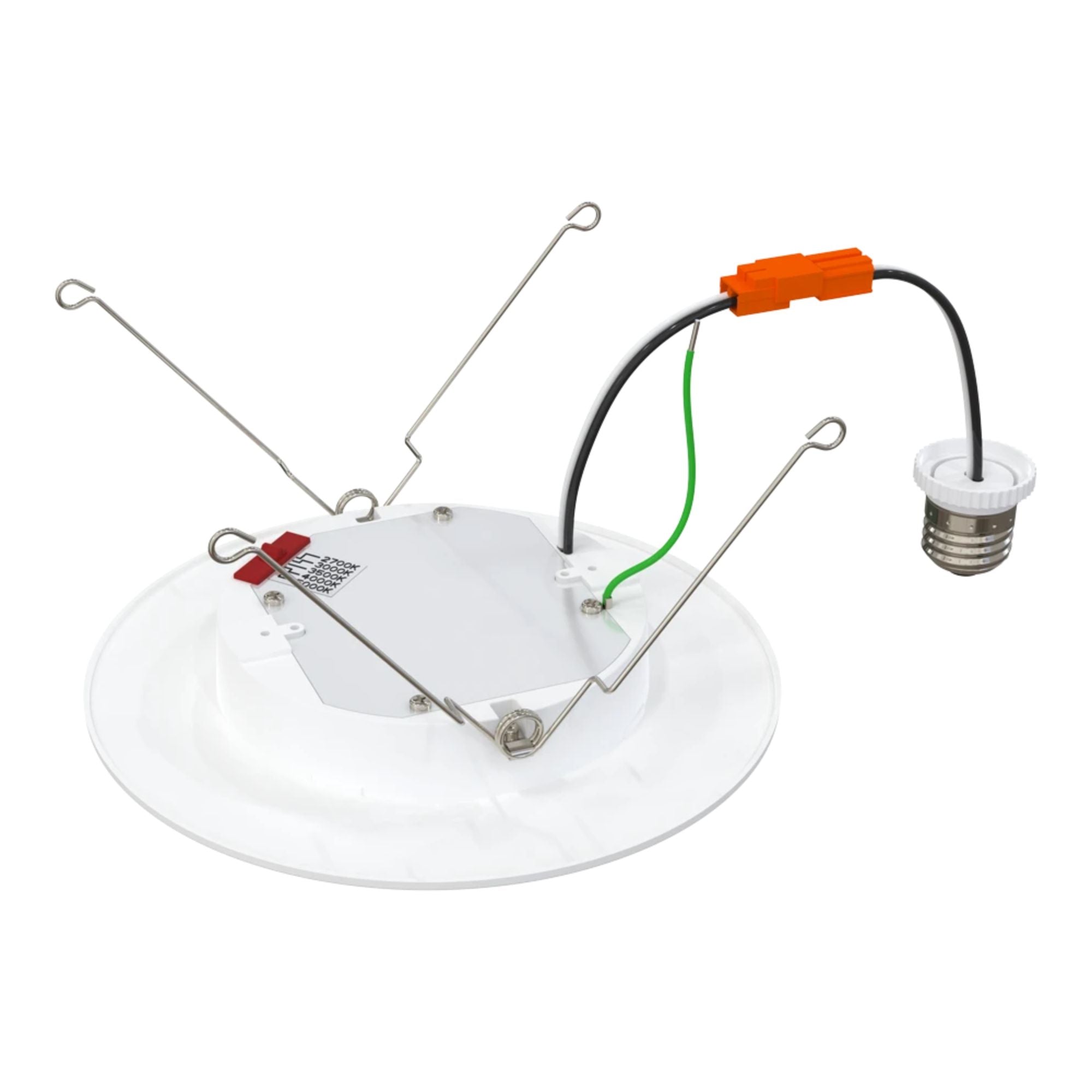

• E26 Edison base adapter

Typical Applications

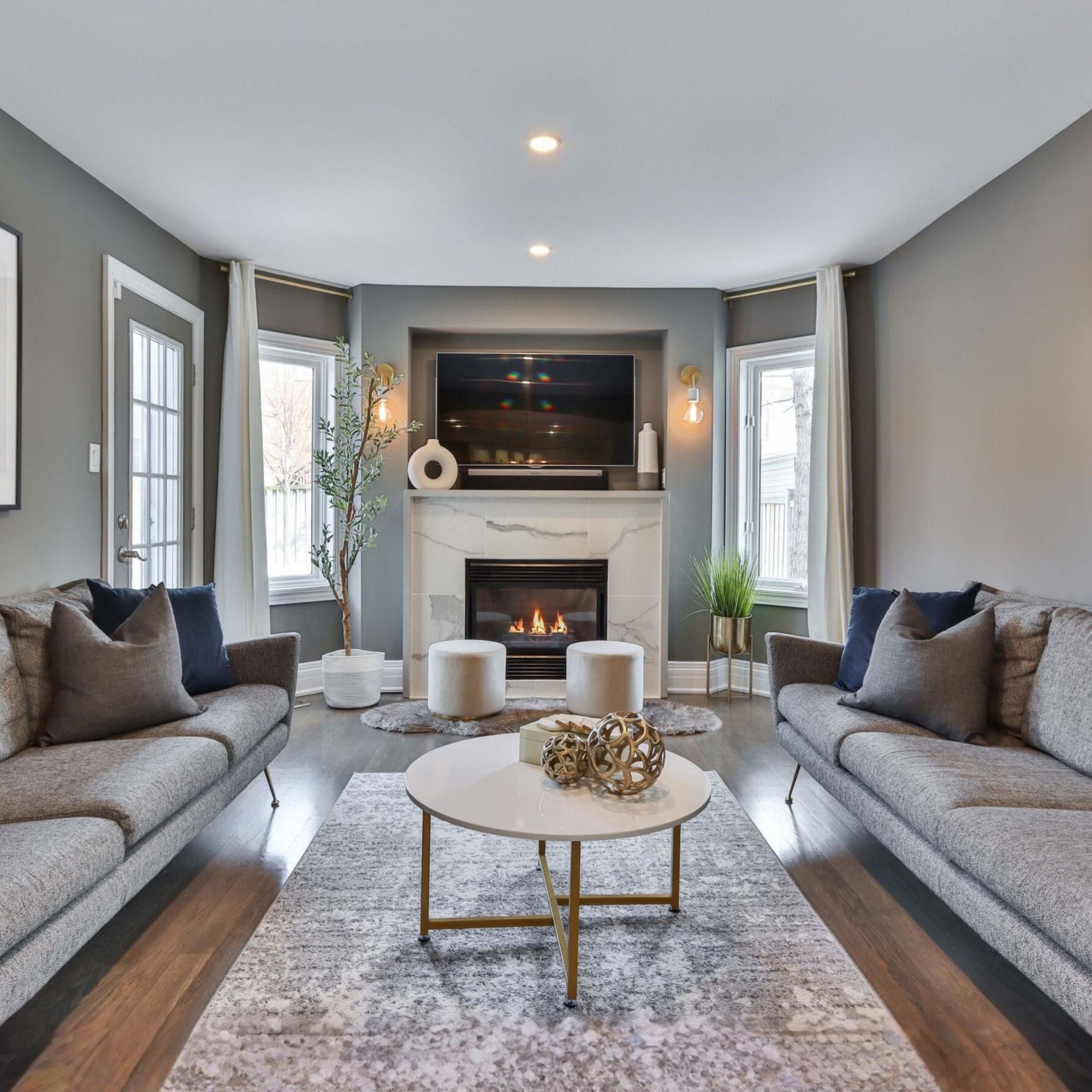

• Residential retrofit upgrades replacing existing 4 in or 6 in incandescent or CFL downlights
• Kitchens, bathrooms, and hallways
• Closets and utility spaces
• Covered outdoor and wet location areas
• Commercial remodel projects requiring housing-compatible LED retrofits
