RAB WFR34-6 6 in Round Smooth Canless LED Wafer Downlight — Selectable CCT / 13W / 897–1040 lm / TRIAC/ELV / 120V / White

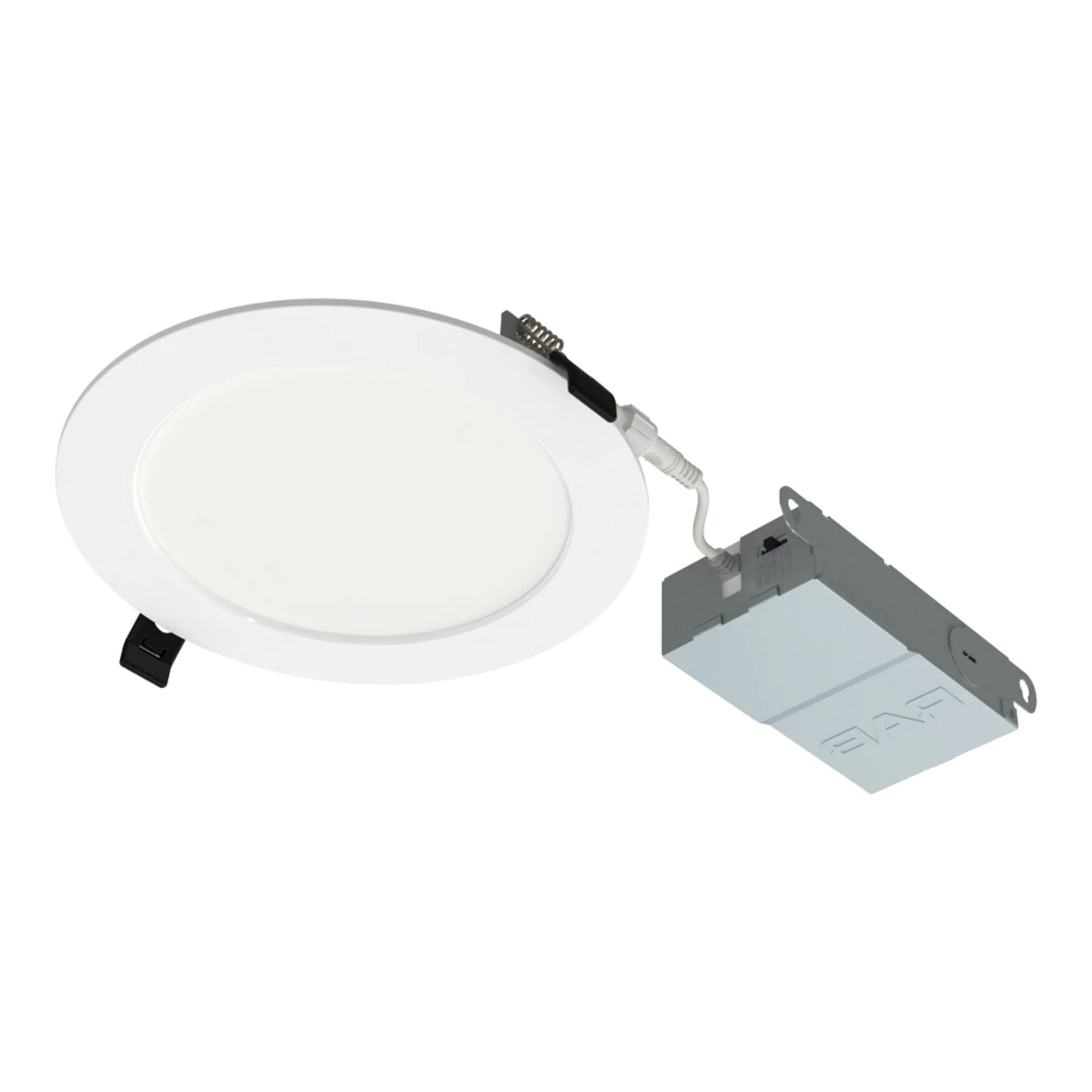

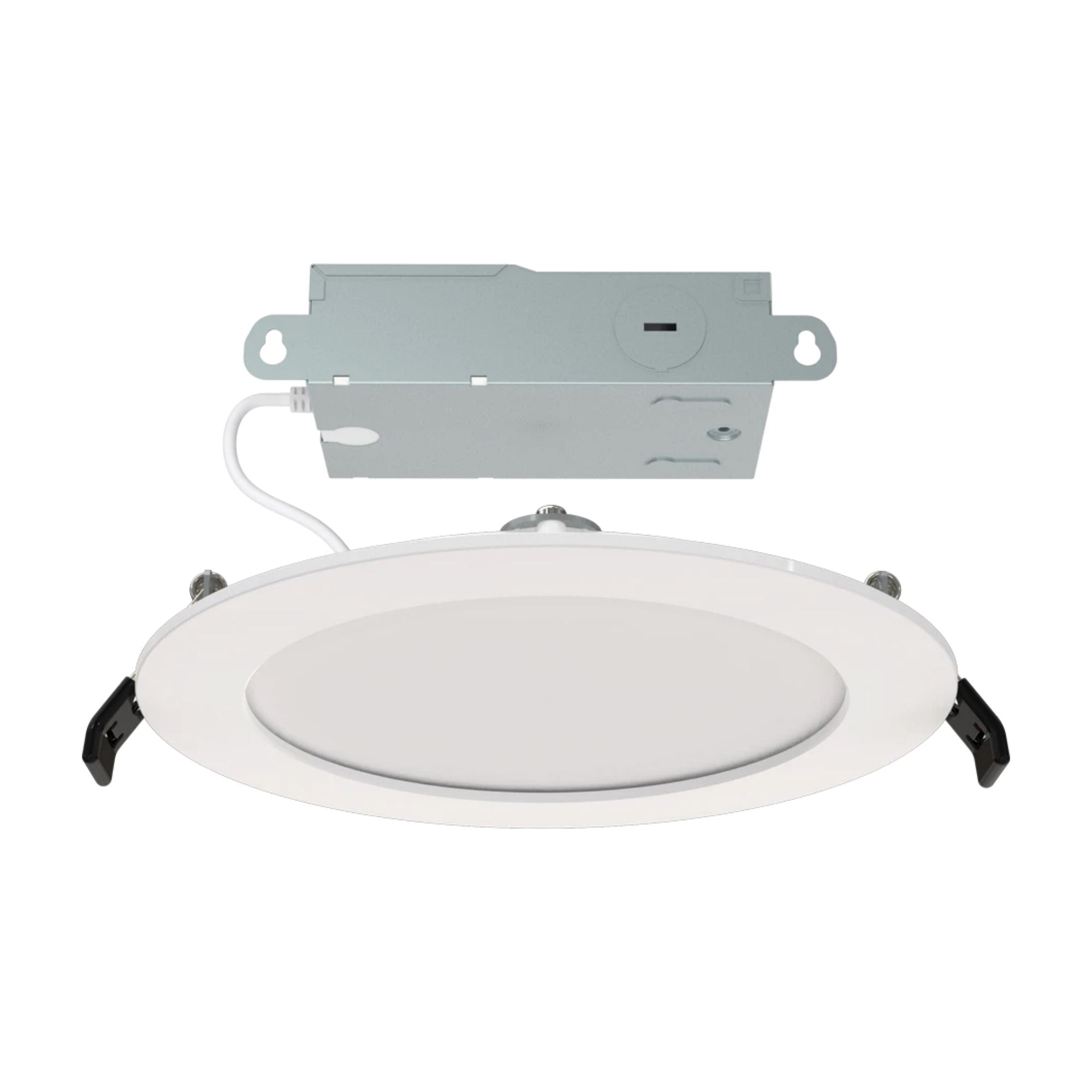

The RAB WFR34-6 is a 6 in round smooth canless LED wafer downlight with a pre-wired remote driver/junction box — no recessed housing required. Field-adjustable CCT via dip switch: 2700K, 3000K, 3500K, 4000K, or 5000K. Delivers 897–1040 lm at 12.4–13W, CRI 90, R9 >50, 110° wide beam. TRIAC/ELV dimmable to 10%. Wet rated. IC rated. CA T24 JA8 Compliant. UL Listed. TAA Compliant. 3-year limited warranty. L70: 30,000 hours.

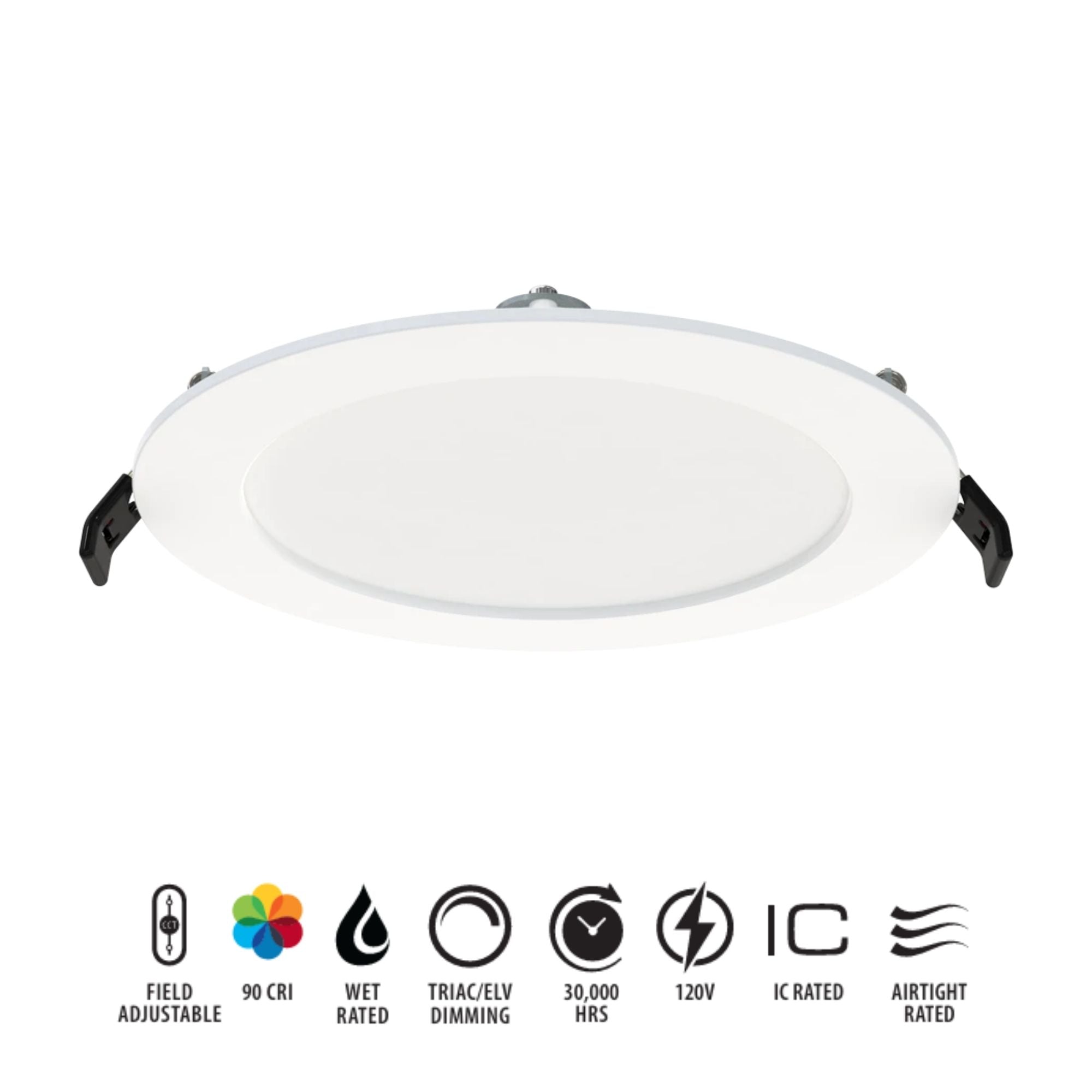

Key Features

• Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K — field adjustable via dip switch at installation
• Light Output: 897–1040 lm at 12.4–13W, CRI 90, R9 >50, 110° beam angle — replaces 75W incandescent
• Efficacy: 70.7–83.8 lm/W
• Dimming: TRIAC/ELV — dims to 10% on compatible systems. See RAB Dimmer Compatibility List.
• Voltage: 120V / 60Hz
• Driver: Constant current, 120V @ 118mA, 12.4–12.7W input
• Power Factor: 0.9 | THD: <20% | Flicker: <30%
• Color Consistency: <5-step MacAdam (2700K/5000K); <7-step (3000/3500/4000K)
• Fixture: 6 in round, white finish, frosted polycarbonate diffuser lens, plastic + metal construction — weight 0.9 lbs
• Trim Style: Smooth

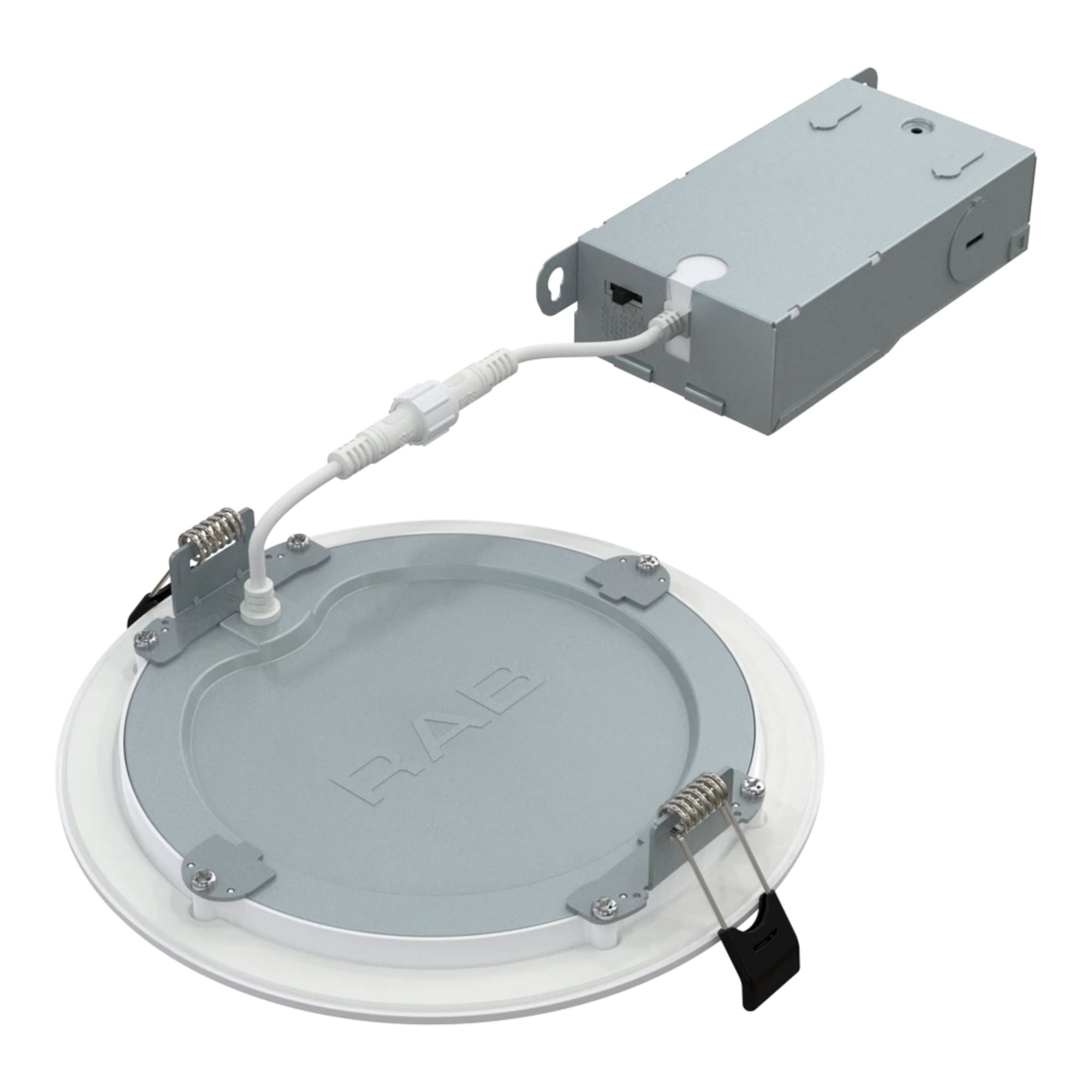

• Driver/J-box: Aluminum, captive hinged cover, listed for (6) #12 AWG 90°C splice conductors, 2-in/2-out + (2) ground. Integral keyhole mounting slots.
• Ratings: Wet rated, IC rated, not airtight — not for direct contact with spray foam insulation
• Certifications: CA T24 JA8 Compliant (DLW0148(WFR34-6)), CEC Lawful for Sale in CA, UL Listed, TAA Compliant, NEC Compliant (Sec. 410.16), FCC Compliant, RoHS Compliant, IESNA LM-79/LM-80 Tested
• Lifespan & Warranty: 30,000 hours L70 — 3-year limited warranty (light output, driver, paint finish)

Construction & Design

Round, 6 in, white finish, frosted polycarbonate diffuser, plastic and metal construction. Smooth trim style. Dead front non-metallic trim for corrosive environments; aluminum back plate for heat dissipation. Wet rated and IC rated. Not airtight. Not for use in direct contact with spray foam insulation. Remote driver/J-box includes quick disconnect for tool-free fixture removal.

Light Output & Performance

Delivers 897–1040 lm at 12.4–13W (varies by CCT), CRI 90, R9 >50, 110° wide beam angle. Efficacy 70.7–83.8 lm/W. Selectable CCT 2700K–5000K via dip switch. Replaces 75W incandescent. L70: 30,000 hours per IESNA LM-79/LM-80 results.

Electrical & Installation

120V / 60Hz. TRIAC/ELV dimming to 10% — consult RAB Dimmer Compatibility List. PF 0.9; THD <20%; flicker <30%; op temp: -20°C (-4°F) to +40°C (+104°F). Canless — no recessed housing required. Mounts directly to building structure or new construction frame via integral keyhole slots. Mounting frames sold separately.

Compatible Accessories (Sold Separately)

• 6–8 in Goof Ring Round White: RAB WFRL-GOOF-6R-8R-W
• 6 in Color Trim Round Black Smooth: RAB WFRL-TRIM-6R-BS
• 6 in Color Trim Round Bronze Smooth: RAB WFRL-TRIM-6R-BRS
• 6 in Color Trim Round Brushed Nickel Smooth: RAB WFRL-TRIM-6R-BNS
• 3–4–5–6 in Mounting Plate w/Nailer Bar: RAB DLPLATE/WFR3456NB
• 3–4–5–6 in Mounting Plate: RAB DLPLATE/WFR3456
• 6 in Mounting Plate w/Nailer Bar & Drywall Collar: RAB DLPLATE/WFR6/NB/CL
• 6 in Mounting Plate: RAB DLPLATE/WFR6

Typical Applications

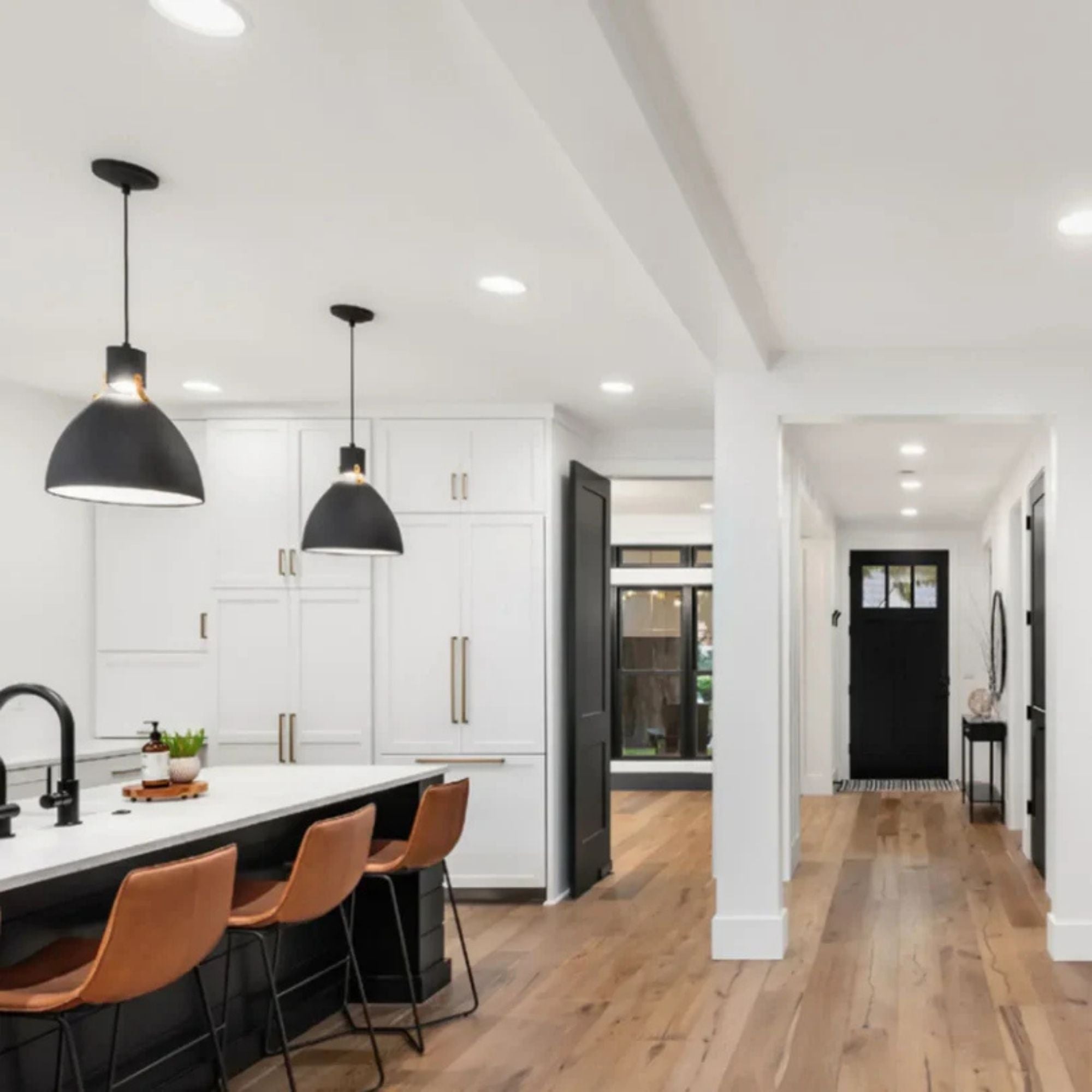

• Residential new construction and remodel
• Bathrooms, kitchens, and wet locations
• Shallow ceiling and low-clearance installations
• Multi-family and light commercial applications

What’s Included

• RAB WFR34-6 6 in smooth round canless LED wafer downlight with remote driver/J-box (white) — single unit
