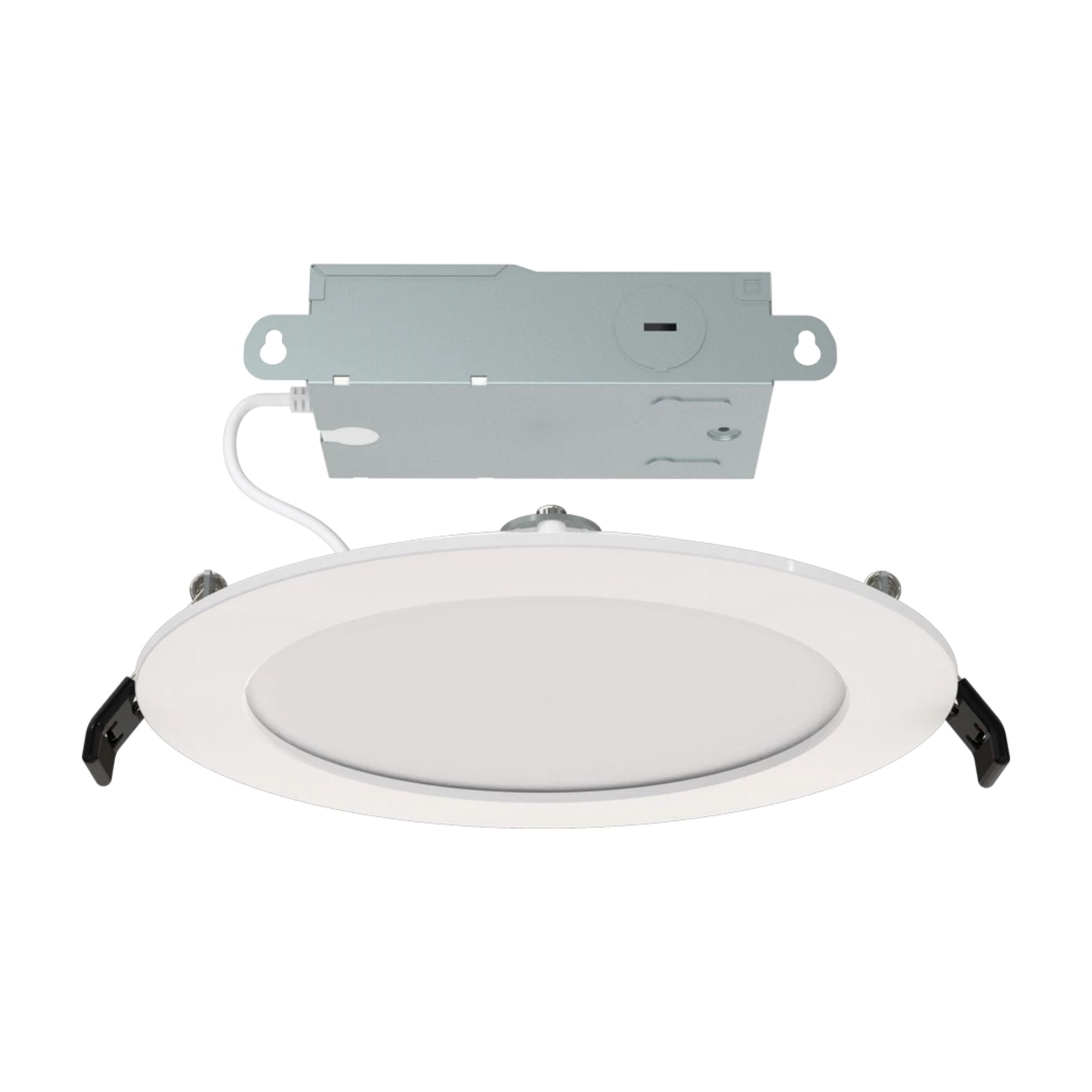

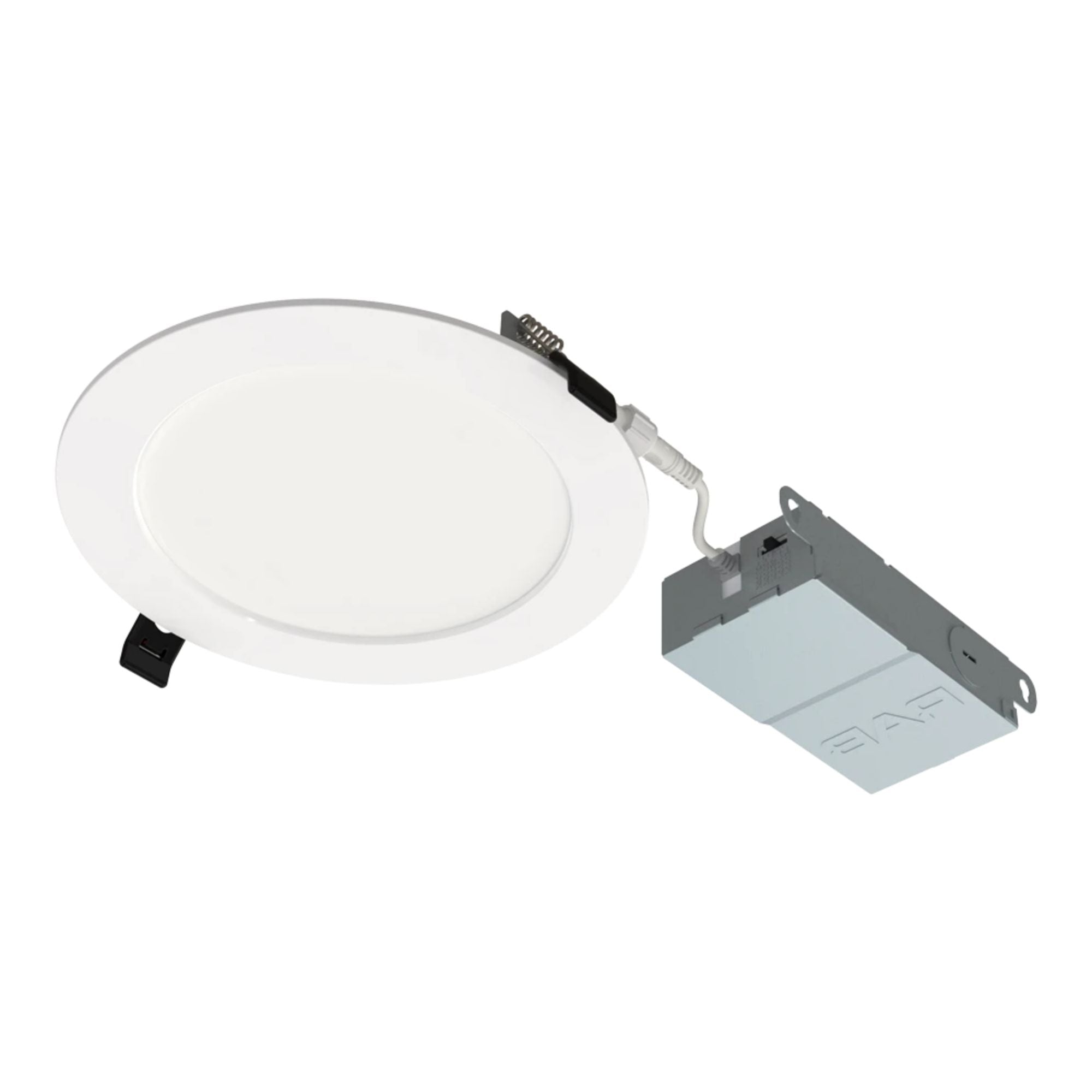

RAB WFR34-6/BP 6 in. Smooth Trim Downlight — 13W / Selectable CCT

The RAB WFR34-6/BP is a 6-inch smooth trim downlight delivering 897-1040 lumens using 13W. This versatile fixture offers selectable color temperatures ranging from 2700K to 5000K, making it suitable for various lighting needs.

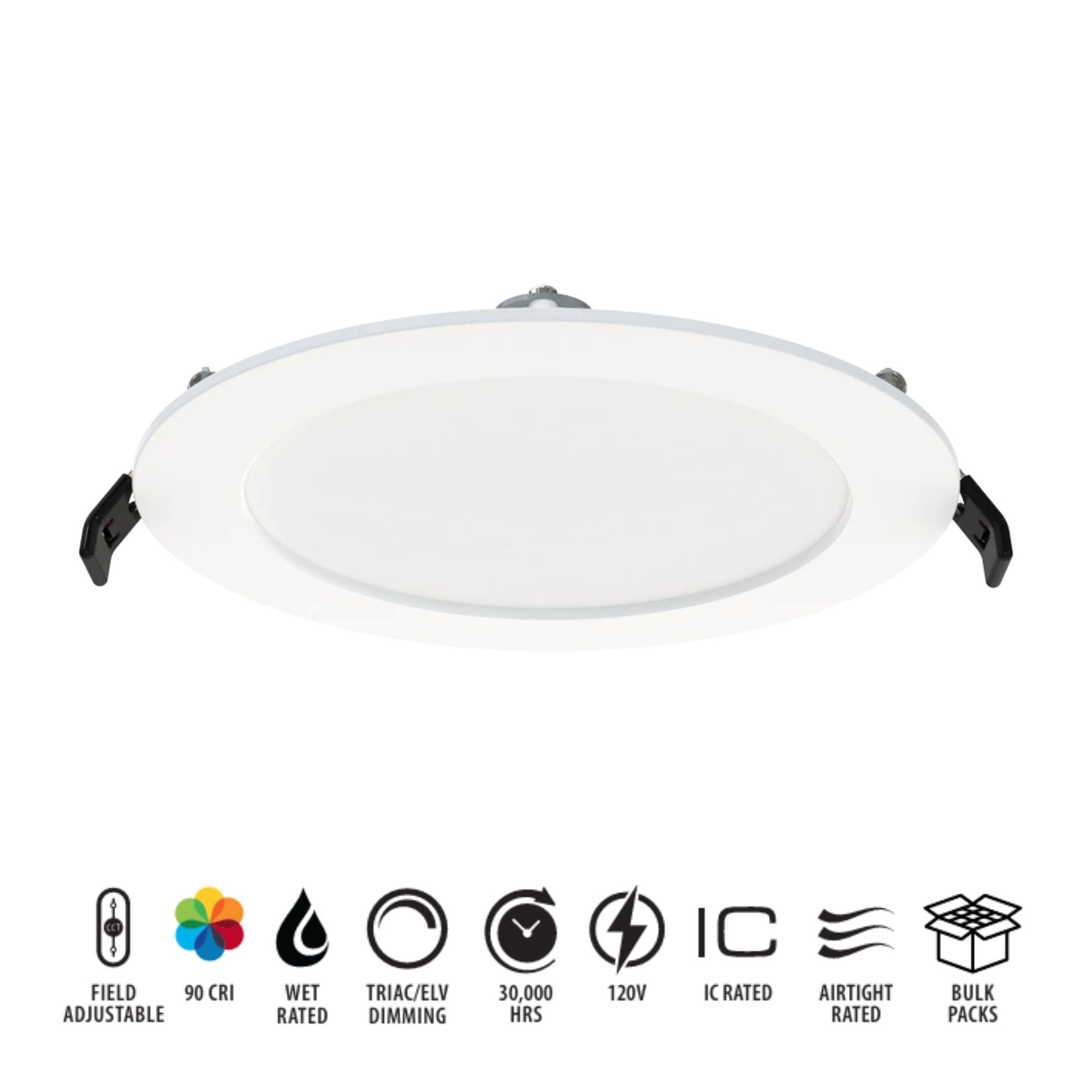

Key Features

• Selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K
• Wattage: 13W, equivalent to 75W incandescent
• Lumens: 897-1040 lm
• Dimming: TRIAC/ELV dimmable down to 10%
• Voltage: 120V operation
• CRI: 90 for accurate color rendering
• Beam Angle: 110°±10°
• Lifespan: 30,000 hours
• Compliance: Title 24, RoHS, FCC compliant
• Environment: Suitable for wet locations

Construction & Aesthetics

This downlight features a smooth trim style with a frosted polycarbonate lens for even light distribution. It is constructed from durable plastic and metal materials, available in a white finish. Optional accessories include color trim rings in black, bronze, and brushed nickel.

Electrical & Installation

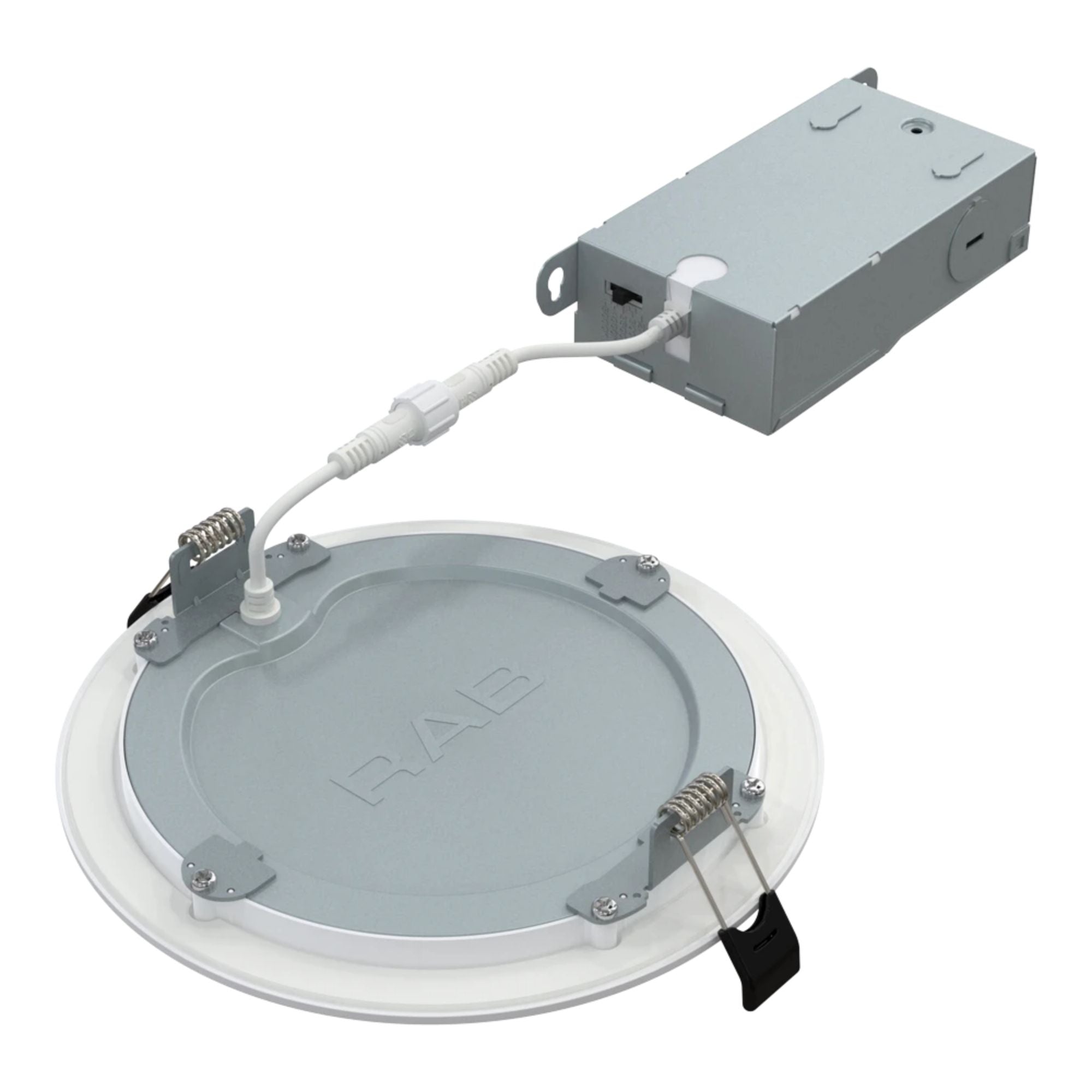

Designed for 120V operation, this fixture supports TRIAC/ELV dimming. It includes a remote driver with a built-in junction box, eliminating the need for traditional housings. Compatible mounting plates and goof rings are available for seamless installation.

Light Output & Performance

With a lumen output of 897-1040 lm and a CRI of 90, this downlight ensures high-quality illumination. The beam angle of 110°±10° provides broad coverage, and the fixture maintains color consistency across installations.

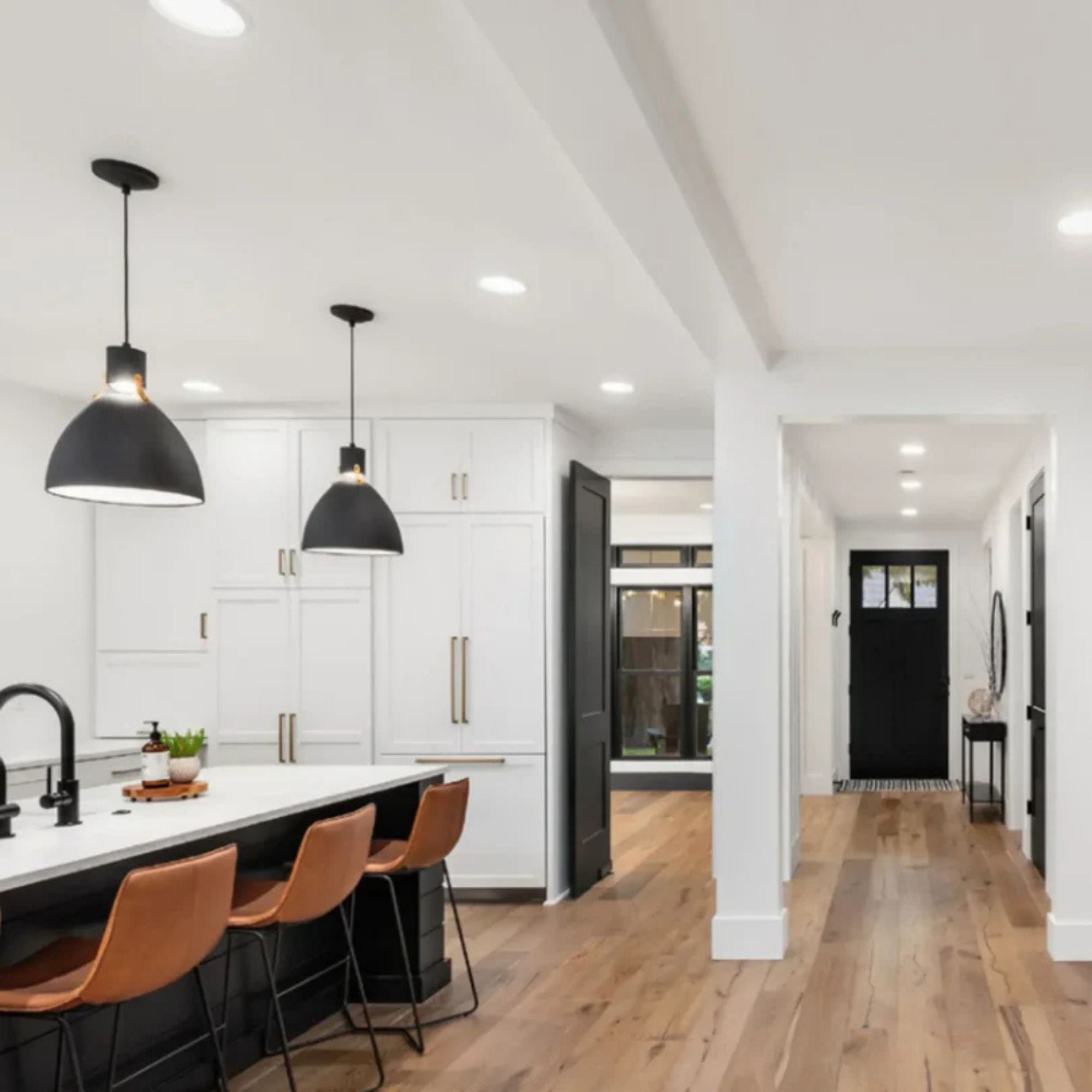

Typical Applications

• Residential lighting
• Commercial spaces
• Retail environments
• Hospitality settings
• Outdoor covered areas
