RAB WFR17-6B 6 in. Regressed Baffle Downlight 13W 1000 Lumens Selectable CCT Wet Rated
Available in stock (200)
About this item
About this item
- Selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K for versatile lighting
- High CRI: 90 CRI for accurate color rendering

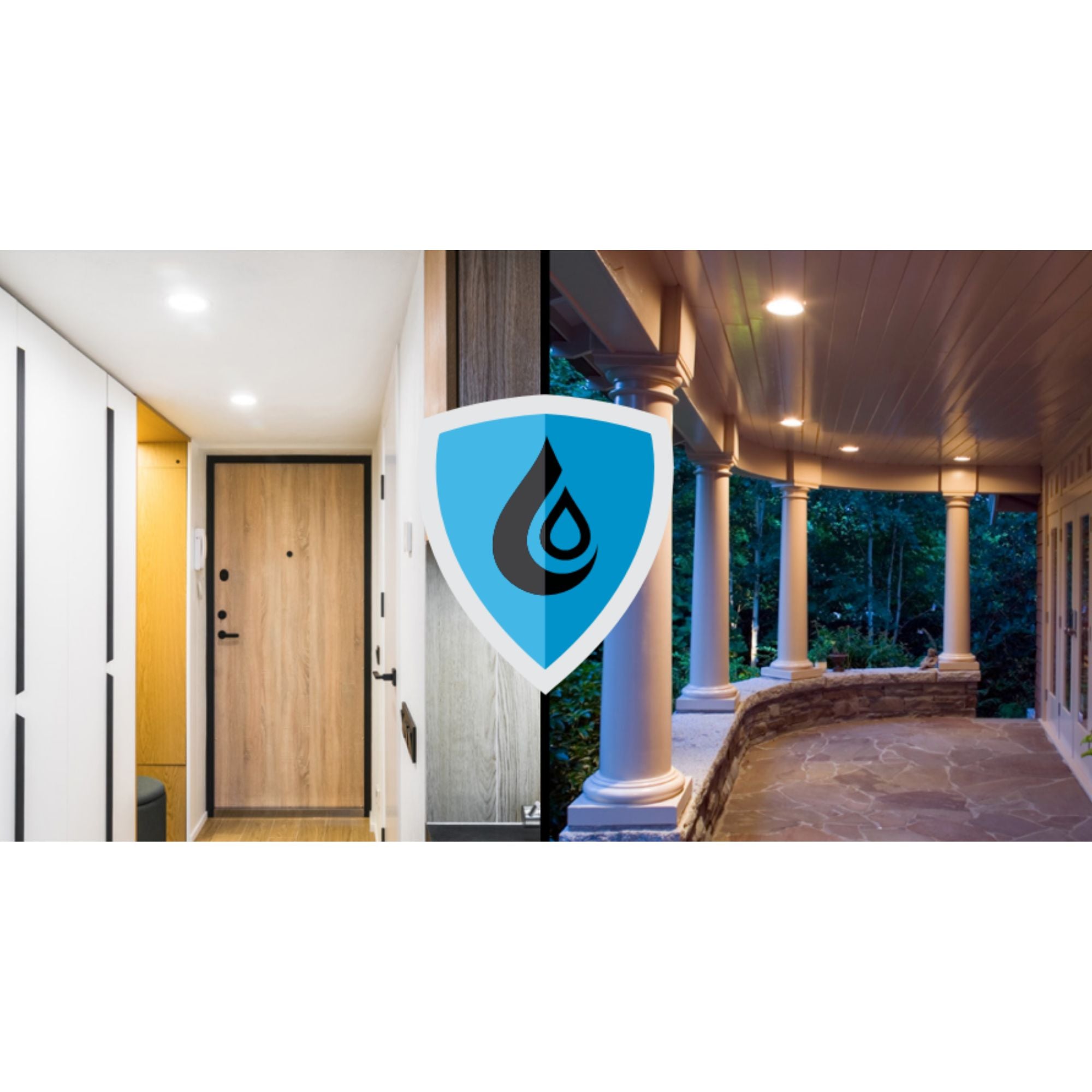

- Wet Rated: Suitable for indoor and outdoor wet locations
- Easy Installation: No housing required with tension spring clips
- Dimmable: Compatible with TRIAC/ELV dimming systems
We process payments securely and do not store credit card information.
Description
Description
RAB WFR17 WFR17-6B 6 in. Regressed Baffle Downlight — 13W / Selectable CCT

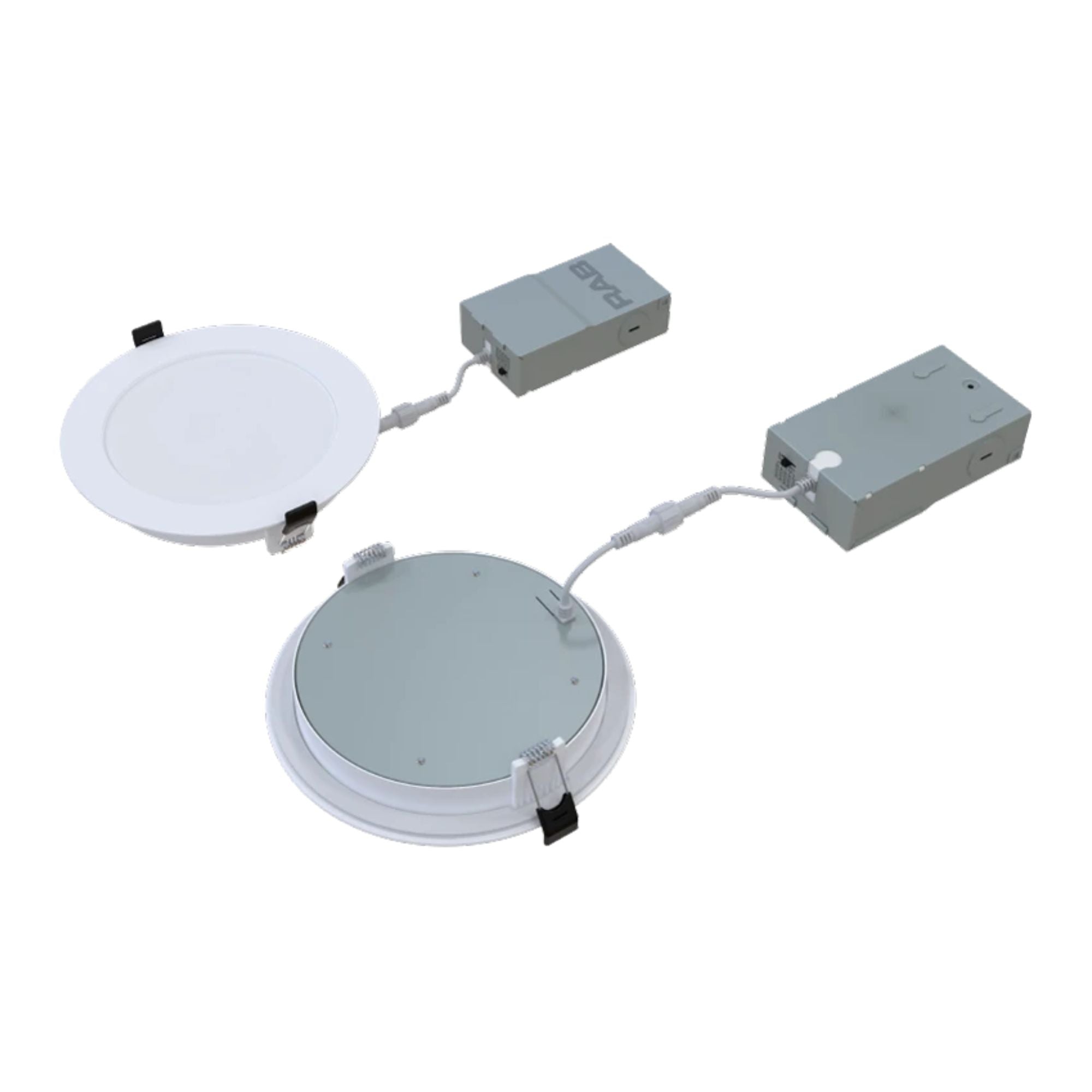

The RAB WFR17 WFR17-6B is a 6-inch regressed baffle downlight delivering up to 1096 lumens using 13W. This versatile fixture offers selectable color temperatures ranging from 2700K to 5000K, making it ideal for various lighting needs.
Key Features
- Wattage: 13W
- Lumens: 969lm to 1096lm depending on CCT
- Voltage: 120V
- Beam Angle: 110°±10°
- Driver: Constant Current, Class 2
- Dimming: Down to 10% with TRIAC/ELV systems
- Lifespan: 30,000 hours (L70)
- Compliance: Title 24 JA8, RoHS, NEC compliant
- Environment: Suitable for wet locations
- Accessories: Compatible with goof rings, color trims, mounting plates, and extension cables
Construction & Aesthetics

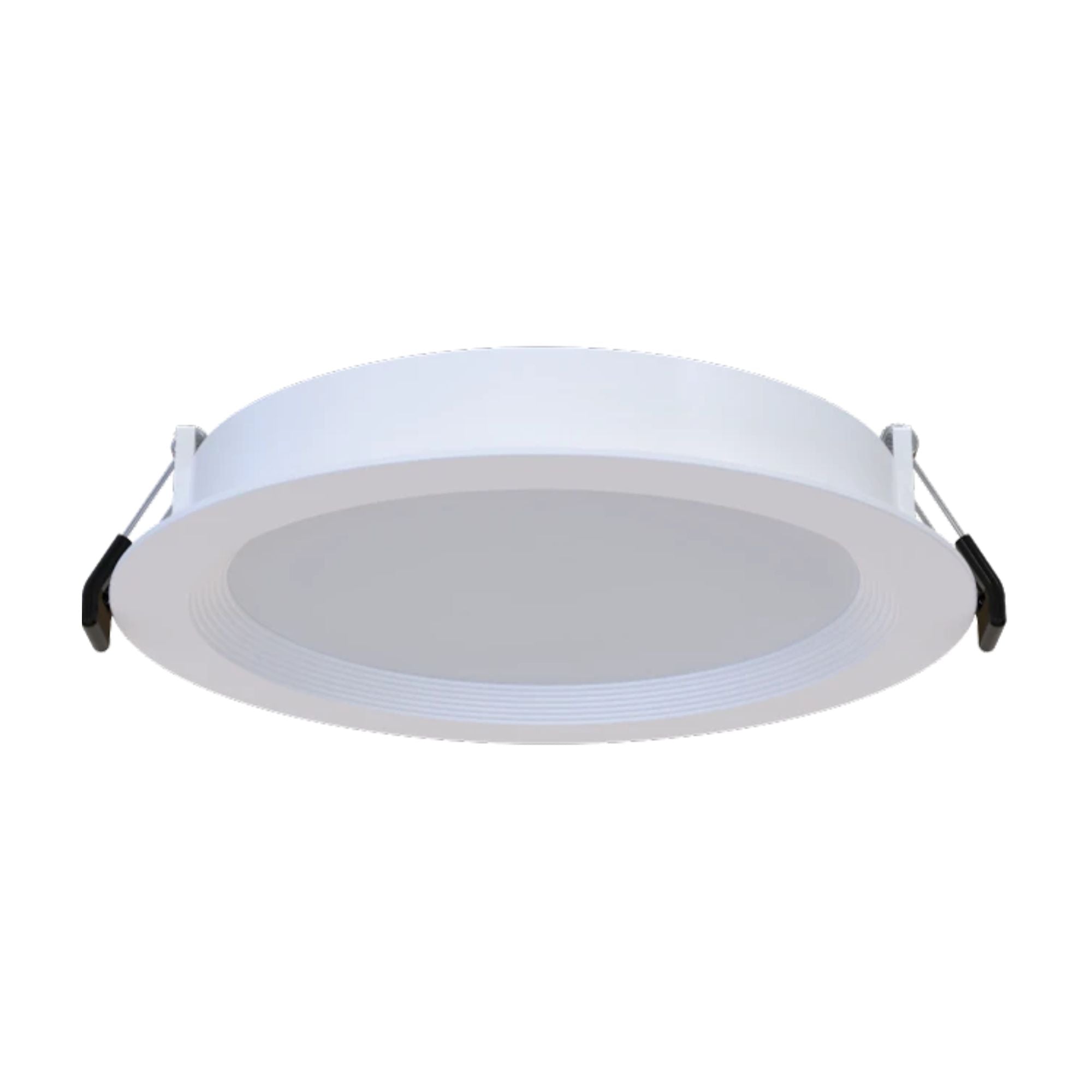

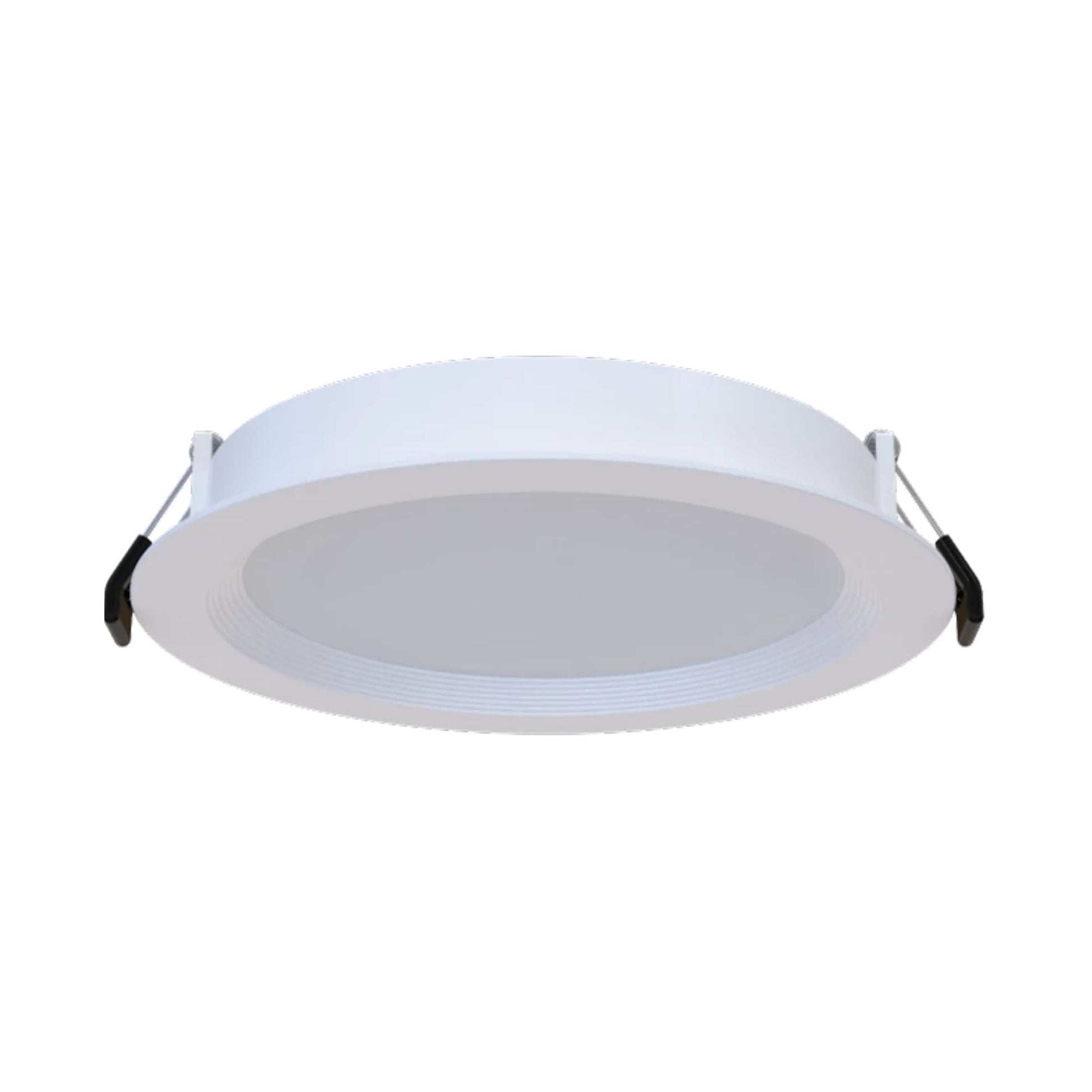

The downlight features a matte white finish with an aluminum housing and PC enclosure. It includes a frosted acrylic lens for smooth, diffuse lighting and a regressed baffle trim for a sleek appearance. Optional color trim rings and goof rings are available for aesthetic customization.
Electrical & Installation
Designed for easy installation, this fixture requires no housing and is secured with steel tension spring clips. It operates on 120V and is dimmable with compatible systems. Accessories such as mounting plates and emergency drivers are available for enhanced functionality.
Light Output & Performance
With a high CRI of 90, this downlight ensures excellent color accuracy. It offers a wide beam angle of 110°±10° and a selectable CCT feature for tailored lighting environments.
Typical Applications
- Residential lighting
- Commercial spaces
- Hospitality environments
- Retail settings
- Outdoor covered areas
Specifications
Specifications

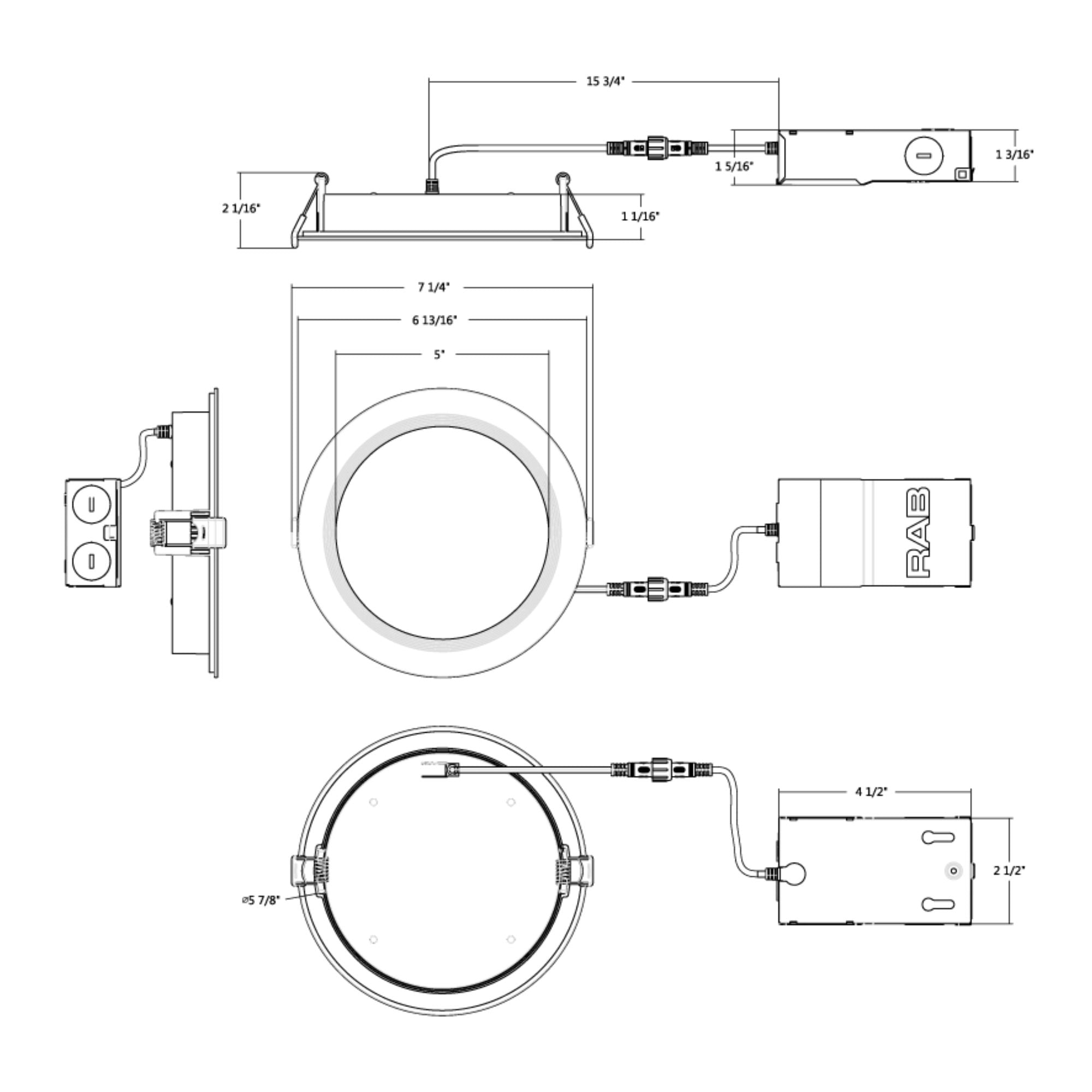

Dimensions
