RAB WFD4B 4 in Regressed Baffle Trim Deep Regress Wafer Downlight — 13W / Selectable CCT / 120V / White

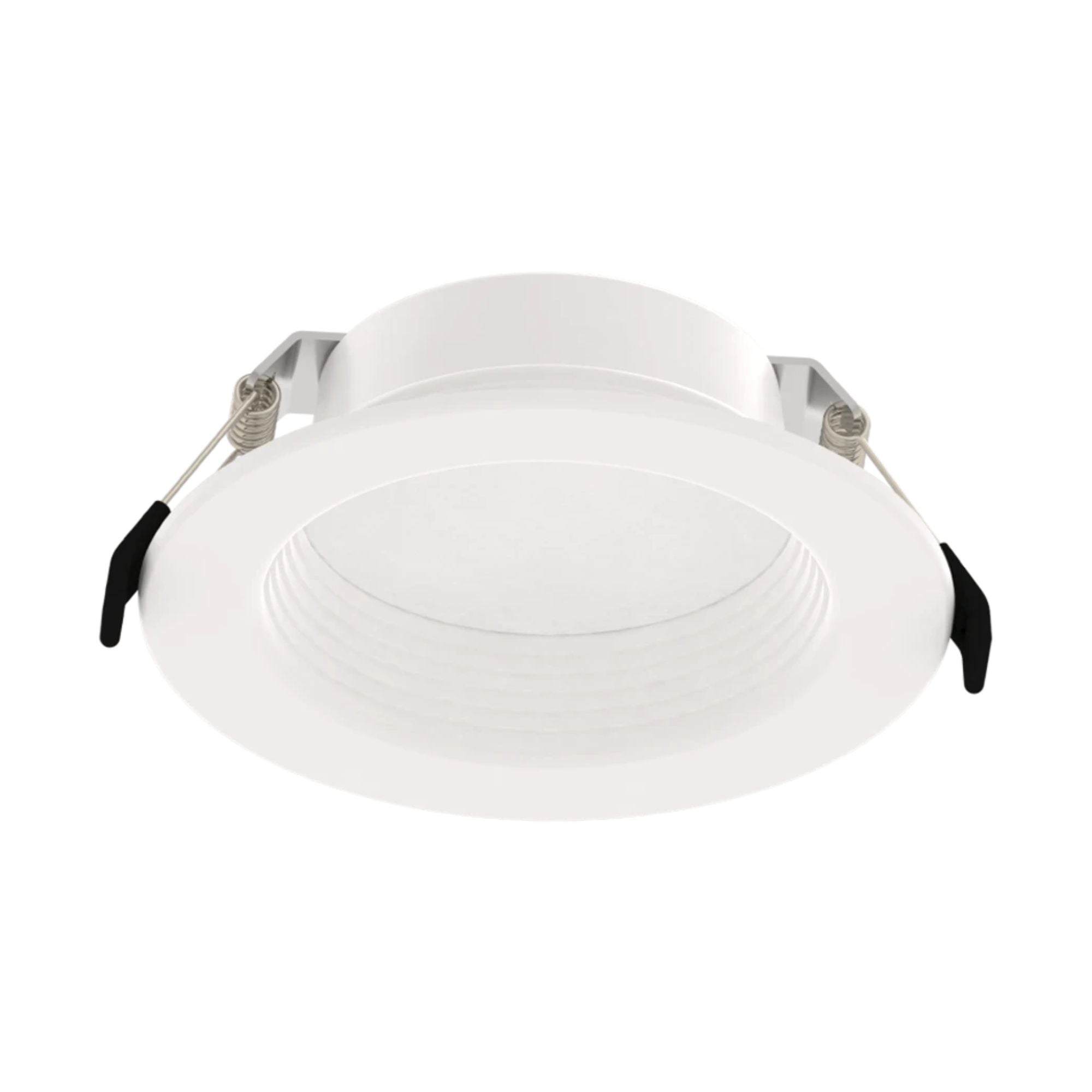

The RAB WFD4B is a 4 in round deep regress wafer downlight in white finish with a regressed baffle trim, delivering up to 1,331 lumens at 13W with a 90° beam angle and 90 CRI. The deep regress profile replicates the look of a traditional recessed downlight without the need for a standard housing — the remote aluminum driver/junction box mounts directly to the structure or new construction mounting frame. CCT is field-selectable between five color temperatures via integrated dipswitch, with TRIAC/ELV dimming at 120V. Pairs with the HAD6/D10 driver (sold separately) for 120-277V universal voltage operation.

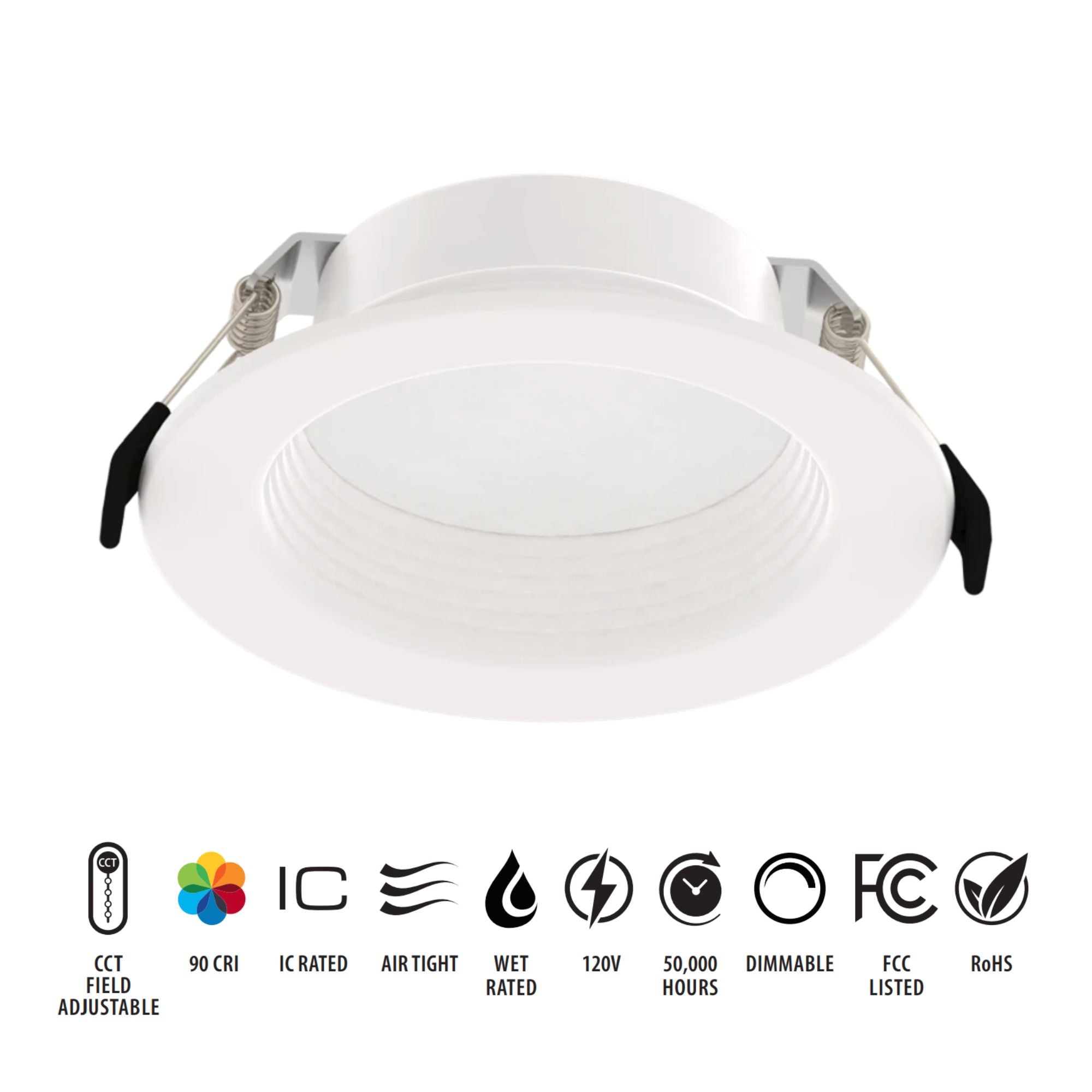

Key Features

• Deep Regress Baffle Profile: Replicates traditional recessed look with classic stepped baffle; no standard housing required

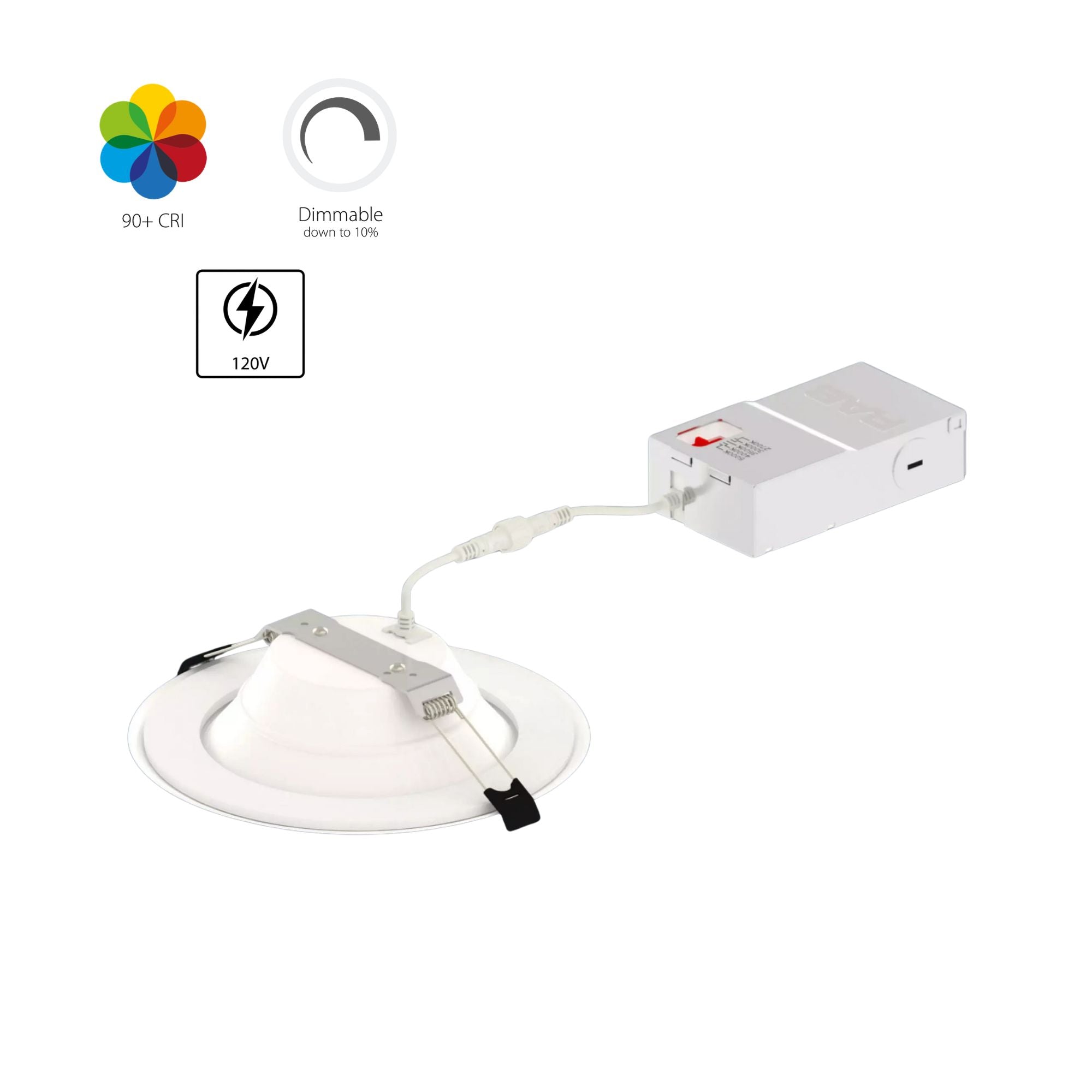

• No Housing Required: Remote aluminum driver/J-box with keyhole mounting slots; mounts to structure or new construction mounting frame

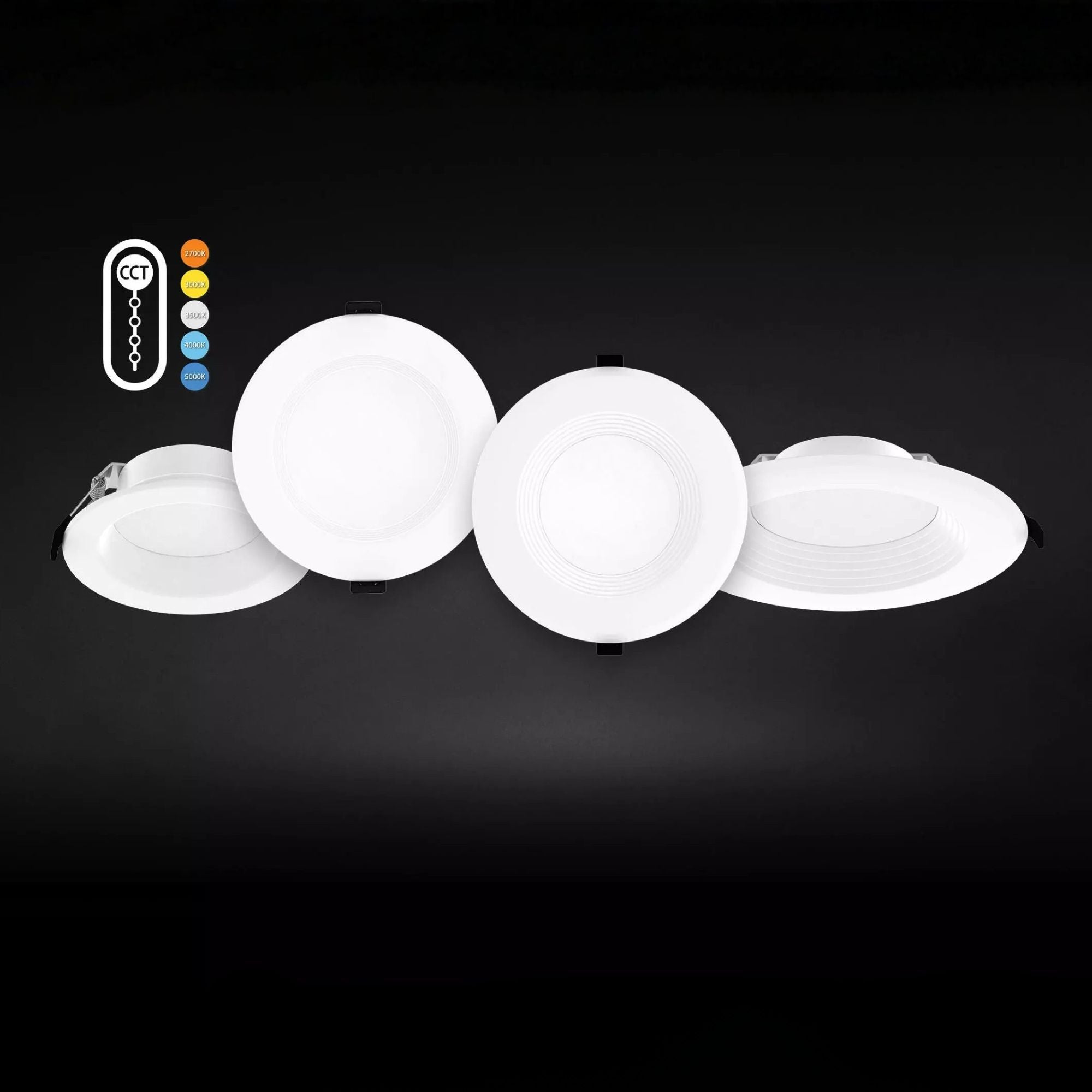

• Field-Selectable CCT: Dip-switch adjustable between 2700K, 3000K, 3500K, 4000K, and 5000K; 5 CCTs in 1 SKU
• Lumen Output: 1,331 lm (5000K); 1,318 lm (4000K); 1,289 lm (3500K); 1,241 lm (3000K); 1,213 lm (2700K)
• Wattage & Efficacy: 13W | 102–113 lm/W | 100W incandescent equivalent
• CRI & Beam: >90 CRI, R9 ≥ 50 | 90° beam angle
• Dimming: TRIAC/ELV dimmable to 10% at 120V
• Voltage: 120V native; 120-277V with HAD6/D10 driver (sold separately)
• IC Rated & Airtight: ASTM E283 certified; not for direct spray foam contact (NEMA LSD57-2013)
• Certifications: UL Listed, ENERGY STAR Version 2.2, Title 24 JA8, NEC closet compliant Sec. 410.16 (A)(1) & (C3) | 5-year warranty

Construction & Design

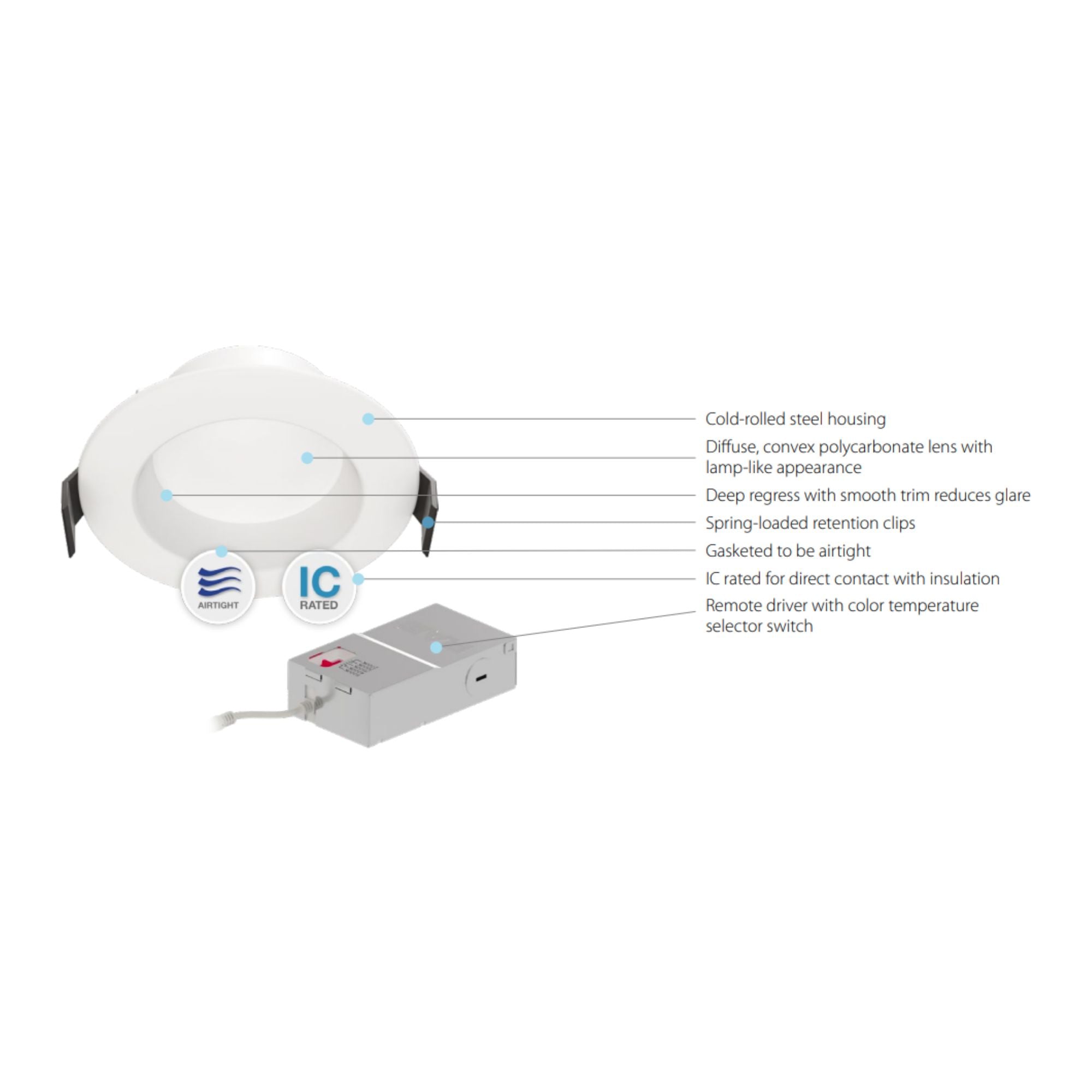

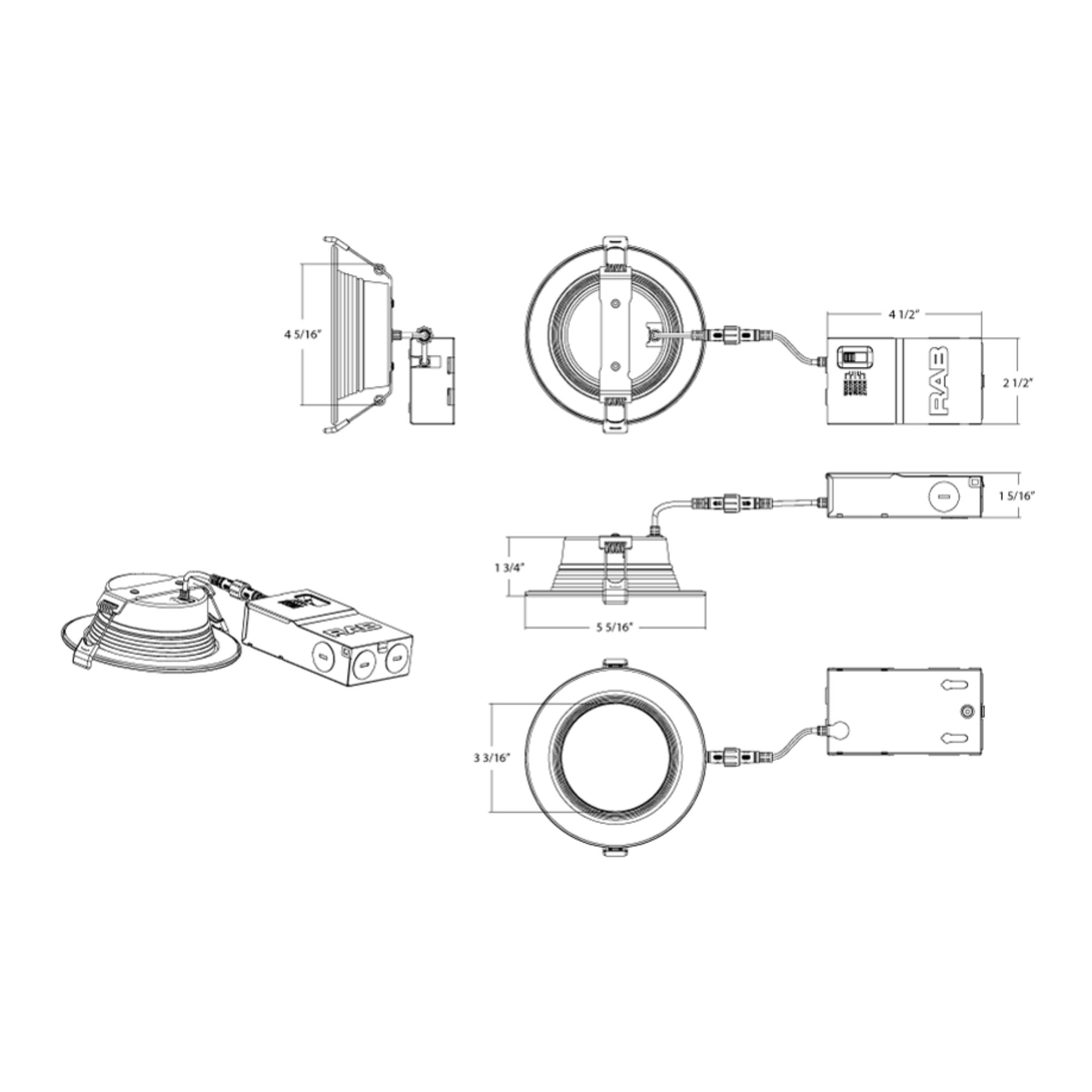

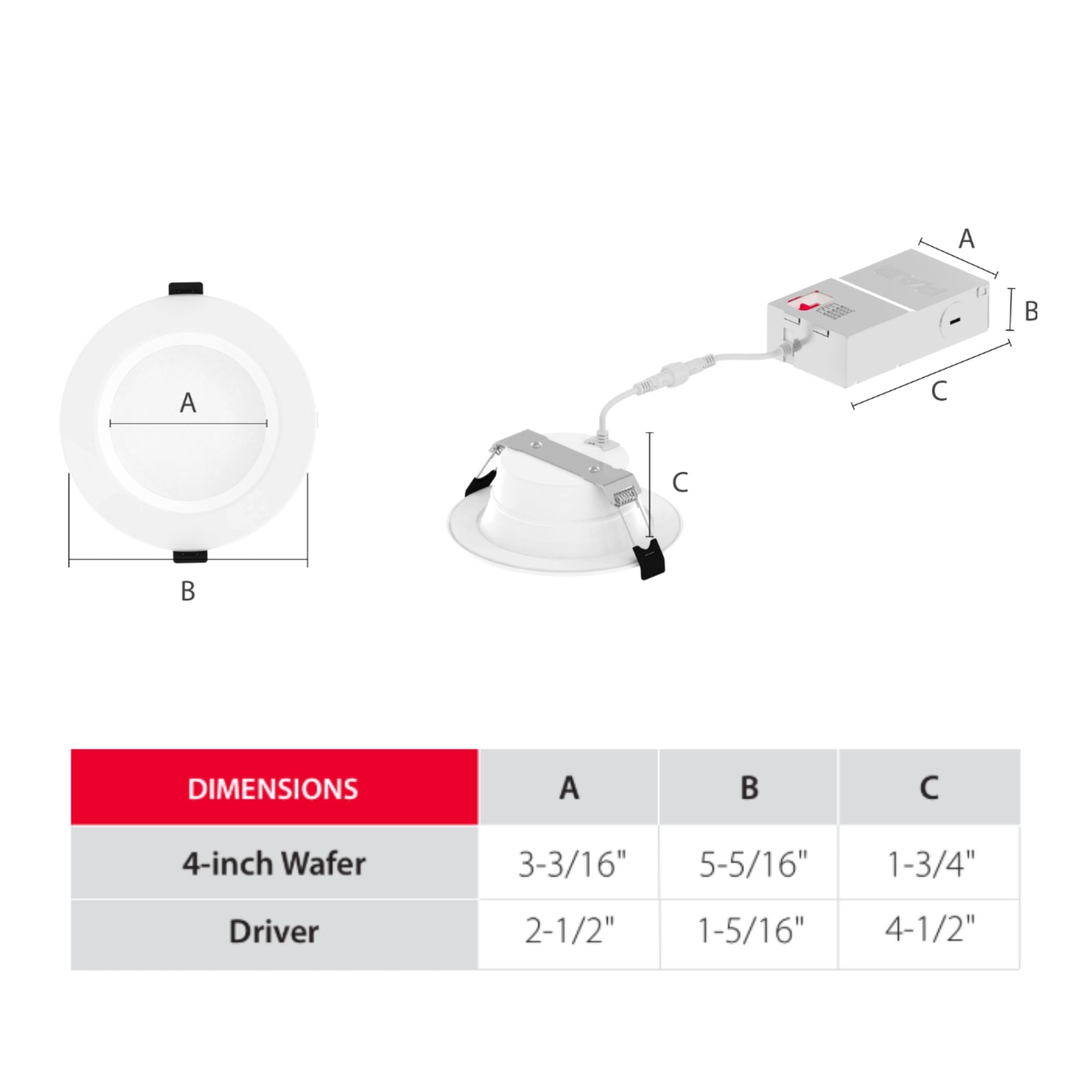

The WFD4B features a metal enclosure in white finish with a regressed baffle trim and a polycarbonate light diffuser for smooth, even illumination with reduced glare. The remote aluminum driver/J-box uses keyhole mounting slots for direct mounting to the building structure or new construction mounting frame. Cutout size: 4-5/16 in. Weight: 0.7 lbs.

Performance, Control & Dimming

With efficacy up to 113 lm/W (4000K), 90 CRI, R9 ≥ 50, and a 90° beam angle, the WFD4B delivers focused, high-efficiency downward illumination. Rated lifespan: 50,000 hours L70 per IES LM-70. Flicker: 5%. Color consistency: 4-step MacAdam Ellipse; CCT warranted to shift no more than 200K over five years. Compatible with TRIAC/ELV dimming systems at 120V (dimmable to 10%). CCT field-adjustable via dipswitch at installation. Compatible with DRI-EMB-15S-LV 2-in-1 Driver + Battery Backup (sold separately) for emergency lighting.

Electrical & Installation

Operates natively on 120V with a Constant Current, Class 2 driver. Pairs with HAD6/D10 driver (sold separately) for 120-277V operation. IC rated (not for spray foam; NEMA LSD57-2013); airtight certified (ASTM E283). THD ≤20%; Power Factor ≥0.9; Operating Temperature: -4°F to 104°F (-20°C to 40°C).

Compatible Accessories (sold separately)

• DLPLATE/WFR3468/NB — Mounting plate with nailer bar (3, 4, 6, 8 in)
• DLPLATE/WFR3456 — Mounting plate for 3, 4, 5, 6 in
• DRI-EMB-15S-LV — 2-in-1 Driver + Battery Backup
• HAD6/D10 — Universal 120-277V driver

What’s Included

• RAB WFD4B 4 in regressed baffle trim deep regress wafer downlight (white)
• Remote aluminum driver/junction box
