RAB WFD34-6/BP 6 in Smooth Canless Recessed Downlight 9.5W Selectable CCT 12-Pack
Available in stock (100)
About this item
About this item
- Contractor Bulk Pack — 12 Fixtures: WFD34-6/BP ships in a case of 12; smooth trim, white finish, ideal for new construction and remodel projects
- Canless — No Housing Required: Remote aluminum driver/J-box with keyhole slots mounts directly to structure or mounting frame; IC rated for direct insulation contact
- Field-Selectable CCT: Dipswitch-adjustable 2700K–5000K — 5 color temperatures in 1 SKU
- TRIAC/ELV Dimmable: Dims to 10% at 120V; 90° beam angle; 9.5W replaces 75W incandescent; up to 908 lm, up to 95.7 lm/W
- ENERGY STAR Certified & Title 24 JA8: Wet location rated; NEC Sec. 410.16 (A)(1) and (C3); 3-year limited warranty
We process payments securely and do not store credit card information.
Description
Description

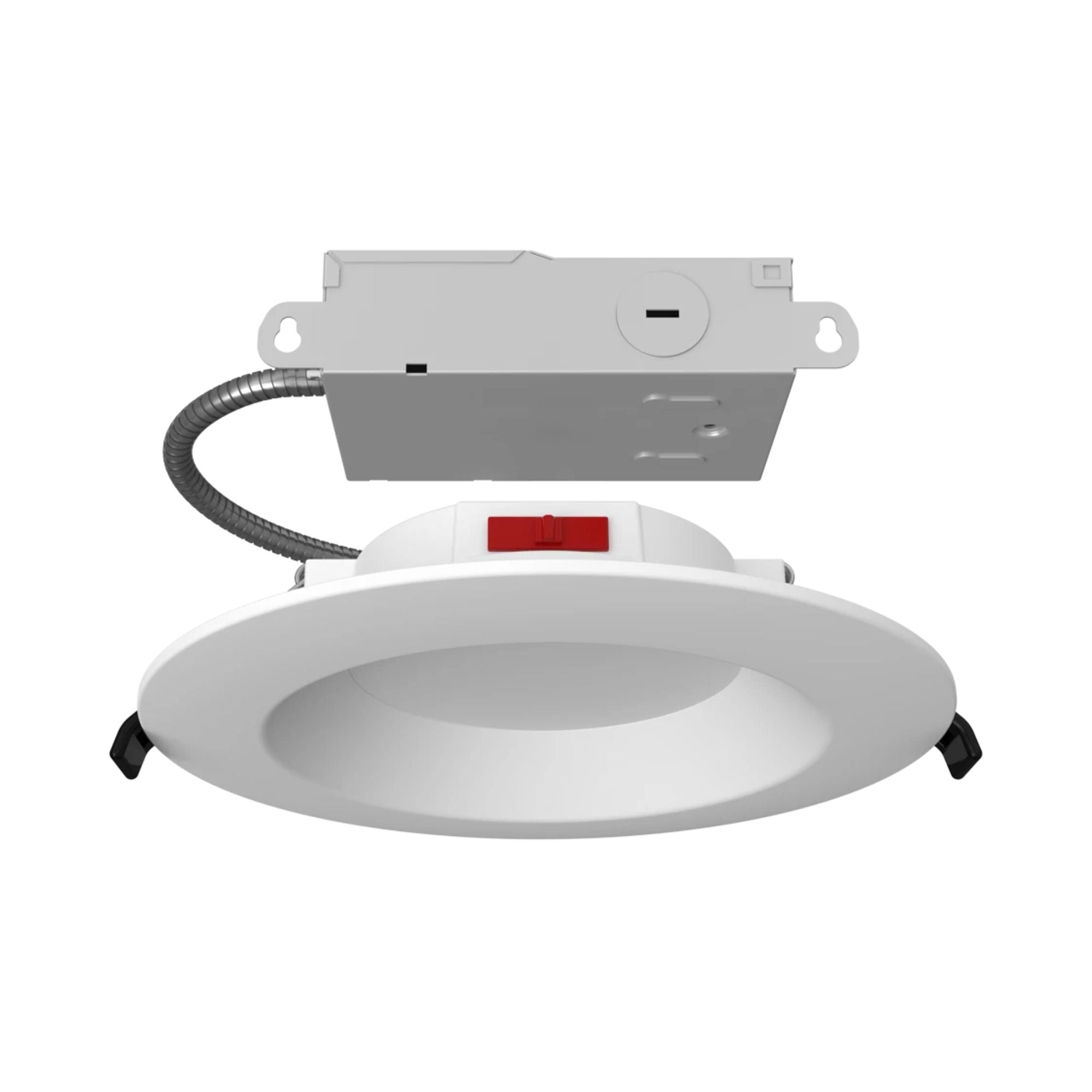

RAB WFD34-6/BP 6 in Smooth Canless Recessed Downlight — 9.5W / Selectable CCT / 120V / White / Bulk Pack of 12
The RAB WFD34-6/BP is a 6 in round canless recessed downlight in white finish with a smooth trim, delivering up to 908 lumens at 9.1–9.5W with a 90° beam angle and 90 CRI. Packaged in a contractor bulk pack of 12, this fixture is designed for fast, efficient installation in new construction and remodel applications — no recessed housing required. CCT is field-selectable between five color temperatures via integrated dipswitch, with TRIAC/ELV dimming at 120V.

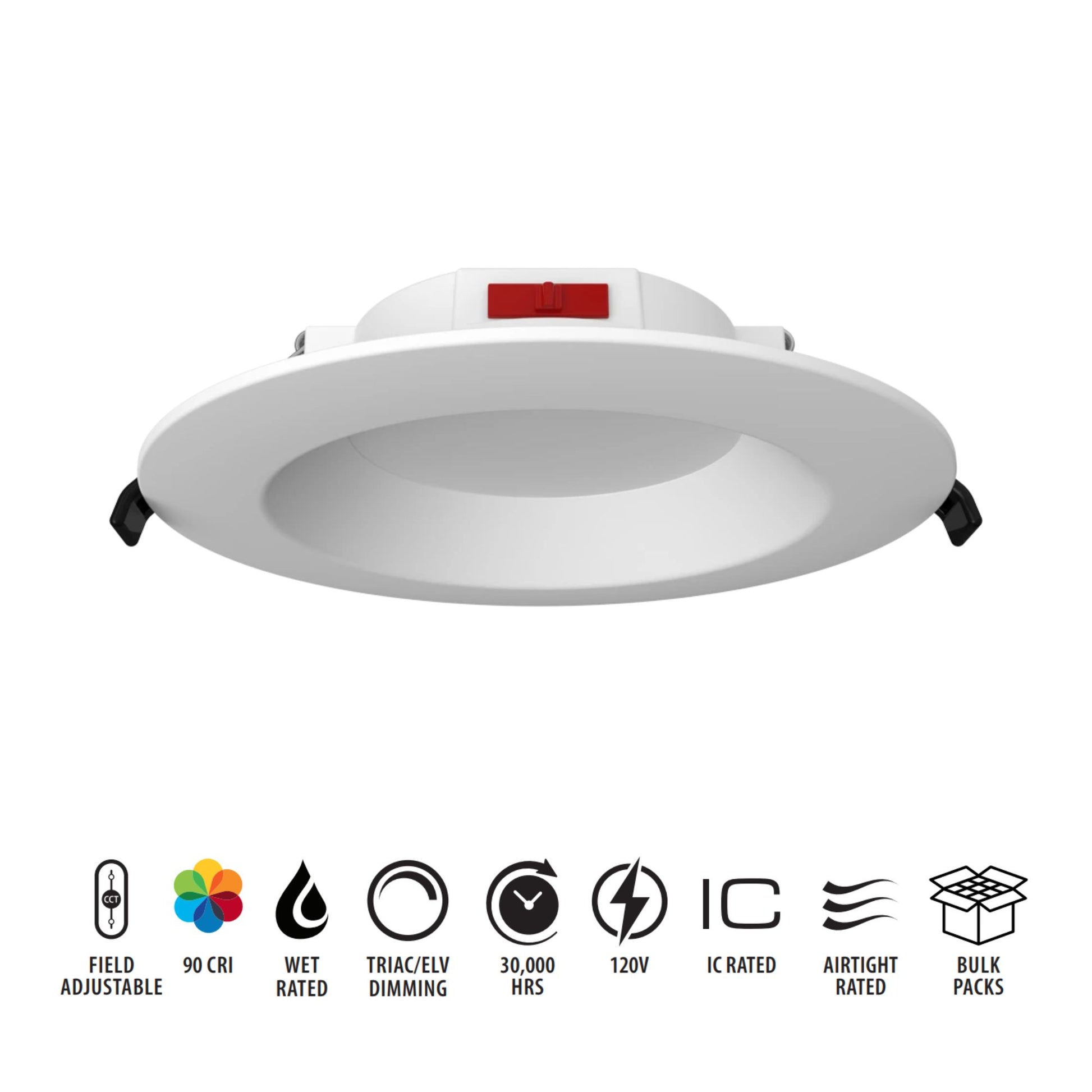

Key Features
- Contractor Bulk Pack: Sold in cases of 12 fixtures (WFD34-6/BP)
- Canless — No Housing Required: Remote aluminum driver/J-box with keyhole slots; mounts to structure or new construction mounting frame
- Field-Selectable CCT: Dip-switch adjustable between 2700K, 3000K, 3500K, 4000K, and 5000K; 5 CCTs in 1 SKU
- Lumen Output: 828–908 lm depending on selected CCT
- Wattage & Efficacy: 9.1–9.5W | 90.8–95.7 lm/W | 75W incandescent equivalent
- CRI & Beam: 90 CRI, R9 > 50 | 90° beam angle
- Dimming: TRIAC/ELV dimmable to 10% at 120V
- Voltage: 120V

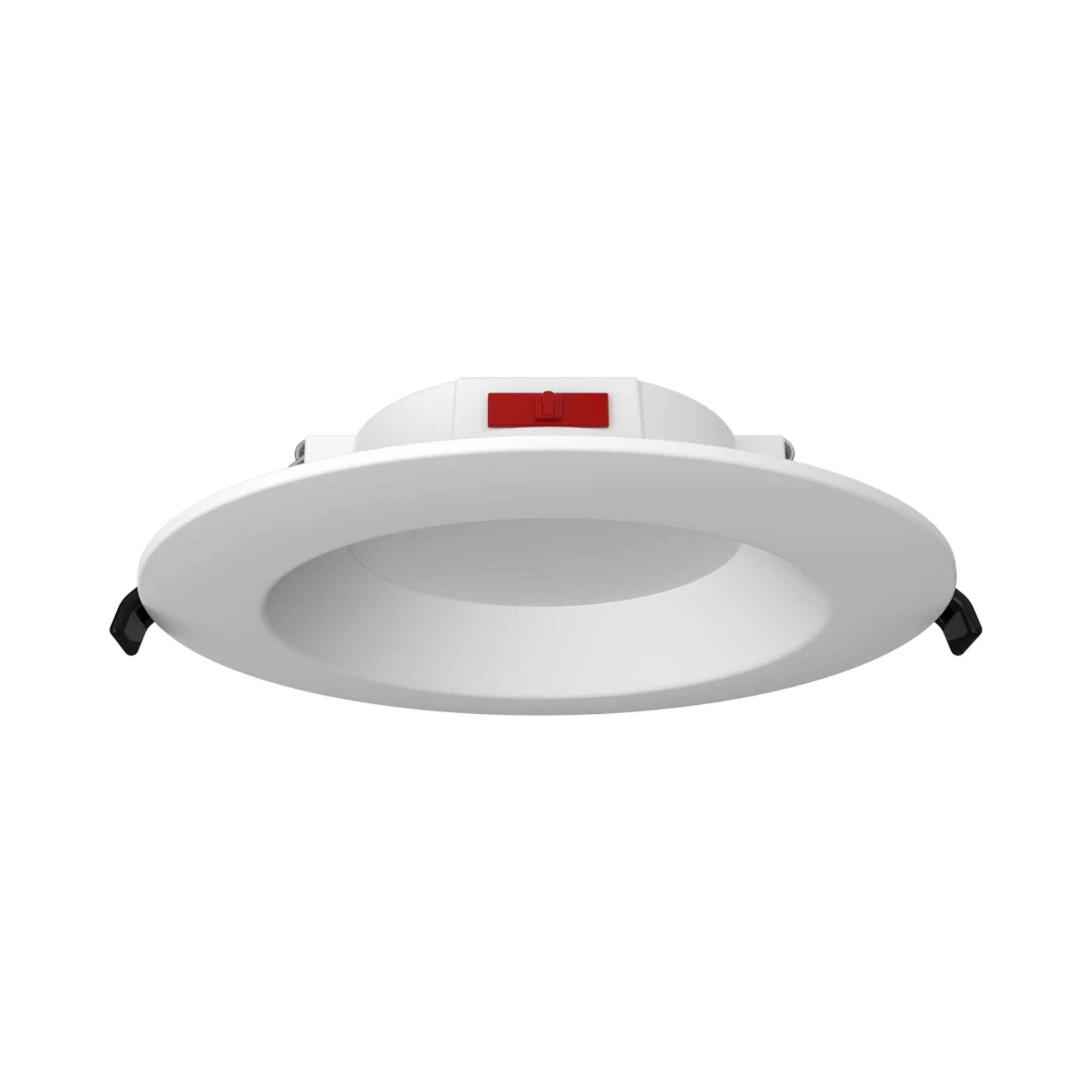

- Enclosure: Plastic smooth trim | White finish | Frosted polycarbonate lens
- IC Rated: Suitable for direct insulation contact (not for spray foam; NEMA LSD57-2013)
- Certifications: UL Listed, ENERGY STAR, Title 24 JA8, RoHS, FCC Part 15 | NEC closet compliant Sec. 410.16 (A)(1) & (C3)
- Lifespan: 30,000 hours L70 per IES LM-70
- Warranty: 3-year limited warranty
Construction & Design

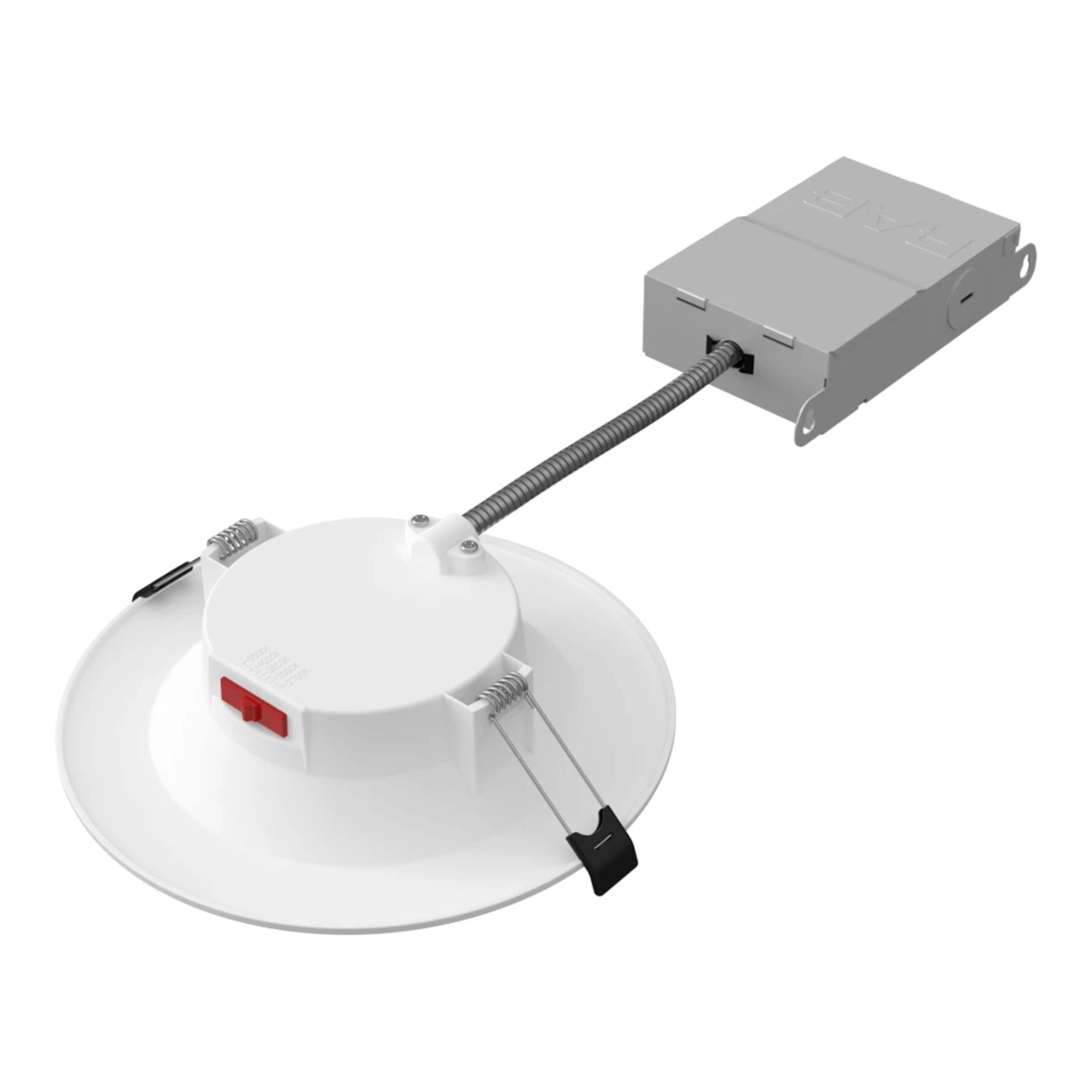

Plastic smooth trim in white finish with a frosted polycarbonate lens. Remote aluminum driver/J-box mounts directly to the ceiling structure or new construction mounting frame via keyhole slots. IC rated (not for spray foam; NEMA LSD57-2013). Not airtight rated.
Performance, Control & Dimming
The WFD34-6/BP delivers 828–908 lm at 90.8–95.7 lm/W with 90 CRI, R9 > 50, and a 90° beam angle. Rated lifespan: 30,000 hours L70 per IES LM-70. Color consistency: <5-step MacAdam Ellipse (2700K/5000K); <7-step (3000K/3500K/4000K). CCT warranted to shift no more than 200K over five years. Compatible with TRIAC/ELV dimming systems at 120V (dimmable to 10%). CCT field-adjustable via dipswitch at installation.
Electrical & Installation
Operates on 120V with a Constant Current driver (90mA). TRIAC/ELV dimmable to 10%. Remote aluminum driver/J-box mounts directly to ceiling — no recessed housing required. IC rated (not for spray foam; NEMA LSD57-2013). Power Factor: ≥0.9; Operating Temperature: -4°F to 104°F (-20°C to 40°C).
Compatible Accessories (sold separately)
- DLPLATE/WFR3468/NB — Mounting plate with nailer bar (3, 4, 6, 8 in)
- DLPLATE/WFR3456 — Mounting plate for 3, 4, 5, 6 in
- DLPLATE/WFR6/NB/CL — 6 in mounting plate with nailer bar and drywall collar
- DLPLATE/WFR6 — 6 in mounting plate
What’s Included
- 12x RAB WFD34-6/BP 6 in smooth canless recessed downlight (white)
- Remote aluminum driver/junction box (per fixture)
