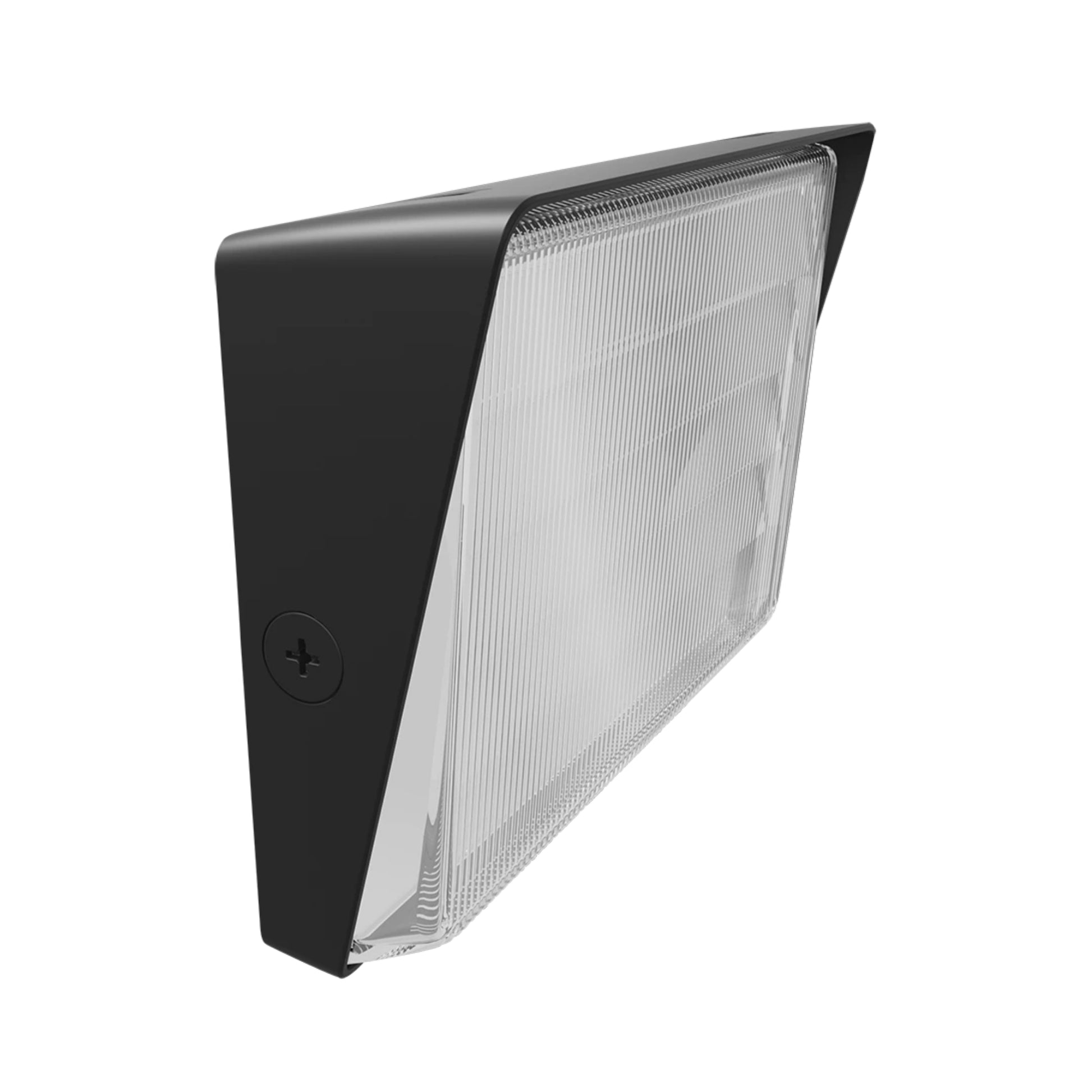

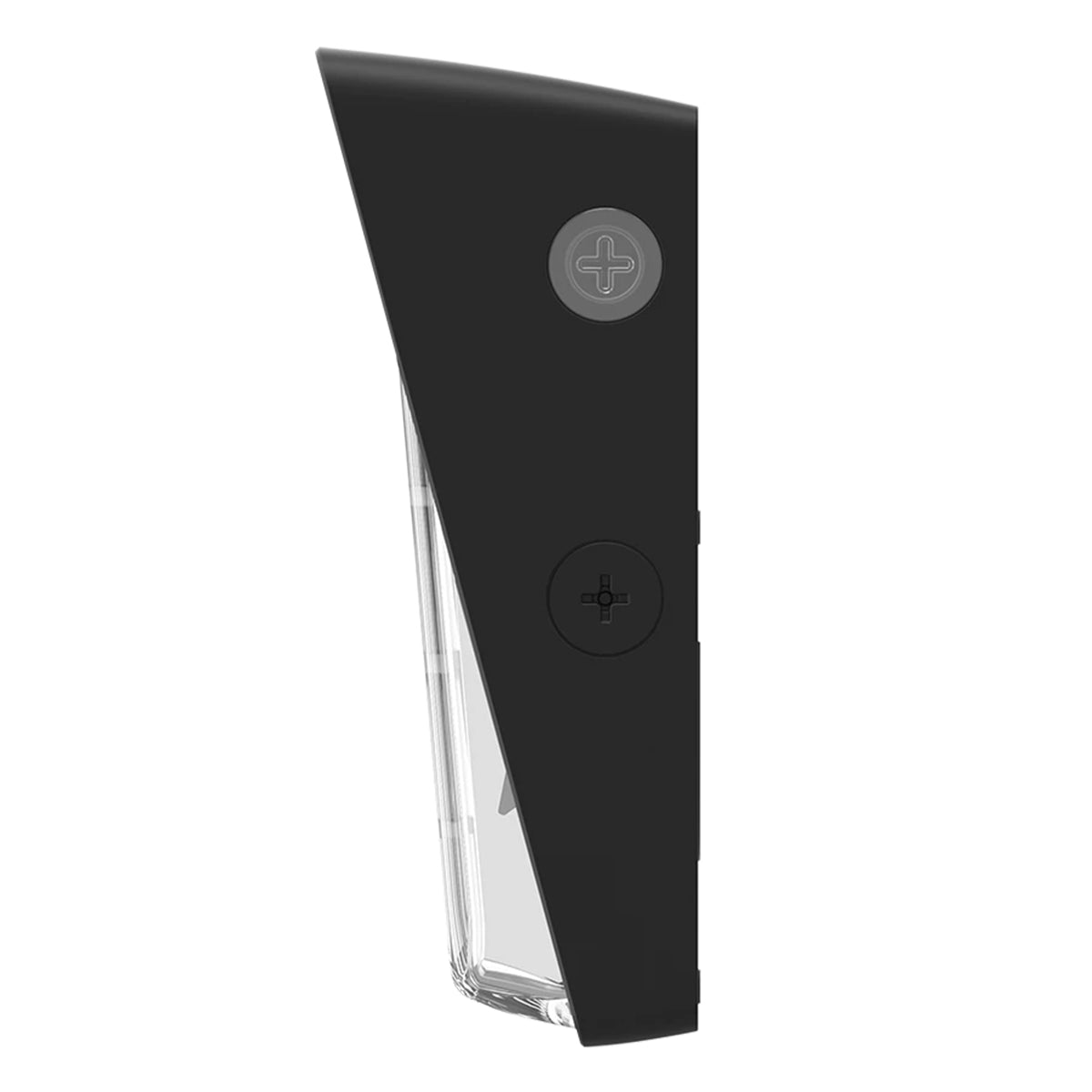

RAB W34M Field-Adjustable Traditional LED Wall Pack — 80W/60W/40W Selectable — 3000K/4000K/5000K — Bronze

The RAB W34M is a commercial field-adjustable traditional LED wall pack and ultra-economy wallpack engineered to deliver up to 12,495 lumens across field-adjustable 80W/60W/40W power settings and switchable 3000K/4000K/5000K color temperatures. Operating on 120-277V electrical systems with 0-10V dimming down to 10%, this forward-throw perimeter luminaire qualifies for DLC 5.1 Premium utility rebates. Built with a weatherproof die-cast aluminum housing in a Bronze finish, this UL wet-location luminaire includes a 13.00" W x 9.38" H die-cast backbox that covers legacy HID wall footprints with a side-hinged wiring door and 4 conduit entry points and features a glass lens, an internal aluminum reflector, and an integrated photocell with on/off switch.

Key Features

• Selectable Wattage: 80W / 60W / 40W
• Maximum Lumen Output: Up to 12,495 lm
• Peak Efficacy: Up to 157.5 lm/W
• CRI: 75-77
• Selectable CCT: 3000K / 4000K / 5000K
• Color Consistency: 7-step MacAdam Ellipse binning; ANSI C78.377-2017 compliant
• Lens & Optics: Forward-throw glass lens with aluminum reflector; BUG Rating B1-U3-G5 (80W) / B1-U3-G4 (60W) / B1-U3-G3 (40W)
• Photocell & Controls: Integrated photocell with on/off switch
• Dimming: 0-10V continuous dimming (dims down to 10%)
• Voltage: 120-277V AC, 50/60Hz
• Location & Body Rating: UL Listed Wet Location
• Operating Temperature: -40°F (-40°C) to 104°F (40°C)
• Certifications: DLC 5.1 Premium (S-F9NLOH), UL Listed, RoHS Compliant
• Rated Life: L70 100,000 hours
• Warranty: 5-year limited warranty covering light output, driver performance, and paint finish - RAB

Performance & Light Output

At 80W (89.7W at 3000K; 85.5W at 4000K; 88.9W at 5000K): 11,444 lm (3000K / 127.6 lm/W / 76 CRI), 12,495 lm (4000K / 146.1 lm/W / 77 CRI), and 12,272 lm (5000K / 138.0 lm/W / 75 CRI).

At 60W (65.5W at 3000K; 63.1W at 4000K; 65.1W at 5000K): 8,879 lm (3000K / 135.6 lm/W / 76 CRI), 9,625 lm (4000K / 152.5 lm/W / 77 CRI), and 9,588 lm (5000K / 147.3 lm/W / 75 CRI).

At 40W (42.8W at 3000K; 41.6W at 4000K; 42.5W at 5000K): 6,174 lm (3000K / 144.3 lm/W / 76 CRI), 6,552 lm (4000K / 157.5 lm/W / 77 CRI), and 6,616 lm (5000K / 155.7 lm/W / 75 CRI).

Engineered with long-life, high-efficacy surface-mount LEDs delivering CRI 75-77 across all configurations. Achieves a BUG Rating of B1-U3-G5 (80W), B1-U3-G4 (60W), and B1-U3-G3 (40W). Rated life 100,000 hours (L70) based on IES LM-80 results and TM-21 calculations.

Lens & Optics

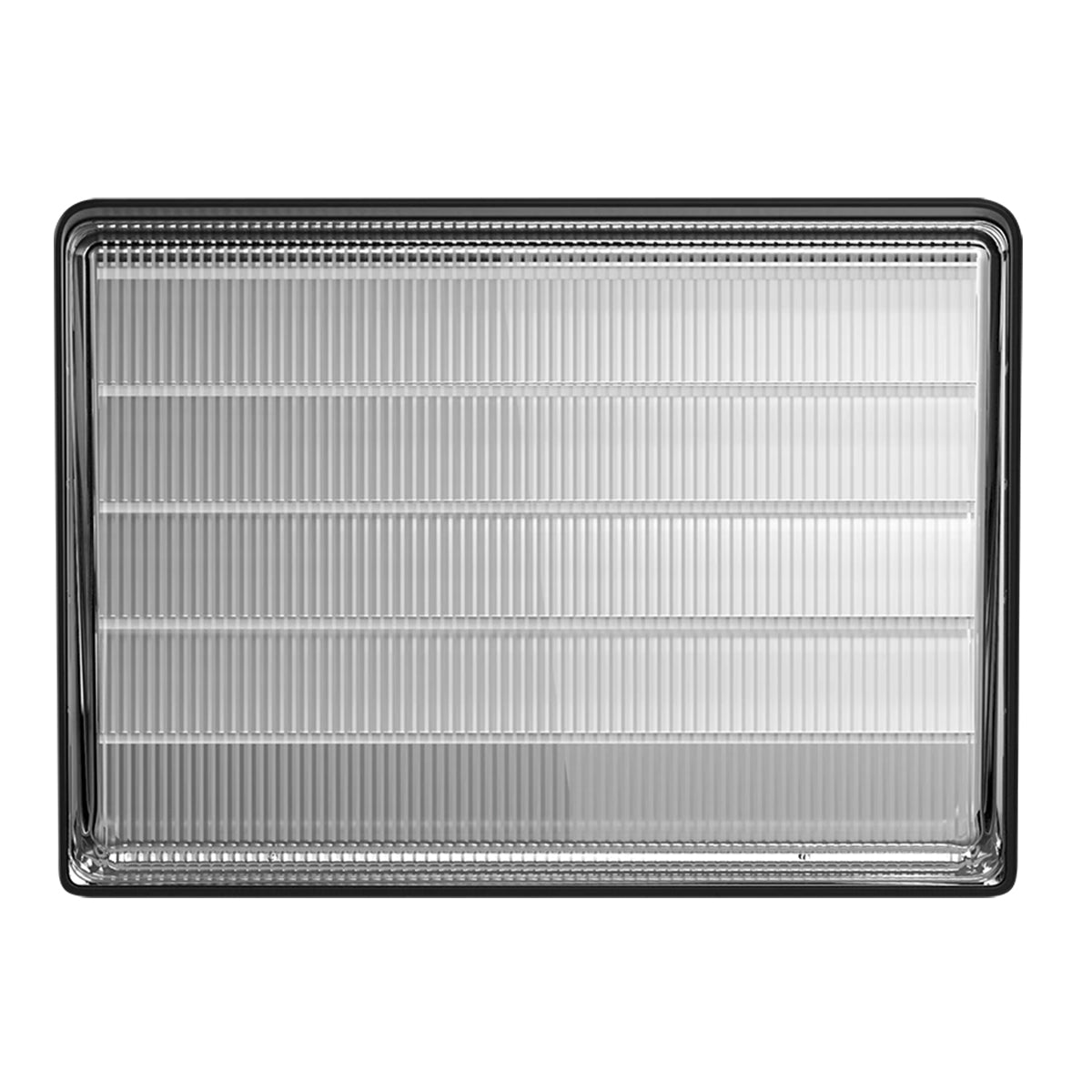

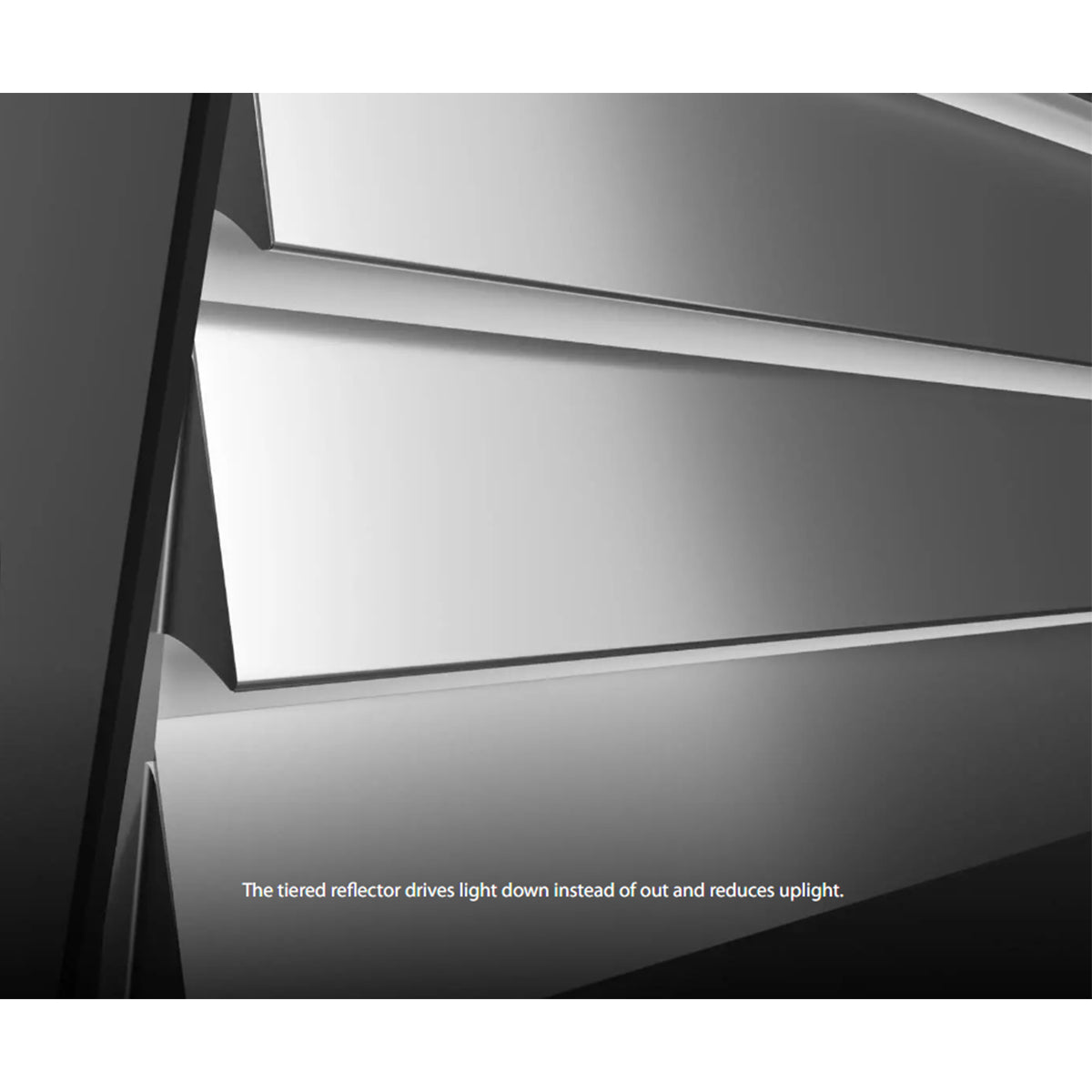

Engineered with a durable glass lens and internal aluminum reflector delivering a standard forward-throw LED wall pack optical distribution. The traditional-look glass refractor projects wide outward and downward perimeter security illumination with verified BUG ratings of B1-U3-G5 (80W), B1-U3-G4 (60W), and B1-U3-G3 (40W) while resisting yellowing and UV degradation.

Smart & Control Features

Engineered for automated exterior operation and commercial lighting control integration:

• Dusk-to-Dawn Photocell (Integrated): Factory-installed integrated photocell includes an onboard on/off switch for automatic dusk-to-dawn operation or manual wall-switch and timer control.
• 0-10V Continuous Dimming: Driver includes dimming control wiring for 0-10V dimming systems (requires separate 0-10V DC dimming circuit) and dims smoothly down to 10%.

Electrical

Powered by a Constant Current, Class 2 driver operating on 120-277V AC at 50/60Hz. Includes pre-wired 0-10V dimming leads (dims down to 10%) and a factory-installed integrated photocell with on/off switch.

Operating current and amp draw across input voltages for branch circuit and breaker loading calculations:

Construction

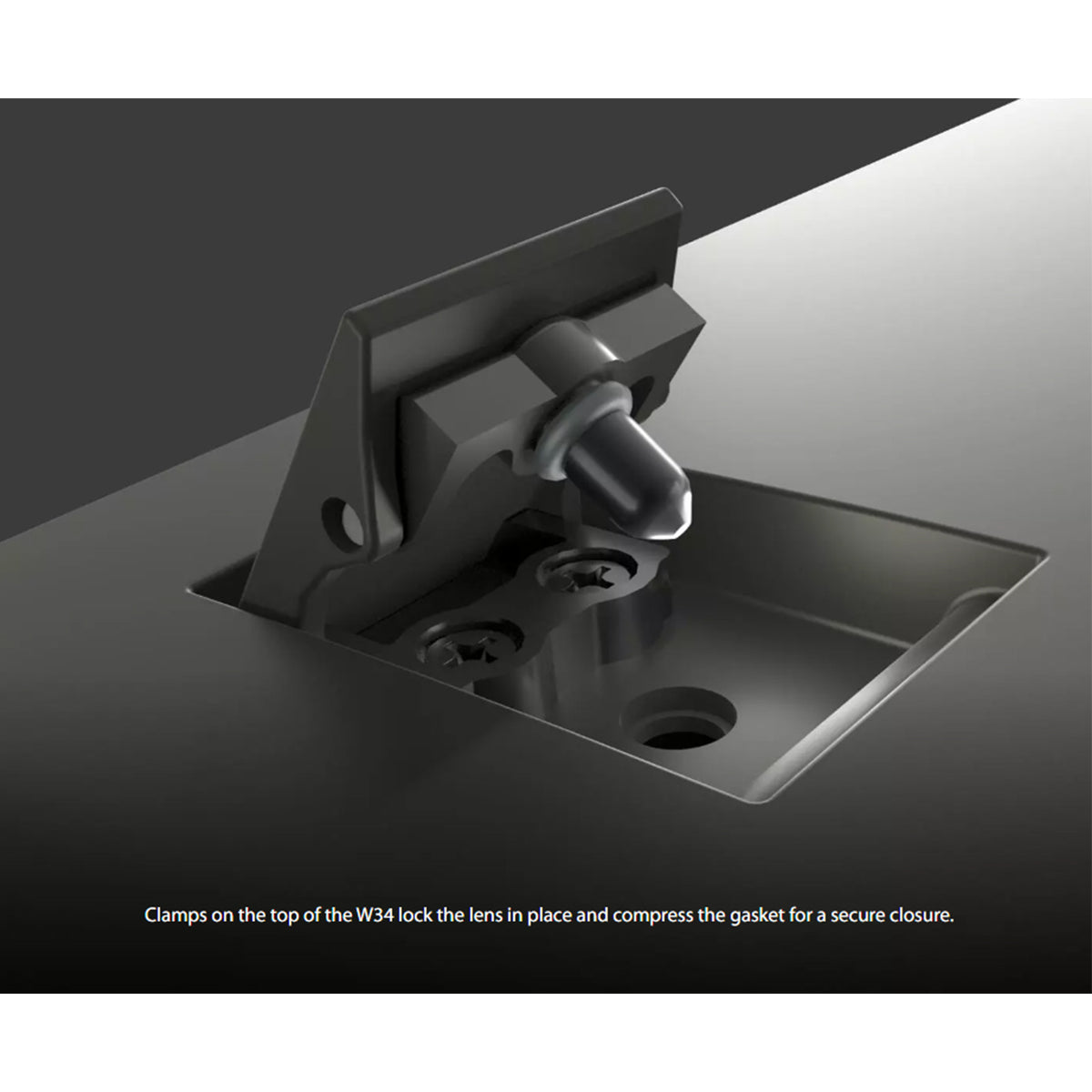

Housing & Thermal: Die-cast aluminum housing and hinged front door with engineered passive convection cooling.

Finish: High-durability Bronze powder-coat finish formulated for long-lasting color and weather resistance.

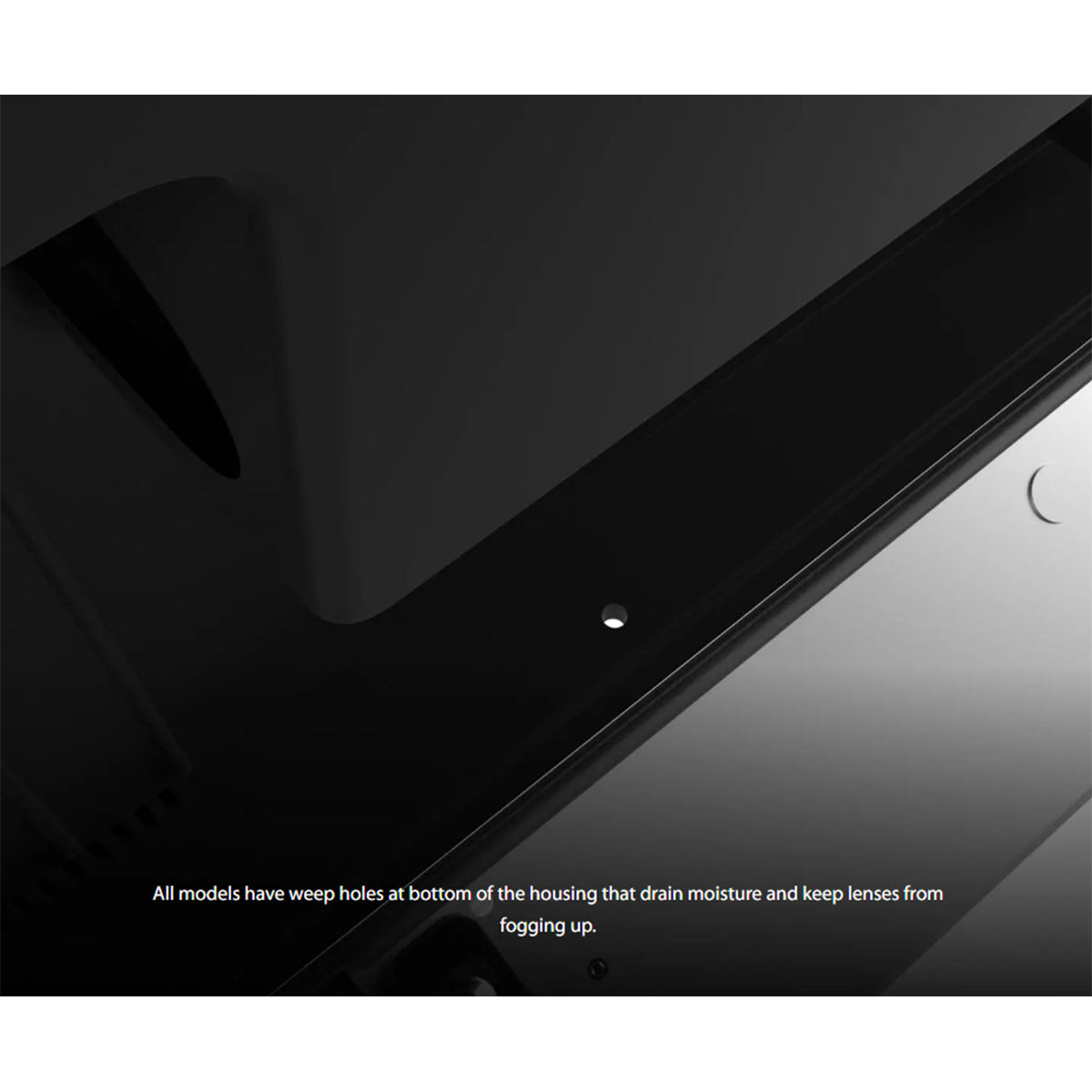

Environmental Sealing: UL Listed for wet locations. Ambient operating temperature: -40°F (-40°C) to 104°F (40°C).

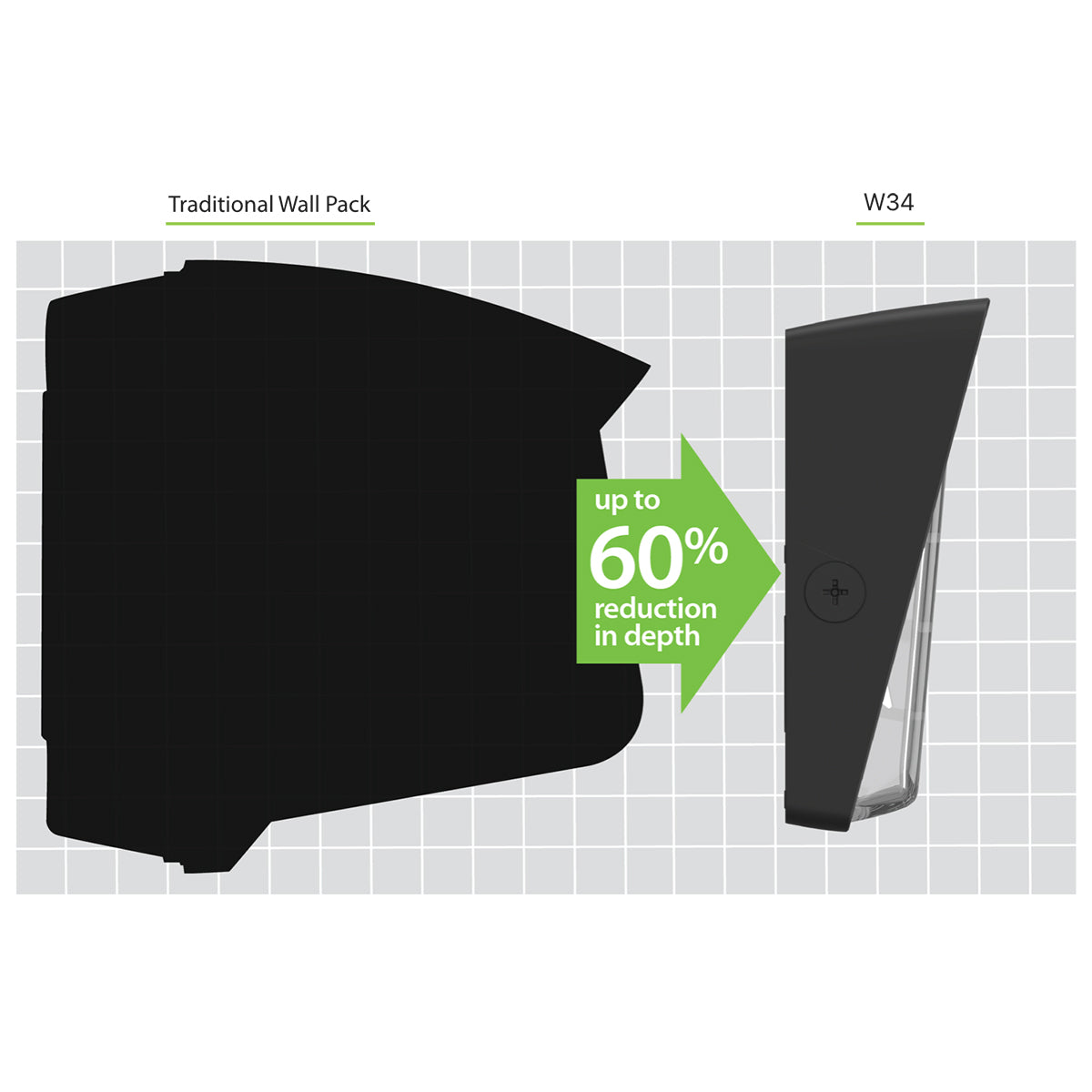

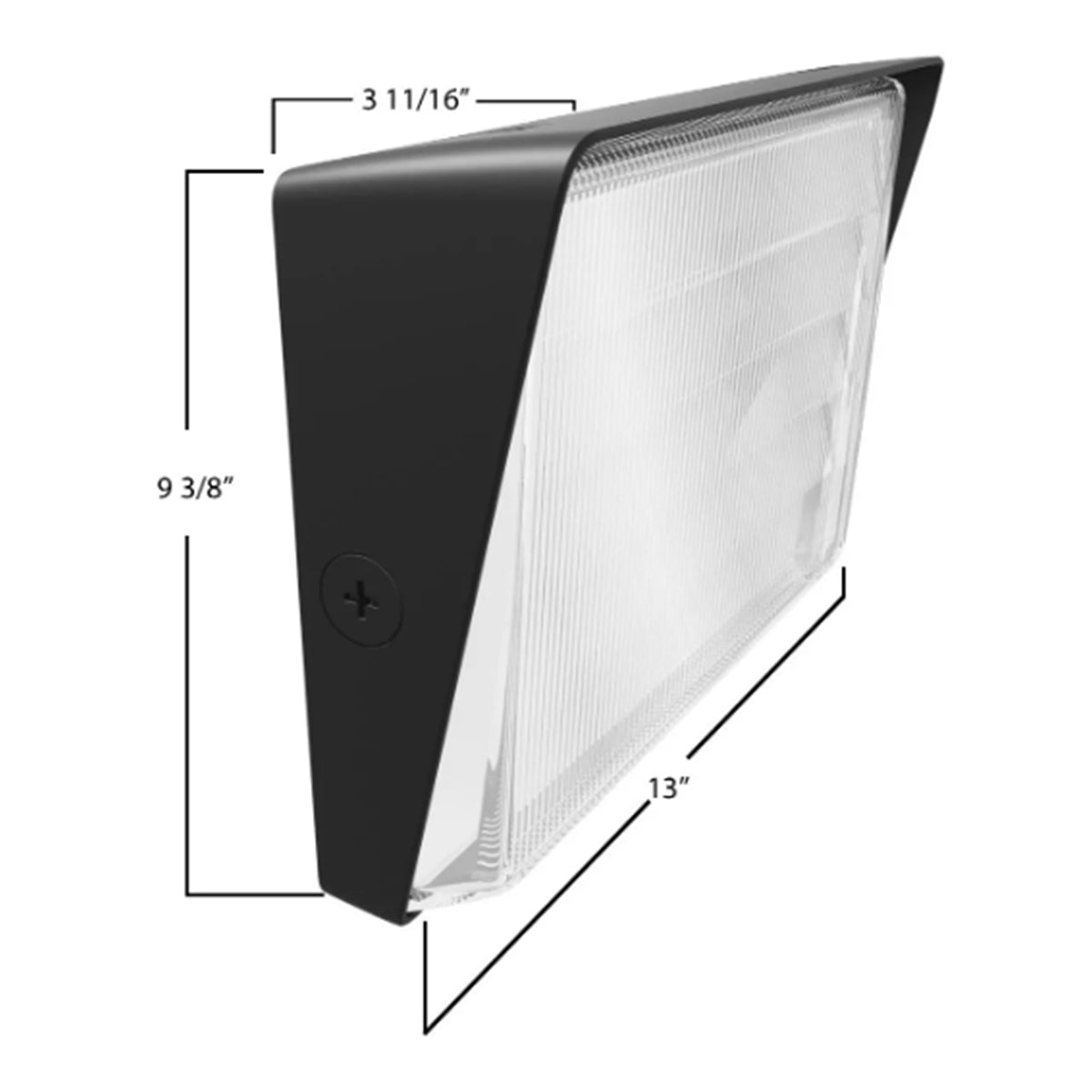

Dimensions & Weight: 13.00" W x 9.38" H x 3.69" D (13" W x 9 3/8" H x 3 11/16" D). Fixture weight: 10.0 lbs.

Installation & Mounting

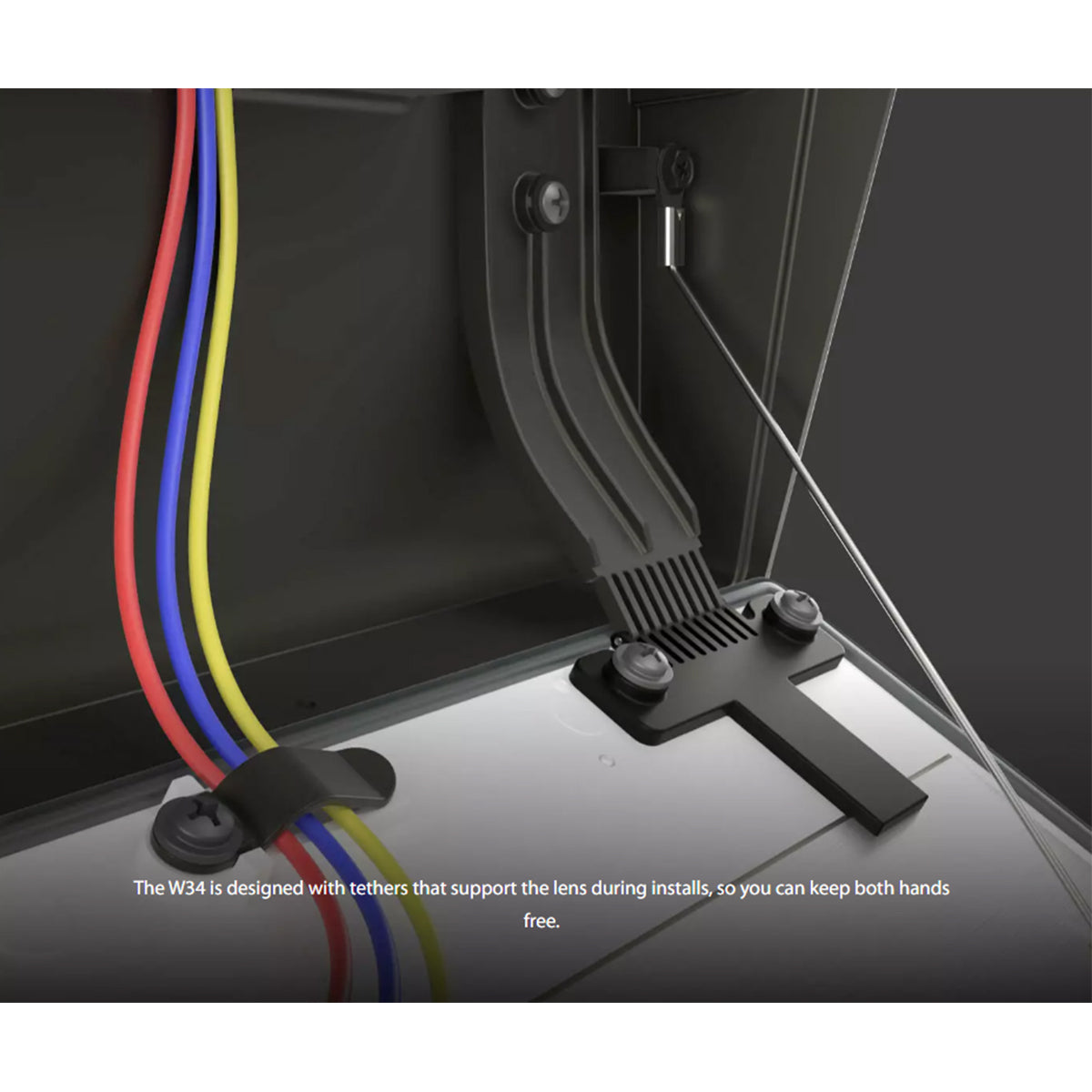

Mounting Hardware: 13.00" W x 9.38" H x 3.69" D die-cast aluminum backbox covers legacy HID wall stains and features a pre-cast knockout pattern for standard junction box installation or direct wall mounting, paired with a hinged door for hands-free wiring and re-assembly.

Conduit & Wiring Access: Four (4) conduit entry points allow flexible surface conduit or recessed feed routing.

Certifications & Rebates

• DLC 5.1 Premium: Qualifies for utility rebates (searchable on designlights.org under code S-F9NLOH)
• UL Listed: Certified for wet locations per UL outdoor luminaire standards
• RoHS Compliant: Mercury and UV free with RoHS-compliant components

Typical Applications

• Building Entrances, Exits & Egress Doorways - Selectable 80W/60W/40W output and integrated on/off photocell provide automated dusk-to-dawn security illumination above commercial doorways
• Commercial Perimeter Walls & Alleyways - Traditional 13.00" x 9.38" footprint with glass lens and aluminum reflector projects wide forward-throw security light without yellowing
• Loading Docks & Warehouse Exteriors - Multi-volt 120-277V Class 2 driver with 0.75A max current at 120V (0.34A at 277V) supports high fixture counts per branch circuit
• Industrial & Cold-Storage Perimeters - Reliable -40°F (-40°C) cold-weather starting to 104°F (40°C) ambient rating ensures dependable exterior operation
• Retail, Multi-Family & Educational Campuses - DLC 5.1 Premium certification (Code S-F9NLOH) and 100,000-hour L70 lifespan maximize utility rebate returns and reduce maintenance costs

What's Included

• RAB W34M Field-Adjustable Wall Pack - Bronze
• Pre-installed integrated photocell with on/off switch
• Installation hardware and operation manual
