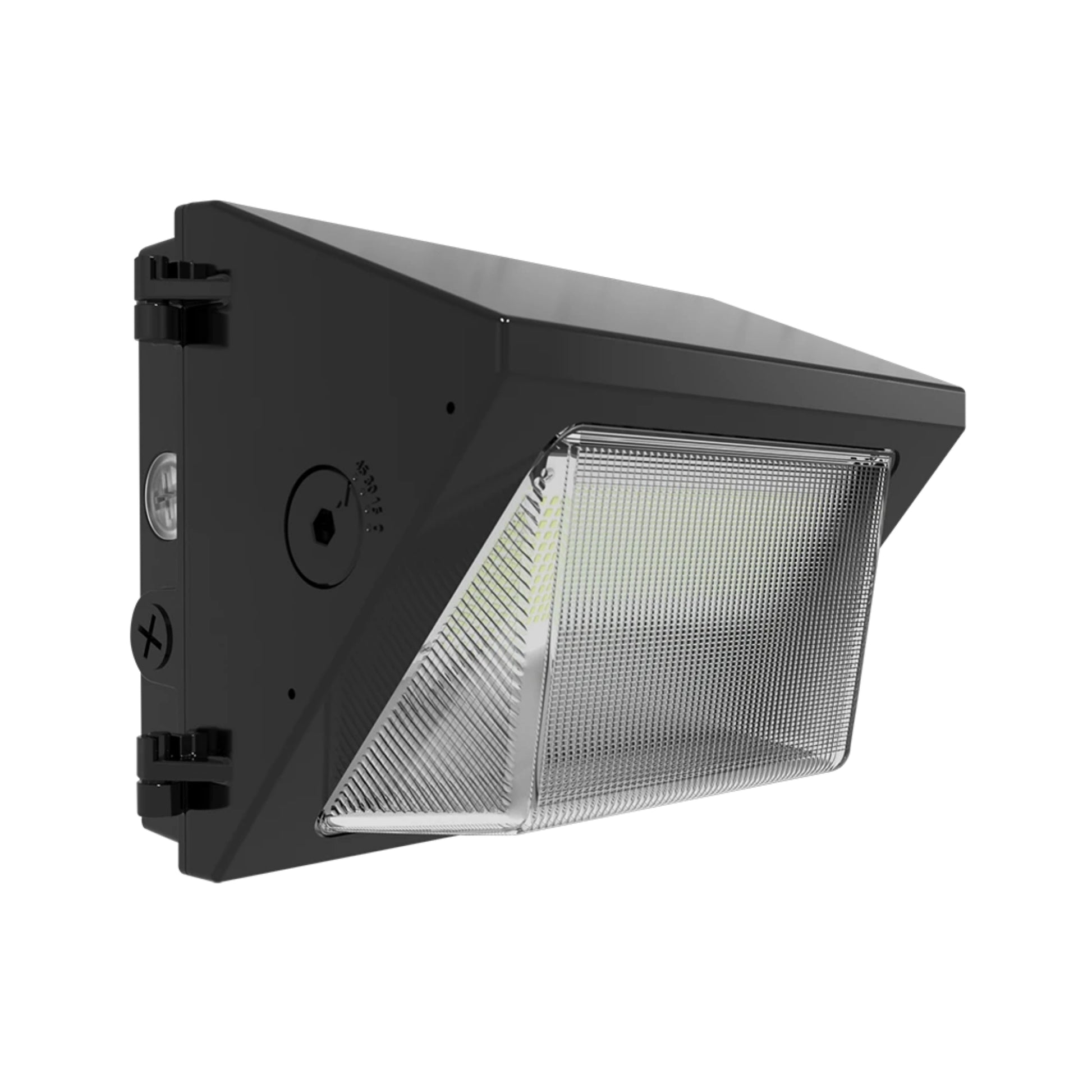

RAB W22-S-30 Adjustable Throw LED Wall Pack — 30W/25W/20W/15W Selectable — 3000K/4000K/5000K — Bronze

The RAB W22-S-30 is a commercial field-adjustable wall pack with adjustable throw engineered to deliver up to 4,508 lumens across field-adjustable 30W/25W/20W/15W power settings and switchable 3000K/4000K/5000K color temperatures. Operating on 120-277V electrical systems with 0-10V dimming down to 10%, this adjustable LED wall pack features an onboard 0°, 15°, 30°, and 45° adjustable throw mechanism delivering peak efficacy up to 151.5 lm/W. Built with a weatherproof IP65 die-cast aluminum body in a Bronze finish with rubber gasketing, this UL wet-location luminaire includes a 10.81" W x 8.31" H surface-mount backbox over recessed junction boxes with dual side hinges/latches, 3 conduit entry points, and a side-dial internal reflector that aims without tilting the housing, and features a glass lens, an internal aluminum reflector, an integrated photocell with on/off switch, and 2kV (L-N) / 4kV (L&N-PE) surge protection.

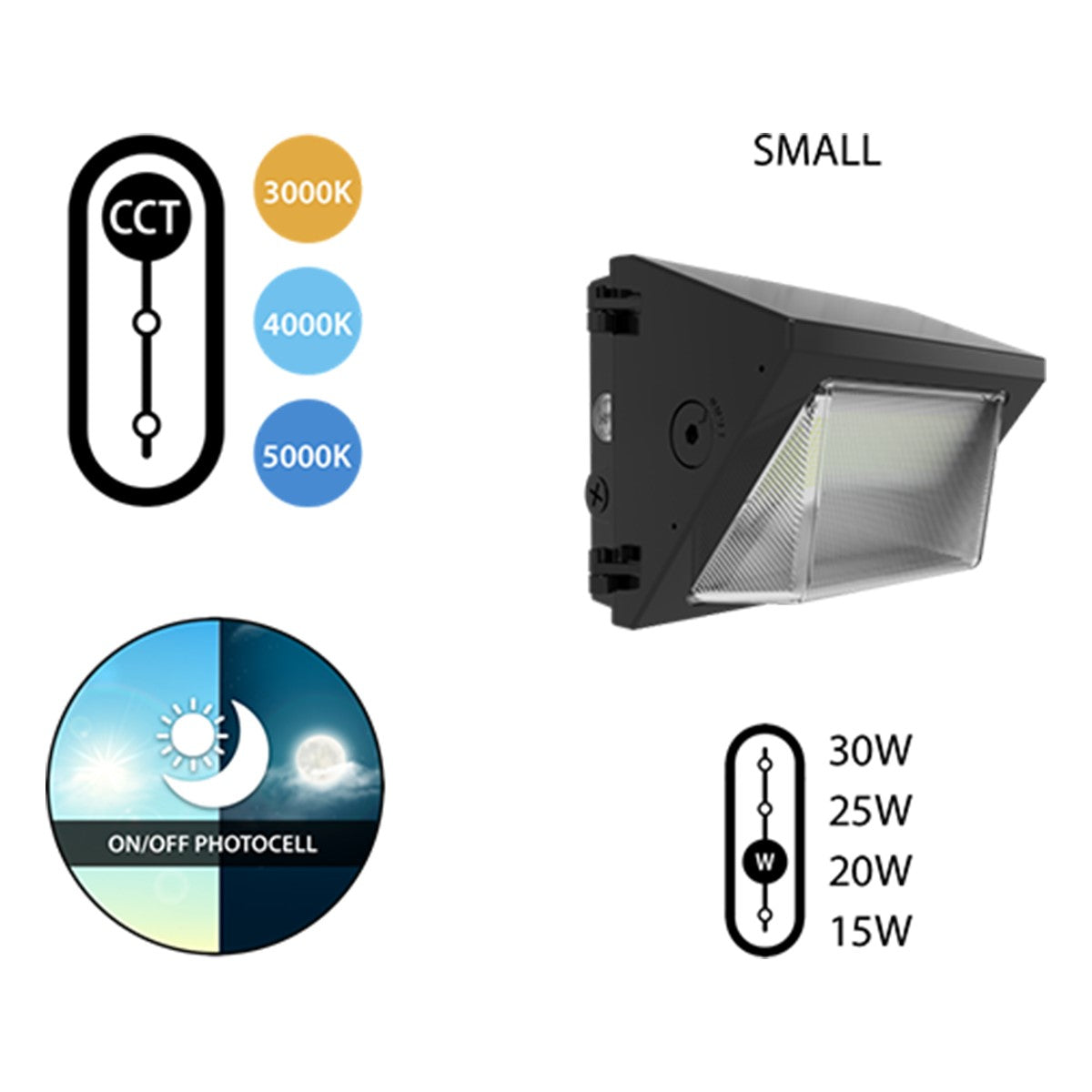

Key Features

• Selectable Wattage: 30W / 25W / 20W / 15W
• Maximum Lumen Output: Up to 4,508 lm
• Peak Efficacy: Up to 151.5 lm/W
• CRI: 83-85
• Selectable CCT: 3000K / 4000K / 5000K
• Color Consistency: 7-step MacAdam Ellipse binning; ANSI C78.377-2017 compliant
• Lens & Optics: Glass lens with aluminum reflector; 0° / 15° / 30° / 45° adjustable throw; BUG Rating B1-U3-G3
• Photocell & Controls: Integrated photocell with on/off switch
• Dimming: 0-10V continuous dimming (dims down to 10%)
• Voltage & Surge Protection: 120-277V AC, 50/60Hz; 2kV (L-N) / 4kV (L&N-PE) surge protection
• Location & Body Rating: UL Listed Wet Location; IP65
• Operating Temperature: -40°F (-40°C) to 104°F (40°C)
• Certifications: UL Listed, IP65 Rated, RoHS Compliant
• Rated Life: L70 100,000 hours
• Warranty: 5-year limited warranty covering light output, driver performance, and paint finish - RAB

Performance & Light Output

At 30W: 0° Throw: 3,759 lm (3000K / 124.1 lm/W), 3,832 lm (4000K / 129.0 lm/W), 3,828 lm (5000K / 126.3 lm/W) | 15° Throw: 3,908 lm (3000K / 129.8 lm/W), 4,045 lm (4000K / 136.2 lm/W), 4,028 lm (5000K / 132.9 lm/W) | 30° Throw: 4,201 lm (3000K / 138.2 lm/W), 4,261 lm (4000K / 143.5 lm/W), 4,317 lm (5000K / 142.0 lm/W) | 45° Throw: 4,354 lm (3000K / 144.2 lm/W), 4,479 lm (4000K / 151.3 lm/W), 4,508 lm (5000K / 148.3 lm/W).

At 25W: 0° Throw: 3,216 lm (3000K / 123.2 lm/W), 3,278 lm (4000K / 128.0 lm/W), 3,275 lm (5000K / 125.5 lm/W) | 15° Throw: 3,380 lm (3000K / 130.0 lm/W), 3,498 lm (4000K / 136.1 lm/W), 3,484 lm (5000K / 133.0 lm/W) | 30° Throw: 3,600 lm (3000K / 138.5 lm/W), 3,651 lm (4000K / 143.7 lm/W), 3,699 lm (5000K / 142.3 lm/W) | 45° Throw: 3,756 lm (3000K / 144.5 lm/W), 3,864 lm (4000K / 151.5 lm/W), 3,889 lm (5000K / 148.4 lm/W).

At 20W: 0° Throw: 2,627 lm (3000K / 122.8 lm/W), 2,678 lm (4000K / 127.5 lm/W), 2,675 lm (5000K / 125.0 lm/W) | 15° Throw: 2,762 lm (3000K / 129.1 lm/W), 2,859 lm (4000K / 135.5 lm/W), 2,847 lm (5000K / 132.4 lm/W) | 30° Throw: 2,934 lm (3000K / 137.1 lm/W), 2,976 lm (4000K / 142.4 lm/W), 3,015 lm (5000K / 140.9 lm/W) | 45° Throw: 3,064 lm (3000K / 143.2 lm/W), 3,152 lm (4000K / 150.1 lm/W), 3,172 lm (5000K / 147.5 lm/W).

At 15W: 0° Throw: 1,917 lm (3000K / 116.9 lm/W), 1,954 lm (4000K / 121.4 lm/W), 1,952 lm (5000K / 119.0 lm/W) | 15° Throw: 2,020 lm (3000K / 123.9 lm/W), 2,091 lm (4000K / 129.9 lm/W), 2,082 lm (5000K / 127.0 lm/W) | 30° Throw: 2,139 lm (3000K / 131.2 lm/W), 2,170 lm (4000K / 136.5 lm/W), 2,198 lm (5000K / 134.8 lm/W) | 45° Throw: 2,235 lm (3000K / 137.1 lm/W), 2,299 lm (4000K / 143.7 lm/W), 2,314 lm (5000K / 141.1 lm/W).

Engineered with long-life, high-efficacy surface-mount LEDs delivering CRI 83-85 across all configurations. Achieves a BUG Rating of B1-U3-G3 across all 30W, 25W, 20W, and 15W settings. Rated life 100,000 hours (L70) based on IES LM-80 results and TM-21 calculations.

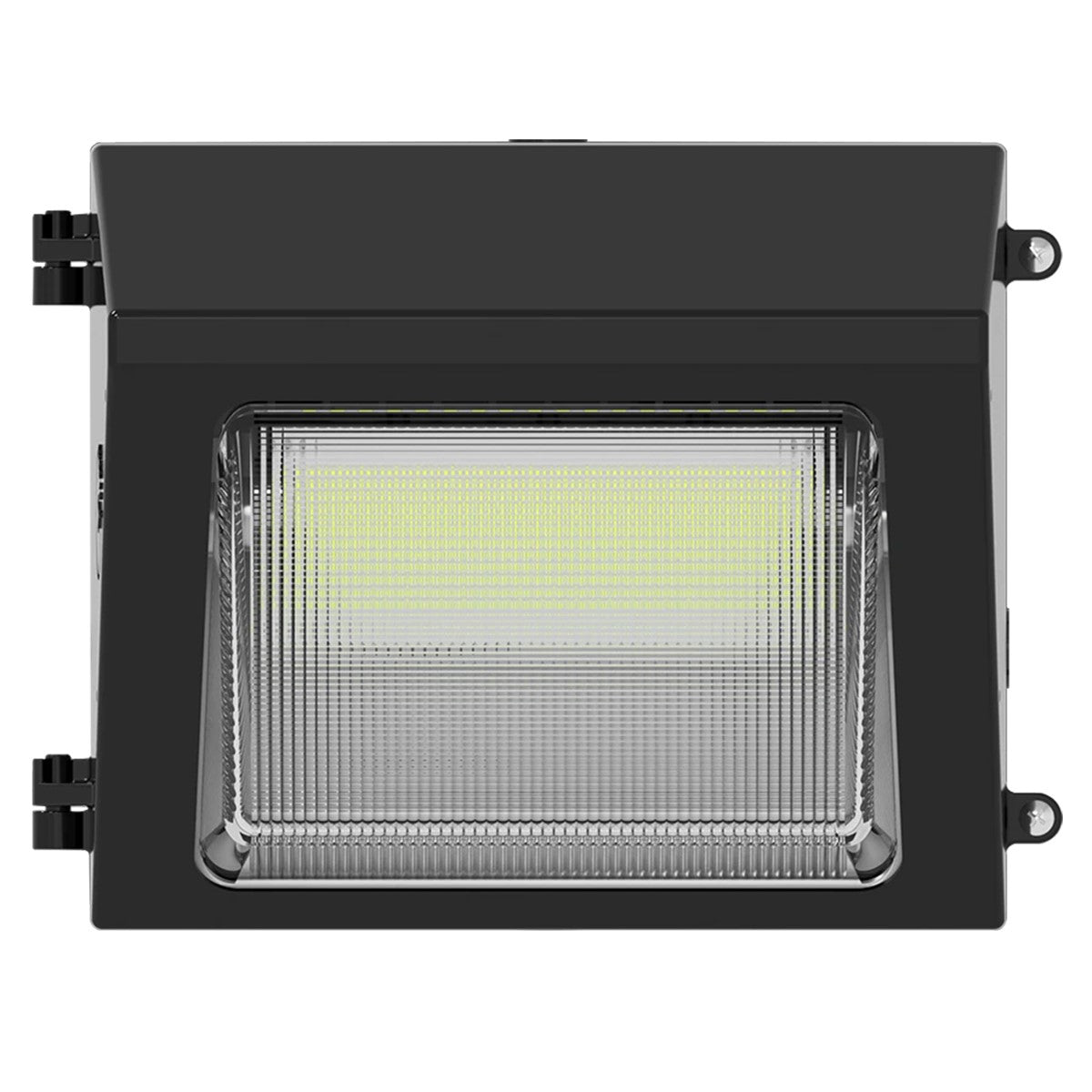

Lens & Optics

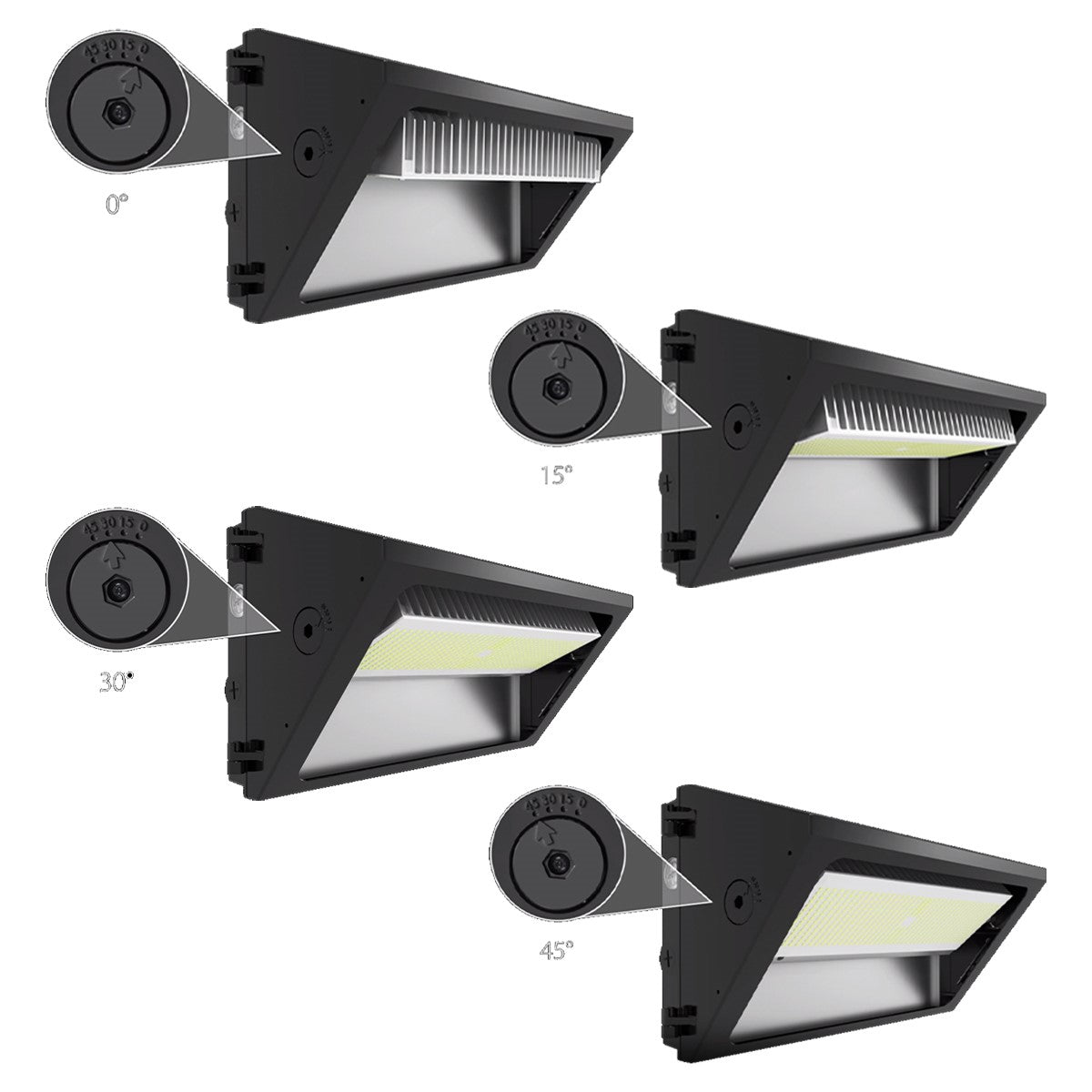

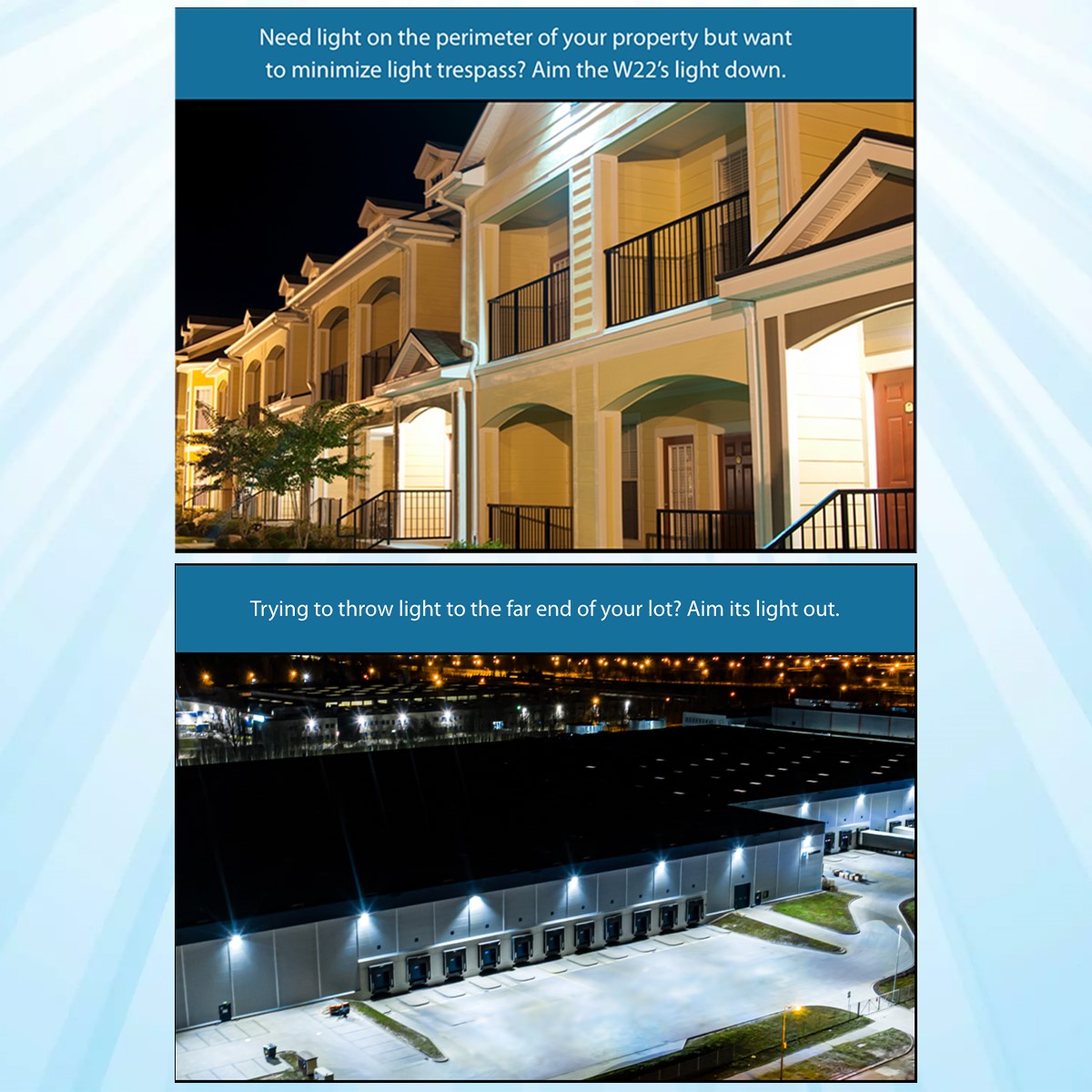

The internal adjustable-throw optical assembly combines a protective glass lens and precision aluminum reflector with four field-selectable beam throw positions:

• 0° Throw Setting (Selectable): Directs illumination downward along the immediate building perimeter and walkway below the fixture.
• 15° & 30° Throw Settings (Selectable): Angles the beam progressively outward to illuminate medium-width drive lanes, loading bays, and perimeter yards.
• 45° Throw Setting (Selectable): Maximizes forward-throw projection and peak lumen output (up to 4,508 lm) across wide commercial perimeters and parking areas.

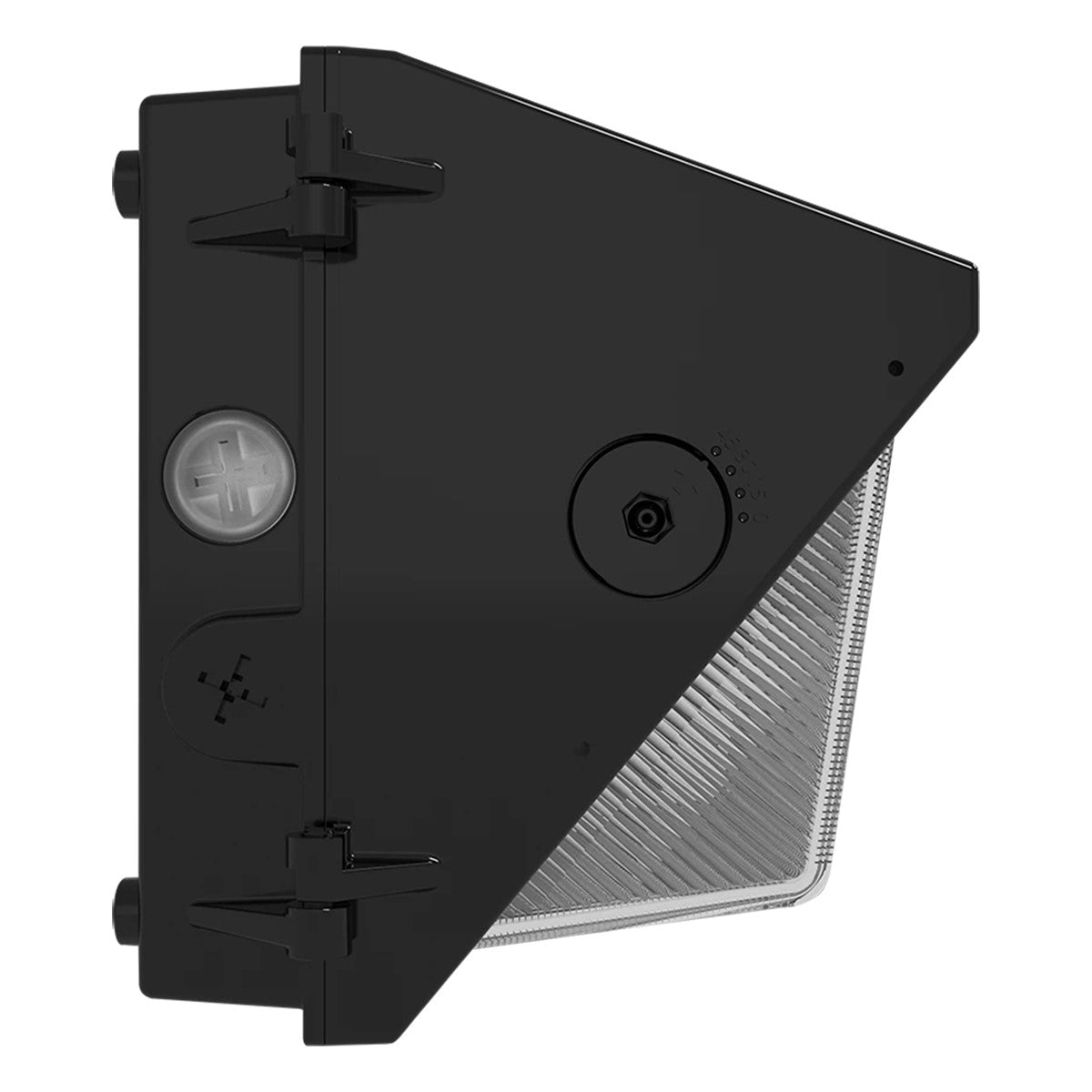

The throw angle is adjusted via the side-mounted optical dial without tilting the external die-cast housing.

Smart & Control Features

Engineered for automated exterior operation and commercial lighting control integration:

• Dusk-to-Dawn Photocell (Integrated): Factory-installed selectable photocell includes an on/off switch for automatic dusk-to-dawn operation or manual wall-switch and timer control.
• 0-10V Continuous Dimming: Driver includes dimming control wiring for 0-10V dimming systems (requires separate 0-10V DC dimming circuit) and dims smoothly down to 10%.

Electrical

Powered by a Constant Current, Class 1 driver operating on 120-277V AC at 50/60Hz. Integrated 2kV (L-N) / 4kV (L&N-PE) surge protection safeguards internal electronics against utility line transients and lightning strikes. Includes pre-wired 0-10V dimming leads (dims down to 10%) and a factory-installed selectable photocell with on/off switch.

Operating current and amp draw across input voltages for branch circuit and breaker loading calculations:

Construction

Housing & Thermal: Die-cast aluminum housing and hinged front frame with dual side latches and engineered passive convection cooling.

Finish: High-durability Bronze powder-coat finish formulated for long-lasting color and weather resistance.

Environmental Sealing: IP65 weatherproof rated for dust and water protection and UL Listed for wet locations with continuous rubber gasketing. Ambient operating temperature: -40°F (-40°C) to 104°F (40°C).

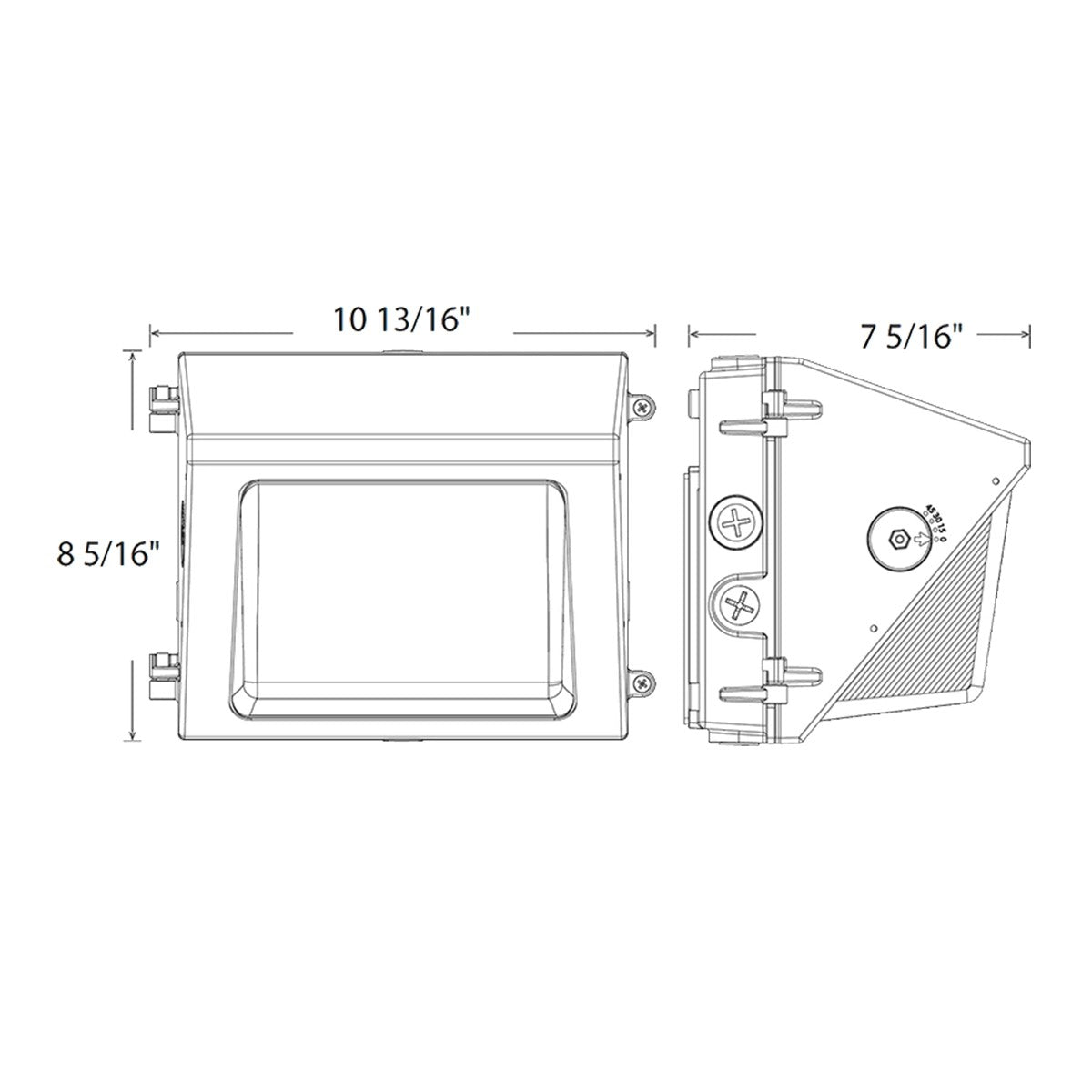

Dimensions & Weight: 10.81" W x 8.31" H x 7.31" D (10 13/16" W x 8 5/16" H x 7 5/16" D). Fixture weight: 5.5 lbs.

Installation & Mounting

Mounting Hardware: 10.81" W x 8.31" H x 7.31" D surface-mount die-cast aluminum backbox mounts directly over recessed junction boxes and features dual side hinges and latches for hands-free wiring access while the external housing remains flush as the internal reflector tilts.

Conduit & Wiring Access: Three (3) threaded conduit entry points accommodate surface conduit feeds.

Accessories (Sold Separately):

• Optics & Shields: W22-S-WG (Wire Guard for Small W22 30W (UPC 192552035491))

Certifications & Rebates

• UL Listed: Certified for wet locations per UL outdoor luminaire standards
• IP65 Rated: Ingress protection rating of IP65 for dust and water
• RoHS Compliant: Mercury and UV free with RoHS-compliant components

Typical Applications

• Commercial Perimeter Walls & Alleyways - Selectable 0°, 15°, 30°, and 45° throw angles let installers tailor forward beam reach without tilting the wall pack housing
• Loading Docks & Warehouse Exteriors - 4-level selectable wattage (30W/25W/20W/15W) and 4kV surge protection adapt to varying bay heights and electrical environments
• Building Entrances, Exits & Egress Doorways - Integrated on/off selectable photocell and 0-10V dimming down to 10% automate dusk-to-dawn security schedules
• Industrial & Cold-Storage Perimeters - IP65 rubber-gasketed die-cast aluminum body and -40°F (-40°C) cold-weather starting withstand harsh exterior climates
• Retail, School & Municipal Campuses - Switchable 3000K/4000K/5000K CCT and optional W22-S-WG wire guard (sold separately) support campus-wide standardization

What's Included

• RAB W22-S-30 Adjustable Throw Wall Pack - Bronze
• Pre-installed selectable photocell with on/off switch
• Installation hardware and operation manual
