LED Standard Wall Pack With Photocell, 14000 Lumens, 50-100 Adjustable Wattage, Selectable CCT 30K/40K/50K, 120/277V, Adjustable Throw
Usually Ships in 1 - 2 Business Days
Free Shipping Over $99
Shipping & Returns
Shipping Policy Message
Free Shipping Over $99
Return Policy Message
30 Days Return Policy

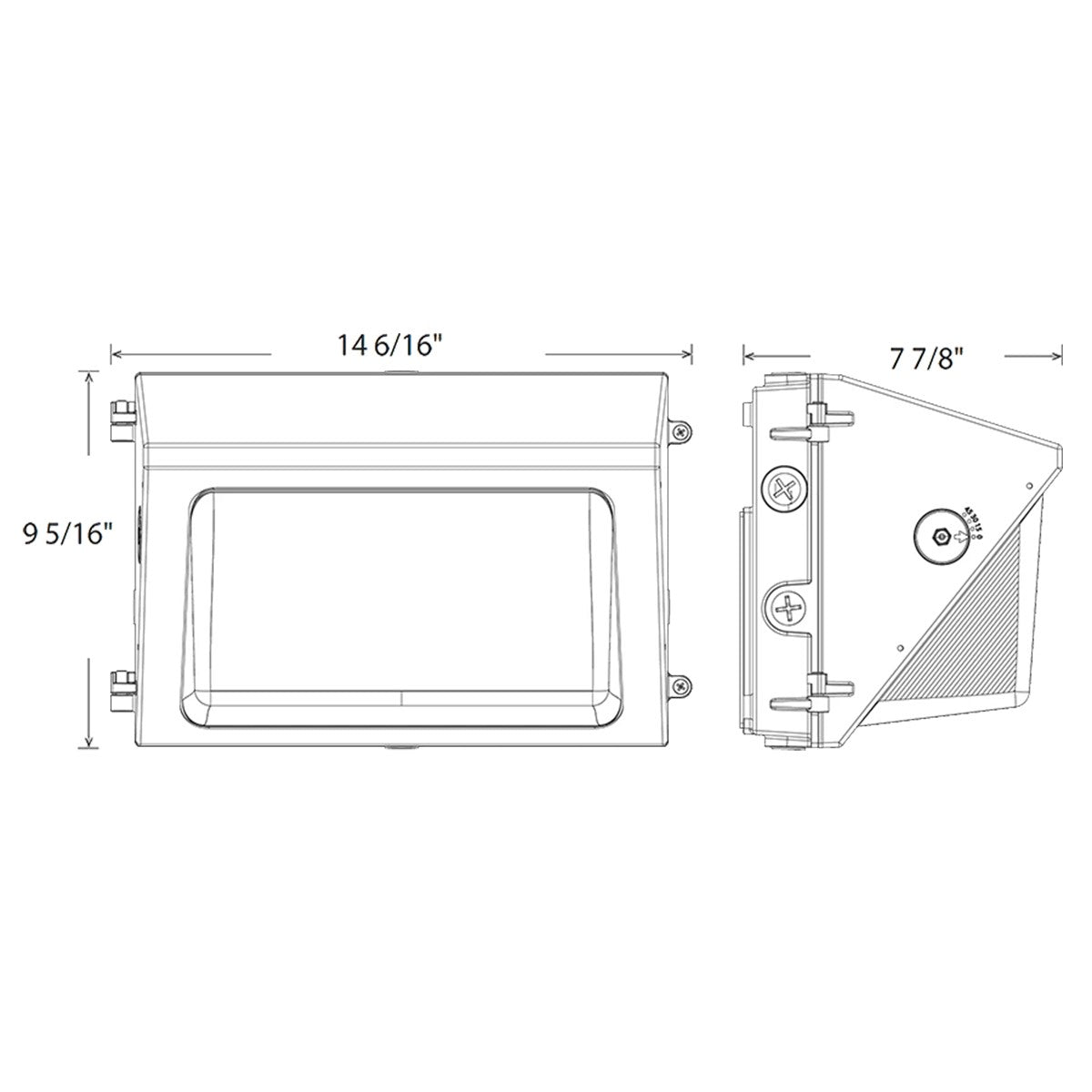

Dimensions & Measurements
Length :
Width :
Height :
PRODUCT OVERVIEW

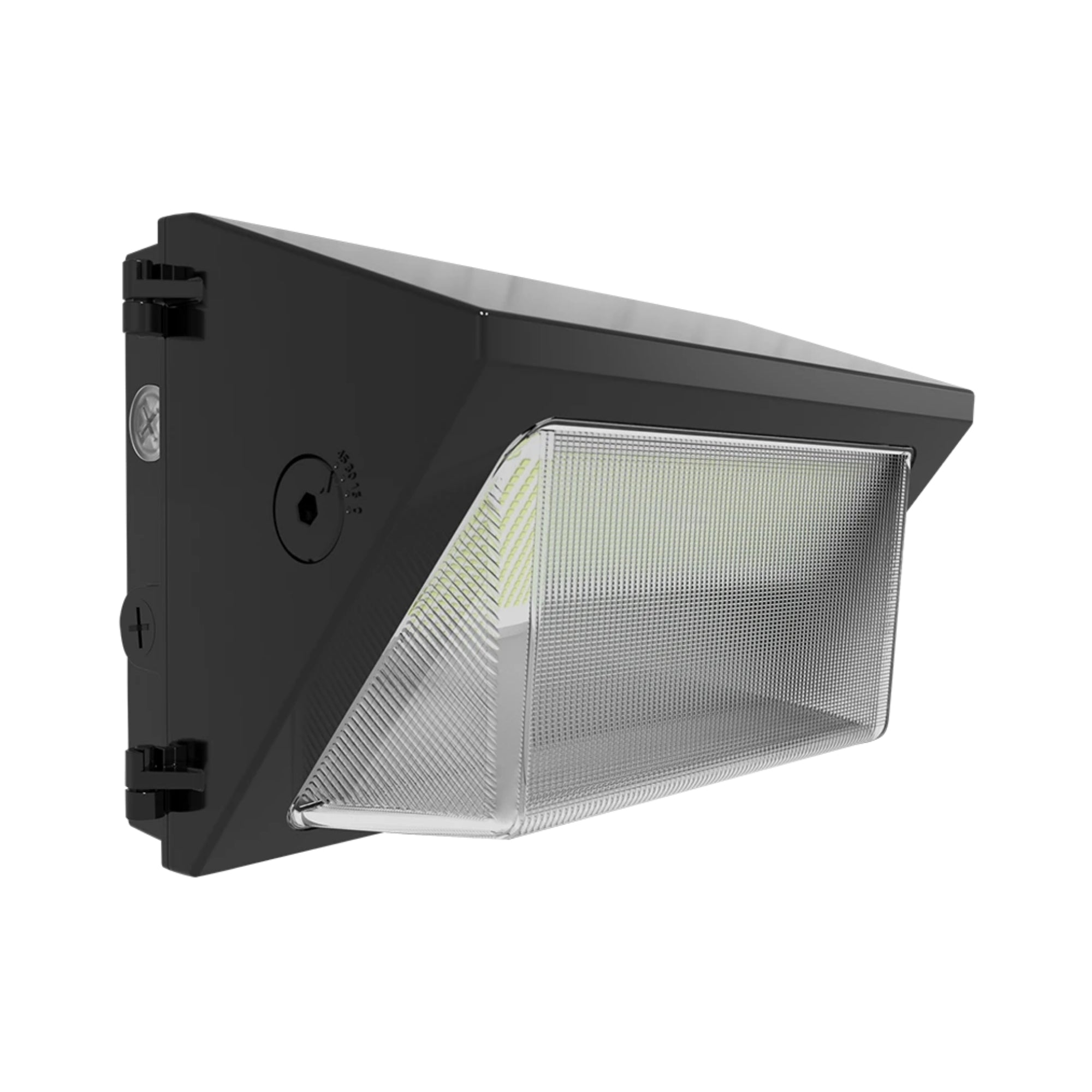

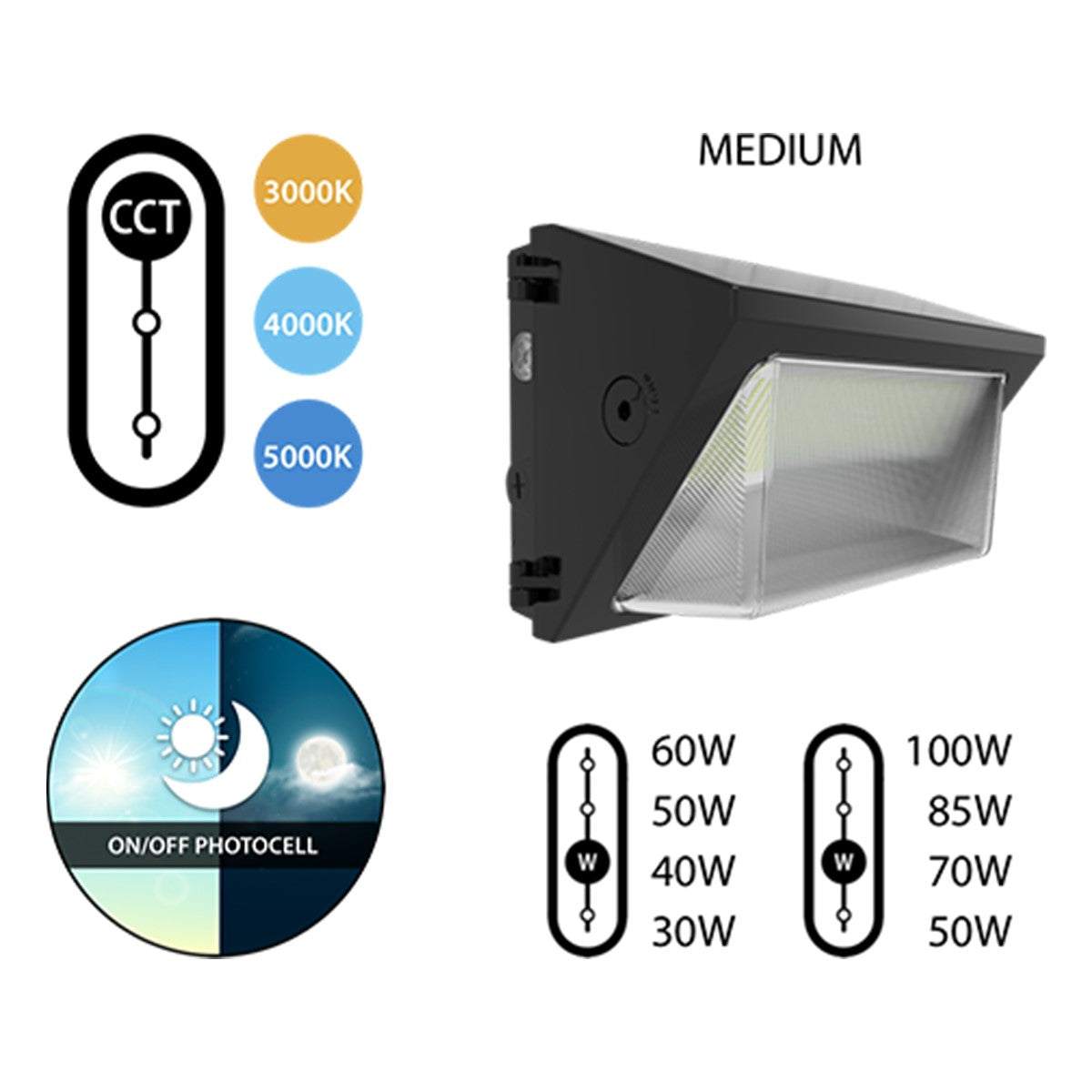

Illuminate your outdoor space with the versatile RAB W22-M-100 Adjustable Throw wall pack. This field adjustable outdoor lighting solution allows you to customize the throw distance, ensuring that light reaches exactly where it's needed. With four selectable wattages ranging from 50 to 100W, you have full control over the brightness and energy efficiency. The 30K/40K/50K selectable CCTs provide flexibility in choosing the color temperature that suits your preference. Equipped with an on/off photocell, this wall pack automatically adjusts to ambient lighting conditions, saving energy when it's not needed. Choose from 0/15/30/45-degree angles to precisely control where the light gets thrown. The RAB W22 wall pack is designed to adapt seamlessly to its environment, providing reliable and customizable outdoor illumination.
- Glass lens and aluminum reflector
- Die-cast aluminum housing
- Surface mount for recessed junction box, 3 conduit entry points
- Mercury and UV free. RoHS-compliant components. Suitable for wet locations
- Ingess protection rating of IP65 for dust and water
Special Features
- Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%

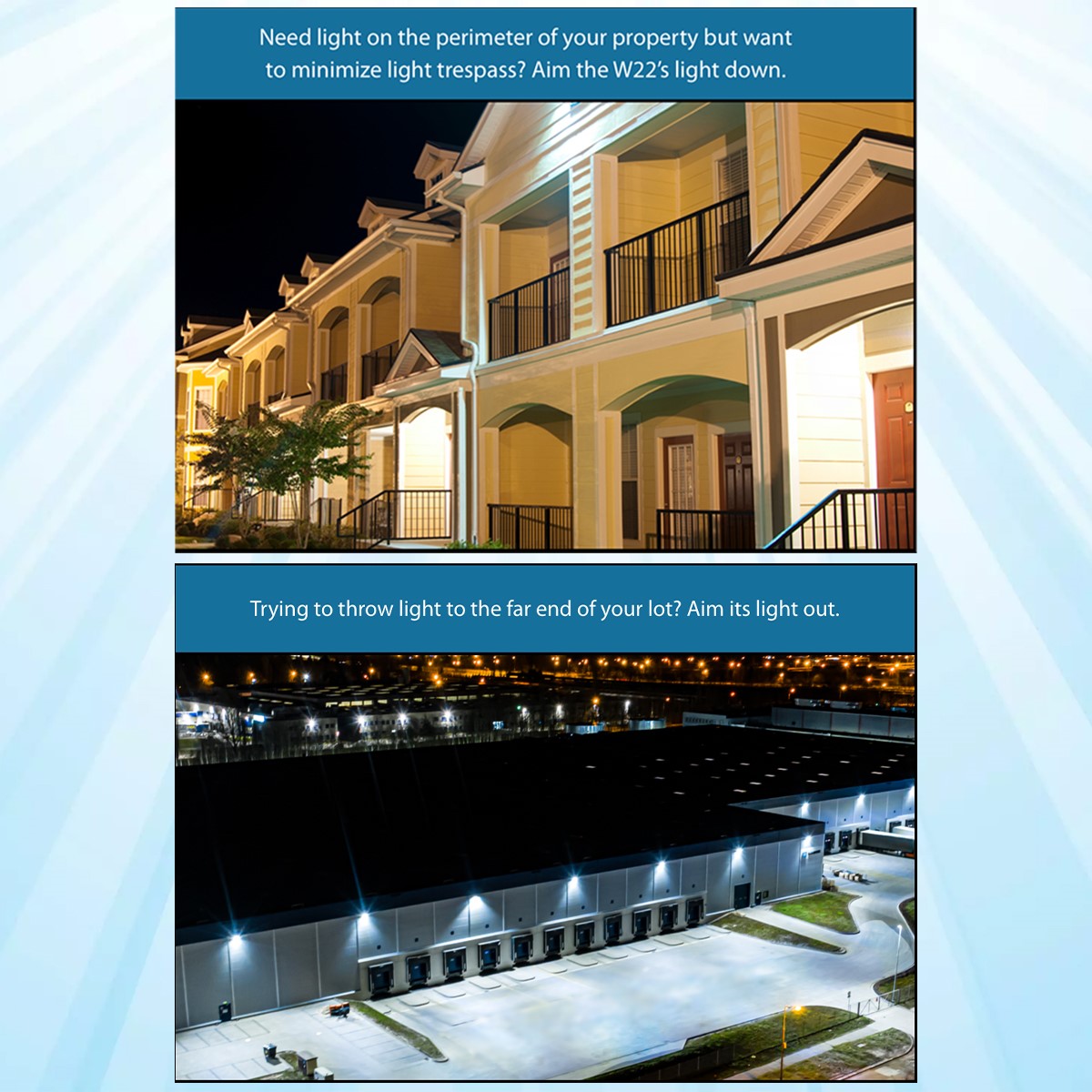

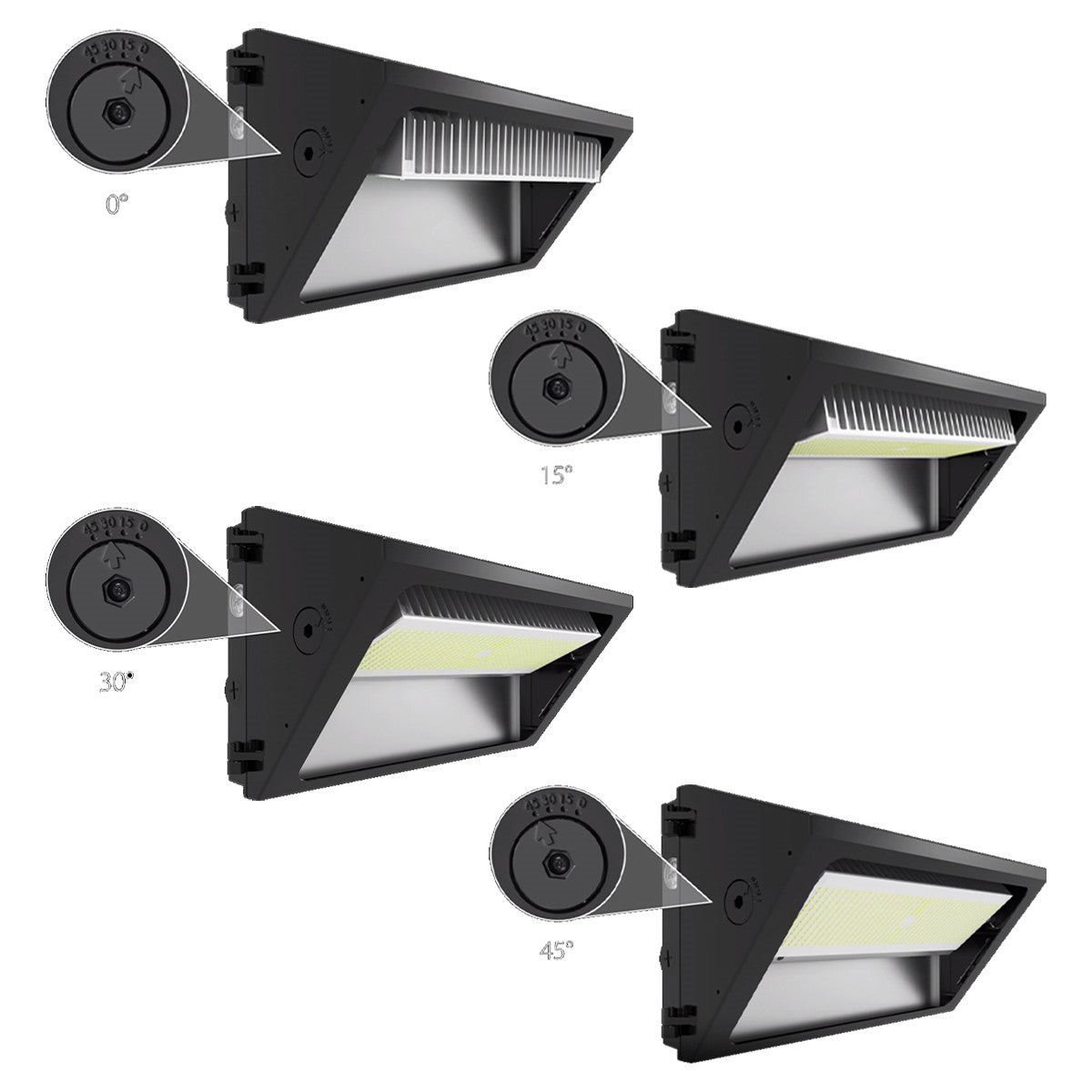

- Adjustable throw: 0, 15, 30, 45 degree. (factory default 45)
- Standard selectable photocell
- 6kV surge protection
PRODUCT OVERVIEW
PRODUCT OVERVIEW
Illuminate your outdoor space with the versatile RAB W22-M-100 Adjustable Throw wall pack. This field adjustable outdoor lighting solution allows you to customize the throw distance, ensuring that light reaches exactly where it's needed. With four selectable wattages ranging from 50 to 100W, you have full control over the brightness and energy efficiency. The 30K/40K/50K selectable CCTs provide flexibility in choosing the color temperature that suits your preference. Equipped with an on/off photocell, this wall pack automatically adjusts to ambient lighting conditions, saving energy when it's not needed. Choose from 0/15/30/45-degree angles to precisely control where the light gets thrown. The RAB W22 wall pack is designed to adapt seamlessly to its environment, providing reliable and customizable outdoor illumination.
Manufacturer Resources
Product information
| Brand | RAB Lighting |
|---|---|
| Category | |
| Product Type | Wall Pack Lights |
| Fixture Type | ["Standard Wall Packs"] |
| MPN | W22-M-100 |
| UPC | 192552034623 |
Lamping
| Color Temperature | |
|---|---|
| Rate life | 100,000 Hours |
Included Components
| Photocell included | true |
|---|
Characteristics
| Material (Multi list) | |
|---|---|
| Shade material | |
| Compatible Dimmer Type | |
| Fixture Replacement |
Electrical and Operational
| Input Voltage | |
|---|---|
| Operating temperature | -40F to 104F |
| Wattage | 100 |
| Lumens | 14000 |
| Efficacy | 160 |
| CRI | 85 |
Warranty and Certifications
| Product Warranty | 5 Years |
|---|---|
| Safety rating |
