RAB VXLED26DG LVAPOR Ceiling Mount Vaporproof — 26W — 4900K — 100–277V — Natural Shot Blasted Aluminum/Frosted Glass Globe

The RAB VXLED26DG is a commercial Ceiling Mount Vaporproof luminaire from the LVAPOR series engineered to deliver 2,004 lumens from a 26W (27.1W input) multi-chip LED array in a fixed 4900K (Cool) color temperature (also rated 1,955 lm at 30.0W / 5000K Cool on the LVAPOR family schedule). Operating on 100–277V electrical systems, this luminaire combines a classic industrial jelly-jar profile with patent-pending die-cast thermal management for commercial and industrial spaces. Built with a UL Listed for wet locations as a downlight rating (suitable for mounting within 4 feet of the ground), it complies with California Title 24 codes and comes complete with a die-cast aluminum guard, thermal shock-resistant frosted glass globe, and high-temperature silicone gaskets.

Key Features

• Wattage: 26W LED (27.1W input watts; 30.0W nominal family rating)
• Maximum Lumen Output: 2,004 lm at 26W (4900K) (1,955 lm nominal family rating)
• Peak Efficacy: 73.9 lm/W (66 lm/W nominal family rating)
• CRI: 68 CRI color rendering (7-step MacAdam Ellipse binning per ANSI C78.377-2011)
• Color Temperature: 4900K / 5000K (Cool) fixed CCT with color stability warrantied to shift no more than 200K over 5 years
• Lens & Optics: Thermal shock-resistant frosted glass globe with shot blasted die-cast aluminum guard
• Voltage: Universal 100–277V AC, 50/60Hz Class 2 constant current driver
• Location Rating: UL Listed for wet locations as a downlight; suitable for mounting within 4' of the ground
• Operating Temperature: -40°F (-40°C) cold weather starting; suitable for use in up to 104°F (40°C) ambient temperature
• Certifications: UL Listed, California Title 24 Compliant, IESNA LM-79 & LM-80 tested, DoE Lighting Facts, RoHS Compliant, BAA Compliant upon request
• Rated Life: 100,000 hours (L70) per IES LM-80 and TM-21 standards
• Warranty: 5-year no-compromise limited warranty — RAB

Performance & Light Output

Delivers 2,004 lumens at 26W (27.1W input watts / 73.9 lm/W efficacy) in a 4900K (Cool) color temperature (rated 1,955 lm at 66 lm/W on 30.0W input / 5000K Cool in the LVAPOR family catalog table; values pertain to the standard frosted globe and vary if installed with optional replacement globes).

CRI 68 across standard output. Rated life 100,000 hours (L70) per IES TM-21 testing.

Electrical

Powered by a Class 2 constant current driver (720mA) operating on 100–277V AC at 50/60Hz (27.1W input watts). Delivers high electrical efficiency with a Power Factor of 97.9% (99.2% nominal family spec) and Total Harmonic Distortion (THD) ≤20%. Integrated 6kV surge protection protects internal electronics against transient voltage spikes.

Operating current and amp draw across input voltages for branch circuit and breaker loading calculations (0.48A / 0.4A max across 100–277V AC):

Construction

Durability & Impact Protection: All die-cast aluminum housing and lens frame engineered for maximum heat dissipation, paired with a natural shot blasted die-cast aluminum guard.

Ingress Protection: Sealed with high-temperature silicone gaskets and UL Listed for wet locations as a downlight (suitable for mounting within 4 feet of the ground).

Operating Temperature: Cold weather starting at -40°F (-40°C); operating ambient temperature range of -40°F (-40°C) to 104°F (40°C).

Lens & Optics: Thermal shock-resistant frosted glass globe for diffused, low-glare downlight illumination.

Finish: Natural shot blasted aluminum finish formulated for high resistance against corrosion and surface wear.

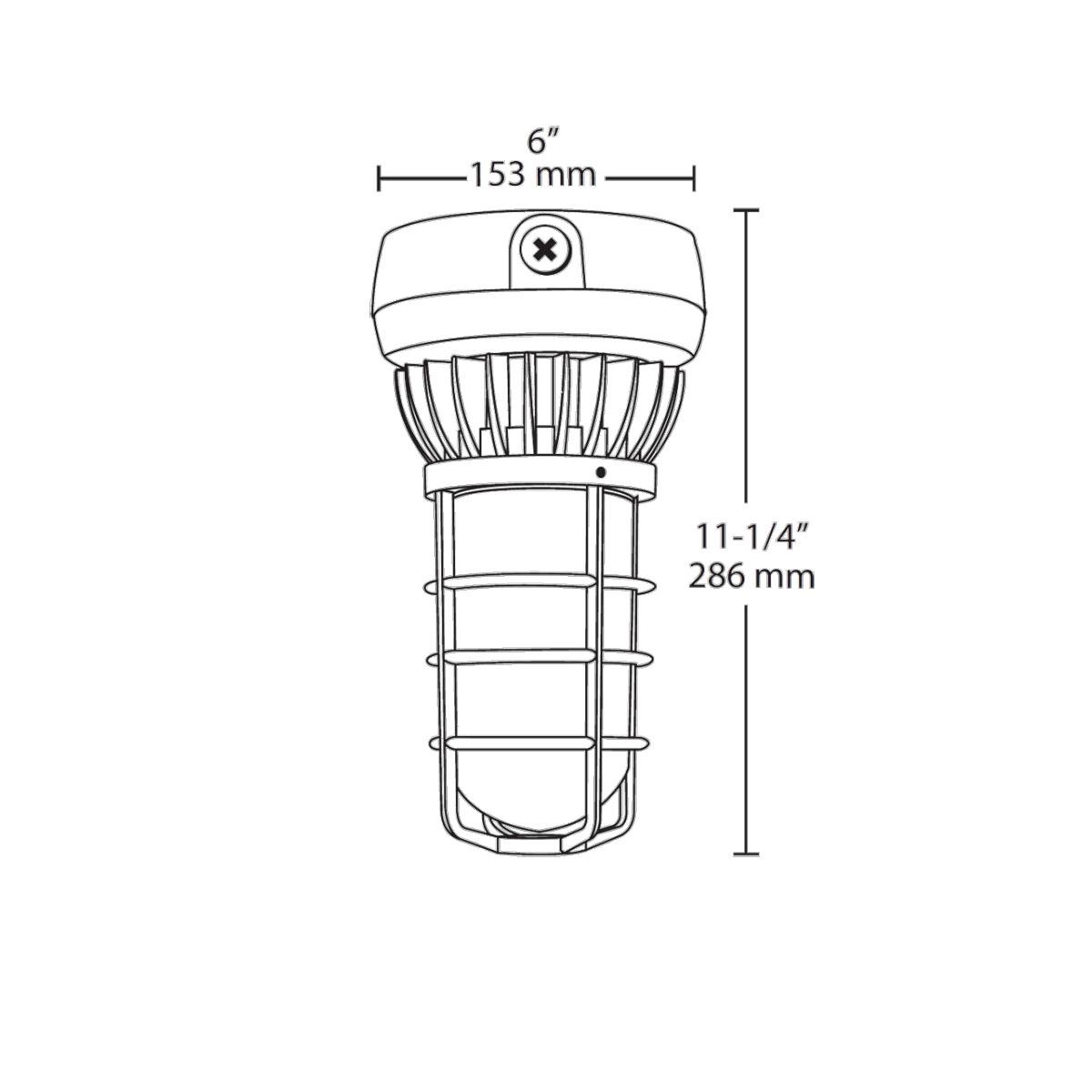

Dimensions & Weight: 6.00" W × 11.25" H (6" / 153 mm W × 11-1/4" / 286 mm H). Fixture weight: 5.8 lbs.

Installation & Mounting

Standard Mounting: Ceiling mount configuration equipped with three 1/2" NPS conduit entry points for direct surface conduit routing.

Accessories (Sold Separately):

• Replacement & Colored Glass Globes: GL100FR (Replacement Frosted Globe, sold separately), GL100A (Amber Round Bottom Glass Globe, sold separately), GL100B (Blue Round Bottom Glass Globe, sold separately), GL100G (Green Round Bottom Glass Globe, sold separately), GL100R (Ruby Round Bottom Glass Globe, sold separately), GL100W (Opal Round Bottom Glass Globe, sold separately), GL100HR (Clear Heat Resistant Prismatic Glass Globe, sold separately), GL100PRS (Prismatic Glass Globe, sold separately)
• Polycarbonate Permaglobes: GL100PGA (Amber, sold separately), GL100PGB (Blue, sold separately), GL100PGG (Green, sold separately), GL100PGR (Ruby, sold separately), GL100PGW (Opal, sold separately), GL100PG (Clear Prismatic, sold separately)
• Reflectors & Guards: REZ100ST (Dome Reflector for Die-Cast Guard, sold separately), REZ100SA (Angle Reflector for Die-Cast Guard, sold separately), GD100DG (Die-Cast Aluminum Guard for Glass Globes Only, sold separately), GD100CLB (Wire Clamp Guard Flat Bottom, sold separately), GD100BAR (Wire Guard for Polycarbonate Globes Only, sold separately)

Certifications & Rebates

• UL Listed: Certified for wet locations as a downlight and suitable for mounting within 4' of the ground.
• BAA Compliant (Upon Request): Available to be manufactured compliant with the Buy American Act (BAA) upon request.
• Title 24 Compliant: Complies with California Title 24 commercial building energy codes.
• IESNA LM-79 & LM-80 Tested: Tested by an independent laboratory in accordance with IESNA LM-79 and LM-80 standards; received the Department of Energy "Lighting Facts" label.
• RoHS Compliant: Mercury and UV free; engineered with RoHS-compliant components free of hazardous substances.

Typical Applications

• Commercial Walkways & Breezeways — Ceiling-mount 2,004-lumen downlight output and wet-location sealing illuminate covered exterior walkways.
• Mechanical & Utility Rooms — Three 1/2" NPS conduit entry points and die-cast aluminum guard simplify surface conduit routing and protect against tool impacts.
• Cold Storage & Walk-In Freezers — Reliable -40°F (-40°C) cold weather starting and thermal shock-resistant frosted glass globe perform dependably in sub-zero spaces.
• Loading Docks & Industrial Corridors — UL approval for mounting within 4 feet of the ground and 6kV surge protection withstand demanding industrial environments.
• Parking Structures & Tunnels — Natural shot blasted aluminum finish and high-temperature silicone gaskets resist moisture, dust, and corrosion.

What's Included

• RAB VXLED26DG Ceiling Mount Vaporproof Luminaire — Natural Shot Blasted Aluminum
• Die-cast aluminum guard and thermal shock-resistant frosted glass globe
• Installation and operation manual
