RAB VXBRLED13DG LED Vaporproof Wall Mount Light 729 Lumens 13W 5000K 120–277V Natural Aluminum
Available in stock (200)
About this item
About this item
- Output: ~729 lumens at 13W
- Wet Rated: IP65 UL listed for wet locations
- Construction: Die-cast aluminum with guard & frosted globe
- Temperature Range: -40°F to 104°F operation
- Compliance: TAA compliant with 5-year warranty
We process payments securely and do not store credit card information.
Description
Description
RAB VXBRLED13DG LED Jelly Jar Vaporproof Wall Mount Light — IP65 Wet Rated Fixture

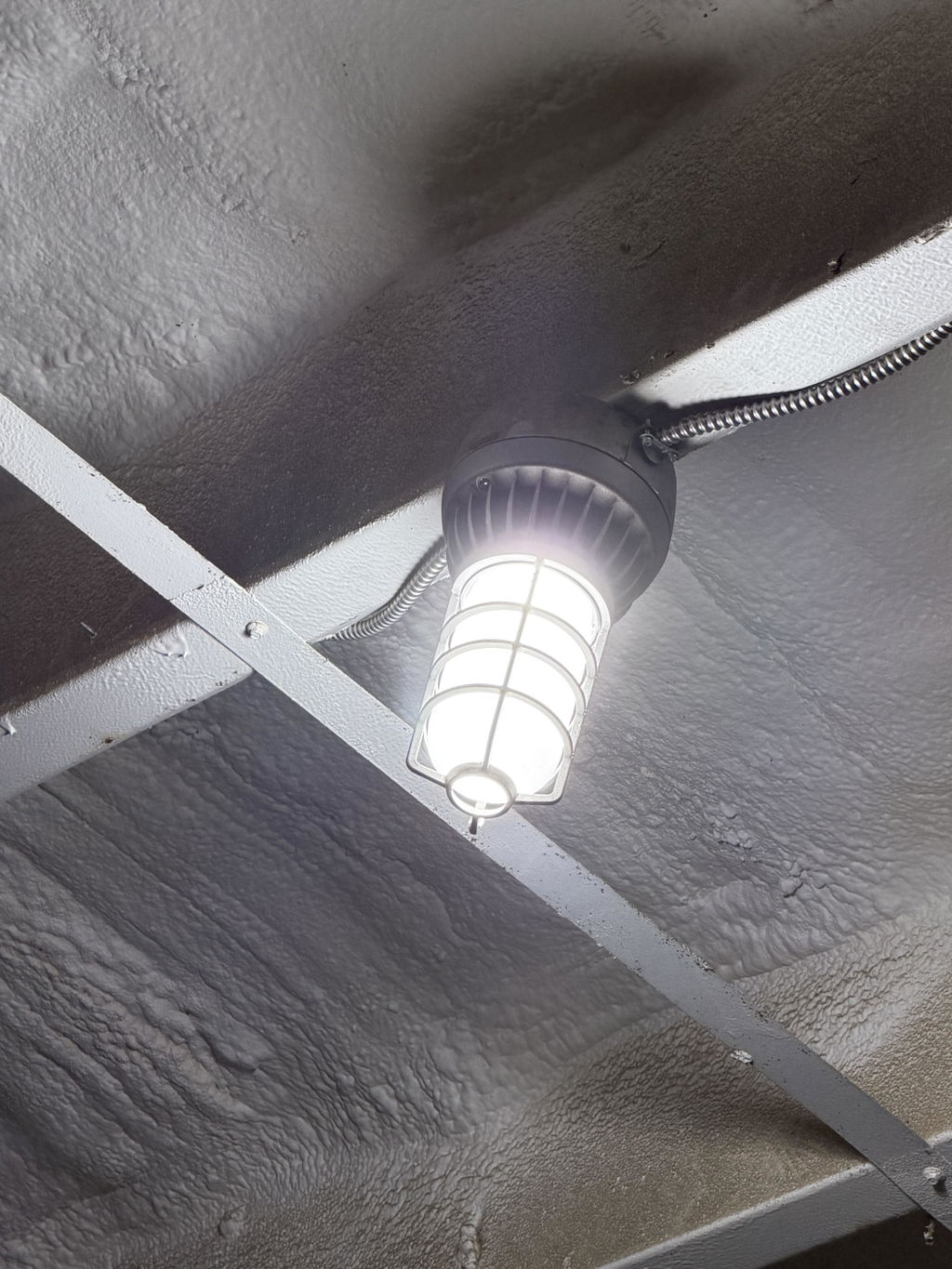

The RAB VXBRLED13DG is a wall mount LED vaporproof fixture engineered for wet location use as a sealed downlight. It delivers approximately 729 lumens at 13W with a fixed 5000K color temperature and operates on a universal 120–277V driver. Designed for industrial and commercial environments, it features a die-cast aluminum housing with a shot-blasted protective guard and thermal shock-resistant frosted glass globe. This unit is UL listed for wet locations and offers long service life with consistent performance.
Key Features
- Output: ~729 lumens
- Wattage: 13W
- CCT: 5000K fixed
- Voltage: 120–277V universal input
- Driver: Constant current, 100–277V, 50/60 Hz
- Wet Location: UL listed suitable for wet locations
- Construction: Die-cast aluminum housing and driver housing
- Guard & Globe: Shot-blasted guard with frosted glass globe
- Operating Range: -40°F (-40°C) to 104°F (40°C)
- Rated Life: 100,000 hours (L70)
- BUG Rating: B0 U3 G1
- TAA Compliant: Product complies with the Trade Agreements Act
- Warranty: 5-year limited warranty
Typical Applications
- Exterior wall lighting
- Loading docks
- Utility and maintenance areas
- Industrial corridors
- Stairwells and wet exterior spaces
- Back-of-house and service areas
Performance & Light Output
Delivers ~729 lumens at 5000K with an efficacy of approximately 48 lm/W. The LED module maintains consistent color quality with a CRI of ~65 and is designed for 100,000 hours of service life (L70) based on IES LM-80 and TM-21 data.
Electrical & Controls
Operates on a universal 120–277V, 50/60Hz constant current driver with ~15.1W input. Surge protection is rated at 4 kV. This model is not listed for dimming.
Construction & Durability
Rugged die-cast aluminum housing and driver housing with high-temperature silicone gaskets provide moisture sealing for wet environments. The shot-blasted guard and thermal shock-resistant frosted glass globe protect the LED from impact and moisture while maintaining optical diffusion.
Installation & Mounting
Wall-mount design with three 1/2? NPS conduit entry points supports sealed conduit entry for exterior and industrial installations.
Included
- LED fixture
- Die-cast protective guard
- Frosted glass globe
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Is the RAB VXBRLED13DG suitable for outdoor wet environments?
Is the RAB VXBRLED13DG suitable for outdoor wet environments?
What voltage range does it operate on?
What voltage range does it operate on?
What color temperature and brightness does this model provide?
What color temperature and brightness does this model provide?
Does the VXBRLED13DG support dimming?
Does the VXBRLED13DG support dimming?
What mounting and hardware are included?
What mounting and hardware are included?
