RAB Lighting VIBE 150 ft Permanent Eave Lights Kit, RGBW, 2200-6500K, Lightcloud Blue
In stock
About this item
About this item
- Complete 150 ft Kit: Six 25 ft light strings contain totaling 108 lamps, and include a controller, power supply, and 8 ft jumper cable for permanent eave-lighting layouts.
- RGBW & Tunable White: Select from 16+ million colors and adjust white light from 2200K to 6500K through Lightcloud Blue.
- Bluetooth & Gateway Control: Direct Bluetooth control requires no gateway or hub; a gateway is required for connection to Lightcloud Gateway and other Lightcloud devices.
- Input Voltage & Expansion: The 50W kit has a 120-277V-rated power supply with a supplied 120V plug and supports up to 200 ft using separately sold VBE-EXT/RGB extensions.
- IP66 Construction: The permanent eave-lighting system carries an IP66 rating, with white PVC light modules and screw-fastened mounting brackets; protect electrical connections as instructed.
Description
Description
RAB Lighting VIBE Permanent Eave Lights — RGBW Control

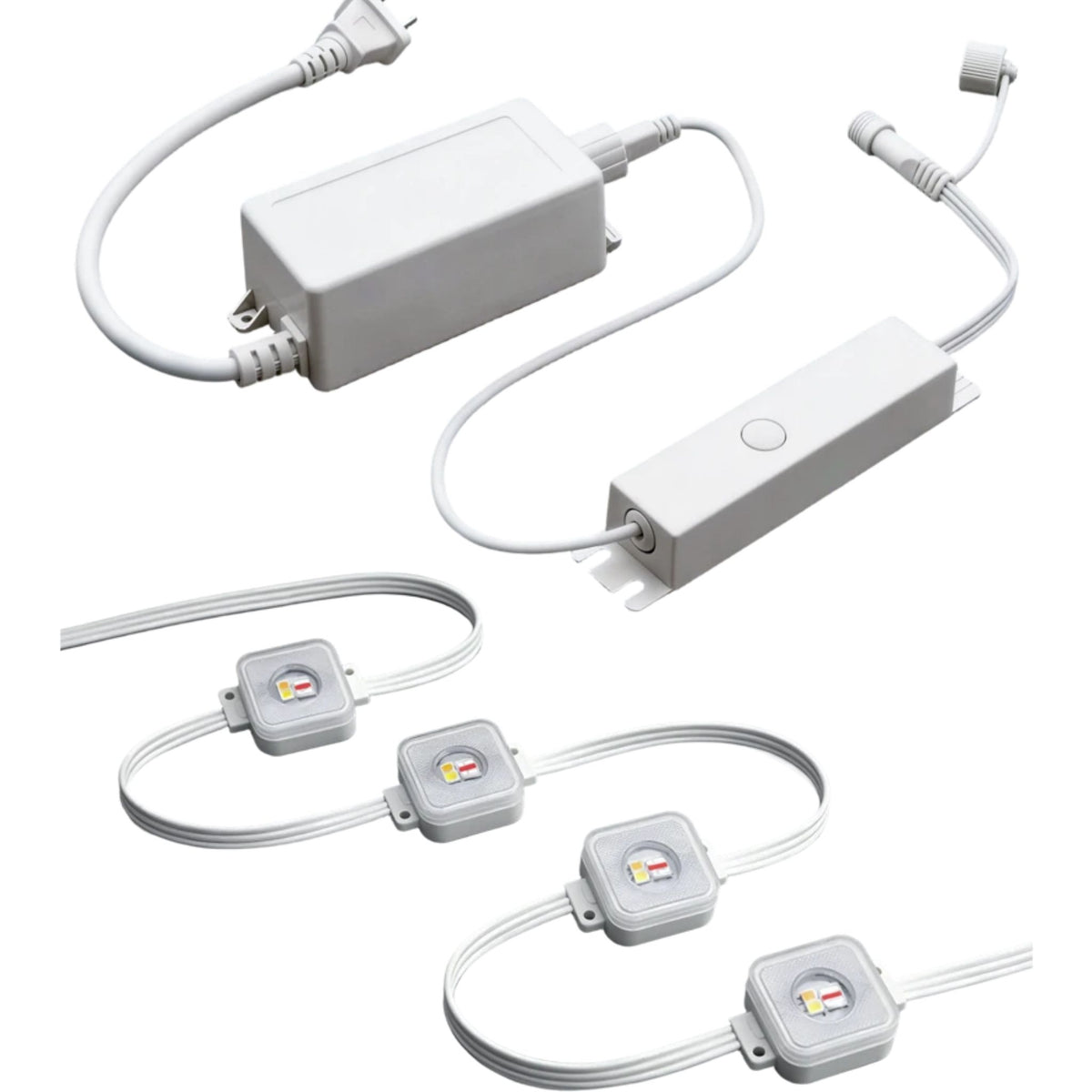

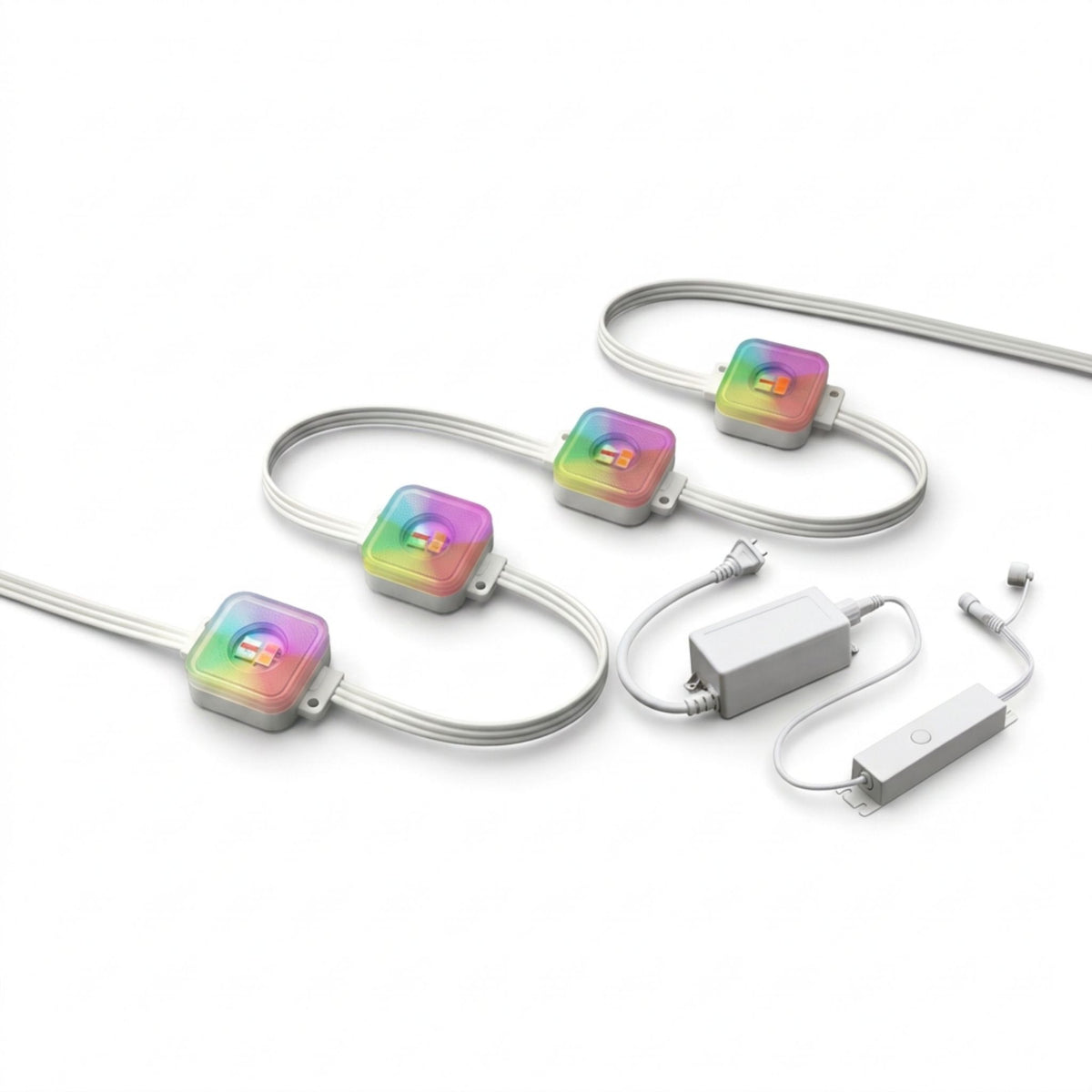

The VBE/RGB is a complete 150 ft permanent eave-lighting kit with PVC enclosures, six 25 ft strings, a controller, and power supply. The 50W system has a 120–277V-rated power supply and a supplied plug for 120V installation. RAB specifies indoor/outdoor wet-location use; protect electrical connections as instructed.
Key Features
- System Length: Six 25 ft strings provide 150 ft of lighting.

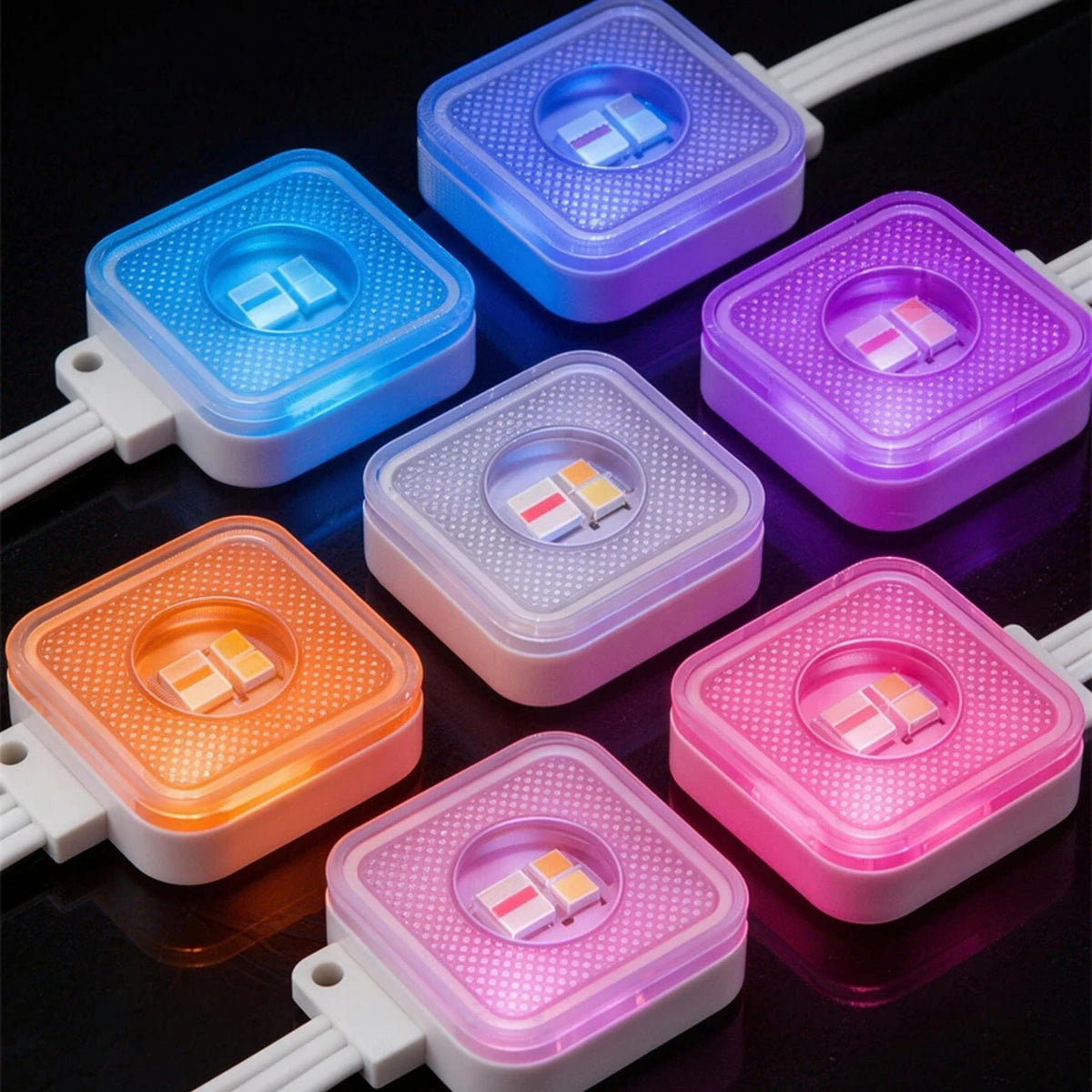

- Color Control: RGBW lighting offers 16+ million colors and 2200–6500K tunable white.
- Output: Nominal output is 45 lumens per lamp with a 120° beam angle.
- White-Light Quality: CRI exceeds 80; default CCT is 3000K.
- Power: Rated system input wattage is 50W.
- Light Shows: Seven preset animations support custom colors, speed, brightness, and frequency.
- Dimming: Use Lightcloud Blue, not a standard incandescent dimmer.

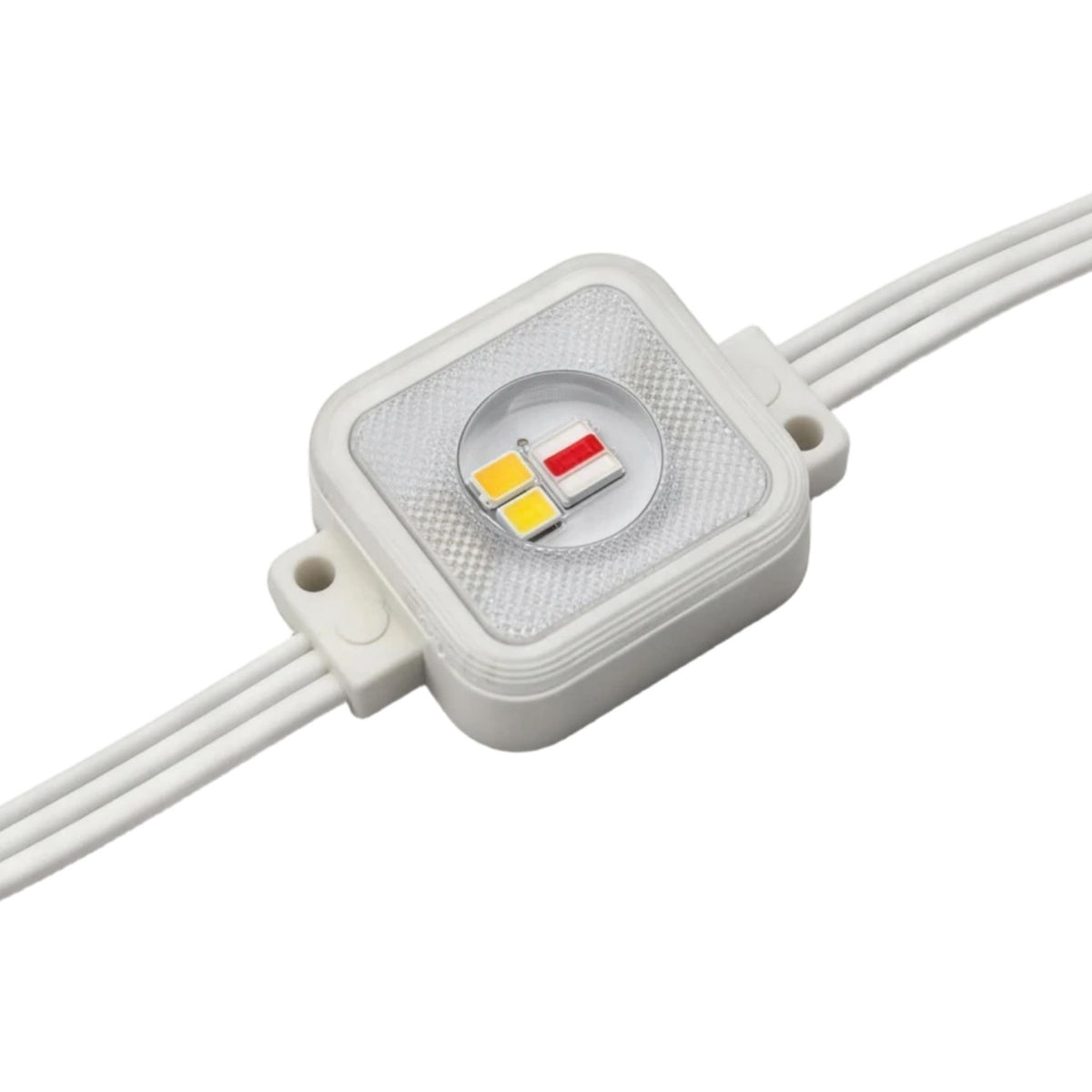

- Construction: White PVC enclosures have clear lenses and nonreplaceable LEDs.
Construction & Lighting Layout

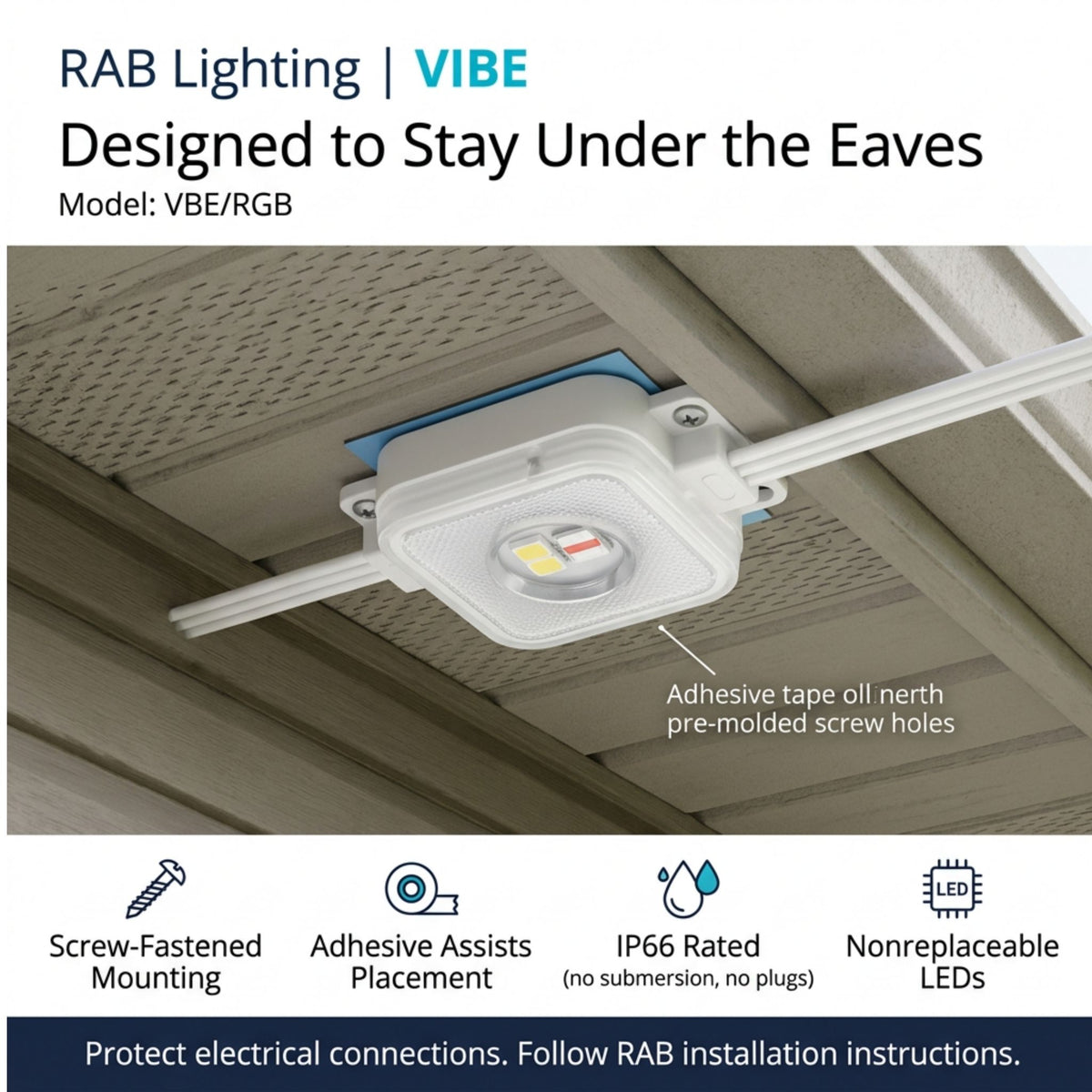

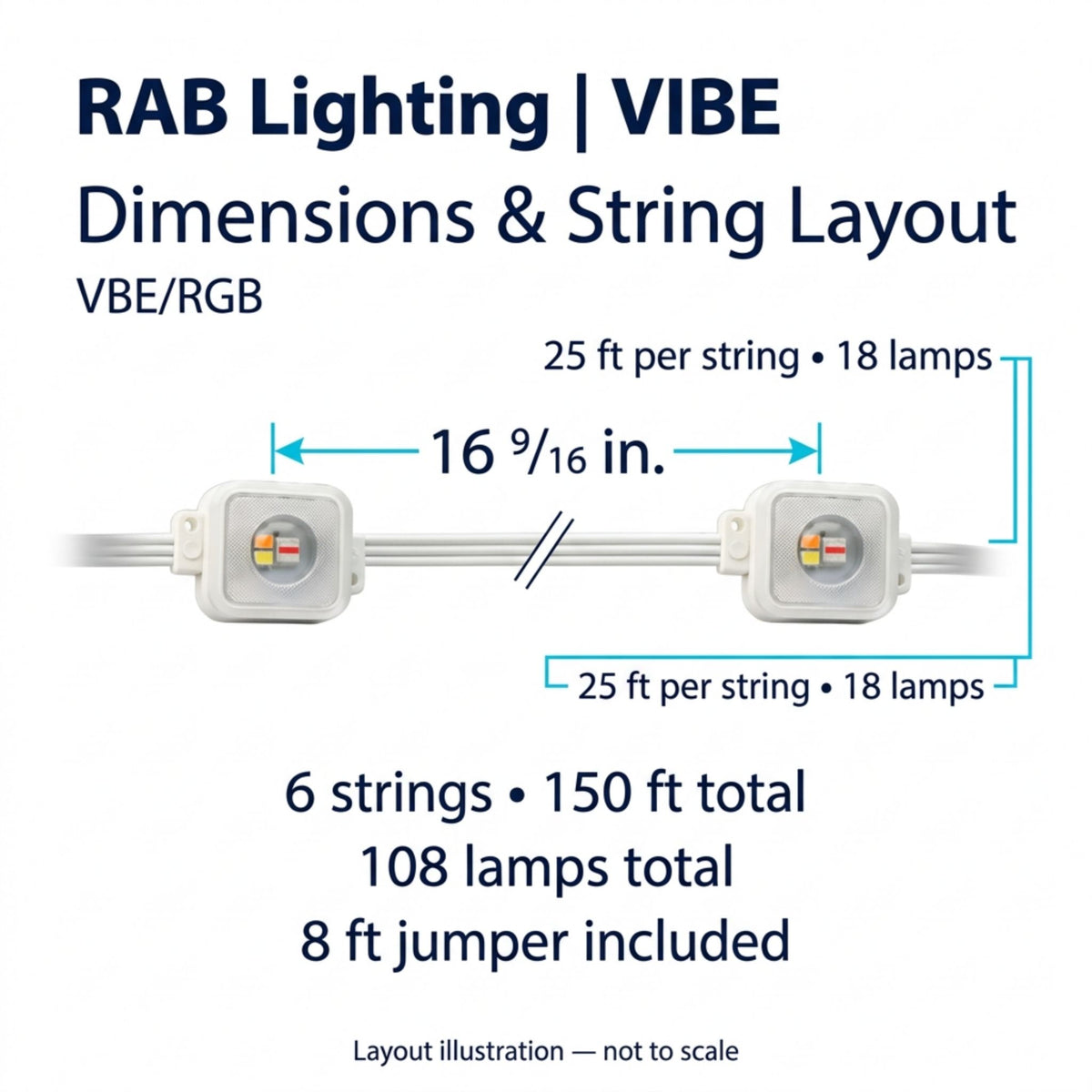

Light modules are spaced approximately 16.5 in. apart along UL2464 22AWG 3/C cable. Temporary adhesive backing assists placement; brackets require screw fastening for permanent installation.
Light Output & Color
Combine RGB effects with tunable white for year-round architectural accents and seasonal displays. Lightcloud Blue provides scenes, schedules, and SmartShift brightness/CCT profiles. RAB lists a 50,000-hour L70 lifespan.
Power, Connections & Controls
The included controller supports Bluetooth mesh app control. RAB documents expansion to 200 ft on one power supply using separately sold 25 ft extensions; confirm the accessory ordering code before purchase. NANO/LCB is sold separately for Alexa/Google integration and remote access. Do not modify the supplied plug for higher-voltage installation.
Mounting & Installation
Pre-connect and test before mounting. Secure modules with supplied brackets and screws, keep plugs/connections dry, and use an enclosed weatherproof GFCI outlet outdoors. RAB permits trimming using its end-cap and glue procedure; follow the installation manual rather than assuming a fixed cut increment.
Recommended Applications
- Residential eave accent lighting.
- Roofline and dormer outlining.
- Programmable seasonal roofline displays.
What's Included & Required
- Six 25 ft light strings and one 8 ft jumper cable.
- One controller and one power supply with plug.
- Adhesive pads, double-sided tape, mounting screws, and cable clips.
- Seal glue and one end cap.
- Extensions and NANO/LCB sold separately.
