RAB Lighting VIBE Permanent Eave Light Extension — RGBW Color

The VBE-EXT/RGB adds 25 ft of RGBW lighting to the compatible VBE/RGB permanent eave-lighting system. This 9W extension has white PVC enclosures, clear lenses, and an IP65 rating. RAB lists a 120–277V system input rating; this is an extension string, not a complete power-and-control kit.

Key Features

• Compatibility: Designed for the VBE/RGB 150 ft permanent eave-lighting system.
• Added Length: One 25 ft light string extends the existing layout.
• Color Technology: RGBW offers 16+ million colors and 2200–6500K tunable white.
• Output: Nominal light output is 45 lumens per lamp with a 120° beam.
• White-Light Quality: CRI exceeds 80, with a default CCT of 3000K.
• Power: The extension is rated 9W; the listed system input is 120–277V.
• Controls: Lightcloud Blue supports dimming, color tuning, SmartShift, and dynamic light shows.
• Environment: IP65 construction is listed for indoor/outdoor dry, damp, or wet environments.

Construction & Lighting Layout

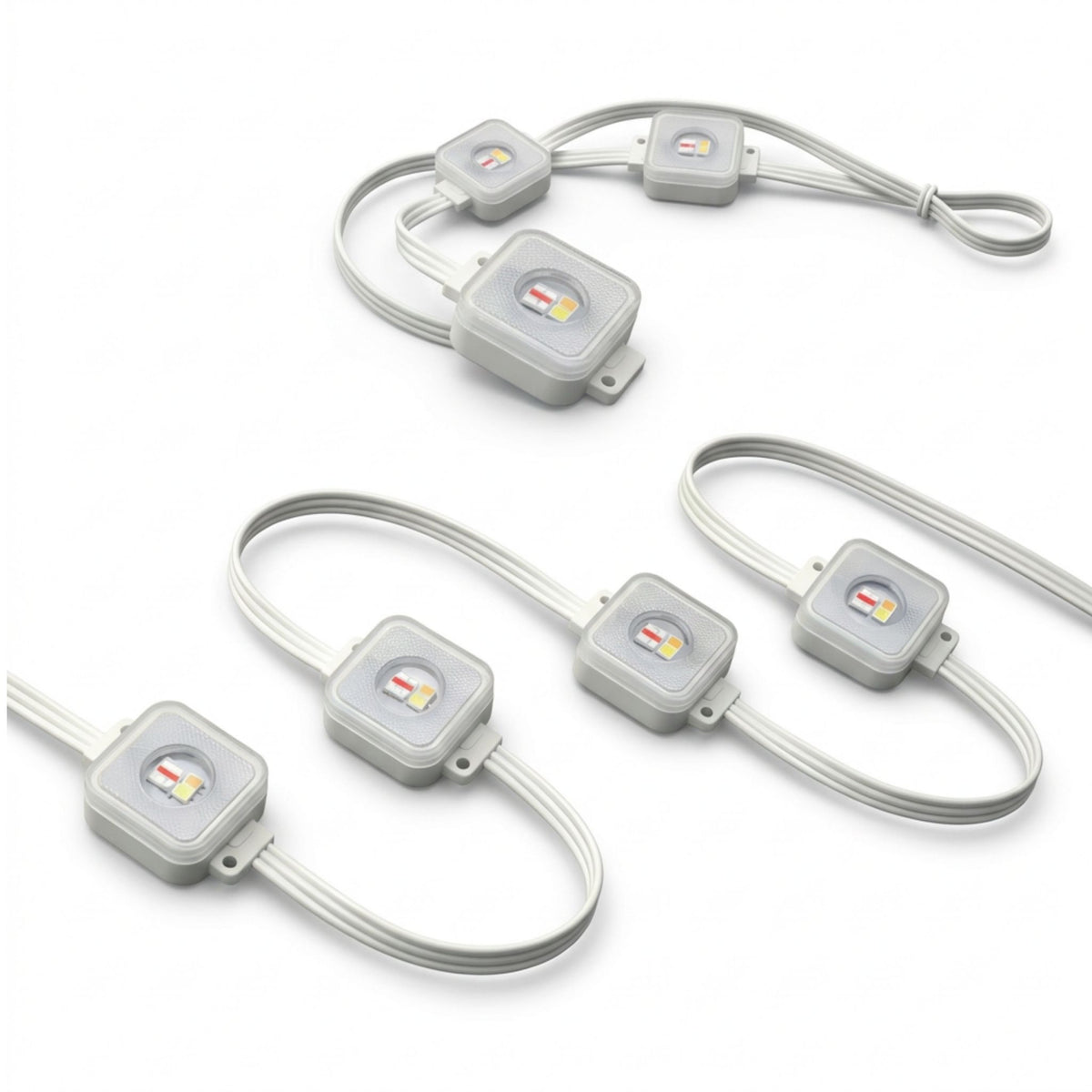

White PVC enclosures and clear lenses connect along UL2464 22AWG 3/C cable. LEDs are nonreplaceable. Match the extension to the existing VIBE layout rather than treating it as decorative café string lighting.

Light Output & Color

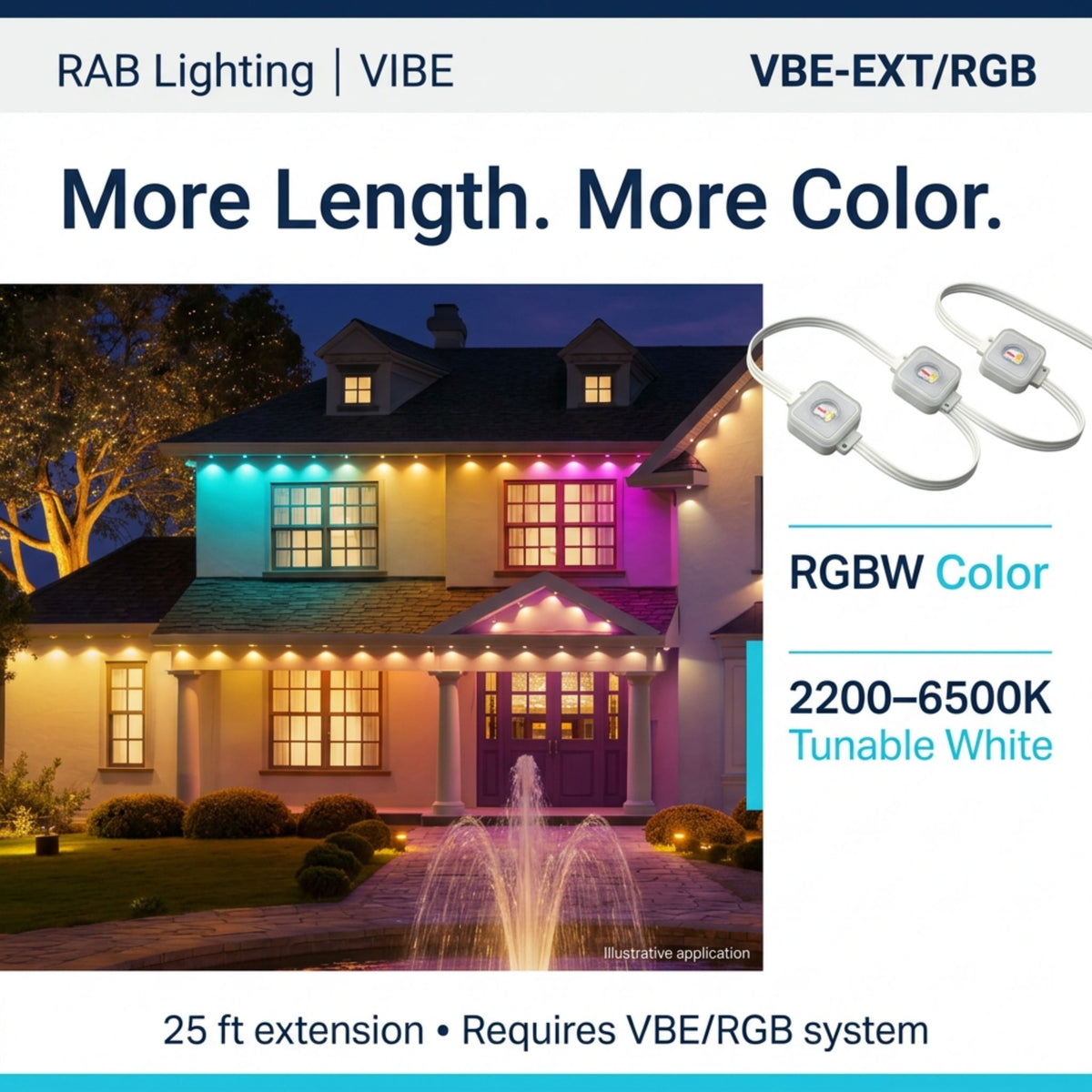

RGBW color and adjustable white light support architectural accents and seasonal displays. RAB specifies a 50,000-hour L70 lifespan and less than 6-step MacAdam color consistency.

Power, Connections & Controls

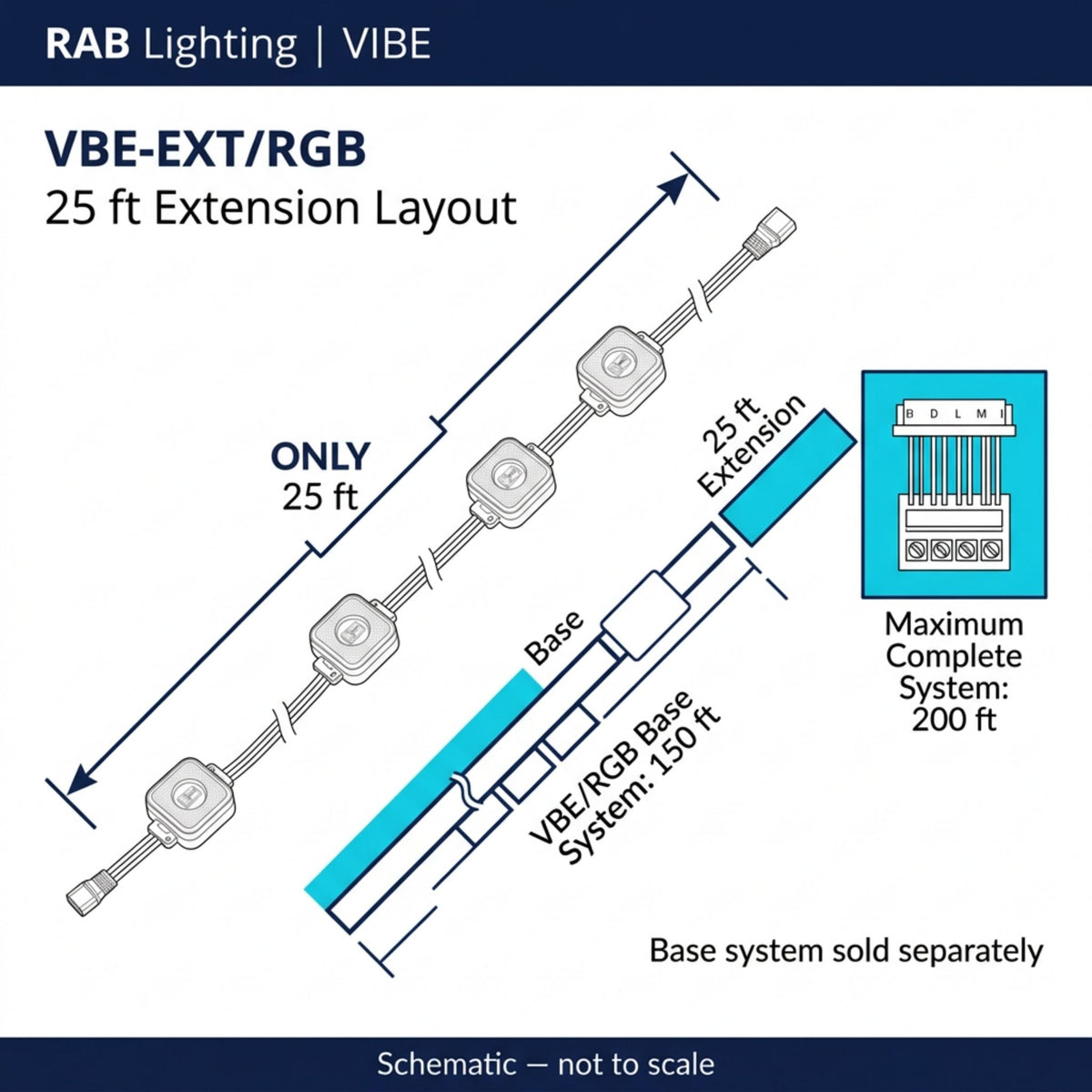

Use with the compatible base system and its power/control components. The supplied VIBE family documentation limits the complete system to 200 ft on one power supply. Dim through Lightcloud Blue, not a standard incandescent dimmer. Remote access requires additional devices sold separately.

Mounting & Installation

Plan the added eave or roofline section within the complete system limit and follow RAB installation instructions. The extension sheet does not establish mounting-hardware contents, connector dimensions, or extension-specific cutting increments. Do not interpret the system input rating as permission to connect bare light-string wiring directly to line voltage.

Recommended Applications

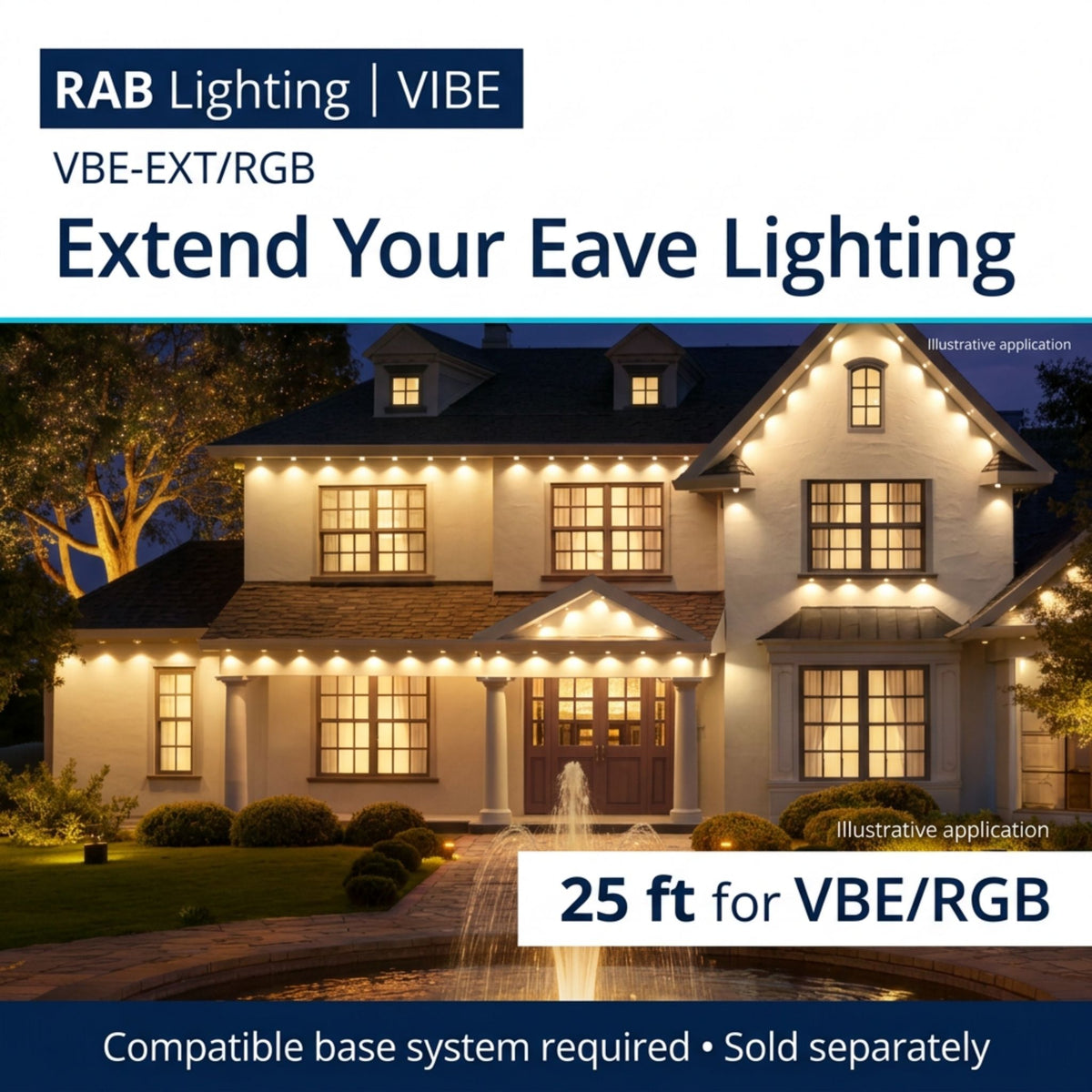

• Extending compatible residential eave-lighting layouts.
• Continuing roofline and dormer accent lighting.
• Adding length for seasonal RGBW displays.

What's Included & Required

• One 25 ft RGBW extension light string.
• Compatible VBE/RGB base system required; sold separately.
• Power supply and controller are not listed as included with this extension.
