RAB VAN40W Field-Adjustable Canopy Light — 40W Selectable Configuration

The RAB VAN40W is a highly versatile field-adjustable canopy light engineered for commercial and industrial environments. Operating at a selectable 20W, 30W, or 40W to produce up to 5,696 lumens, this luminaire utilizes a universal 120-277V input. Designed for precise application tuning, it features field-adjustable optics and CCT to meet specific compliance standards across diverse parking garage and canopy lighting projects in a clean white finish.

Key Features

• Power Consumption: Field-adjustable between 20W, 30W, and 40W (default 40W).
• Color Temperature: Selectable 3000K, 4000K, and 5000K.
• Lumen Output: Scales from 2,687 to 5,696 lumens depending on selected settings.

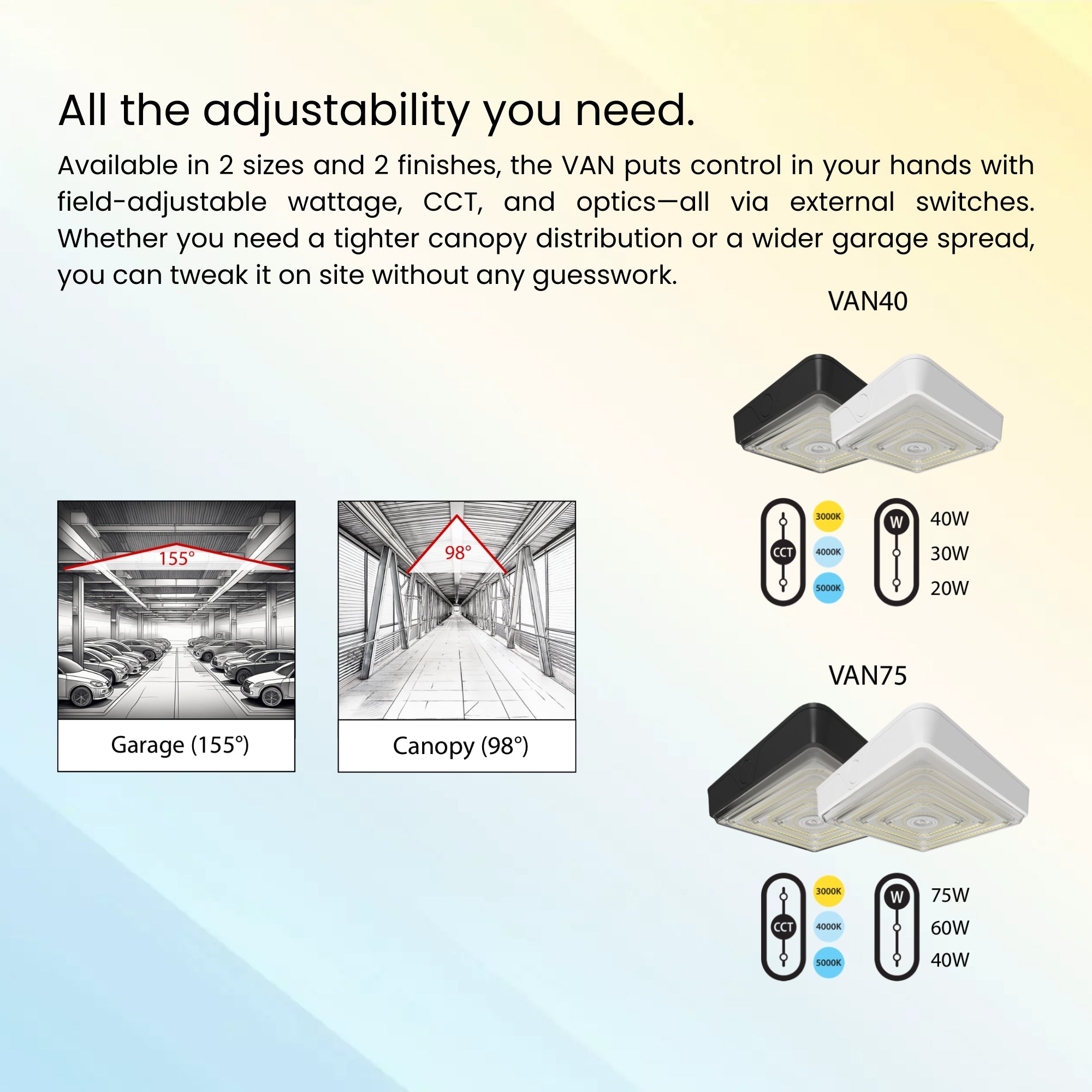

• Adjustable Optics: Switchable tight canopy or wide garage distributions.
• Input Voltage: Universal 120-277V 50/60Hz operation.
• Dimming Protocol: Standard 0-10V continuous dimming capability.
• Environmental Ratings: IP66 rated for complete protection against dust and water.
• Impact Rating: IK08 protected against 5 joules of impact.
• Surge Protection: Built-in 6kV surge suppression.
• Lifespan: 100,000-hour L70 rated LED life.

Typical Applications

• Commercial parking garages and multi-level parking structures.
• Gas station canopies and covered fueling plazas.
• Exterior entryways and secure perimeter walkways.
• High-abuse public transit stations and terminals.
• General commercial overhead lighting applications.

Performance & Light Output

Engineered for exceptional adaptability, this fixture provides scalable illumination from 2,687 to 5,696 lumens with a high efficacy reaching up to 150.1 lm/W. The integrated optic system allows users to select between a tighter canopy distribution and a wider garage spread. With selectable 3000K, 4000K, and 5000K color temperatures and an 83-85 CRI, it ensures precise, high-visibility lighting. The advanced LEDs maintain exceptional lumen maintenance, offering a 100,000-hour lifespan.

Electrical & Controls

The luminaire is equipped with a high-performance 120-277V universal driver that provides reliable constant-current power regulation. It features standard 0-10V dimming capability and operates efficiently across commercial grids. The electrical design includes 6kV surge protection and an integrated auxiliary power supply. For advanced lighting management, it features an integrated sensor port that allows for quick sensor attachment without fixture modification, compatible with optional PIR20 and MVS20 motion sensors sold separately.

Construction & Durability

Housed in a precision die-cast aluminum enclosure with a resilient white finish, this canopy light is built to withstand rigorous outdoor environments. The internal components are sealed using EPDM gaskets and protected behind a polycarbonate lens, earning an IP66 rating for total protection against dust and water ingress. Engineered to manage heavy mechanical stress, the luminaire carries an IK08 rating to protect against vandalism and operates reliably in ambient temperatures up to 122°F (50°C).

Installation & Mounting

This model is designed for direct surface mounting in canopy and garage environments. It includes retrofit mounting plates to simplify and expedite ceiling installation. The external switches for wattage, CCT, and optics allow installers to tweak the fixture on-site without any guesswork or internal wiring adjustments.

What's Included

• RAB Field-Adjustable Canopy Light Fixture
• Retrofit Ceiling Mounting Plate
