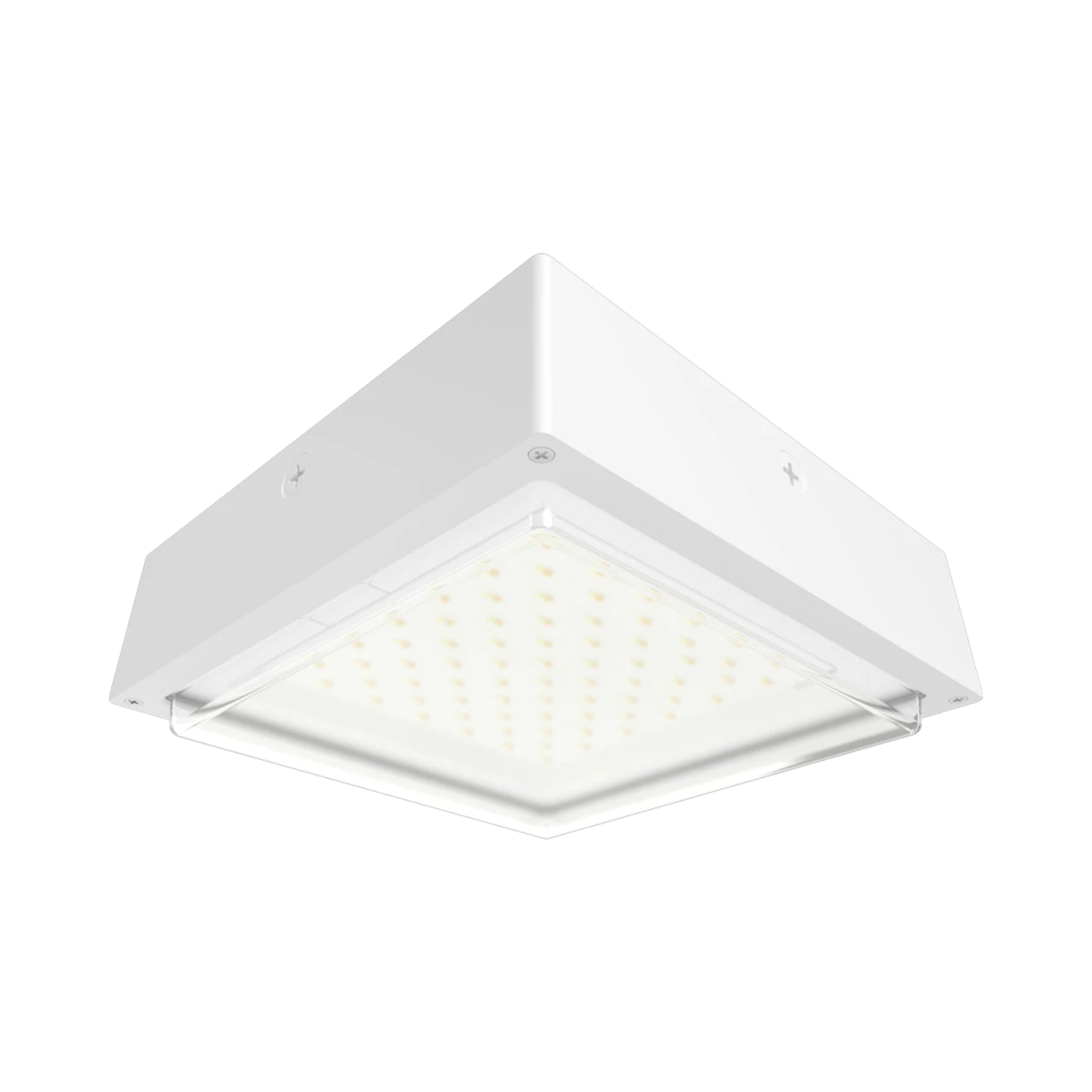

RAB Lighting VAN34 Field Adjustable Canopy Light - 90W Configuration

The RAB Lighting VAN34-90W is a versatile canopy light offering 90W power with 13500 lumens output. It operates on a 120-277V input and features selectable CCT options of 3000K, 4000K, and 5000K. This fixture is IP65 rated, making it suitable for wet locations and ensuring durability in various environments.

Key Features

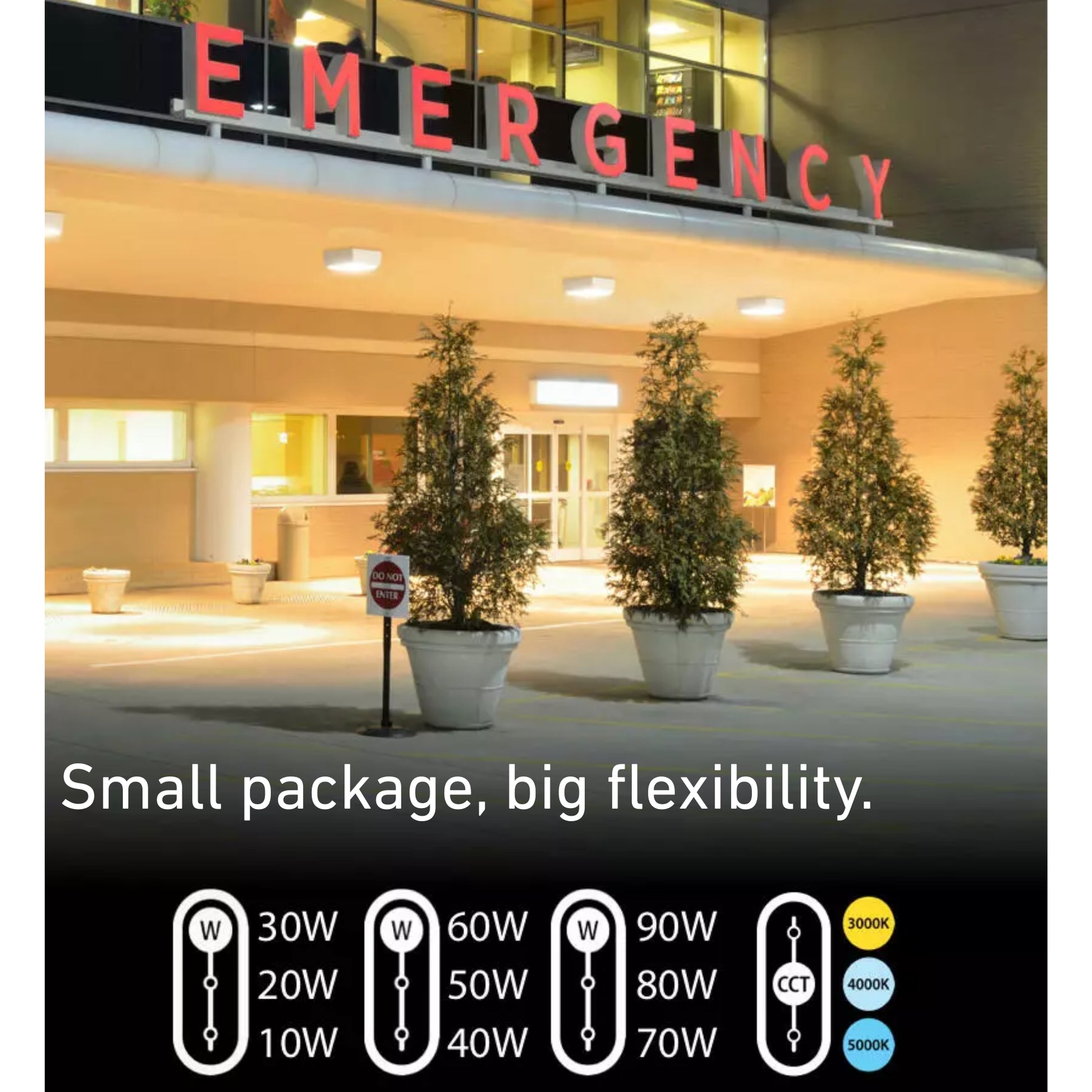

• Field Adjustability: Offers adjustable wattage settings of 90W, 80W, and 70W for tailored energy use.
• Color Temperature Options: Selectable CCT of 3000K, 4000K, and 5000K to suit different lighting needs.
• Photocell Integration: Built-in photocell with on/off switch for automated lighting control.
• Durable Construction: Die-cast aluminum housing with a polycarbonate clear drop lens for longevity.
• High Efficacy: Achieves an efficacy range of 140.4 to 160.9 lm/W for efficient energy use.
• Surge Protection: Equipped with 4KV L/N and 6KV L/N-PE surge protection for reliability.
• DLC Listed: Recognized by the Design Lights Consortium for premium efficiency and rebate eligibility.
• UL Listed: Suitable for wet locations, ensuring compliance with safety standards.
• Long Lifespan: Designed for a 100,000-hour LED lifespan based on IES LM-80 results.
• Green Technology: Mercury and UV-free, RoHS-compliant components for environmental safety.

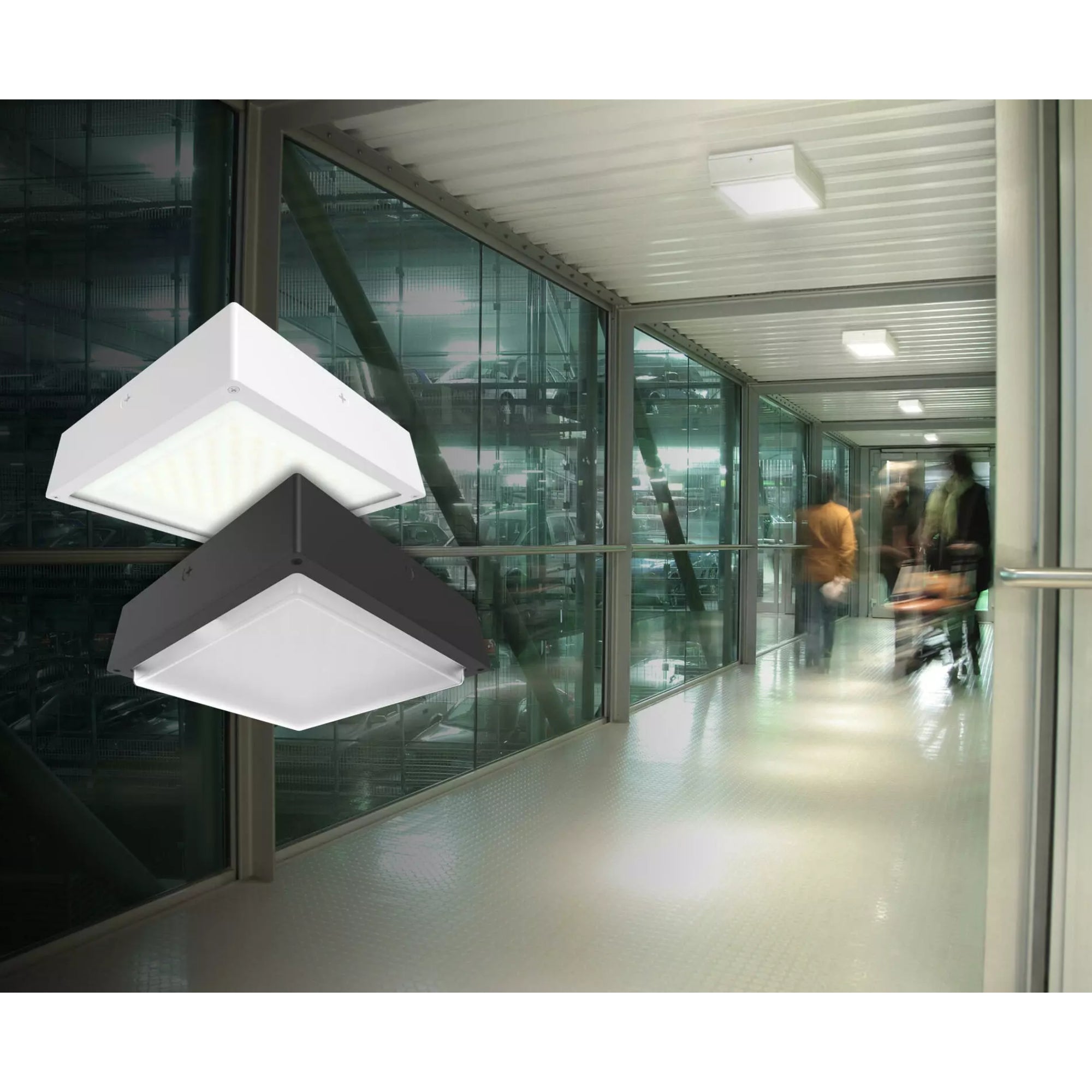

Typical Applications

• Parking Garages
• Fuel Pump Canopies
• Stairwells
• Passageways
• Loading Docks
• Warehouses

Performance & Light Output

This fixture provides a luminous output ranging from 10,077 to 13,588 lumens with a color rendering index (CRI) of 83-85. It offers high efficacy between 140.4 to 160.9 lm/W, ensuring bright and efficient lighting.

Electrical & Controls

The VAN34-90W operates on a 120-277V input with a constant current driver. It supports 0-10V dimming and includes a built-in photocell for automated control. Surge protection is rated at 4KV L/N and 6KV L/N-PE.

Construction & Durability

Constructed with a die-cast aluminum housing and a polycarbonate clear drop lens, this fixture is IP65 rated for dust and water protection. It operates in temperatures from -40°C to 40°C.

Installation & Mounting

The fixture is designed for easy installation in canopy applications, with all necessary mounting hardware included. It supports various mounting configurations for versatility.

What's Included

• Canopy Light Fixture
• Installation Hardware
