RAB VAN34 Field Adjustable Canopy Light 12350 Lumens 90W 3000K/4000K/5000K 120-277V White
Made to Order
About this item
About this item
- Lumens: Provides up to 12,350 lumens for optimal brightness in canopy applications.
- Wattage: Field adjustable wattage options of 90W, 80W, and 70W for flexible energy consumption.
- Voltage: Operates on a universal voltage range of 120-277V for versatile installation.
- Color Temperature: Selectable CCT of 3000K, 4000K, and 5000K to suit different lighting environments.
- Ingress Protection: IP65 rated for protection against dust and water ingress.
We process payments securely and do not store credit card information.
Description
Description

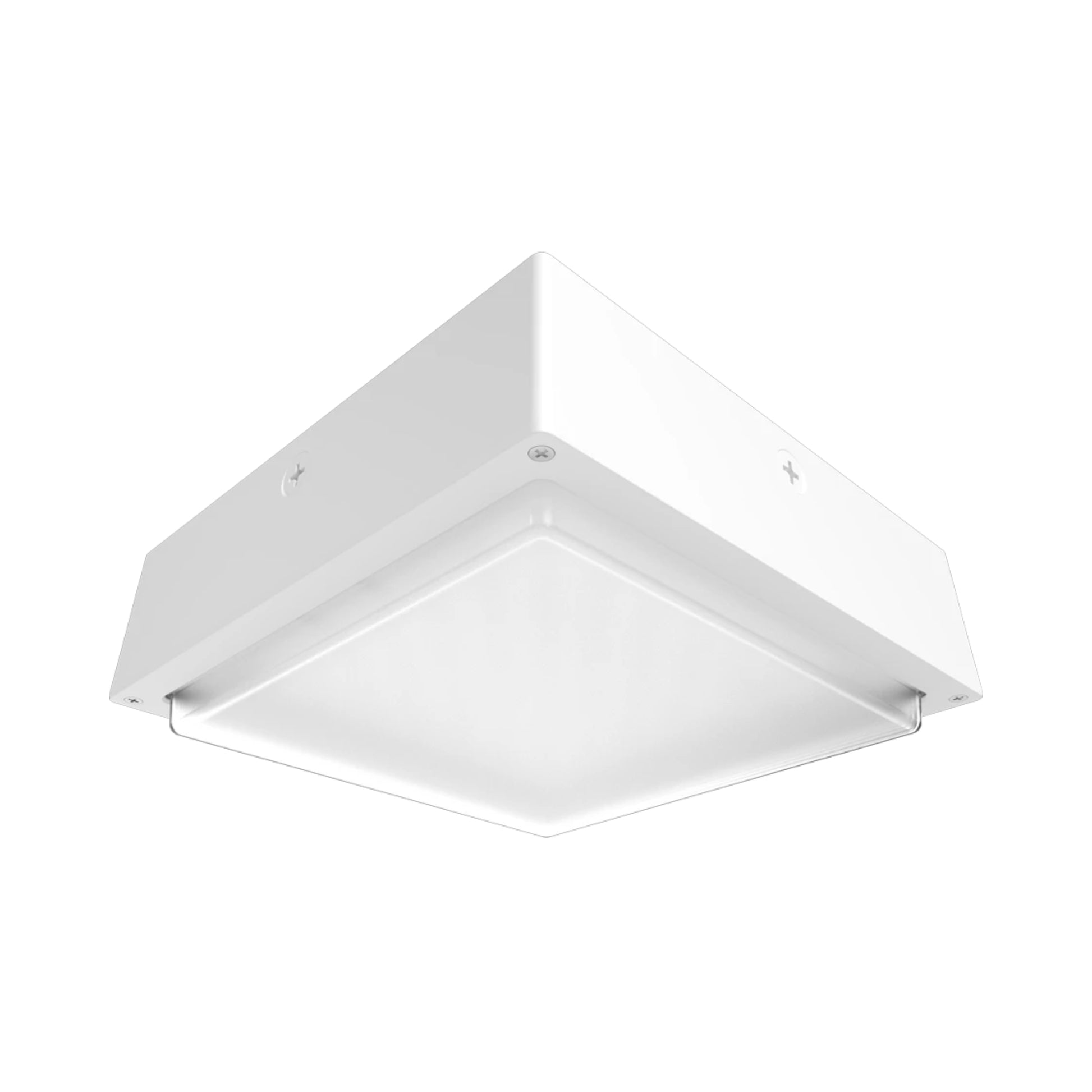

RAB VAN34 Field Adjustable Canopy Light - 90W Configuration
The RAB VAN34-90FRW is a field adjustable canopy light offering up to 12,350 lumens at a maximum of 90 watts. It operates on a 120-277V input voltage and features selectable color temperatures of 3000K, 4000K, and 5000K. This fixture is DLC Premium listed, ensuring high efficiency and eligibility for utility rebates.
Key Features

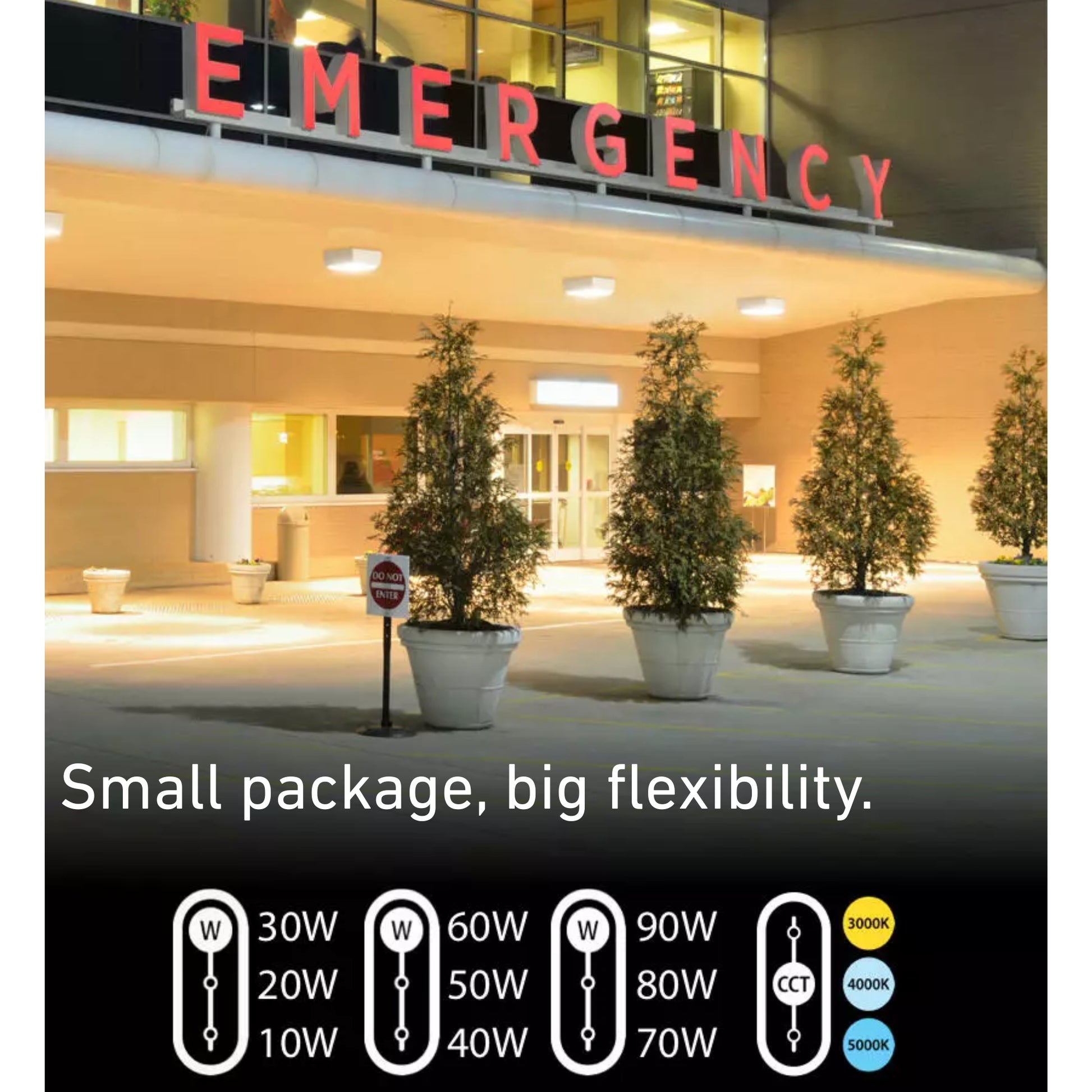

- Field Adjustability: Wattage can be adjusted between 90W, 80W, and 70W to suit specific needs.
- Photocell Control: Built-in on/off photocell with selectable operation for energy savings.
- Dimming Capability: Supports 0-10V dimming, allowing for light level customization.
- Durable Construction: Die-cast aluminum housing with a polycarbonate frosted drop lens for longevity.
- Surge Protection: Equipped with 4KV line-to-neutral and 6KV line-to-ground surge protection.
- Temperature Range: Operates in temperatures from -40°C to 40°C, suitable for various environments.
- LED Lifespan: Designed for a 100,000-hour lifespan based on IES LM-80 and TM-21 standards.
- Compliance: UL listed for wet locations and meets DLC 5.1 requirements.

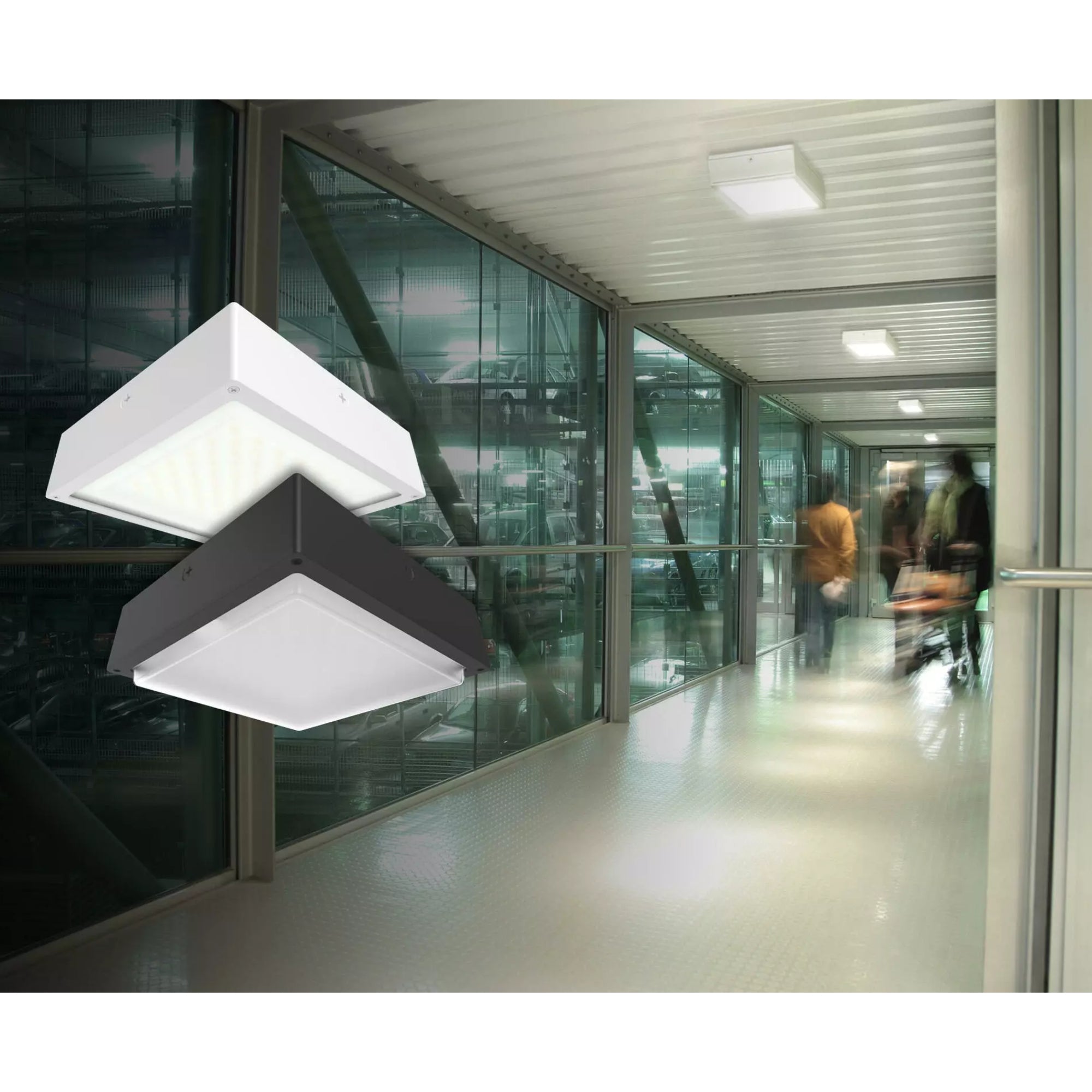

Typical Applications
- Parking Garages
- Fuel Pump Canopies
- Stairwells
- Passageways
- Outdoor Walkways
Performance & Light Output
This fixture delivers a luminous efficacy of 127.5-146.3 lm/W with a color rendering index (CRI) of 84-86, ensuring high-quality light output.
Electrical & Controls
The VAN34-90FRW features a constant current driver compatible with 120-277V systems, supporting 0-10V dimming down to 10% and includes auxiliary power supply and dim-to-off capabilities.
Construction & Durability
Constructed with a die-cast aluminum housing and a polycarbonate frosted drop lens, this fixture is IP65 rated for dust and water protection, ensuring durability in harsh conditions.
Installation & Mounting
Designed for easy installation in canopy settings, this fixture includes necessary mounting hardware and supports various mounting configurations.
What's Included
- RAB VAN34-90FRW Canopy Light
- Installation Hardware
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the wattage range for the RAB VAN34-90FRW?
What is the wattage range for the RAB VAN34-90FRW?
Is the RAB VAN34-90FRW suitable for wet locations?
Is the RAB VAN34-90FRW suitable for wet locations?
Does the RAB VAN34-90FRW support dimming?
Does the RAB VAN34-90FRW support dimming?
What is the IP rating of the RAB VAN34-90FRW?
What is the IP rating of the RAB VAN34-90FRW?
What is the expected lifespan of the RAB VAN34-90FRW LEDs?
What is the expected lifespan of the RAB VAN34-90FRW LEDs?
