RAB Lighting VAN34 Field Adjustable Canopy Light 12350 Lumens 90W 3000K/4000K/5000K 120-277V Bronze
Made to Order
About this item
About this item
- Lumens: Provides up to 12,350 lumens for bright illumination.
- Wattage: Field adjustable wattage options of 90W, 80W, and 70W.
- Color Temperature: Selectable CCT of 3000K, 4000K, and 5000K for versatile lighting.
- Ingress Protection: IP65 rated for dust and water resistance.
- Dimming: Supports 0-10V dimming for customizable light levels.
We process payments securely and do not store credit card information.
Description
Description

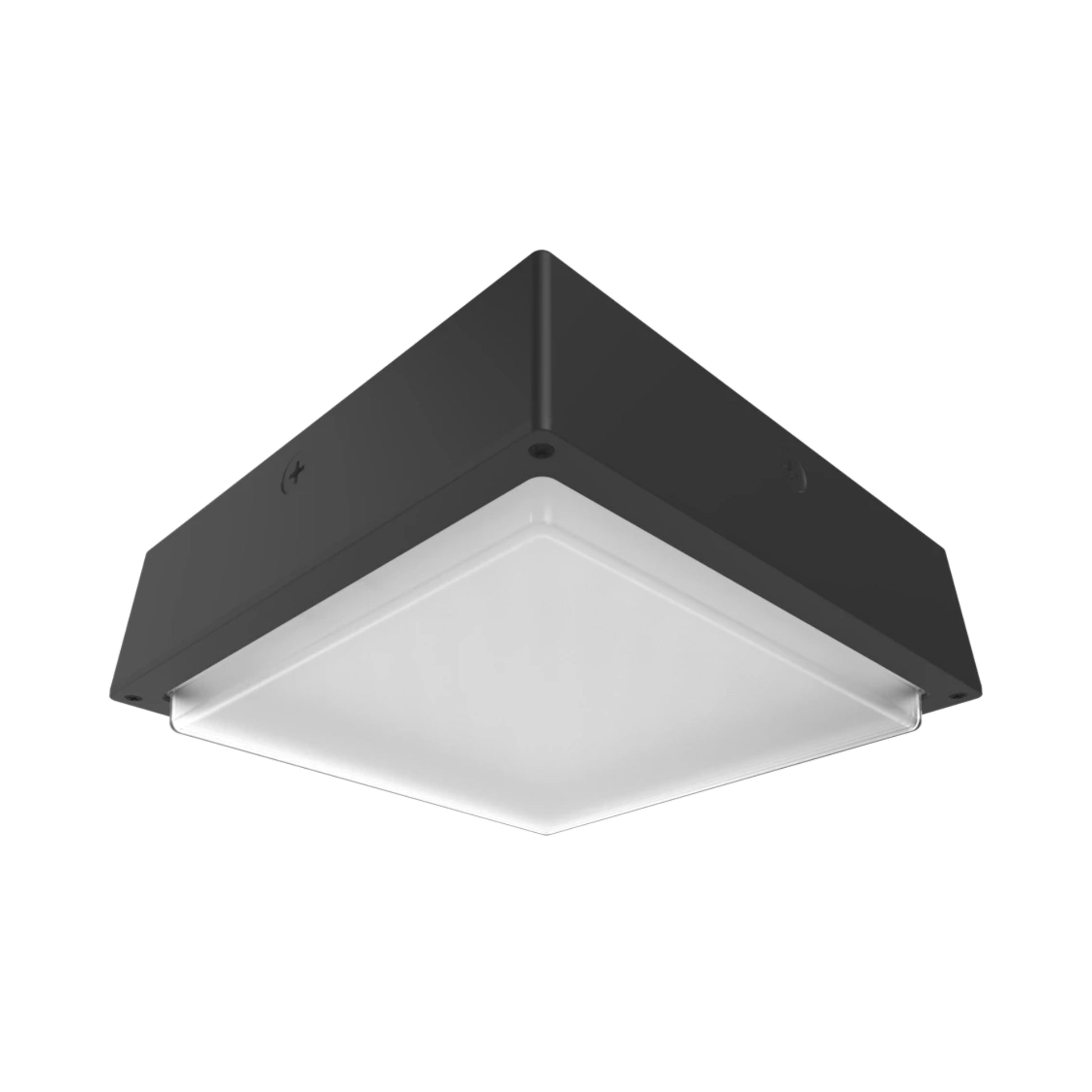

RAB Lighting VAN34 Field Adjustable Canopy Light - 90W Configuration
The RAB Lighting VAN34-90FR is a field adjustable canopy light offering 90W power with up to 12,350 lumens output. It supports 120-277V input and features selectable 3000K, 4000K, and 5000K color temperatures. This fixture is DLC Premium listed, ensuring high efficiency and rebate eligibility.
Key Features

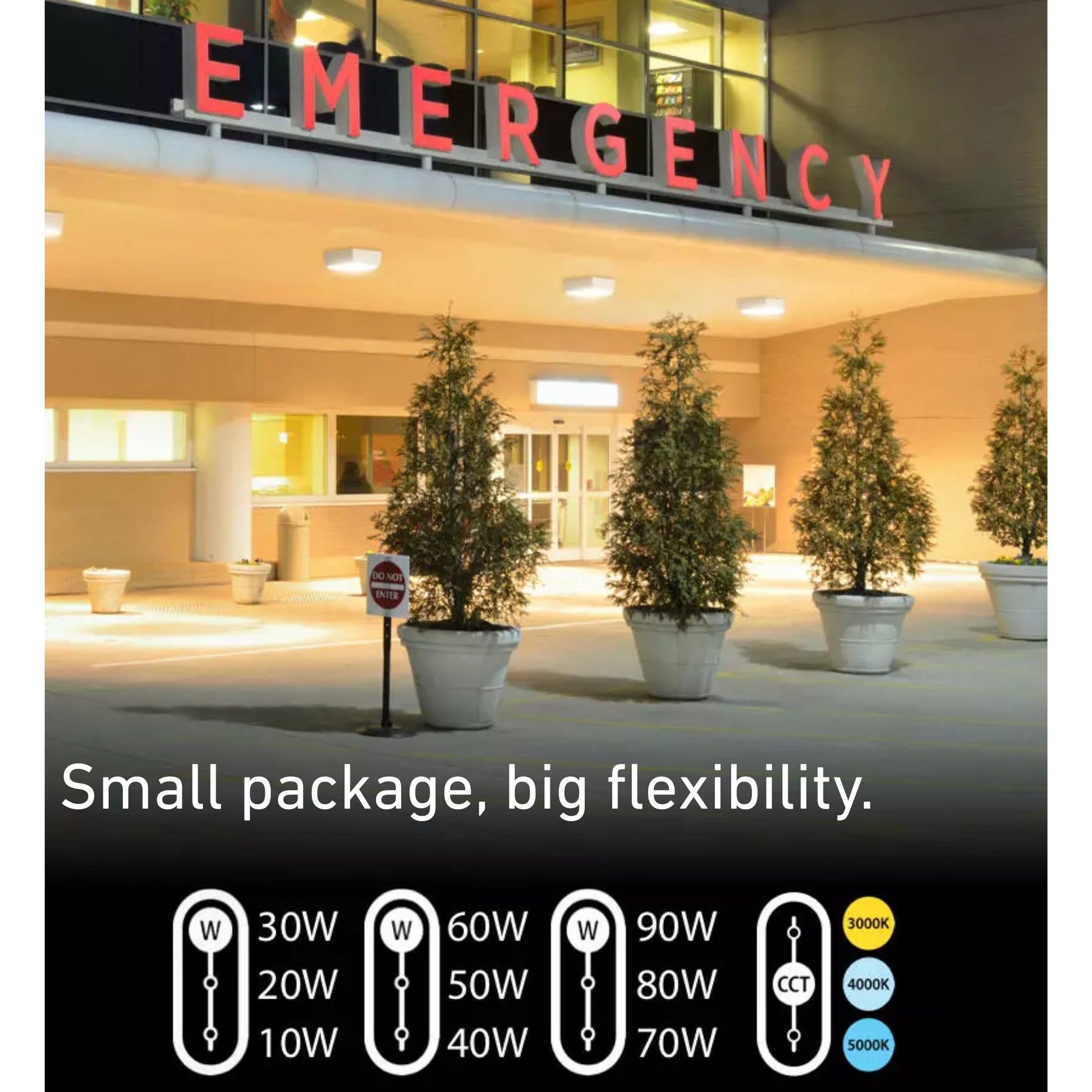

- Field Adjustability: Easily adjust wattage between 90W, 80W, and 70W to suit application needs.
- Color Temperature Selectable: Choose between 3000K, 4000K, and 5000K for desired ambiance.
- Photocell Integration: Built-in on/off photocell for automatic lighting control.
- Durable Construction: Die-cast aluminum housing with a polycarbonate frosted drop lens.
- Long Lifespan: 100,000-hour LED lifespan based on IES LM-80 results.
- Surge Protection: Equipped with 4KV/6KV surge protection for enhanced safety.
- IP65 Rated: Suitable for wet locations, ensuring reliability in various environments.
- Dimming Capability: 0-10V dimming down to 10% for energy savings and mood setting.
- Compliance: UL listed and meets DLC 5.1 requirements for premium efficiency.
- Green Technology: Mercury and UV free, RoHS-compliant components.
Typical Applications
- Parking Garages
- Gas Stations
- Loading Docks
- Walkways
- Entryways
- Stairwells
Performance & Light Output
This canopy light delivers between 9,162 to 12,351 lumens with an efficacy of 127.5 to 146.3 lm/W. It offers a CRI of 84-86, ensuring accurate color rendering.
Electrical & Controls
The fixture operates on 120-277V with a constant current driver. It supports 0-10V dimming and includes a built-in photocell. Surge protection is rated at 4KV/6KV.
Construction & Durability
Constructed with a die-cast aluminum housing and a polycarbonate frosted drop lens, the fixture is IP65 rated for wet locations and operates in temperatures from -40°C to 40°C.
Installation & Mounting
Designed for easy installation, this canopy light includes all necessary mounting hardware for secure attachment to various surfaces.
What's Included
- Canopy Light Fixture
- Mounting Hardware
- Installation Instructions
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the wattage range for the RAB VAN34-90FR?
What is the wattage range for the RAB VAN34-90FR?
Is the RAB VAN34-90FR suitable for wet locations?
Is the RAB VAN34-90FR suitable for wet locations?
Does the RAB VAN34-90FR support dimming?
Does the RAB VAN34-90FR support dimming?
What color temperatures are available for the RAB VAN34-90FR?
What color temperatures are available for the RAB VAN34-90FR?
What is the lifespan of the LEDs in the RAB VAN34-90FR?
What is the lifespan of the LEDs in the RAB VAN34-90FR?
