RAB Lighting VAN34 Field Adjustable Canopy Light 13500 Lumens 90W Selectable CCT 120-277V Bronze
Available in stock (200)
About this item
About this item
- Wattage: The fixture is field adjustable with options of 90W, 80W, and 70W.
- Lumens: Provides a light output range from 10,077 to 13,588 lumens.
- Color Temperature: Selectable CCT with 3000K, 4000K, and 5000K options.
- Ingress Protection: Rated IP65 for dust and water resistance, suitable for wet locations.
- Dimming: Compatible with 0-10V dimming systems, dimming down to 10%.
We process payments securely and do not store credit card information.
Description
Description

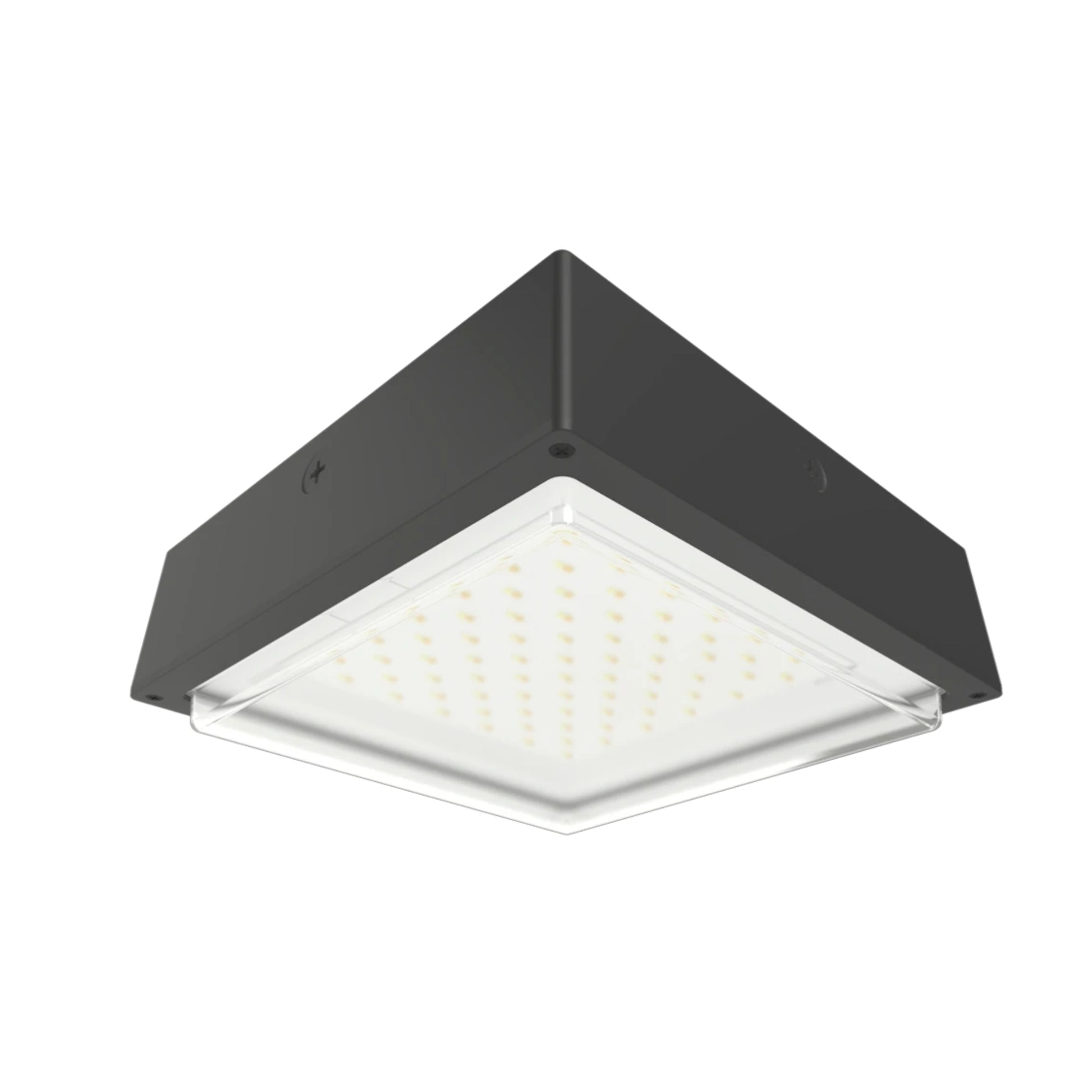

RAB Lighting VAN34 Field Adjustable Canopy Light - 90W Configuration
The RAB Lighting VAN34-90 is a field adjustable canopy light offering a maximum of 90W with a selectable color temperature of 3000K, 4000K, and 5000K. It delivers up to 13,588 lumens and operates on 120-277V. This fixture is DLC listed and suitable for wet locations with an IP65 rating.
Key Features

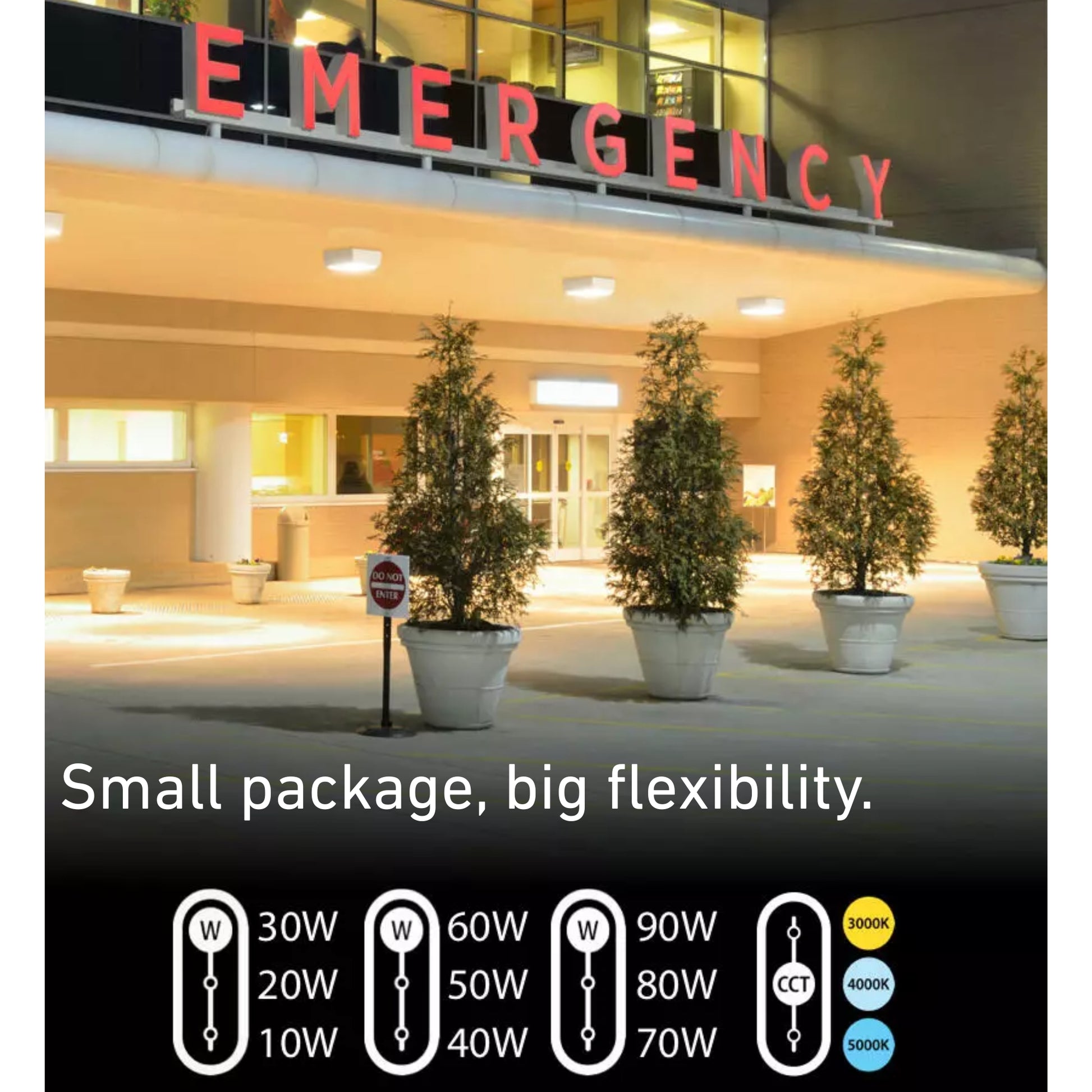

- Field Adjustability: Offers adjustable wattage settings of 90W, 80W, and 70W.
- Selectable CCT: Choose from 3000K, 4000K, or 5000K to suit various lighting needs.
- Photocell: Built-in on/off photocell with factory default off setting.
- Driver: Constant current driver with 0-10V dimming capability.
- Surge Protection: Equipped with 4KV line-to-neutral and 6KV line-to-ground surge protection.
- Construction: Die-cast aluminum housing with a polycarbonate clear drop lens.
- Durability: Designed for long-lasting performance with a 100,000-hour LED lifespan.
- Compliance: UL listed and Trade Agreements Act compliant.
- Warranty: Backed by a 5-year limited warranty.
Typical Applications
- Parking Garages
- Gas Stations
- Loading Docks
- Underpasses
- Walkways
Performance & Light Output
The fixture provides a light output of 10,077 to 13,588 lumens with an efficacy of 140.4 to 160.9 lm/W. It features a CRI of 83-85, ensuring good color rendering.
Electrical & Controls
Operates on 120-277V with a constant current driver. It supports 0-10V dimming and includes surge protection. The built-in photocell can be toggled on or off.
Construction & Durability
Constructed with a die-cast aluminum housing and a polycarbonate lens, the fixture is IP65 rated for wet locations and operates in temperatures from -40°C to 40°C.
Installation & Mounting
Designed for easy installation with standard mounting options. Compatible with various canopy applications.
What's Included
- Canopy Light Fixture
- Installation Instructions
Specifications
Specifications

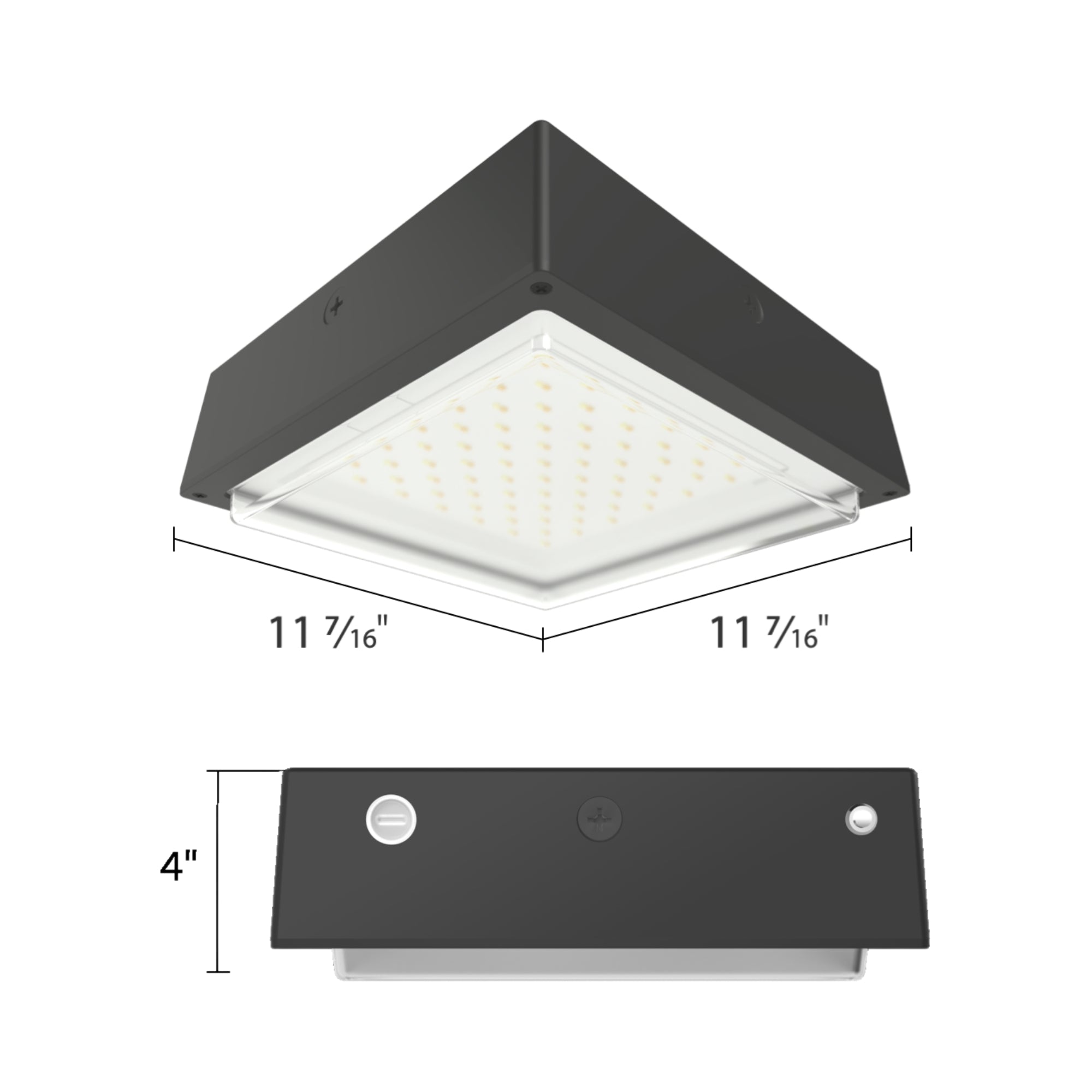

Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the wattage range for the RAB VAN34-90?
What is the wattage range for the RAB VAN34-90?
Is the RAB VAN34-90 suitable for wet locations?
Is the RAB VAN34-90 suitable for wet locations?
Does the RAB VAN34-90 support dimming?
Does the RAB VAN34-90 support dimming?
What color temperatures are available for the RAB VAN34-90?
What color temperatures are available for the RAB VAN34-90?
Does the RAB VAN34-90 include a photocell?
Does the RAB VAN34-90 include a photocell?
