RAB Lighting VAN34 Canopy Light 8500 Lumens 60W 3000K/4000K/5000K 120-277V White
Made to Order
About this item
About this item
- Lumens: Delivers up to 8,500 lumens for optimal brightness in canopy applications.
- Wattage: Field adjustable wattage settings of 60W, 50W, and 40W for versatile energy use.
- Color Temperature: Selectable CCT options of 3000K, 4000K, and 5000K to suit various lighting needs.
- Ingress Protection: IP65 rated for protection against dust and water, suitable for wet locations.
- Dimming: Compatible with 0-10V dimming systems for customizable light levels.
We process payments securely and do not store credit card information.
Description
Description

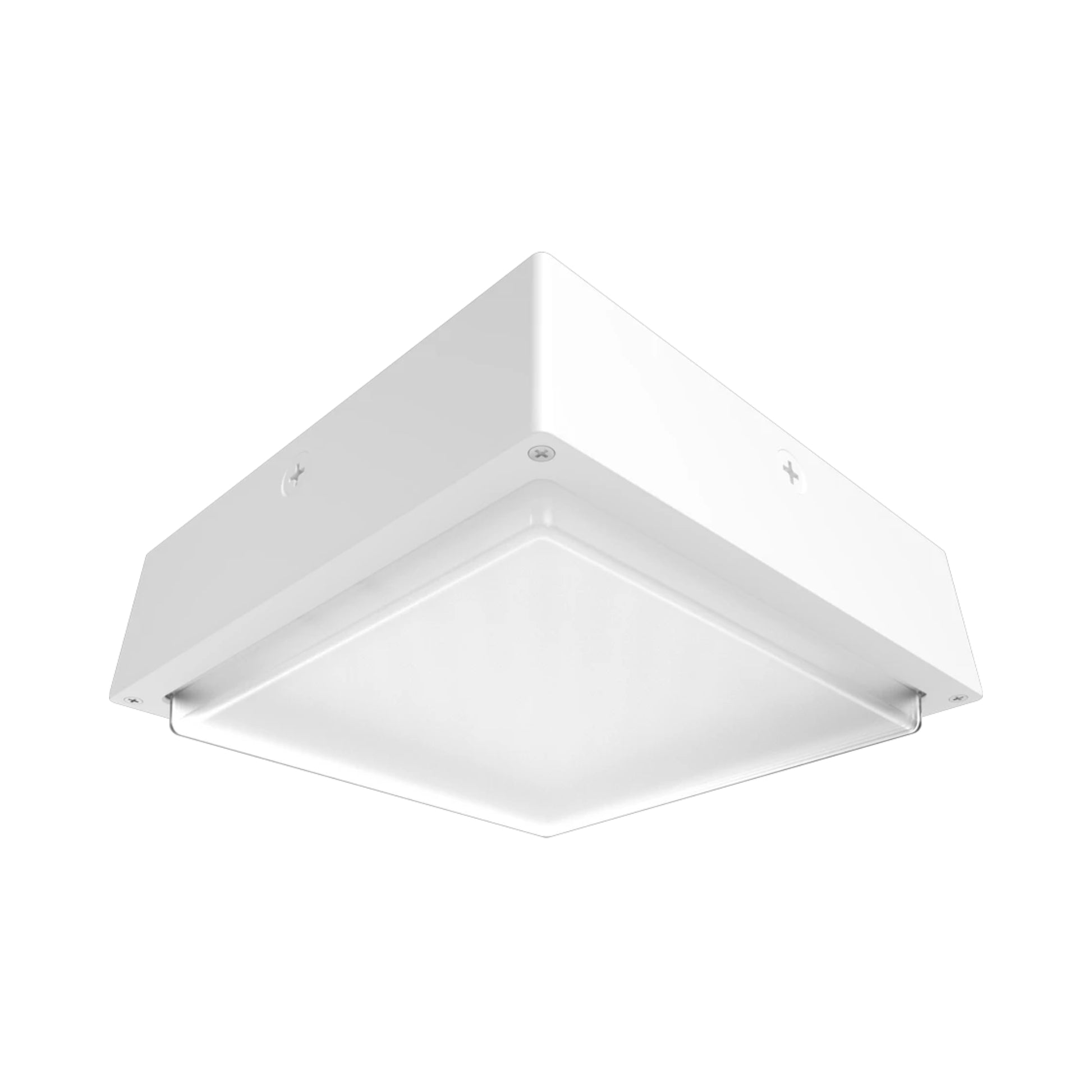

RAB Lighting VAN34 Canopy Light - 60W Field Adjustable Configuration
The RAB Lighting VAN34-60FRW is a versatile canopy light offering 60W power, delivering up to 8,500 lumens with selectable color temperatures of 3000K, 4000K, and 5000K. It operates on a 120-277V input voltage, making it suitable for a range of applications. This fixture is IP65 rated for wet locations and is DLC listed for energy efficiency.
Key Features

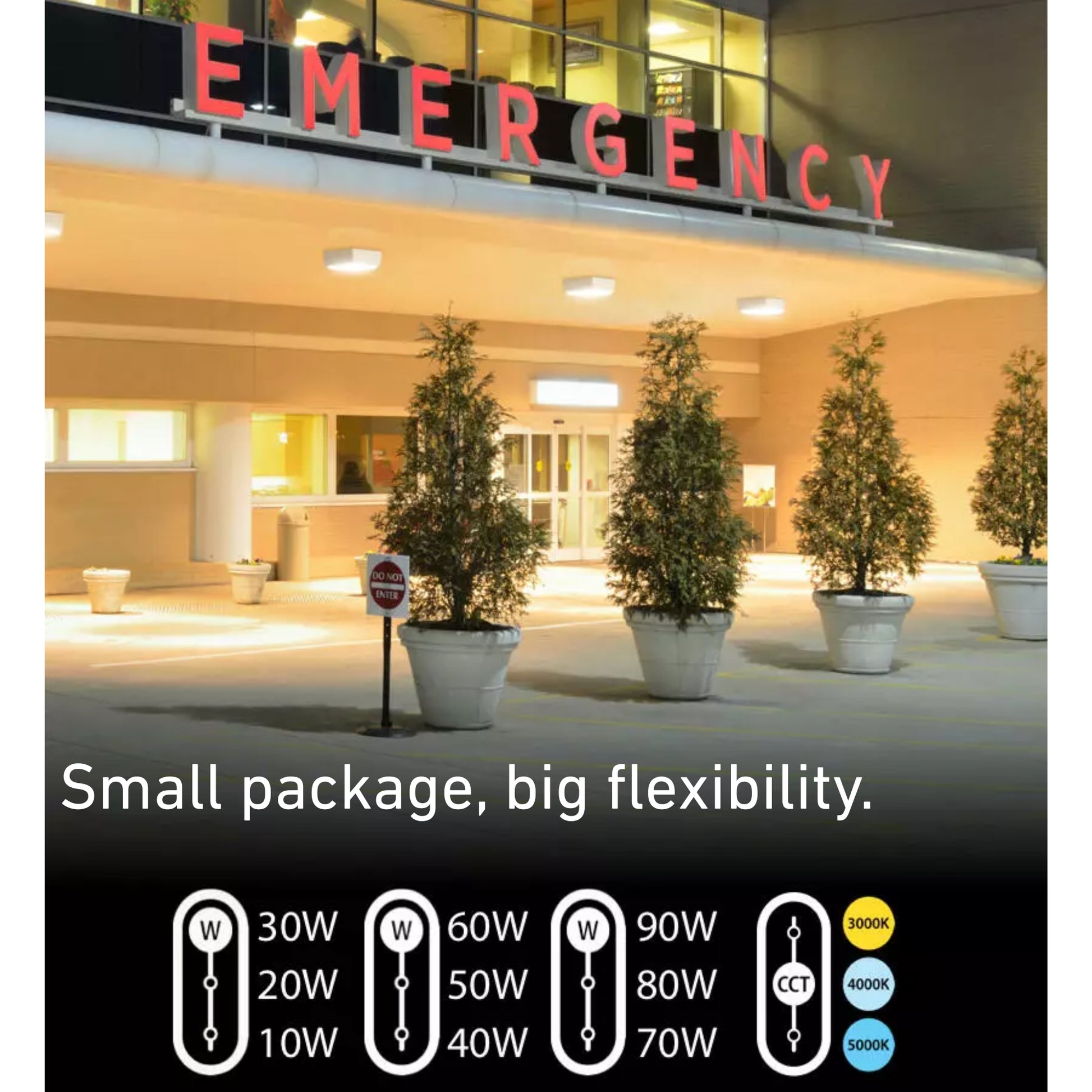

- Field Adjustable Wattage: Easily switch between 60W, 50W, and 40W settings to optimize energy consumption.
- Selectable CCT: Choose from 3000K, 4000K, or 5000K to match the desired ambiance.
- Photocell Integration: Built-in on/off photocell for automatic lighting control.
- Durable Construction: Die-cast aluminum housing with a polycarbonate frosted drop lens for longevity.
- Surge Protection: Equipped with 4KV line-to-neutral and 6KV line-to-ground surge protection.
- Long Lifespan: Designed for a 100,000-hour LED lifespan based on IES LM-80 results.
- Compliance: UL listed for wet locations and meets DLC 5.1 requirements.
- Green Technology: Mercury and UV free, with RoHS-compliant components.

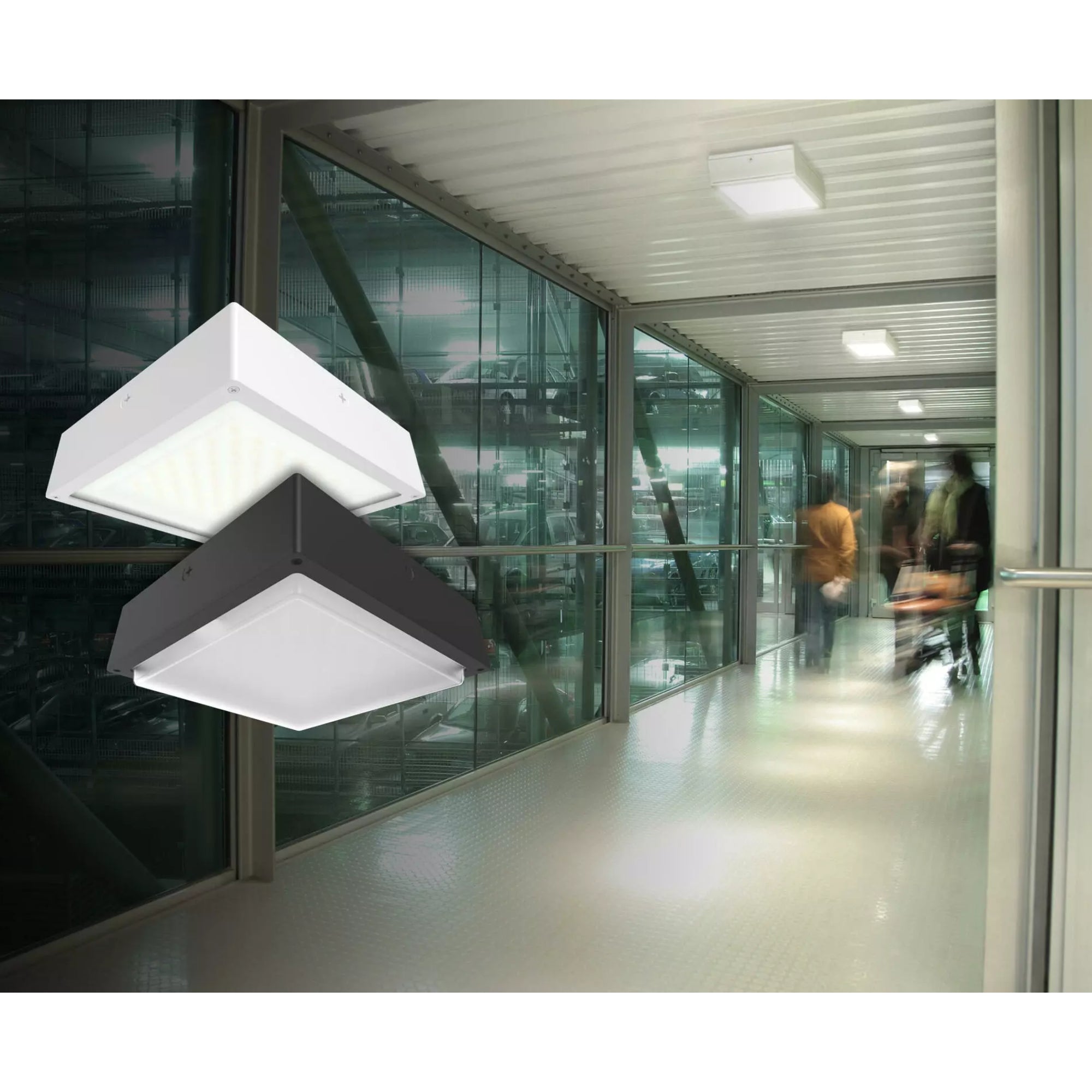

Typical Applications
- Parking Garages
- Gas Stations
- Loading Docks
- Walkways
- Entryways
Performance & Light Output
This fixture provides a high efficacy range of 130.9-162.4 lm/W, ensuring efficient light output. The CRI ranges from 83-86, offering good color rendering for various environments.
Electrical & Controls
Operating on a 120-277V input, the constant current driver supports 0-10V dimming, allowing for precise light level adjustments. It includes a built-in photocell for automatic on/off control.
Construction & Durability
The VAN34 features a robust die-cast aluminum housing with a polycarbonate frosted drop lens, suitable for temperatures as low as -40°C and up to 40°C. It is IP65 rated for dust and water ingress protection.
Installation & Mounting
Designed for easy installation, this canopy light includes necessary mounting hardware and supports various mounting configurations.
What's Included
- RAB Lighting VAN34 Canopy Light
- Installation Instructions
Specifications
Specifications

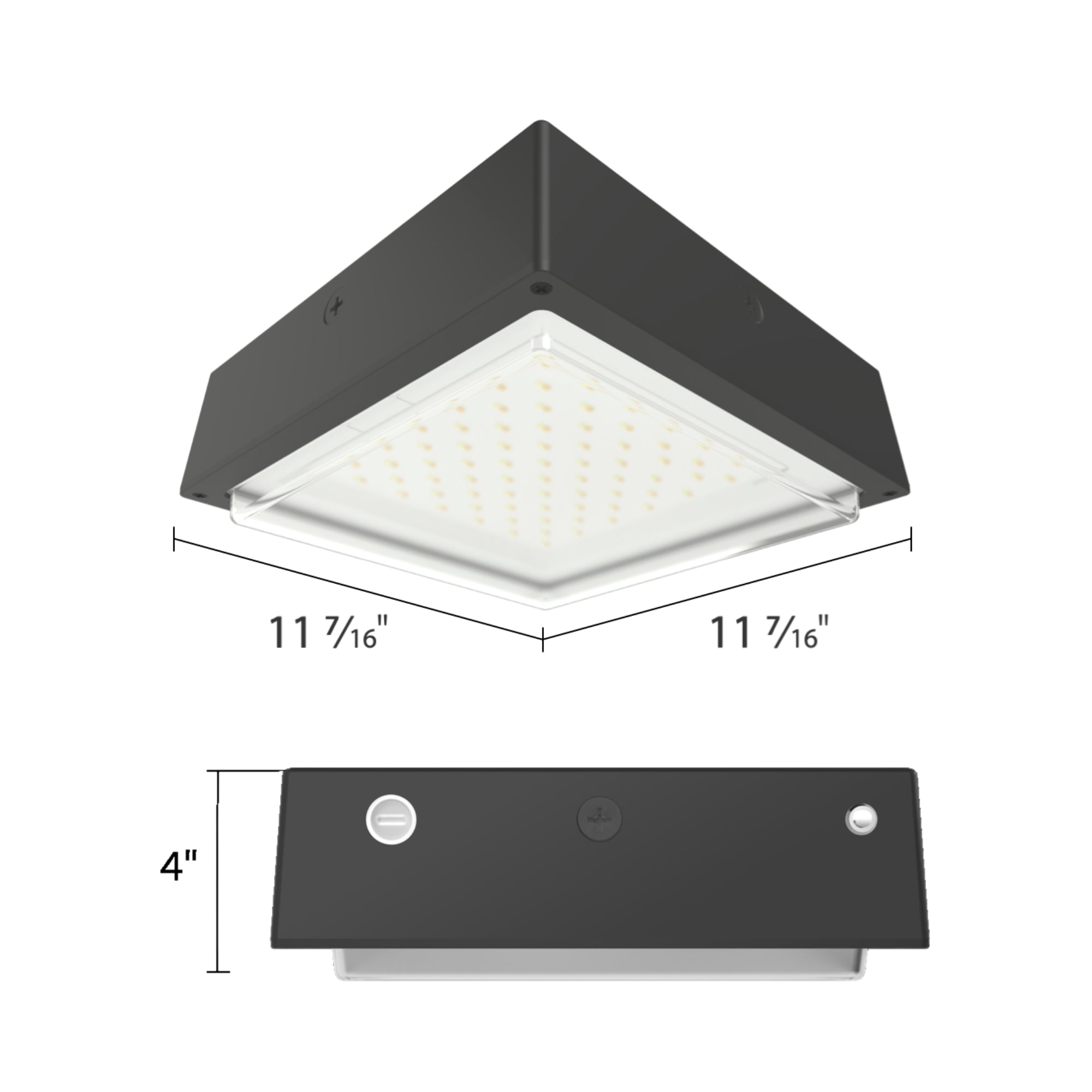

Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the wattage of the RAB VAN34-60FRW?
What is the wattage of the RAB VAN34-60FRW?
Is the RAB VAN34-60FRW suitable for wet locations?
Is the RAB VAN34-60FRW suitable for wet locations?
Does the RAB VAN34-60FRW support dimming?
Does the RAB VAN34-60FRW support dimming?
What color temperatures are available for the RAB VAN34-60FRW?
What color temperatures are available for the RAB VAN34-60FRW?
What is the lifespan of the RAB VAN34-60FRW LED lights?
What is the lifespan of the RAB VAN34-60FRW LED lights?
