RAB VAN34 Field Adjustable Canopy Light 8500 Lumens 60W 3000K/4000K/5000K 120-277V Bronze
Made to Order
About this item
About this item
- Lumens: Delivers up to 8,500 lumens for optimal brightness in canopy applications.
- Wattage: Field adjustable wattage options of 60W, 50W, and 40W for flexible power consumption.
- Color Temperature: Selectable CCT of 3000K, 4000K, and 5000K to suit various lighting needs.
- Ingress Protection: IP65 rated for dust and water resistance, ensuring durability in wet locations.
- Dimming Capability: Supports 0-10V dimming systems, allowing for adjustable light levels.
We process payments securely and do not store credit card information.
Description
Description

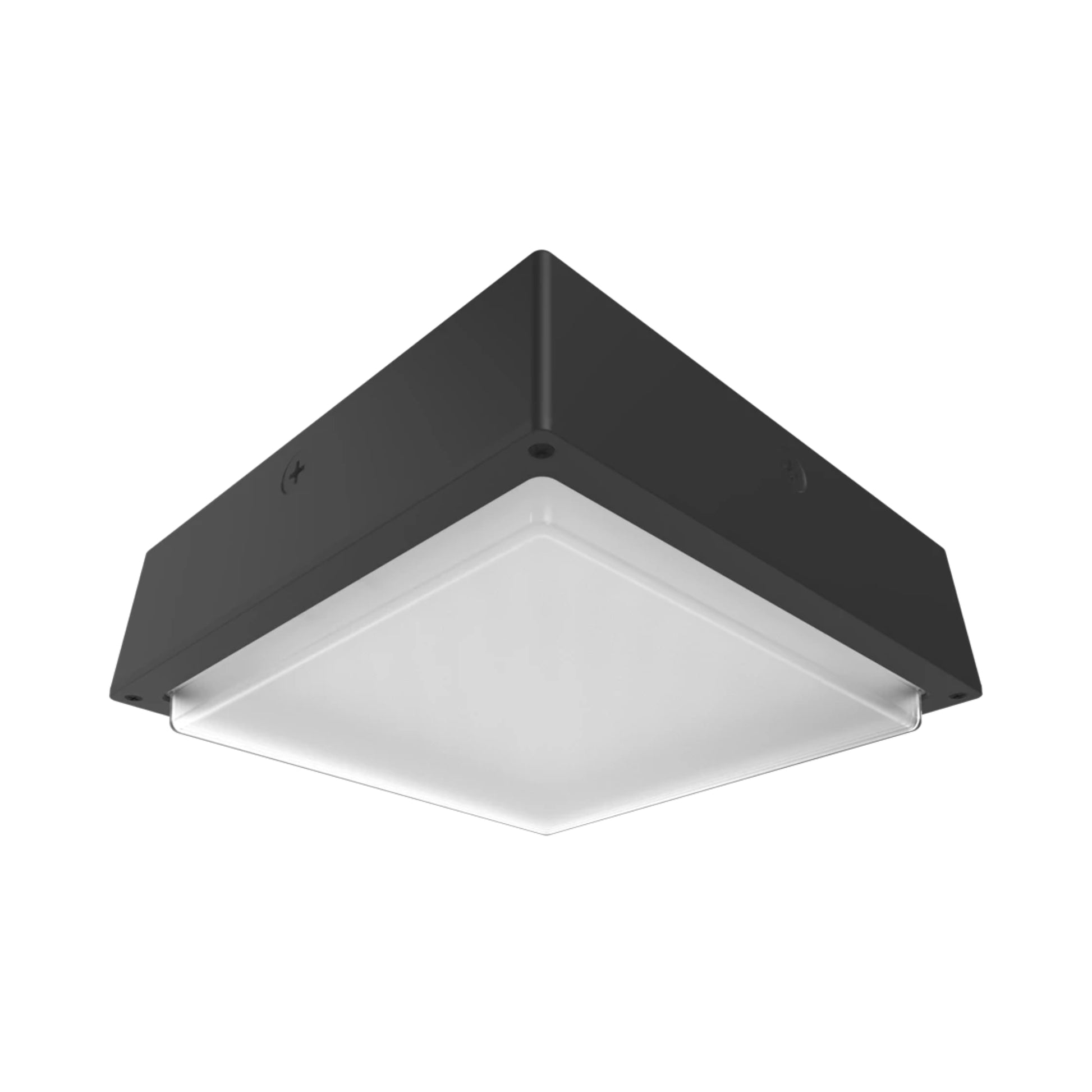

RAB VAN34 Field Adjustable Canopy Light - 60W Configuration
The RAB VAN34-60FR is a versatile canopy light offering 60W power, delivering up to 8,500 lumens with selectable 3000K, 4000K, and 5000K color temperatures. This fixture operates on 120-277V and is ideal for various commercial applications. It is DLC Premium certified, ensuring high efficiency and rebate eligibility.
Key Features
- Field Adjustability: Offers adjustable wattage settings of 60W, 50W, and 40W for energy efficiency.
- Photocell Integration: Built-in on/off photocell with factory default set to off for automatic lighting control.
- Durable Construction: Die-cast aluminum housing with a polycarbonate frosted drop lens for longevity.
- High Efficacy: Provides an efficacy range of 130.9-162.4 lm/W for superior light output.
- Surge Protection: Equipped with 4KV line-to-neutral and 6KV line-to-ground surge protection.
- Compliance: UL Listed for wet locations and Trade Agreements Act compliant.
- Long Lifespan: Designed for a 100,000-hour LED lifespan based on IES LM-80 results.
- Green Technology: Mercury and UV free, with RoHS-compliant components.
- Color Uniformity: Adheres to ANSI C78.377-2017 standards for chromaticity.
- Temperature Range: Operates in temperatures from -40°C to 40°C (-40°F to 104°F).

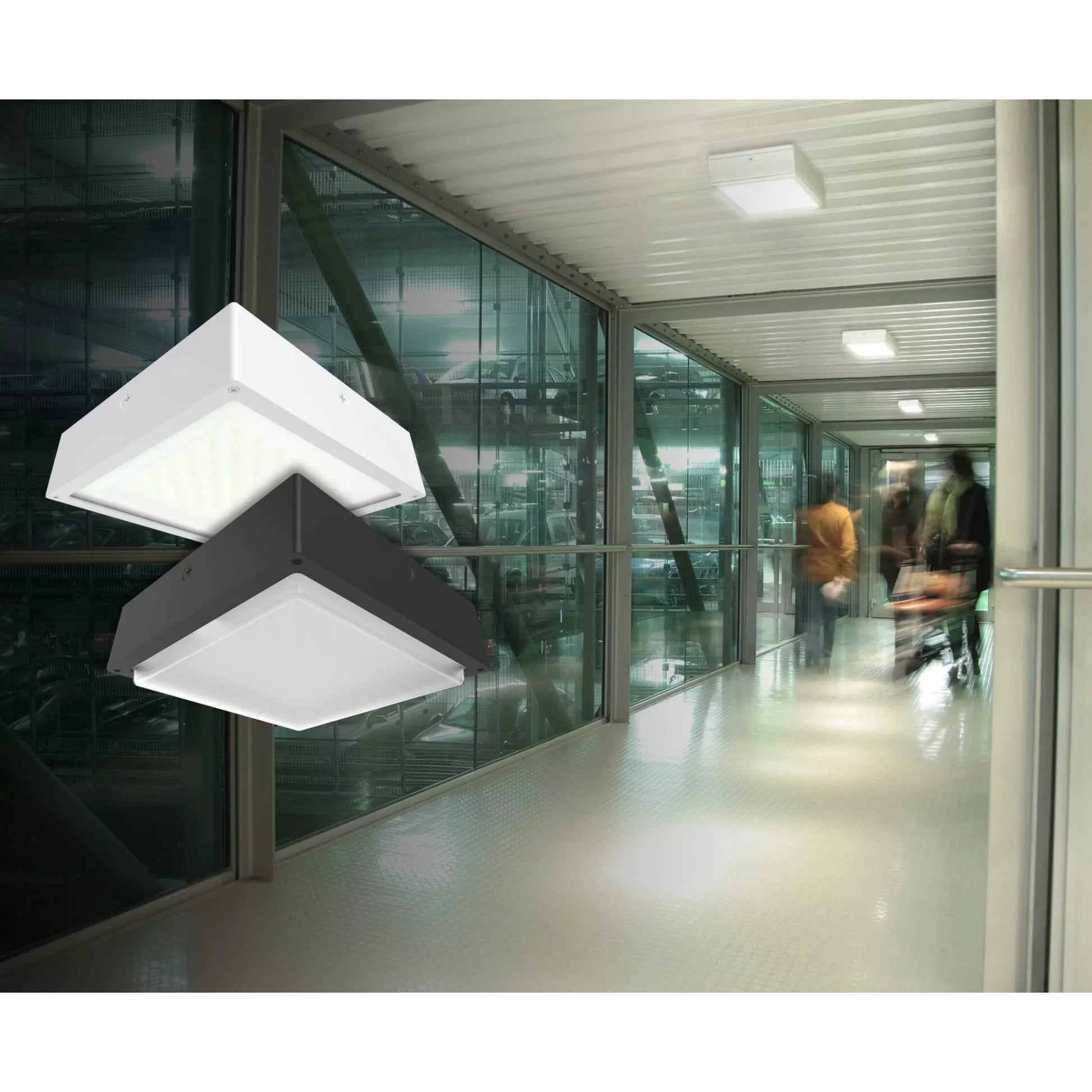

Typical Applications
- Parking Garages
- Fuel Pump Canopies
- Stairwells
- Passageways
- Loading Docks
Performance & Light Output
The fixture offers a light output range of 5,929 to 8,463 lumens with a color rendering index (CRI) of 83-86, ensuring clear visibility and color accuracy.
Electrical & Controls
Operates on a constant current driver with 120-277V input, supporting 0-10V dimming down to 10%. Includes built-in photocell and surge protection features.
Construction & Durability
Constructed with a die-cast aluminum housing and a polycarbonate frosted drop lens, the fixture is IP65 rated for protection against dust and water ingress.
Installation & Mounting
The fixture supports standard mounting configurations and includes necessary hardware for easy installation in canopy settings.
What's Included
- RAB VAN34-60FR Canopy Light
- Installation Hardware
Specifications
Specifications

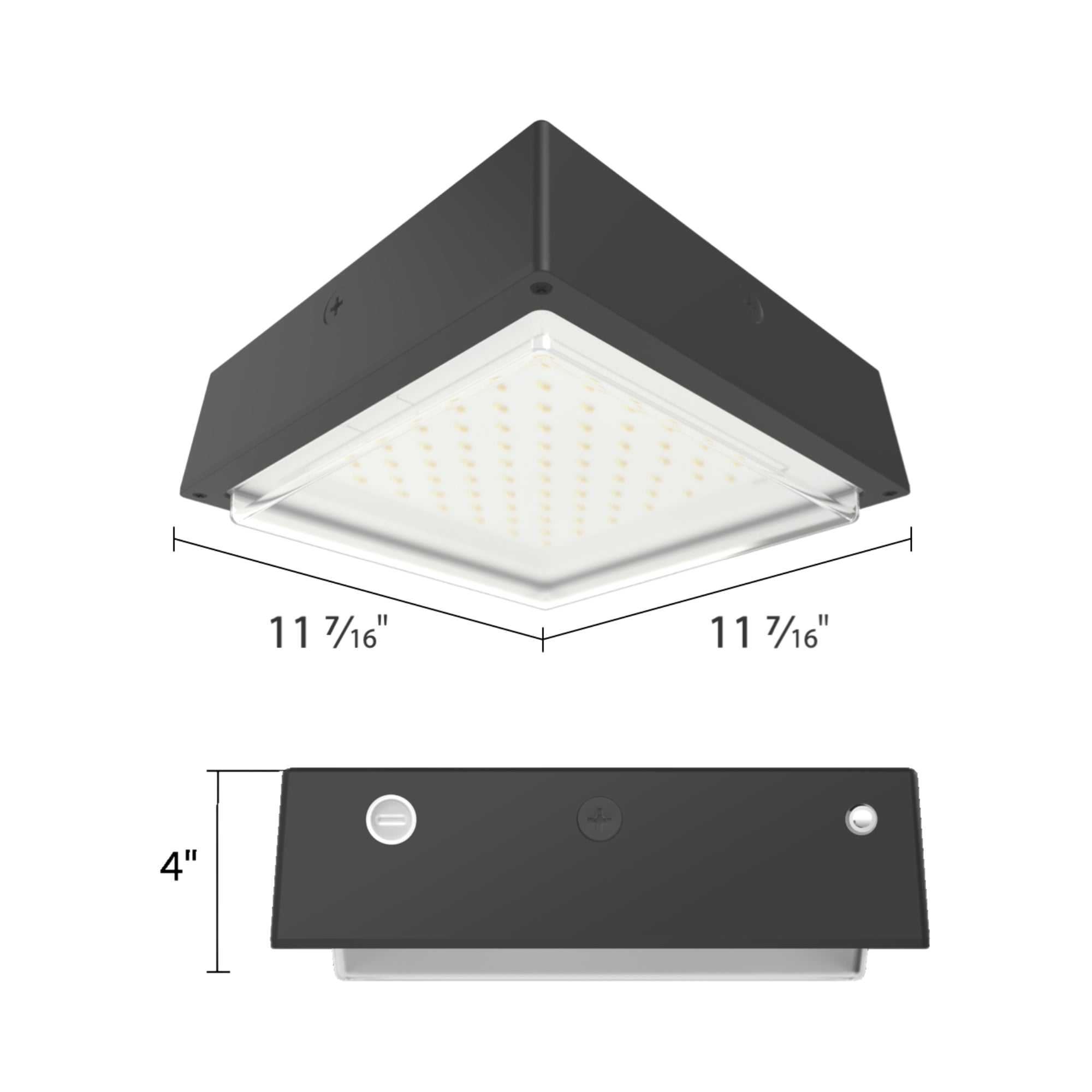

Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the wattage of the RAB VAN34-60FR?
What is the wattage of the RAB VAN34-60FR?
Is the RAB VAN34-60FR suitable for wet locations?
Is the RAB VAN34-60FR suitable for wet locations?
Does the RAB VAN34-60FR support dimming?
Does the RAB VAN34-60FR support dimming?
What color temperatures are available for the RAB VAN34-60FR?
What color temperatures are available for the RAB VAN34-60FR?
Does the RAB VAN34-60FR include a photocell?
Does the RAB VAN34-60FR include a photocell?
