RAB Lighting VAN34 Field Adjustable Canopy Light 9200 Lumens 60W Selectable CCT 120-277V Bronze
Available in stock (200)
About this item
About this item

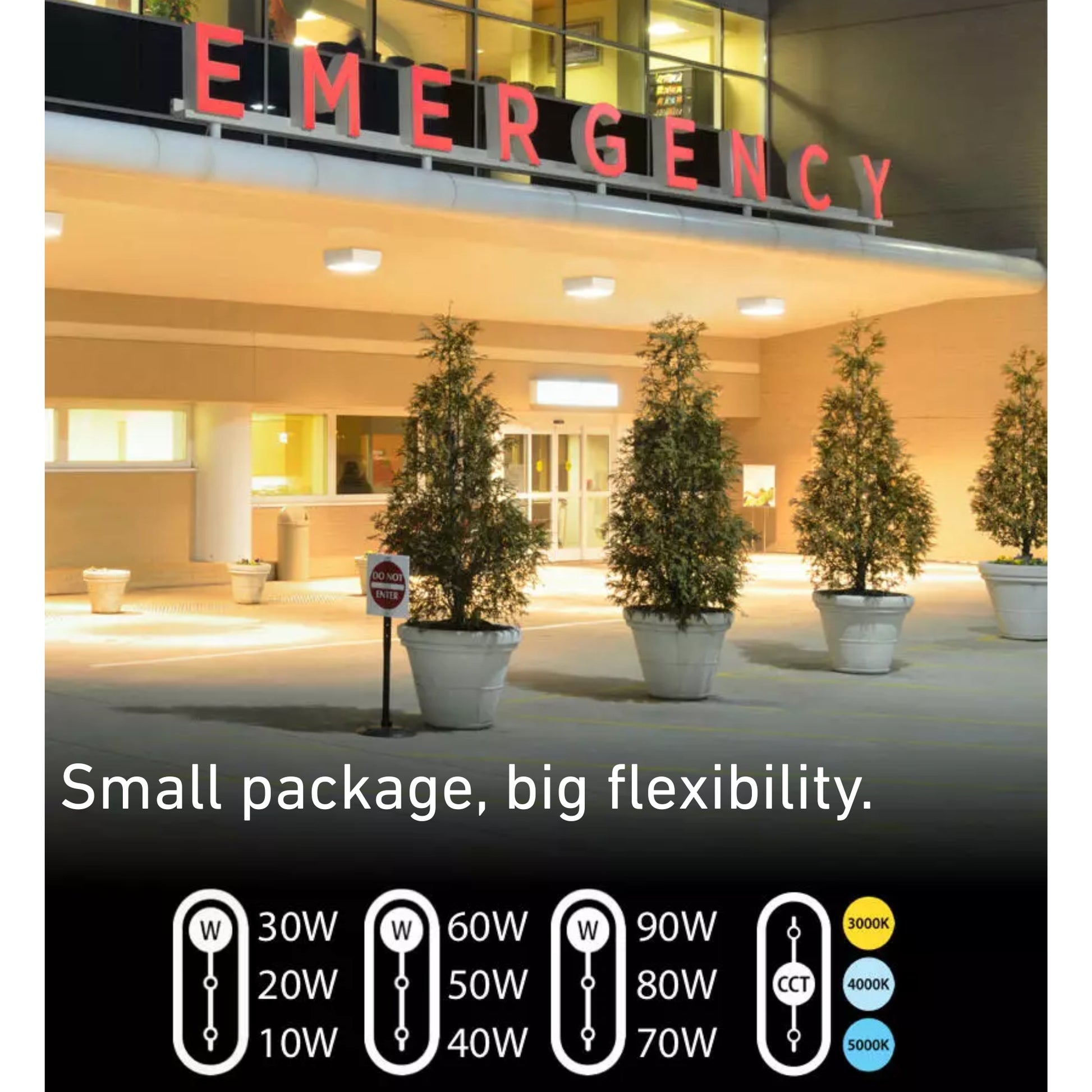

- Wattage Options: Field adjustable to 60W, 50W, or 40W for customizable power usage.
- Lumens: Provides up to 9,266 lumens for bright and efficient lighting.
- Color Temperature: Selectable CCT of 3000K, 4000K, and 5000K to suit various environments.
- Ingress Protection: IP65 rated for dust and water resistance, suitable for wet locations.
- Dimming Capability: Supports 0-10V dimming systems, allowing for adjustable light levels.
We process payments securely and do not store credit card information.
Description
Description

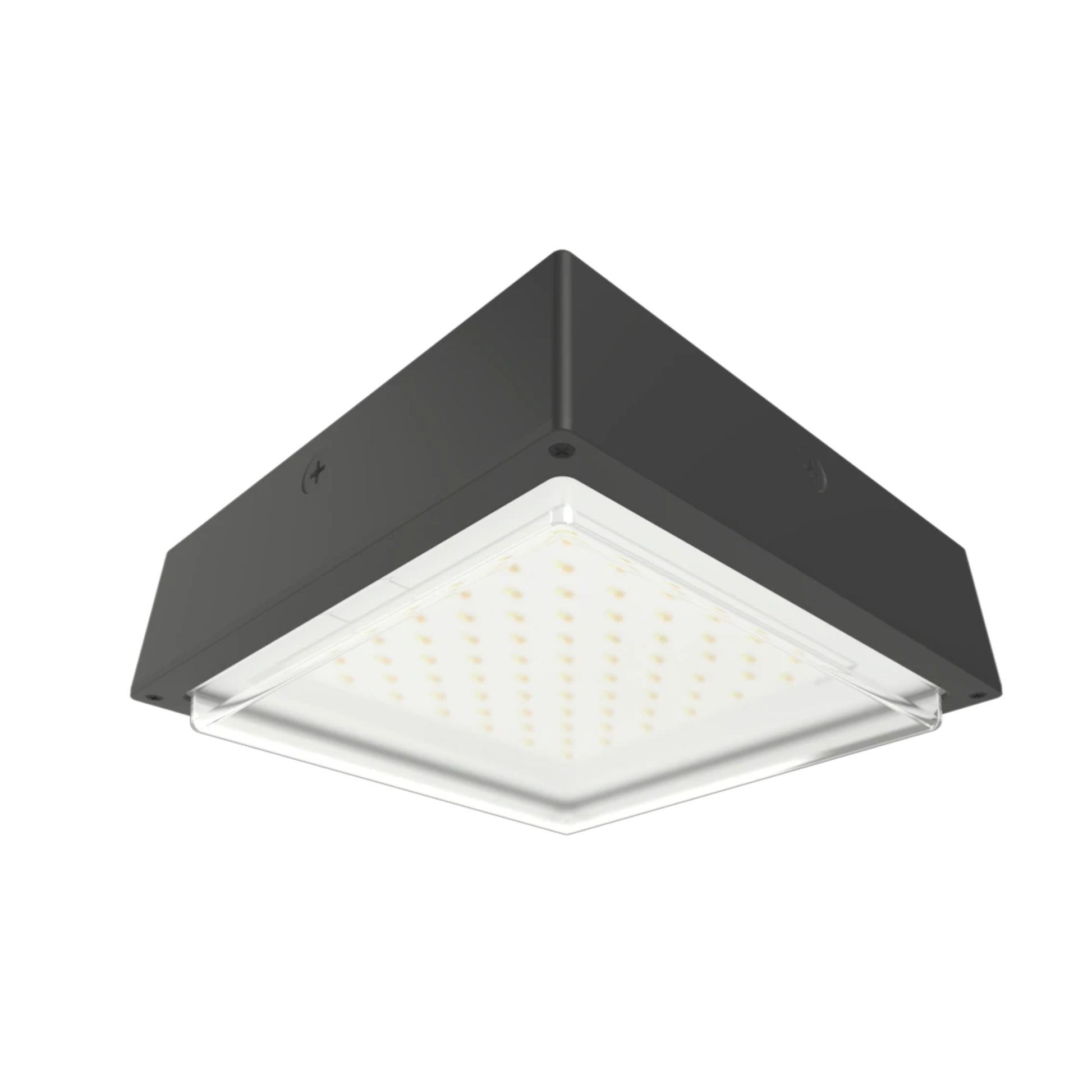

RAB Lighting VAN34 Field Adjustable Canopy Light - 60W Configuration
The RAB Lighting VAN34-60 canopy light delivers up to 9,266 lumens with a selectable wattage of 60W, 50W, or 40W. It operates on 120-277V and features a selectable CCT of 3000K, 4000K, and 5000K. This fixture is DLC Premium listed, ensuring high efficiency and rebate eligibility.
Key Features
- Field Adjustability: Easily adjust wattage and color temperature to meet specific lighting needs.
- Photocell Integration: Built-in on/off photocell with a default off setting for automatic dusk-to-dawn operation.
- Durable Construction: Die-cast aluminum housing with a polycarbonate clear drop lens for longevity.
- Surge Protection: Equipped with 4KV line-to-neutral and 6KV line-to-ground surge protection.
- Compliance: UL listed for wet locations and complies with Trade Agreements Act.
- Long Lifespan: Designed for a 100,000-hour LED lifespan based on IES LM-80 results.
- Color Accuracy: Maintains a CRI of 83-85 for consistent color rendering.
- Energy Efficiency: Achieves an efficacy of 143.6-163.7 lm/W.
- Environmental Rating: IP65 rating ensures protection against dust and water ingress.
- Warranty: Backed by a 5-year limited warranty covering light output and driver performance.

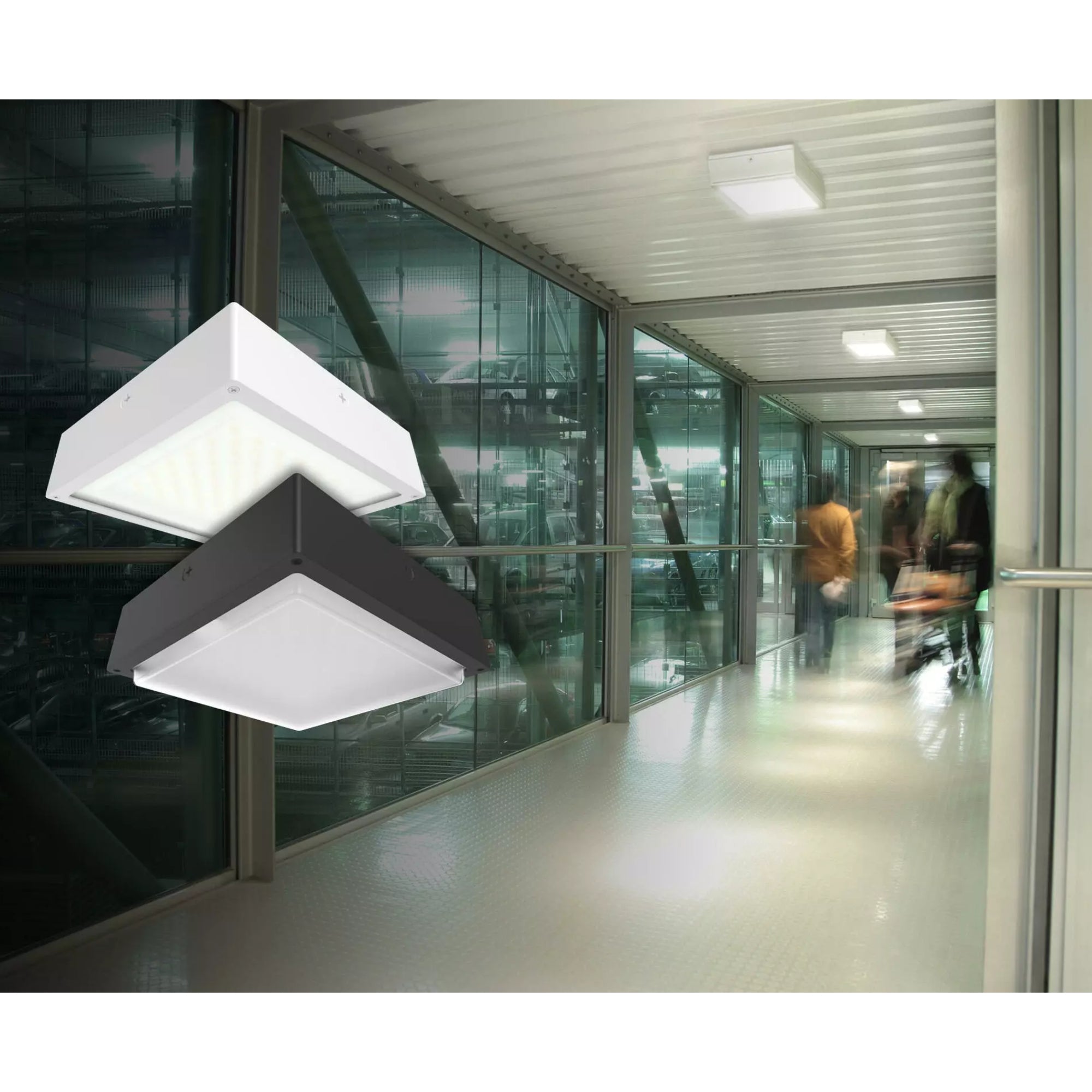

Typical Applications
- Parking Garages
- Gas Stations
- Loading Docks
- Walkways
- Building Entrances
Performance & Light Output
This fixture offers a high lumen output of up to 9,266 lumens with an efficacy range of 143.6-163.7 lm/W. It maintains a CRI of 83-85, ensuring accurate color representation.
Electrical & Controls
The VAN34-60 operates on a 120-277V constant current driver and supports 0-10V dimming. It includes a built-in photocell and surge protection for reliable operation.
Construction & Durability
Constructed with a die-cast aluminum housing and a polycarbonate lens, this fixture is IP65 rated for wet locations and can operate in temperatures from -40°C to 40°C.
Installation & Mounting
Designed for easy installation, the fixture includes necessary mounting hardware and supports various mounting configurations.
What's Included
- RAB Lighting VAN34 Canopy Light
- Installation Hardware
Specifications
Specifications

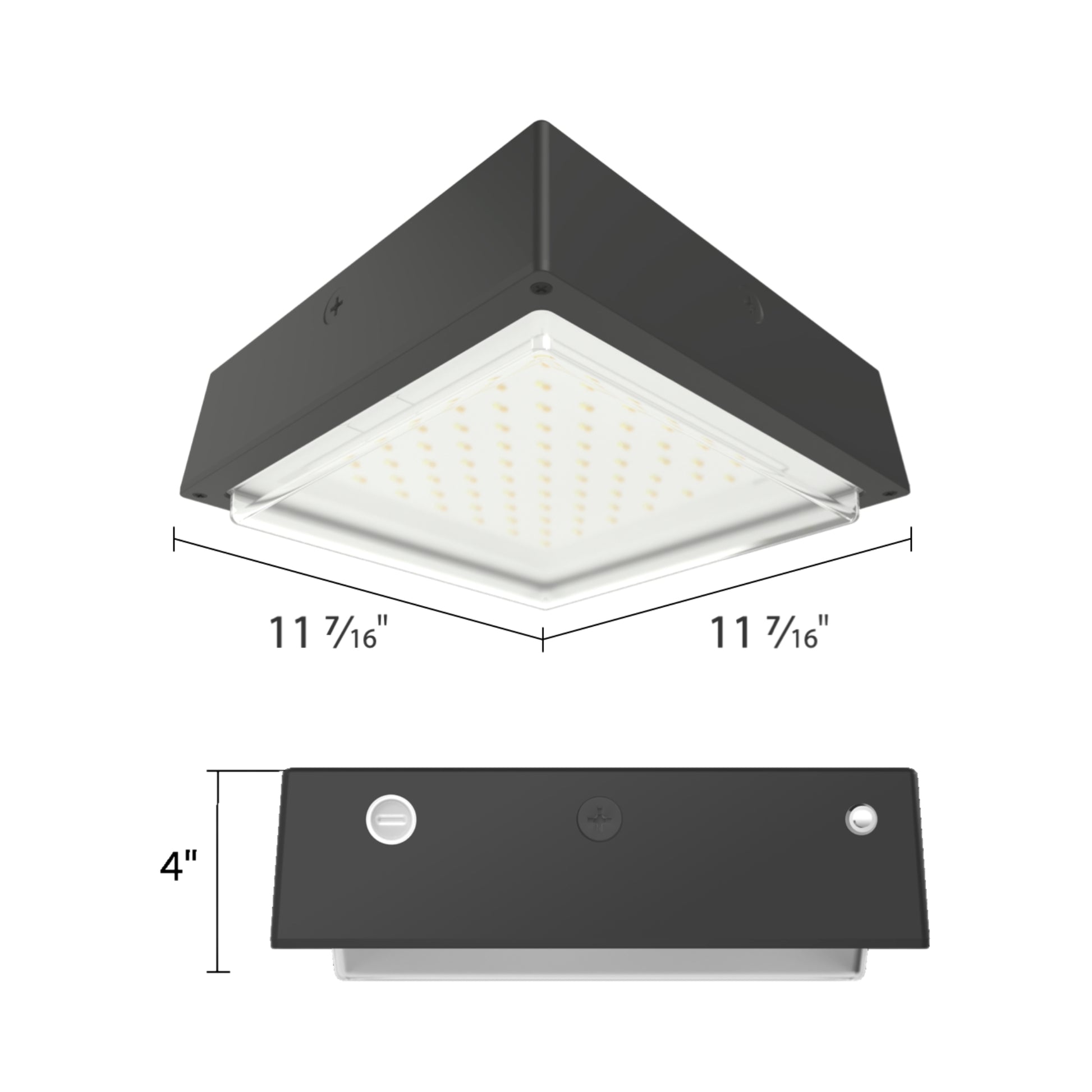

Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What wattage options are available for the RAB VAN34-60?
What wattage options are available for the RAB VAN34-60?
Is the RAB VAN34-60 suitable for outdoor use?
Is the RAB VAN34-60 suitable for outdoor use?
Does the RAB VAN34-60 support dimming?
Does the RAB VAN34-60 support dimming?
What is the color temperature range of the RAB VAN34-60?
What is the color temperature range of the RAB VAN34-60?
Does the RAB VAN34-60 include a photocell?
Does the RAB VAN34-60 include a photocell?
