RAB VAN34 Field Adjustable Canopy Light 4500 Lumens 30W Selectable CCT 120-277V White
Available in stock (200)
About this item
About this item
- Lumens: Provides up to 4,588 lumens for high-efficiency lighting.

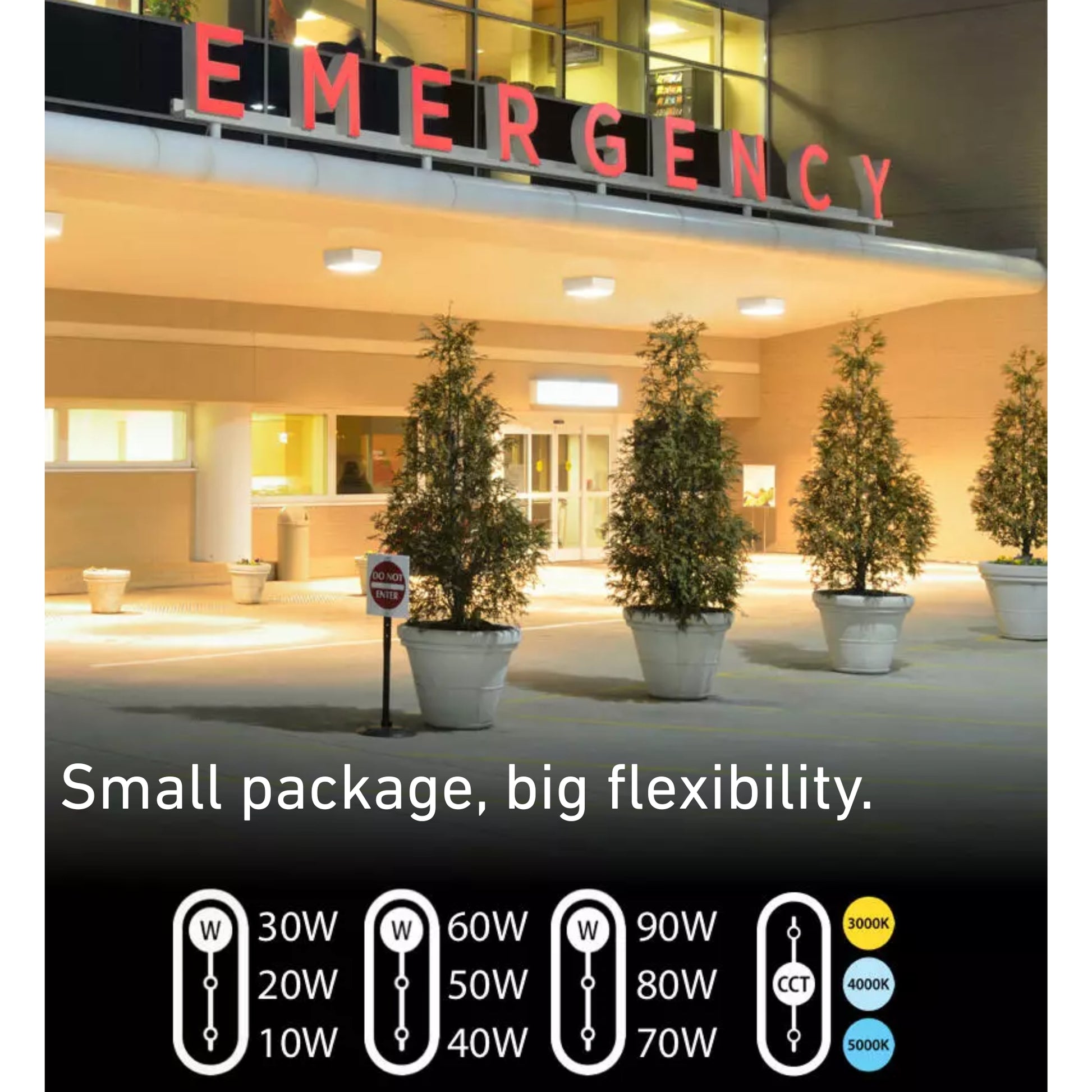

- Wattage: Field adjustable wattage options of 30W, 20W, and 10W for flexible energy use.
- Color Temperature: Selectable CCT of 3000K, 4000K, and 5000K for varied lighting environments.
- Ingress Protection: IP65 rated, ensuring protection against dust and water ingress.
- Dimming Capability: Supports 0-10V dimming, allowing for adjustable light levels.
We process payments securely and do not store credit card information.
Description
Description

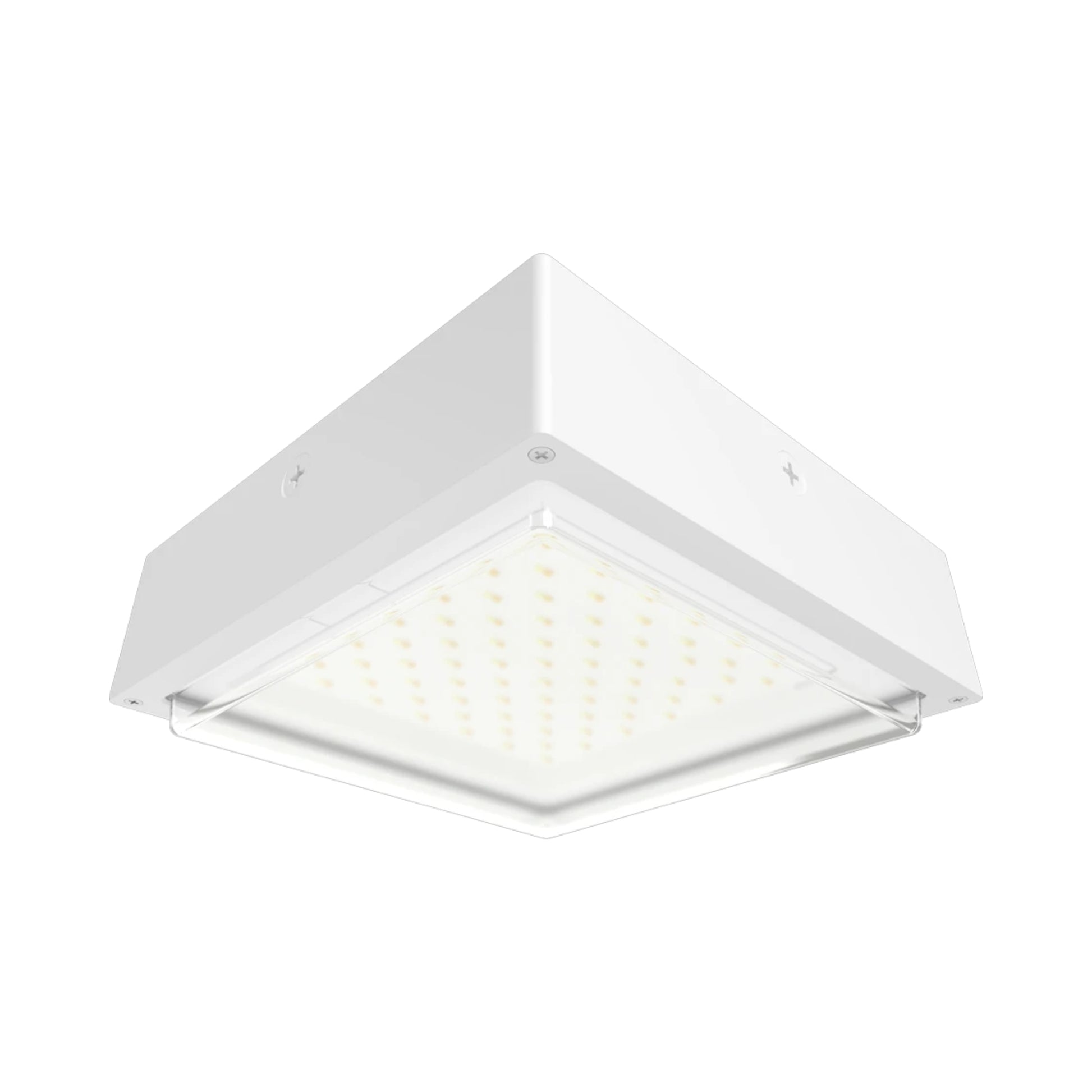

RAB VAN34 Field Adjustable Canopy Light - 30W Configuration
The RAB VAN34-30W is a field adjustable canopy light offering up to 4,588 lumens with a selectable wattage of 30W, 20W, or 10W. It operates on 120-277V input and features selectable CCT options of 3000K, 4000K, and 5000K. This fixture is IP65 rated for wet locations, making it suitable for outdoor use.
Key Features
- Field Adjustability: Offers adjustable wattage and color temperature for versatile lighting solutions.
- Photocell Integration: Built-in on/off photocell with a factory default setting of off.
- Durable Construction: Die-cast aluminum housing with a polycarbonate clear drop lens.
- Long Lifespan: Designed for a 100,000-hour LED lifespan based on IES LM-80 results.
- Compliance: UL Listed and DLC certified for energy efficiency and rebate eligibility.
- Surge Protection: Equipped with 4KV line-to-neutral and 6KV line-to-ground surge protection.
- Green Technology: Mercury and UV free, RoHS-compliant components.
- Cold Weather Starting: Operates in temperatures as low as -40°C (-40°F).
- Reflector/Tray: Constructed with aluminum for optimal light distribution.
- Warranty: Comes with a 5-year limited warranty covering light output, driver performance, and paint finish.

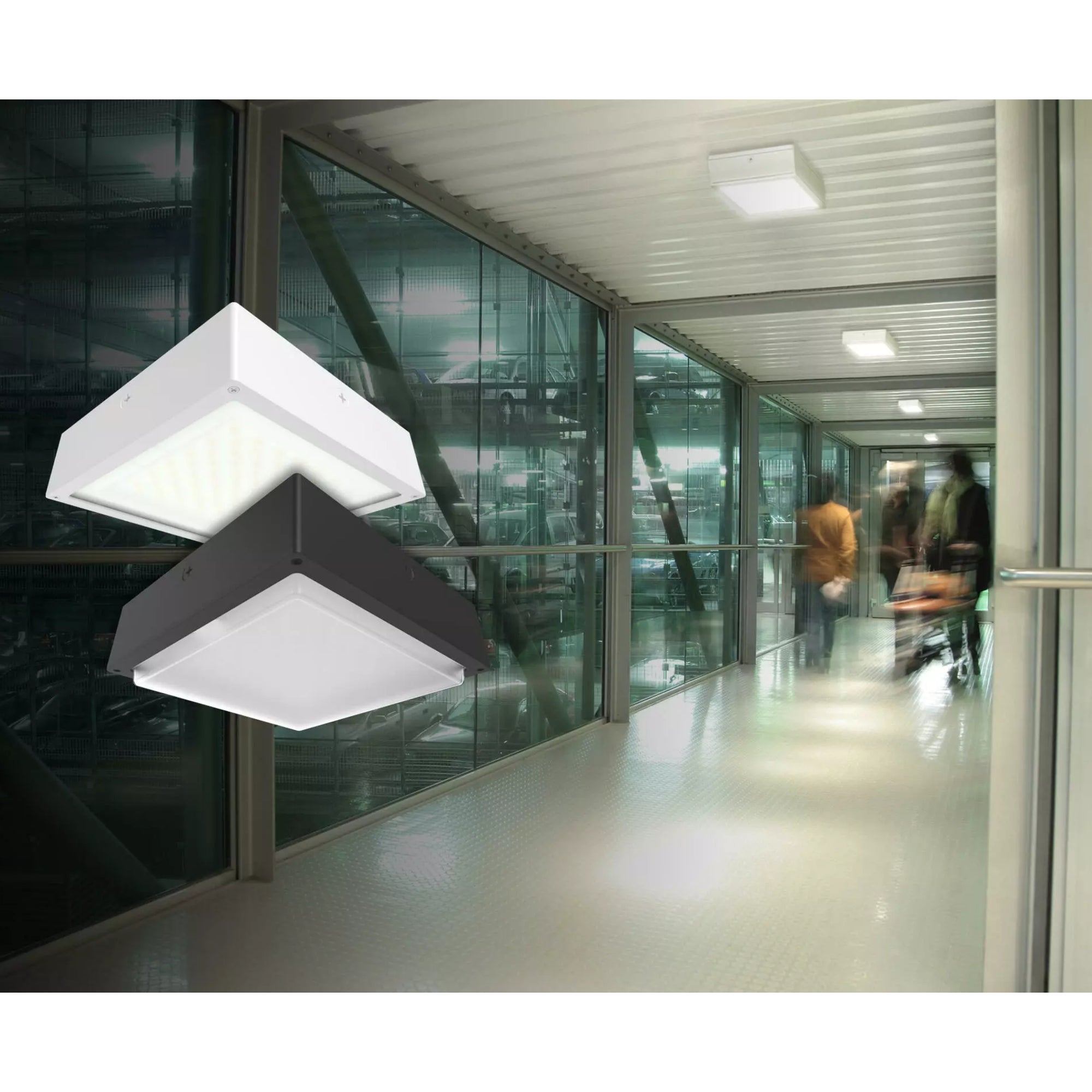

Typical Applications
- Parking Garages
- Fuel Pump Canopies
- Stairwells
- Passageways
- Outdoor Walkways
- Loading Docks
Performance & Light Output
The fixture delivers up to 4,588 lumens with an efficacy of 136.6-152.5 lm/W and a CRI of 83-85, ensuring high-quality light output.
Electrical & Controls
Operates on 120-277V with a constant current driver. Supports 0-10V dimming and includes a built-in photocell for automatic on/off control.
Construction & Durability
Features a die-cast aluminum housing and a polycarbonate lens, rated for IP65 ingress protection. Suitable for ambient temperatures up to 40°C (104°F).
Installation & Mounting
Designed for easy installation with standard mounting options. Compatible with optional mounting accessories for varied applications.
What's Included
- RAB VAN34 Canopy Light
- Built-in Photocell
Specifications
Specifications

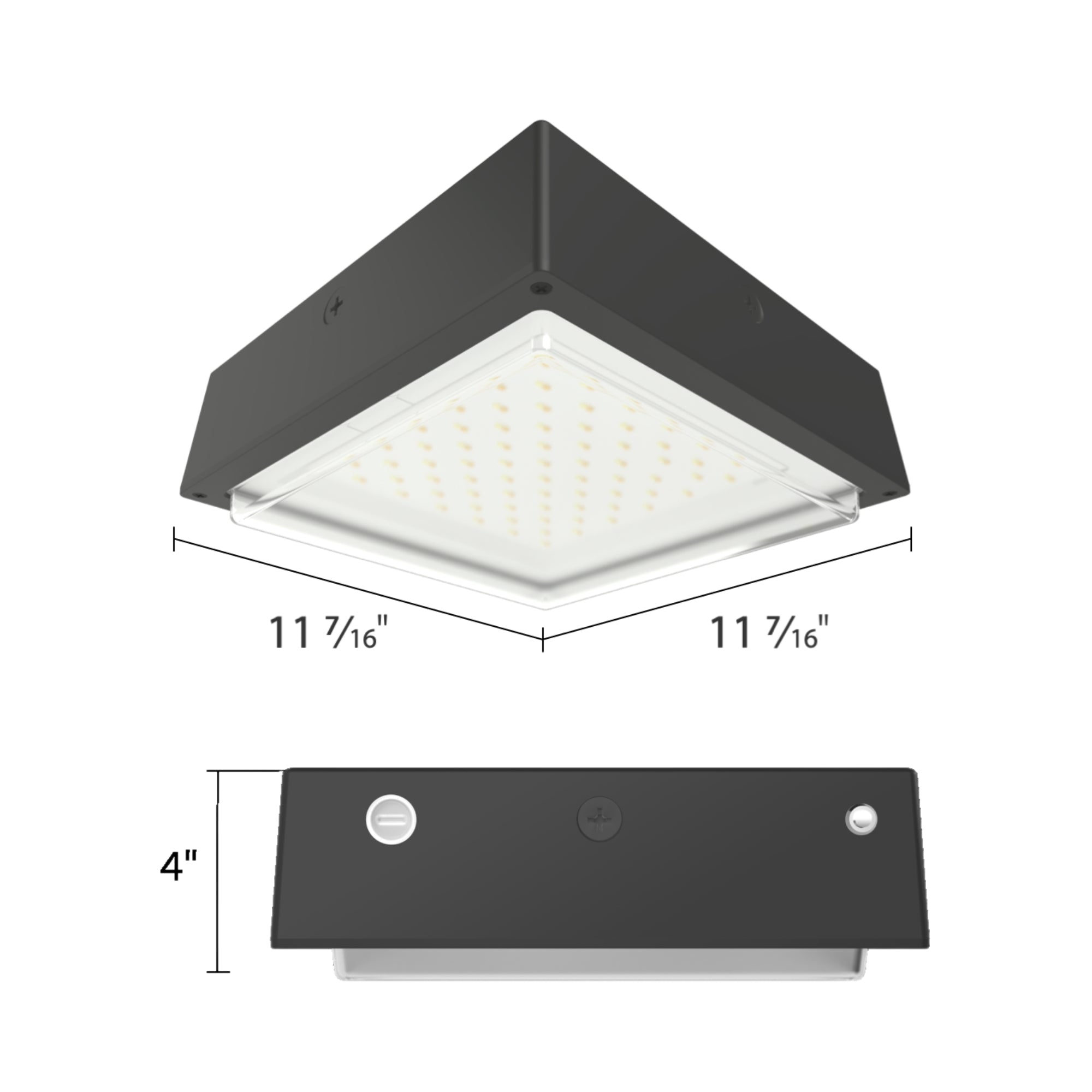

Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the wattage range for the RAB VAN34-30W?
What is the wattage range for the RAB VAN34-30W?
Is the RAB VAN34-30W suitable for outdoor use?
Is the RAB VAN34-30W suitable for outdoor use?
Does the RAB VAN34-30W support dimming?
Does the RAB VAN34-30W support dimming?
What color temperatures are available with the RAB VAN34-30W?
What color temperatures are available with the RAB VAN34-30W?
What is the expected lifespan of the RAB VAN34-30W?
What is the expected lifespan of the RAB VAN34-30W?
