RAB Lighting VAN34 Canopy Light 4200 Lumens 30W 3000K/4000K/5000K 120-277V White
Made to Order
About this item
About this item
- Lumens: Provides up to 4,186 lumens for efficient lighting.
- Wattage: Field adjustable wattage options of 30W, 20W, and 10W.
- Voltage: Compatible with 120-277V for flexible installation.
- Color Temperature: Selectable CCT of 3000K, 4000K, and 5000K.
- Ingress Protection: Rated IP65 for dust and water resistance.
We process payments securely and do not store credit card information.
Description
Description

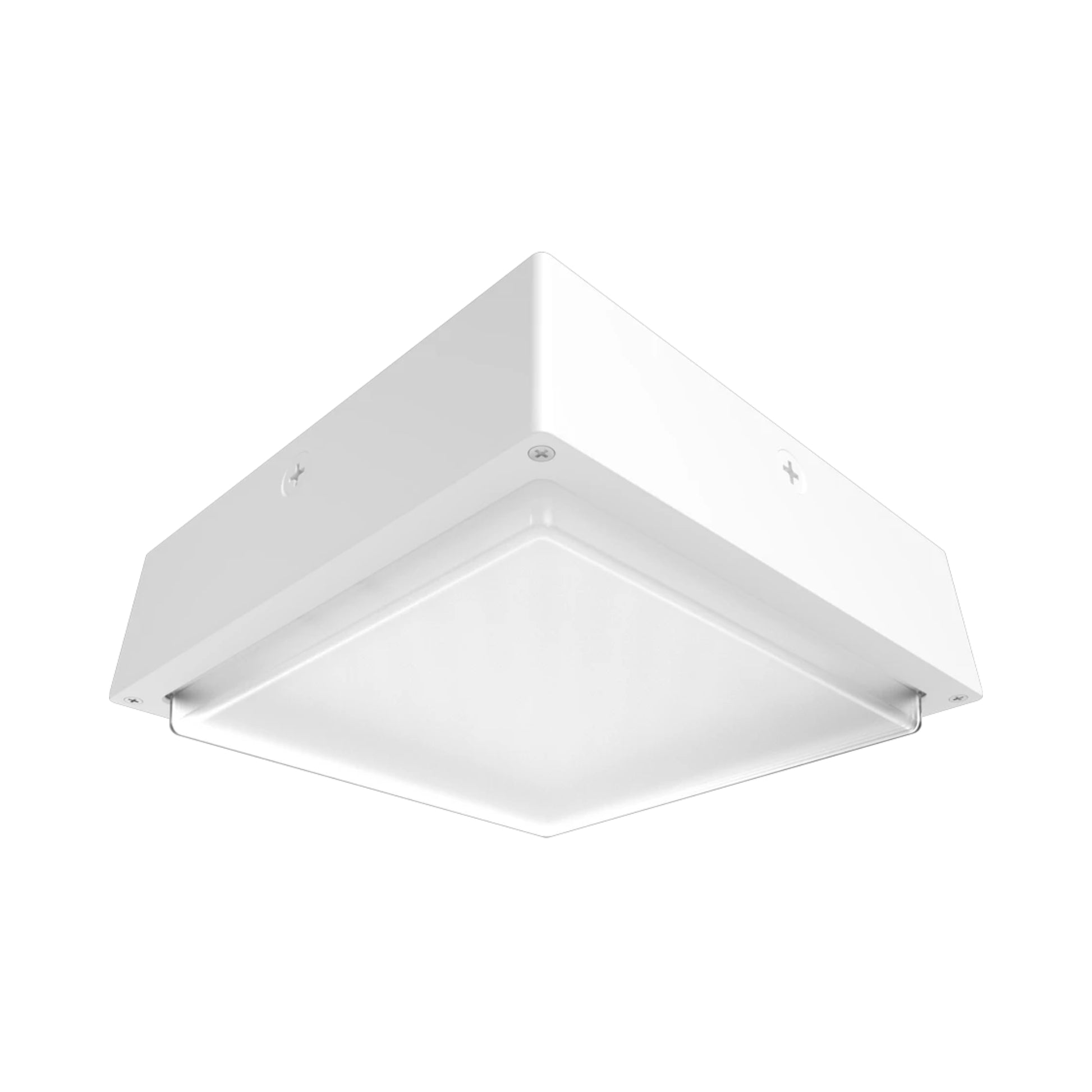

RAB Lighting VAN34 Canopy Light - 30W Field Adjustable Configuration
The RAB Lighting VAN34-30FRW is a versatile canopy light offering 30W power with a maximum output of 4,186 lumens. It supports 120-277V input and features selectable color temperatures of 3000K, 4000K, and 5000K. This fixture is IP65 rated, making it suitable for wet locations and ensuring durability in challenging environments.
Key Features
- Field Adjustable Wattage: Easily switch between 30W, 20W, and 10W settings.
- Selectable CCT: Adjust color temperature to 3000K, 4000K, or 5000K as needed.
- Photocell Integration: Built-in on/off photocell with factory default off setting.
- Dimming Capability: Supports 0-10V dimming down to 10% for customizable lighting.
- Durable Construction: Die-cast aluminum housing with a polycarbonate frosted drop lens.
- Surge Protection: Equipped with 4KV line-to-neutral and 6KV line-to-ground surge protection.
- Long Lifespan: Designed for a 100,000-hour LED lifespan based on IES LM-80 results.
- Compliance: UL Listed for wet locations and DLC Premium for energy efficiency.
- Environmentally Friendly: Mercury and UV free, RoHS-compliant components.
- Warranty: Backed by a 5-year limited warranty covering light output and driver performance.

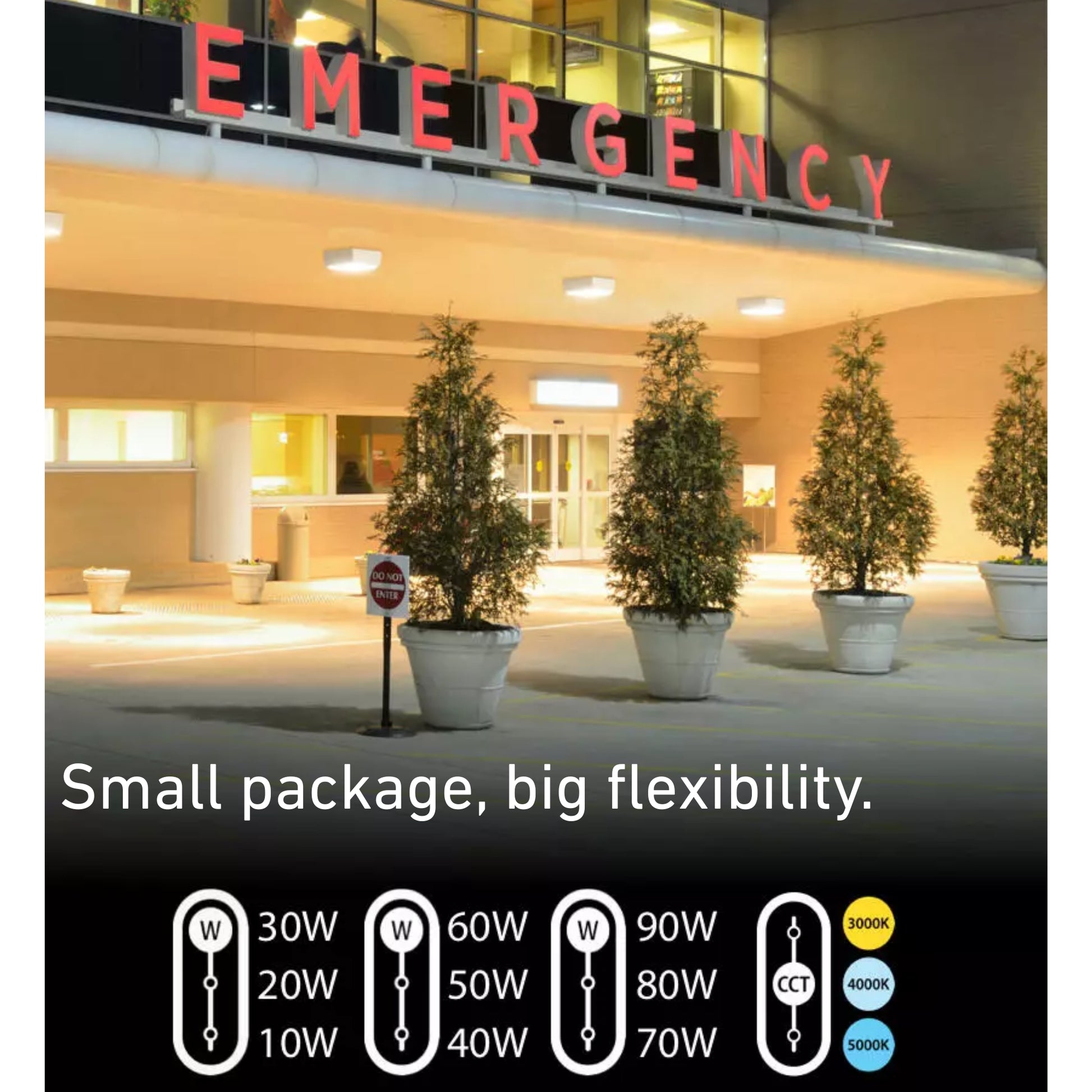

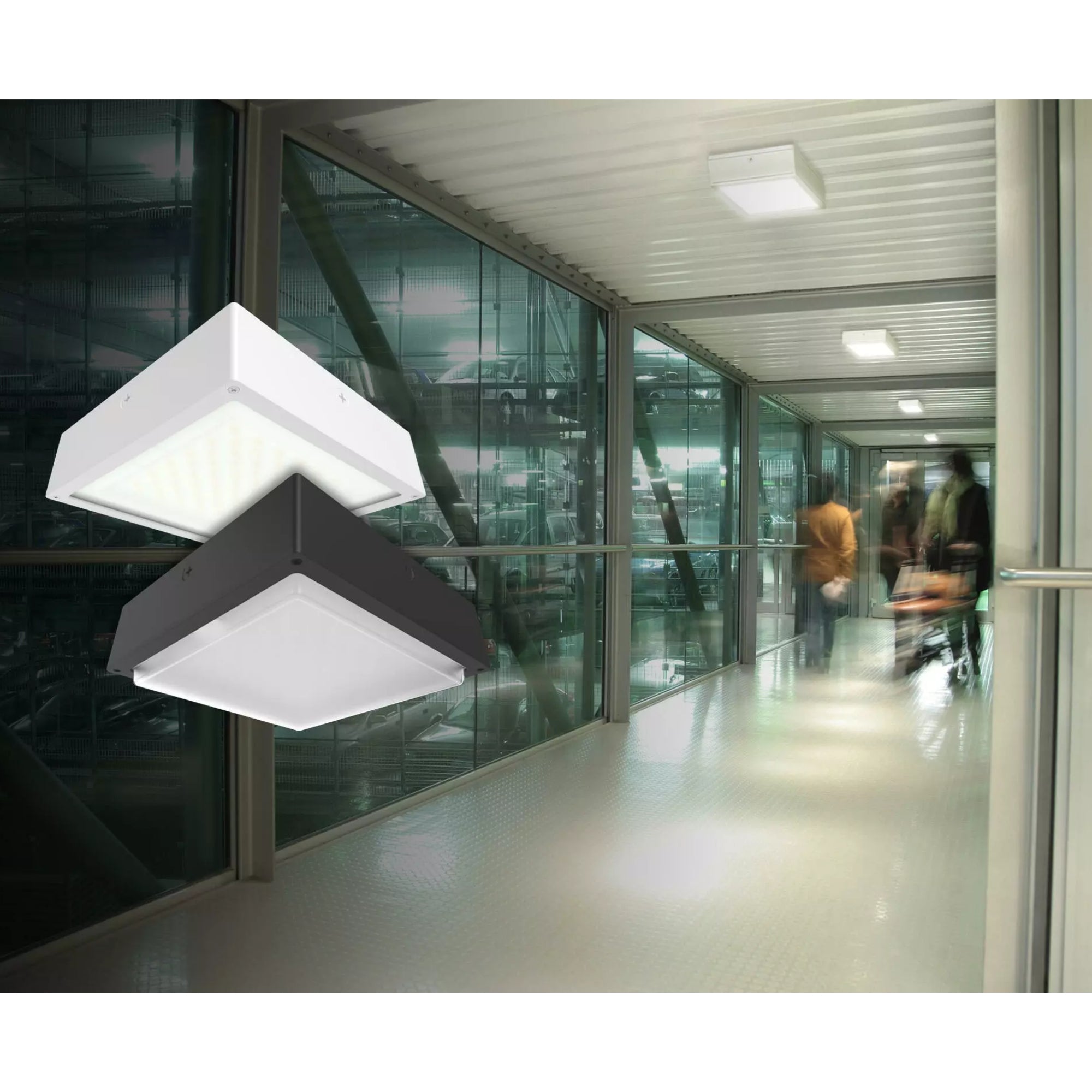

Typical Applications
- Parking Garages
- Fuel Pump Canopies
- Stairwells
- Passageways
- Loading Docks
Performance & Light Output
This fixture delivers a maximum of 4,186 lumens with an efficacy range of 124.5-139.7 lm/W. It features a CRI of 84-86, ensuring accurate color rendering.
Electrical & Controls
The VAN34-30FRW operates on a constant current driver compatible with 120-277V systems. It includes 0-10V dimming and built-in surge protection for reliable performance.
Construction & Durability
Constructed with a die-cast aluminum housing and a polycarbonate frosted drop lens, this fixture is IP65 rated for protection against dust and water ingress.
Installation & Mounting
Designed for easy installation, this canopy light supports multiple mounting options and includes necessary hardware for secure setup.
What's Included
- VAN34 Canopy Light Fixture
- Installation Hardware
Specifications
Specifications

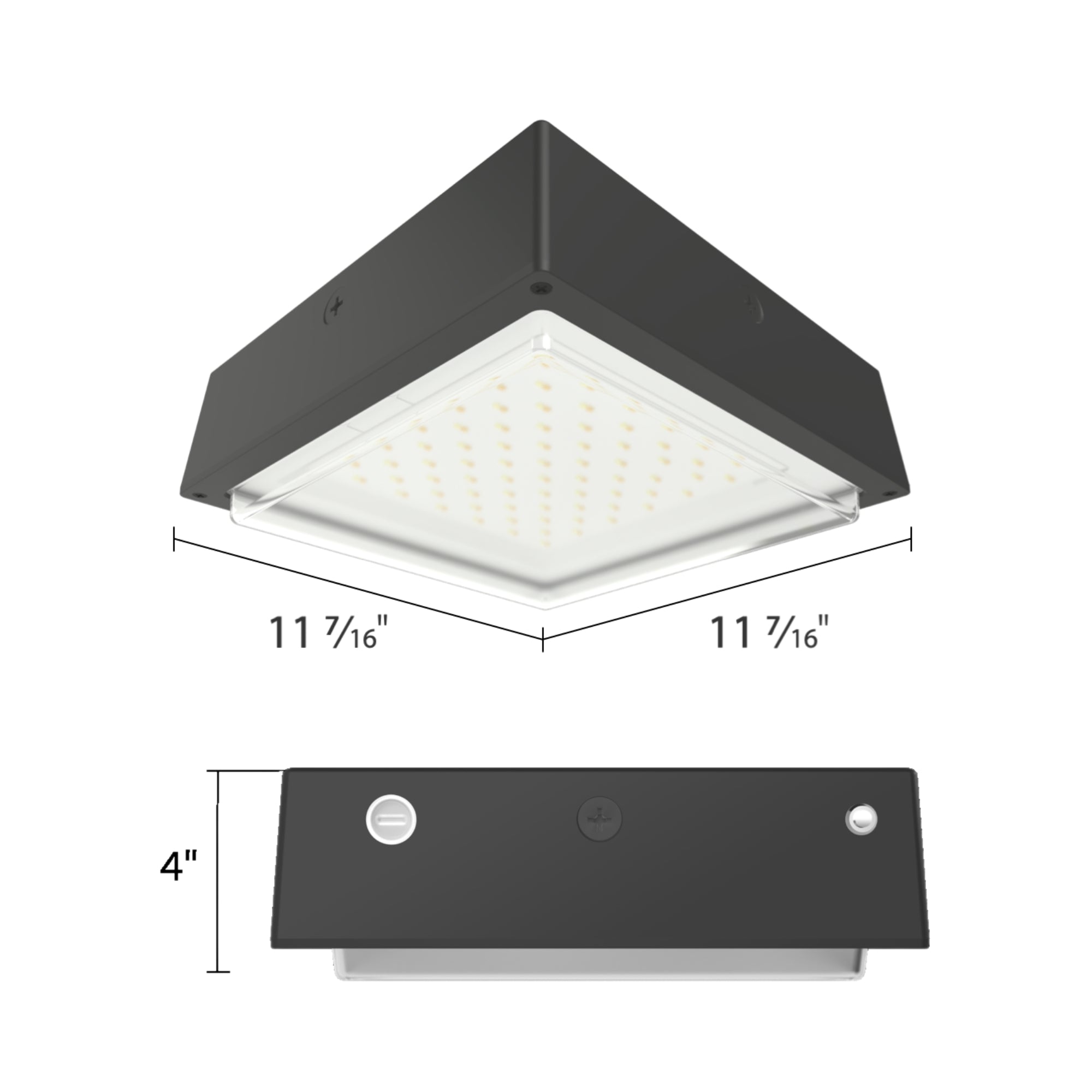

Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What wattage options are available for the RAB VAN34-30FRW?
What wattage options are available for the RAB VAN34-30FRW?
Is the RAB VAN34-30FRW suitable for outdoor use?
Is the RAB VAN34-30FRW suitable for outdoor use?
Does the RAB VAN34-30FRW support dimming?
Does the RAB VAN34-30FRW support dimming?
What is the lifespan of the RAB VAN34-30FRW LED fixture?
What is the lifespan of the RAB VAN34-30FRW LED fixture?
What color temperatures can be selected on the RAB VAN34-30FRW?
What color temperatures can be selected on the RAB VAN34-30FRW?
