RAB VAN34 Field Adjustable Canopy Light 4200 Lumens 30W 3000K/4000K/5000K 120-277V Bronze
Made to Order
About this item
About this item
- Field Adjustability: Offers selectable wattage of 30W, 20W, or 10W for versatile applications.
- Color Temperature Options: Choose between 3000K, 4000K, and 5000K to suit different environments.
- Ingress Protection: Rated IP65 for protection against dust and water, suitable for wet locations.
- Dimming Capability: Supports 0-10V dimming systems, allowing for precise light level control.
- Durability: Constructed with die-cast aluminum housing and a polycarbonate frosted drop lens for long-lasting performance.
We process payments securely and do not store credit card information.
Description
Description
RAB VAN34 Field Adjustable Canopy Light - 30W Configuration
The RAB VAN34-30FR is a field-adjustable canopy light offering a maximum of 30 watts and delivering up to 4200 lumens. It operates on a 120-277V input and features selectable color temperatures of 3000K, 4000K, and 5000K. This fixture is DLC Premium listed, ensuring high efficiency and rebate eligibility.
Key Features

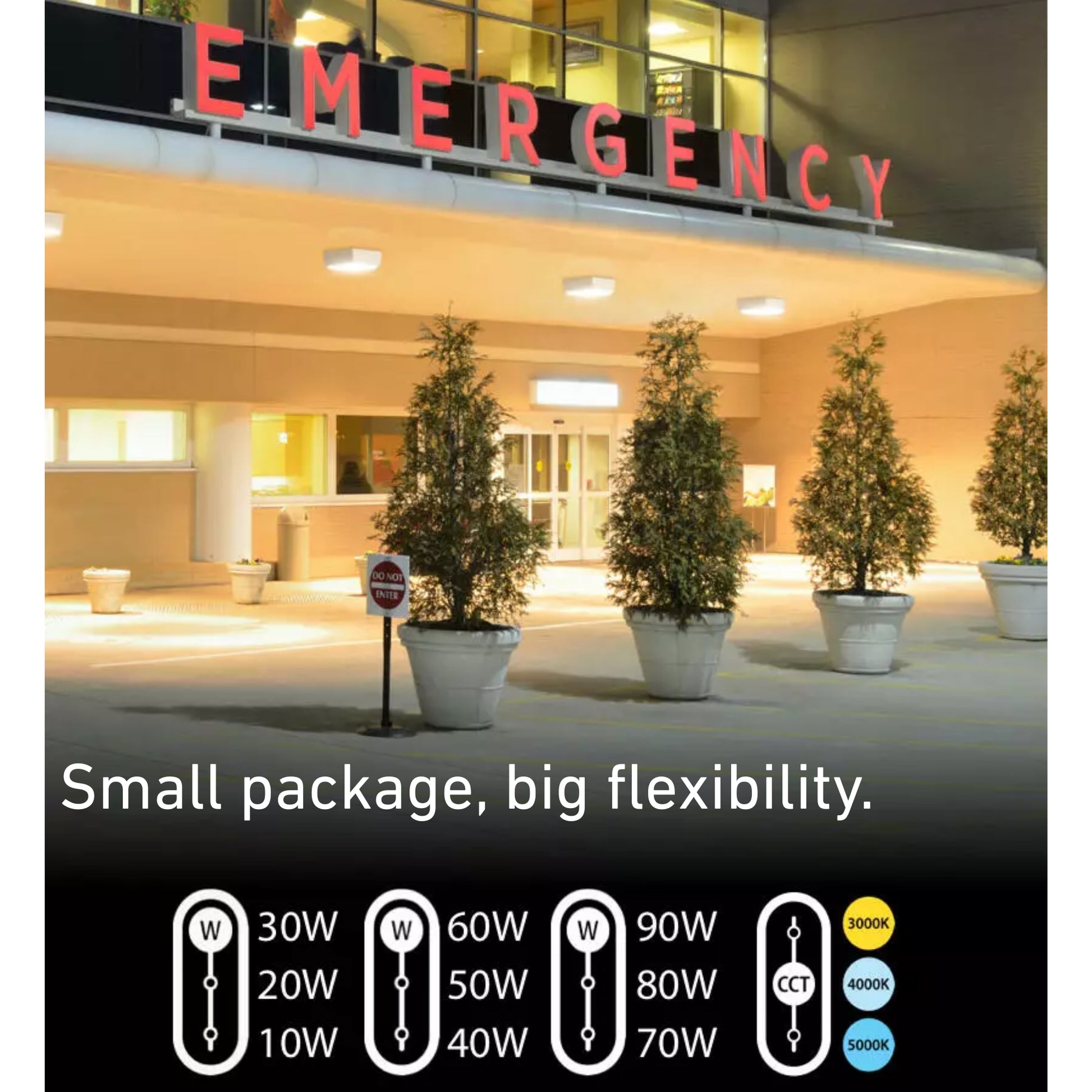

- Field Adjustable Wattage: Easily switch between 30W, 20W, and 10W settings to match lighting needs.
- Selectable CCT: Adjust color temperature between 3000K, 4000K, and 5000K for optimal lighting.
- Photocell Integration: Built-in on/off photocell with factory default off for automatic lighting control.
- High Efficacy: Achieves up to 139.7 lm/W, ensuring energy-efficient operation.
- Long Lifespan: Designed for 100,000 hours of operation based on IES LM-80 results.
- IP65 Rating: Provides excellent protection against dust and water ingress.
- Durable Construction: Features a die-cast aluminum housing and polycarbonate lens.
- Surge Protection: Equipped with 4KV/6KV surge protection for enhanced reliability.
- Compliance: UL listed for wet locations and complies with DLC 5.1 standards.
- Green Technology: Mercury and UV free, with RoHS-compliant components.

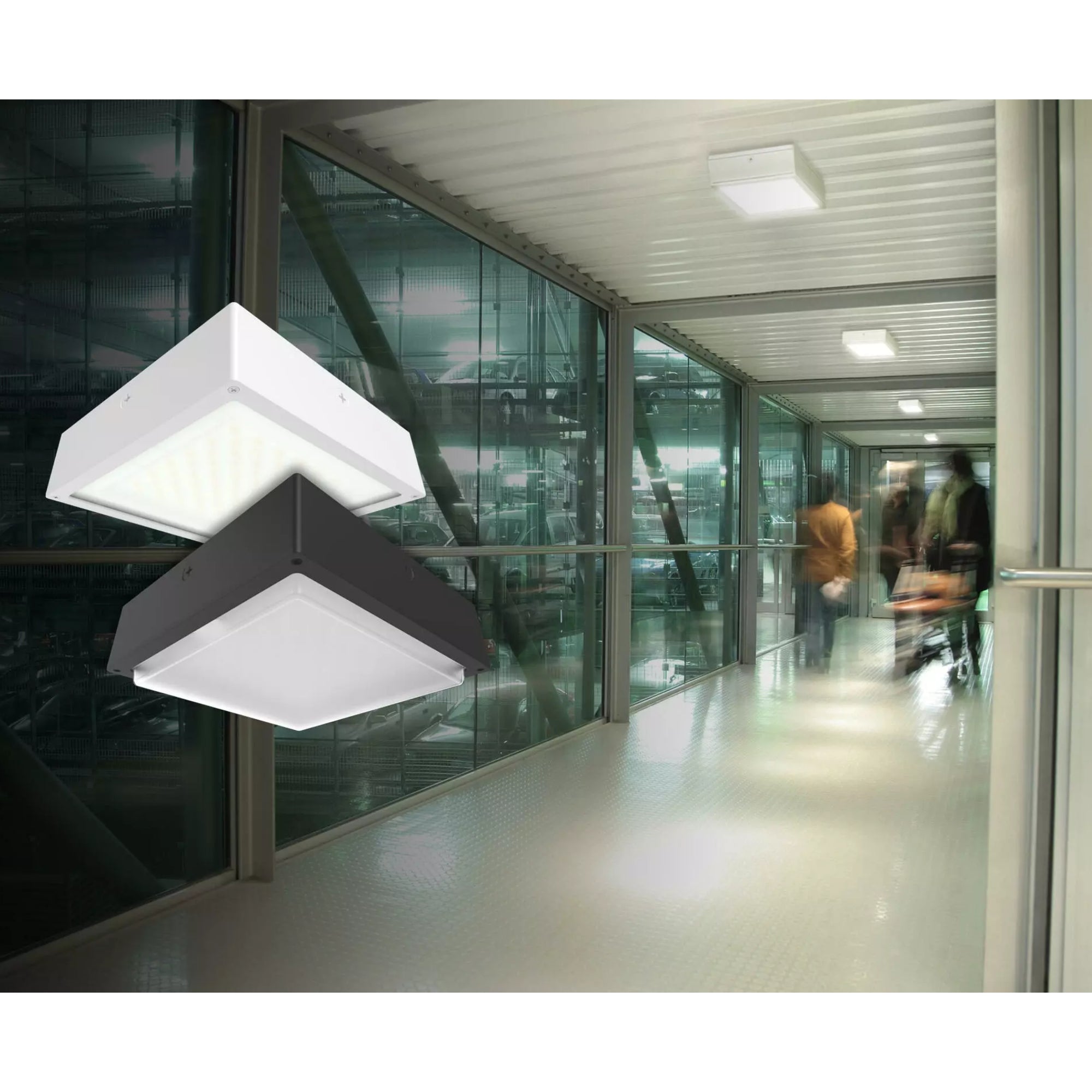

Typical Applications
- Parking Garages
- Gas Stations
- Loading Docks
- Walkways
- Building Entrances
Performance & Light Output
The VAN34-30FR delivers up to 4,186 lumens with an efficacy range of 124.5 to 139.7 lm/W. It features a CRI of 84-86, ensuring good color rendering for various applications.
Electrical & Controls
This fixture operates on a 120-277V input with a constant current driver. It supports 0-10V dimming and includes a built-in photocell for automatic on/off control. Surge protection is rated at 4KV/6KV.
Construction & Durability
Constructed with a die-cast aluminum housing and a polycarbonate frosted drop lens, the VAN34-30FR is designed for durability. It is IP65 rated, ensuring protection against dust and water ingress.
Installation & Mounting
The fixture is designed for easy installation in canopy applications. It includes all necessary hardware for secure mounting.
What's Included
- RAB VAN34-30FR Canopy Light
- Installation Hardware
Specifications
Specifications

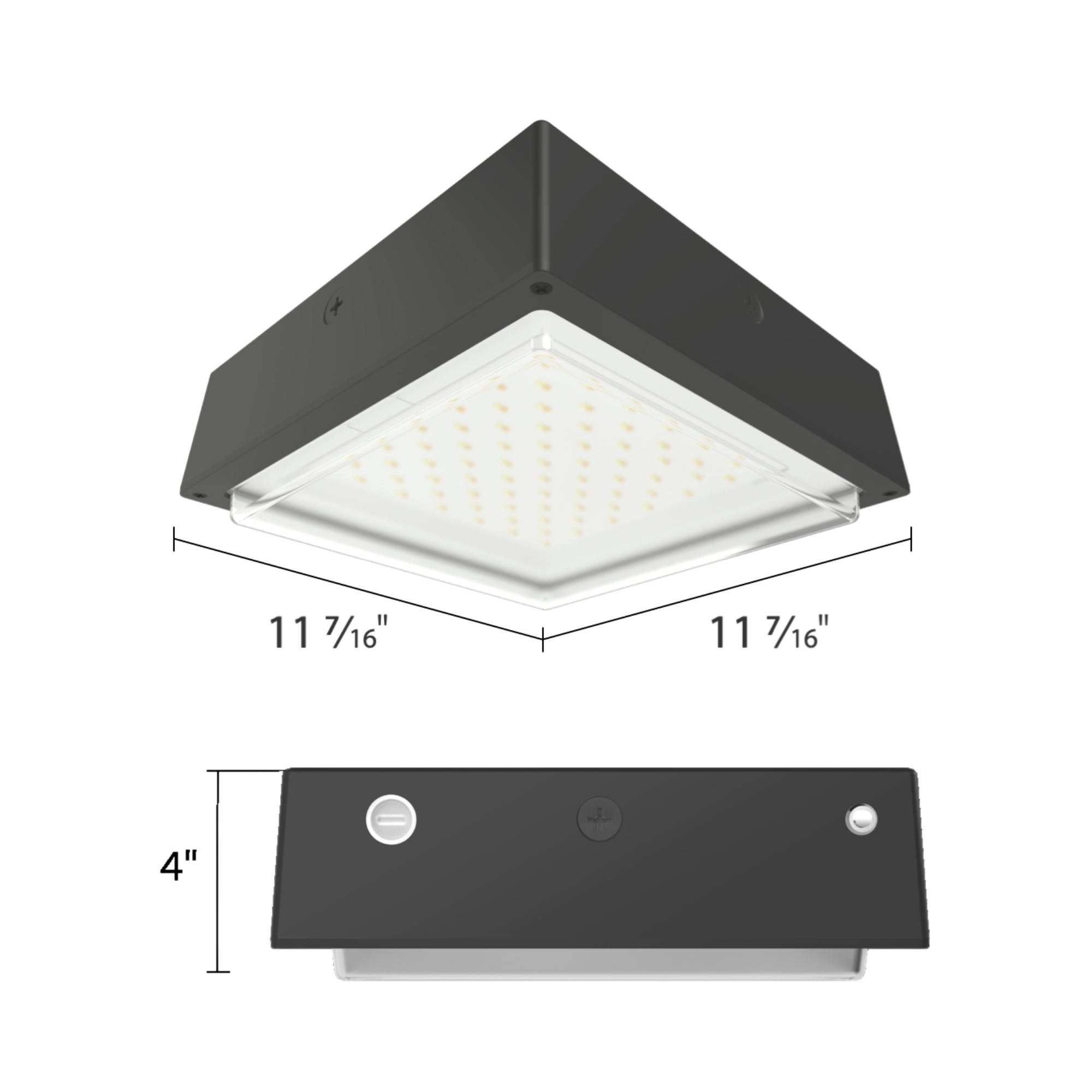

Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What wattage options are available for the RAB VAN34-30FR?
What wattage options are available for the RAB VAN34-30FR?
Is the RAB VAN34-30FR suitable for outdoor use?
Is the RAB VAN34-30FR suitable for outdoor use?
Does the RAB VAN34-30FR support dimming?
Does the RAB VAN34-30FR support dimming?
What is the lifespan of the RAB VAN34-30FR?
What is the lifespan of the RAB VAN34-30FR?
Does the RAB VAN34-30FR include a photocell?
Does the RAB VAN34-30FR include a photocell?
