RAB Lighting VAN34 Field Adjustable Canopy Light 4500 Lumens 30W Selectable CCT 120-277V Bronze
Available in stock (200)
About this item
About this item
- Wattage: The fixture offers field-adjustable wattage settings of 30W, 20W, and 10W.
- Lumens: Provides a light output range from 1,584 to 4,588 lumens.
- Color Temperature: Features selectable CCT options of 3000K, 4000K, and 5000K.
- Ingress Protection: Rated IP65 for dust and water resistance, suitable for wet locations.
- Dimming: Equipped with 0-10V dimming capability, allowing dimming down to 10%.
We process payments securely and do not store credit card information.
Description
Description

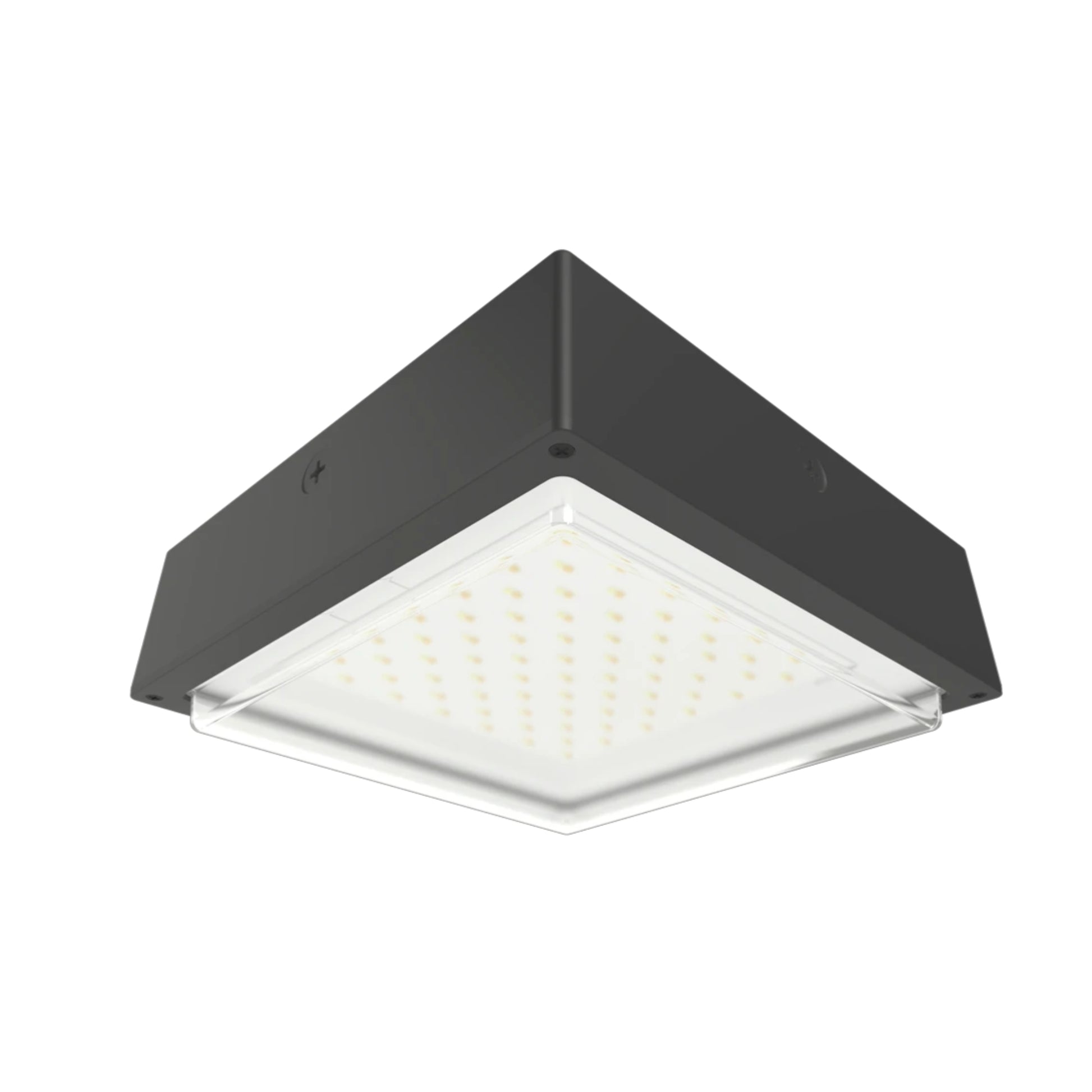

RAB Lighting VAN34 Field Adjustable Canopy Light - 30W Configuration
The RAB Lighting VAN34-30 is a field-adjustable canopy light offering a maximum of 30 watts and delivering up to 4500 lumens. It operates on a 120-277V input and is suitable for wet locations, making it ideal for various outdoor applications. The fixture is DLC listed and IP65 rated, ensuring compliance with industry standards.
Key Features

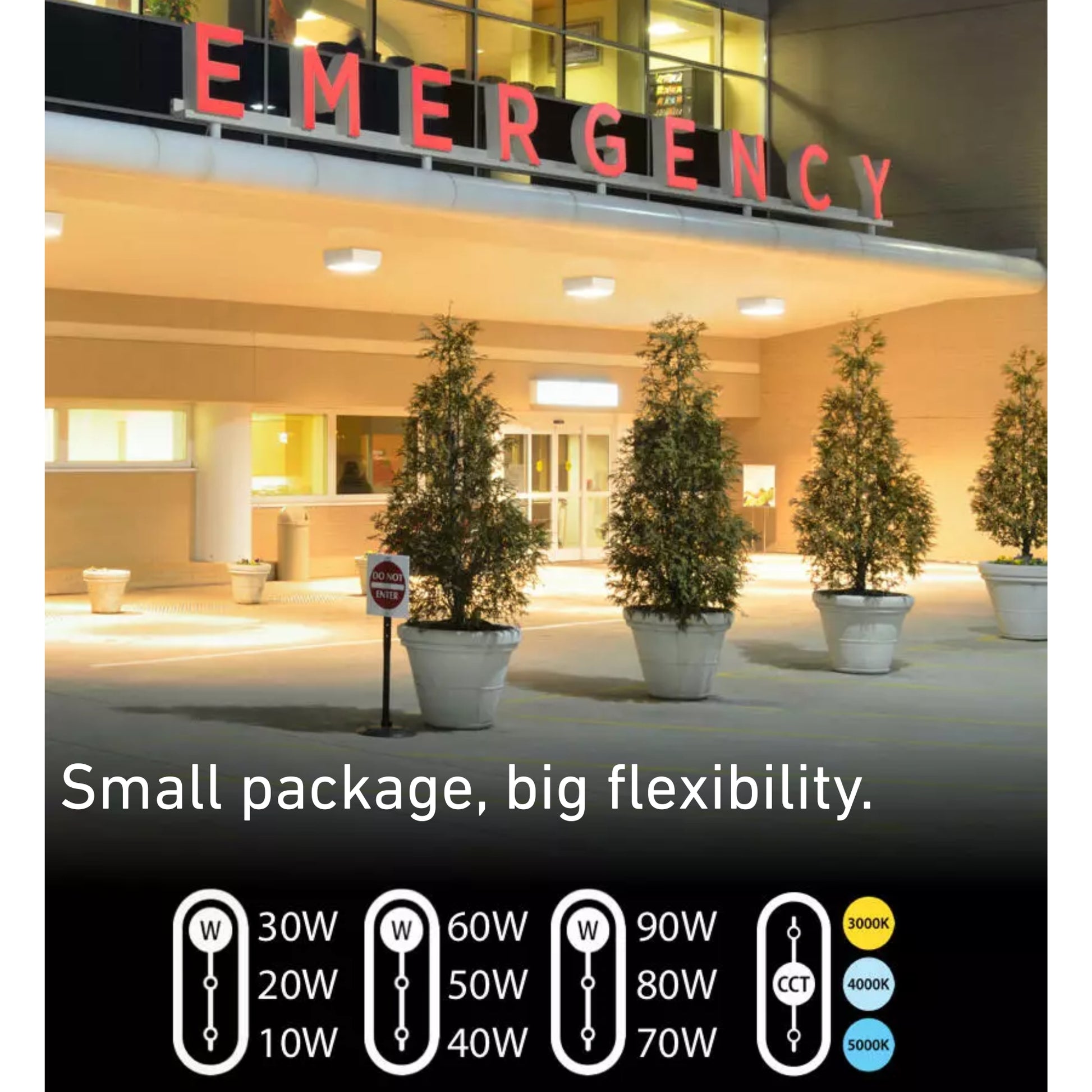

- Field Adjustability: Offers adjustable wattage settings of 30W, 20W, and 10W, with a factory default of 30W.
- Selectable CCT: Provides color temperature options of 3000K, 4000K, and 5000K, with a factory default of 4000K.
- Photocell Integration: Includes a built-in on/off photocell with a default setting of off.
- Driver Type: Features a constant current driver compatible with 120-277V, 50/60 Hz.
- Dimming Capability: Supports 0-10V dimming systems, requiring a separate dimming circuit.
- Surge Protection: Equipped with 4KV line-to-neutral and 6KV line-to-ground surge protection.
- LED Lifespan: Designed for a 100,000-hour LED lifespan based on IES LM-80 results.
- Construction: Made with a die-cast aluminum housing and a polycarbonate clear drop lens.
- Temperature Range: Operates in temperatures from -40°C to 40°C.
- Compliance: UL listed and Trade Agreements Act compliant.
Typical Applications
- Parking Garages
- Gas Stations
- Loading Docks
- Walkways
- Stairwells
- Passageways
Performance & Light Output
The fixture provides a luminous efficacy ranging from 136.6 to 152.5 lm/W, with a CRI of 83-85. It is designed to deliver consistent light output across its selectable CCT settings.
Electrical & Controls
Operates on a 120-277V input with a constant current driver. The fixture includes dimming control wiring for 0-10V systems and features built-in surge protection.
Construction & Durability
Constructed with a die-cast aluminum housing and a polycarbonate lens, the fixture is IP65 rated for dust and water ingress, ensuring durability in harsh environments.
Installation & Mounting
Designed for easy installation in canopy applications, the fixture includes all necessary mounting hardware and supports various mounting configurations.
What's Included
- Canopy Light Fixture
- Installation Hardware
- Built-in Photocell
Specifications
Specifications

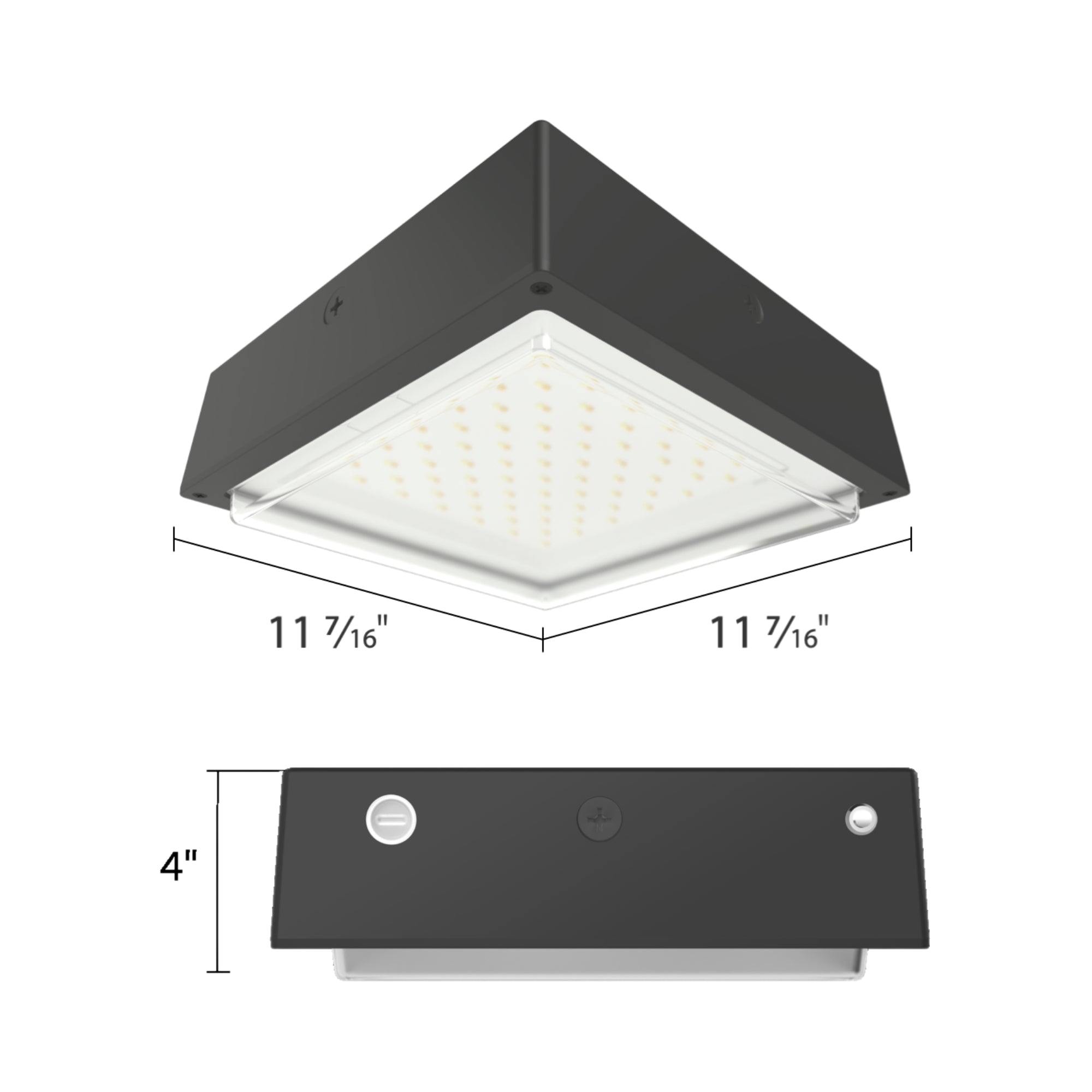

Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What wattage options are available for the RAB VAN34-30?
What wattage options are available for the RAB VAN34-30?
Is the RAB VAN34-30 suitable for wet locations?
Is the RAB VAN34-30 suitable for wet locations?
Does the RAB VAN34-30 support dimming?
Does the RAB VAN34-30 support dimming?
What is the color temperature range for the RAB VAN34-30?
What is the color temperature range for the RAB VAN34-30?
What is included with the RAB VAN34-30 canopy light?
What is included with the RAB VAN34-30 canopy light?
