RAB VAN1LED Canopy Light 6W 872 Lumens 5000K 120V White
Available in stock (100)
About this item
About this item
- Lumens: The fixture delivers 872 lumens, ensuring bright illumination for canopy applications.
- Wattage: Operates at 6 watts, providing energy-efficient lighting.
- Voltage: Compatible with 120V systems, suitable for standard installations.
- Dimming: Supports TRIAC/ELV dimming for adjustable light levels.
- Construction: Features a vandalproof polycarbonate drop lens for durability.
We process payments securely and do not store credit card information.
Description
Description

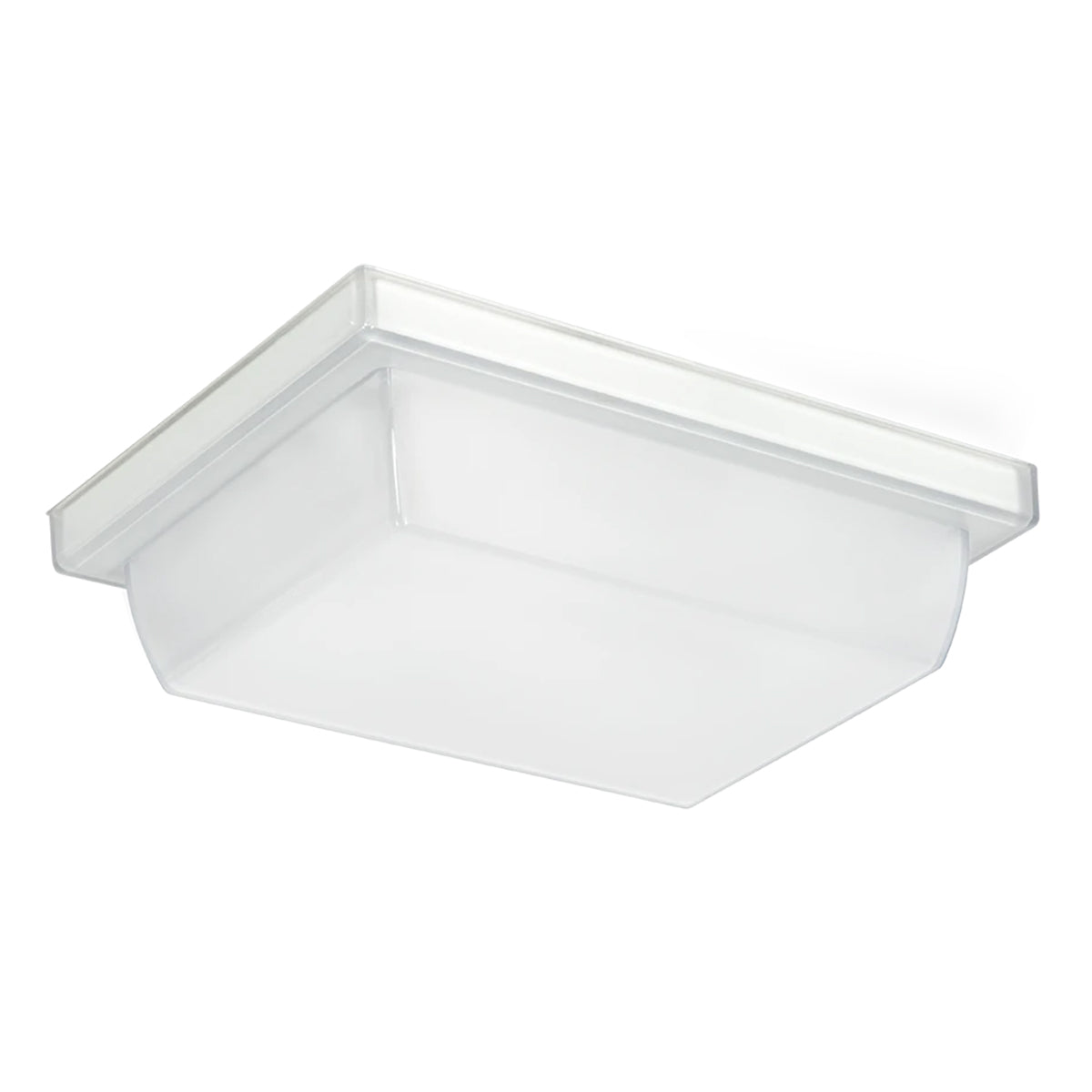

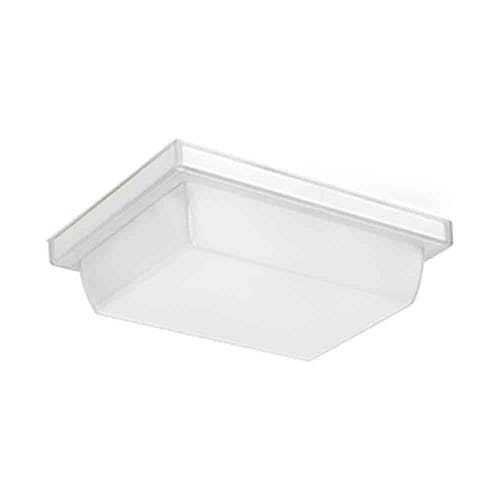

RAB VAN1LED Canopy Light - 6W Configuration
The RAB VAN1LED6W is a low-profile canopy light designed for energy efficiency and durability. Delivering 872 lumens at 6 watts, this fixture operates on 120V and is suitable for wet locations. It is DLC listed, making it eligible for utility rebates.
Key Features
- Vandalproof Design: The fixture includes a frosted polycarbonate drop lens for enhanced protection.
- Energy Efficiency: Achieves an efficacy of 124.6 lumens per watt, reducing energy consumption.
- Color Temperature: Emits a cool white light at 5000K, ideal for visibility.
- Durable Housing: Constructed with precision steel housing for long-lasting use.
- Surge Protection: Equipped with 2.5KV surge protection for electrical safety.
- High CRI: Offers a color rendering index of 85 for accurate color representation.
- Long Lifespan: Rated for 50,000 hours, minimizing maintenance needs.
- Environmentally Friendly: Mercury and UV free, complying with RoHS standards.
- Cold Weather Performance: Operates in temperatures as low as -30°C (-22°F).
- Mounting: Ceiling mount with a recessed junction box and tamperproof screws.
Typical Applications
- Parking Garages
- Underpasses
- Loading Docks
- Canopies
- Walkways
Performance & Light Output
The fixture provides 872 lumens with an efficacy of 124.6 LPW and a CRI of 85, ensuring bright and accurate lighting. It is designed to last 50,000 hours, reducing the need for frequent replacements.
Electrical & Controls
Operating at 120V, the VAN1LED6W includes a constant current driver and supports TRIAC/ELV dimming. It features a power factor of 99.4% and 2.5KV surge protection.
Construction & Durability
Built with a precision steel housing and a vandalproof polycarbonate lens, this fixture is suitable for wet locations and can withstand harsh environments. It is finished with a durable polyester powder coating.
Installation & Mounting
Designed for ceiling mounting, the fixture includes a knockout template for easy installation and tamperproof screws for security.
What's Included
- VAN1LED6W Canopy Light
- Installation Instructions
Specifications
Specifications

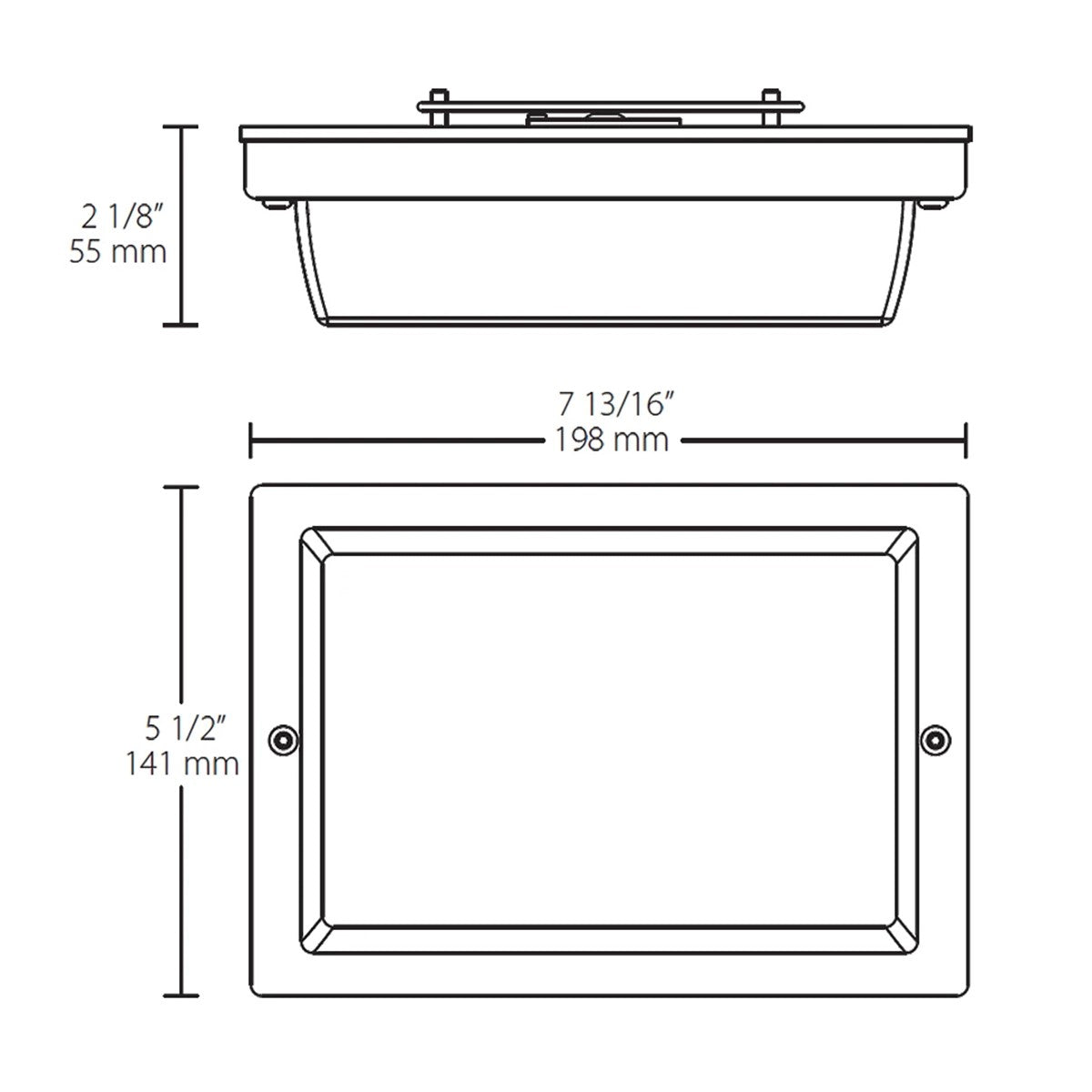

Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
