RAB VAN1LED Canopy Light 1400 Lumens 12W 4000K 120V White
Available in stock (200)
About this item
About this item
- Lumens: The fixture delivers 1,464 lumens, providing ample illumination for canopy applications.
- Wattage: Operates at 12 watts, ensuring energy efficiency and cost savings.
- Voltage: Compatible with 120V systems, suitable for standard installations.
- Dimmable: Supports TRIAC/ELV dimming, allowing for customizable light levels.
- Durability: Features a vandalproof polycarbonate lens for enhanced protection.
We process payments securely and do not store credit card information.
Description
Description

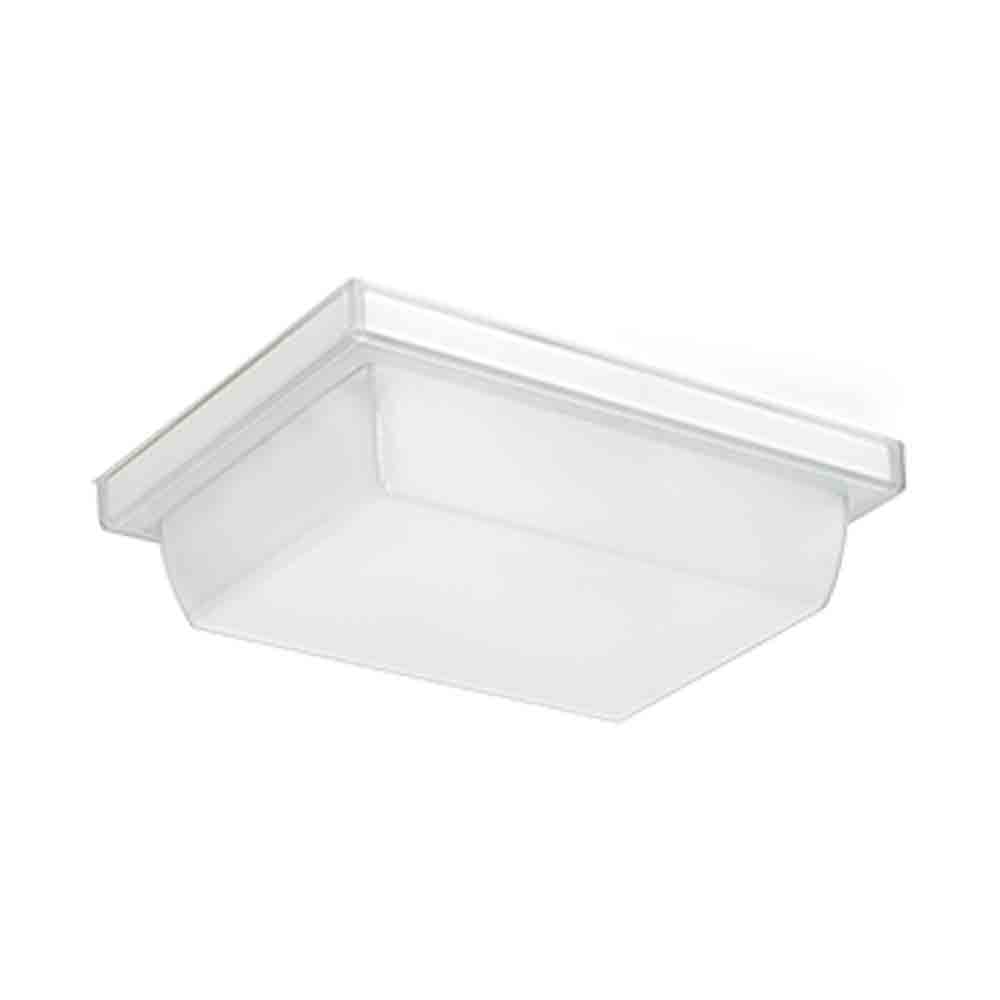

RAB VAN1LED Canopy Light - 12W Configuration
The RAB VAN1LED12NW is a canopy light designed to replace traditional incandescent luminaires, offering significant energy savings. This fixture operates at 12 watts and delivers 1,464 lumens with a 4000K color temperature. It is suitable for 120V systems and is DLC listed for energy efficiency.
Key Features
- Vandalproof Design: Equipped with a frosted polycarbonate drop lens to prevent damage.
- Energy Efficiency: Provides 124.1 lumens per watt, maximizing light output while minimizing power consumption.
- Color Accuracy: Features an 83 CRI for accurate color rendering.
- Lifespan: Offers a 50,000-hour lifespan based on IES LM-80 results.
- Surge Protection: Includes 2.5kV surge protection for enhanced reliability.
- Construction: Made with precision steel housing for durability.
- Mounting: Designed for ceiling mount with tamperproof screws.
- Environmental Rating: UL listed for wet locations, suitable for covered ceiling mount only.
- Green Technology: Mercury and UV free, RoHS-compliant components.
- Optional Controls: Compatible with occupancy sensors for additional energy savings.
Typical Applications
- Parking Garages
- Gas Stations
- Loading Docks
- Underpasses
- Walkways
Performance & Light Output
The fixture emits 1,464 lumens with an efficacy of 124.1 LPW and a CRI of 83. It maintains color stability and uniformity according to ANSI standards.
Electrical & Controls
Operates on 120V with a constant current driver. Supports TRIAC/ELV dimming and includes 2.5kV surge protection. Power factor is 99.4% at 120V.
Construction & Durability
Constructed with precision steel housing and a vandalproof polycarbonate lens. Rated for wet locations with a maximum ambient temperature of 45°C.
Installation & Mounting
Ceiling mountable with a recessed junction box and tamperproof screws. Includes a knockout template for easy installation.
What's Included
- VAN1LED Canopy Light
- Installation Instructions
- Tamperproof Screws
Specifications
Specifications

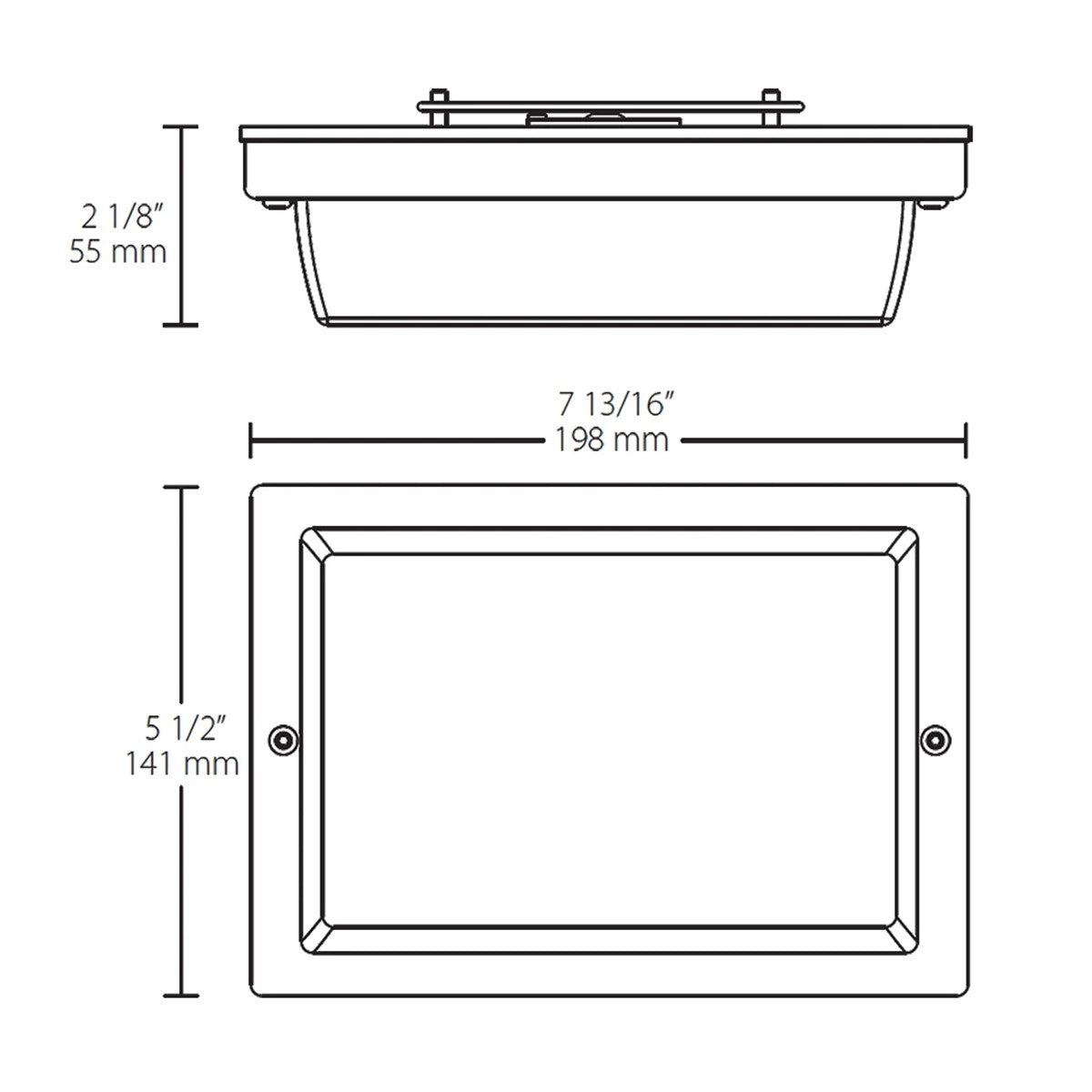

Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the wattage of the RAB VAN1LED12NW?
What is the wattage of the RAB VAN1LED12NW?
Is the RAB VAN1LED12NW dimmable?
Is the RAB VAN1LED12NW dimmable?
What is the lumen output of the RAB VAN1LED12NW?
What is the lumen output of the RAB VAN1LED12NW?
What voltage is required for the RAB VAN1LED12NW?
What voltage is required for the RAB VAN1LED12NW?
Is the RAB VAN1LED12NW suitable for outdoor use?
Is the RAB VAN1LED12NW suitable for outdoor use?
