RAB VAN17 3-Way Adjustable Canopy Light 13000 Lumens 90W Selectable CCT 120-277V Bronze
Available in stock (100)
About this item
About this item
- Wattage: The fixture supports field-adjustable wattage settings of 90W, 80W, and 70W.
- Lumens: Delivers between 9,726 and 12,929 lumens for optimal illumination.
- Color Temperature: Features selectable CCT options of 3000K, 4000K, and 5000K.
- Ingress Protection: Rated IP65 for protection against dust and water ingress.
- Dimming Capability: Equipped with a 0-10V dimming driver for adjustable light output.
We process payments securely and do not store credit card information.
Description
Description

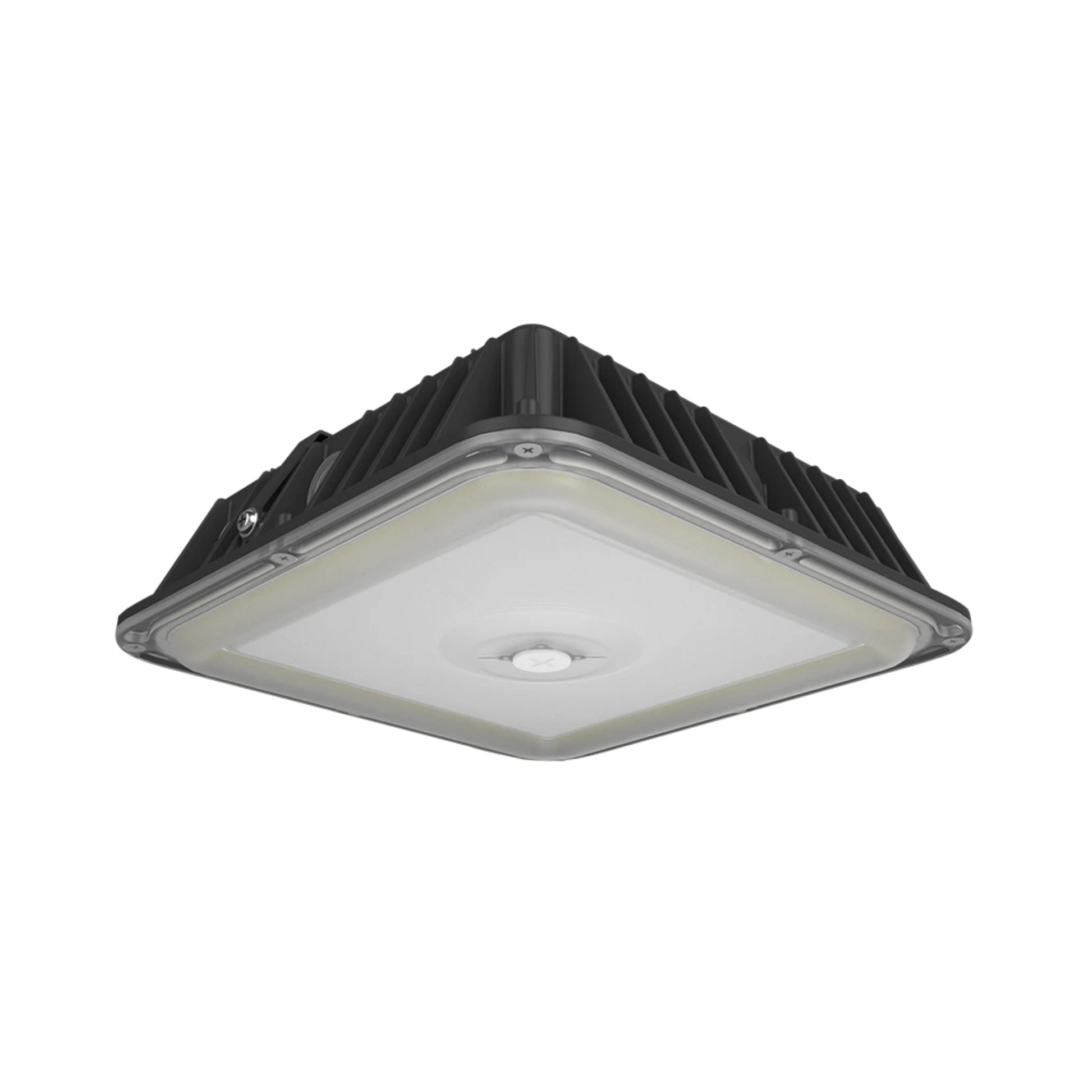

RAB VAN17 3-Way Adjustable Canopy Light - 90W Configuration
The RAB VAN17-90 is a versatile canopy light offering 90W power with 13000 lumens output and 120-277V input voltage. This fixture is ideal for various applications, featuring selectable CCT and a built-in photocell. It is DLC Premium listed, ensuring high efficiency and rebate eligibility.
Key Features
- Field Adjustability: Offers wattage settings of 90W, 80W, and 70W for tailored performance.
- Selectable CCT: Choose from 3000K, 4000K, or 5000K to suit different environments.
- Photocell Integration: Built-in on/off photocell for automatic dusk-to-dawn operation.
- Durable Construction: Made with precision die-cast aluminum housing and vandal-resistant polycarbonate lens.
- High Efficacy: Achieves up to 154.5 lm/W for energy-efficient lighting.
- Long Lifespan: Designed for a 100,000-hour LED lifespan.
- Surge Protection: Equipped with 4kV L-N and 6kV L/N-PE surge protection.
- Compliance: UL Listed for wet locations and complies with IESNA LM-79 and LM-80 testing standards.
- Green Technology: Mercury and UV free, with RoHS-compliant components.
Typical Applications
- Parking Garages
- Stairwells
- Passageways
- Industrial Facilities
- Commercial Buildings
Performance & Light Output
The fixture provides a lumen output range of 9,726 to 12,929 lumens with an efficacy of 135.7 to 154.5 lm/W. It features a BUG rating of B3 U0 G3.
Electrical & Controls
Operates on a 120-277V constant current driver with 0-10V dimming capability. Includes built-in photocell and surge protection.
Construction & Durability
Constructed with a die-cast aluminum housing and a vandal-resistant polycarbonate lens. Rated for IP65 and suitable for temperatures from -40°C to 50°C.
Installation & Mounting
Includes retrofit mounting plates for ceiling installation. Compatible with various mounting accessories.
What's Included
- RAB VAN17-90 Canopy Light
- Mounting Hardware
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What wattage options does the RAB VAN17-90 offer?
What wattage options does the RAB VAN17-90 offer?
Is the RAB VAN17-90 suitable for outdoor use?
Is the RAB VAN17-90 suitable for outdoor use?
Does the RAB VAN17-90 support dimming?
Does the RAB VAN17-90 support dimming?
What is the lifespan of the RAB VAN17-90 LED fixture?
What is the lifespan of the RAB VAN17-90 LED fixture?
What color temperature options are available for the RAB VAN17-90?
What color temperature options are available for the RAB VAN17-90?
