RAB Lighting VAN17 3-Way Adjustable Canopy Light 9000 Lumens 60W Selectable CCT 120-277V White
Available in stock (200)
About this item
About this item
- Wattage Options: Field adjustable wattage settings of 60W, 50W, or 40W for flexible light output.
- Color Temperature: Selectable CCT of 3000K, 4000K, or 5000K to suit various environments.
- Ingress Protection: Rated IP65, ensuring protection against dust and water ingress.
- Dimming Capability: Includes 0-10V dimming for customizable light levels.
- Durability: Constructed with a die-cast aluminum housing and vandal-resistant polycarbonate lens.
We process payments securely and do not store credit card information.
Description
Description

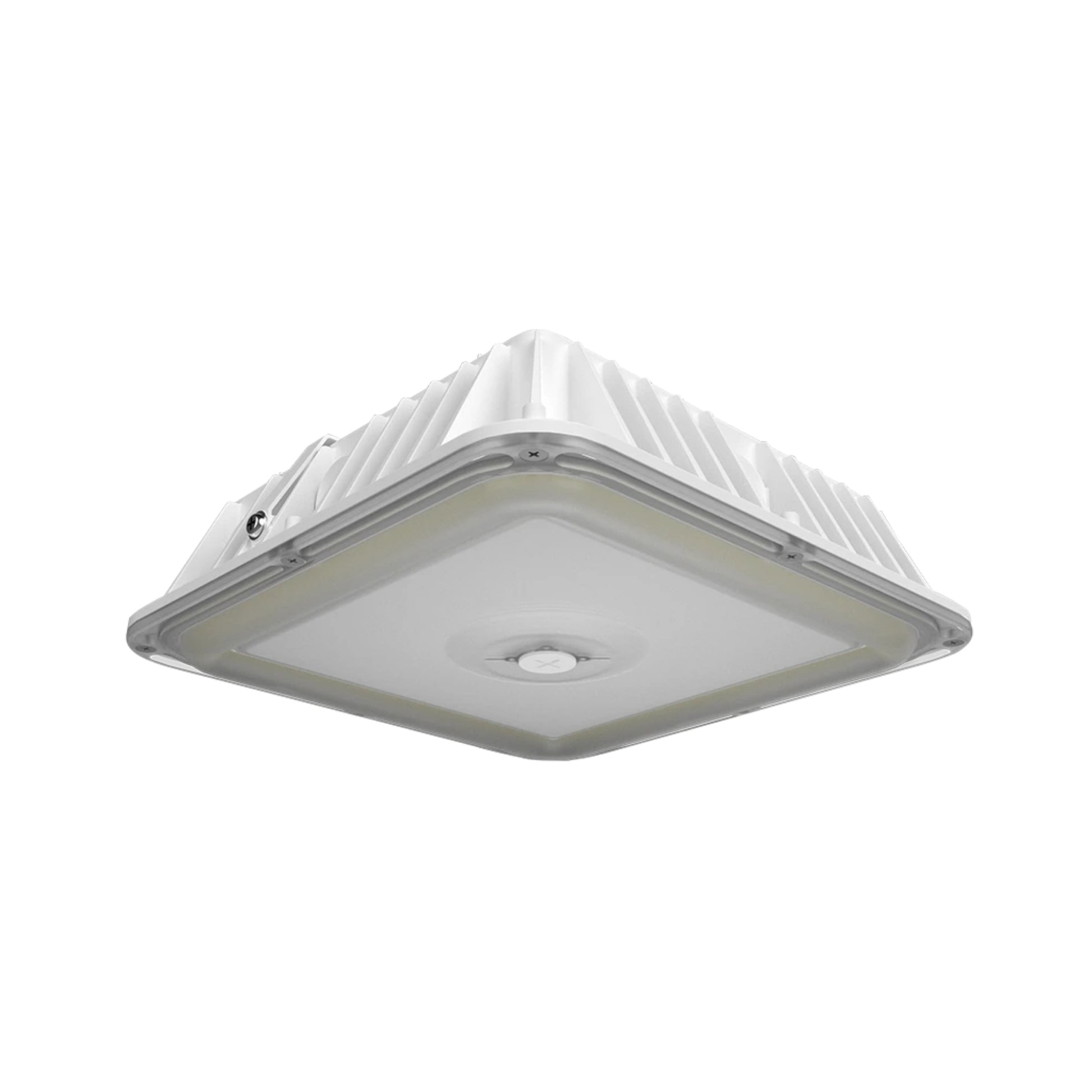

RAB Lighting VAN17 3-Way Adjustable Canopy Light - 60W Configuration
The RAB Lighting VAN17-60W is a versatile canopy light offering 60 watts of power, delivering up to 9000 lumens. It operates on a 120-277V input and features selectable color temperatures of 3000K, 4000K, and 5000K. This fixture is ideal for wet locations and is IP65 rated, making it suitable for various outdoor applications.
Key Features
- Field Adjustable Wattage: Choose between 60W, 50W, or 40W to meet specific lighting needs.
- Selectable CCT: Offers 3000K, 4000K, and 5000K options for different lighting environments.
- Photocell Integration: Built-in on/off photocell with a default off setting for energy efficiency.
- High Efficacy: Achieves an efficacy of 135.4-157.2 lm/W for energy savings.
- Long Lifespan: Designed for a 100,000-hour LED lifespan based on IES LM-80 results.
- UL Listed: Suitable for wet locations, ensuring reliability in outdoor settings.
- DLC Listed: Qualifies for rebates from DLC Member Utilities as a premium product.
- Surge Protection: Equipped with 4kV L-N and 6kV L/N-PE surge protection.
- Construction: Features a die-cast aluminum housing and vandal-resistant lens.
- Green Technology: Mercury and UV free, with RoHS-compliant components.
Typical Applications
- Parking Garages
- Stairwells
- Passageways
- Loading Docks
- Outdoor Canopies
Performance & Light Output
The fixture provides a lumen output range of 5,736 to 8,806 lumens, with an efficacy of 135.4 to 157.2 lm/W. It features a BUG rating of B3 U0 G2 at its highest wattage setting.
Electrical & Controls
Operates on a 120-277V input with a constant current driver. Includes 0-10V dimming capabilities and built-in surge protection. The fixture supports a photocell for automatic on/off control.
Construction & Durability
Constructed with a precision die-cast aluminum housing and a vandal-resistant polycarbonate lens. Rated for operation in temperatures from -40°C to 50°C.
Installation & Mounting
Designed for retrofit ceiling mounting with included plates. Suitable for various canopy applications.
What's Included
- VAN17-60W Canopy Light
- Installation Hardware
